GATE CS Digital Logic Handwritten Notes

Digital Logic is one of the most scoring and predictable subjects in GATE Computer Science, usually worth about 5 to 7 marks in the paper. It is part of the core CS section and forms the base for Computer Organization and Architecture. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

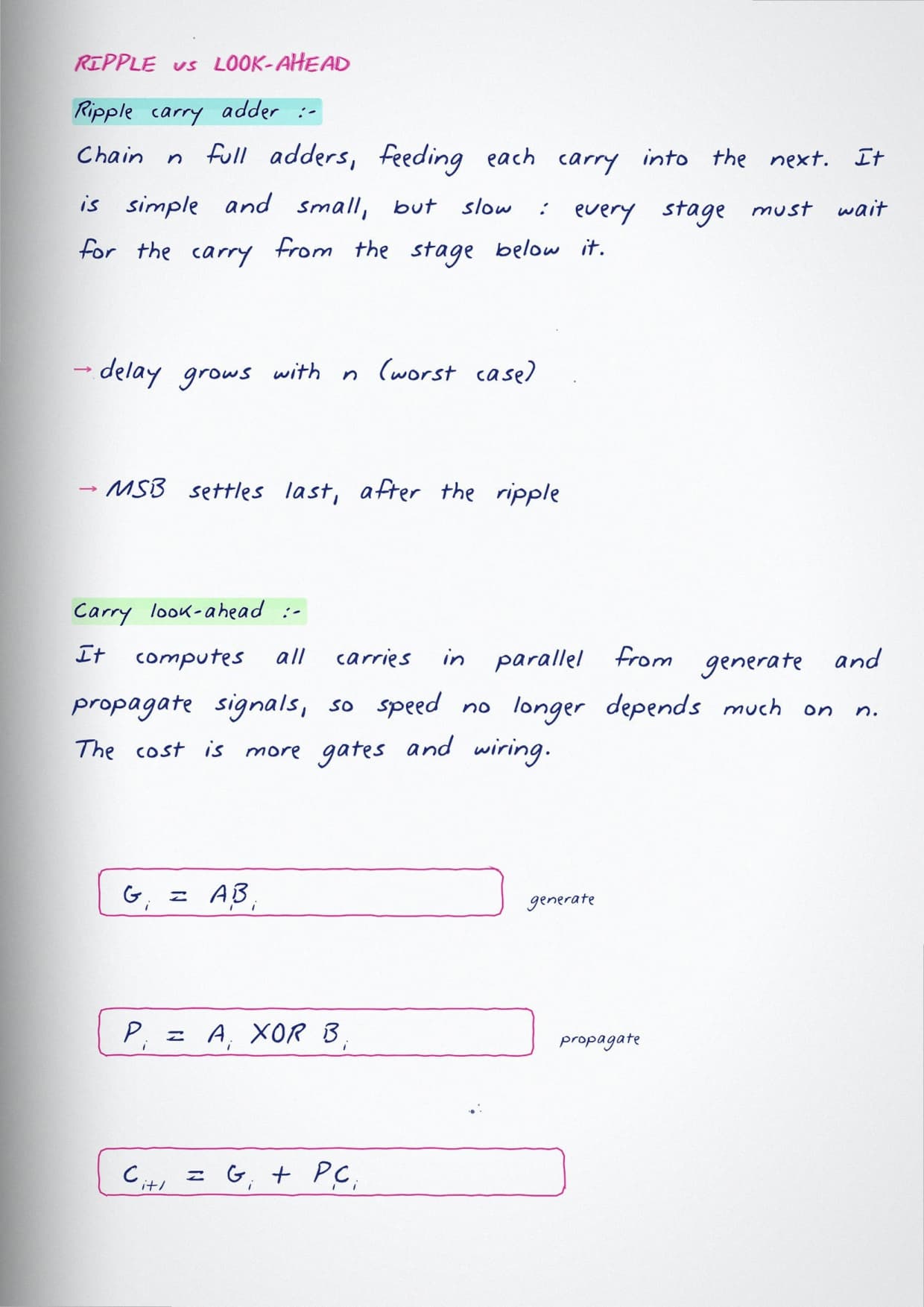

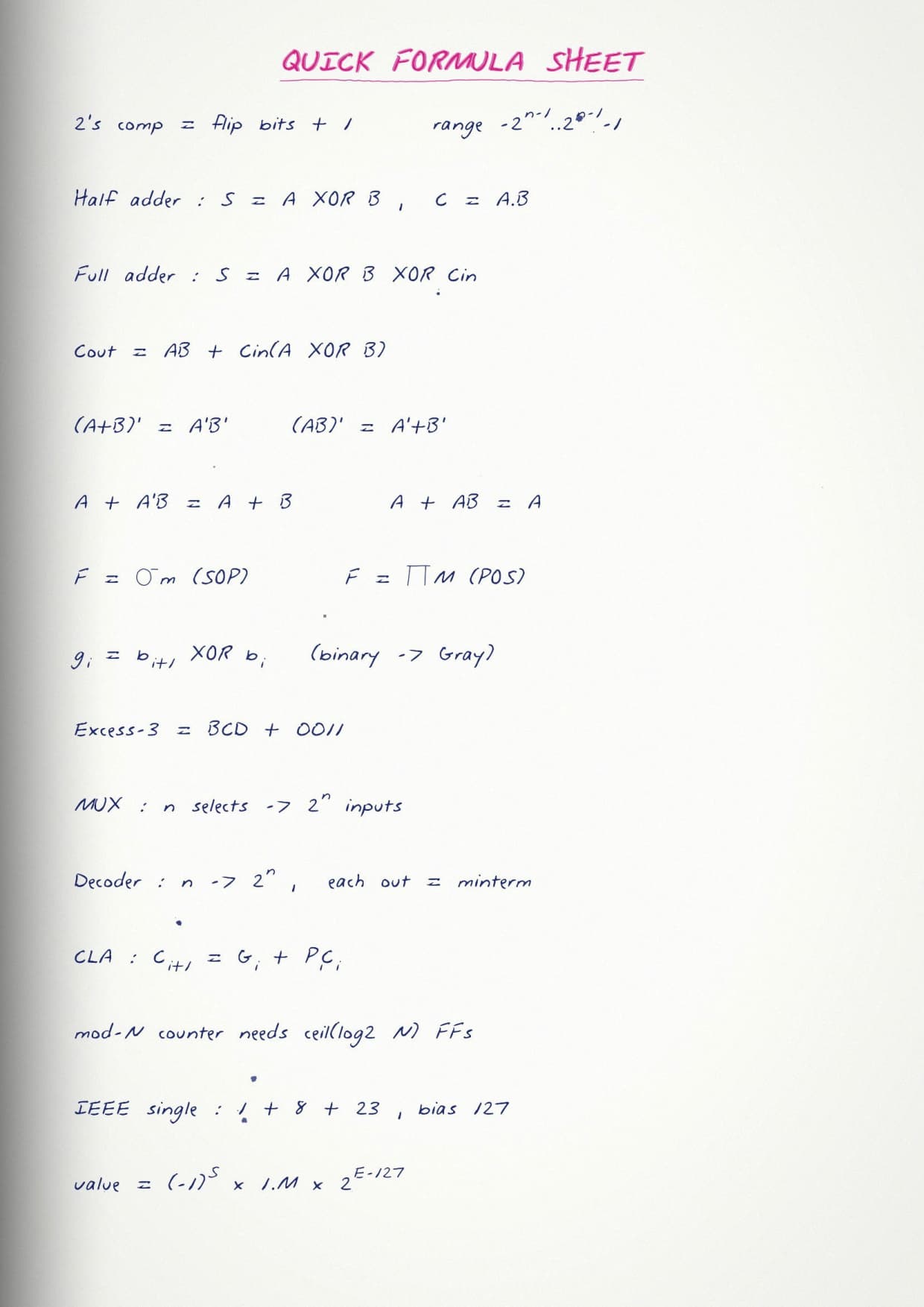

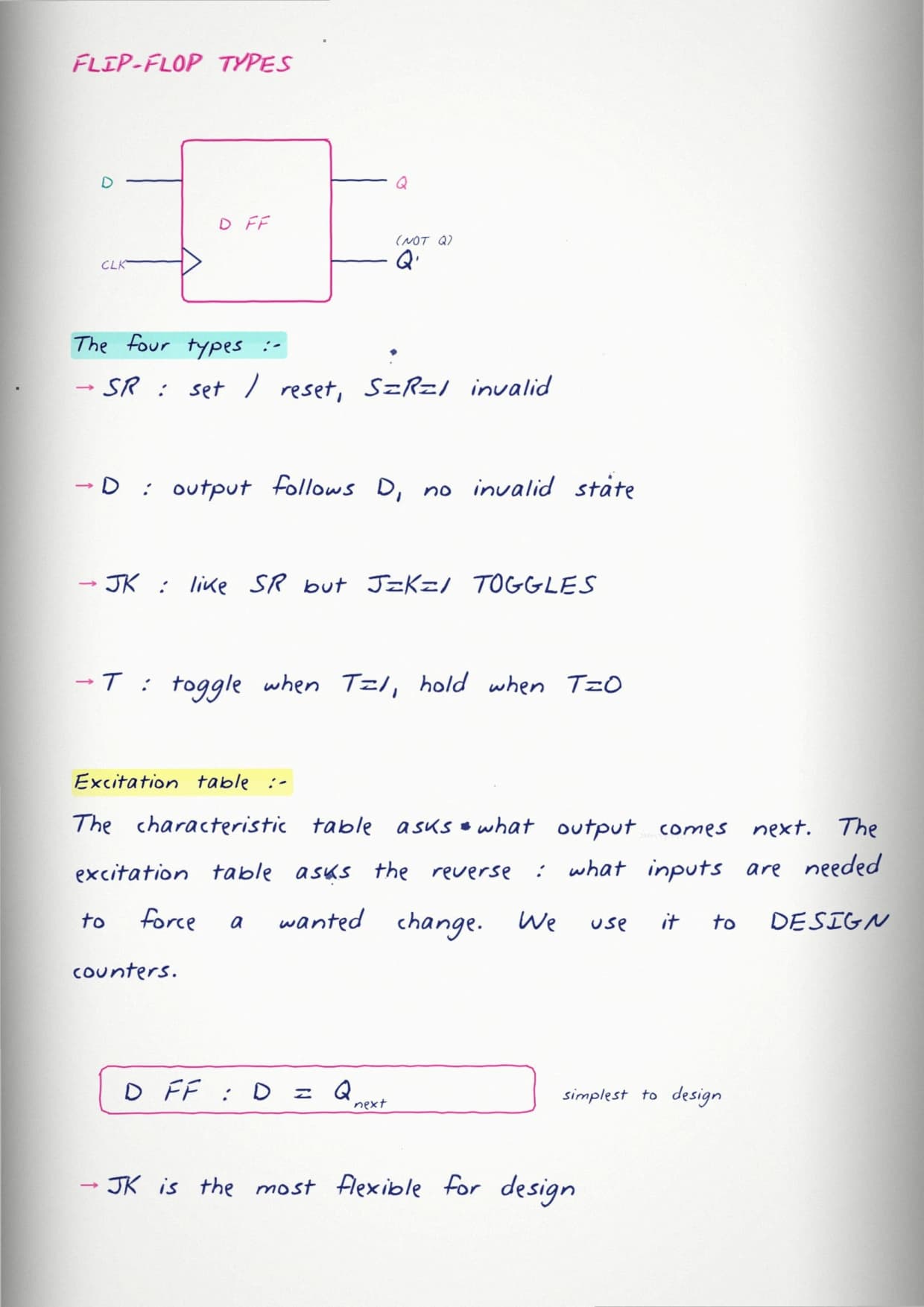

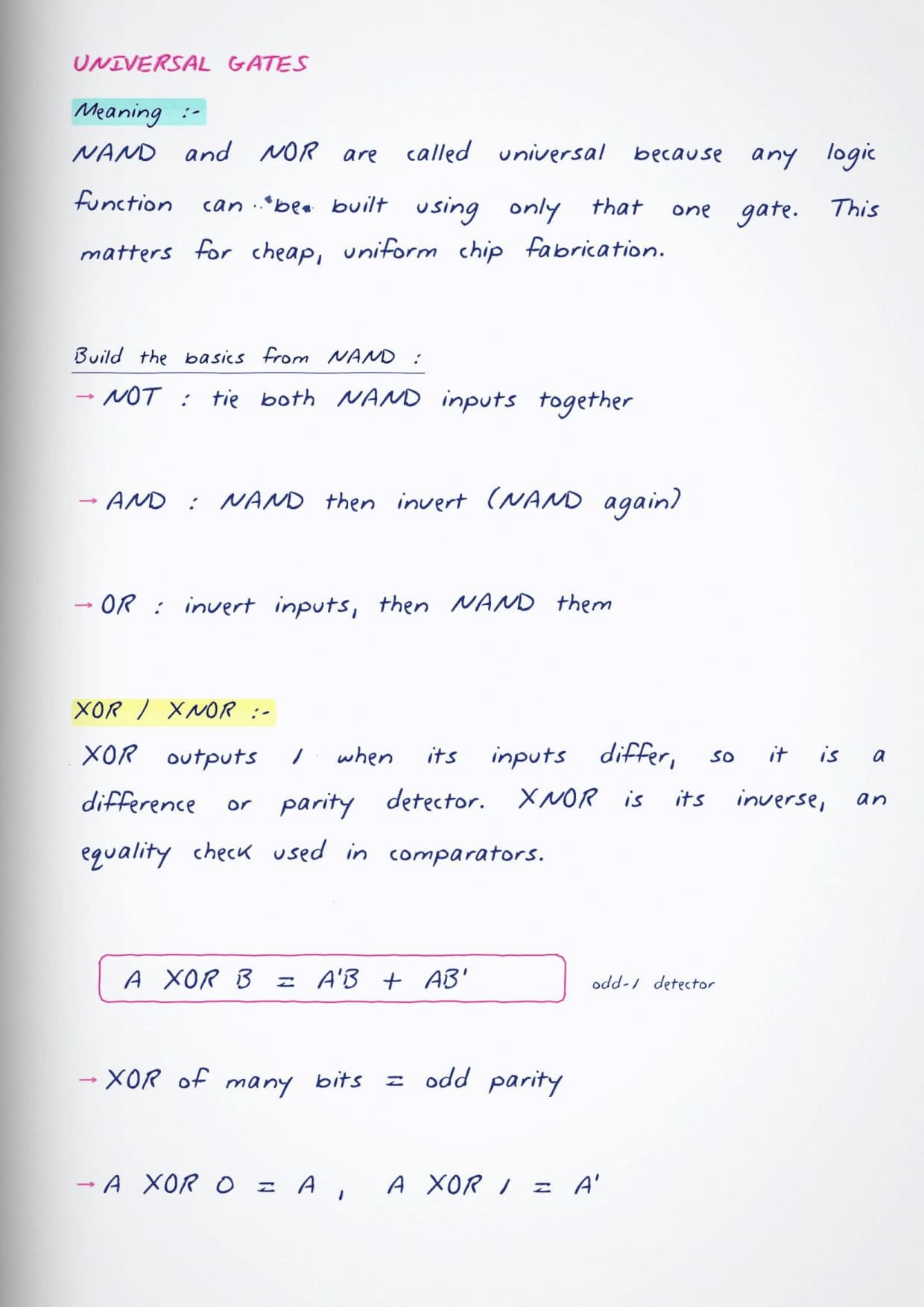

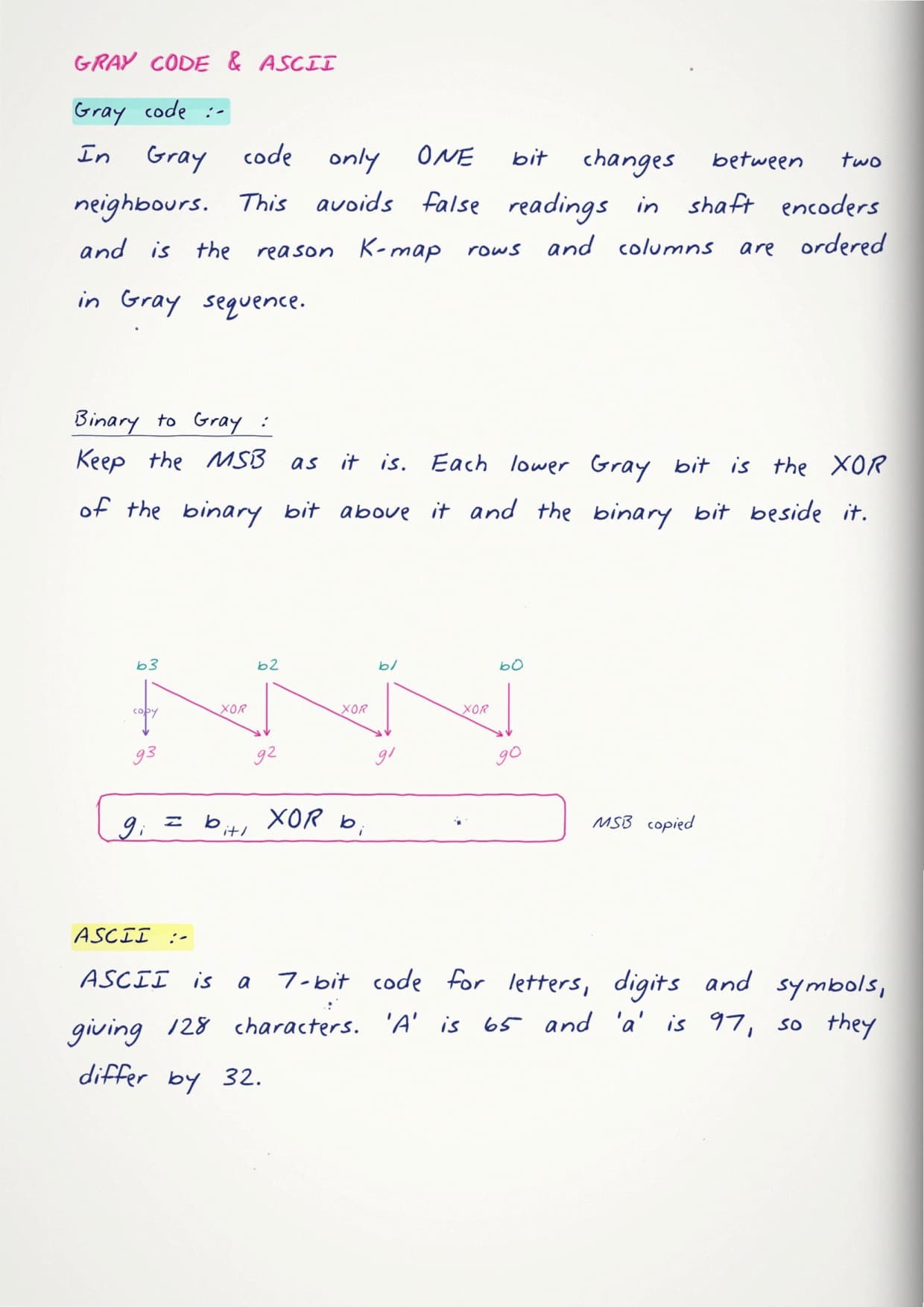

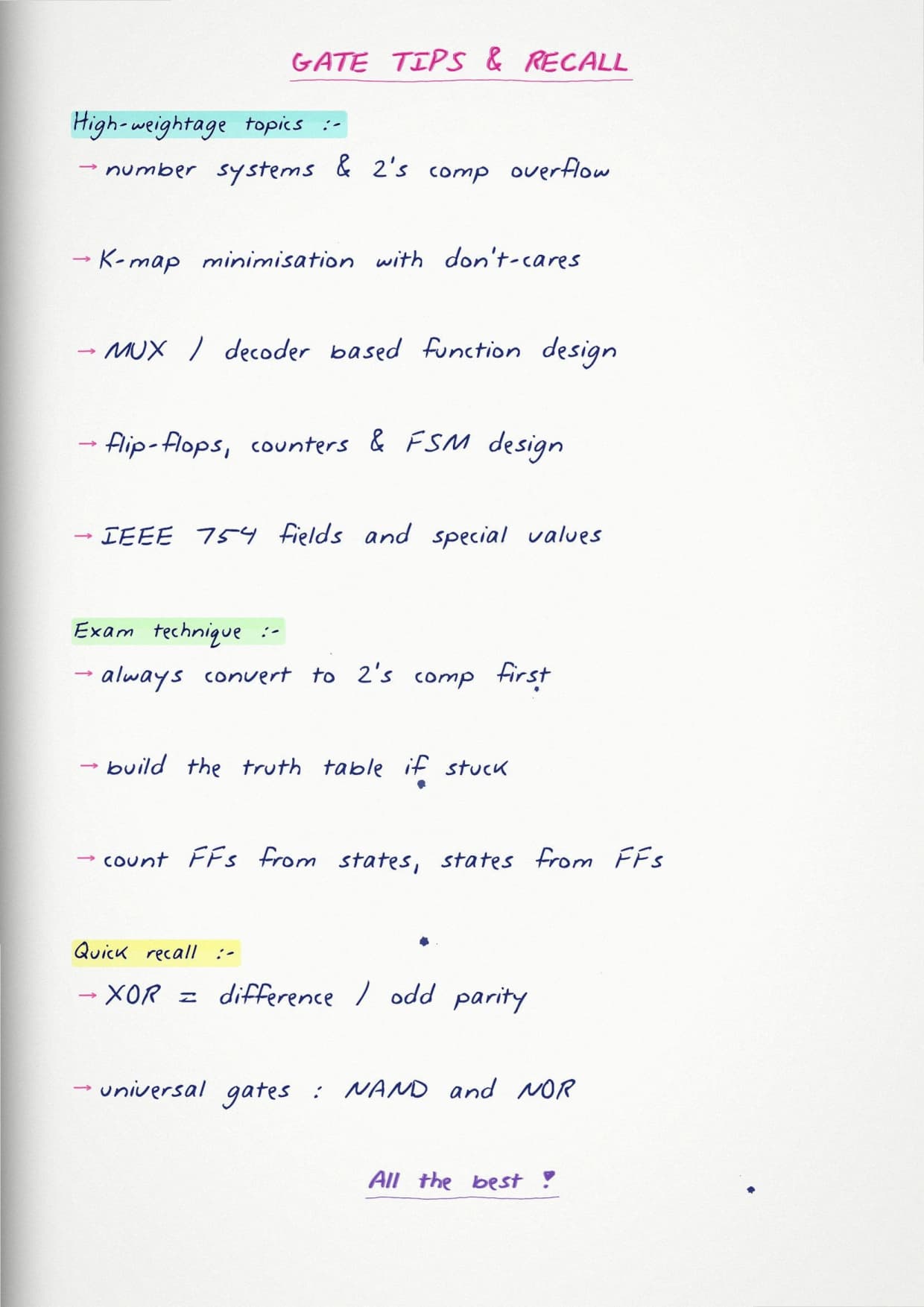

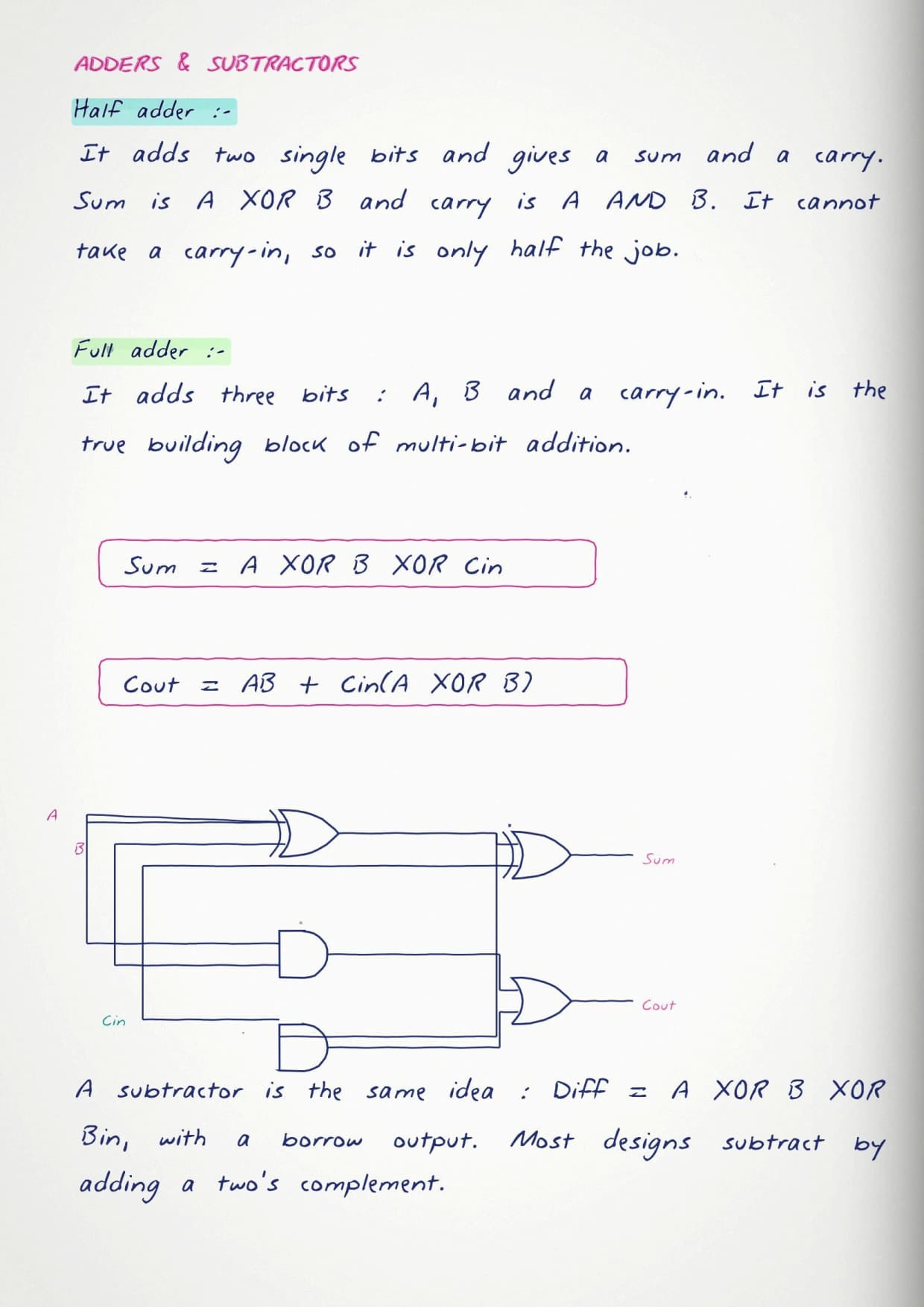

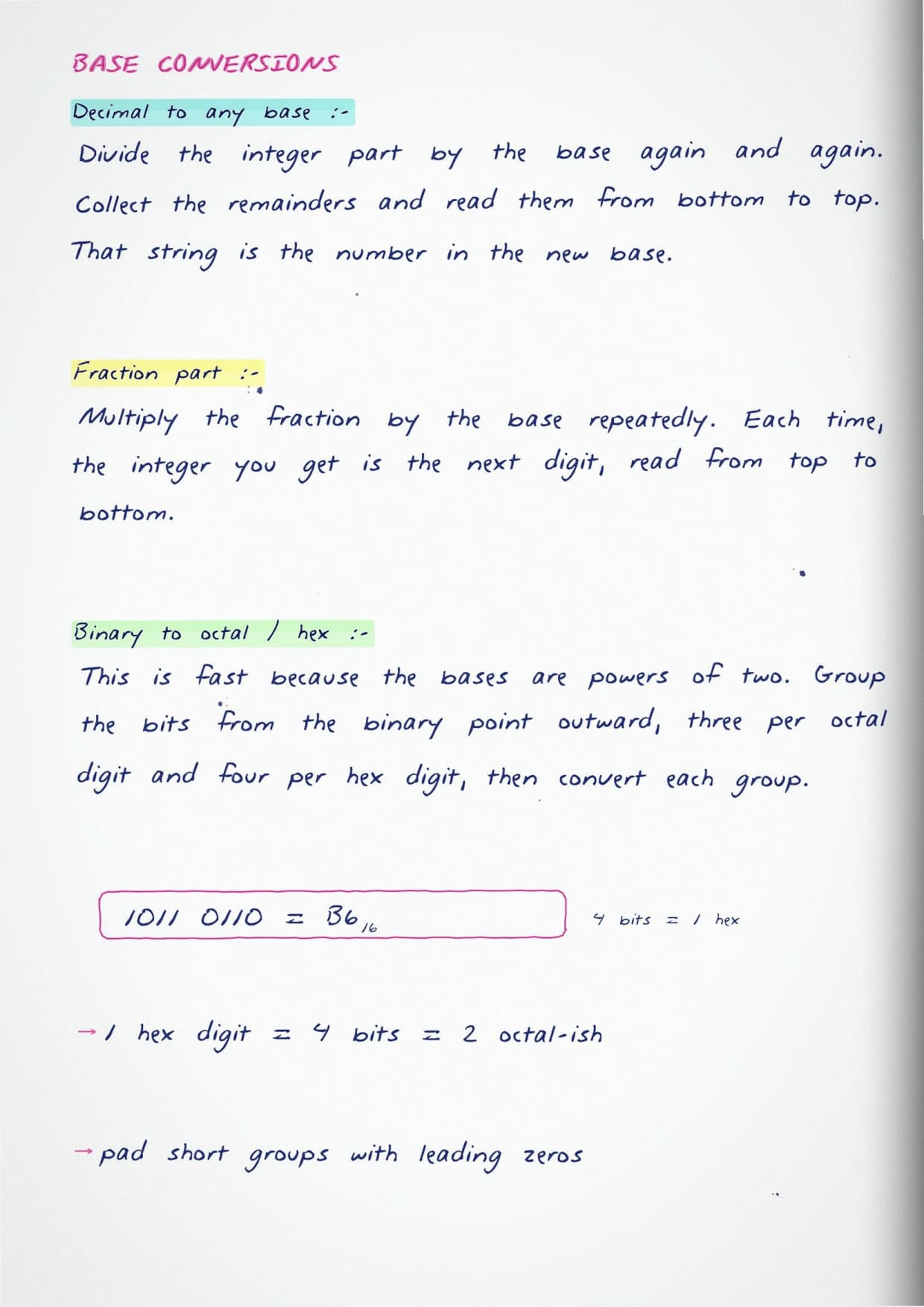

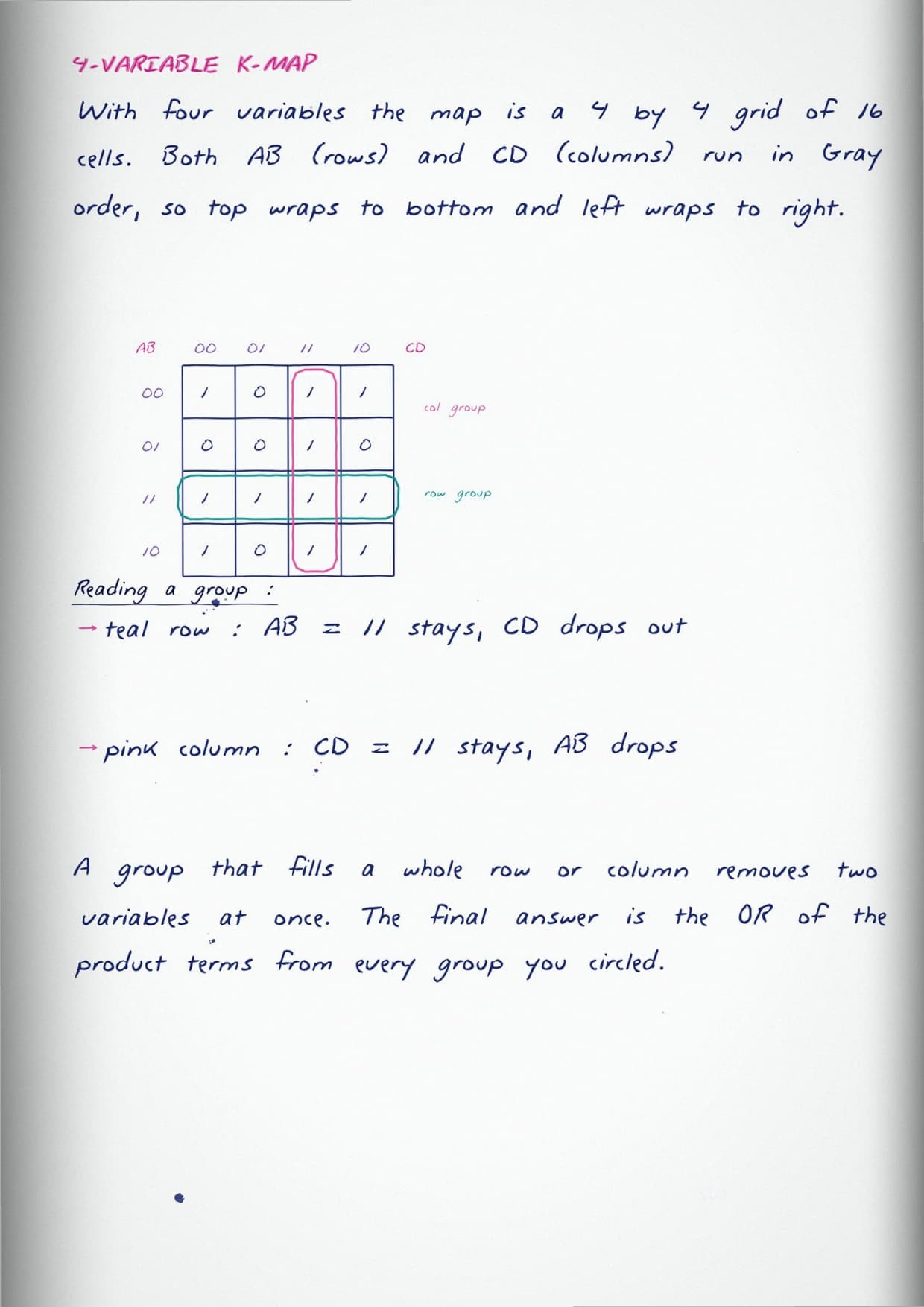

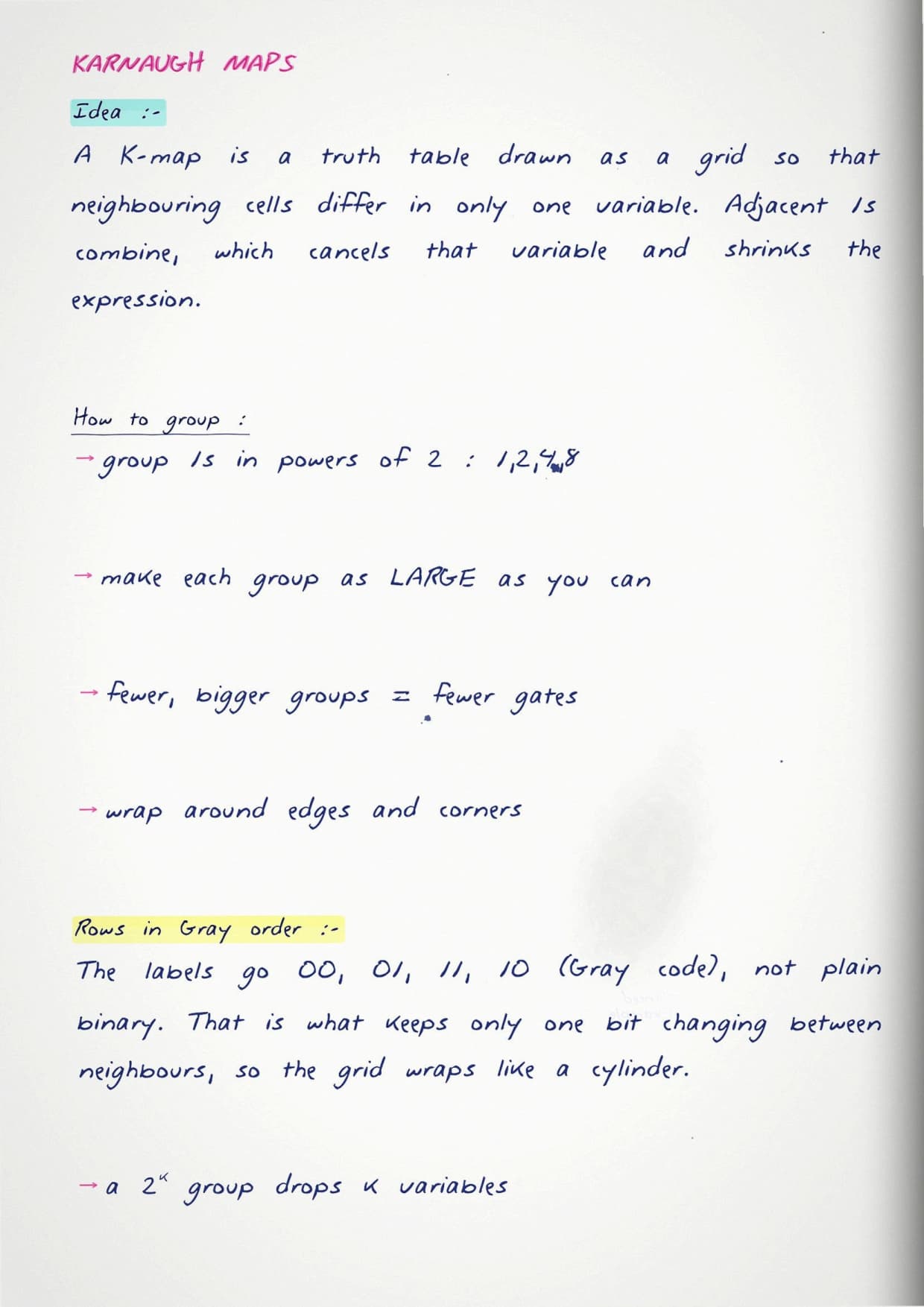

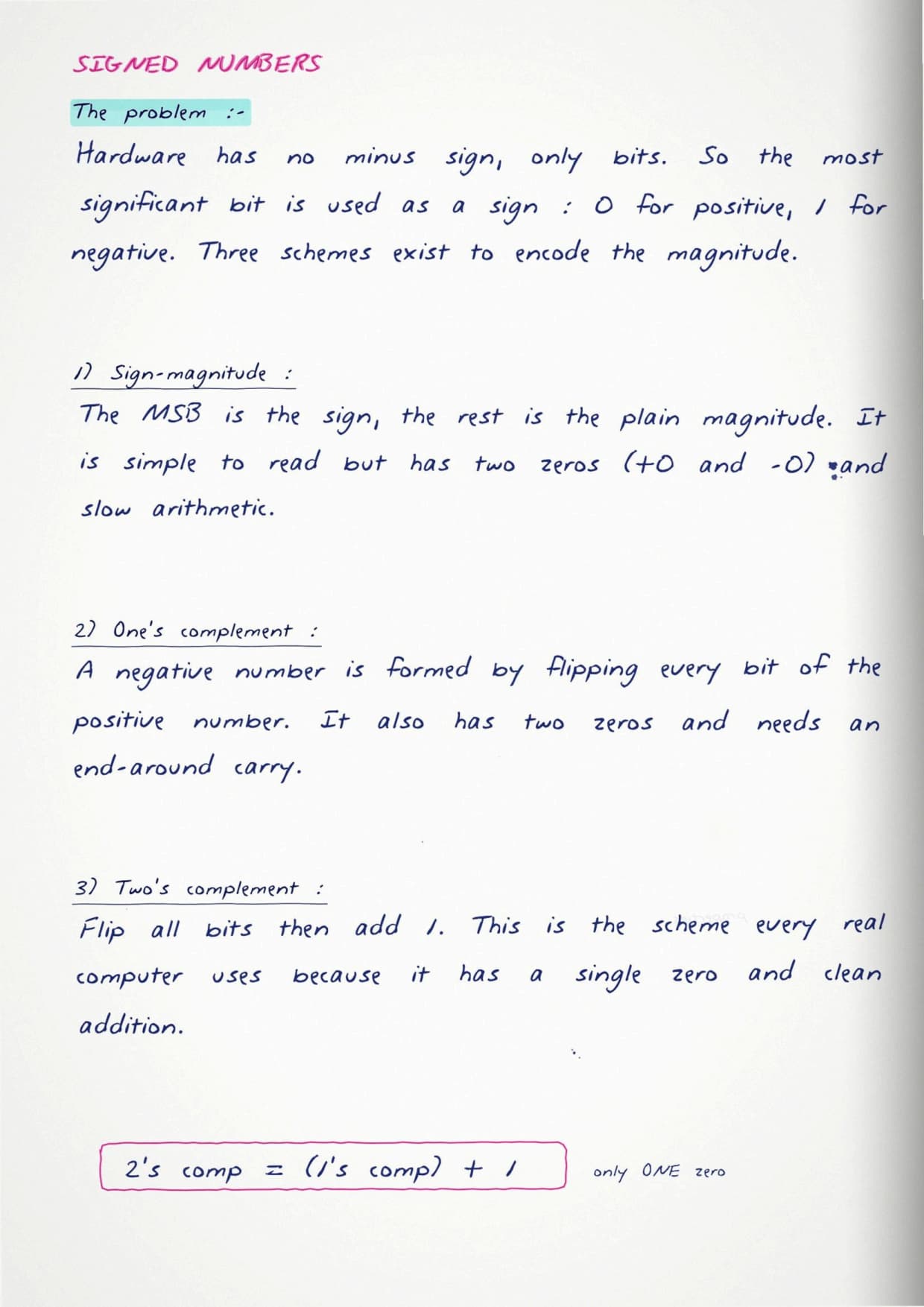

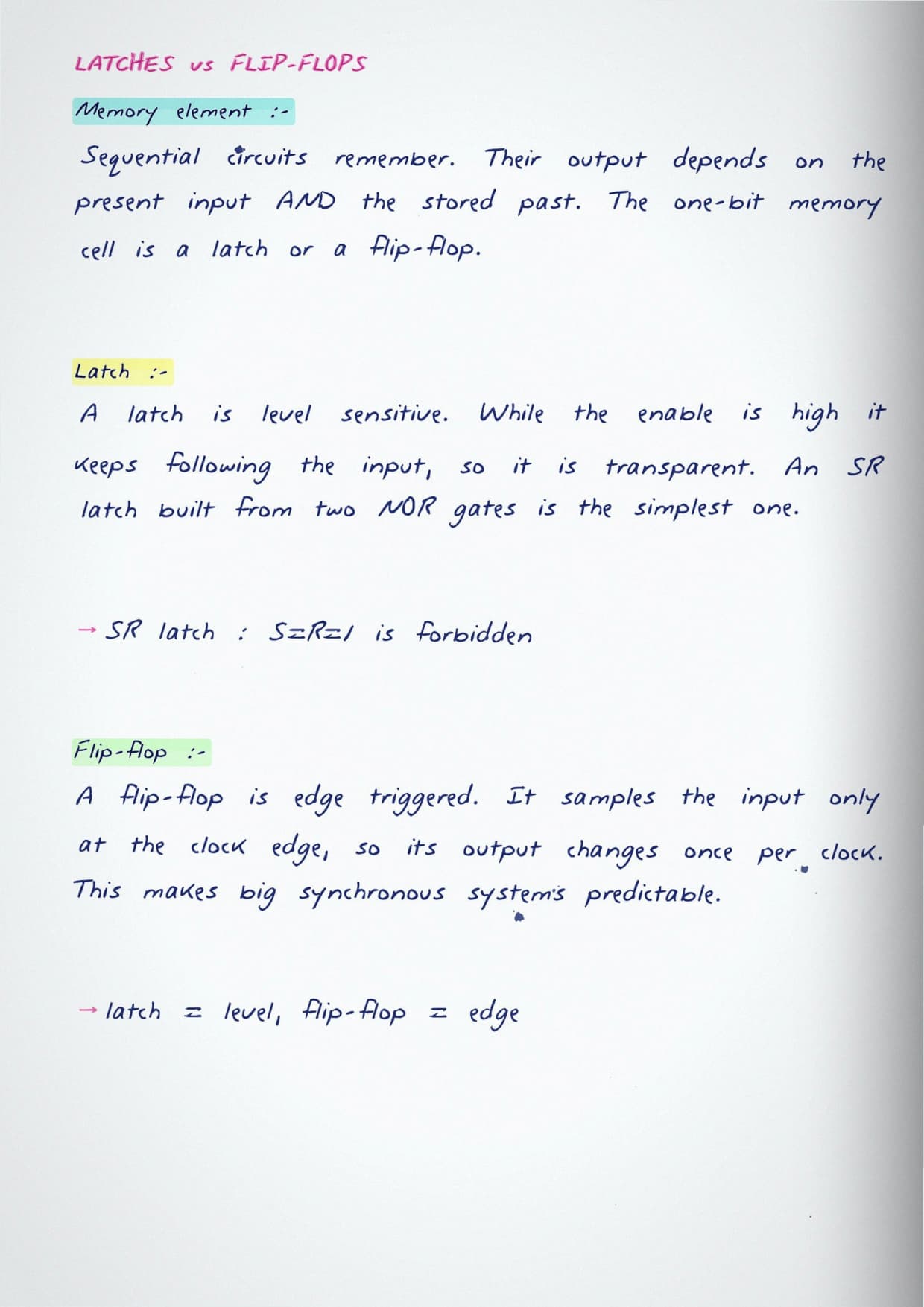

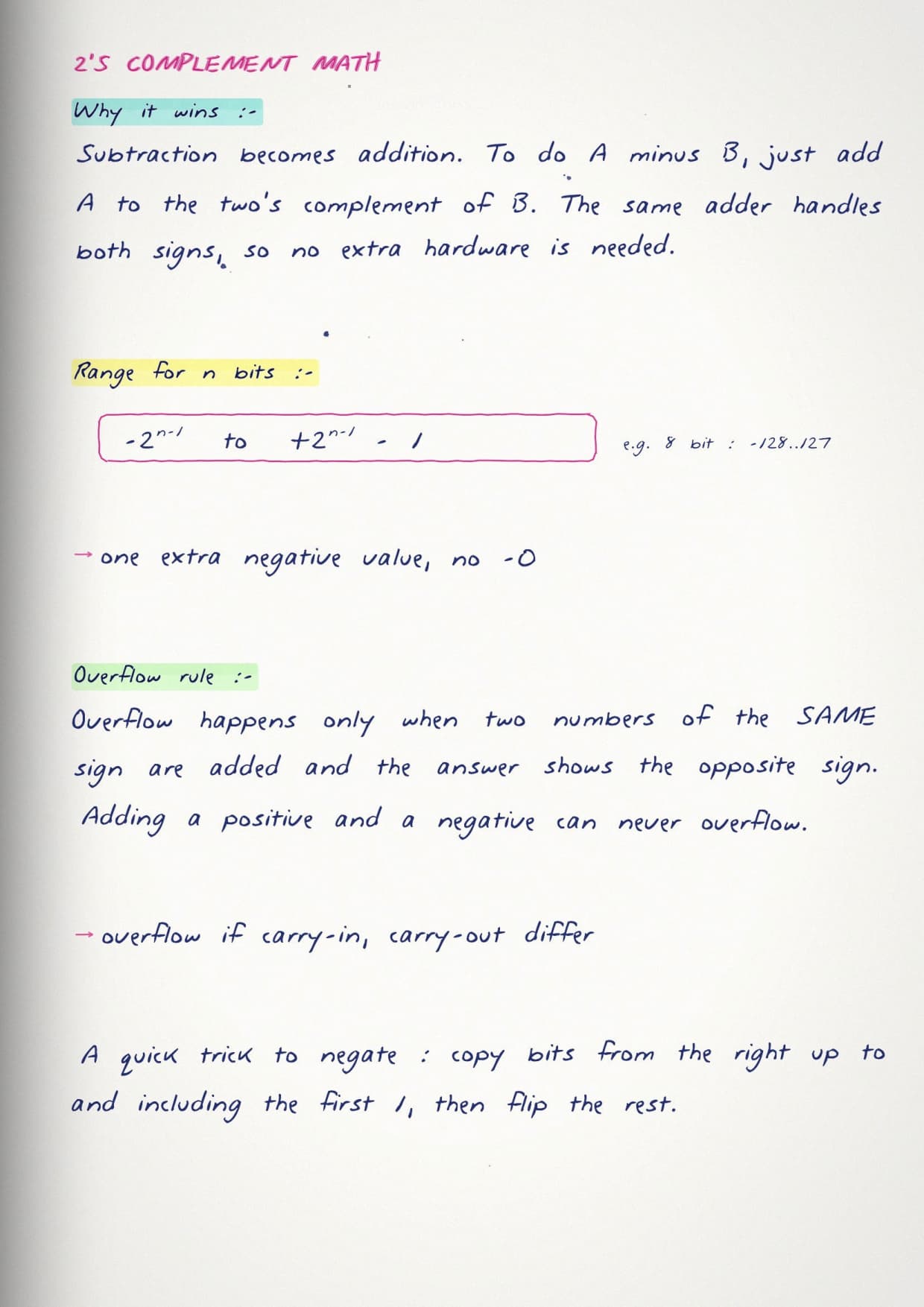

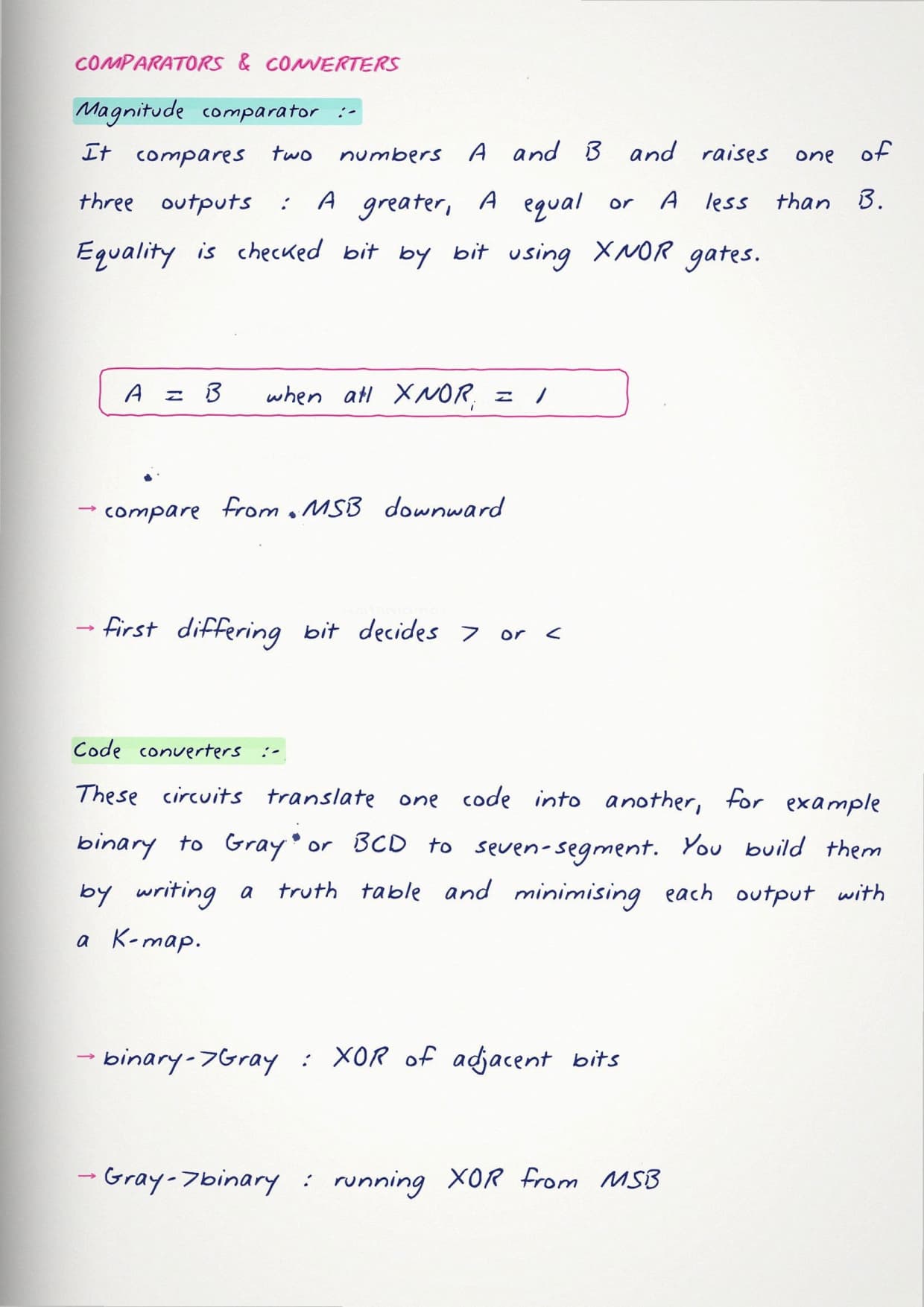

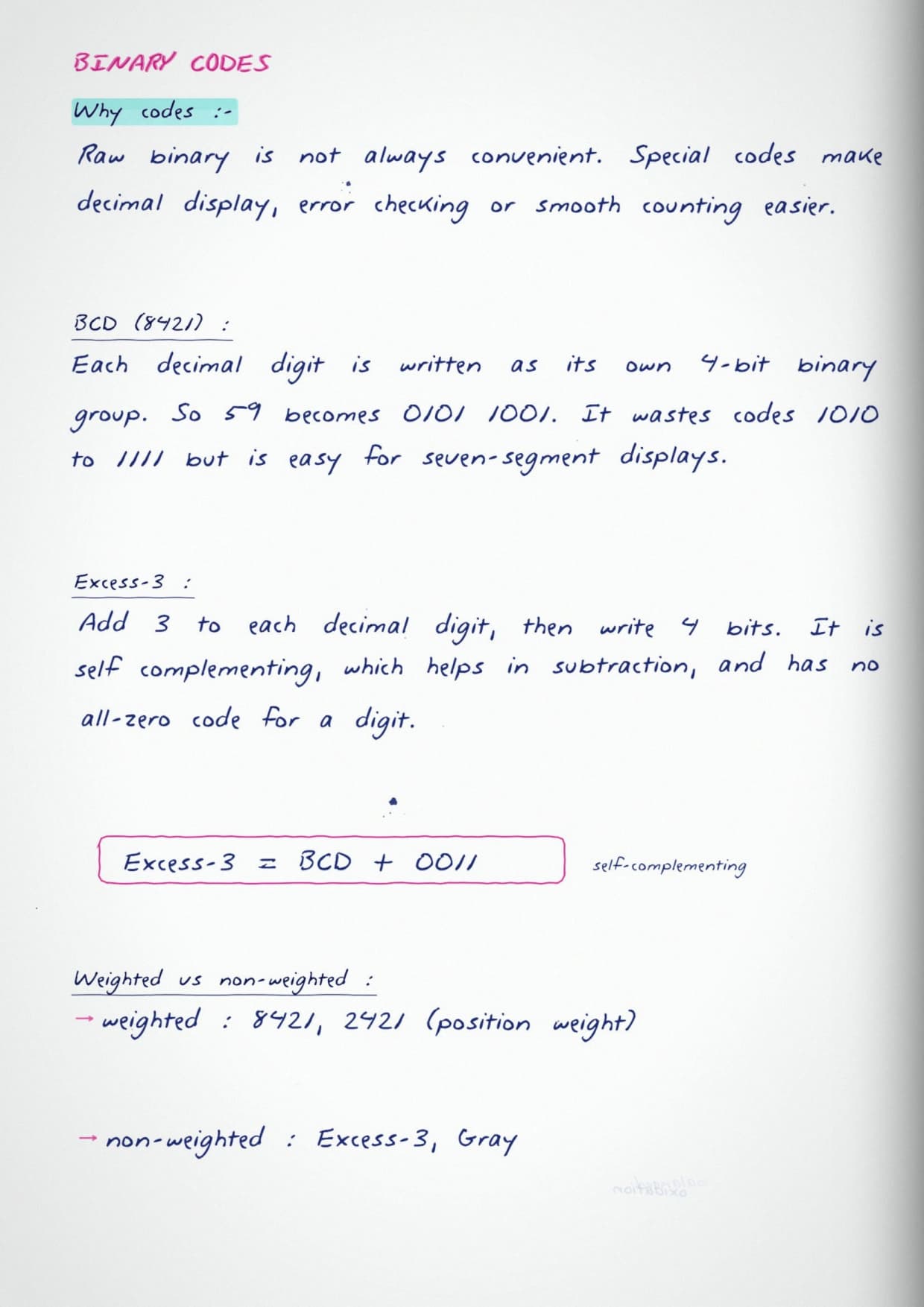

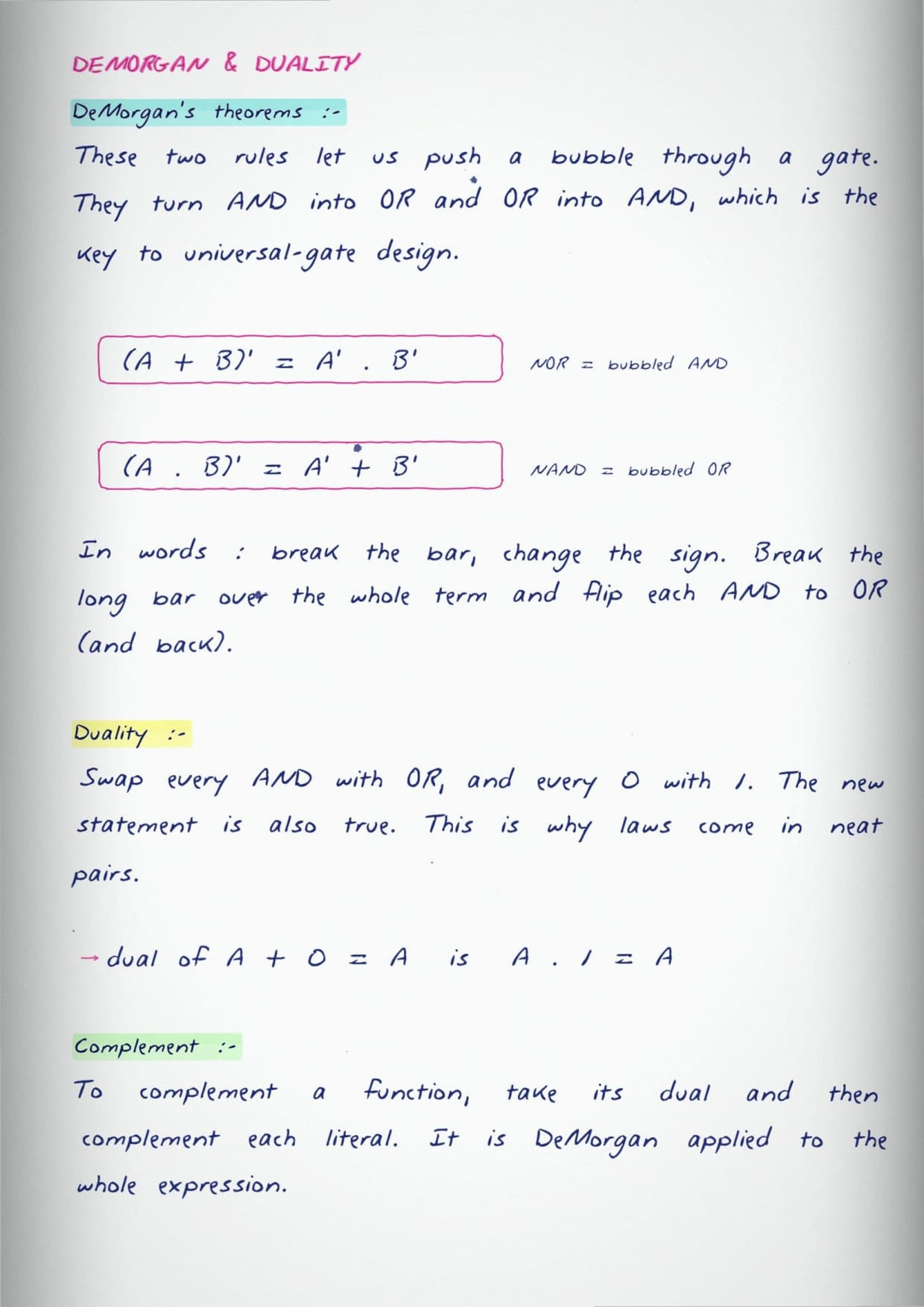

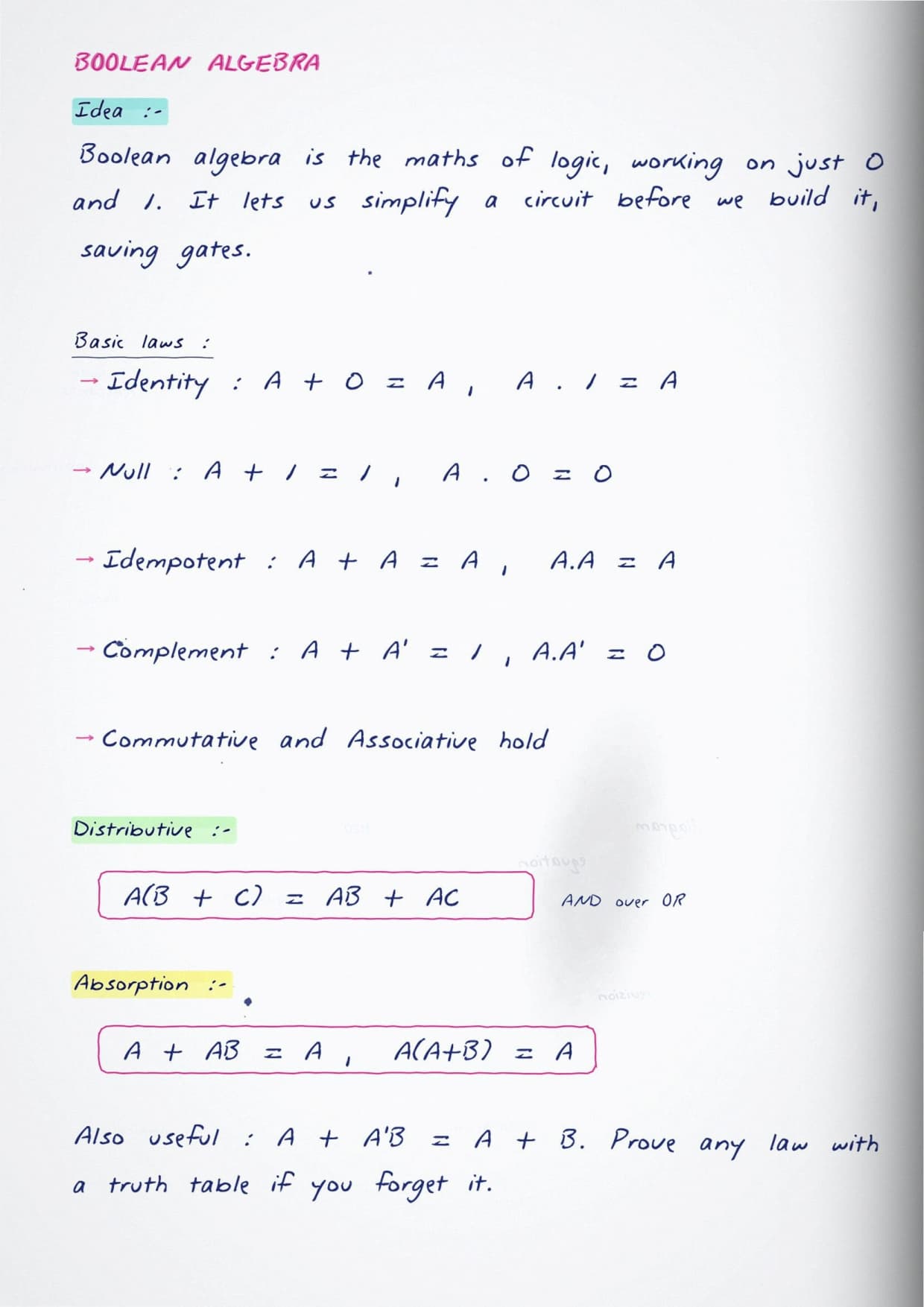

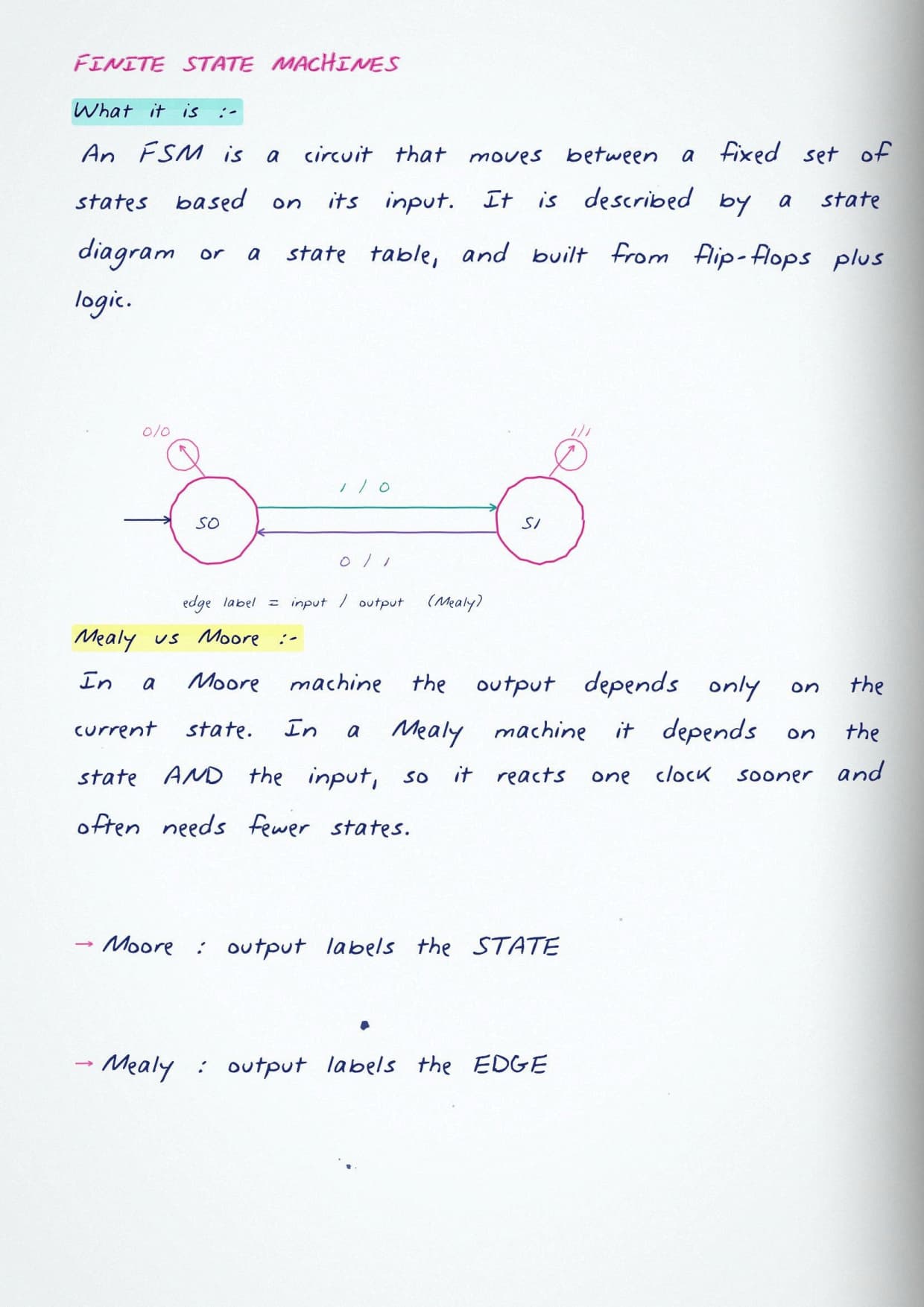

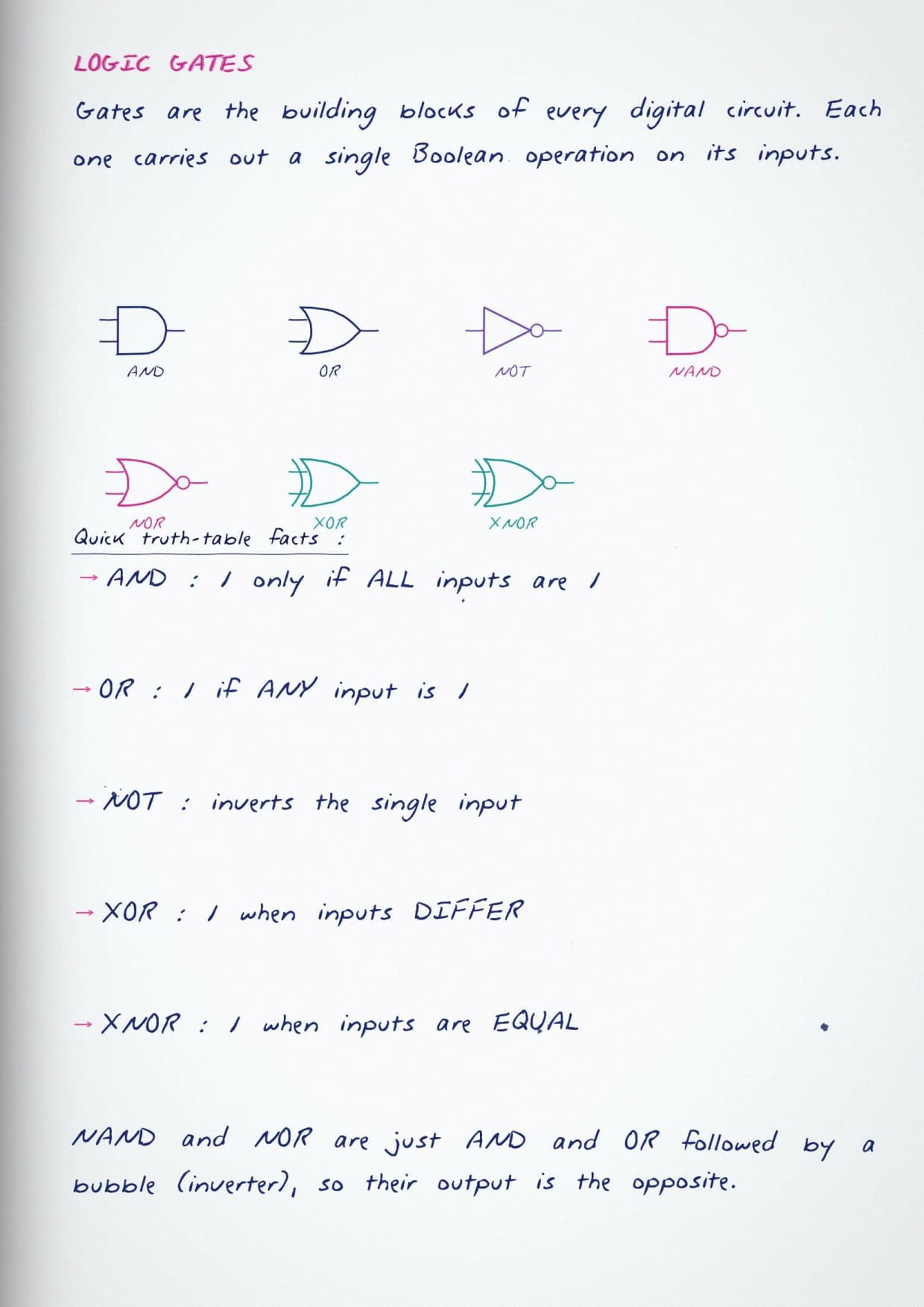

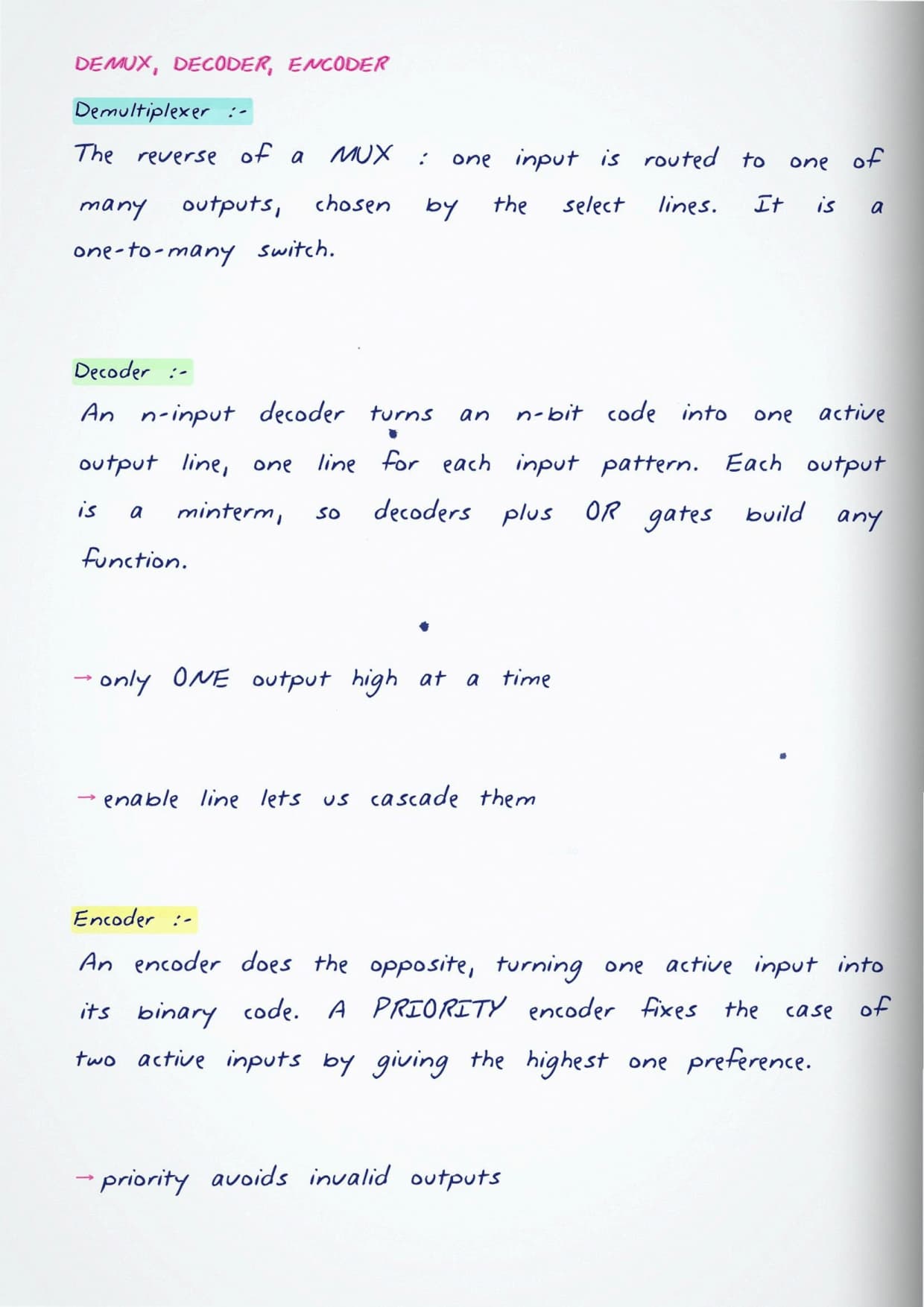

The notes carry hand-drawn diagrams for logic gates, K-maps, adders, multiplexers, and flip-flop timing, along with a formula and truth-table sheet you can revise in the last few days before the exam. Every major result is solved step by step, so you follow the logic instead of memorising a rule on its own.

• Full Digital Logic syllabus in one PDF, in the standard GATE order.
• Key rules and identities for every topic, with the reason behind them.
• Hand-drawn diagrams and a revision sheet for fast last-day study.

What These GATE Digital Logic Notes Cover

Digital Logic studies how 0s and 1s are represented, combined through logic gates, and turned into circuits that compute and remember. The notes explain each idea in plain language and then give the rule or method you apply in the exam. They stay close to the GATE Computer Science syllabus, so nothing extra is added and nothing important is left out.

• Clear meaning of each term, with the truth table that follows from it.

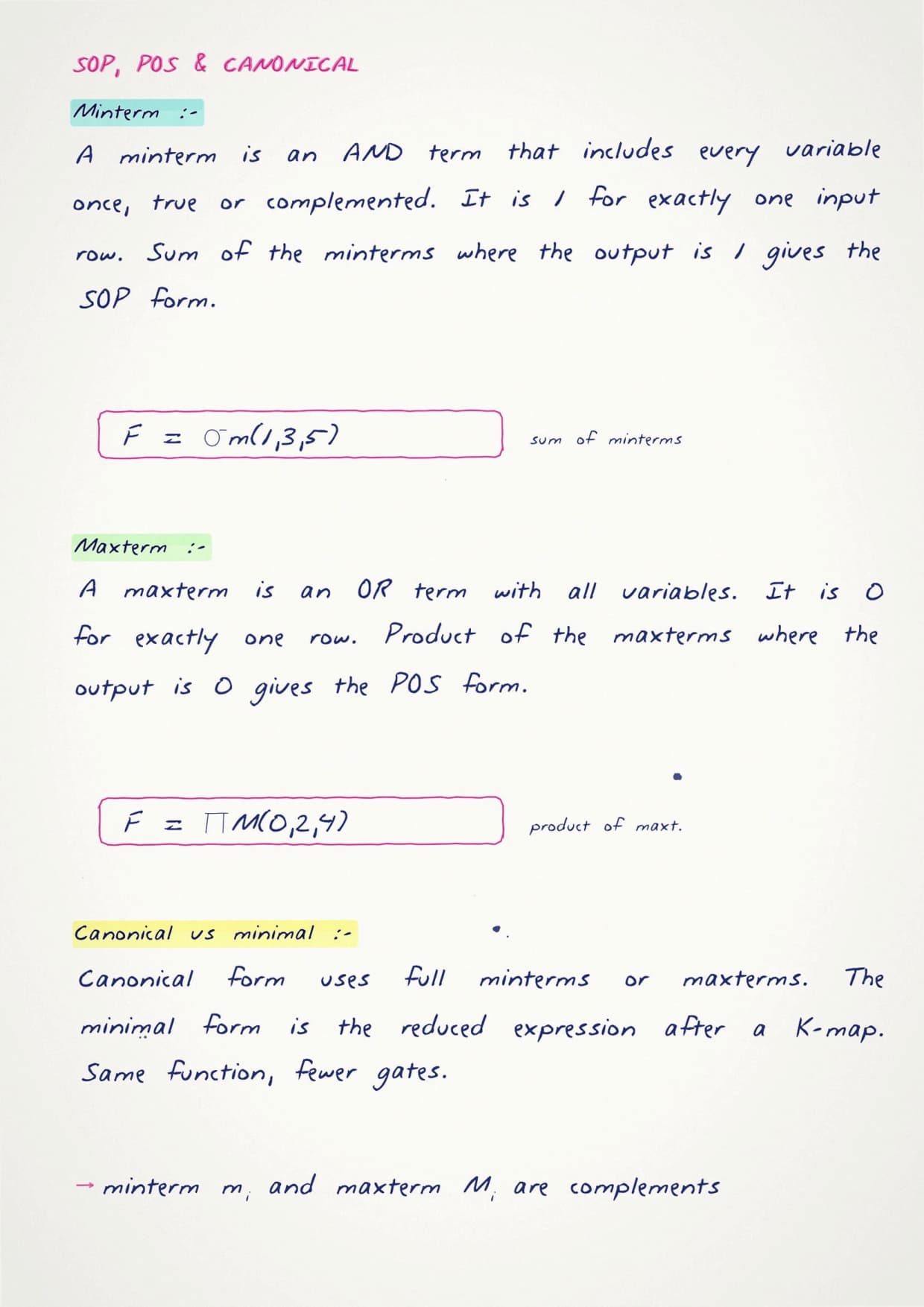

• Boolean identities and K-map steps shown with small examples.
• Hand-drawn figures for gates, adders, decoders, and flip-flops.
• A revision sheet that collects every rule in one place.

GATE Digital Logic Quick Revision

Source: GATE Wallah CSE & DA on YouTube

Topics Covered in GATE Digital Logic

The notes follow the standard GATE Computer Science order, starting from number systems and building up to sequential circuits and number representation. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of separate rules. The full list below matches the official syllabus.

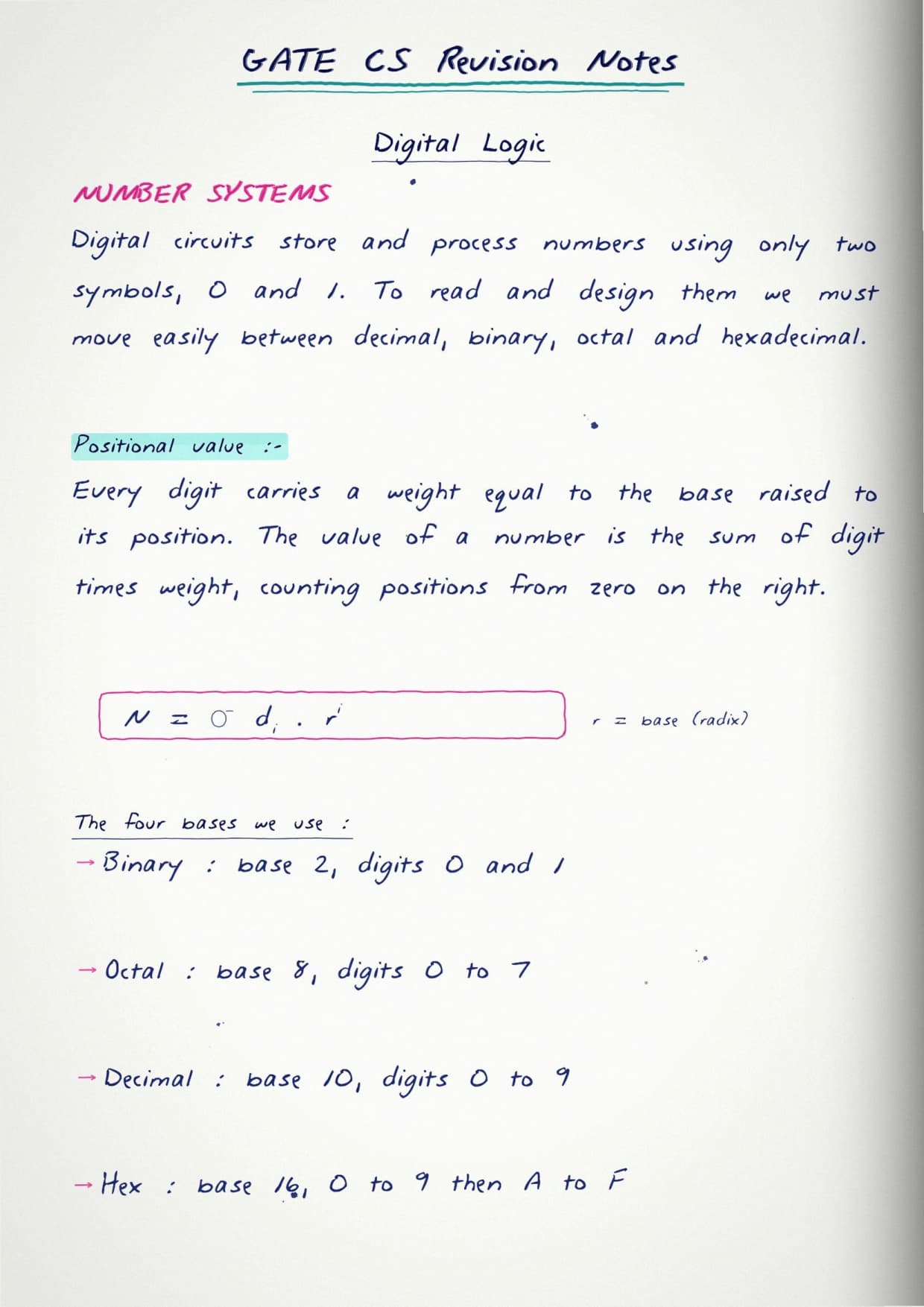

• Number systems and codes, including binary, octal, hex, BCD, and Gray code.
• Boolean algebra, with the basic laws and De Morgan's theorems.

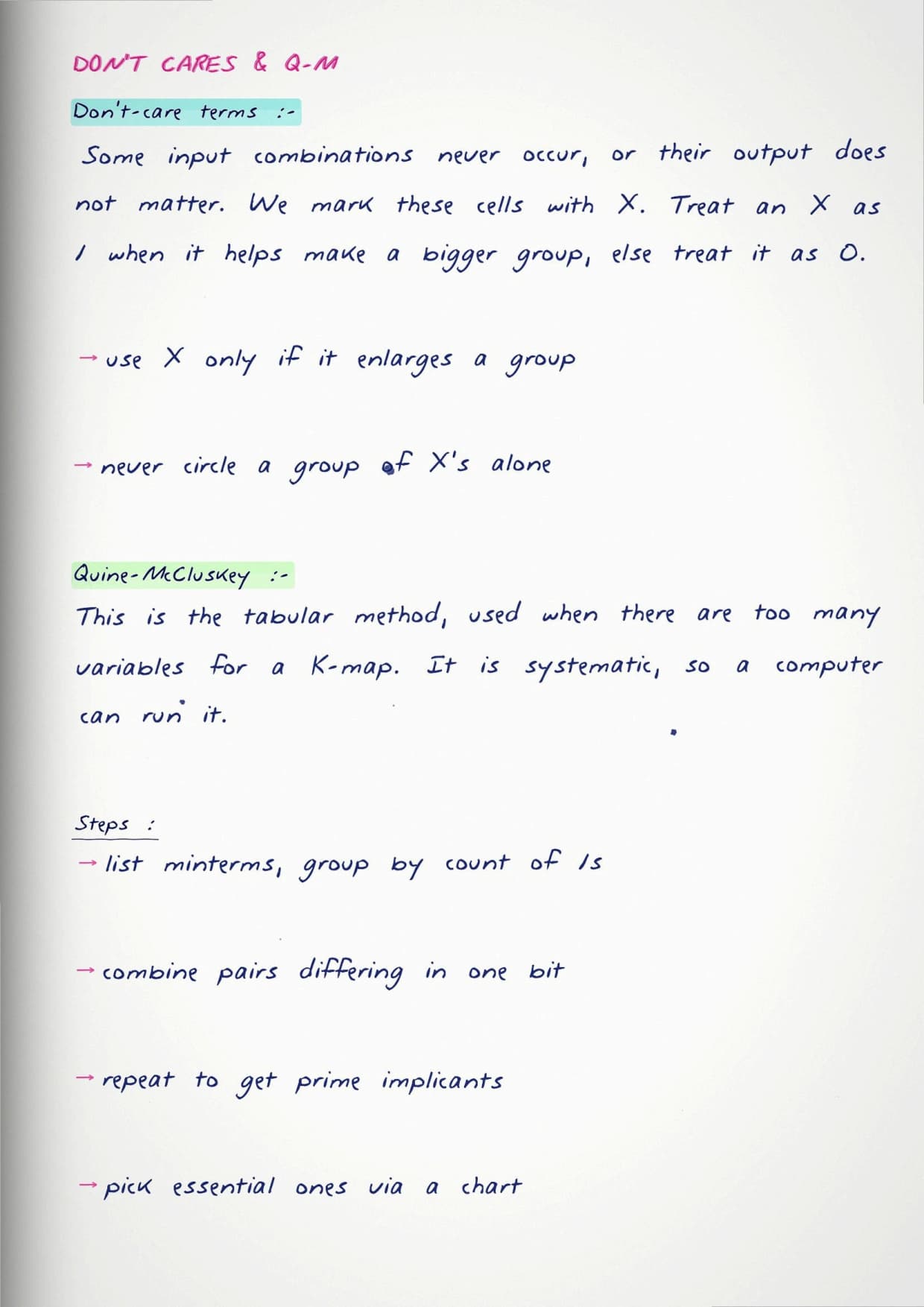

• K-map minimization for SOP and POS, with don't-care terms.
• Logic gates, universal gates, and gate-level implementation.
• Combinational circuits such as adders, MUX, and decoders.

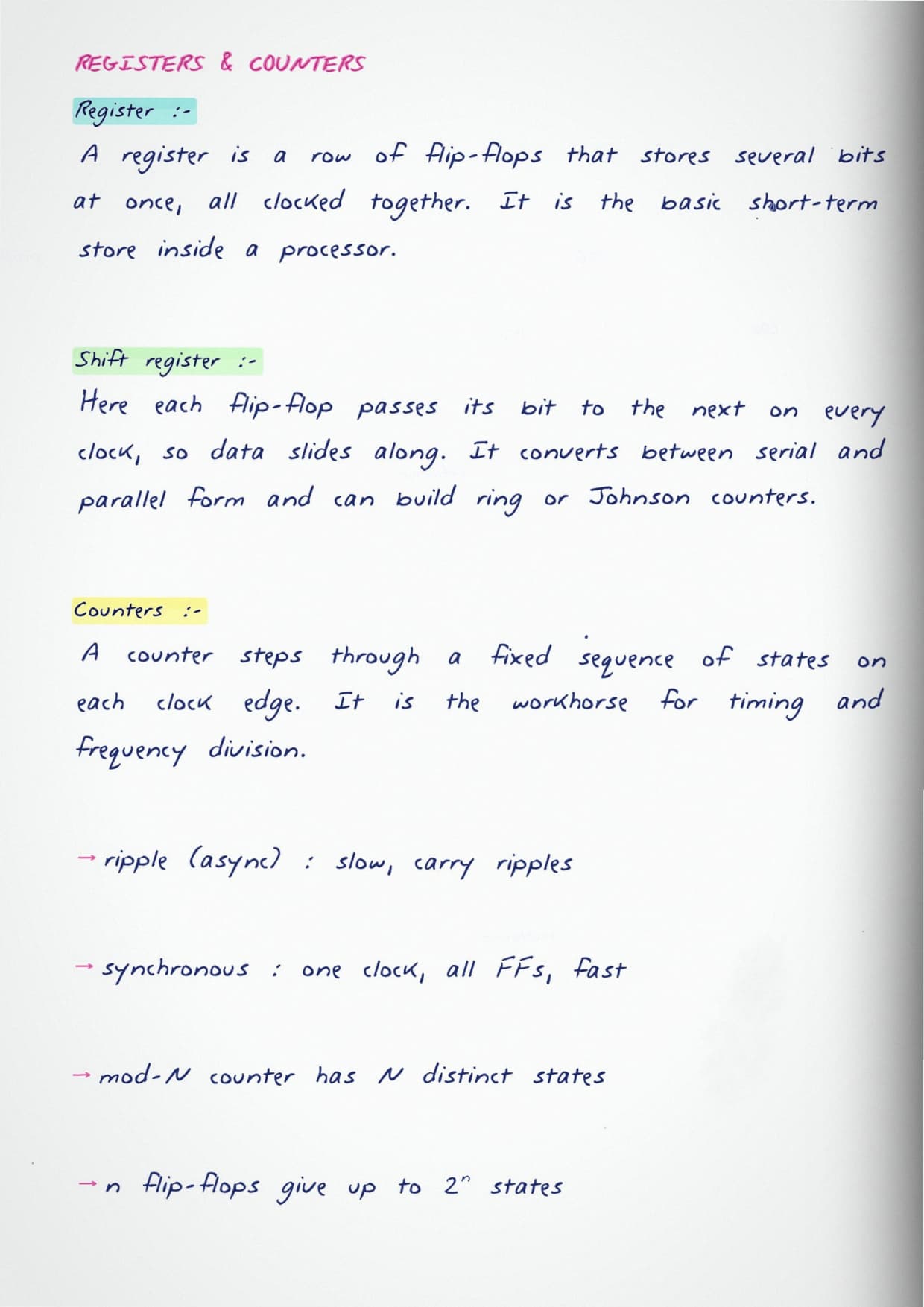

• Sequential circuits, including flip-flops, counters, and the FSM.

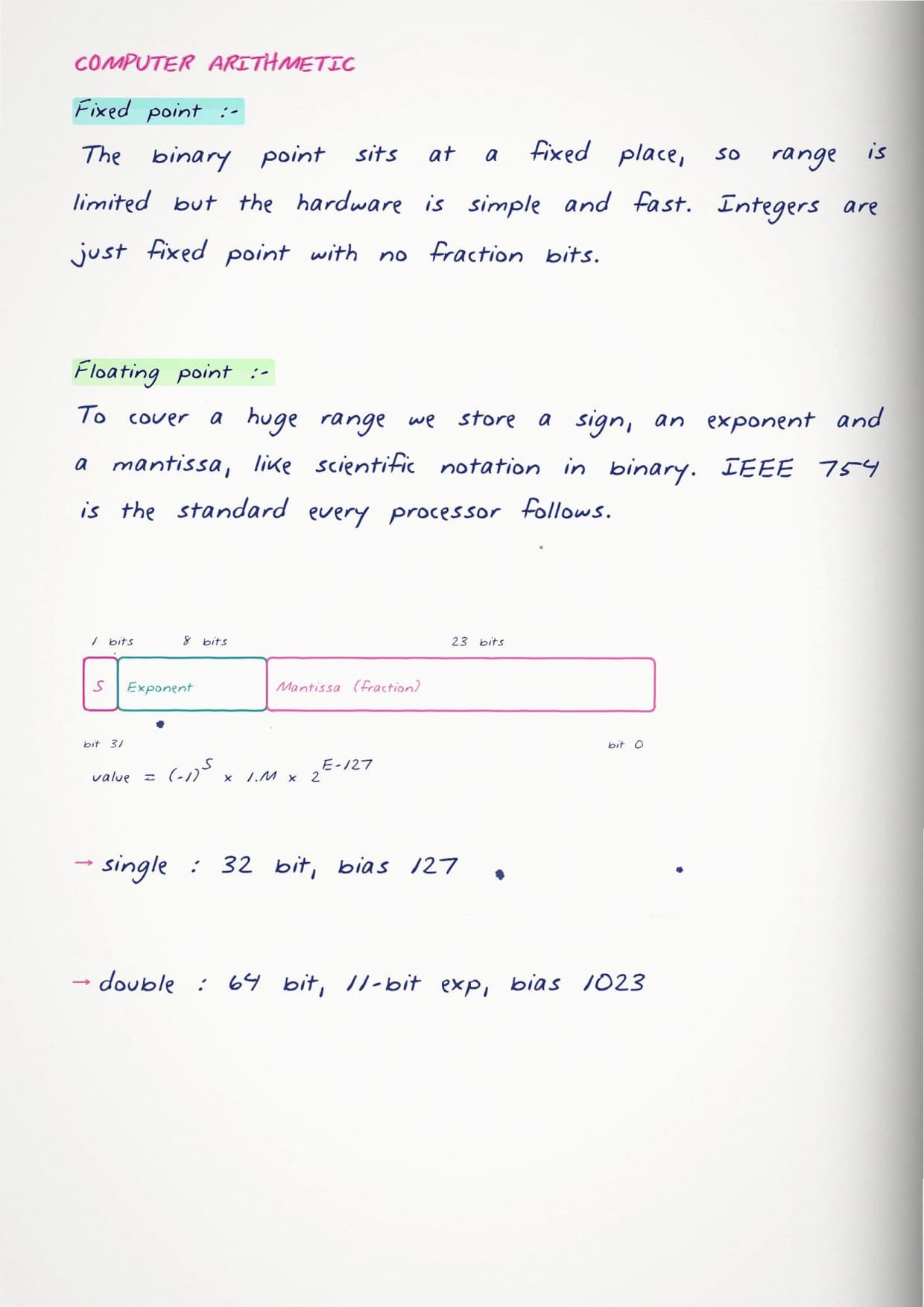

• Number representation, fixed point and floating point (IEEE 754).

How the Notes Are Organised

The material runs from the fundamentals to the harder topics, so you can read it straight through or open a single page for a quick recap. Simpler topics such as number systems and Boolean algebra come first, while heavier ones like flip-flops and floating-point representation come later once the basics are in place. A revision sheet near the end brings the key results together.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

How GATE Digital Logic Links to Other Subjects

Digital Logic does not stand alone in the GATE Computer Science paper. It is the base for Computer Organization and Architecture, where the same gates build the datapath, ALU, and control unit. The notes point out these links as they come up, so revising Digital Logic well earns marks in more than one place.

• Gates and combinational blocks build the ALU and datapath in COA.
• Flip-flops and registers store state inside the control unit.
• Number representation feeds directly into computer arithmetic.
• Boolean simplification supports circuit design questions across CS.

Important Topics in GATE Digital Logic

A few topics appear in the GATE paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without mistakes, since they are the surest source of marks.

• K-map minimization, near-certain every year for SOP and POS.
• Number systems and base conversion with signed numbers.

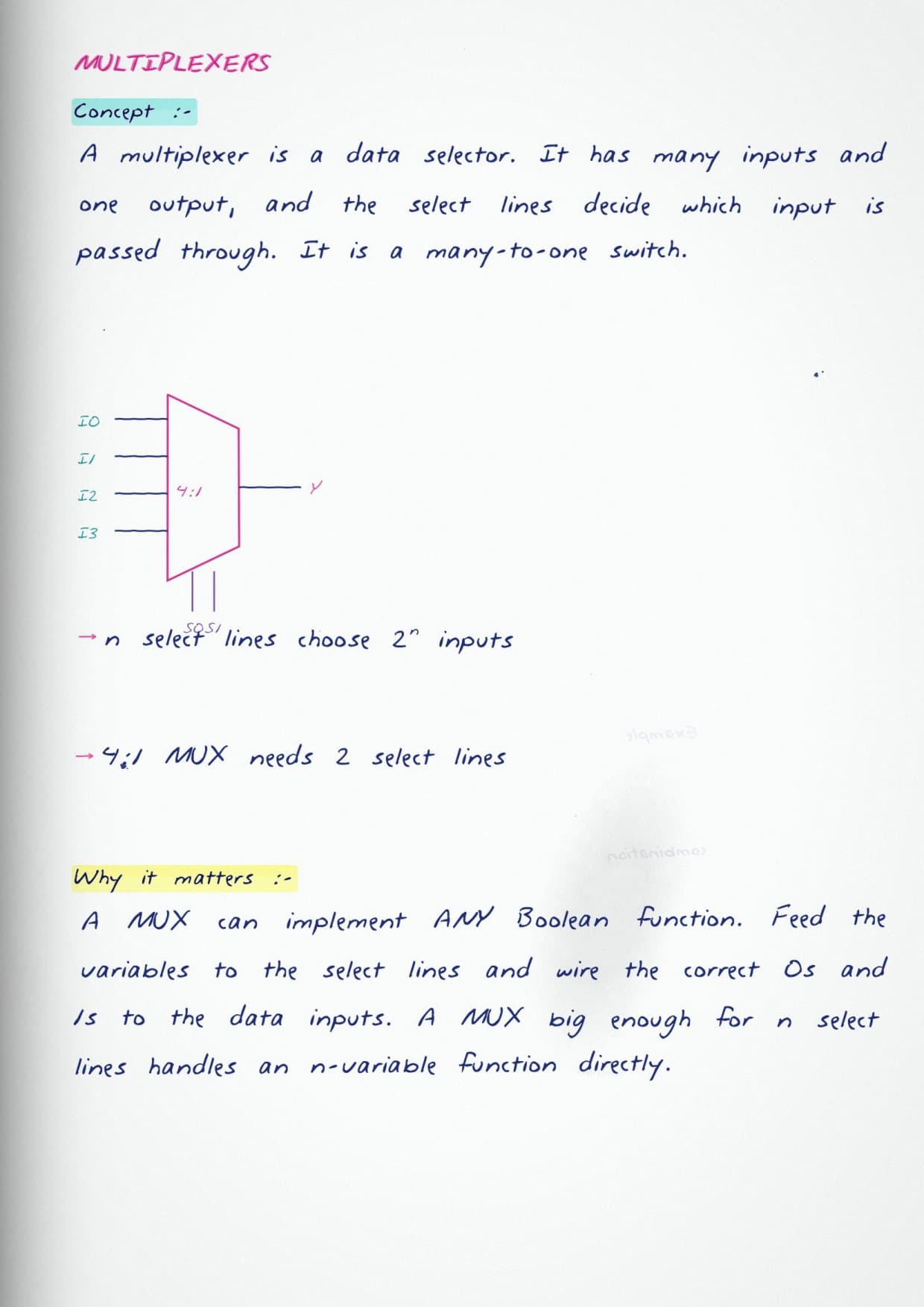

• Combinational circuits, especially MUX-based function design.
• Flip-flops and counters, with excitation tables and state changes.

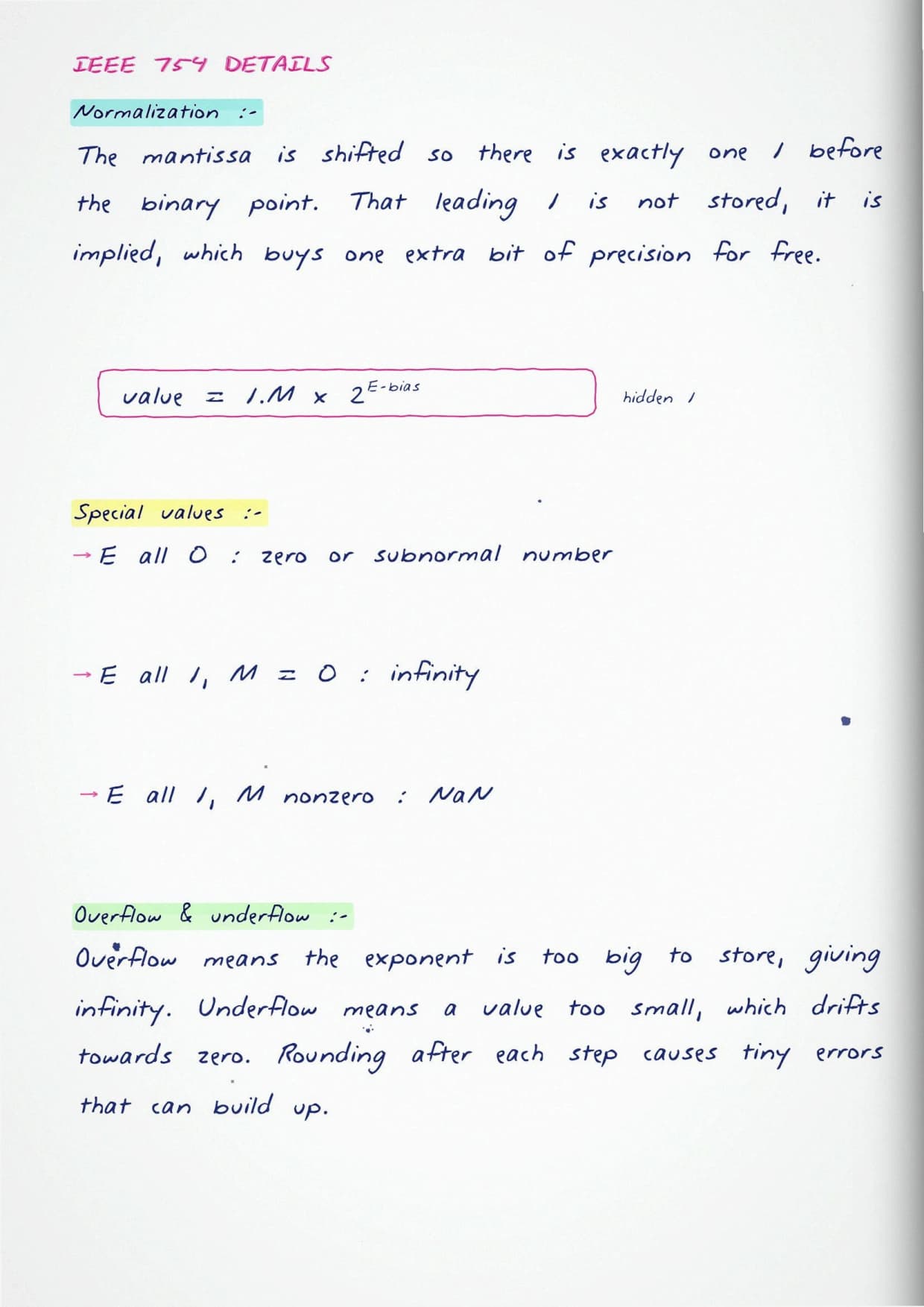

• Floating-point representation in the IEEE 754 format.

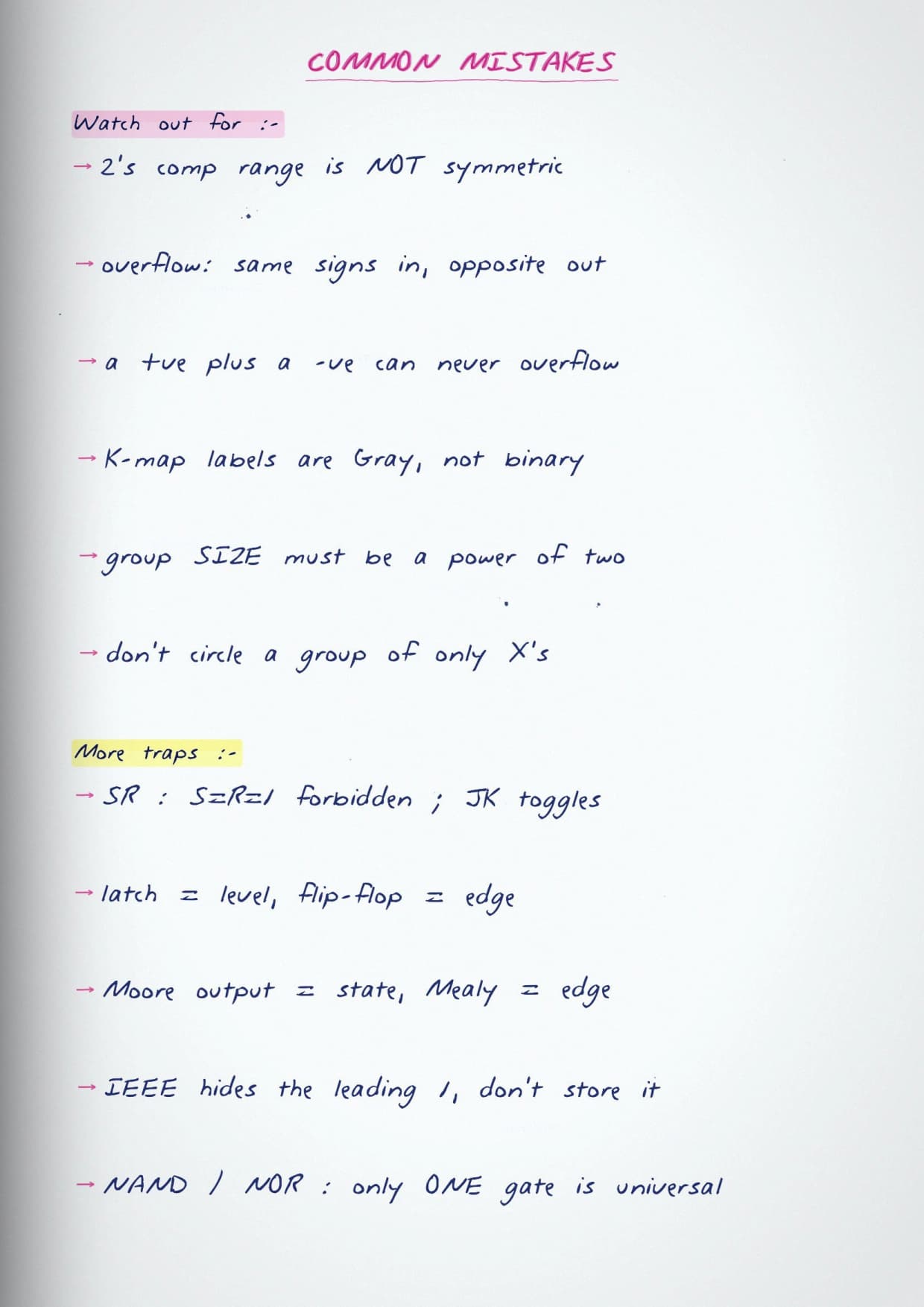

• Common traps: overflow in 2's complement and races in sequential timing.

How to Prepare GATE Digital Logic with Handwritten Notes

Digital Logic rewards steady problem solving more than reading, so use the notes as a theory and rule base beside daily practice. Read a topic, note its truth table or method, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on K-maps, MUX design, and flip-flops.
• Solve previous year questions topic by topic beside the notes.
• Final week: revise the rule sheet and the common-trap page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each circuit diagram sits right next to the truth table it explains, so the link stays clear for students.
