GATE CS Computer Organization and Architecture Handwritten Notes

Computer Organization and Architecture is a steady, formula-driven subject in GATE CS that usually carries about 7 to 9 marks in the paper. It belongs to the core computer science section and builds directly on Digital Logic. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

The notes carry hand-drawn diagrams for the datapath, cache mapping, the memory hierarchy, and pipeline stages, along with a quick-revision sheet you can go over in the last few days before the exam. Every result and timing formula is explained step by step, so you follow the logic instead of memorising a number alone.

• Full Computer Organization and Architecture syllabus in one PDF, in the standard GATE order.
• Key rules and formulas for every topic, with the conditions behind them.
• Hand-drawn diagrams and a revision sheet for fast last-day recall.

What These GATE Computer Organization and Architecture Notes Cover

This subject studies how a processor is built and how it runs an instruction, from the ALU and datapath to the control unit, memory and I/O. The notes explain each idea in plain words and then give the formula or rule you apply in the exam. They stay close to the GATE CS syllabus, so nothing extra is added and nothing important is left out.

• Clear meaning of each term, with the rule that follows from it.
• Key formulas for CPU time, cache hits, and pipeline speedup.
• Hand-drawn figures for the datapath, cache mapping, and pipelines.

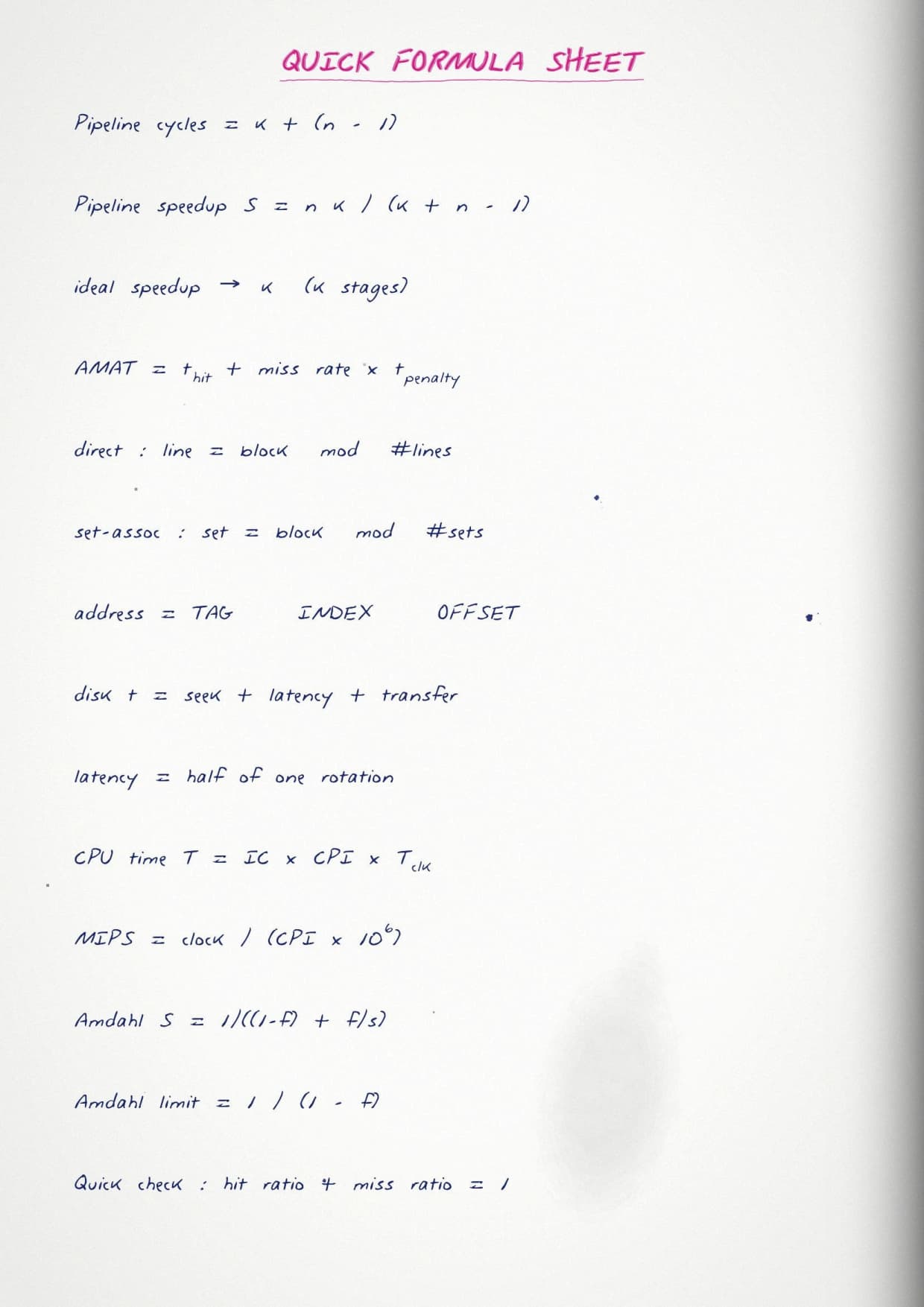

• A revision sheet that collects every result in one place.

GATE Computer Organization and Architecture Quick Revision

Source: GATE Wallah CSE & DA on YouTube

Topics Covered in GATE Computer Organization and Architecture

The notes follow the standard GATE CS order, starting from machine instructions and moving up to pipelines, cache, and I/O. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of separate facts. The full list below matches the official syllabus.

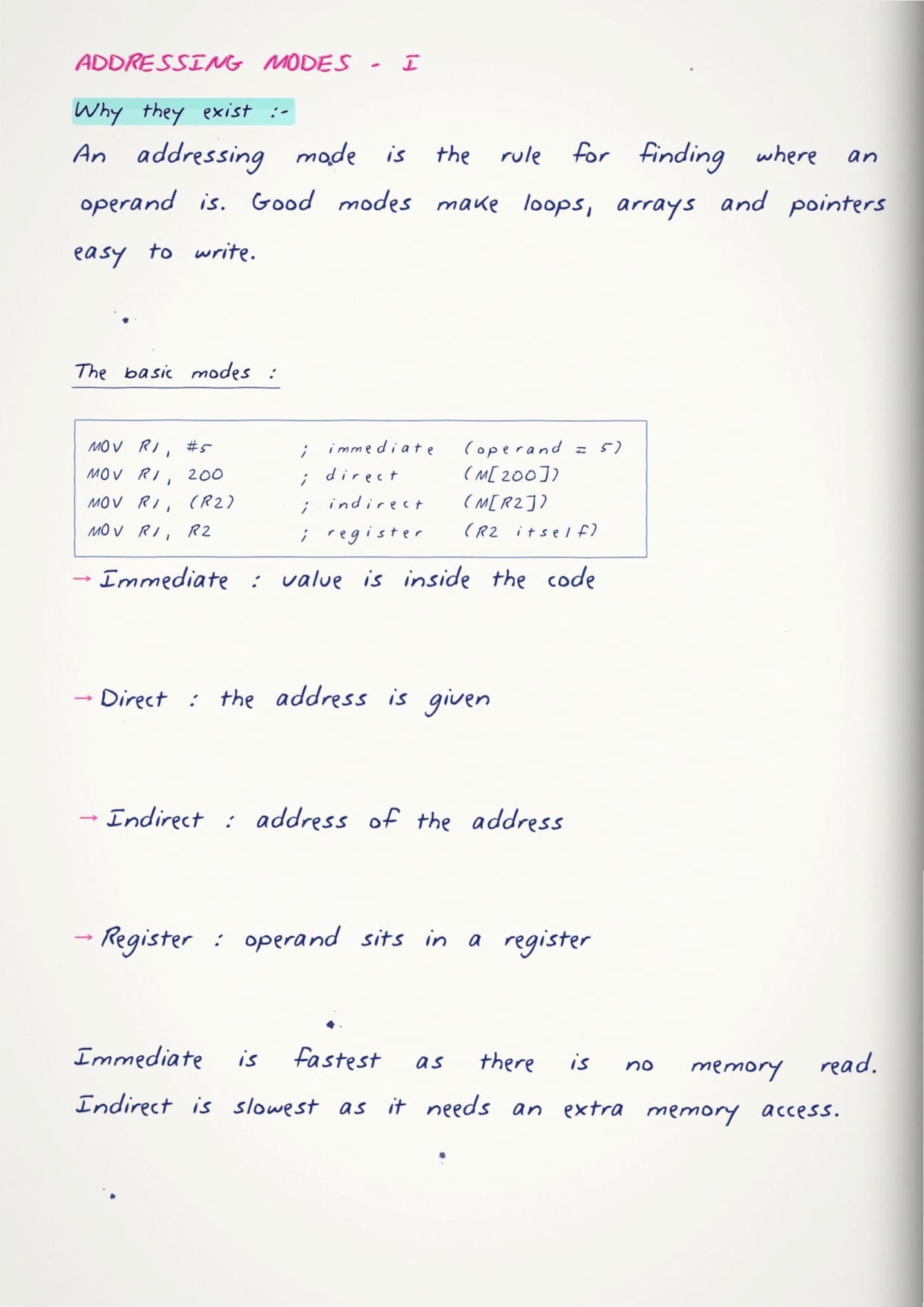

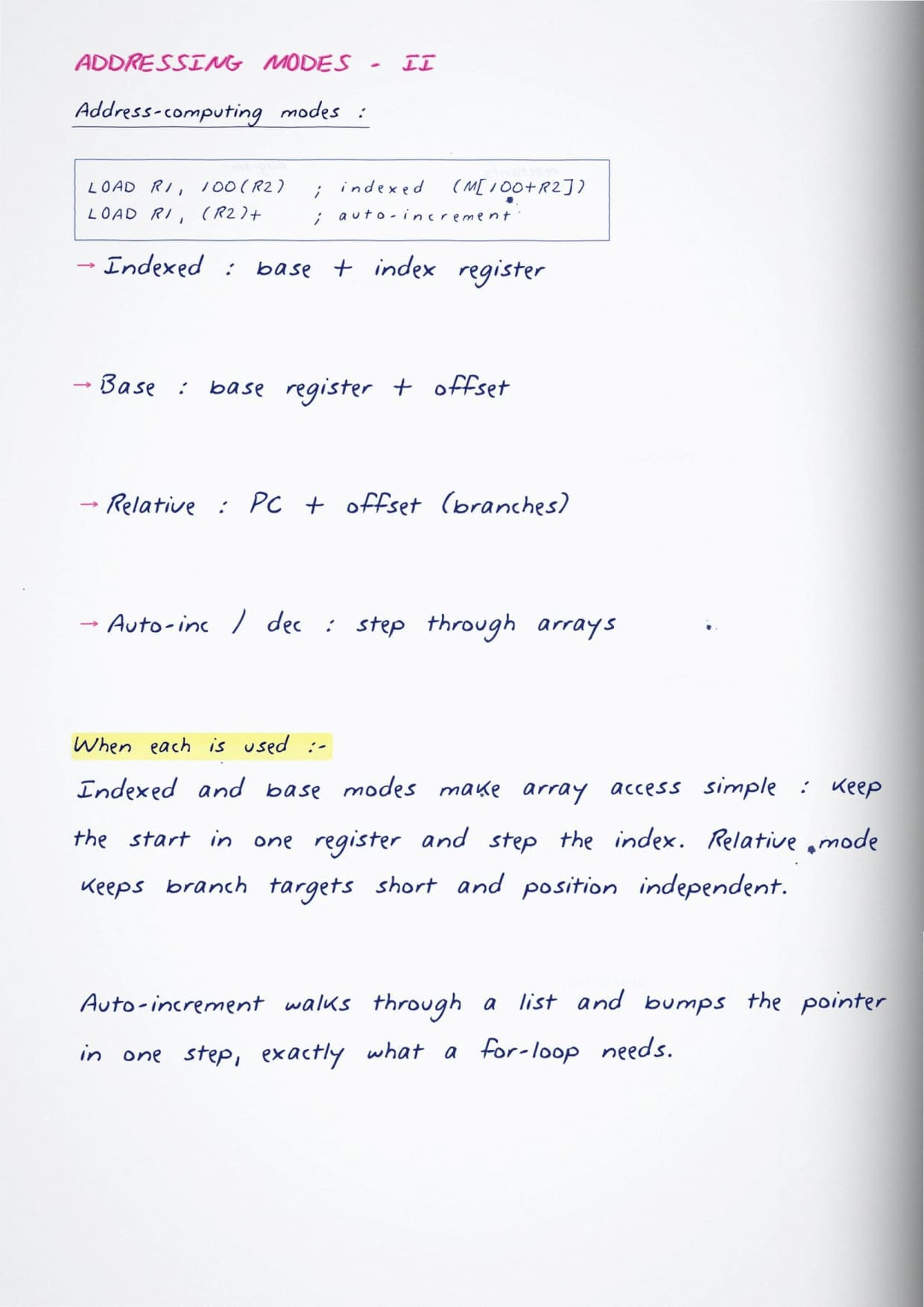

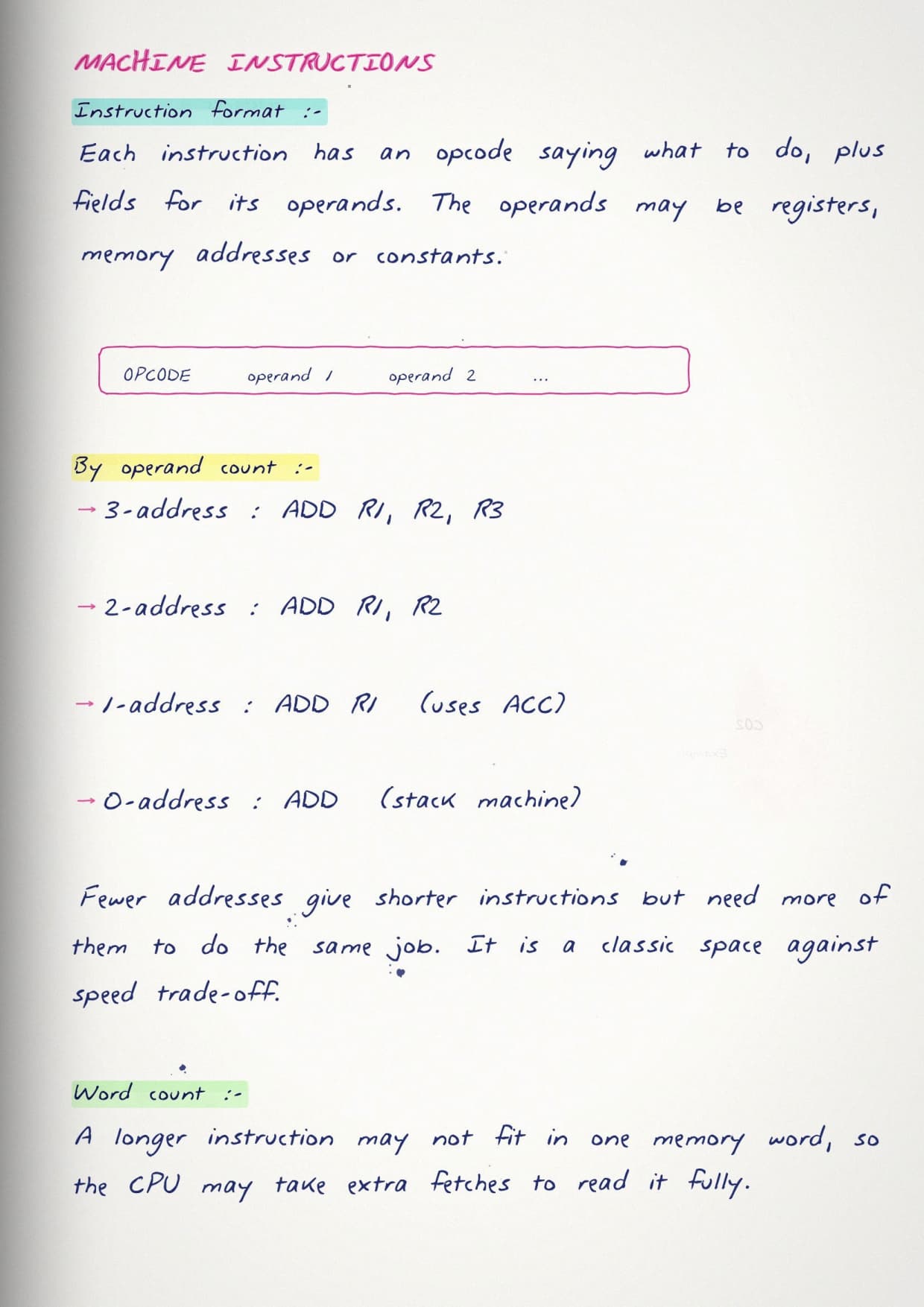

• Machine instructions and addressing modes, with instruction formats.

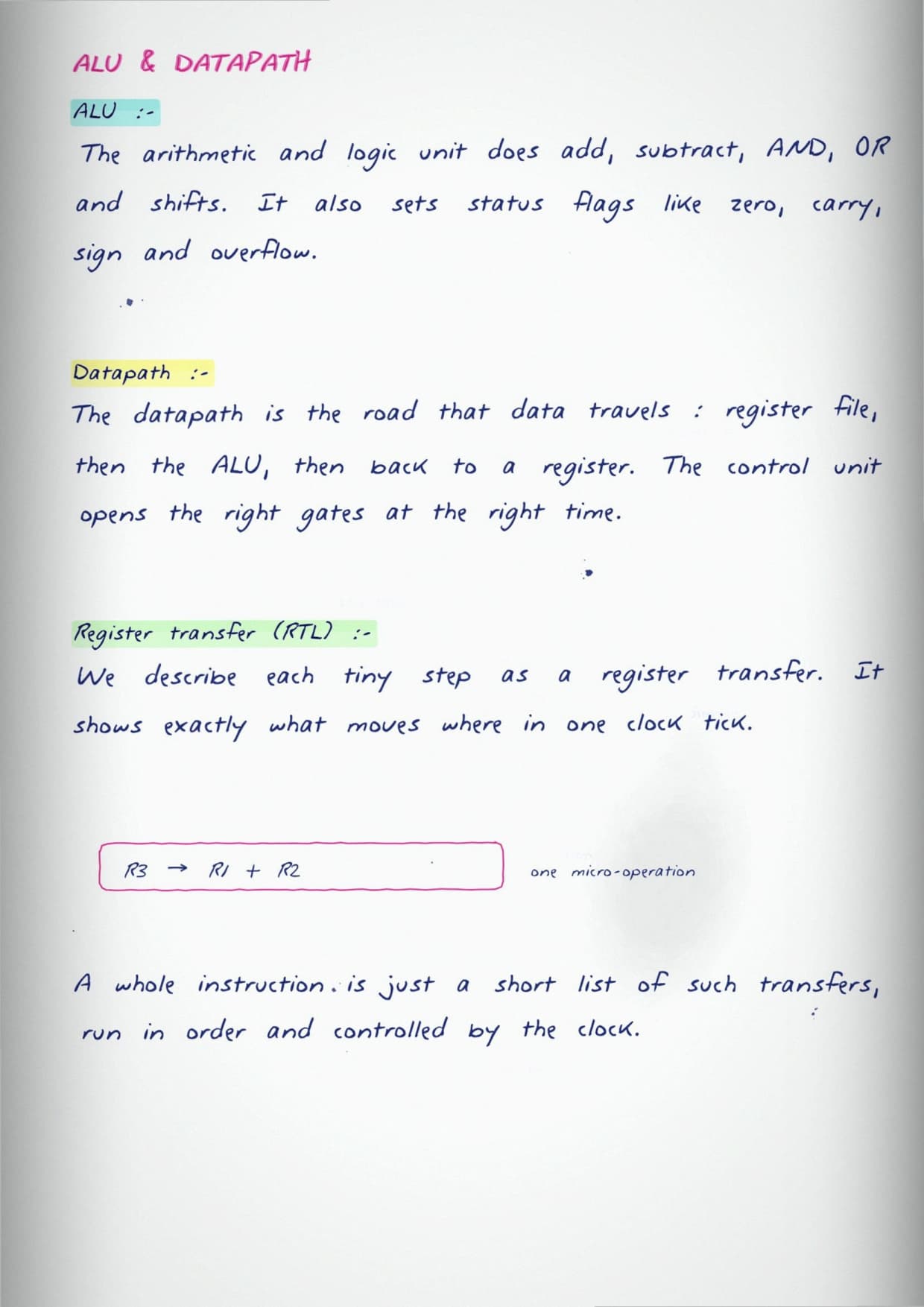

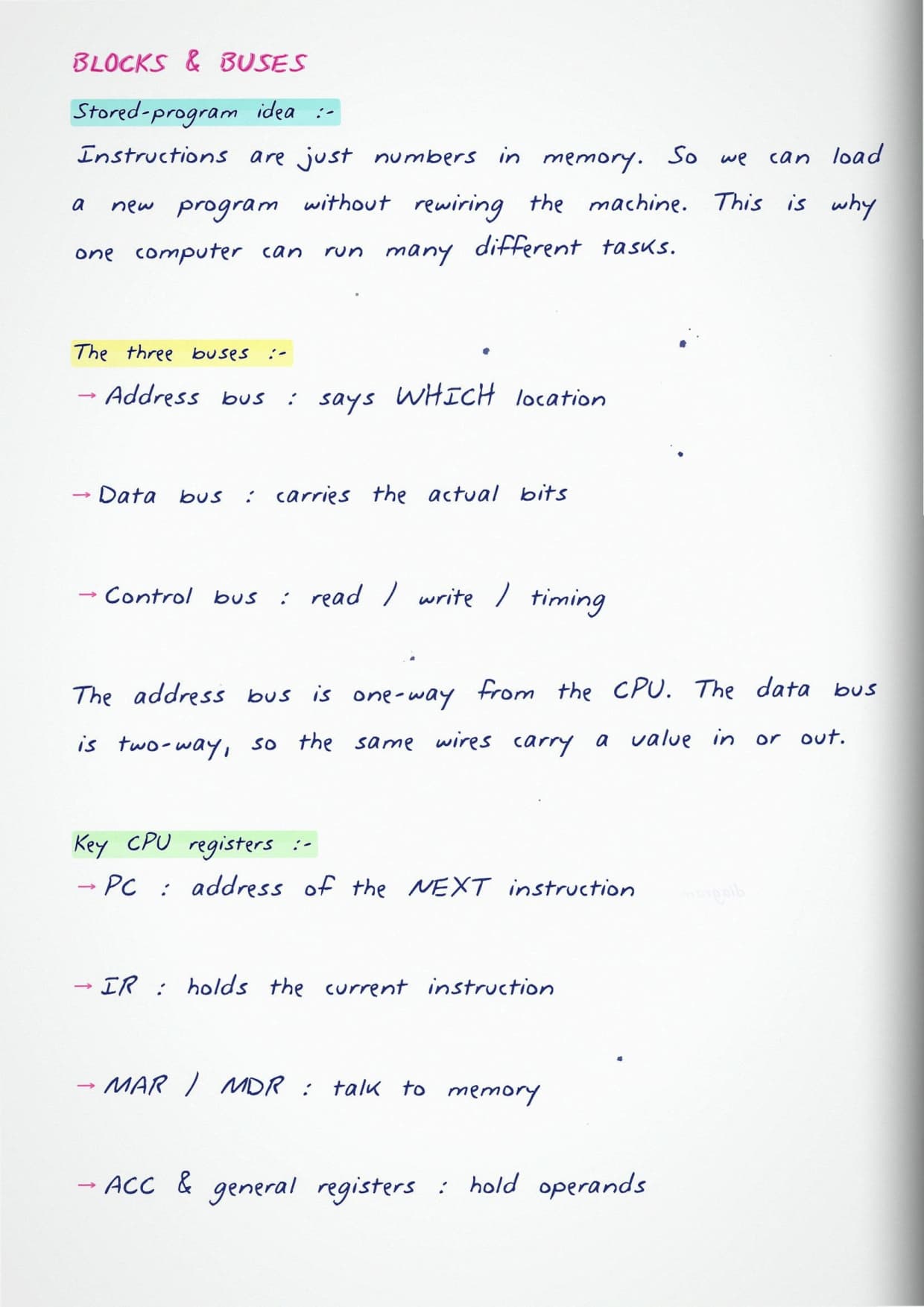

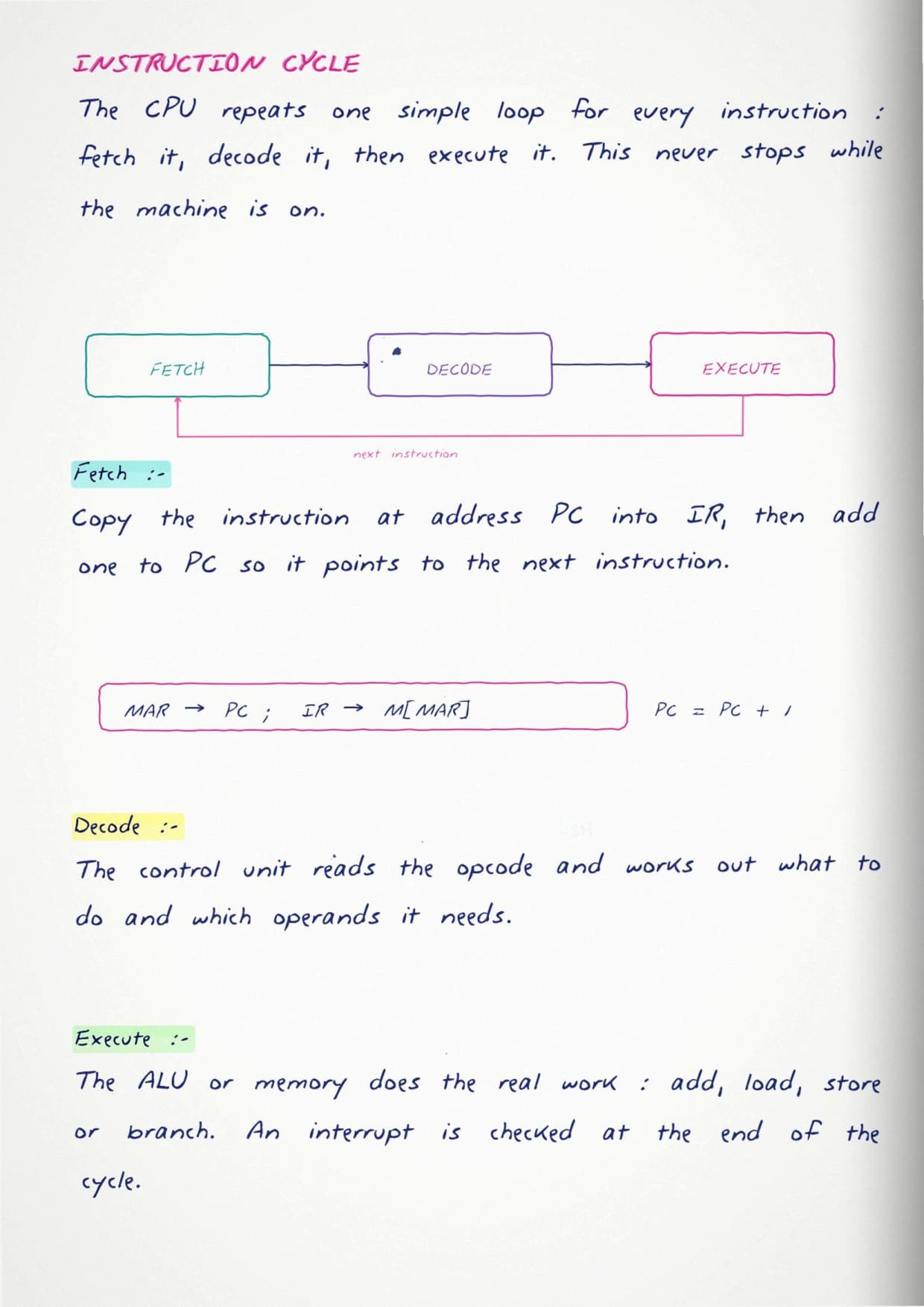

• ALU and datapath, and how a single instruction moves through it.

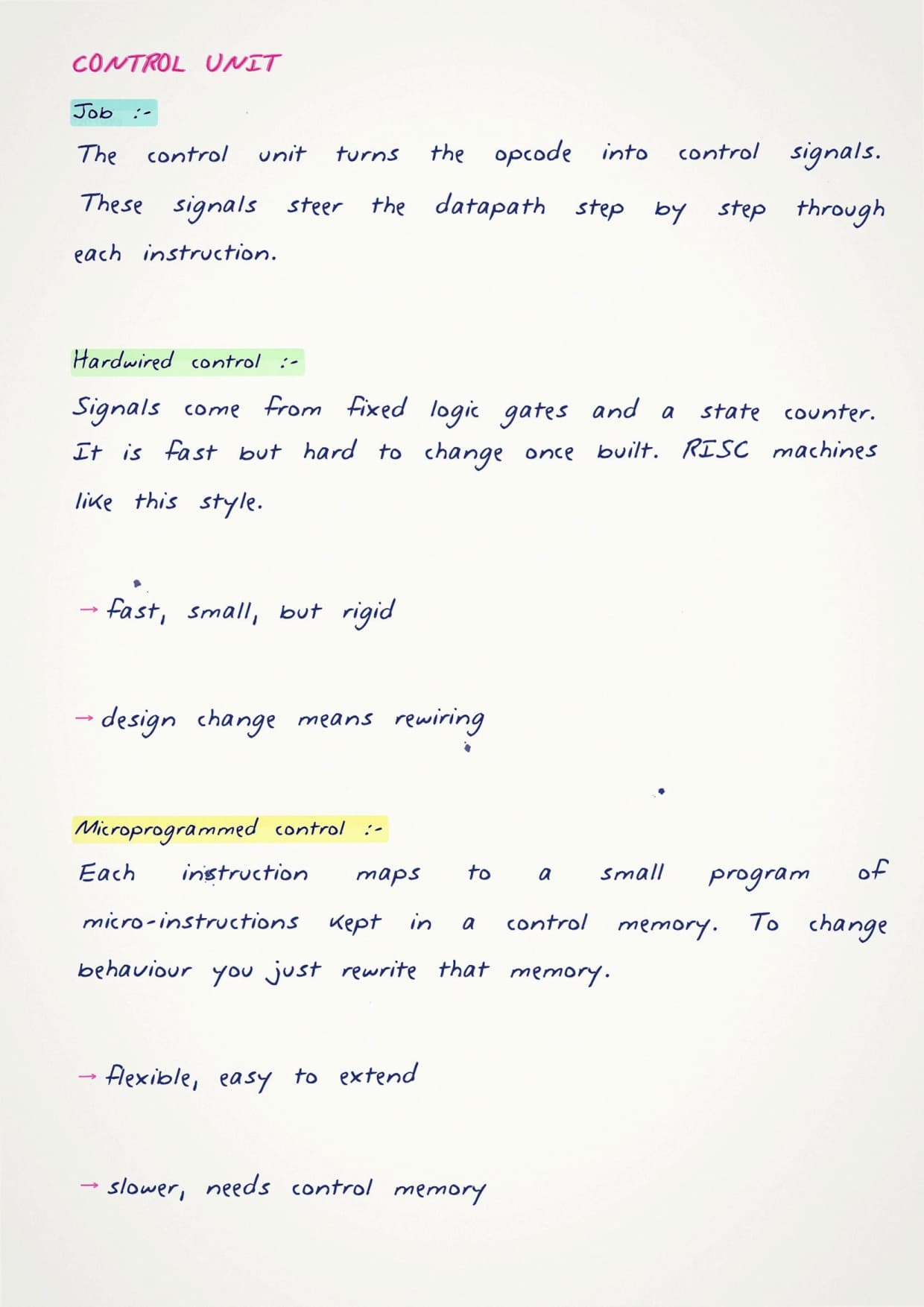

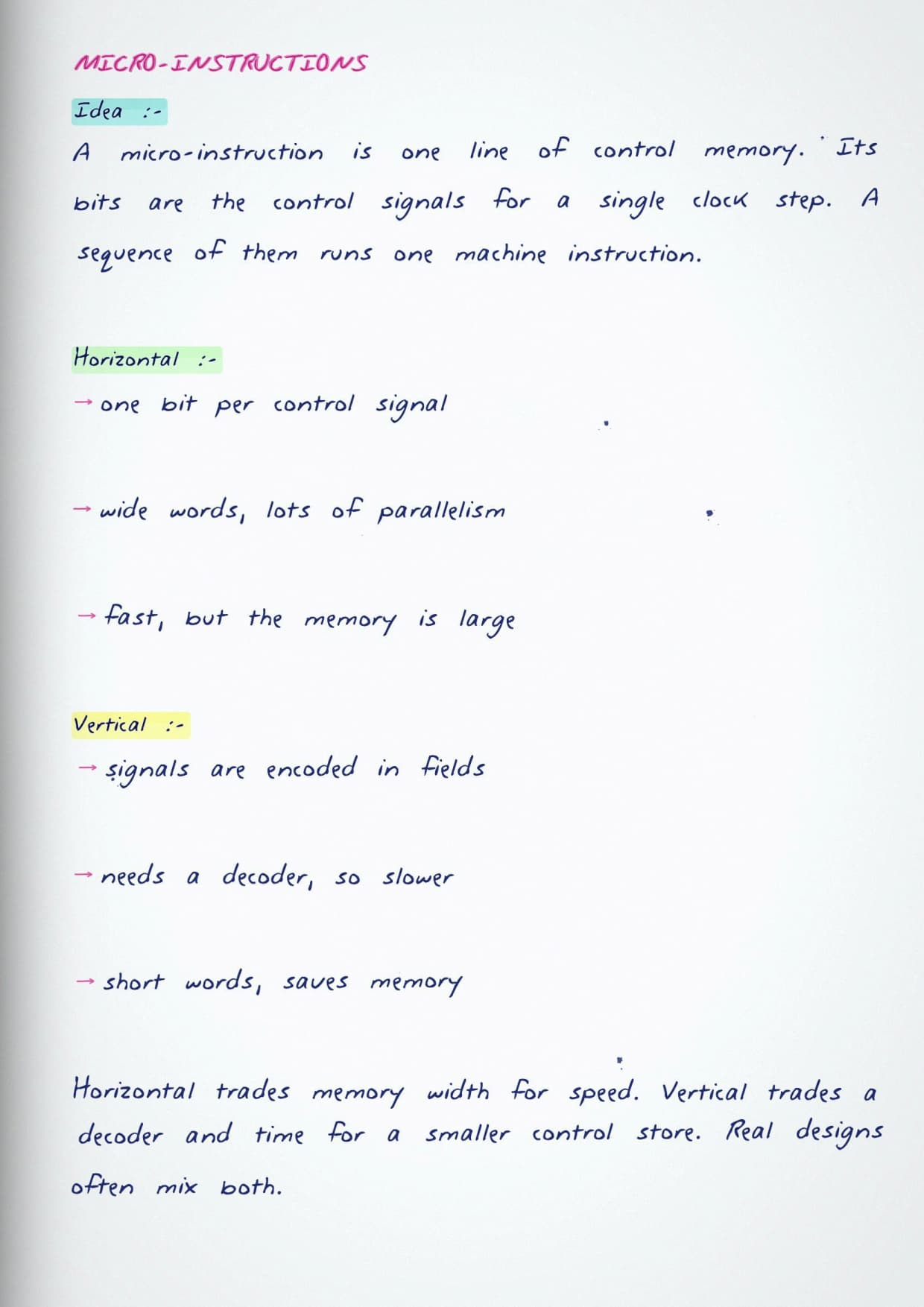

• Control unit design, both hardwired and microprogrammed.

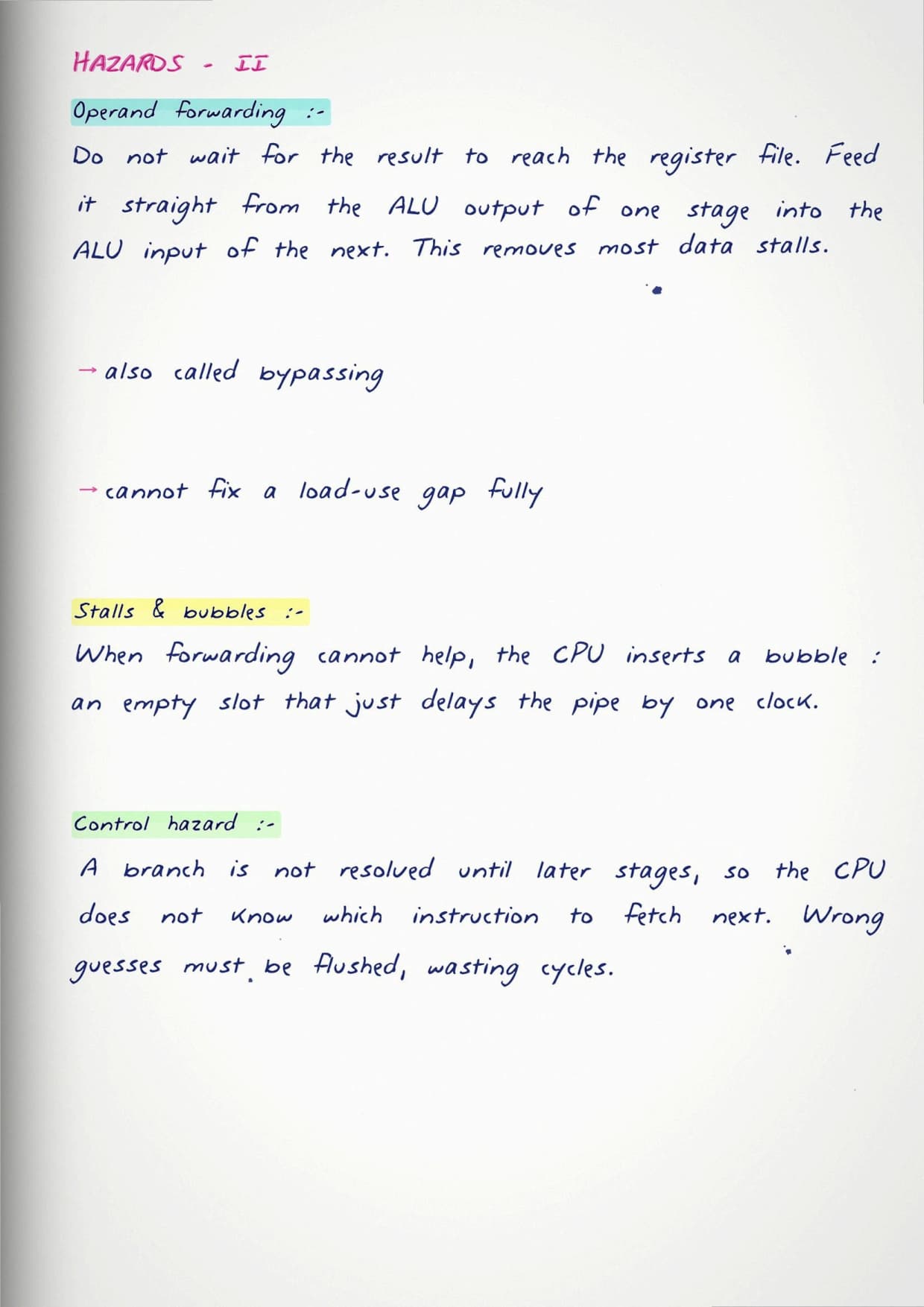

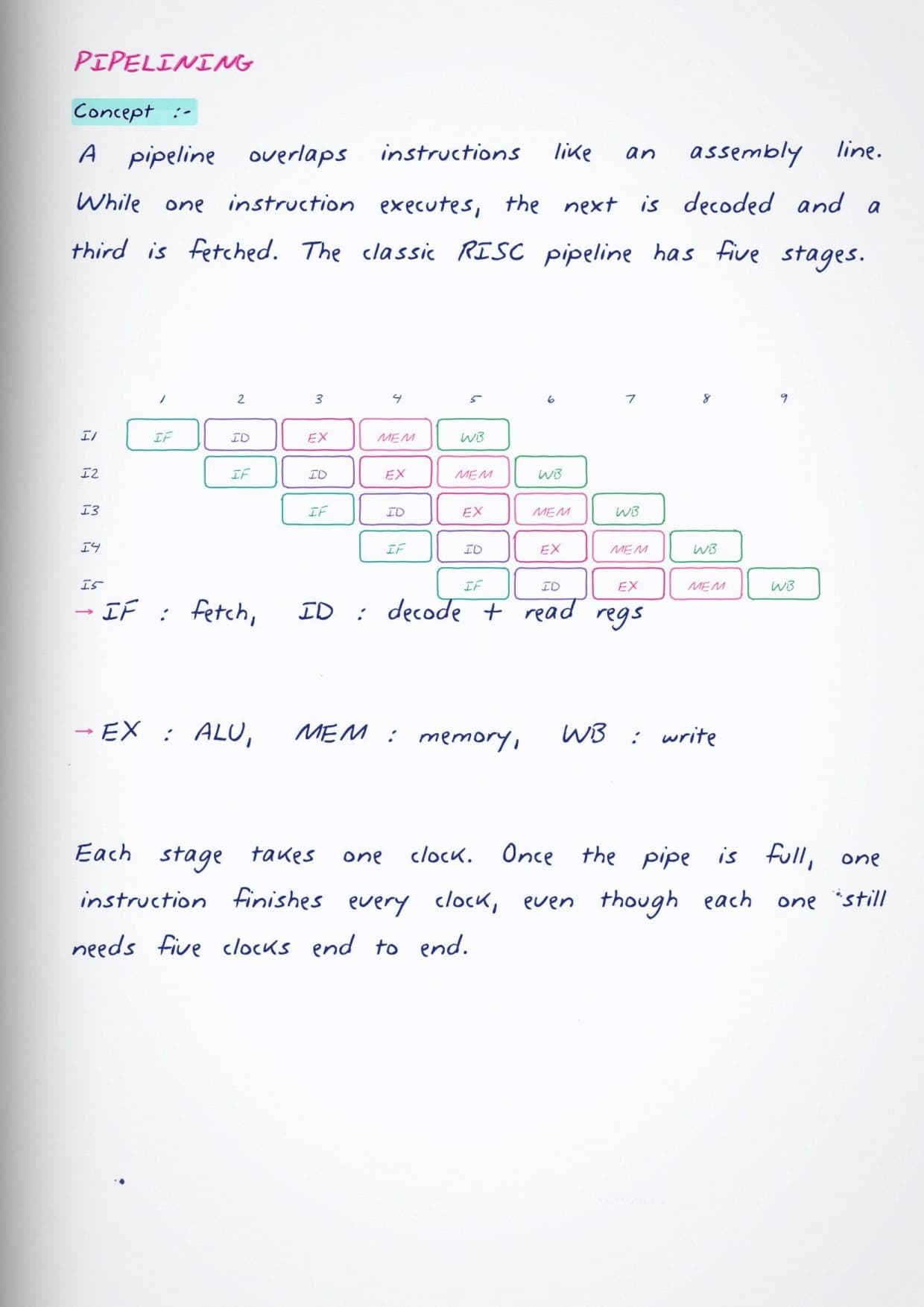

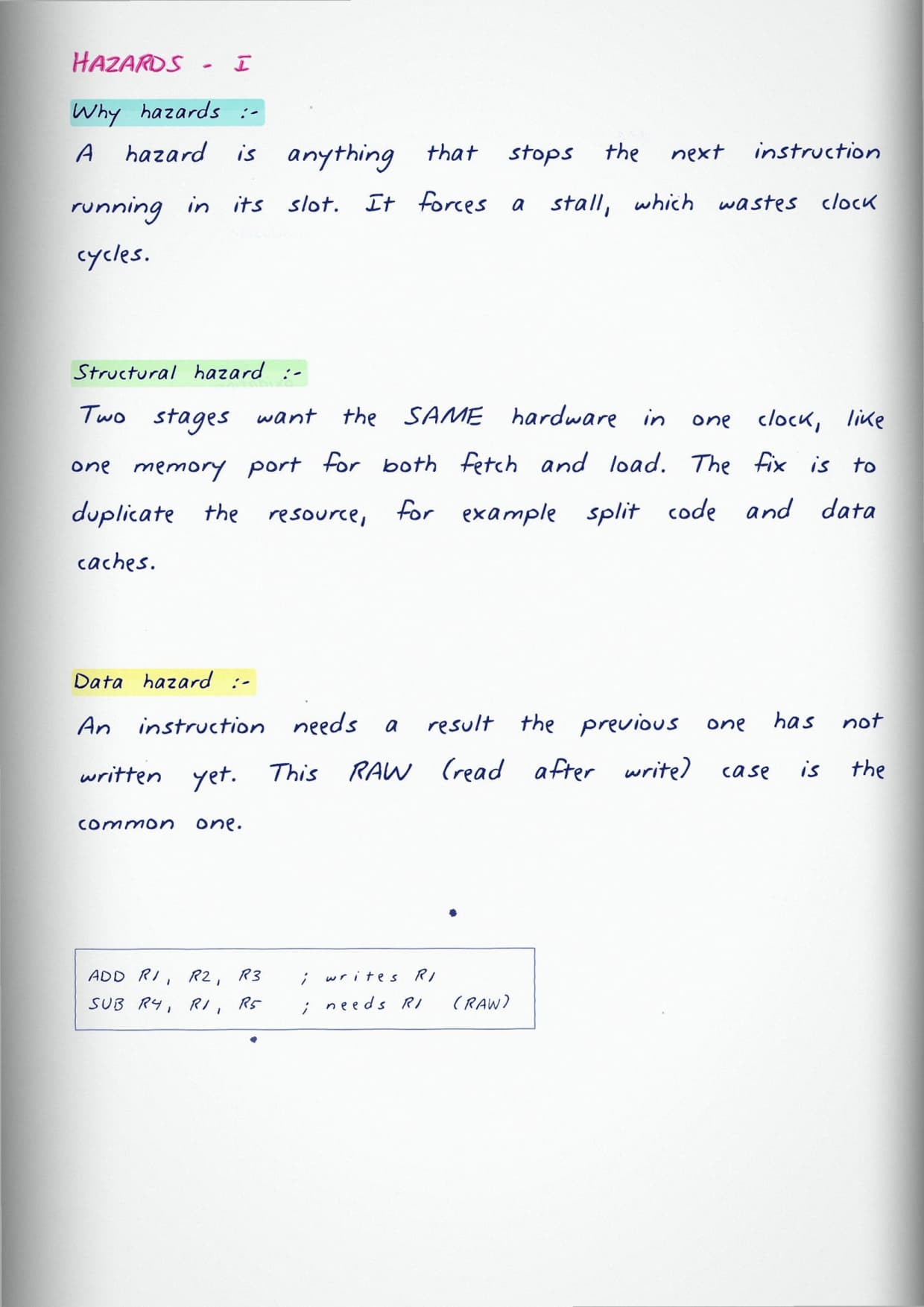

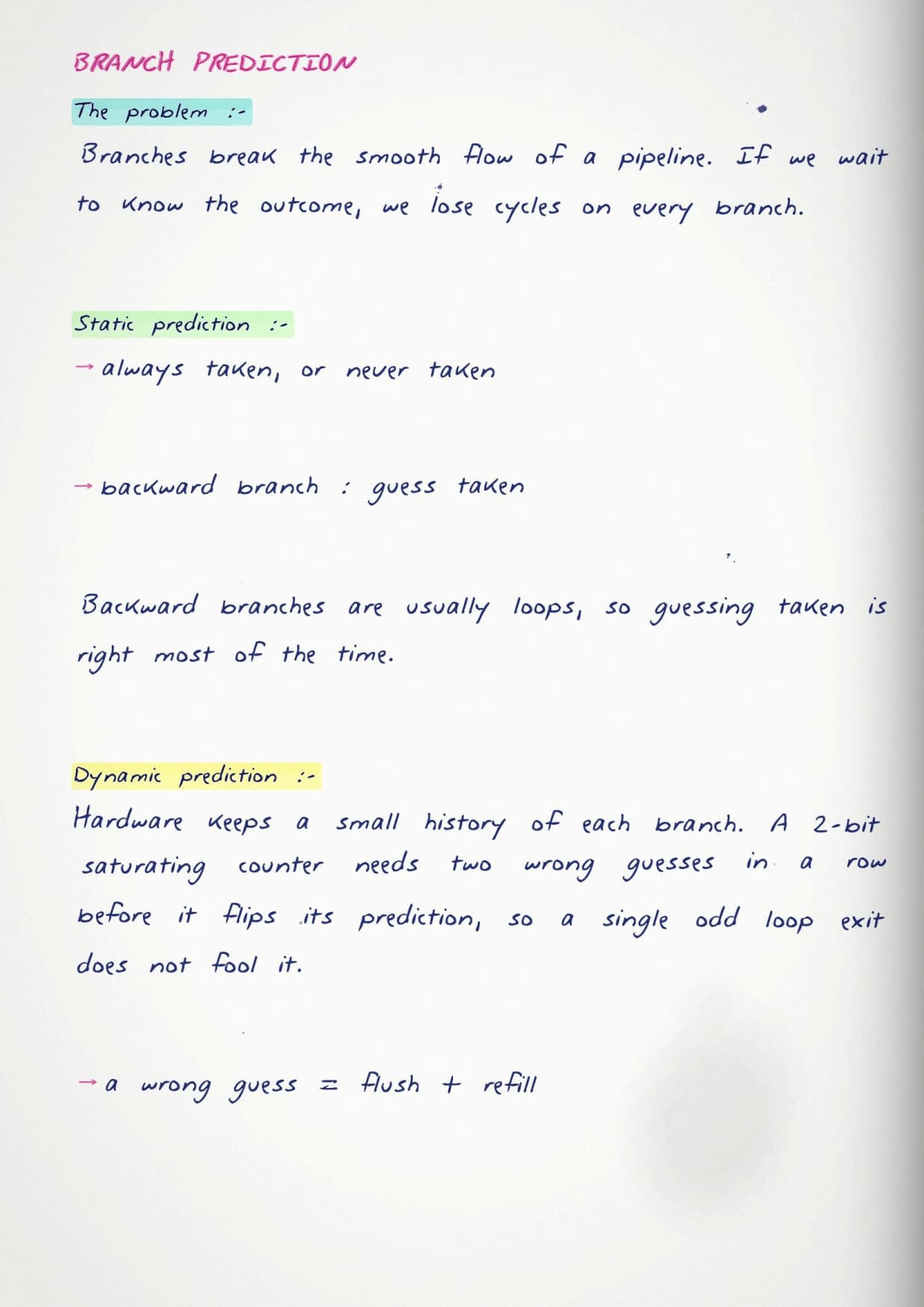

• Instruction pipelining and the three types of hazards.

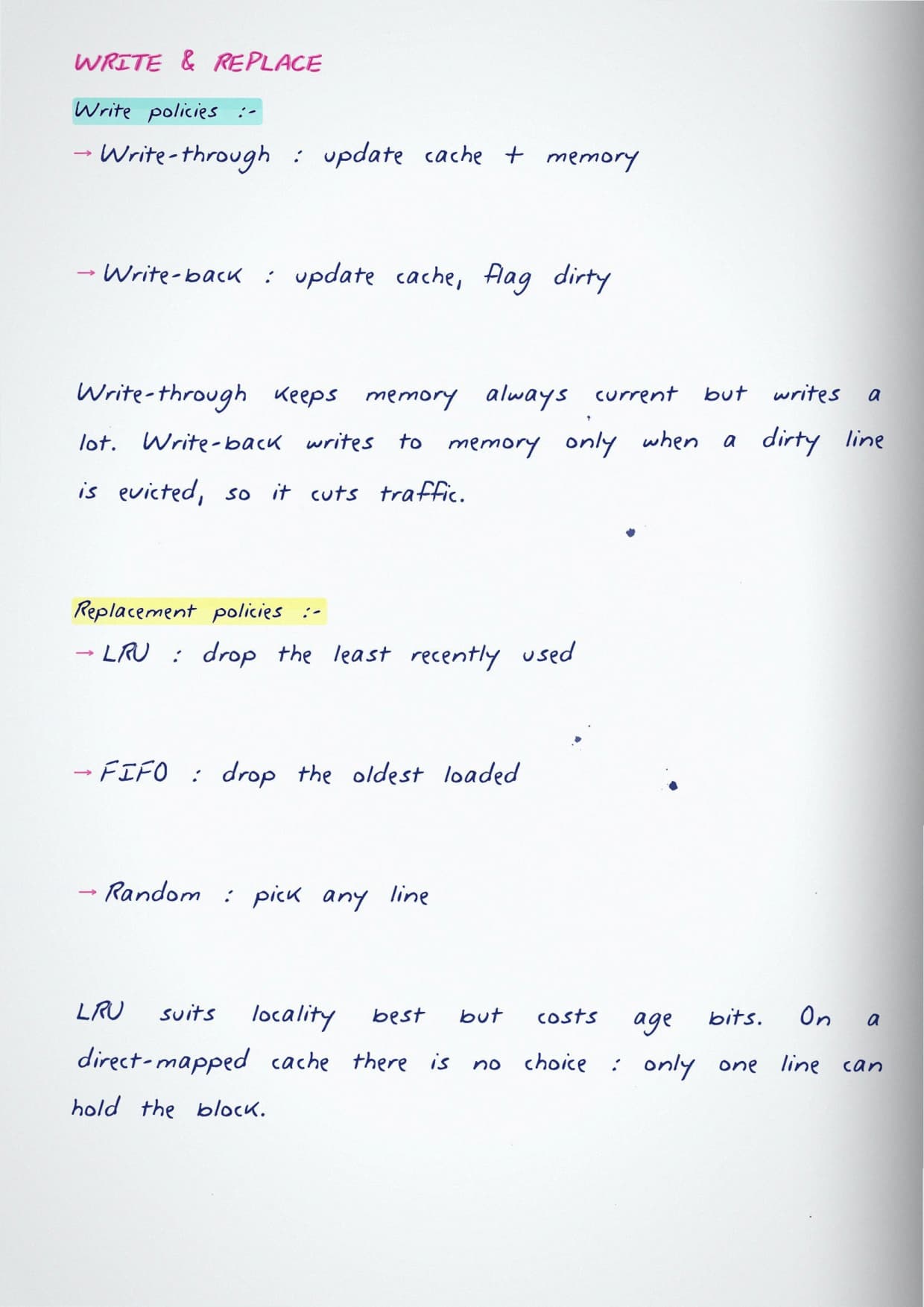

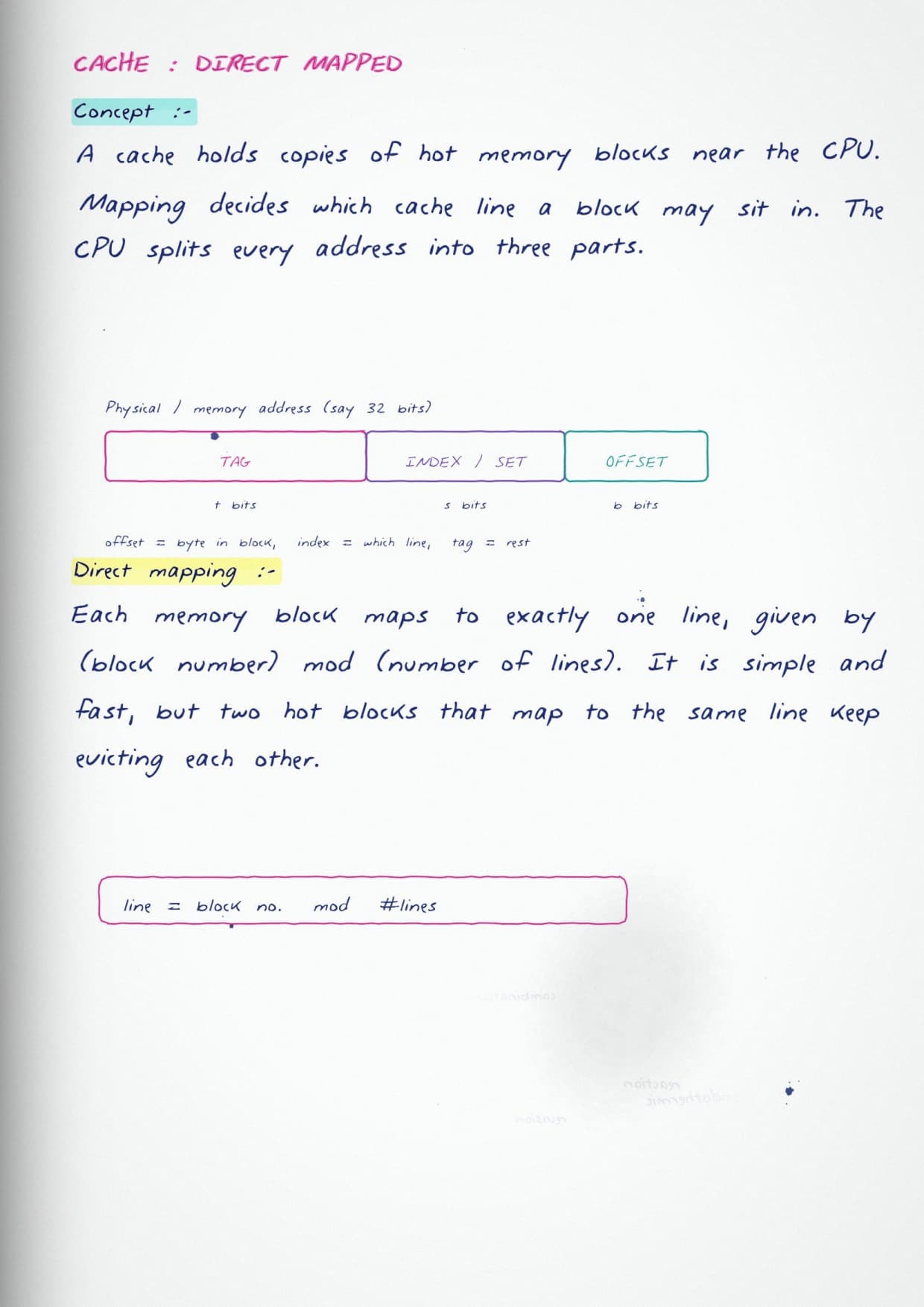

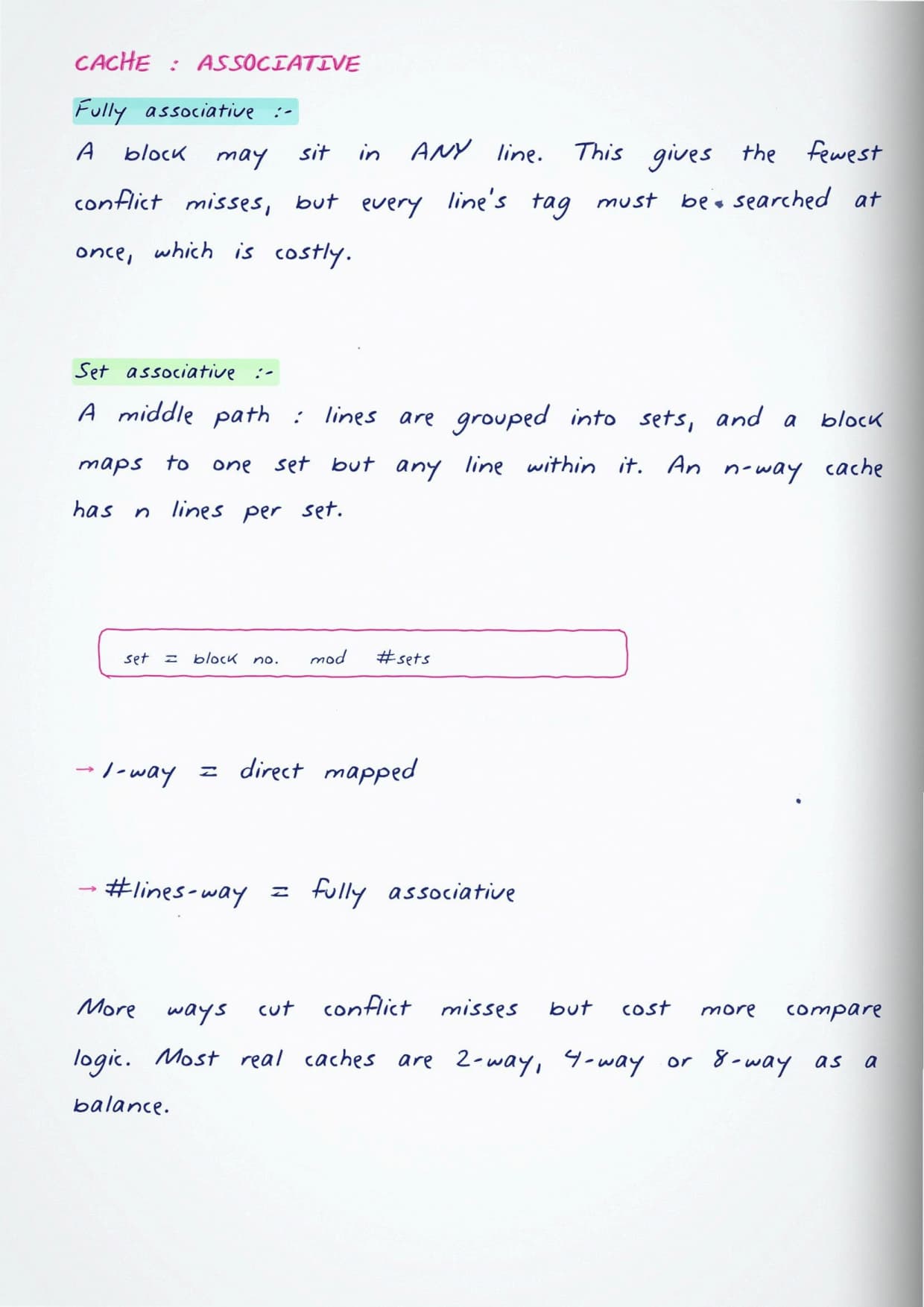

• Cache memory and the direct, associative, and set-associative mapping.

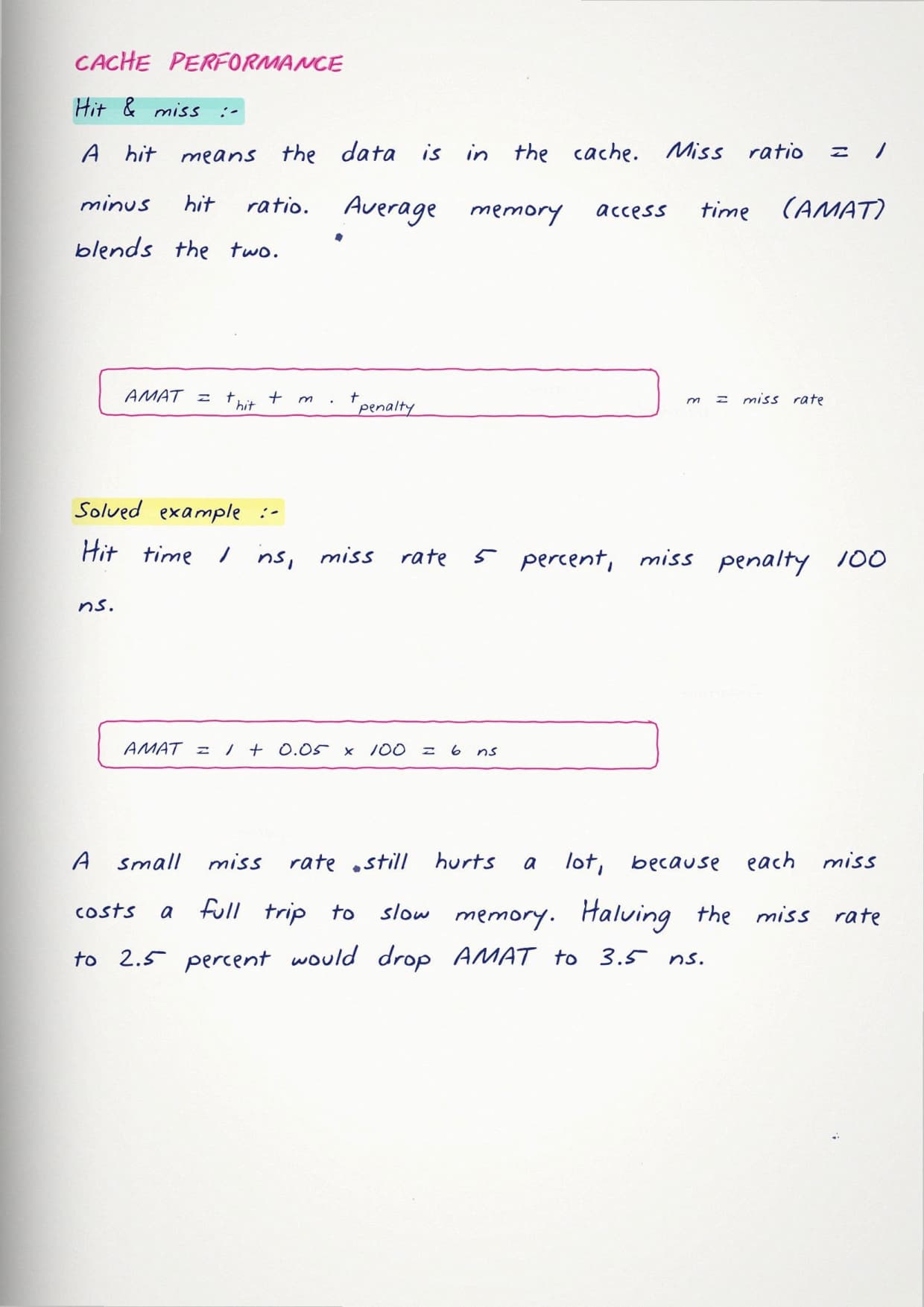

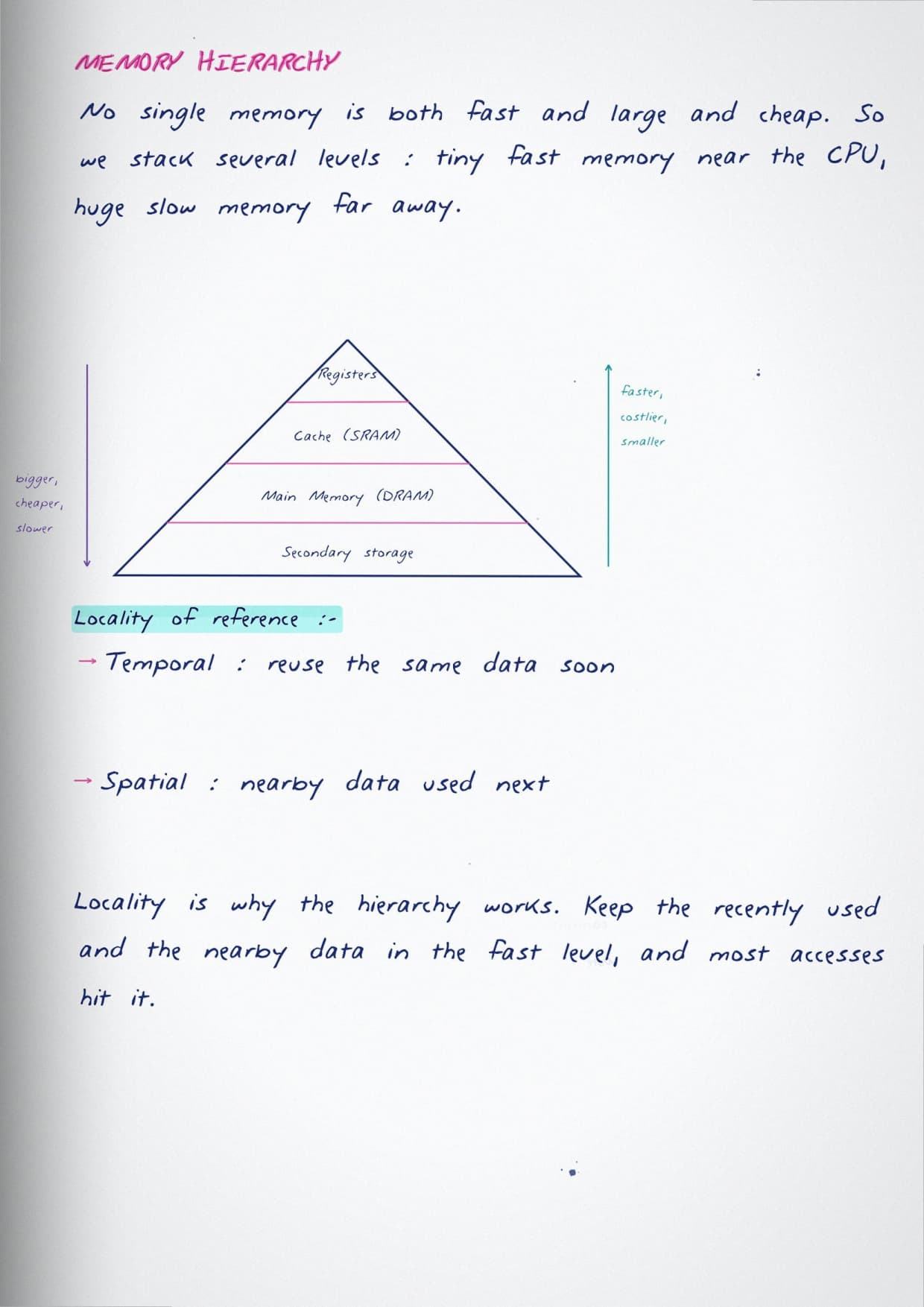

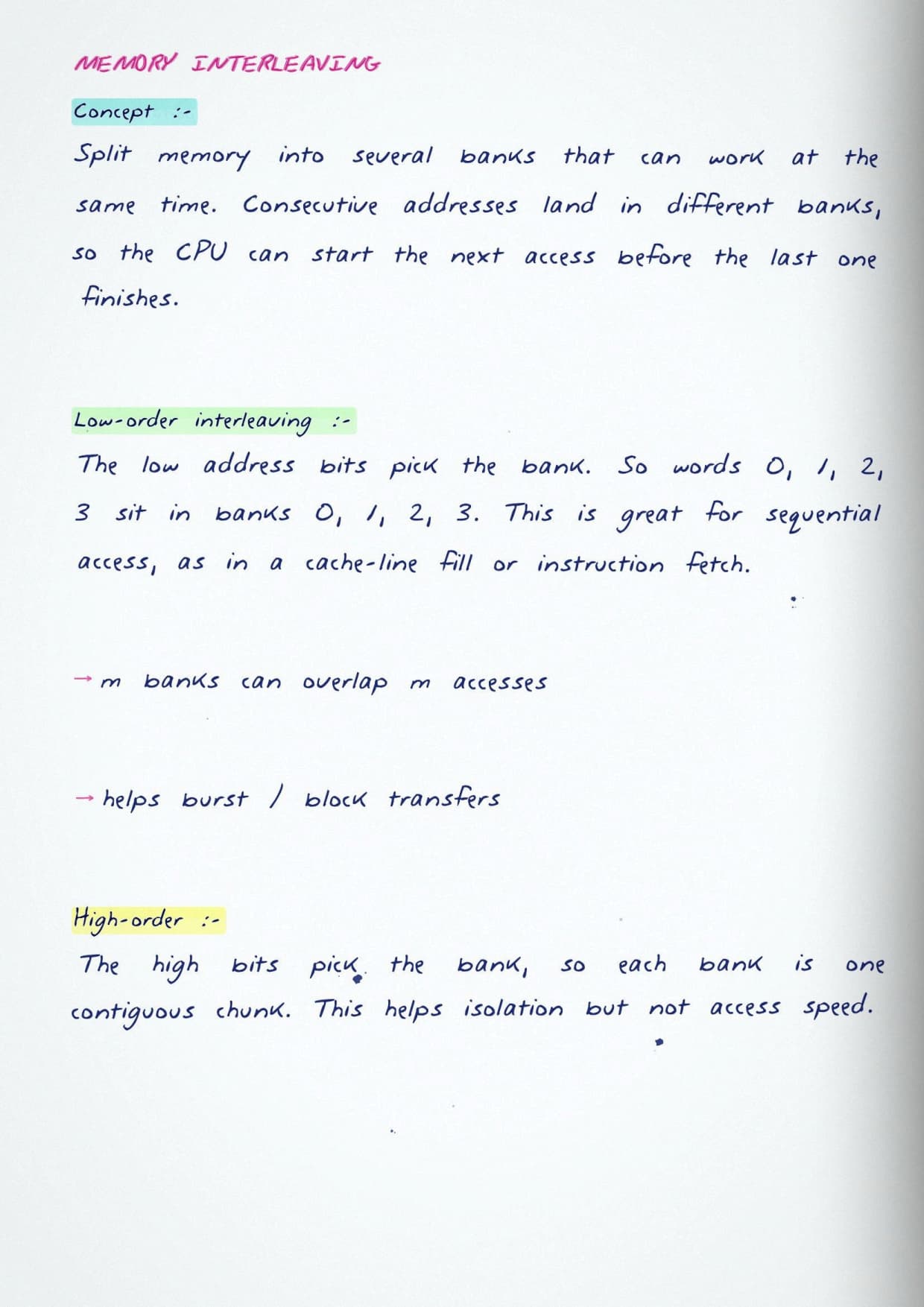

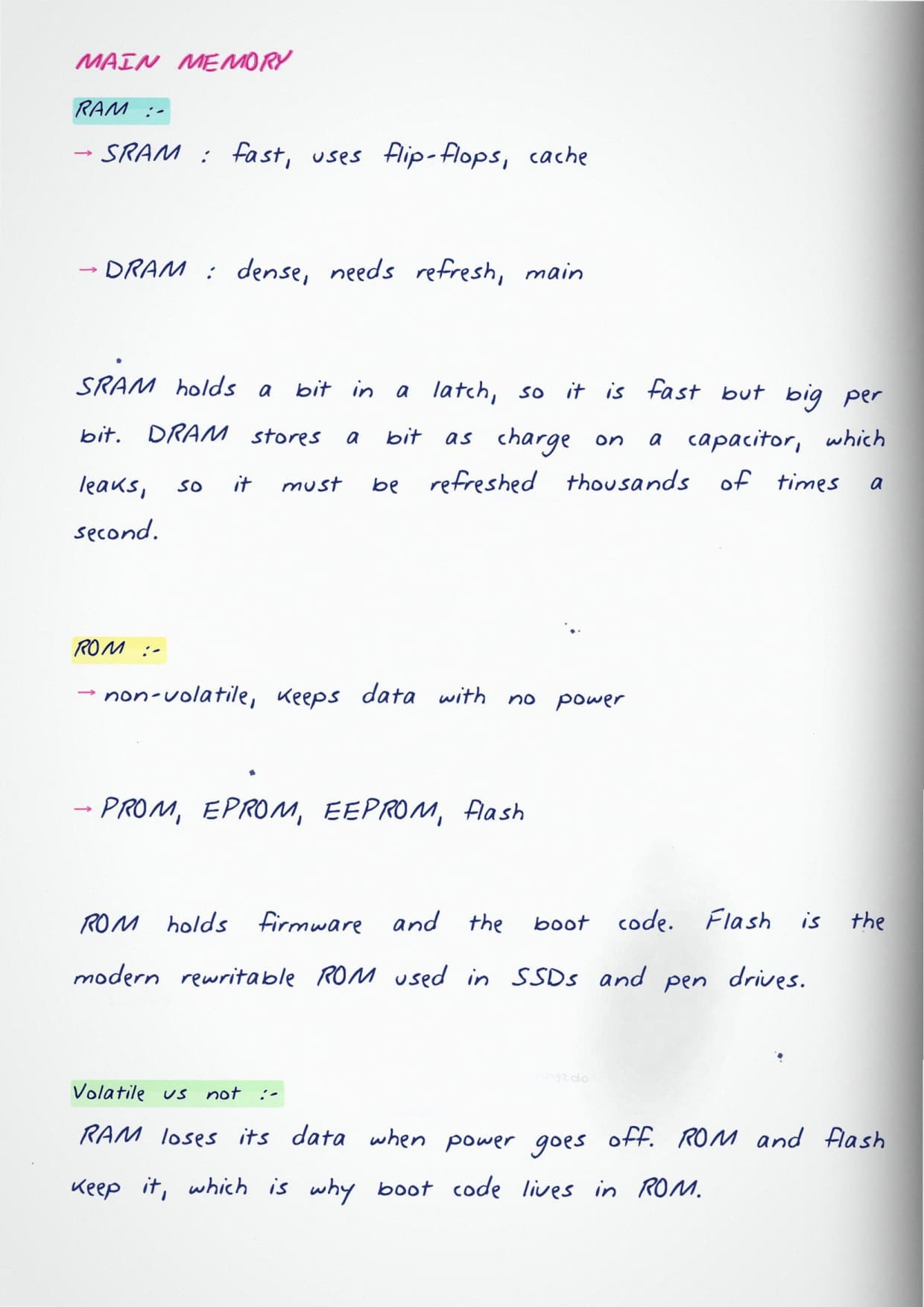

• Memory hierarchy, access time, and the hit and miss ratio.

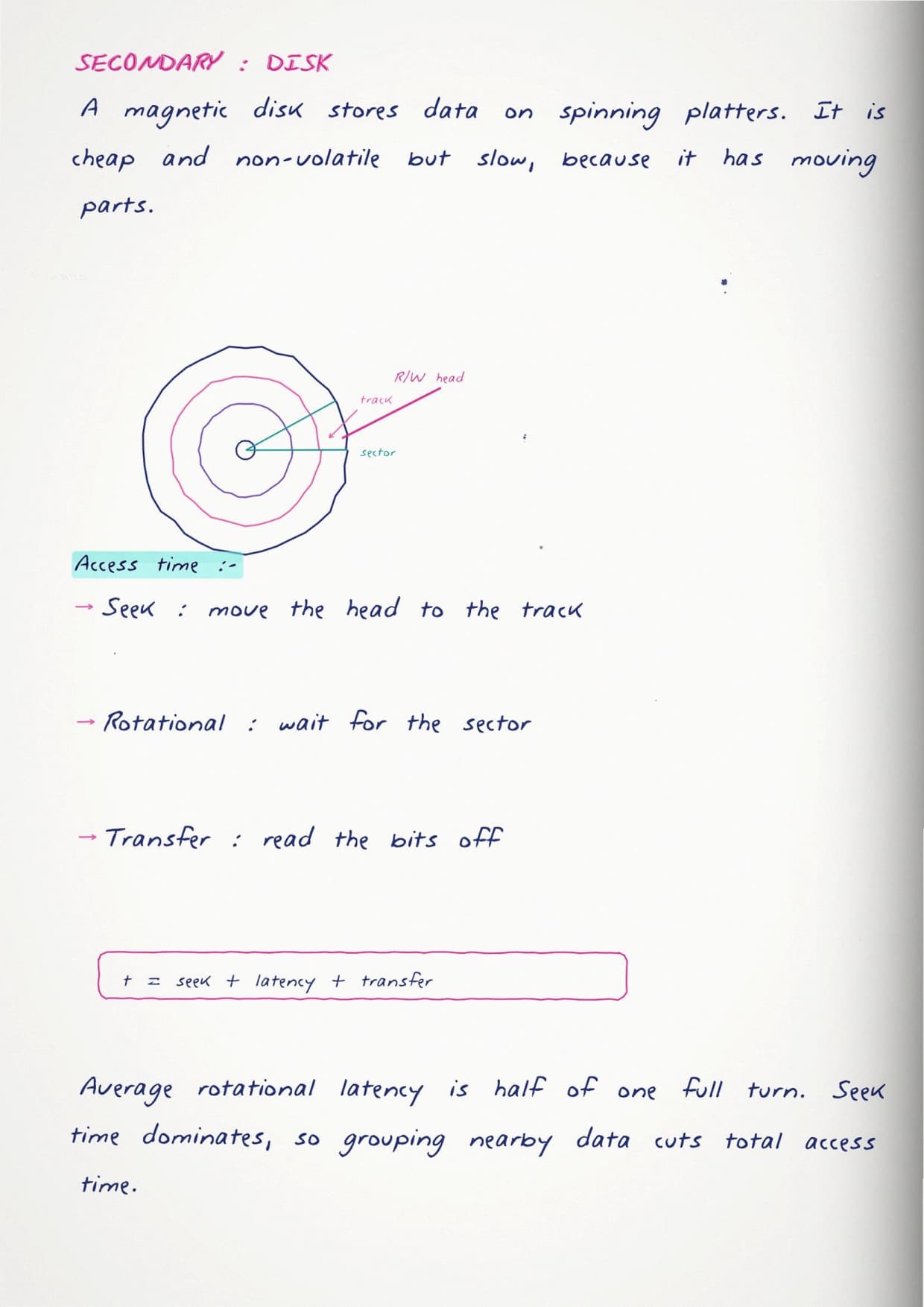

• Secondary storage and the basics of disk organisation.

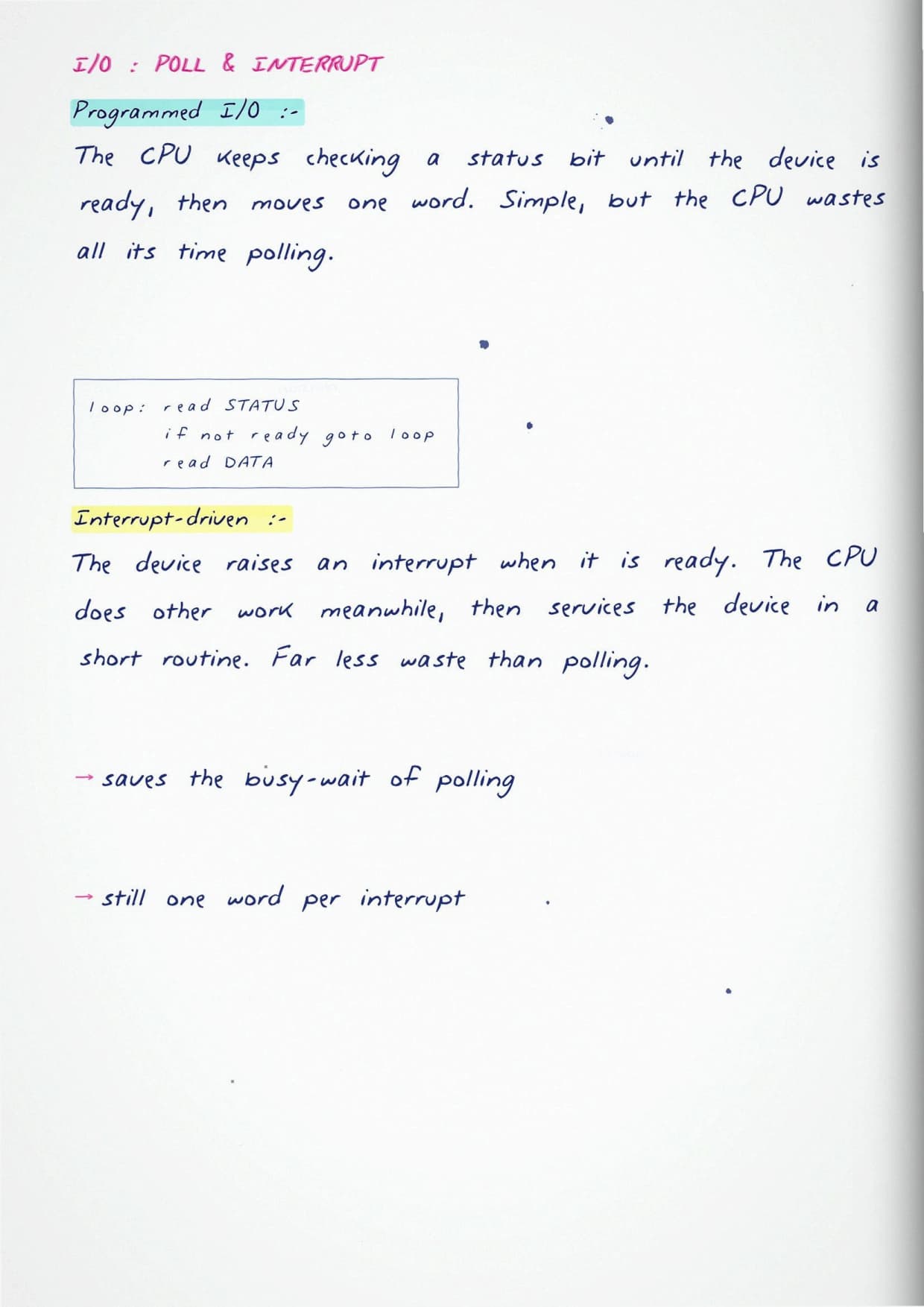

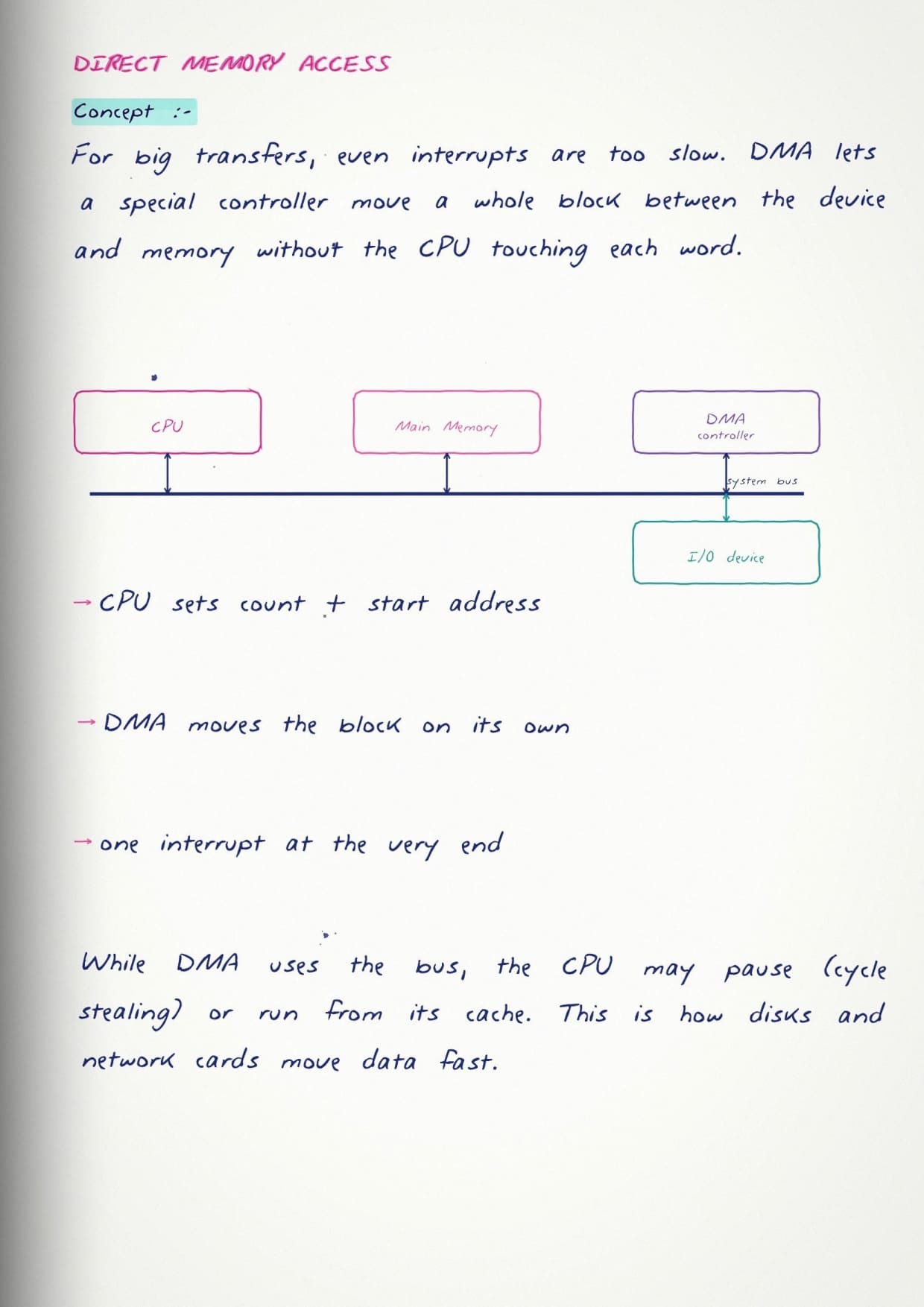

• I/O and DMA, along with interrupt-driven transfer.

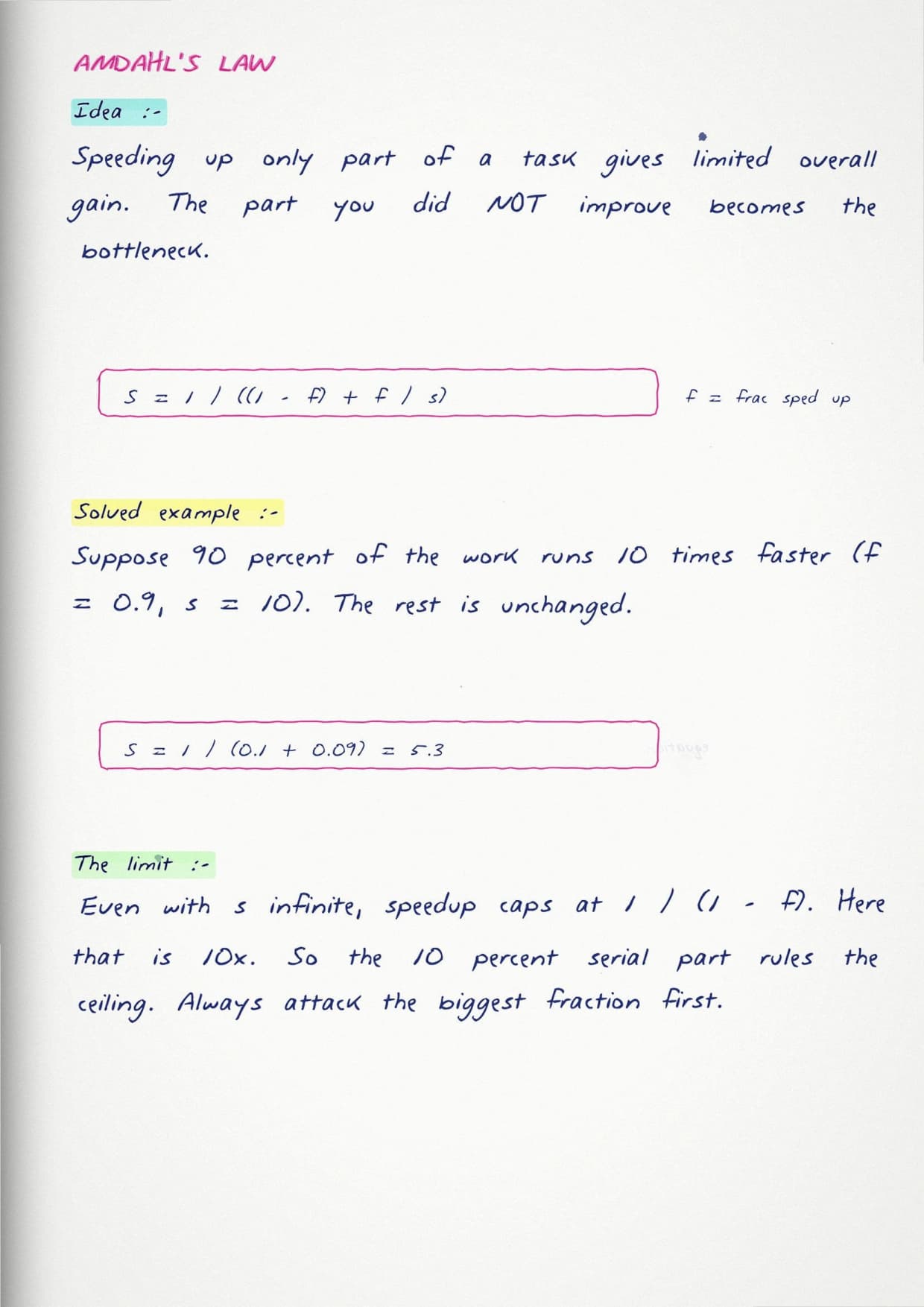

• Performance metrics such as CPI, MIPS, and speedup.

How the Notes Are Organised

The material runs from the fundamentals to the harder topics, so you can read it straight through or open a single page for a quick recap. Simpler topics such as addressing modes and instruction formats come first, while heavier ones like pipelining and cache mapping come later once the basics are in place. A revision sheet near the end brings the key results together.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

How GATE Computer Organization and Architecture Links to Other Subjects

This subject does not stand alone in the GATE CS paper. It builds on Digital Logic for the gates and flip-flops in the datapath, and it feeds into Operating Systems through memory and interrupts. The notes point out these links as they come up, so revising well earns marks in more than one place.

• Digital Logic supplies the gates, adders, and registers behind the ALU.
• Operating Systems reuses paging, the memory hierarchy, and interrupts.
• Number representation from Digital Logic returns in ALU and overflow questions.
• Cache and locality ideas support disk and I/O scheduling questions.

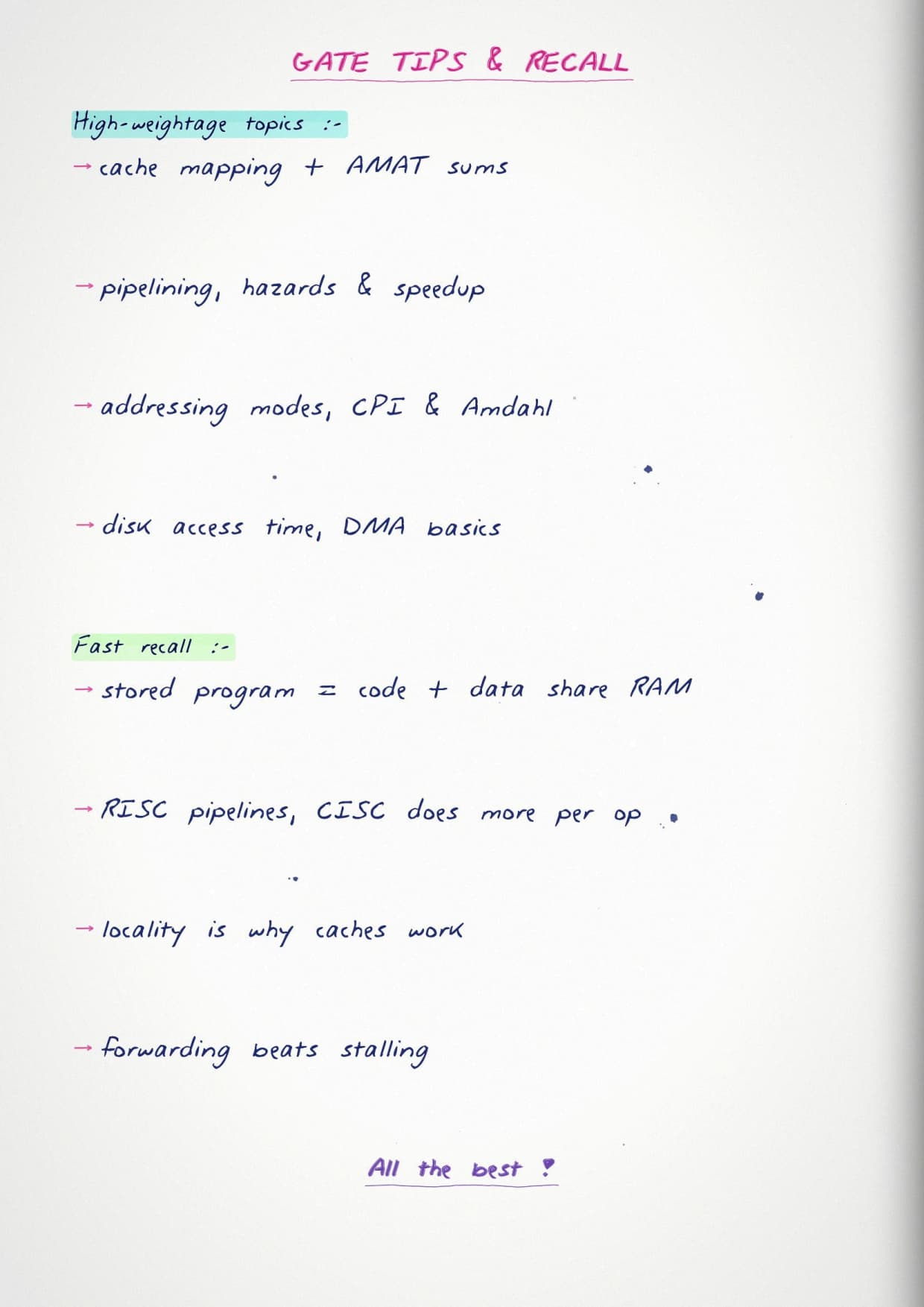

Important Topics in GATE Computer Organization and Architecture

A few topics appear in the GATE paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without mistakes, since they are the surest source of marks.

• Cache mapping and average access time, near-certain every year.

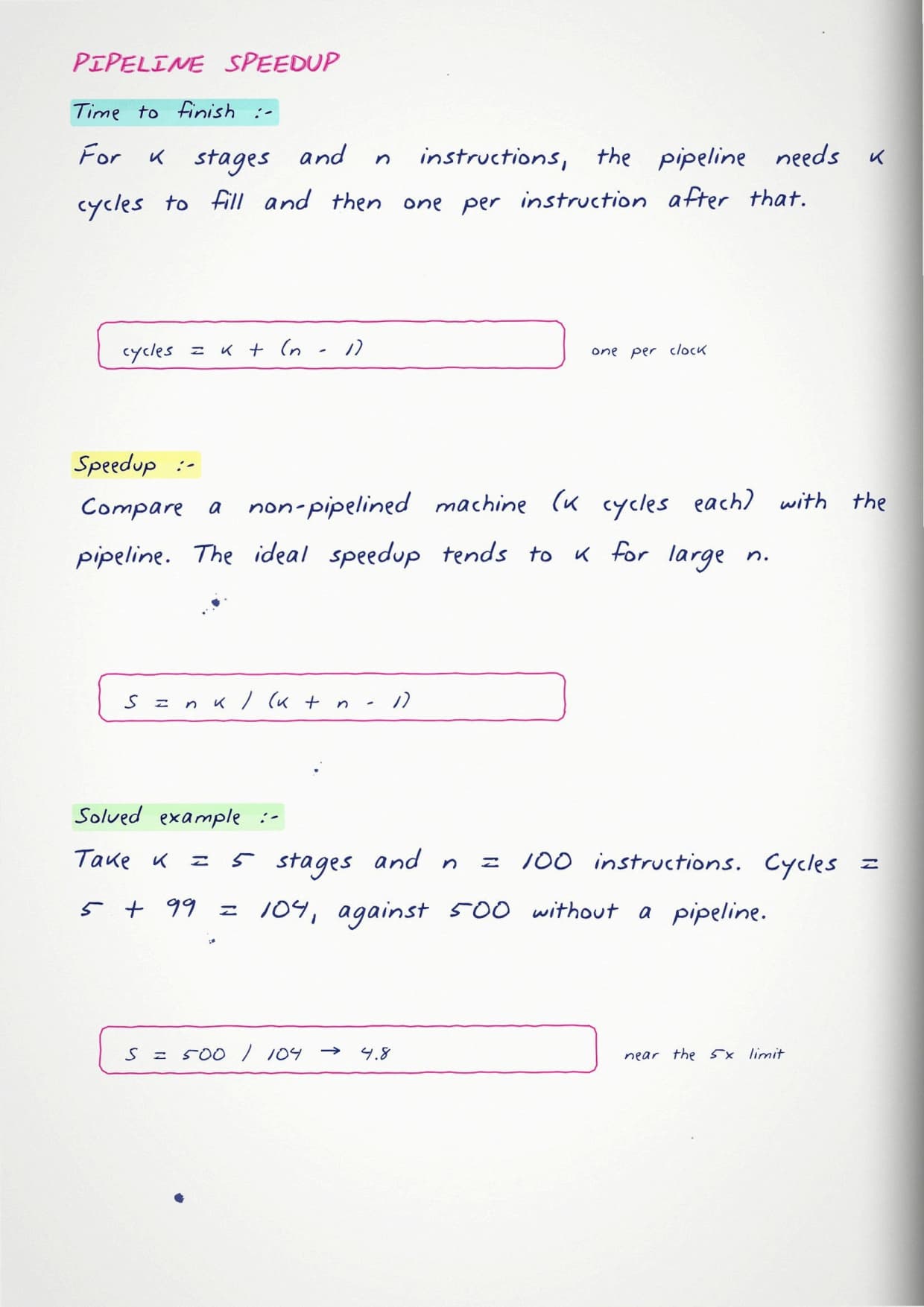

• Instruction pipelining, speedup, and hazard counting.
• Addressing modes and how they change the effective address.

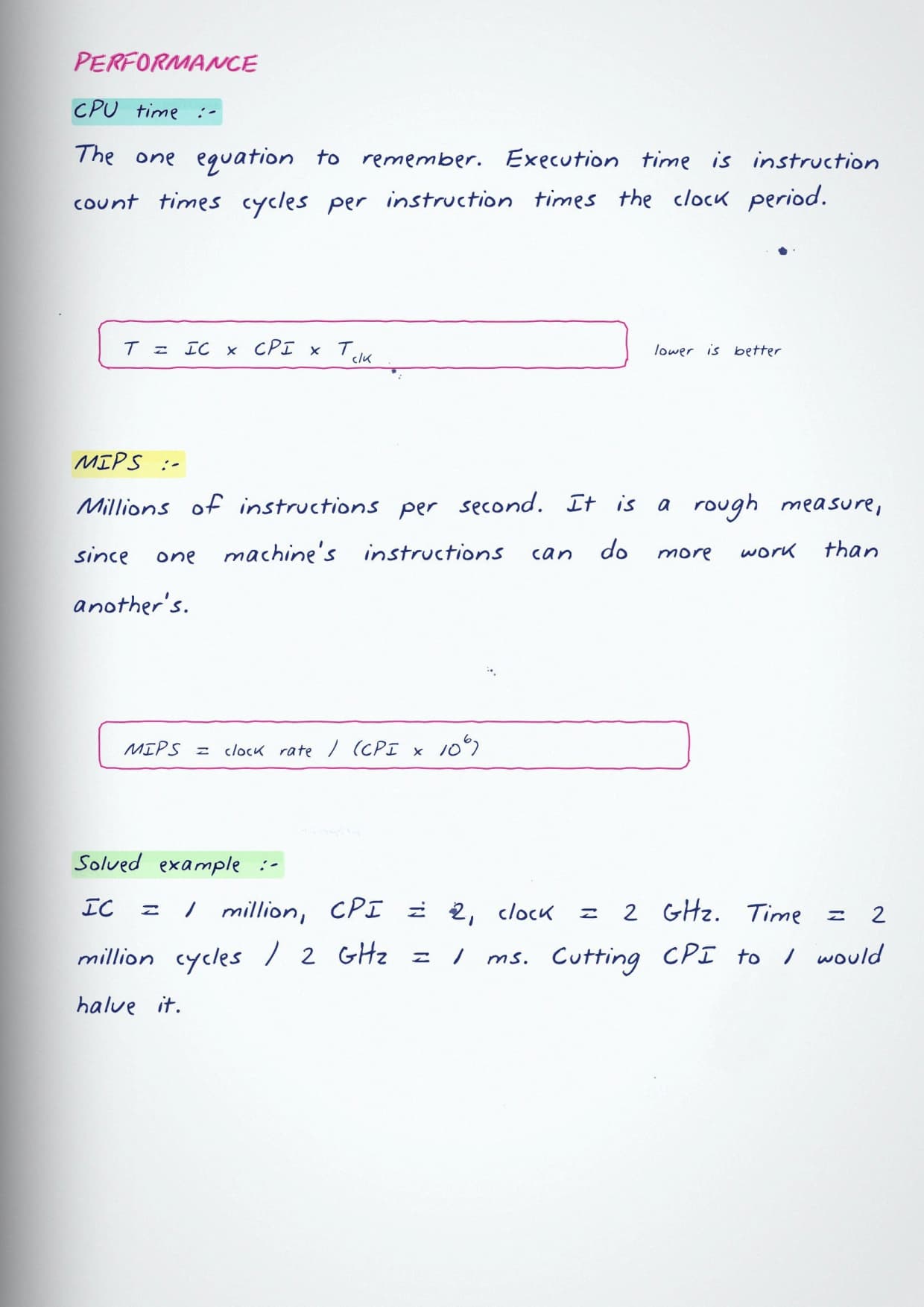

• CPU performance, using CPI, clock rate, and MIPS together.

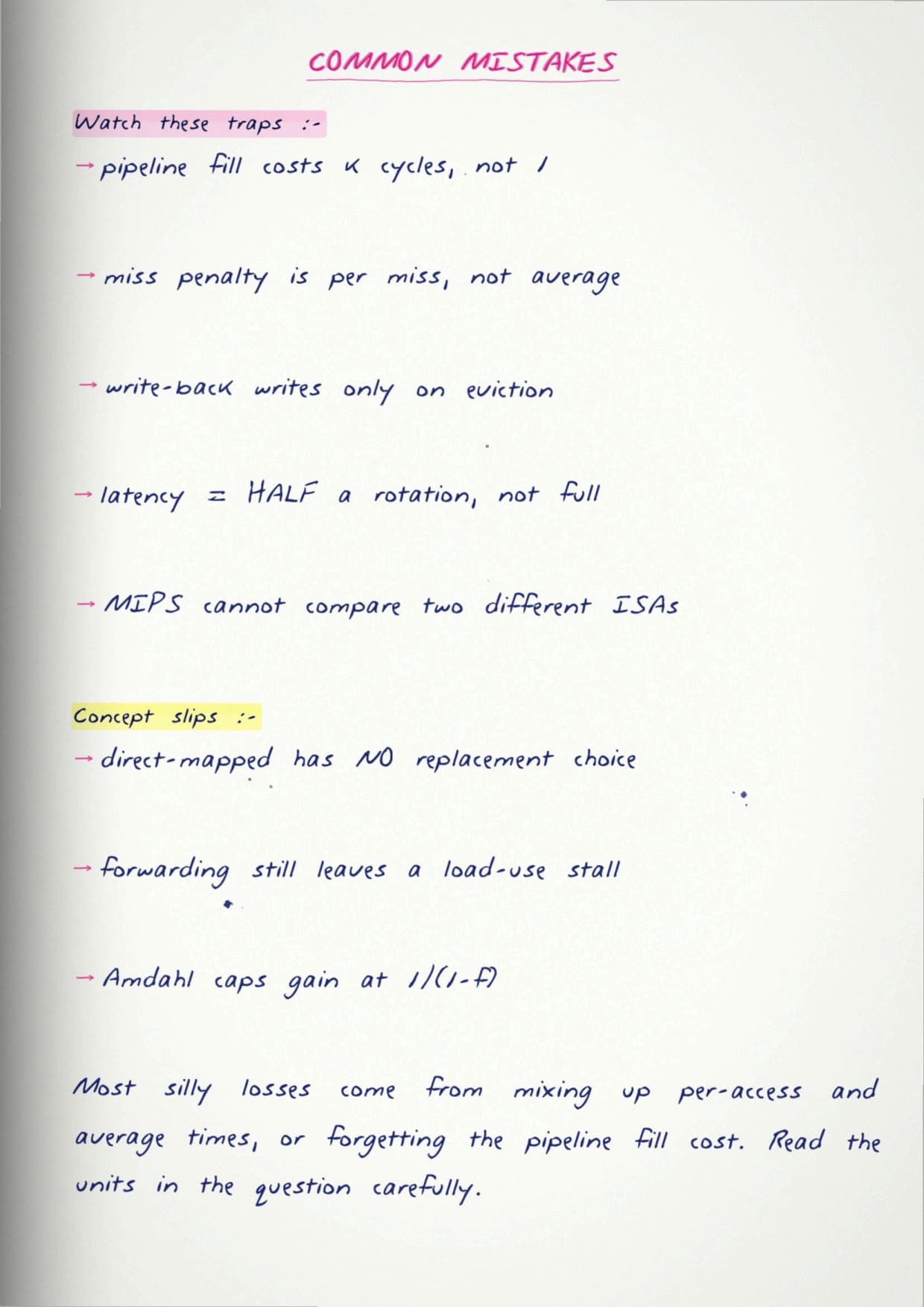

• Common traps: a stall adds cycles, and a miss adds the full penalty time.

How to Prepare GATE Computer Organization and Architecture with Handwritten Notes

This subject rewards careful calculation more than reading, so use the notes as a theory and formula base beside daily practice. Read a topic, note its formula, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on cache, pipelining, and performance metrics.
• Solve previous year questions topic by topic beside the notes.
• Final week: revise the formula sheet and the traps page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each diagram is right next to the result it explains, so the link stays clear for students.
