CBSE Class 12 Physics Set 3 - (55/2/3) Question Paper 2026 with Solution PDF

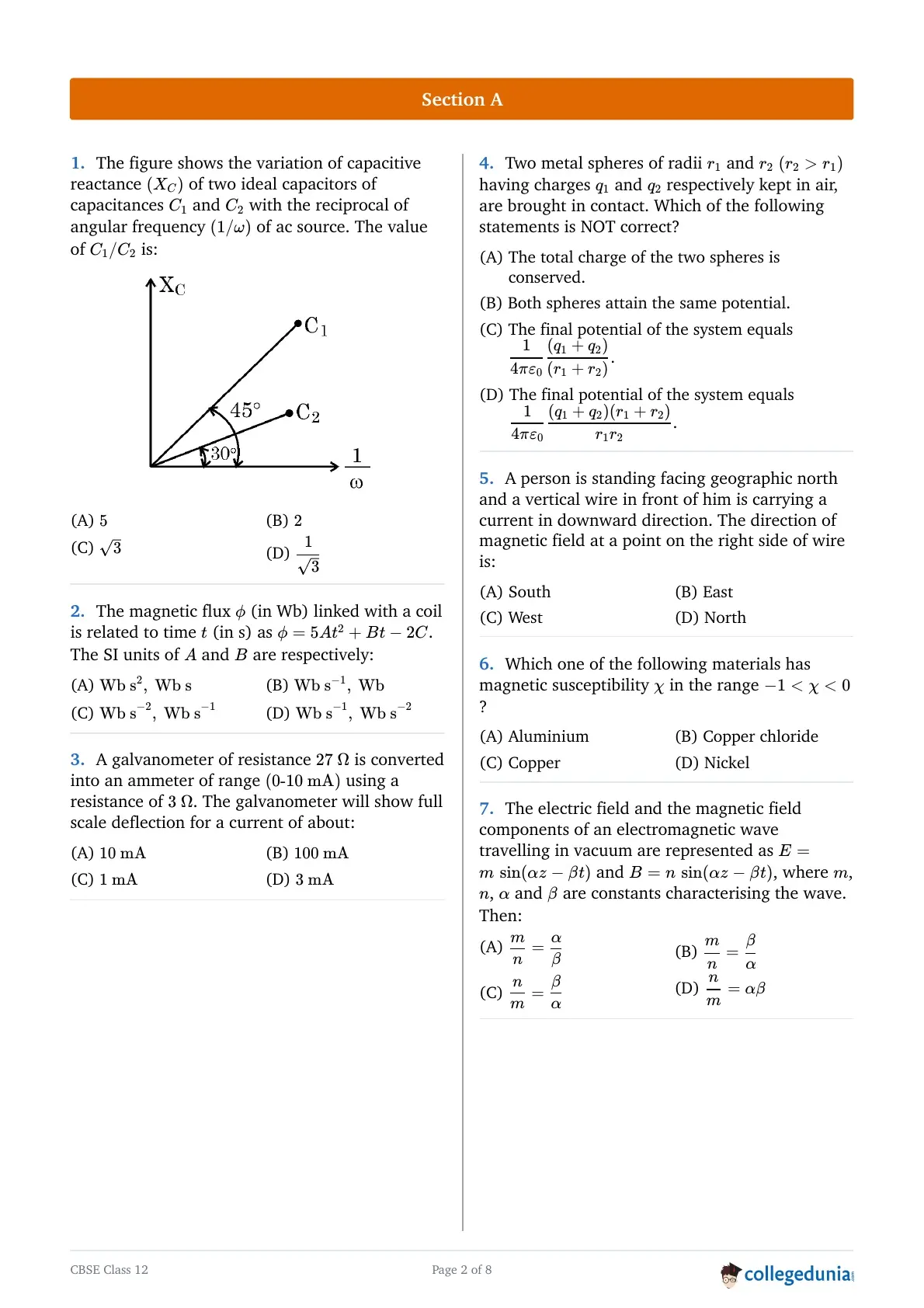

The figure shows the variation of capacitive reactance (\(X_C\)) of two ideal capacitors of capacitances \(C_1\) & \(C_2\) with the reciprocal of angular frequency (\(1/\omega\)) of ac source. The value of \(C_1/C_2\) is

• (A) \(\frac{1}{2}\)

• (B) \(2\)

• (C) \(\sqrt{3}\)

• (D) \(\frac{1}{\sqrt{3}}\)


The magnetic flux \(\phi\) (in Wb) linked with a coil is related to time t (in s) as
\(\phi = 5 At^2 + Bt - 2C\)
The SI units of A and B are respectively

• (A) Wbs\(^2\), Wbs

• (B) Wb s\(^{-1}\), Wb

• (C) Wbs\(^{-2}\), Wbs\(^{-1}\)

• (D) Wbs\(^{-1}\), Wbs\(^{-2}\)


A galvanometer of resistance \(27 \Omega\) is converted into an ammeter of range (0 – 10 mA) using a resistance of \(3 \Omega\). The galvanometer will show full scale deflection for a current of about –

• (A) 10 mA

• (B) 100 mA

• (C) 1 mA

• (D) 3 mA


Two metal spheres of radii \(r_1\) and \(r_2\) (\(> r_1\)) having charges \(q_1\) and \(q_2\) respectively kept in air, are brought in contact. Which of the following statements is not correct ?

• (A) The total charge of the two spheres is conserved.

• (B) Both spheres attain the same potential.

• (C) The final potential of the system equals \(\frac{1}{4\pi\epsilon_0} \frac{(q_1 + q_2)}{(r_1 + r_2)}\)

• (D) The final potential of the system equals \(\frac{1}{4\pi\epsilon_0} \frac{(q_1 + q_2) (r_1 + r_2)}{r_1 r_2}\)


A person is standing facing geographic north and a vertical wire in front of him is carrying a current in downward direction. The direction of magnetic field at a point on the right side of wire is:

• (A) South
• (B) East
• (C) West
• (D) North

Which one of the following materials has magnetic susceptibility \(\chi\) in the range \(-1 \leq \chi < 0\)?

• (A) Aluminium
• (B) Copper chloride
• (C) Copper
• (D) Nickel

The electric field and the magnetic field components of an electromagnetic wave travelling in vacuum are represented as \(E = m\,\sin(\alpha z - \beta t)\) and \(B = n\,\sin(\alpha z - \beta t)\), where \(m\), \(n\), \(\alpha\) and \(\beta\) are constants characterising the wave. Then:

• (A) \(\dfrac{m}{n} = c,\ \dfrac{\beta}{\alpha} \neq c\)
• (B) \(\dfrac{n}{m} = \dfrac{\alpha}{\beta} = c\)
• (C) \(\dfrac{\beta}{\alpha} = c,\ \dfrac{m}{n} \neq c\)
• (D) \(\dfrac{m}{n} = \dfrac{\beta}{\alpha} = c\)

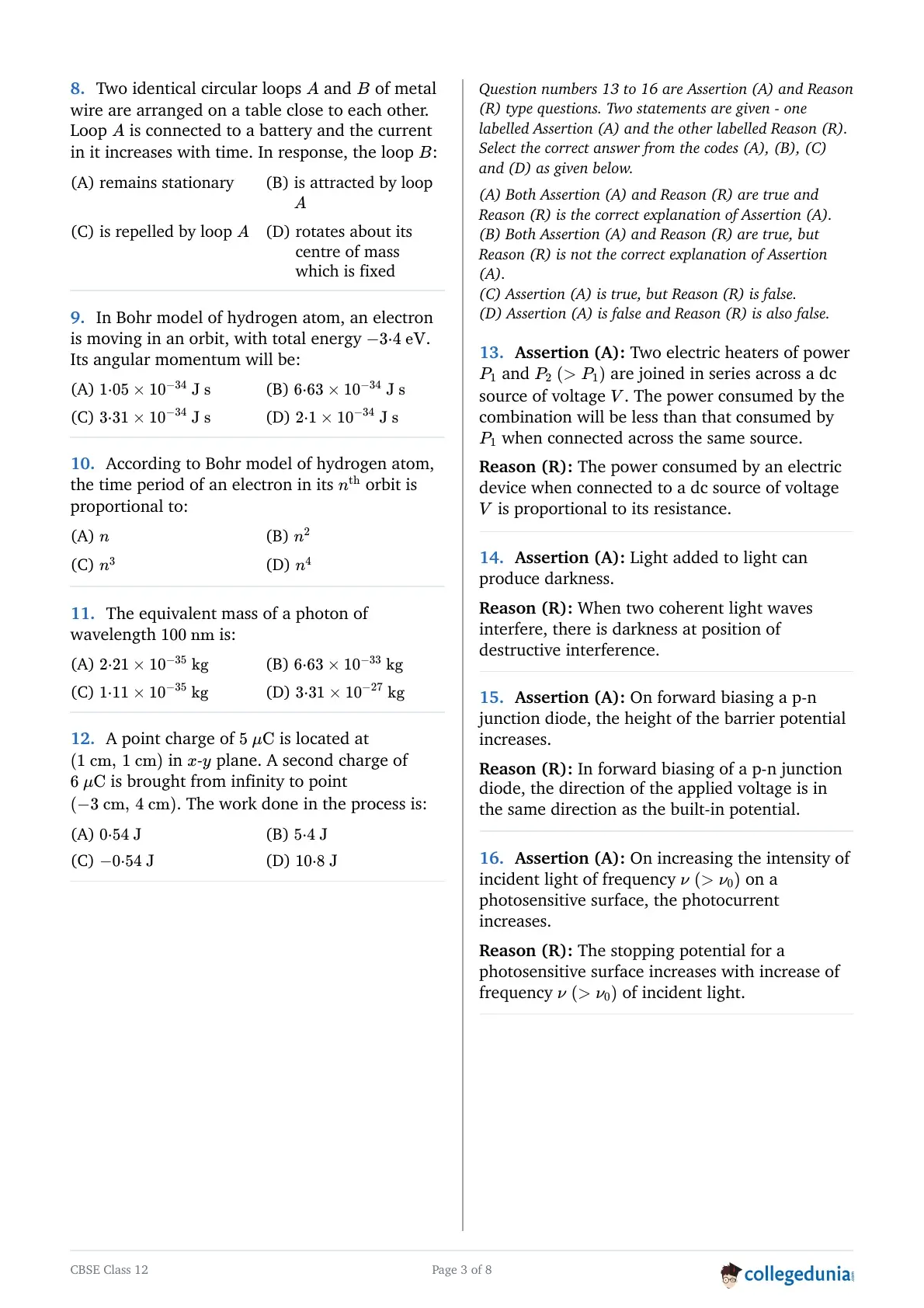

Two identical circular loops \(A\) and \(B\) of metal wire are arranged on a table close to each other. Loop \(A\) is connected to a battery and the current in it increases with time. In response, the loop \(B\):

• (A) remains stationary
• (B) is attracted by loop \(A\)
• (C) is repelled by loop \(A\)
• (D) rotates about its centre of mass which is fixed

In Bohr model of hydrogen atom, an electron is moving in an orbit, with total energy \(-3{\cdot}4\ \text{eV}\). Its angular momentum will be:

• (A) \(1{\cdot}05\times 10^{-34}\ \text{J s}\)
• (B) \(6{\cdot}63\times 10^{-34}\ \text{J s}\)
• (C) \(3{\cdot}31\times 10^{-34}\ \text{J s}\)
• (D) \(2{\cdot}1\times 10^{-34}\ \text{J s}\)

According to Bohr model of hydrogen atom, the time period of an electron in its \(n^{\text{th}}\) orbit is proportional to:

• (A) \(n\)
• (B) \(n^{2}\)
• (C) \(n^{3}\)
• (D) \(n^{4}\)

The equivalent mass of a photon of wavelength \(100\ \text{nm}\) is:

• (A) \(2.21\times 10^{-35}\ \text{kg}\)
• (B) \(6.63\times 10^{-33}\ \text{kg}\)
• (C) \(1.11\times 10^{-35}\ \text{kg}\)
• (D) \(3.31\times 10^{-33}\ \text{kg}\)

A point charge of \(5\ \mu\text{C}\) is located at \((1\ \text{cm},\,1\ \text{cm})\) in \(x\)-\(y\) plane. A second charge of \(6\ \mu\text{C}\) is brought from infinity to point \((-3\ \text{cm},\,4\ \text{cm})\). The work done in the process is:

• (A) \(0{\cdot}54\ \text{J}\)
• (B) \(5{\cdot}4\ \text{J}\)
• (C) \(-0{\cdot}54\ \text{J}\)
• (D) \(10{\cdot}8\ \text{J}\)

Assertion (A) : Two electric heaters of power \(P_1\) and \(P_2\) (\(> P_1\)) are joined in series across a dc source of voltage V. The power consumed by the combination will be less than that consumed by \(P_1\) when connected across the same source.
Reason (R) : The power consumed by a electric device when connected to a dc source of voltage V is proportional to its resistance.

• (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A).

• (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A).

• (C) Assertion (A) is true, but Reason (R) is false.

• (D) Assertion (A) is false and Reason (R) is also false.


Assertion (A) : Light added to light can produce darkness.
Reason (R) : When two coherent light waves interfere, there is darkness at position of destructive interference.

• (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A).

• (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A).

• (C) Assertion (A) is true, but Reason (R) is false.

• (D) Assertion (A) is false and Reason (R) is also false.


Assertion (A) : On forward biasing a p-n junction diode, the height of the barrier potential increases.
Reason (R) : In forward biasing of a p-n junction diode, the direction of the applied voltage is in the same direction as the built-in potential.

• (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A).

• (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A).

• (C) Assertion (A) is true, but Reason (R) is false.

• (D) Assertion (A) is false and Reason (R) is also false.


Assertion (A) : On increasing the intensity of incident light of frequency \(\nu\) (\(> \nu_0\)) on a photosensitive surface, the photocurrent increases.
Reason (R) : The stopping potential for a photosensitive surface increases with increase of frequency \(\nu\) (\(> \nu_0\)) of incident light.

• (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A).

• (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A).

• (C) Assertion (A) is true, but Reason (R) is false.

• (D) Assertion (A) is false and Reason (R) is also false.

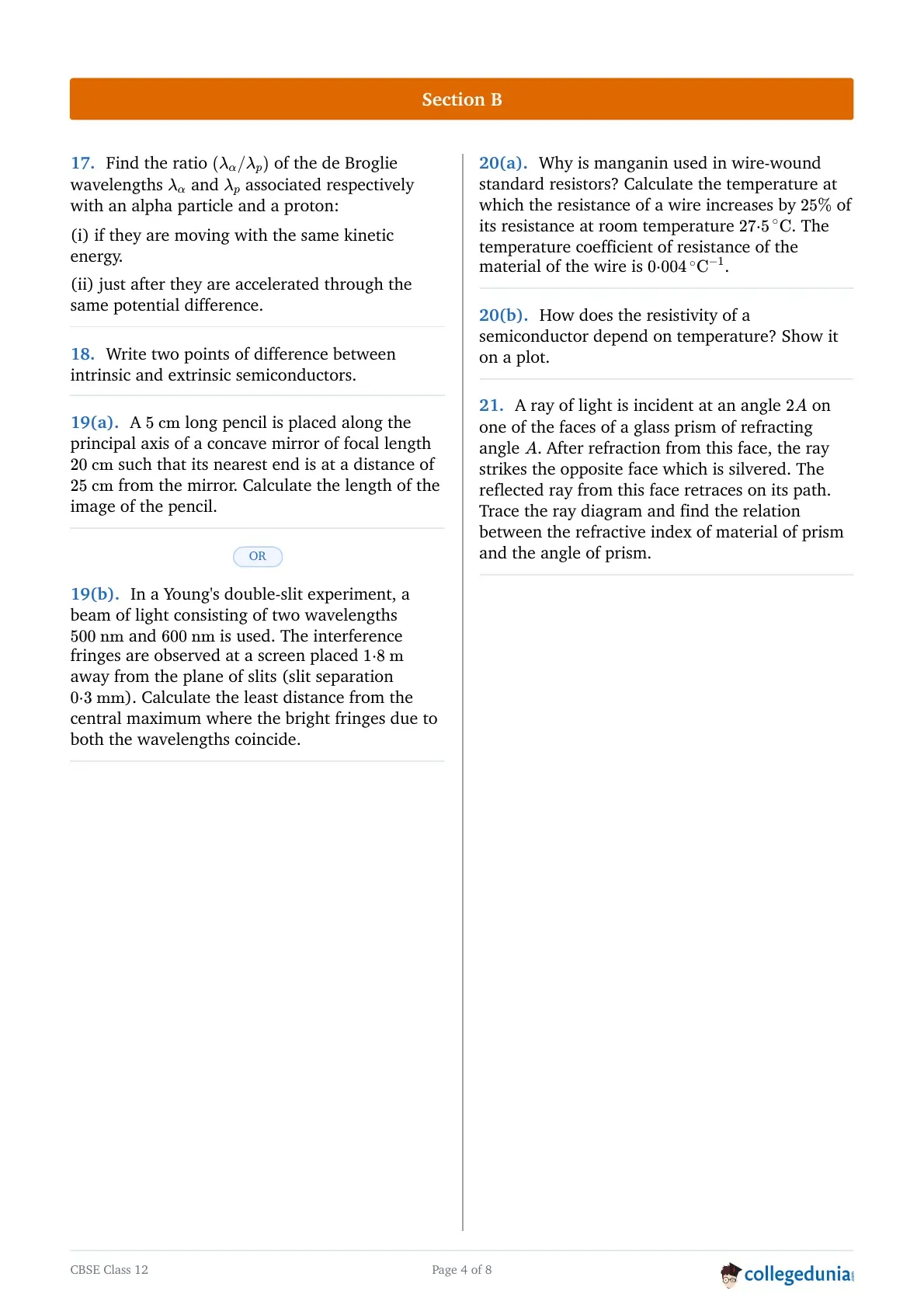

Find ratio \( \left(\frac{\lambda_a}{\lambda_p}\right) \) of the de Broglie wavelength \( \lambda_a \) and \( \lambda_p \) associated respectively with an alpha particle and a proton,
(i) if they are moving with the same kinetic energy.
(ii) just after they are accelerated through the same potential difference.

Write two points of difference between intrinsic and extrinsic semiconductors.

A 5 cm long pencil is placed along the principal axis of a concave mirror of focal length 20 cm such that its nearest end is at a distance of 25 cm from the mirror. Calculate the length of the image of the pencil.

In a Young’s double-slit experiment, a beam of light consisting of two wavelengths 500 nm and 600 nm is used. The interference fringes are observed at a screen placed 1.8 m away from the plane of slits (slit separation 0.3 mm). Calculate the least distance from the central maximum where the bright fringes due to both the wavelengths coincide.

(a) Why is manganin used in wire-wound standard resistors? Calculate the temperature at which the resistance of a wire increases by \(25\%\) of its resistance at room temperature \(27{\cdot}5\,^{\circ}\text{C}\). The temperature coefficient of resistance of the material of the wire is \(0{\cdot}004\,^{\circ}\text{C}^{-1}\).

(b) How does the resistivity of a semiconductor depend on temperature? Show it on a plot.

A ray of light is incident at an angle \(2A\) on one of the faces of a glass prism of refracting angle \(A\). After refraction from this face, the ray strikes the opposite face which is silvered. The reflected ray from this face retraces on its path. Trace the ray diagram and find the relation between the refractive index of material of prism and the angle of prism.

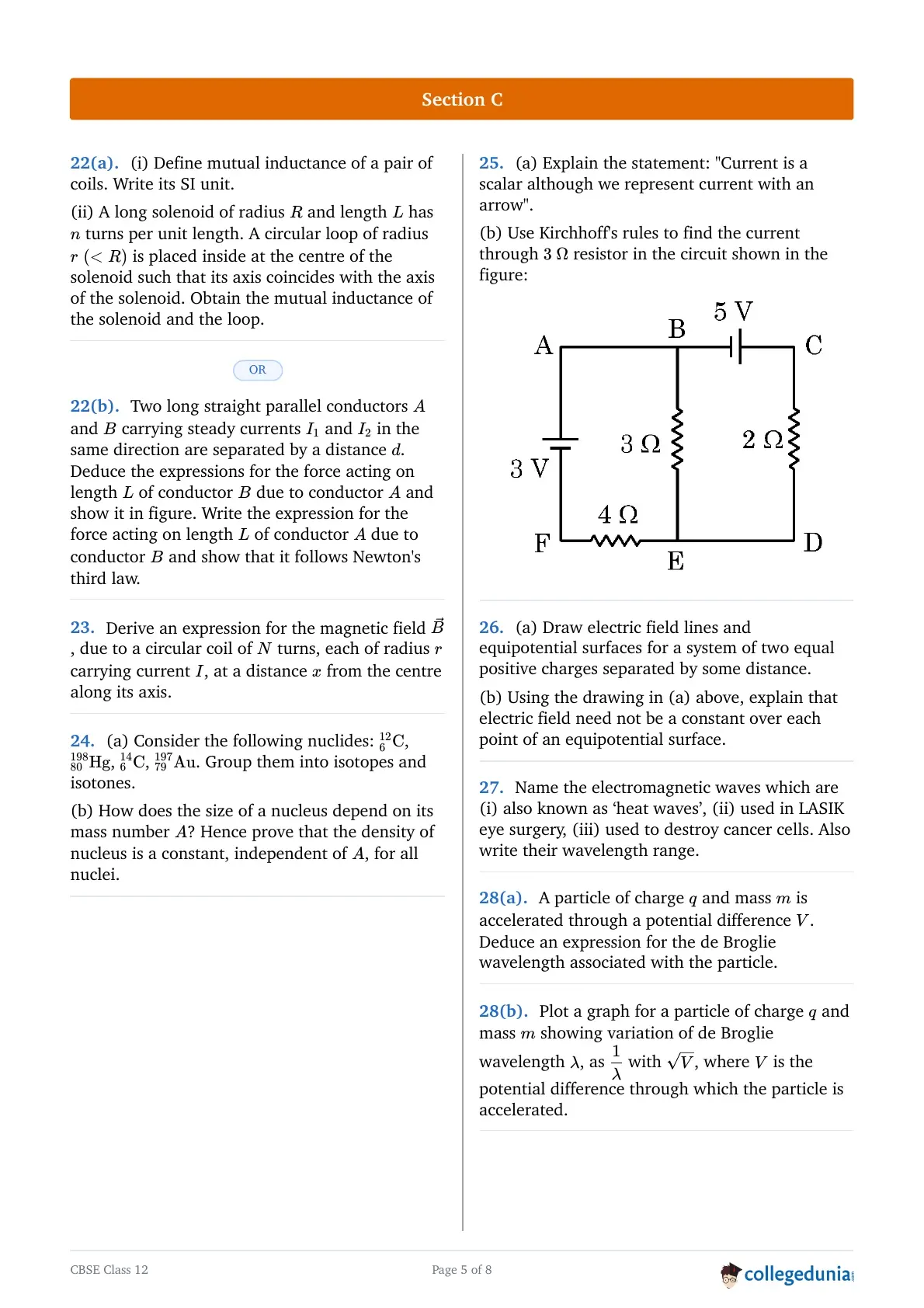

(i) Define mutual inductance of a pair of coils. Write its SI unit.

(ii) A long solenoid of radius \(R\) and length \(L\) has \(n\) turns per unit length. A circular loop of radius \(r\;(<R)\) is placed inside at the centre of the solenoid such that its axis coincides with the axis of the solenoid. Obtain the mutual inductance of the solenoid and the loop.

Two long straight parallel conductors A and B carrying steady currents \(I_a\) and \(I_b\) in the same direction are separated by a distance d. Deduce the expressions for the force acting on length L of conductor B due to conductor A and show it in figure. Write the expression for the force acting on length L of conductor A due to conductor B and show that it follows Newton's third law.

Derive an expression for the magnetic field \(\vec{B}\), due to a circular coil of N turns, each of radius r carrying current I, at a distance ‘x’ from the centre along its axis.

(a) Consider the following nuclides: \({}^{12}_{6}\text{C}\), \({}^{198}_{80}\text{Hg}\), \({}^{14}_{6}\text{C}\), \({}^{197}_{79}\text{Au}\). Group them into isotopes and isotones.

(b) How does the size of a nucleus depend on its mass number \(A\)? Hence prove that the density of nucleus is a constant, independent of \(A\), for all nuclei.

Explain the statement : “Current is a scalar although we represent current with an arrow”.

Use Kirchhoff’s rules to find the current through \(3 \Omega\) resistor in the circuit shown in the figure :

(a) Draw electric field lines and equipotential surfaces for a system of two equal positive charges separated by some distance.

(b) Using the drawing in (a) above, explain that electric field need not be a constant over each point of an equipotential surface.

Name the electromagnetic waves which are (i) also known as ‘heat waves’, (ii) used in LASIK eye surgery, (iii) used to destroy cancer cells. Also write their wavelength range.

(a) A particle of charge \(q\) and mass \(m\) is accelerated through a potential difference \(V\). Deduce an expression for the de Broglie wavelength associated with the particle.

(b) Plot a graph for a particle of charge \(q\) and mass \(m\) showing variation of de Broglie wavelength \(\lambda\) with \(\dfrac{1}{\sqrt{V}}\), where \(V\) is the potential difference through which the particle is accelerated.

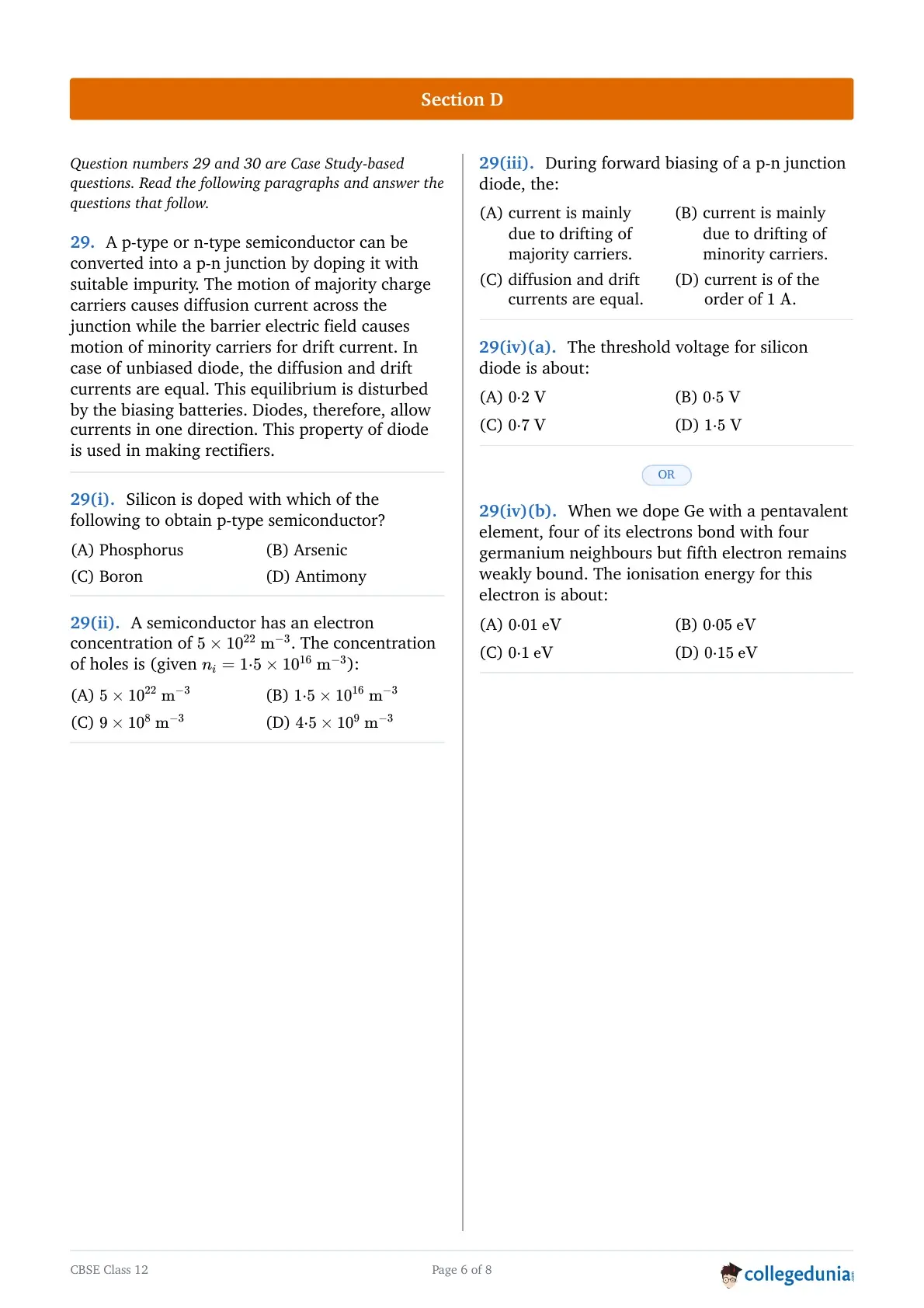

Comprehension:

A p-type or n-type semiconductor can be converted into a p-n junction by doping it with suitable impurity. The motion of majority charge carriers causes diffusion current across the junction while the barrier electric field causes motion of minority carriers

Silicon is doped with which of the following to obtain p-type semiconductor?

A semiconductor has an electron concentration of \(5\times 10^{22}\ \text{m}^{-3}\). The concentration of holes is (given \(n_{i} = 1{\cdot}5\times 10^{16}\ \text{m}^{-3}\)):

During forward biasing of a p-n junction diode, the:

The threshold voltage for silicon diode is about:

When we dope Ge with a pentavalent element, four of its electrons bond with four germanium neighbours but fifth electron remains weakly bound. The ionisation energy for this electron is about:

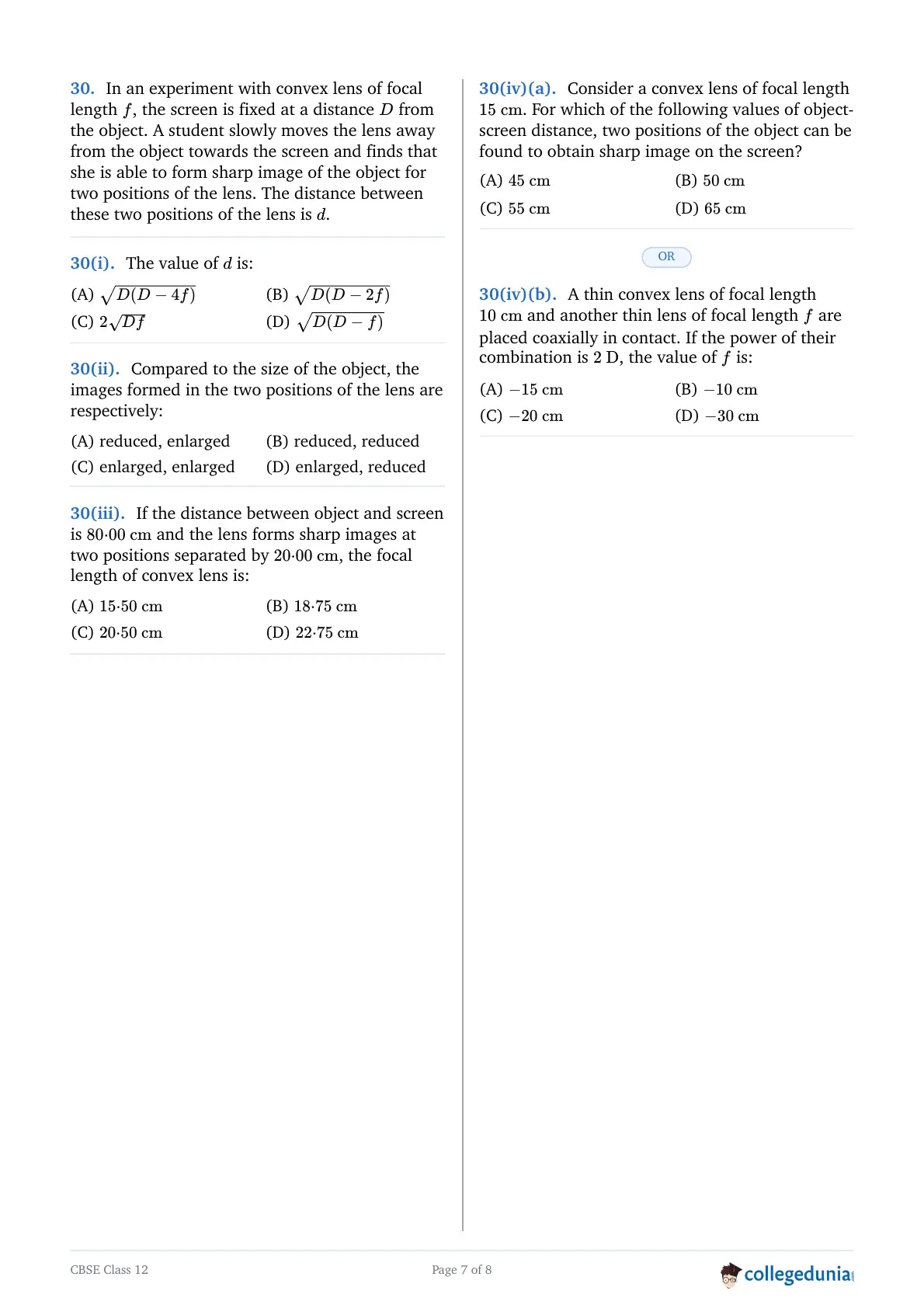

Comprehension:

In an experiment with convex lens of focal length f, the screen is fixed at a distance D from the object. A student slowly moves the lens away from the object towards the

The value of \(d\) is:

Compared to the size of the object, the images formed in the two positions of the lens are respectively:

If the distance between object and screen is \(80{\cdot}00\ \text{cm}\) and the lens forms sharp images at two positions separated by \(20{\cdot}00\ \text{cm}\), the focal length of convex lens is:

Consider a convex lens of focal length \(15\ \text{cm}\). For which of the following values of object-screen distance, two positions of the object can be found to obtain sharp image on the screen?

A thin convex lens of focal length \(10\ \text{cm}\) and another thin lens of focal length \(f\) are placed coaxially in contact. If the power of their combination is \(2\ \text{D}\), the value of \(f\) is:

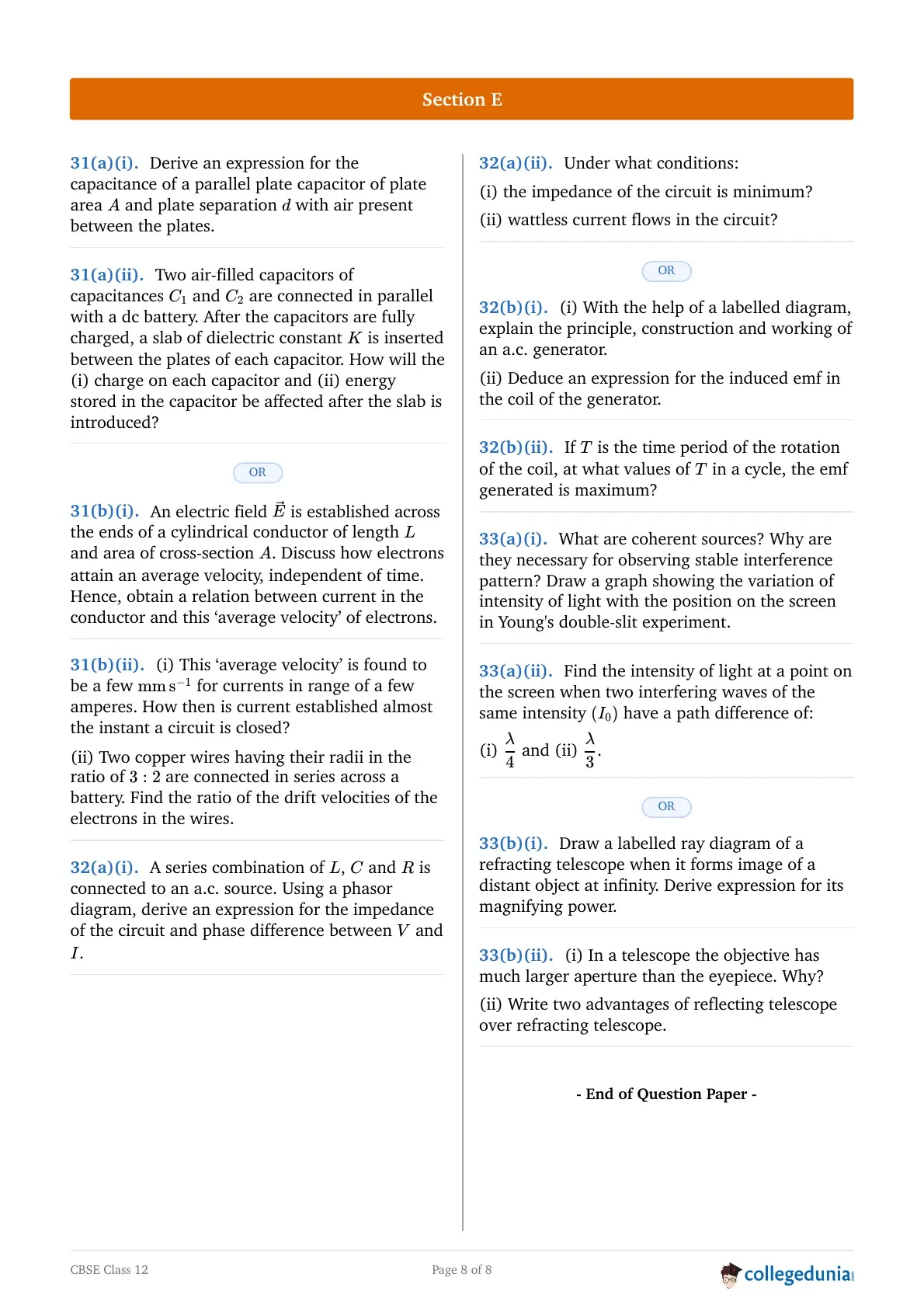

Two air-filled capacitors of capacitances \(C_1\) and \(C_2\) are connected in parallel with a dc battery. After the capacitors are fully charged, a slab of dielectric constant K is inserted between the plates of each capacitor. How will the (i) charge on each capacitor and (ii) energy stored in the capacitor affected after the slab is introduced.

Derive an expression for the capacitance of a parallel plate capacitor of plate area A and plate separation d with air present between the plates.

(a) An electric field \(\vec{E}\) is established across the ends of a cylindrical conductor of length \(L\) and area of cross-section \(A\). Discuss how electrons attain an average velocity, independent of time. Hence, obtain a relation between current in the conductor and this ‘average velocity’ of electrons.

(b) (i) This ‘average velocity’ is found to be a few \(\text{mm}\,\text{s}^{-1}\) for currents in range of a few amperes. How then is current established almost the instant a circuit is closed?

(ii) Two copper wires having their radii in the ratio of \(3:2\) are connected in series across a battery. Find the ratio of the drift velocities of the electrons in the wires.

A series combination of \(L\), \(C\) and \(R\) is connected to an a.c. source. Using a phasor diagram, derive an expression for the impedance of the circuit and phase difference between \(V\) and \(I\).

Under what conditions the (i) impedance of the circuit is minimum ? (ii) Wattless current flows in the circuit ?

(i) With the help of a labelled diagram, explain the principle, construction and working of an a.c. generator.

(ii) Deduce an expression for the induced emf in the coil of the generator.

(iii) If \(T\) is the time period of the rotation of the coil, at what values of \(T\) in a cycle, the emf generated is maximum?

What are coherent sources ? Why they are necessary for observing stable interference pattern ? Draw a graph showing the variation of intensity of light with the position on the screen in Young's double-slit experiment.

Find the intensity of light at a point on the screen when two interfering waves of the same intensity (\(I_0\)) have a path difference of (i) \(\frac{\lambda}{4}\) and (ii) \(\frac{\lambda}{3}\).

Draw a labelled ray diagram of a refracting telescope when it forms image of a distant object at infinity. Derive the expression for its magnifying power.

In a telescope the objective has much larger aperture than the eyepiece. Why?

Write two advantages of reflecting telescope over refracting telescope.
