CUET Physics Question Paper 2024 (Set A) is available here. NTA conducted CUET 2024 Physics paper on 16 May in Shift 2A from 3 PM to 4 PM. CUET Physics Question Paper 2024 is based on objective-type questions (MCQs). Candidates get 60 minutes to solve 40 MCQs out of 50 in CUET 2024 question paper for Physics.
CUET Physics Question Paper 2024 (Set A) PDF Download
| CUET 2024 Physics Question Paper Set A with Answer Key |  Download |
Check Solution |
CUET Physics Questions with Solution
| Serial No. | Question | Answer | Solution |
|---|---|---|---|
| 1 | Two charged particles, placed at a distance d apart in vacuum, exert a force F on each other. Now, each of the charges is doubled. To keep the force unchanged, the distance between the charges should be changed to: 1. 4d 2. 2d 3. d 4. d/2 |
Option (2). 2d | According to Coulomb's law, doubling each charge requires doubling the distance to keep the force constant. |
| 2 | Two parallel plate capacitors of capacitances 2 µF and 3 µF are joined in series and connected to a battery of V volts. The values of potential across the two capacitors V1 and V2 and energy stored in them U1 and U2 are related as: 1. V2/V1 = U2/U1 = 2/3 2. V2/V1 = U2/U1 = 3/2 3. V2/V1 = 2/3, U2/U1 = 3/2 4. V2/V1 = 3/2, U2/U1 = 2/3 |
Option (4). V2/V1 = 3/2, U2/U1 = 2/3 | In series, potential is inversely proportional to capacitance, and energy is proportional to C × V². |
| 3 | Two large plane parallel sheets with equal but opposite surface charge densities +σ and -σ. A point charge q placed at points P1, P2, and P3 experiences forces F1, F2, and F3 respectively. Then: 1. F1 = 0, F2 = 0, F3 = 0 2. F1 = 0, F2 ≠ 0, F3 = 0 3. F1 ≠ 0, F2 ≠ 0, F3 ≠ 0 4. F1 = 0, F3 ≠ 0, F2 = 0 |
Option (2). F1 = 0, F2 ≠ 0, F3 = 0 | Charges outside the sheets (P1 and P3) experience no net force due to cancellation, but within (P2) they do. |
| 4 | Two charged metallic spheres with radii R1 and R2 are brought into contact and then separated. The ratio of final charges Q1 and Q2 on the two spheres is: 1. Q2/Q1 = R1/R2 2. Q2/Q1 < R1/R2 3. Q2/Q1 > R1/R2 4. Q2/Q1 = R2/R1 |
Option (4). Q2/Q1 = R2/R1 | On contact, charge distribution is proportional to the ratio of their radii. |

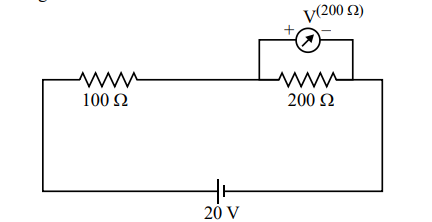

| 5 | Two resistances of 100 Ω and 200 Ω are connected in series across a 20 V battery. The reading in a 200 Ω voltmeter across the 200 Ω resistance is: 1. 4 V 2. 20/3 V 3. 10 V 4. 16 V |
Option (2). 20/3 V | In series, current is uniform; voltage drop across 200 Ω resistor is 20/3 V. |
| 6 | The current through a 4/3 Ω external resistance connected to a parallel combination of two cells with emfs of 2 V and 1 V, internal resistances 1 Ω and 2 Ω respectively, is: 1. 1 A 2. 2/3 A 3. 3/4 A 4. 5/6 A |
Option (4). 5/6 A | Using equivalent emf and resistance for cells in parallel, current is calculated as 5/6 A. |
| 7 | A metallic wire of resistance R is stretched uniformly to reduce the radius to half. The new resistance, resistivity, and power rating at V volts are R', ρ', and P' respectively, such that: 1. ρ' = 2ρ, R' = 2R, P' = 2P 2. ρ' = 1/2ρ, R' = 1/2R, P' = 1/2P 3. ρ' = ρ, R' = 16R, P' = 1/16P 4. ρ' = ρ, R' = 1/16R, P' = 16P |
Option (3). ρ' = ρ, R' = 16R, P' = 1/16P | When stretched, resistance increases by square of length ratio; resistivity remains unchanged. |
| 8 | Three magnetic materials: (A) Paramagnetic, (B) Diamagnetic, (C) Ferromagnetic. The correct order of increasing magnetic susceptibility is: 1. (A), (B), (C) 2. (C), (A), (B) 3. (B), (A), (C) 4. (B), (C), (A) |
Option (3). (B), (A), (C) | Diamagnetic < Paramagnetic < Ferromagnetic in terms of magnetic susceptibility. |
| 9 | Two infinitely long parallel conductors carrying currents I1 and I2 are at distance d apart. The force F on length L of one conductor due to the other is: 1. proportional to L but independent of I1 × I2 2. proportional to I1 × I2 but independent of L 3. proportional to I1 × I2 × L 4. proportional to L/I1 × I2 |
Option (3). proportional to I1 × I2 × L | Force between two parallel currents is proportional to product of currents and length. |

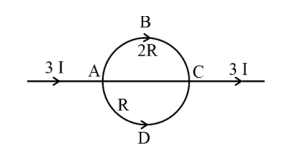

| 10 | In a circuit where current 3I enters at A, with semicircular sections ABC and ADC of equal radii r, resistances 2R and R respectively, the magnetic field at the center is: 1. μ0I/4r out of the plane 2. μ0I/4r into the plane 3. μ03I/4r out of the plane 4. μ03I/4r into the plane |
Option (4). μ03I/4r into the plane | The magnetic field at the center of the loop is determined using Ampere's Law and is directed into the plane. |
| 11 | A square loop with each side 1 cm, carrying a current of 10 A, is placed in a magnetic field of 0.2 T, parallel to the plane of the loop. The torque experienced by the loop is: 1. zero 2. 2×10⁻⁴ Nm 3. 2×10⁻² Nm 4. 2 Nm |
Option (1). zero | When the magnetic field is parallel to the plane of the loop, the torque experienced by the loop is zero. |
| 12 | In an AC circuit, the current leads the voltage by π/2. The circuit is: 1. purely resistive 2. should have resistance equal to reactance 3. purely inductive 4. purely capacitive |
Option (4). purely capacitive | In a purely capacitive AC circuit, the current leads the voltage by 90° (π/2 radians). |
| 13 | In a pair of adjacent coils, if current in one coil changes from 0 A to 10 A in 0.25 s, causing a magnetic flux change of 15 Wb in the adjacent coil, the mutual inductance of the coils is: 1. 120 H 2. 12 H 3. 1.5 H 4. 0.75 H |
Option (3). 1.5 H | Mutual inductance M is the ratio of flux change to current change, calculated as M = 15/10 = 1.5 H. |

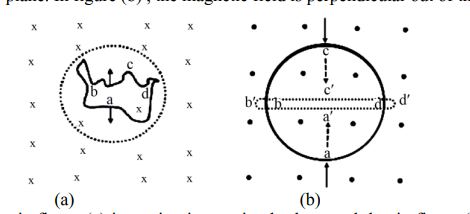

| 14 | A wire of irregular shape (figure a) and a circular loop (figure b) are placed in uniform magnetic fields as shown. The induced current direction will be: 1. clockwise in both 2. anticlockwise in both 3. clockwise in (a) and anticlockwise in (b) 4. anticlockwise in (a) and clockwise in (b) |
Option (3). clockwise in (a) and anticlockwise in (b) | According to Lenz’s law, the induced current direction opposes the change in magnetic flux. |
| 15 | Match the variation of opposition to AC flow versus frequency in List-I with circuit characteristics in List-II: 1. (A) - (I), (B) - (II), (C) - (III), (D) - (IV) 2. (A) - (IV), (B) - (III), (C) - (II), (D) - (I) 3. (A) - (I), (B) - (II), (C) - (IV), (D) - (III) 4. (A) - (III), (B) - (IV), (C) - (I), (D) - (II) |
Option (4). (A) - (III), (B) - (IV), (C) - (I), (D) - (II) | Matching the graphs and circuit characteristics as per opposition to AC flow with frequency. |
| 16 | In an electromagnetic wave, the ratio of energy densities of electric and magnetic fields is: 1. 1 : 1 2. 1 : c 3. c : 1 4. 1 : c² |
Option (1). 1 : 1 | In electromagnetic waves, electric and magnetic fields have equal energy densities. |
| 17 | The correct arrangement of electromagnetic spectrum in decreasing order of wavelength is: 1. Radio waves, X-rays, Infrared waves, microwaves, visible waves 2. Infrared waves, microwaves, Radio waves, X-rays, visible waves 3. Radio waves, microwaves, Infrared waves, visible waves, X-rays 4. X-rays, visible waves, Infrared waves, microwaves, Radio waves |
Option (3). Radio waves, microwaves, Infrared waves, visible waves, X-rays | Electromagnetic spectrum is arranged from longest wavelength (Radio waves) to shortest (X-rays). |
| 18 | Match the electromagnetic waves in Column-I with production methods in Column-II: 1. (A) - (I), (B) - (II), (C) - (III), (D) - (IV) 2. (A) - (II), (B) - (III), (C) - (IV), (D) - (I) 3. (A) - (II), (B) - (I), (C) - (IV), (D) - (III) 4. (A) - (III), (B) - (IV), (C) - (I), (D) - (II) |
Option (2). (A) - (II), (B) - (III), (C) - (IV), (D) - (I) | Correctly matching wave types with devices: magnetron for microwaves, etc. |
| 19 | For a point object placed 20 cm from point P, distance of its image from P (given refractive index µ = 4/3) is: 1. 16 cm left of P in air 2. 16 cm right of P in water 3. 20 cm right of P in water 4. 20 cm left of P in air |
Option (1). 16 cm left of P in air | Using refraction formula, the image is calculated to be 16 cm to the left of P in air. |
| 20 | For fixed radii of curvature of a lens, power is proportional to: 1. P ∝ (µ - 1) 2. P ∝ µ² 3. P ∝ 1/µ 4. P ∝ µ⁻² |
Option (1). P ∝ (µ - 1) | For given curvature, power of a lens depends on (µ - 1), per Lensmaker's formula. |
| 21 | The graph correctly representing the variation of image distance ‘v’ for a convex lens of focal length ‘f’ versus object distance ‘u’ is: 1. Line approaching focal length asymptotically 2. Straight line 3. Curve approaching but not touching focal points 4. Exponential curve |
Option (3). Curve approaching but not touching focal points | For a convex lens, the relationship between u, v, and f creates a hyperbolic curve. |
| 22 | Using monochromatic light for diffraction in a single slit of width 0.1 mm, with a central maximum of 5 mm width on a screen 50 cm away, the wavelength of light used is: 1. 2.5 × 10⁻⁷ m 2. 4 × 10⁻⁷ m 3. 5 × 10⁻⁷ m 4. 7.5 × 10⁻⁷ m |
Option (3). 5 × 10⁻⁷ m | Using the formula for single-slit diffraction width, the wavelength is calculated as 5 × 10⁻⁷ m. |
| 23 | Radiation of frequency 2ν₀ incident on a metal with threshold frequency ν₀ results in maximum kinetic energy of photoelectrons as: 1. No photoelectrons emitted 2. All have kinetic energy equal to hν₀ 3. Maximum kinetic energy can be hν₀ 4. Maximum kinetic energy will be 2hν₀ |
Option (3). Maximum kinetic energy can be hν₀ | Using Einstein's photoelectric equation, maximum kinetic energy is hν₀ when frequency is 2ν₀. |

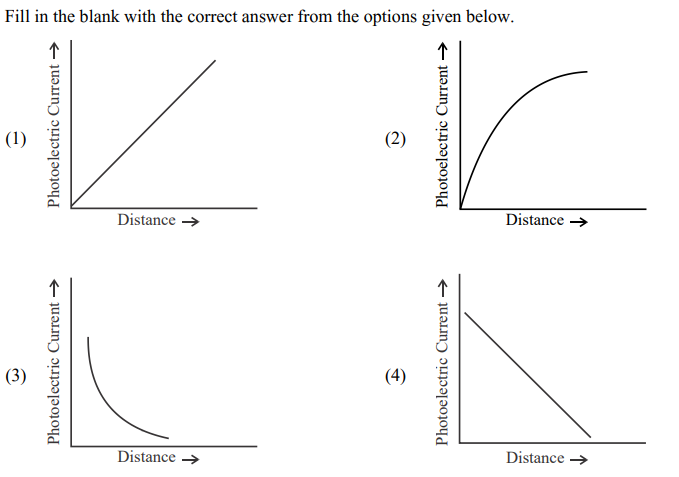

| 24 | A point source causing photoelectric emission from a metallic plate is moved away. The variation of photoelectric current with distance from the source is best represented by: 1. Constant 2. Decreasing curve leveling off 3. Exponential decay 4. Straight decreasing line |
Option (2). Decreasing curve leveling off | Photoelectric current decreases with distance due to the inverse square law of light intensity. |
| 25 | A proton accelerated through potential difference V has de Broglie wavelength λ. On doubling the potential, the de Broglie wavelength of the proton: 1. remains unchanged 2. becomes double 3. becomes four times 4. decreases |
Option (4). decreases | The de Broglie wavelength is inversely proportional to the square root of the accelerating potential, so doubling the potential decreases λ. |
| 26 | The kinetic energy of an electron in the ground state of a hydrogen atom is K. The values of its potential energy and total energy respectively are: 1. -2K, -K 2. +2K, -K 3. -K, +2K 4. +K, +2K |
Option (1). -2K, -K | In a hydrogen atom, potential energy U = -2K, and total energy E = -K. |
| 27 | Two nuclei with mass numbers A and B have density ratios of: 1. A : B 2. √A : √B 3. A² : B² 4. 1 : 1 |
Option (4). 1 : 1 | Nuclear density is approximately constant and independent of mass number. |
| 28 | The shortest wavelengths in the hydrogen spectrum, in decreasing order, for spectral series Pfund, Balmer, Brackett, and Lyman are: 1. (A), (B), (C), (D) 2. (A), (C), (B), (D) 3. (B), (A), (D), (C) 4. (A), (C), (D), (B) |
Option (2). (A), (C), (B), (D) | The correct wavelength order for decreasing values in the hydrogen spectrum is Pfund, Brackett, Balmer, Lyman. |
| 29 | Silicon can be doped to get an n-type semiconductor by using: 1. (A) and (C) only 2. (B) and (C) only 3. (A), (B), (C), and (D) 4. (C) and (D) only |
Option (1). (A) and (C) only | Elements like arsenic and phosphorus (Group V) create n-type semiconductors by donating electrons. |

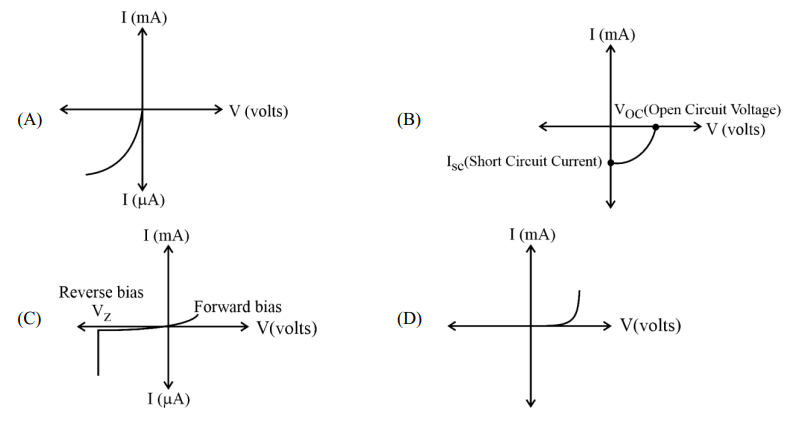

| 30 | The correct sequence of graphs for forward biased p-n junction, Zener diode, Photo diode, and Solar cell is: 1. (D), (C), (A), (B) 2. (A), (C), (D), (B) 3. (B), (A), (D), (C) 4. (C), (B), (D), (A) |
Option (2). (A), (C), (D), (B) | Each graph type is matched to the diode characteristic curves of p-n junction, Zener, Photo diode, and Solar cell. |

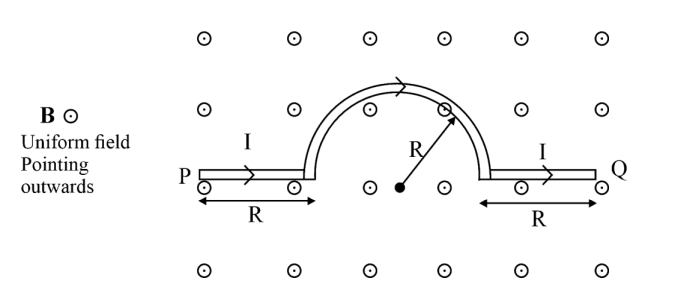

| 31 | A wire carrying current I, bent as shown, is placed in a uniform magnetic field B, emerging normally out of the plane. The force on the wire is: 1. 4BIR, downward 2. 3BIR, upward 3. BI(2R + πR), downward 4. 2πBIR, from P to Q |
Option (1). 4BIR, downward | Forces on the straight sections cancel out; the net force from semicircular arcs is 4BIR. |
| 32 | The minimum deviation angle in an equilateral prism with refractive index √2 is: 1. 60° 2. 75° 3. 30° 4. 90° |
Option (1). 60° | Using the prism formula and given refractive index, the minimum deviation is 60°. |
| 33 | The quantization of electric charge is evidenced by transfer of integral number of: 1. photons 2. nuclei 3. electrons 4. neutrons |
Option (3). electrons | Electric charge is quantized, as it transfers in integer multiples of the elementary charge on electrons. |
| 34 | Introducing a 4 mm thick insulating slab between capacitor plates requires increasing the plate distance by 3.2 mm to restore original capacitance. The dielectric constant is: 1. 2 2. 5 3. 3 4. 7 |
Option (2). 5 | Dielectric constant K is calculated using deff = d/K, yielding K = 5. |
| 35 | A copper ball of density 8 g/cc and 1 cm diameter, immersed in oil of density 0.8 g/cc, remains suspended in an electric field of 600π V/m. The charge on the ball is: 1. 2×10⁻⁶ C 2. 2×10⁻⁵ C 3. 1×10⁻⁵ C 4. 1×10⁻⁶ C |
Option (3). 1×10⁻⁵ C | Equating electric force to gravitational force, charge Q is found to be 1×10⁻⁵ C. |
| 36 | A metal wire under constant potential difference, when heated, shows that the drift velocity of the electron: 1. increases, thermal velocity decreases 2. decreases, thermal velocity decreases 3. increases, thermal velocity increases 4. decreases, thermal velocity increases |
Option (4). decreases, thermal velocity increases | Higher temperature increases collisions, reducing drift velocity, while thermal velocity rises. |
| 37 | For the given mixed resistor combination, calculate the total resistance between A and B: 1. 9 Ω 2. 18 Ω 3. 4 Ω 4. 14 Ω |
Option (2). 18 Ω | Simplifying step-by-step, the total resistance is found to be 18 Ω. |
| 38 | A cell of emf 1.1 V and internal resistance 0.5 Ω is connected to a 0.5 Ω wire. Another cell of same emf is added in series, but current remains unchanged. The second cell's internal resistance is: 1. 1 Ω 2. 2.5 Ω 3. 1.5 Ω 4. 2 Ω |
Option (3). 1.5 Ω | Applying Kirchhoff’s law and solving, the internal resistance of the second cell is 1.5 Ω. |
| 39 | Wires P, Q, R, S of resistances 3, 3, 3, and 4 Ω form a Wheatstone bridge. The resistance to shunt S and balance the bridge is: 1. 14 Ω 2. 12 Ω 3. 15 Ω 4. 7 Ω |
Option (4). 7 Ω | For balance, the required shunt resistance is calculated as 7 Ω. |
| 40 | A thin bar magnet with magnetic moment M is bent into a semicircle. Its new magnetic moment is: 1. M/π 2. M/2 3. M 4. 2M/π |
Option (3). M | Bending doesn’t affect magnetic moment, which depends only on pole strength and effective length. |
| 41 | Ferromagnetic material in transformers should have: 1. Low permeability, High Hysteresis loss 2. High permeability, Low Hysteresis loss 3. High permeability, High Hysteresis loss 4. Low permeability, Low Hysteresis loss |
Option (2). High permeability, Low Hysteresis loss | High permeability and low hysteresis loss reduce energy dissipation in transformers. |
| 42 | A conducting ring of radius r in a magnetic field varying at rate x has electric field intensity at any ring point as: 1. rx 2. rx/2 3. 2rx 4. 4rx |
Option (1). rx | Using Faraday’s law, induced electric field E = rx in a conducting loop. |
| 43 | A 50 Hz AC current of crest 1 A flows through a transformer primary. With mutual inductance 0.5 H, the crest voltage induced in secondary is: 1. 75 V 2. 150 V 3. 100 V 4. 200 V |
Option (2). 150 V | Induced voltage is calculated using V = M(dI/dt), yielding 150 V. |
| 44 | A solenoid with 2×10⁴ turns per meter, diameter 0.1 m, has a coil of 100 turns and 0.01 m radius placed inside. If solenoid current decreases from 4 A to 0 in 0.05 s, total charge through coil is: 1. 16 µC 2. 32 µC 3. 16π µC 4. 32π µC |
Option (4). 32π µC | Using Faraday’s law and induced emf, the total charge through coil is 32π µC. |
| 45 | Lower half of a convex lens is opaque. The image of an object placed in front will: 1. No change in image 2. Show only half of the object 3. Intensity reduced 4. Show half of object and reduced intensity |
Option (4). Show half of object and reduced intensity | Blocking half reduces intensity and visibility but does not affect image completeness. |
| 46 | Two slits 0.1 mm apart with screen 2 m away produce fringe separation with 500 nm light. The separation is: 1. 1 cm 2. 0.15 cm 3. 1.5 cm 4. 0.1 cm |
Option (3). 1.5 cm | Using fringe formula, separation ∆y = λD/d is calculated as 1.5 cm. |
| 47 | For an astronomical telescope with 10 m focal length objective and 10 cm eyepiece, tube length and magnification are: 1. 20 cm, 1 2. 1000 cm, 1 3. 1010 cm, 1 4. 1010 cm, 100 |
Option (4). 1010 cm, 100 | Tube length is sum of focal lengths, and magnification is ratio of focal lengths. |
| 48 | According to Bohr's Model: (A) Radius ∝ n (B) Speed ∝ 1/n (C) Total energy ∝ 1/n² (D) Radius ∝ n² Correct options: 1. (A), (B), (C) 2. (A), (B), (D) 3. (A), (B), (C), (D) 4. (B), (C), (D) |
Option (4). (B), (C), (D) | Bohr's model: radius ∝ n², speed ∝ 1/n, total energy ∝ 1/n². |
| 49 | In a full-wave rectifier, if input frequency is 50 Hz, the output frequency is: 1. 50 Hz 2. 100 Hz 3. 25 Hz 4. 0 Hz |
Option (2). 100 Hz | A full-wave rectifier doubles the input frequency to 100 Hz. |
| 50 | For an electric dipole in a non-uniform electric field with dipole moment parallel to the field, force F and torque τ are: 1. F = 0, τ = 0 2. F ≠ 0, τ = 0 3. F = 0, τ ≠ 0 4. F ≠ 0, τ ≠ 0 |
Option (2). F ≠ 0, τ = 0 | In a non-uniform field, dipole has force but no torque when aligned with the field. |
