The d-block elements are the transition metals from Groups 3 to 12 whose last electron enters a (n-1)d orbital, while the f-block lanthanoids and actinoids fill the (n-2)f orbital. Class 12 Chemistry Chapter 4 The d- and f-Block Elements is a high-yield revision chapter, and this page hosts the complete NCERT Solutions PDF for the 2026-27 syllabus along with the latest CBSE, JEE and NEET question map. Use the d and f block elements class 12 NCERT solutions on this page as the canonical answer key for every CBSE-style reasoning and equation-writing question.
- CBSE Weightage: 6 to 8 marks (usually one short answer on KMnO4/K2Cr2O7 preparation plus one reasoning question on lanthanoid contraction)
- JEE Main Weightage: 3 to 4% (about 1 question per shift, mostly on magnetic moment, oxidation states or coloured ions)
- NEET Weightage: 2 to 3 questions per year
You can find the complete NCERT Solutions for The d- and f-Block Elements including every textbook exercise, intext question and a CBSE-style sample answer in the article below.
These NCERT Solutions are curated by subject experts, mapped to the 2026-27 NCERT, and refined against the last five years of CBSE Board, JEE Main and NEET papers.
Also Check:
- The d- and f-Block Elements Class 12 Chemistry NCERT Notes
- The d- and f-Block Elements Class 12 Chemistry Formula Sheet

Topics Covered in the d- and f-Block Elements Class 12 NCERT Solutions:
- Position and electronic configuration of d block elements class 12: 3d, 4d, 5d series and the general (n-1)d1-10 ns0-2 configuration.
- Cr and Cu anomalous configuration: 3d5 4s1 and 3d10 4s1 explained by half-filled and fully-filled stability.
- Transition elements properties: atomic radii, ionisation enthalpy, density, melting points, and the standard electrode potential ladder.
- Variable oxidation states: +2 to +7 range for Mn, +2 and +3 stability for Fe, oxidation states across the 3d series.

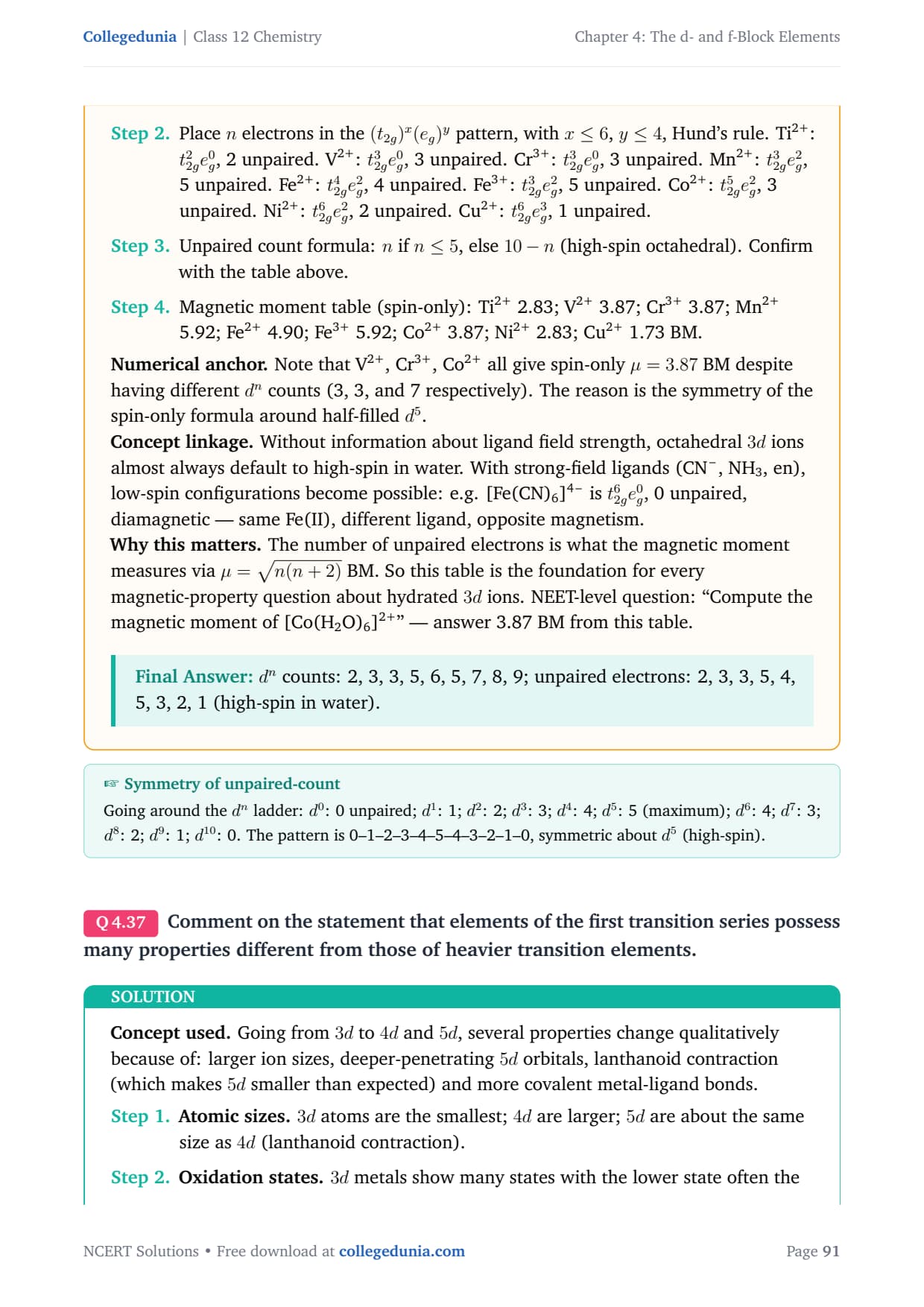

- Magnetic moment spin-only formula: μ = √n(n+2) BM applied to every 3d ion from Sc3+ to Zn2+.
- Colour of transition metal compounds: d-d electronic transitions, why Cu+ is colourless and Cu2+ is blue.
- Catalytic activity of transition metals: Fe in Haber, V2O5 in Contact, Ni in hydrogenation, Pt in catalytic converters.

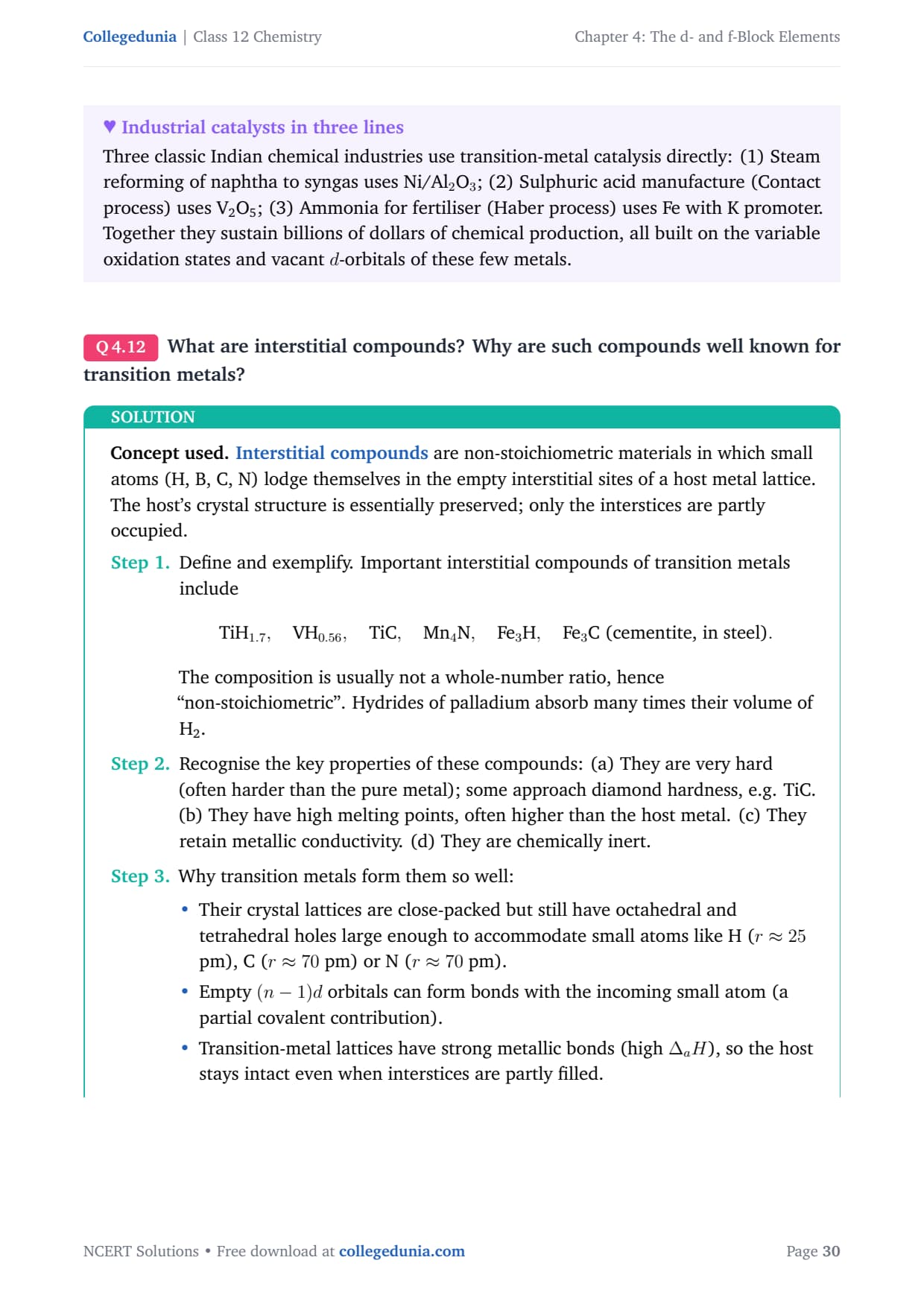

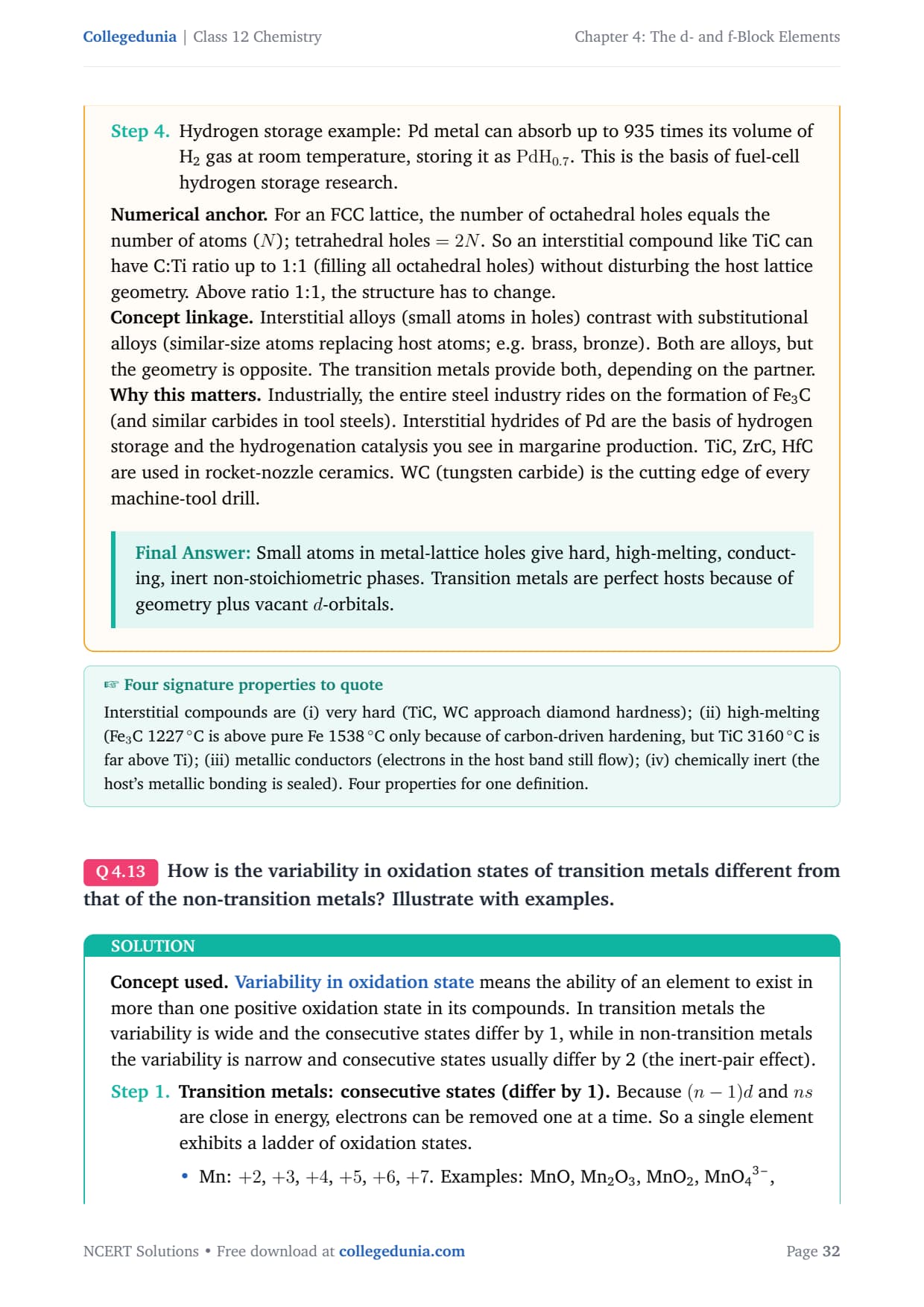

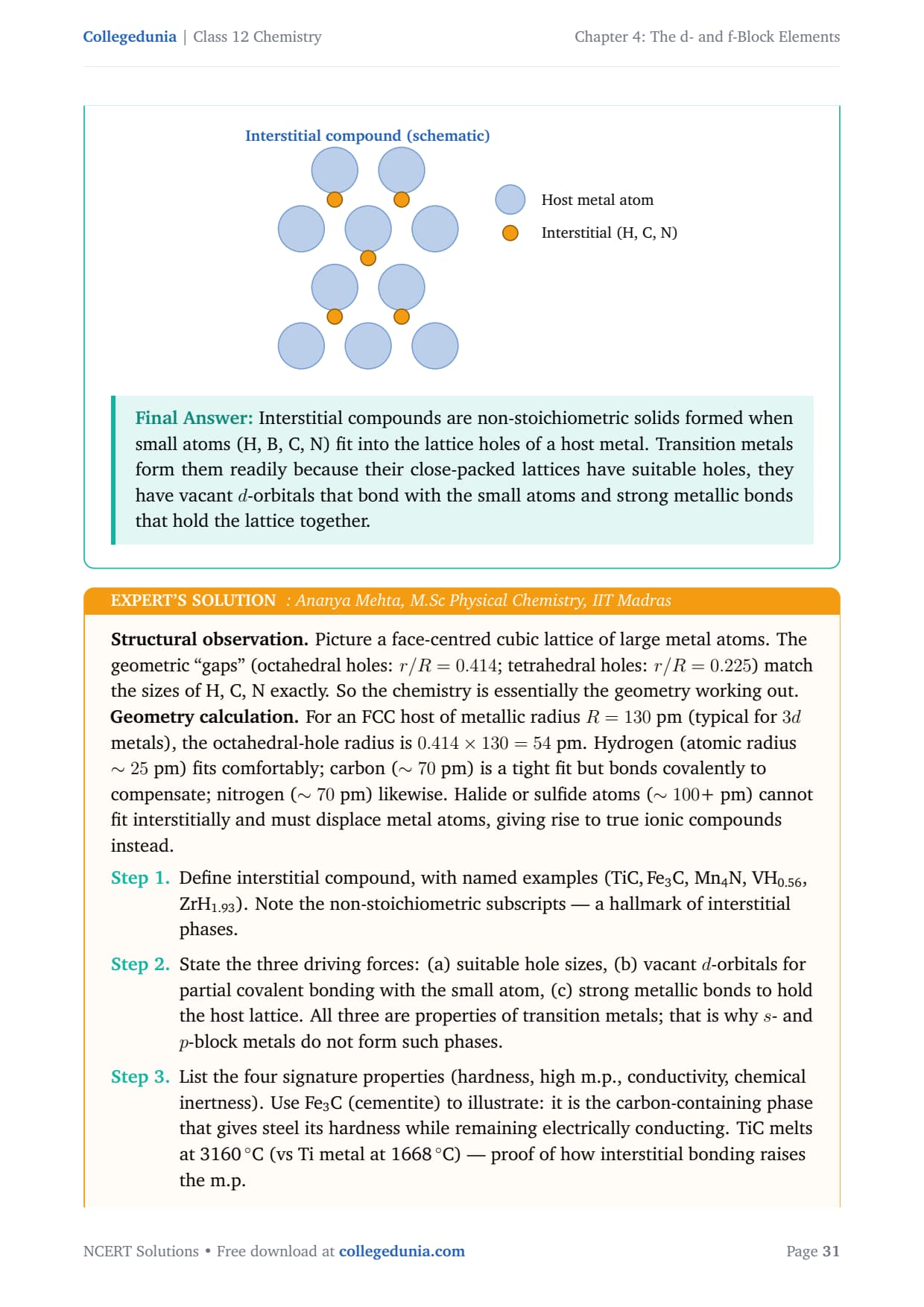

- Interstitial compounds and alloy formation: TiC, VH, Mn4N hard high-melting compounds; brass, bronze, steel alloys.

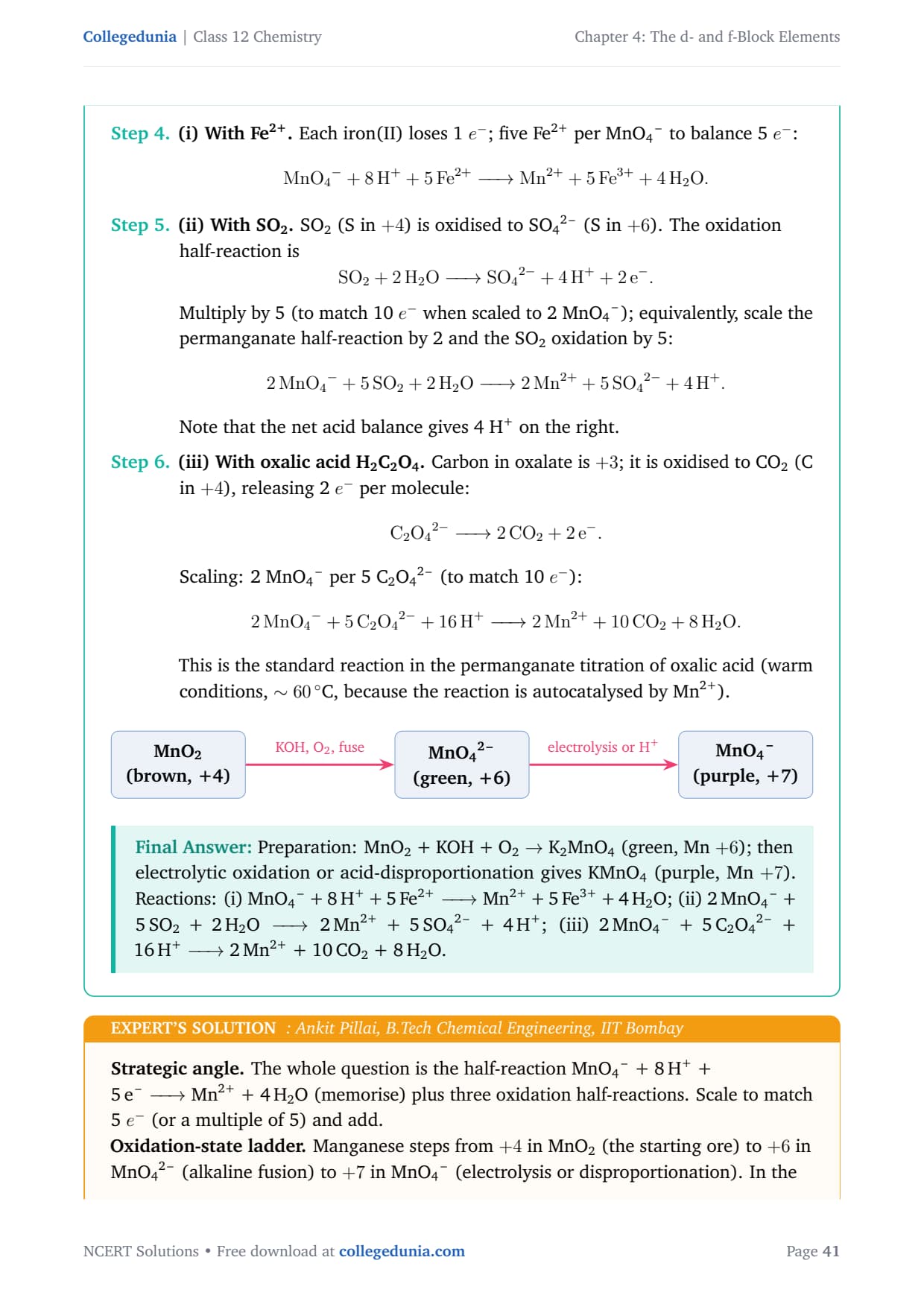

- KMnO4 preparation and properties: pyrolusite fusion route, disproportionation of MnO42-, oxidising action in acidic/neutral/alkaline media.
- K2Cr2O7 preparation: chromite-ore roasting route and chromate-dichromate equilibrium in acid/base.

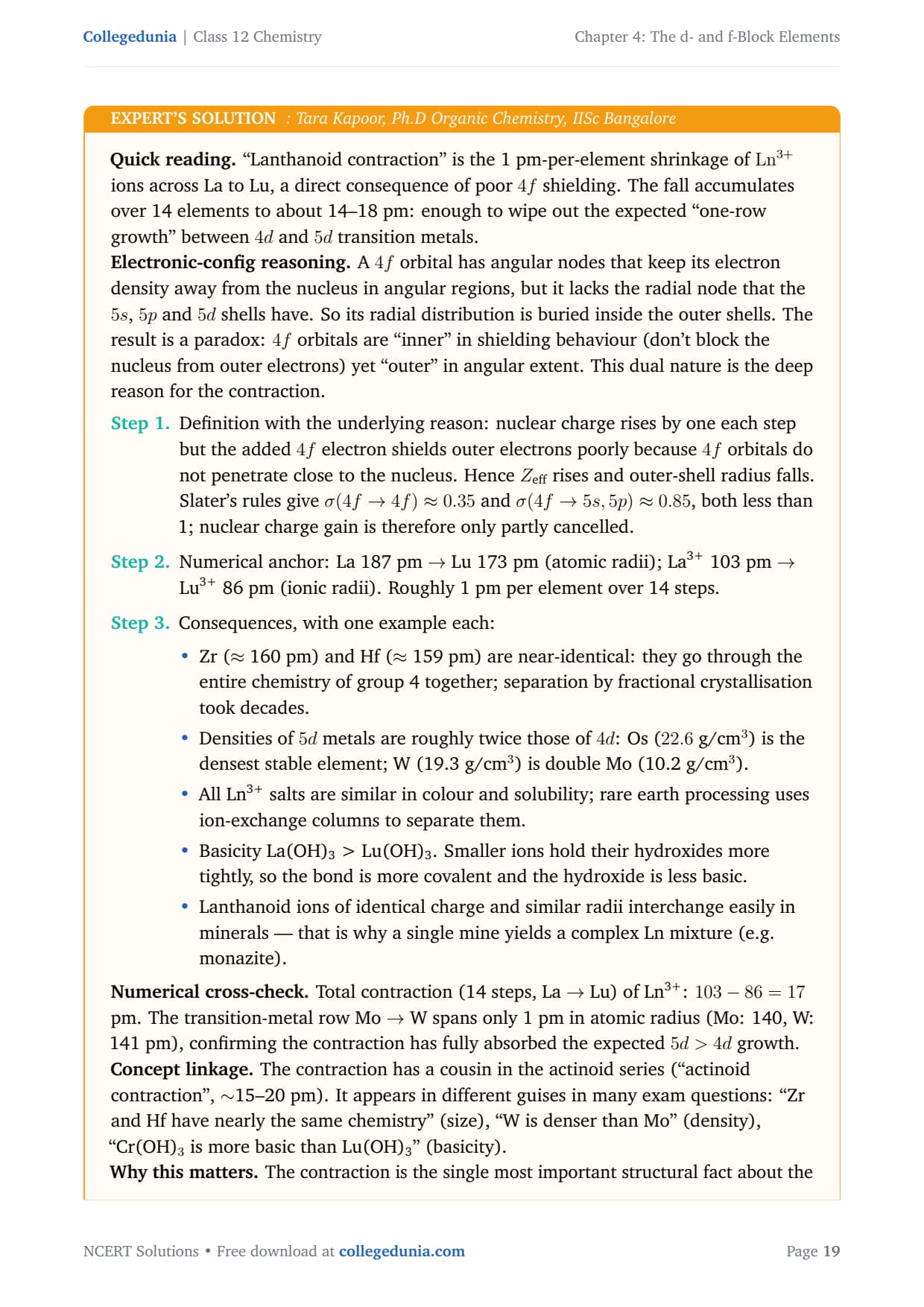

- Lanthanide contraction: 4f shielding logic and the steady decrease in Ln3+ radius from La (103 pm) to Lu (86 pm).
- Lanthanoid contraction consequences: Zr/Hf identical radii, decreasing basicity of M(OH)3, difficulty in lanthanoid separation.

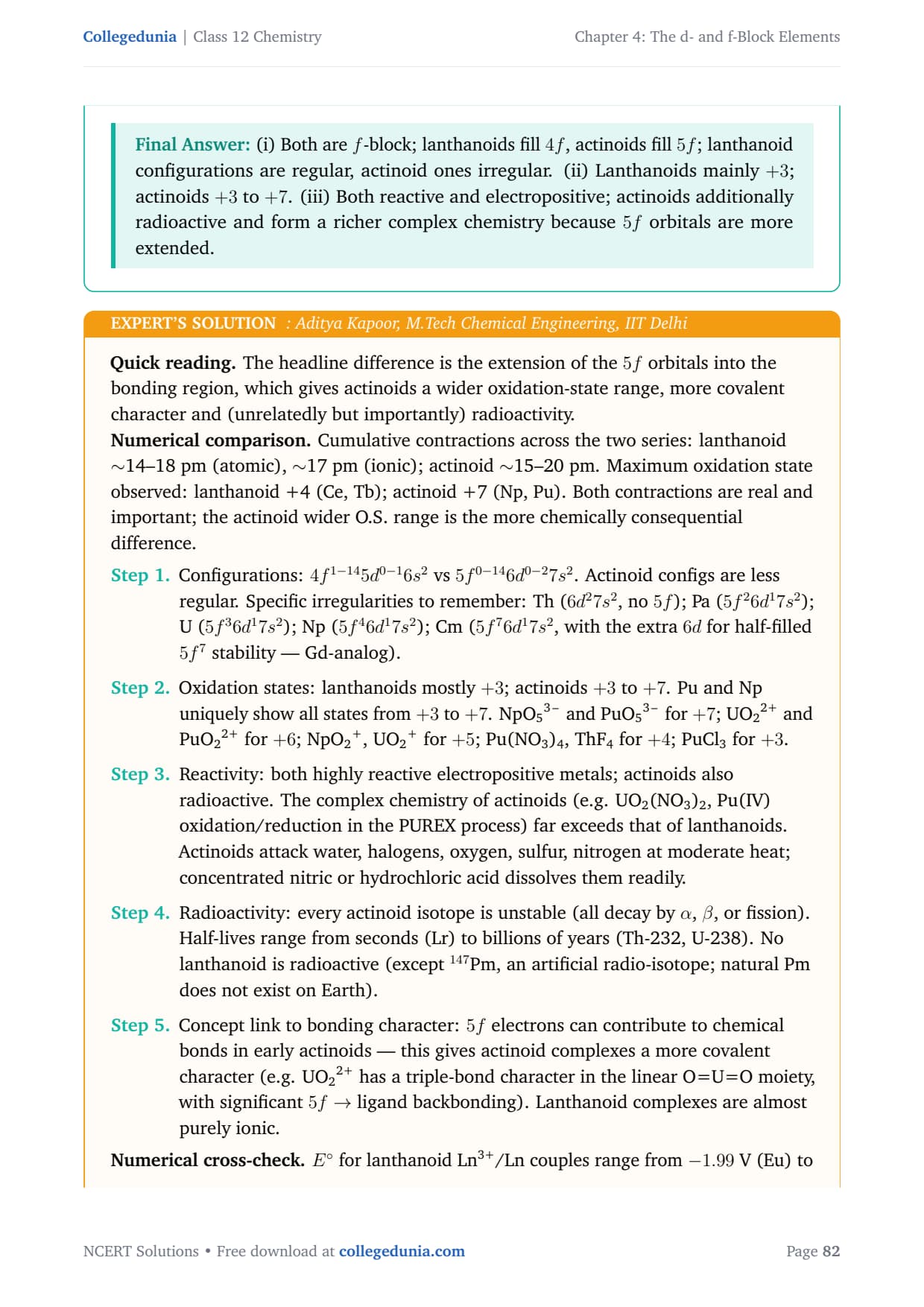

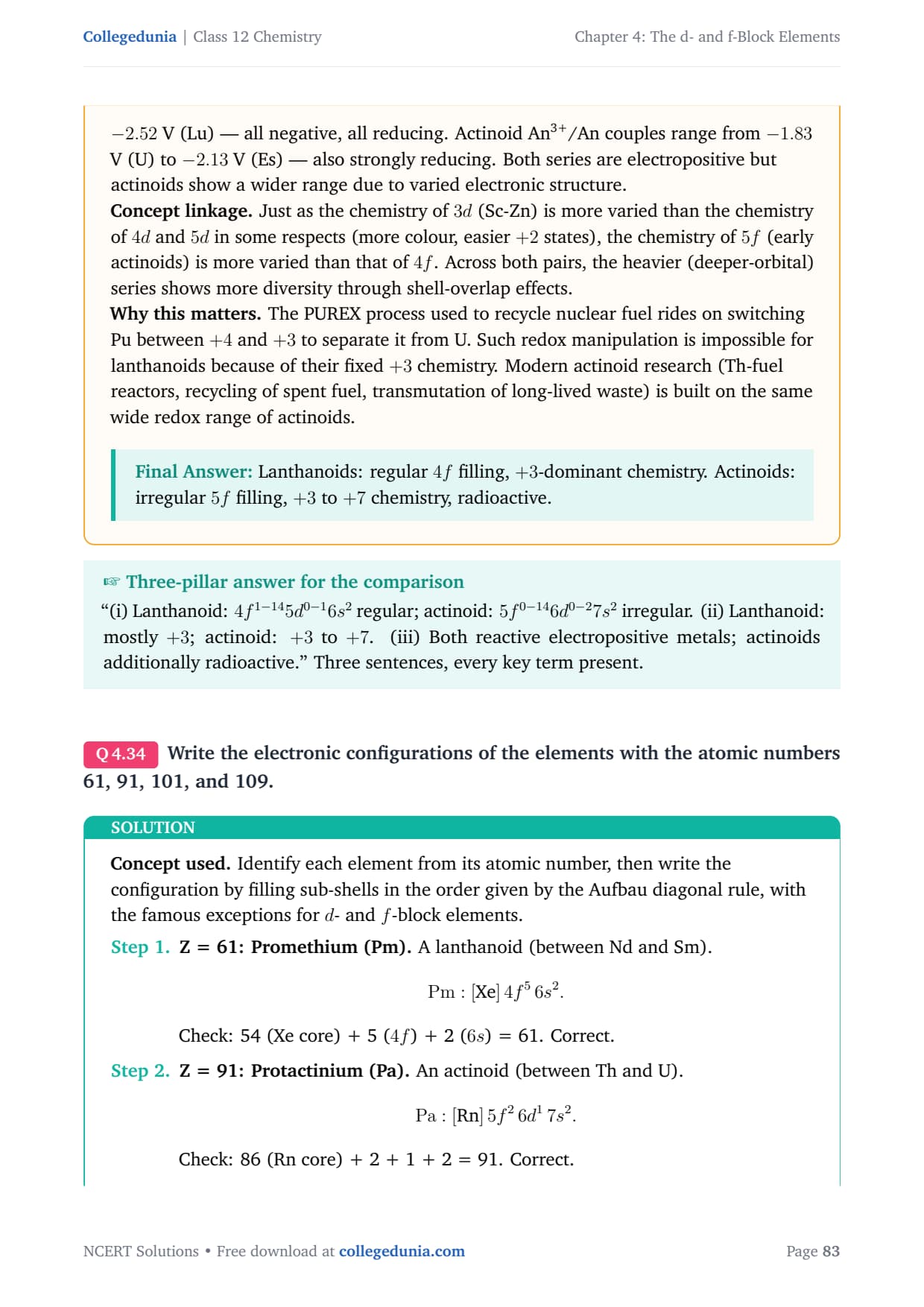

- Actinoids vs lanthanoids: wider oxidation-state range, radioactivity, larger actinoid contraction due to weaker 5f shielding.
Why Class 12 Chemistry Chapter 4 The d- and f-Block Elements Carries Such a Heavy Mark Share
Chapter 4 sits inside the Inorganic Chemistry unit (Chapters 4 and 5) that collectively contributes 19 marks to the CBSE Board paper. The d- and f-block chapter alone is the largest single contributor in that unit, and its reasoning questions on lanthanoid contraction, magnetic moment and oxidation-state stability reappear almost every year. CBSE 2025 carried two questions from this chapter for 8 marks and JEE Main 2025 used it in 3 of 13 shifts.
- Concept density: 16 textbook sub-sections covering general trends, KMnO4, K2Cr2O7, lanthanoids and actinoids in one chapter.
- Memory-heavy facts: ion colours, magnetic moments and standard electrode potentials all feed direct NEET MCQs.
- Reasoning premium: CBSE awards 2 marks for the "why Mn(II) is more stable than Mn(III)" style explanation.
The D and F Block Elements Video Walkthrough
Source: Magnet Brains on YouTube
How will Collegedunia's NCERT Solutions Help You with The d- and f-Block Elements?
The d- and f-block solutions on this page solve every intext question and exercise in the current NCERT edition, with each answer flagged for the marking-scheme keyword that earns the mark.
- 2026-27 NCERT Alignment: Every answer maps to the rationalised chapter, with KMnO4 and K2Cr2O7 preparations covered in full.
- Step-by-Step Reasoning: Every "explain why" answer leads with the underlying electronic configuration before the conclusion, the order CBSE expects.
- Concept Stack Named: Each numerical answer names the formula used, whether μ = √n(n+2) BM for spin-only magnetic moment or E∘cell = E∘cathode - E∘anode .
- CBSE Keyword Highlighting: Each answer bolds the exact terms CBSE markers look for, like "poor shielding by 4f electrons" or "stable half-filled d5 configuration".

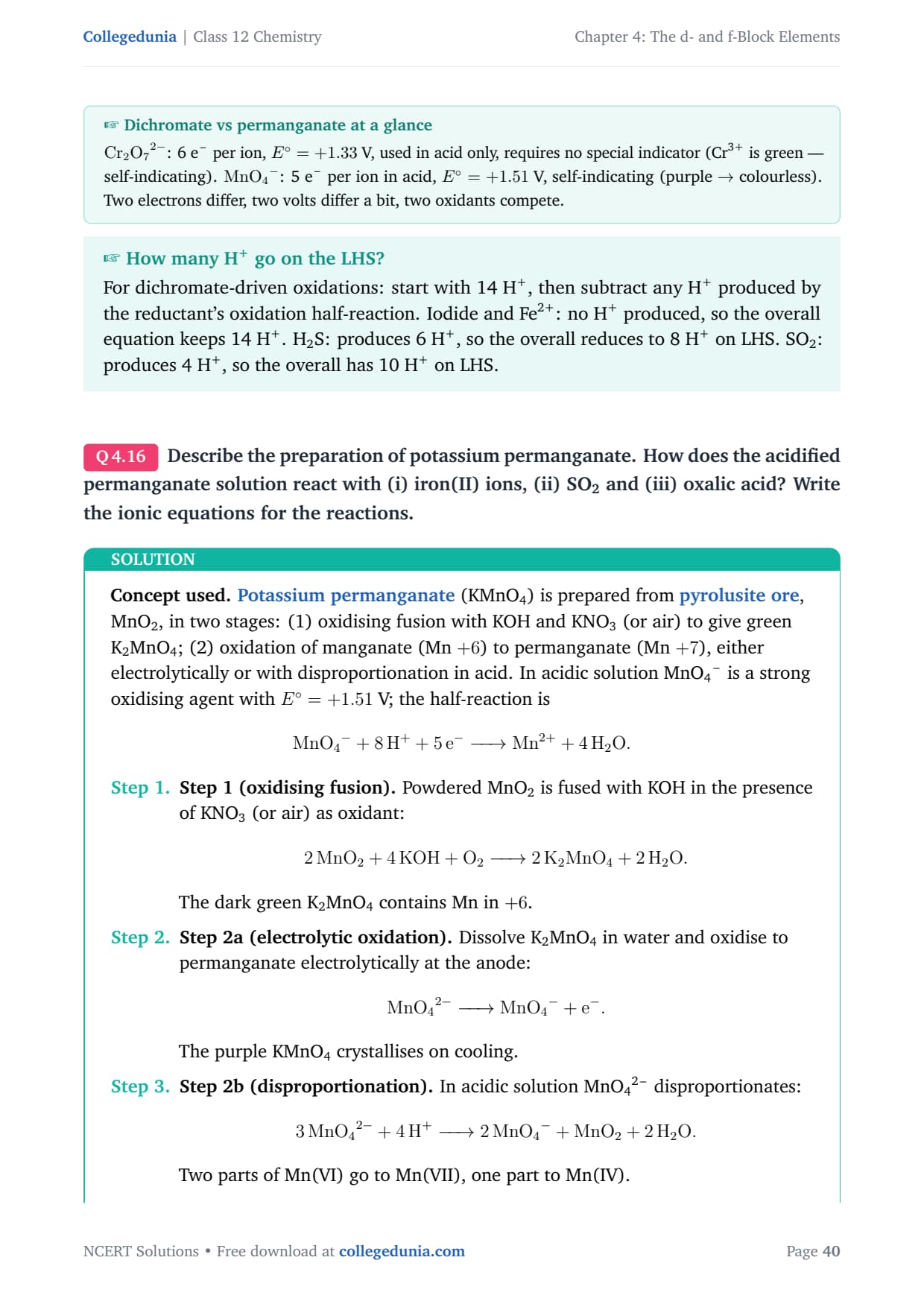

Marks Budget Table for a Typical 5-Marker on KMnO4 Preparation
CBSE awards each mark of a 5-mark answer for a specific keyword or step. Knowing the exact distribution stops you from over-writing the easy steps and under-writing the high-mark ones.
| Step | What to Write | Marks |
|---|---|---|
| 1 | Fusion of MnO2 with KOH in presence of air or KNO3 giving K2MnO4 (green) | 1 |
| 2 | Balanced equation: 2MnO2 + 4KOH + O2 → 2K2MnO4 + 2H2O | 1 |
| 3 | Disproportionation of K2MnO4 in neutral or acidic medium to KMnO4 (purple) | 1 |
| 4 | Balanced equation: 3MnO42- + 4H+ → 2MnO4- + MnO2 + 2H2O | 1 |
| 5 | Oxidation states change (+4 → +6 → +7) clearly indicated | 1 |
Students who skipped the oxidation-state tracking in step 5 lost 1 mark in CBSE 2024 even when the equations were correct.
The d- and f-Block Elements Exercise-by-Exercise Breakdown (NCERT Class 12 Chemistry)
The chapter carries 30 textbook exercises plus 11 intext questions. Roughly half are short reasoning answers; the rest are equation-writing, configuration questions and a few short numericals on magnetic moment.
| Set | Question Count | Sub-topic Focus | CBSE Relevance |
|---|---|---|---|
| Intext Q (4.1 to 4.11) | 11 | Configurations, oxidation states, magnetic moment, lanthanoid contraction | VSA 1-2 markers |
| Exercise 4.1 to 4.10 | 10 | General trends in d-block: melting point, density, oxidation states, colour | SA 2-3 markers |
| Exercise 4.11 to 4.20 | 10 | KMnO4, K2Cr2O7, magnetic moment numericals, interstitial compounds | LA 5 markers |
| Exercise 4.21 to 4.30 | 10 | Lanthanoid contraction, actinoid chemistry, comparison Ln vs An | SA 2-3 markers |

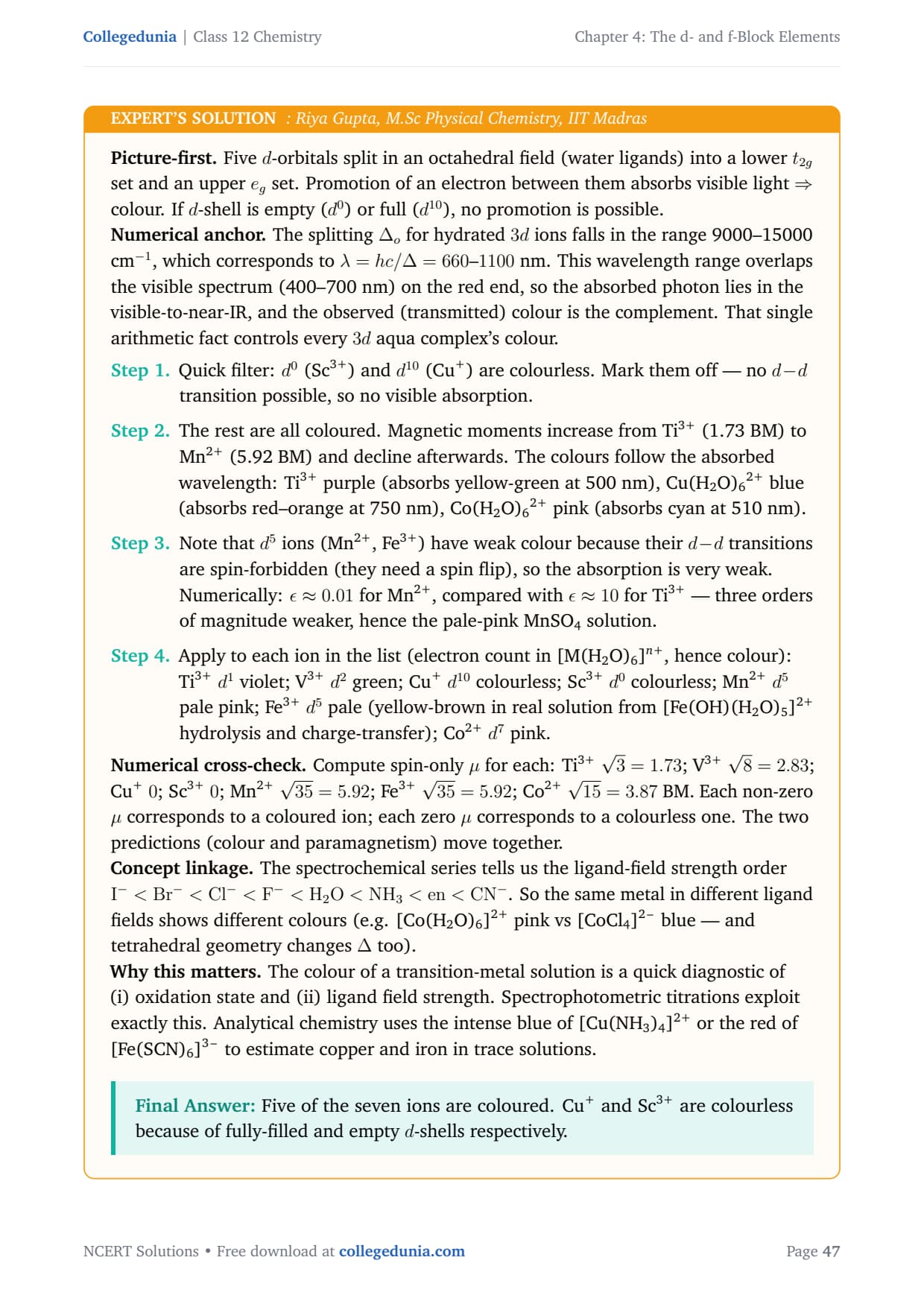

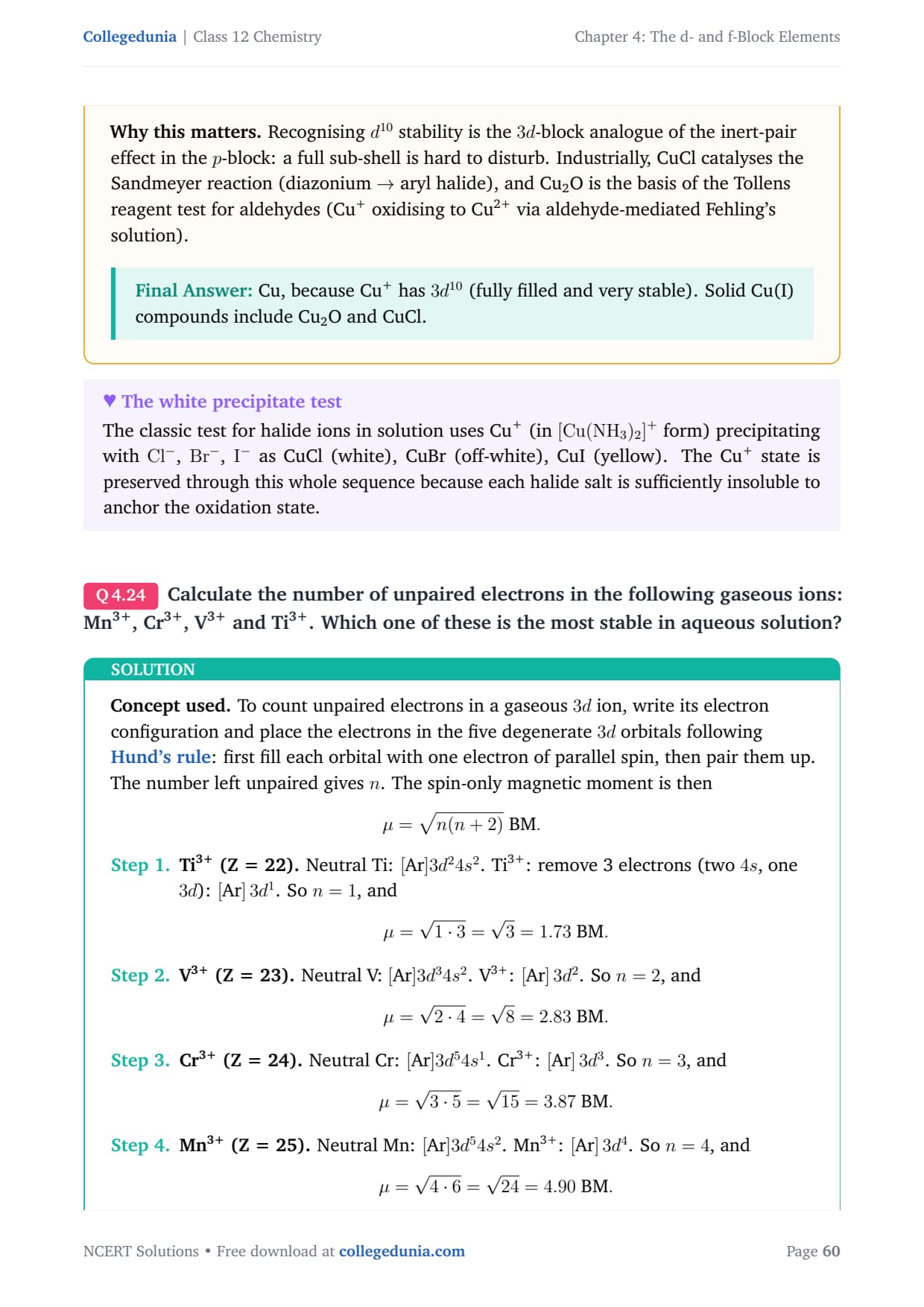

Sample Fully-Solved Question: Why Is Cu+ Colourless but Cu2+ Coloured?
This 3-mark reasoning question appeared in CBSE 2024 and JEE Main 2023. The model answer below shows the exact keyword sequence that earns full marks.
Skipping the "d-d transition" phrase in step 2 has cost students 1 mark in three of the last five CBSE cycles.

The d- and f-Block Elements Previous Year Questions Weightage (2021-2026)
The table below maps every CBSE Board, JEE Main and NEET appearance of Chapter 4 questions from 2026 back to 2021. The two most-repeated topics are KMnO4/K2Cr2O7 chemistry and lanthanoid contraction.
| Year | CBSE Board | JEE Main | NEET |
|---|---|---|---|
| 2026 | - | Magnetic moment of Fe3+ / 1 Q | Pending (exam rescheduled) |
| 2025 | KMnO4 preparation 3M + Lanthanoid contraction 2M | Oxidation states of Mn / 1 Q | Magnetic moment, Coloured ions / 2 Qs |
| 2024 | K2Cr2O7 reactions 3M + Why Cu+ colourless 2M | Configuration of Cr / 1 Q | Actinoid contraction / 1 Q |
| 2023 | Lanthanoid contraction effects 5M | Cu+ vs Cu2+ colour / 1 Q | Coloured ions of Ti, V / 1 Q |
| 2022 | KMnO4 as oxidising agent 3M | Spin-only magnetic moment / 1 Q | Lanthanoid chemistry / 1 Q |
| 2021 | General properties of transition metals 5M | K2Cr2O7 equilibrium / 1 Q | Configuration of Fe2+ / 1 Q |
KMnO4 or K2Cr2O7 chemistry has appeared in four of the last five CBSE Board papers; lanthanoid contraction in three of five.

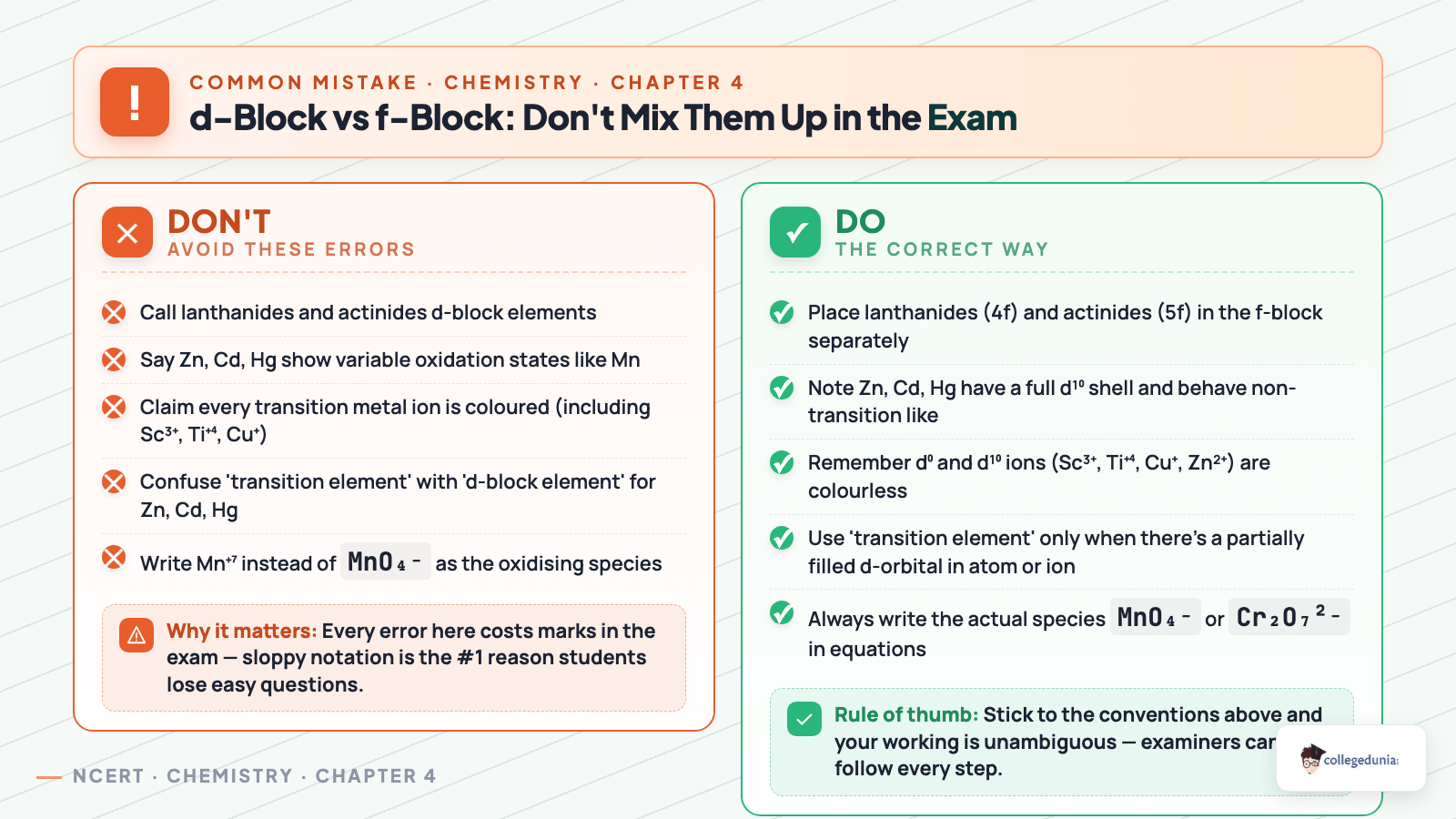

Common Mistakes Students Make in The d- and f-Block Elements
The mistakes below cost the most marks in the past three CBSE and NEET cycles. Reviewing these traps before the exam adds around 3 marks on average.
- Writing Cu as [Ar] 3d9 4s2 instead of [Ar] 3d10 4s1: Cr and Cu are the two anomalies; the half-filled and fully-filled d sub-shells are more stable than the predicted configurations.
- Confusing lanthanoid contraction with actinoid contraction: both are real, but the actinoid contraction is greater because 5f electrons shield even less than 4f.
- Forgetting that K2Cr2O7 is orange in acidic medium and yellow K2CrO4 in basic medium: the chromate-dichromate equilibrium is a frequent 2-mark MCQ.
- Using the formula μ = √n(n+1) instead of μ = √n(n+2) BM: the spin-only magnetic moment uses (n+2) inside the square root.
- Reporting Mn2+ as coloured when its salts are nearly colourless: the high-spin d5 configuration makes d-d transitions spin-forbidden, so Mn2+ appears very pale pink.
The d- and f-Block Elements Top 5 Formulae for Quick Recall
The five formulae below carry almost every numerical and reasoning question from Chapter 4. The complete master table with units and the "when to use which" decision tree sits on the Collegedunia Formula Sheet.
| Quantity | Formula |
|---|---|
| Spin-only magnetic moment | μ = √n(n+2) BM, where n = number of unpaired electrons |
| Effective atomic number | EAN = Z - oxidation state + 2 × ligand count |
| Standard reduction potential trend | E° (M2+/M) becomes less negative left to right across 3d series |
| Chromate-dichromate equilibrium | 2CrO42- + 2H+ ⇌ Cr2O72- + H2O |
| Lanthanoid contraction | Decrease in atomic / ionic radius from La to Lu ≈ 0.18 Å |
Full master table: The d- and f-Block Elements Class 12 Chemistry Formula Sheet
How to Study The d- and f-Block Elements for Class 12th Chemistry Boards
Chapter 4 rewards a memorisation-plus-reasoning approach. The plan below balances fact retention with the "explain why" answers that CBSE awards 2 to 3 marks for.
- Day 1-2 (Foundations, 3 hours): Read NCERT sections 4.1 to 4.3, write out the 3d, 4d, 5d series configurations from memory, and learn the Cr and Cu anomalies with their stability reasoning.
- Day 3-4 (Coloured ions and magnetic moment, 3 hours): Memorise the ion-colour table (Ti3+ purple, V4+ blue, Cr3+ violet, Mn3+ violet, Fe3+ yellow, Co2+ pink, Ni2+ green, Cu2+ blue) and solve 10 magnetic-moment numericals.
- Day 5 (KMnO4 and K2Cr2O7, 2 hours): Write the full preparation, structure and at least three oxidation reactions of each from memory; this is the CBSE 5-marker.
- Day 6 (Lanthanoids and actinoids, 2 hours): Learn the contraction logic, four causes and four consequences, plus the Ln vs An comparison table.
- Day 7 (PYQ pass, 2 hours): Solve last 5 years of CBSE Chapter 4 questions in one timed sitting.
Total time required: 12 to 14 hours, split across one week, gets the chapter to a board-ready level.
The d- and f-Block Elements Weightage Compared Across Class 12 Chemistry Chapters
The visual below maps the typical CBSE marks distribution across all 10 chapters of the Class 12 Chemistry NCERT, averaged over the last five board papers.
Chapter 4 ties with Electrochemistry, Alcohols-Phenols-Ethers and the rationalised quota at 7 CBSE marks, but its JEE Main return is the highest among inorganic chapters.
All NCERT Solutions for The d- and f-Block Elements with Step-by-Step Working
Every NCERT textbook question for Class 12 Chemistry Chapter 4 The d- and f-Block Elements is listed below with its full Solution and Expert Solution hidden inside collapsible tabs. Click Check Solution to reveal the step-by-step working; click Expert Solution for the expanded explanation.
Questions

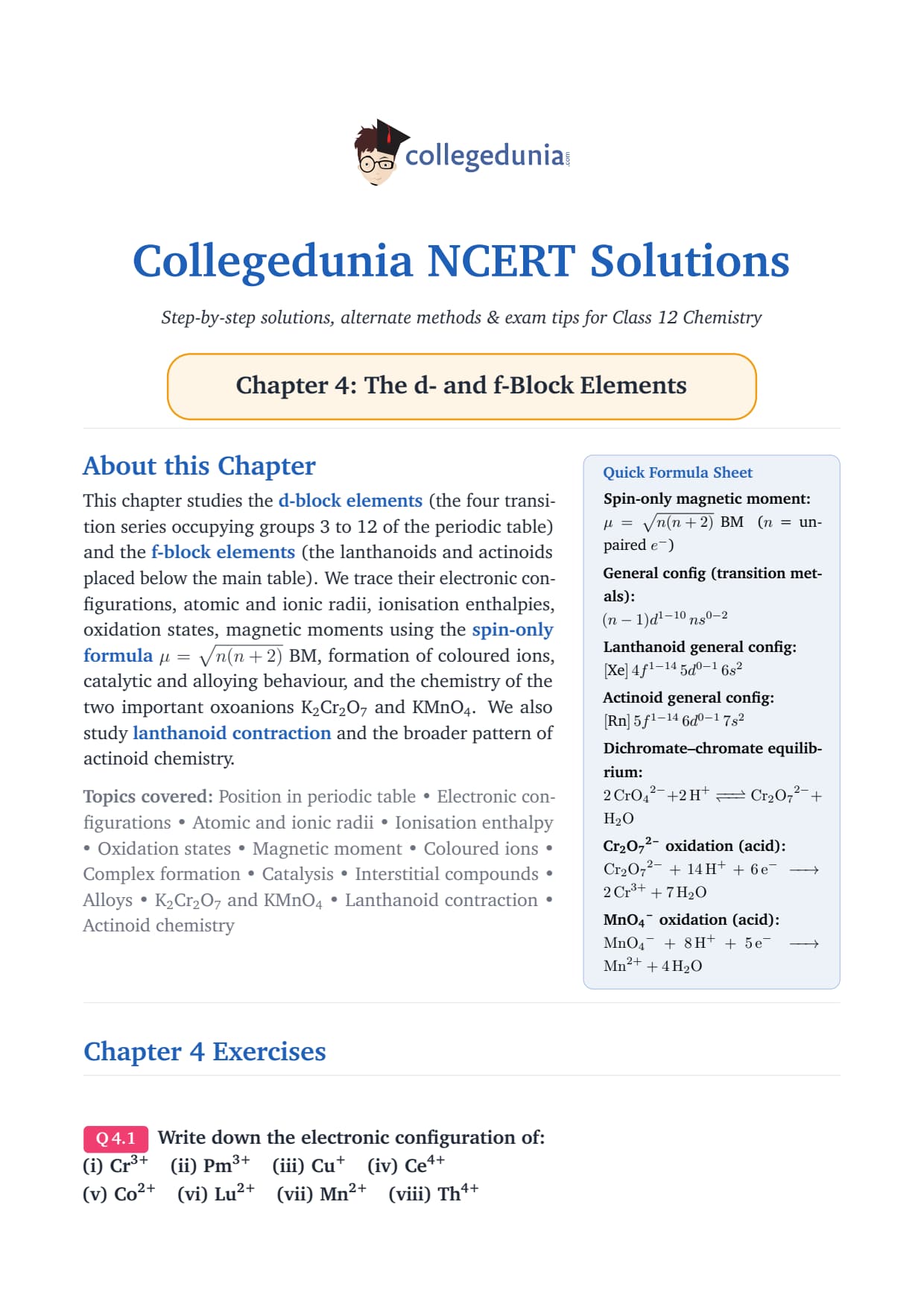

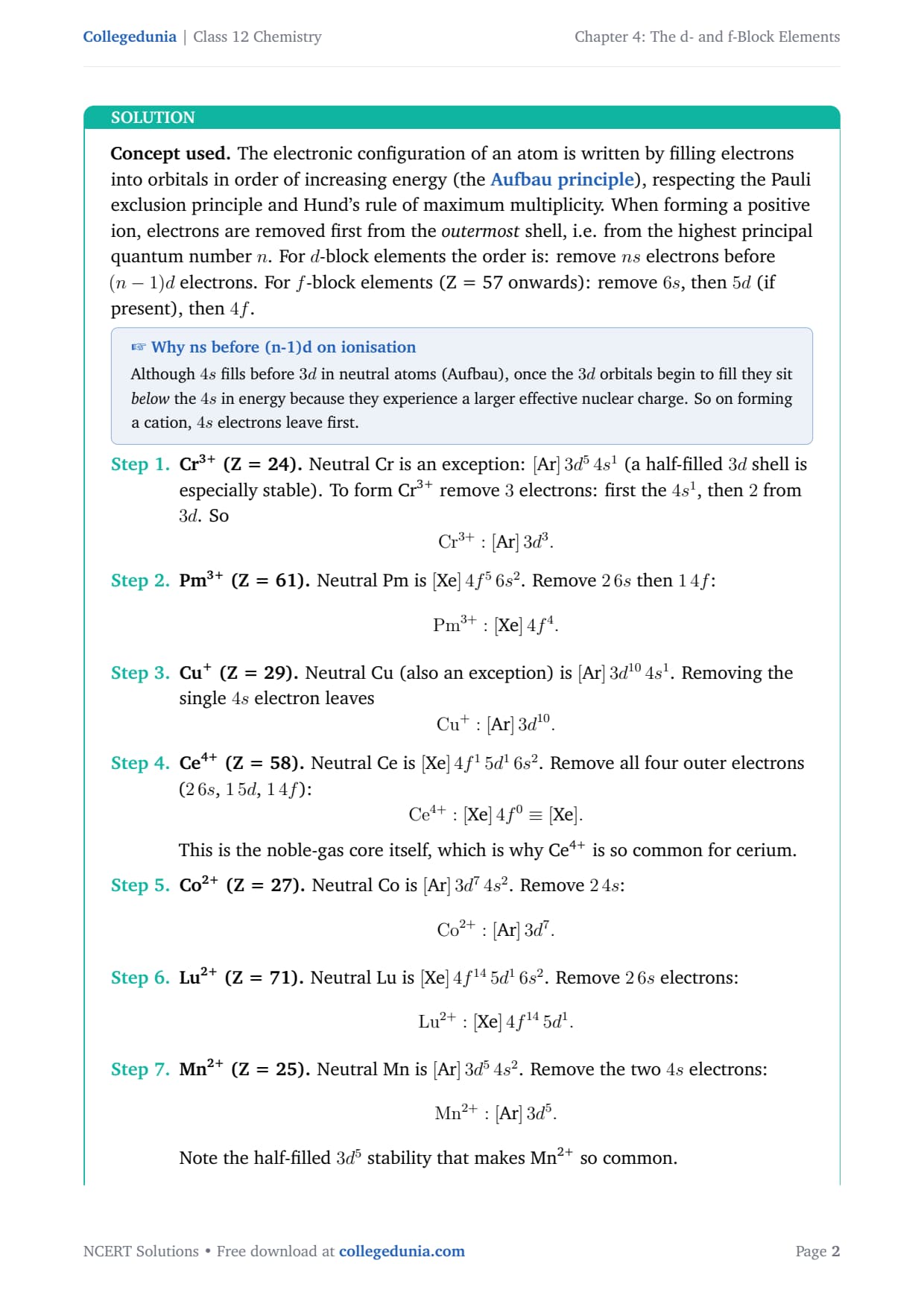

Write down the electronic configuration of:
(i) Cr^3+ (ii) Pm^3+ (iii) Cu+ (iv) Ce^4+
(v) Co^2+ (vi) Lu^2+ (vii) Mn^2+ (viii) Th^4+
Concept used. The electronic configuration of an atom is written by filling electrons into orbitals in order of increasing energy (the Aufbau principle), respecting the Pauli exclusion principle and Hund's rule of maximum multiplicity. When forming a positive ion, electrons are removed first from the outermost shell, i.e. from the highest principal quantum number n. For d-block elements the order is: remove ns electrons before (n-1)d electrons. For f-block elements (Z = 57 onwards): remove 6s, then 5d (if present), then 4f.
Why ns before (n-1)d on ionisation
Although 4s fills before 3d in neutral atoms (Aufbau), once the 3d orbitals begin to fill they sit below the 4s in energy because they experience a larger effective nuclear charge. So on forming a cation, 4s electrons leave first.- Cr^3+ (Z = 24). Neutral Cr is an exception: [Ar] 3d5 4s1 (a half-filled 3d shell is especially stable). To form Cr^3+ remove 3 electrons: first the 4s1, then 2 from 3d. So Cr3+: [Ar] 3d3.
- Pm^3+ (Z = 61). Neutral Pm is [Xe] 4f5 6s2. Remove 2 6s then 1 4f: Pm3+: [Xe] 4f4.
- Cu+ (Z = 29). Neutral Cu (also an exception) is [Ar] 3d10 4s1. Removing the single 4s electron leaves Cu+: [Ar] 3d10.
- Ce^4+ (Z = 58). Neutral Ce is [Xe] 4f1 5d1 6s2. Remove all four outer electrons (2 6s, 1 5d, 1 4f): Ce4+: [Xe] 4f0≡[Xe]. This is the noble-gas core itself, which is why Ce^4+ is so common for cerium.
- Co^2+ (Z = 27). Neutral Co is [Ar] 3d7 4s2. Remove 2 4s: Co2+: [Ar] 3d7.
- Lu^2+ (Z = 71). Neutral Lu is [Xe] 4f14 5d1 6s2. Remove 2 6s electrons: Lu2+: [Xe] 4f14 5d1.
- Mn^2+ (Z = 25). Neutral Mn is [Ar] 3d5 4s2. Remove the two 4s electrons: Mn2+: [Ar] 3d5. Note the half-filled 3d5 stability that makes Mn^2+ so common.

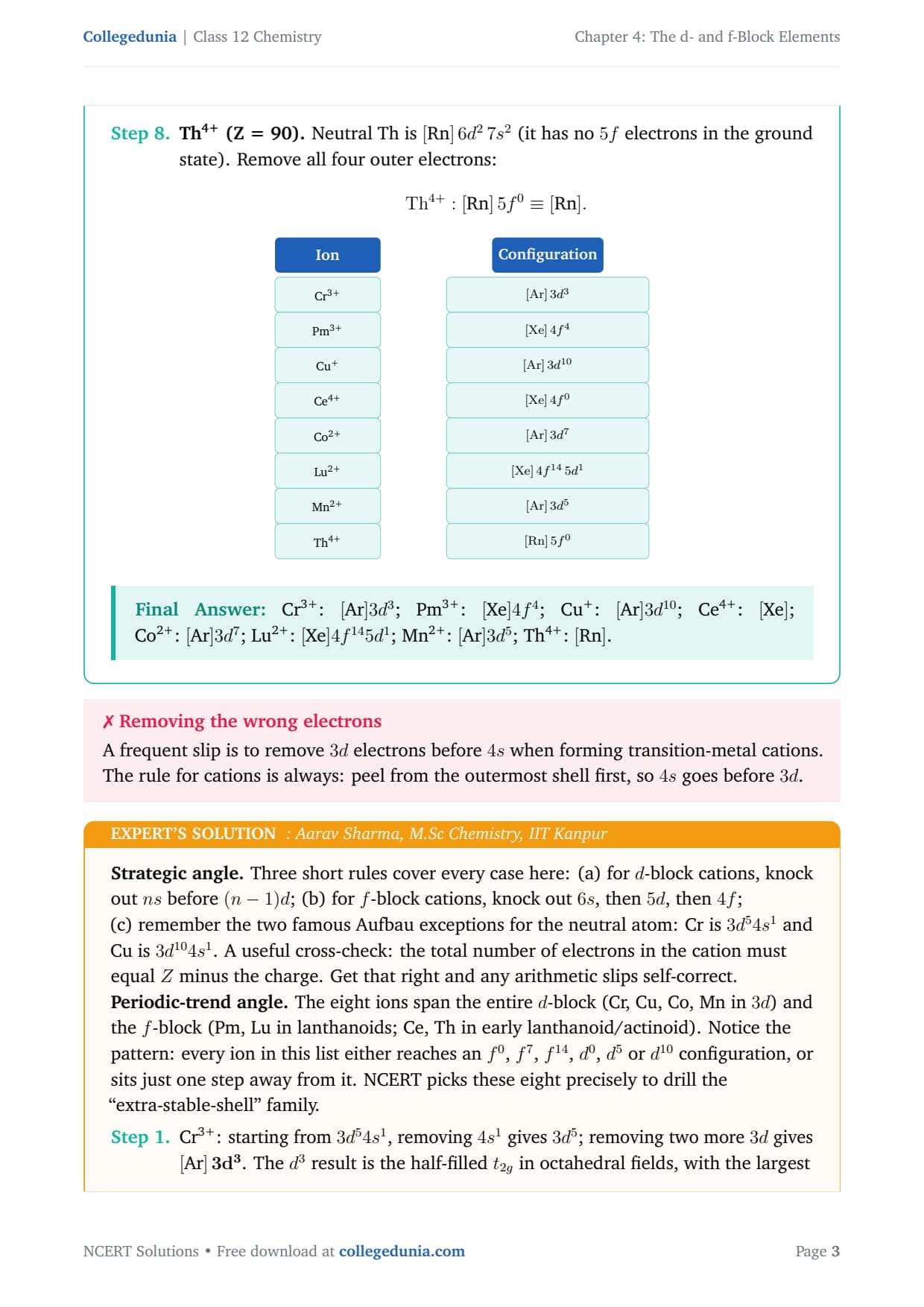

- Th^4+ (Z = 90). Neutral Th is [Rn] 6d2 7s2 (it has no 5f electrons in the ground state). Remove all four outer electrons: Th4+: [Rn] 5f0≡[Rn].
Cr^3+: [Ar]3d3; Pm^3+: [Xe]4f4; Cu+: [Ar]3d10; Ce^4+: [Xe]; Co^2+: [Ar]3d7; Lu^2+: [Xe]4f145d1; Mn^2+: [Ar]3d5; Th^4+: [Rn].
Strategic angle. Three short rules cover every case here: (a) for d-block cations, knock out ns before (n-1)d; (b) for f-block cations, knock out 6s, then 5d, then 4f; (c) remember the two famous Aufbau exceptions for the neutral atom: Cr is 3d54s1 and Cu is 3d104s1. A useful cross-check: the total number of electrons in the cation must equal Z minus the charge. Get that right and any arithmetic slips self-correct.
Periodic-trend angle. The eight ions span the entire d-block (Cr, Cu, Co, Mn in 3d) and the f-block (Pm, Lu in lanthanoids; Ce, Th in early lanthanoid/actinoid). Notice the pattern: every ion in this list either reaches an f0, f7, f14, d0, d5 or d10 configuration, or sits just one step away from it. NCERT picks these eight precisely to drill the ``extra-stable-shell'' family.

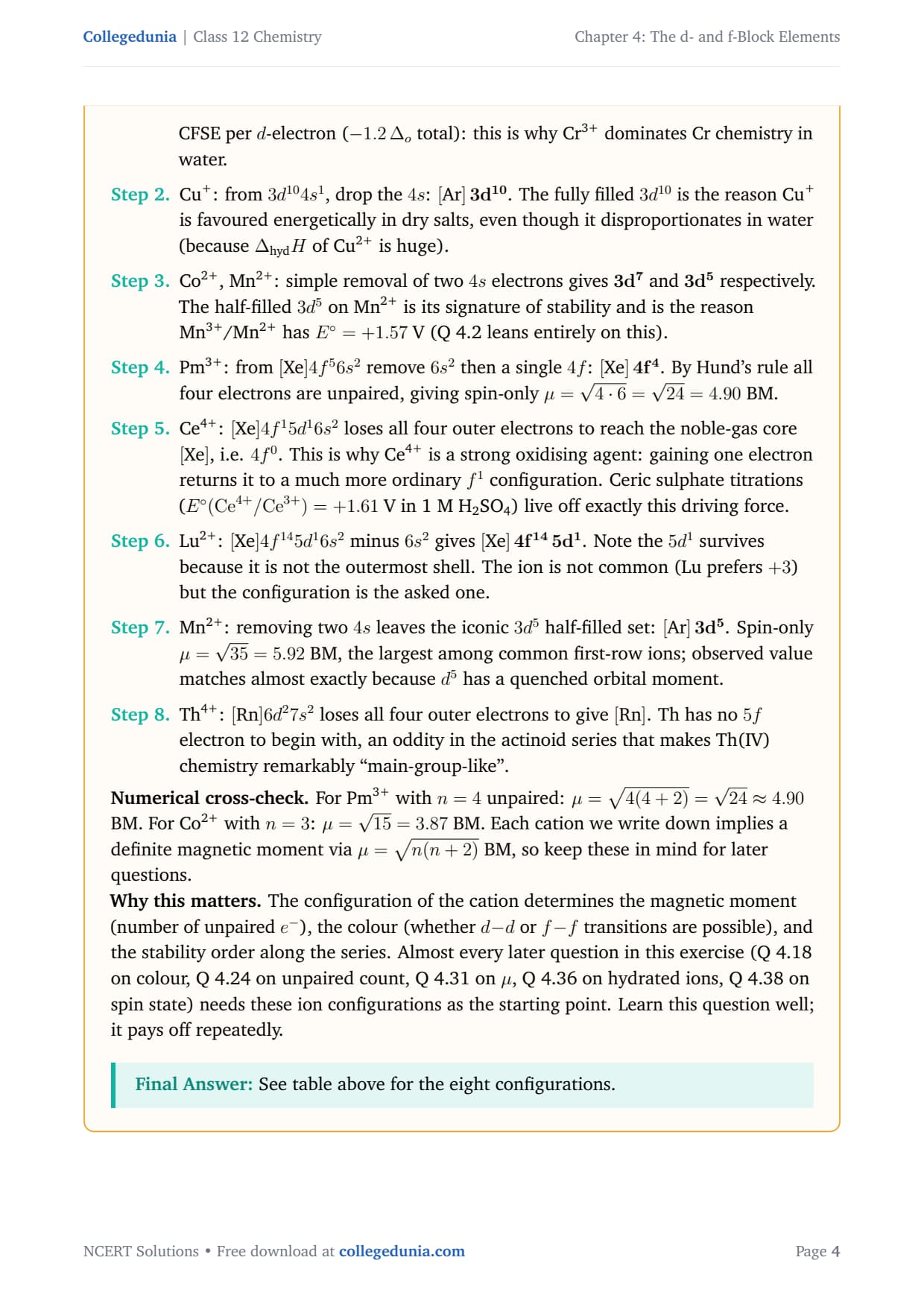

- Cr^3+: starting from 3d54s1, removing 4s1 gives 3d5; removing two more 3d gives [Ar] 3d3. The d3 result is the half-filled t2g in octahedral fields, with the largest CFSE per d-electron (-1.2 o total): this is why Cr^3+ dominates Cr chemistry in water.
- Cu+: from 3d104s1, drop the 4s: [Ar] 3d10. The fully filled 3d10 is the reason Cu+ is favoured energetically in dry salts, even though it disproportionates in water (because hydH of Cu^2+ is huge).
- Co^2+, Mn^2+: simple removal of two 4s electrons gives 3d7 and 3d5 respectively. The half-filled 3d5 on Mn^2+ is its signature of stability and is the reason Mn^3+/Mn^2+ has E∘ = +1.57 V (Q 4.2 leans entirely on this).
- Pm^3+: from [Xe]4f56s2 remove 6s2 then a single 4f: [Xe] 4f4. By Hund's rule all four electrons are unpaired, giving spin-only μ = √4 · 6 = √24 = 4.90 BM.
- Ce^4+: [Xe]4f15d16s2 loses all four outer electrons to reach the noble-gas core [Xe], i.e. 4f0. This is why Ce^4+ is a strong oxidising agent: gaining one electron returns it to a much more ordinary f1 configuration. Ceric sulphate titrations (E∘(Ce4+/Ce3+) = +1.61 V in 1 M H2SO4) live off exactly this driving force.
- Lu^2+: [Xe]4f145d16s2 minus 6s2 gives [Xe] 4f14 5d1. Note the 5d1 survives because it is not the outermost shell. The ion is not common (Lu prefers +3) but the configuration is the asked one.
- Mn^2+: removing two 4s leaves the iconic 3d5 half-filled set: [Ar] 3d5. Spin-only μ = √35 = 5.92 BM, the largest among common first-row ions; observed value matches almost exactly because d5 has a quenched orbital moment.
- Th^4+: [Rn]6d27s2 loses all four outer electrons to give [Rn]. Th has no 5f electron to begin with, an oddity in the actinoid series that makes Th(IV) chemistry remarkably ``main-group-like''.
Numerical cross-check. For Pm^3+ with n=4 unpaired: μ = √4(4+2) = √24 ≈ 4.90 BM. For Co^2+ with n=3: μ = √15 = 3.87 BM. Each cation we write down implies a definite magnetic moment via μ = √n(n+2) BM, so keep these in mind for later questions.
Why this matters. The configuration of the cation determines the magnetic moment (number of unpaired e-), the colour (whether d-d or f-f transitions are possible), and the stability order along the series. Almost every later question in this exercise (Q 4.18 on colour, Q 4.24 on unpaired count, Q 4.31 on μ, Q 4.36 on hydrated ions, Q 4.38 on spin state) needs these ion configurations as the starting point. Learn this question well; it pays off repeatedly.
See table above for the eight configurations.

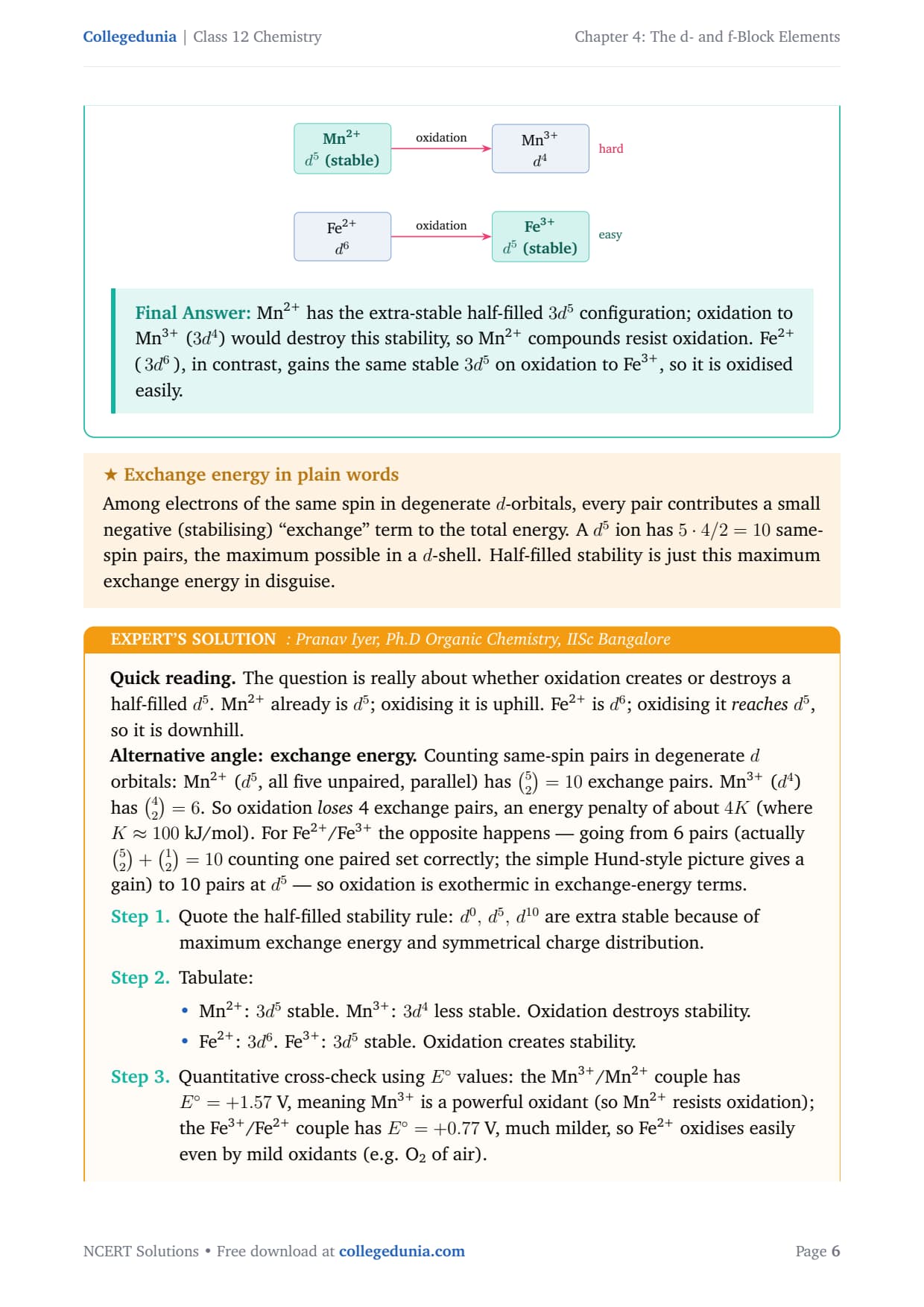

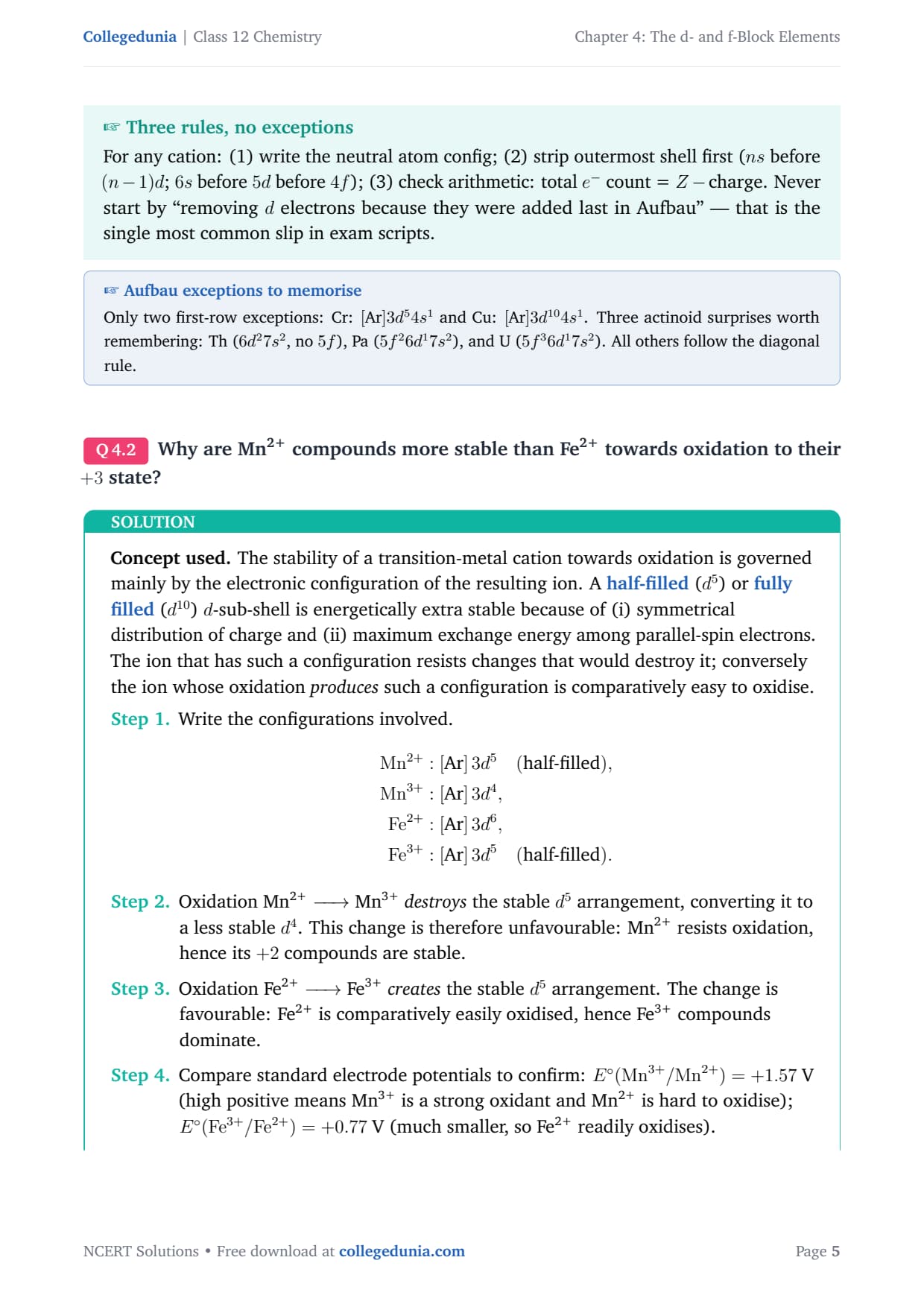

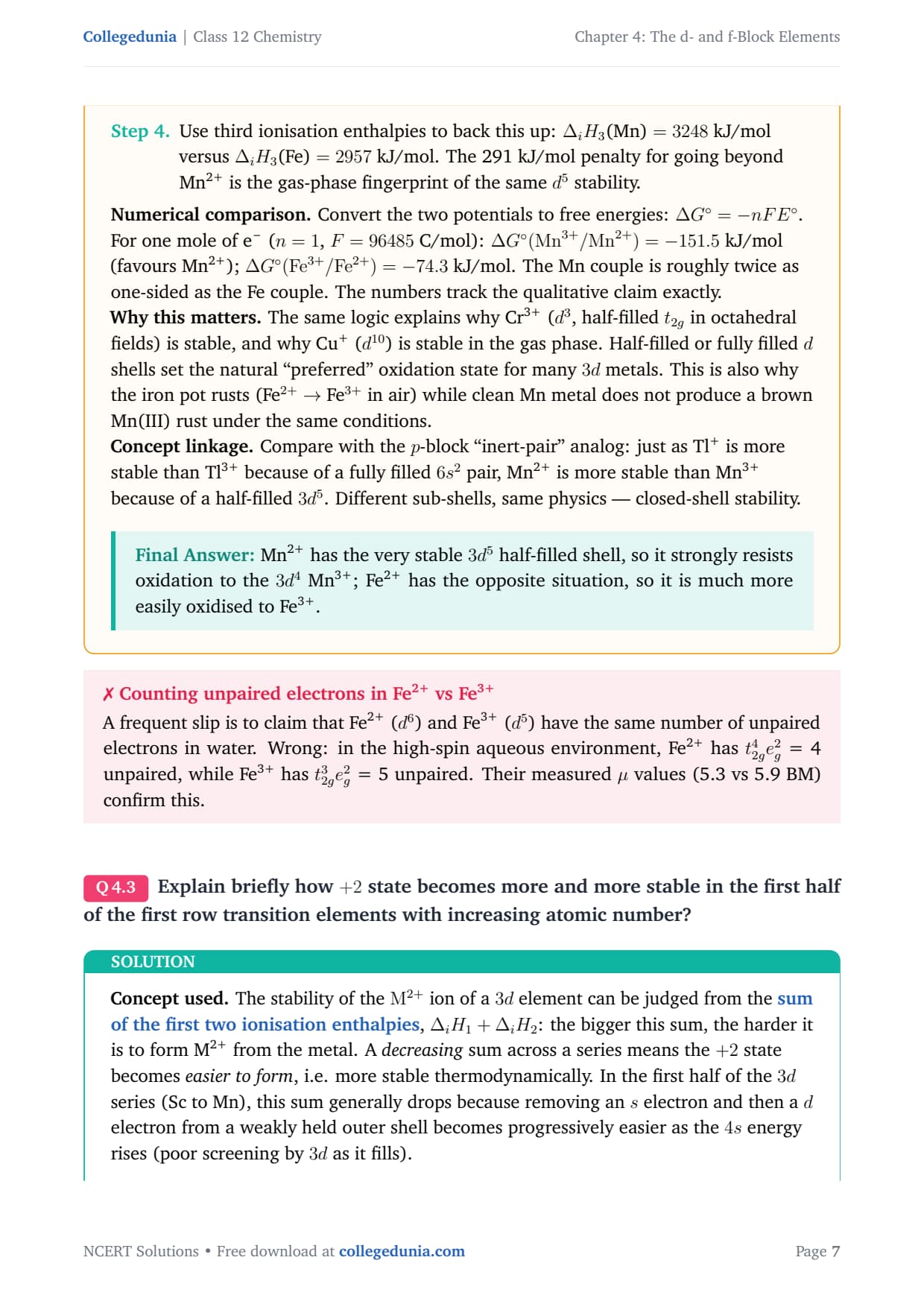

Why are Mn^2+ compounds more stable than Fe^2+ towards oxidation to their +3 state?
Concept used. The stability of a transition-metal cation towards oxidation is governed mainly by the electronic configuration of the resulting ion. A half-filled (d5) or fully filled (d10) d-sub-shell is energetically extra stable because of (i) symmetrical distribution of charge and (ii) maximum exchange energy among parallel-spin electrons. The ion that has such a configuration resists changes that would destroy it; conversely the ion whose oxidation produces such a configuration is comparatively easy to oxidise.
- Write the configurations involved.
aligned
Mn2+ &: [Ar] 3d5 (half-filled),
Mn3+ &: [Ar] 3d4,
Fe2+ &: [Ar] 3d6,
Fe3+ &: [Ar] 3d5 (half-filled). aligned - Oxidation Mn^2+ -> Mn^3+ destroys the stable d5 arrangement, converting it to a less stable d4. This change is therefore unfavourable: Mn^2+ resists oxidation, hence its +2 compounds are stable.
- Oxidation Fe^2+ -> Fe^3+ creates the stable d5 arrangement. The change is favourable: Fe^2+ is comparatively easily oxidised, hence Fe^3+ compounds dominate.
- Compare standard electrode potentials to confirm: E∘(Mn3+/Mn2+) = +1.57 V (high positive means Mn^3+ is a strong oxidant and Mn^2+ is hard to oxidise); E∘(Fe3+/Fe2+) = +0.77 V (much smaller, so Fe^2+ readily oxidises).
Mn^2+ has the extra-stable half-filled 3d5 configuration; oxidation to Mn^3+ (3d4) would destroy this stability, so Mn^2+ compounds resist oxidation. Fe^2+ ( 3d6 ), in contrast, gains the same stable 3d5 on oxidation to Fe^3+, so it is oxidised easily.
Quick reading. The question is really about whether oxidation creates or destroys a half-filled d5. Mn^2+ already is d5; oxidising it is uphill. Fe^2+ is d6; oxidising it reaches d5, so it is downhill.
Alternative angle: exchange energy. Counting same-spin pairs in degenerate d orbitals: Mn^2+ (d5, all five unpaired, parallel) has 52=10 exchange pairs. Mn^3+ (d4) has 42=6. So oxidation loses 4 exchange pairs, an energy penalty of about 4K (where K ≈ 100 kJ/mol). For Fe^2+/Fe^3+ the opposite happens — going from 6 pairs (actually 52+12=10 counting one paired set correctly; the simple Hund-style picture gives a gain) to 10 pairs at d5 — so oxidation is exothermic in exchange-energy terms.
- Quote the half-filled stability rule: d0, d5, d10 are extra stable because of maximum exchange energy and symmetrical charge distribution.
- Tabulate:
- Mn^2+: 3d5 stable. Mn^3+: 3d4 less stable. Oxidation destroys stability.
- Fe^2+: 3d6. Fe^3+: 3d5 stable. Oxidation creates stability.
- Quantitative cross-check using E∘ values: the Mn^3+/Mn^2+ couple has E∘ = +1.57 V, meaning Mn^3+ is a powerful oxidant (so Mn^2+ resists oxidation); the Fe^3+/Fe^2+ couple has E∘ = +0.77 V, much milder, so Fe^2+ oxidises easily even by mild oxidants (e.g. O2 of air).
- Use third ionisation enthalpies to back this up: iH3(Mn) = 3248 kJ/mol versus iH3(Fe) = 2957 kJ/mol. The 291 kJ/mol penalty for going beyond Mn^2+ is the gas-phase fingerprint of the same d5 stability.
Numerical comparison. Convert the two potentials to free energies: Δ G∘ = -nFE∘. For one mole of e^- (n=1, F = 96485 C/mol): Δ G∘(Mn3+/Mn2+) = -151.5 kJ/mol (favours Mn^2+); Δ G∘(Fe3+/Fe2+) = -74.3 kJ/mol. The Mn couple is roughly twice as one-sided as the Fe couple. The numbers track the qualitative claim exactly.
Why this matters. The same logic explains why Cr^3+ (d3, half-filled t2g in octahedral fields) is stable, and why Cu+ (d10) is stable in the gas phase. Half-filled or fully filled d shells set the natural ``preferred'' oxidation state for many 3d metals. This is also why the iron pot rusts (Fe2+ → Fe3+ in air) while clean Mn metal does not produce a brown Mn(III) rust under the same conditions.
Concept linkage. Compare with the p-block ``inert-pair'' analog: just as Tl+ is more stable than Tl^3+ because of a fully filled 6s2 pair, Mn^2+ is more stable than Mn^3+ because of a half-filled 3d5. Different sub-shells, same physics — closed-shell stability.
Mn^2+ has the very stable 3d5 half-filled shell, so it strongly resists oxidation to the 3d4 Mn^3+; Fe^2+ has the opposite situation, so it is much more easily oxidised to Fe^3+.

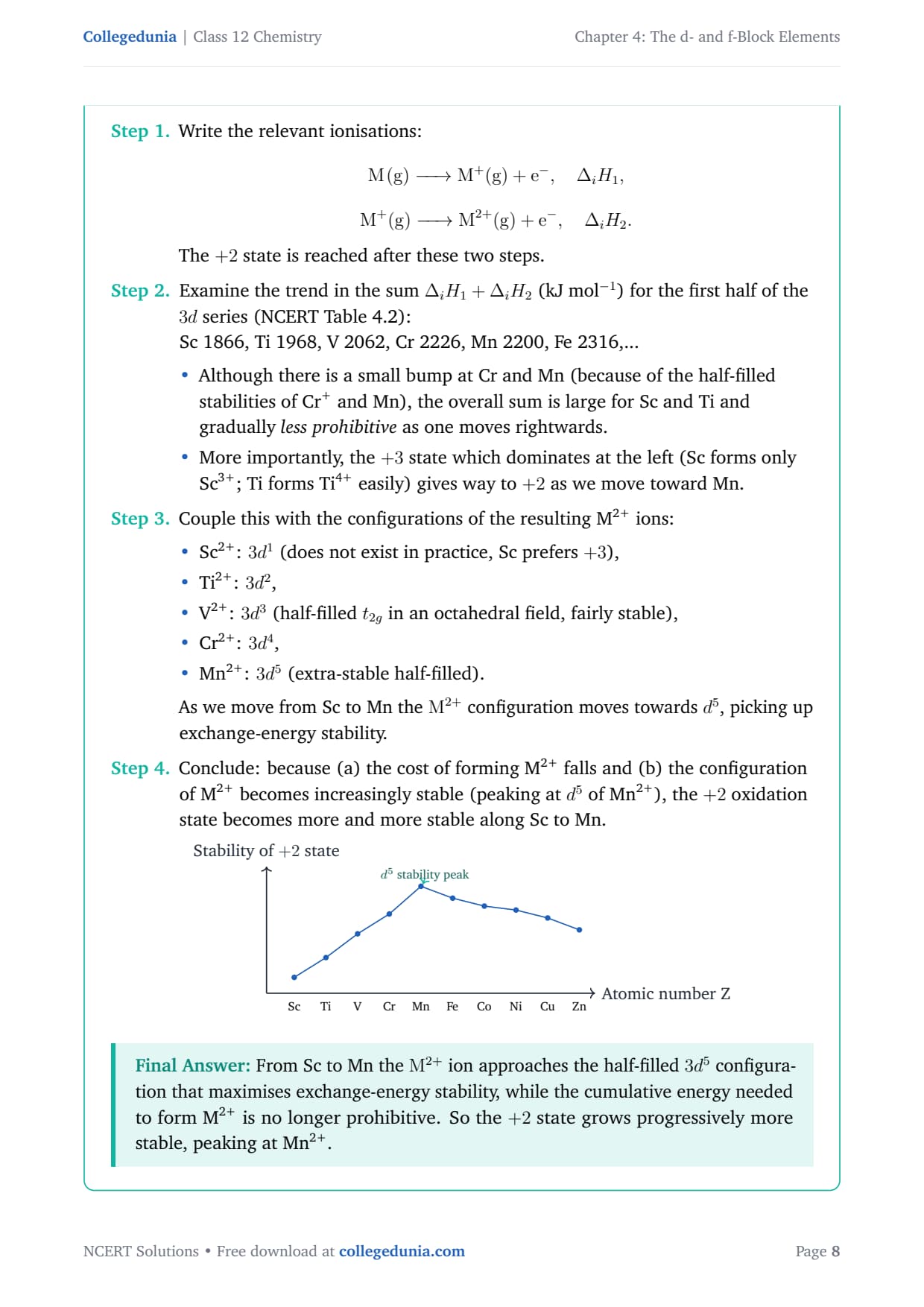

Explain briefly how +2 state becomes more and more stable in the first half of the first row transition elements with increasing atomic number?
Concept used. The stability of the M2+ ion of a 3d element can be judged from the sum of the first two ionisation enthalpies, iH1 + iH2: the bigger this sum, the harder it is to form M^2+ from the metal. A decreasing sum across a series means the +2 state becomes easier to form, i.e. more stable thermodynamically. In the first half of the 3d series (Sc to Mn), this sum generally drops because removing an s electron and then a d electron from a weakly held outer shell becomes progressively easier as the 4s energy rises (poor screening by 3d as it fills).
- Write the relevant ionisations: M(g) -> M+(g) + e-, iH1, M+(g) -> M2+(g) + e-, iH2. The +2 state is reached after these two steps.
- Examine the trend in the sum iH1 + iH2 (kJ
mol-1) for the first half of the 3d series (NCERT
Table 4.2):
Sc 1866, Ti 1968, V 2062, Cr 2226, Mn 2200, Fe 2316,...- Although there is a small bump at Cr and Mn (because of the half-filled stabilities of Cr+ and Mn), the overall sum is large for Sc and Ti and gradually less prohibitive as one moves rightwards.
- More importantly, the +3 state which dominates at the left (Sc forms only Sc^3+; Ti forms Ti^4+ easily) gives way to +2 as we move toward Mn.
- Couple this with the configurations of the resulting
M^2+ ions:
- Sc^2+: 3d1 (does not exist in practice, Sc prefers +3),
- Ti^2+: 3d2,
- V^2+: 3d3 (half-filled t2g in an octahedral field, fairly stable),
- Cr^2+: 3d4,
- Mn^2+: 3d5 (extra-stable half-filled).
- Conclude: because (a) the cost of forming M^2+ falls and (b) the configuration of M^2+ becomes increasingly stable (peaking at d5 of Mn^2+), the +2 oxidation state becomes more and more stable along Sc to Mn.
From Sc to Mn the M2+ ion approaches the half-filled 3d5 configuration that maximises exchange-energy stability, while the cumulative energy needed to form M^2+ is no longer prohibitive. So the +2 state grows progressively more stable, peaking at Mn^2+.

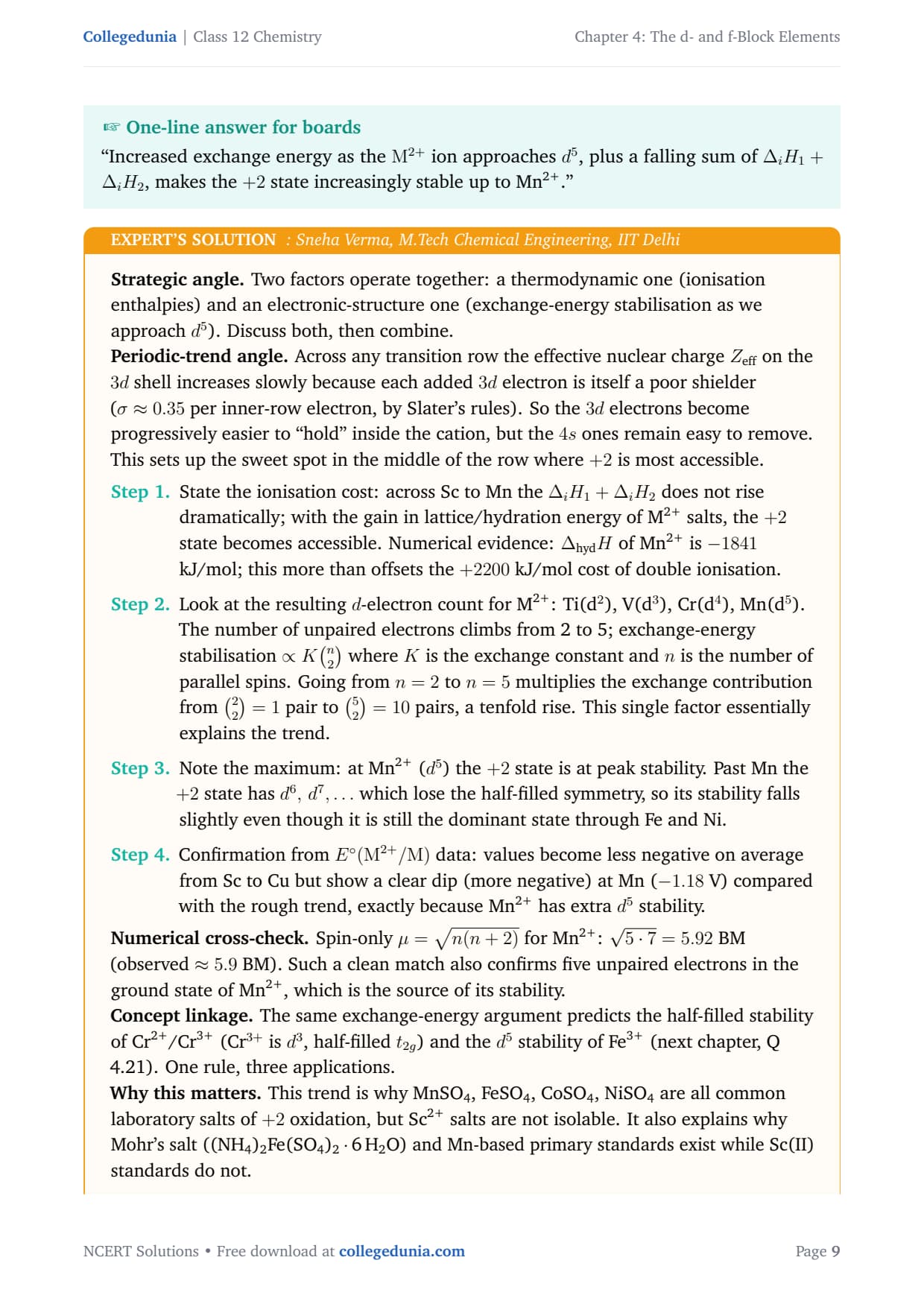

Strategic angle. Two factors operate together: a thermodynamic one (ionisation enthalpies) and an electronic-structure one (exchange-energy stabilisation as we approach d5). Discuss both, then combine.
Periodic-trend angle. Across any transition row the effective nuclear charge Zeff on the 3d shell increases slowly because each added 3d electron is itself a poor shielder (σ ≈ 0.35 per inner-row electron, by Slater's rules). So the 3d electrons become progressively easier to ``hold'' inside the cation, but the 4s ones remain easy to remove. This sets up the sweet spot in the middle of the row where +2 is most accessible.
- State the ionisation cost: across Sc to Mn the iH1 + iH2 does not rise dramatically; with the gain in lattice/hydration energy of M^2+ salts, the +2 state becomes accessible. Numerical evidence: hydH of Mn^2+ is -1841 kJ/mol; this more than offsets the +2200 kJ/mol cost of double ionisation.
- Look at the resulting d-electron count for M^2+: Ti(d2), V(d3), Cr(d4), Mn(d5). The number of unpaired electrons climbs from 2 to 5; exchange-energy stabilisation ∝ K n2 where K is the exchange constant and n is the number of parallel spins. Going from n=2 to n=5 multiplies the exchange contribution from 22=1 pair to 52=10 pairs, a tenfold rise. This single factor essentially explains the trend.
- Note the maximum: at Mn^2+ (d5) the +2 state is at peak stability. Past Mn the +2 state has d6, d7, … which lose the half-filled symmetry, so its stability falls slightly even though it is still the dominant state through Fe and Ni.
- Confirmation from E∘(M2+/M) data: values become less negative on average from Sc to Cu but show a clear dip (more negative) at Mn (-1.18 V) compared with the rough trend, exactly because Mn^2+ has extra d5 stability.
Numerical cross-check. Spin-only μ = √n(n+2) for Mn^2+: √5 · 7 = 5.92 BM (observed ≈ 5.9 BM). Such a clean match also confirms five unpaired electrons in the ground state of Mn^2+, which is the source of its stability.
Concept linkage. The same exchange-energy argument predicts the half-filled stability of Cr^2+/Cr^3+ (Cr3+ is d3, half-filled t2g) and the d5 stability of Fe^3+ (next chapter, Q 4.21). One rule, three applications.
Why this matters. This trend is why MnSO4, FeSO4, CoSO4, NiSO4 are all common laboratory salts of +2 oxidation, but Sc^2+ salts are not isolable. It also explains why Mohr's salt ((NH4)2Fe(SO4)2.6H2O) and Mn-based primary standards exist while Sc(II) standards do not.

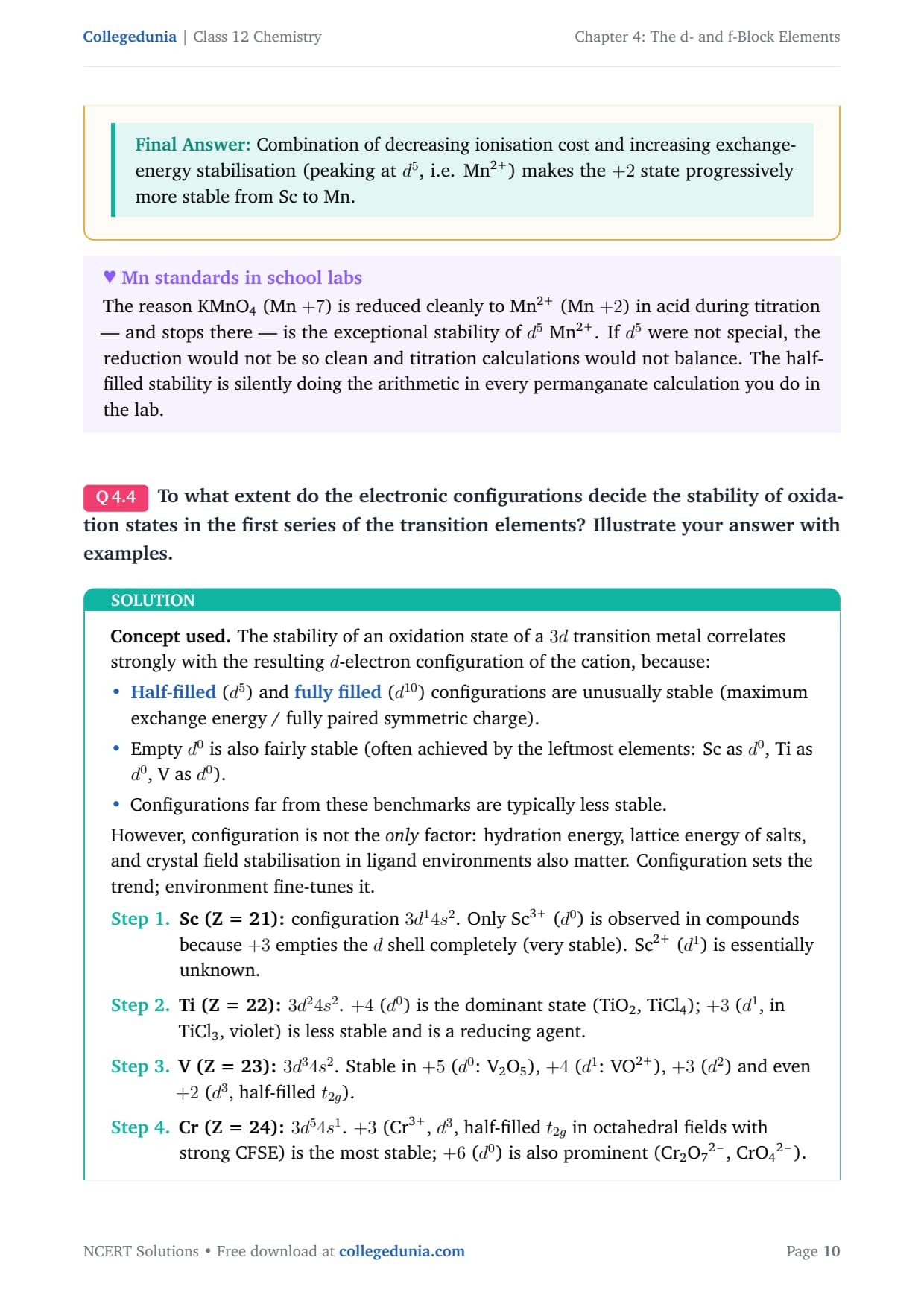

Combination of decreasing ionisation cost and increasing exchange-energy stabilisation (peaking at d5, i.e. Mn^2+) makes the +2 state progressively more stable from Sc to Mn.

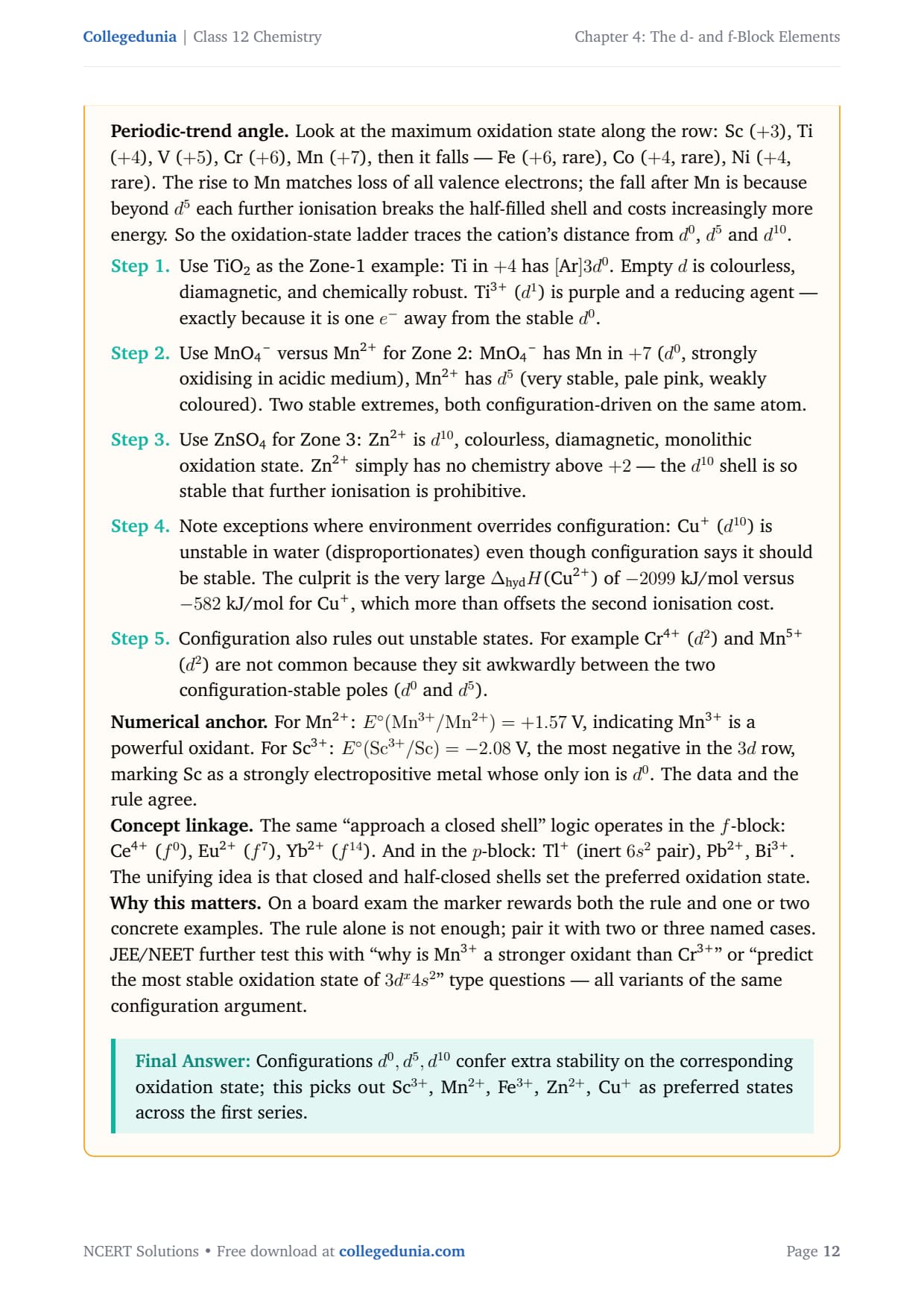

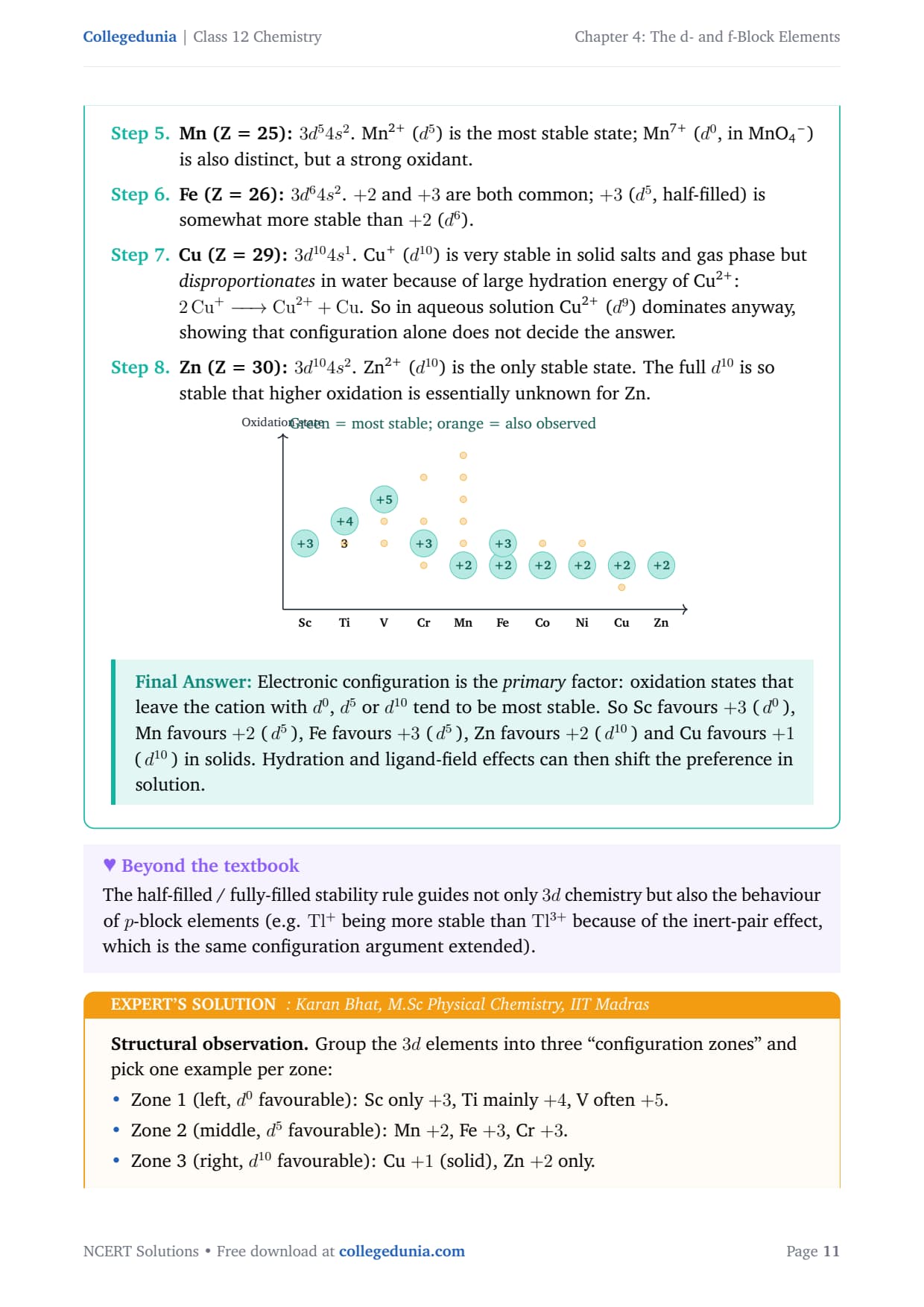

To what extent do the electronic configurations decide the stability of oxidation states in the first series of the transition elements? Illustrate your answer with examples.
Concept used. The stability of an oxidation state of a 3d transition metal correlates strongly with the resulting d-electron configuration of the cation, because:
- Half-filled (d5) and fully filled (d10) configurations are unusually stable (maximum exchange energy / fully paired symmetric charge).
- Empty d0 is also fairly stable (often achieved by the leftmost elements: Sc as d0, Ti as d0, V as d0).
- Configurations far from these benchmarks are typically less stable.
- Sc (Z = 21): configuration 3d14s2. Only Sc^3+ (d0) is observed in compounds because +3 empties the d shell completely (very stable). Sc^2+ (d1) is essentially unknown.
- Ti (Z = 22): 3d24s2. +4 (d0) is the dominant state (TiO2, TiCl4); +3 (d1, in TiCl3, violet) is less stable and is a reducing agent.
- V (Z = 23): 3d34s2. Stable in +5 (d0: V2O5), +4 (d1: VO^2+), +3 (d2) and even +2 (d3, half-filled t2g).
- Cr (Z = 24): 3d54s1. +3 (Cr^3+, d3, half-filled t2g in octahedral fields with strong CFSE) is the most stable; +6 (d0) is also prominent (Cr2O7^2-, CrO4^2-).
- Mn (Z = 25): 3d54s2. Mn^2+ (d5) is the most stable state; Mn^7+ (d0, in MnO4-) is also distinct, but a strong oxidant.
- Fe (Z = 26): 3d64s2. +2 and +3 are both common; +3 (d5, half-filled) is somewhat more stable than +2 (d6).
- Cu (Z = 29): 3d104s1. Cu+ (d10) is very stable in solid salts and gas phase but disproportionates in water because of large hydration energy of Cu^2+: 2 Cu+ -> Cu2+ + Cu. So in aqueous solution Cu^2+ (d9) dominates anyway, showing that configuration alone does not decide the answer.
- Zn (Z = 30): 3d104s2. Zn^2+ (d10) is the only stable state. The full d10 is so stable that higher oxidation is essentially unknown for Zn.
Electronic configuration is the primary factor: oxidation states that leave the cation with d0, d5 or d10 tend to be most stable. So Sc favours +3 ( d0 ), Mn favours +2 ( d5 ), Fe favours +3 ( d5 ), Zn favours +2 ( d10 ) and Cu favours +1 ( d10 ) in solids. Hydration and ligand-field effects can then shift the preference in solution.
Structural observation. Group the 3d elements into three ``configuration zones'' and pick one example per zone:
- Zone 1 (left, d0 favourable): Sc only +3, Ti mainly +4, V often +5.
- Zone 2 (middle, d5 favourable): Mn +2, Fe +3, Cr +3.
- Zone 3 (right, d10 favourable): Cu +1 (solid), Zn +2 only.
Periodic-trend angle. Look at the maximum oxidation state along the row: Sc (+3), Ti (+4), V (+5), Cr (+6), Mn (+7), then it falls — Fe (+6, rare), Co (+4, rare), Ni (+4, rare). The rise to Mn matches loss of all valence electrons; the fall after Mn is because beyond d5 each further ionisation breaks the half-filled shell and costs increasingly more energy. So the oxidation-state ladder traces the cation's distance from d0, d5 and d10.
- Use TiO2 as the Zone-1 example: Ti in +4 has [Ar]3d0. Empty d is colourless, diamagnetic, and chemically robust. Ti^3+ (d1) is purple and a reducing agent — exactly because it is one e- away from the stable d0.
- Use MnO4- versus Mn^2+ for Zone 2: MnO4- has Mn in +7 (d0, strongly oxidising in acidic medium), Mn^2+ has d5 (very stable, pale pink, weakly coloured). Two stable extremes, both configuration-driven on the same atom.
- Use ZnSO4 for Zone 3: Zn^2+ is d10, colourless, diamagnetic, monolithic oxidation state. Zn^2+ simply has no chemistry above +2 — the d10 shell is so stable that further ionisation is prohibitive.
- Note exceptions where environment overrides configuration: Cu+ (d10) is unstable in water (disproportionates) even though configuration says it should be stable. The culprit is the very large hydH(Cu^2+) of -2099 kJ/mol versus -582 kJ/mol for Cu+, which more than offsets the second ionisation cost.
- Configuration also rules out unstable states. For example Cr^4+ (d2) and Mn^5+ (d2) are not common because they sit awkwardly between the two configuration-stable poles (d0 and d5).
Numerical anchor. For Mn^2+: E∘(Mn3+/Mn2+) = +1.57 V, indicating Mn^3+ is a powerful oxidant. For Sc^3+: E∘(Sc3+/Sc) = -2.08 V, the most negative in the 3d row, marking Sc as a strongly electropositive metal whose only ion is d0. The data and the rule agree.
Concept linkage. The same ``approach a closed shell'' logic operates in the f-block: Ce^4+ (f0), Eu^2+ (f7), Yb^2+ (f14). And in the p-block: Tl+ (inert 6s2 pair), Pb^2+, Bi^3+. The unifying idea is that closed and half-closed shells set the preferred oxidation state.
Why this matters. On a board exam the marker rewards both the rule and one or two concrete examples. The rule alone is not enough; pair it with two or three named cases. JEE/NEET further test this with ``why is Mn^3+ a stronger oxidant than Cr^3+'' or ``predict the most stable oxidation state of 3dx4s2'' type questions — all variants of the same configuration argument.
Configurations d0, d5, d10 confer extra stability on the corresponding oxidation state; this picks out Sc3+, Mn2+, Fe3+, Zn2+, Cu+ as preferred states across the first series.

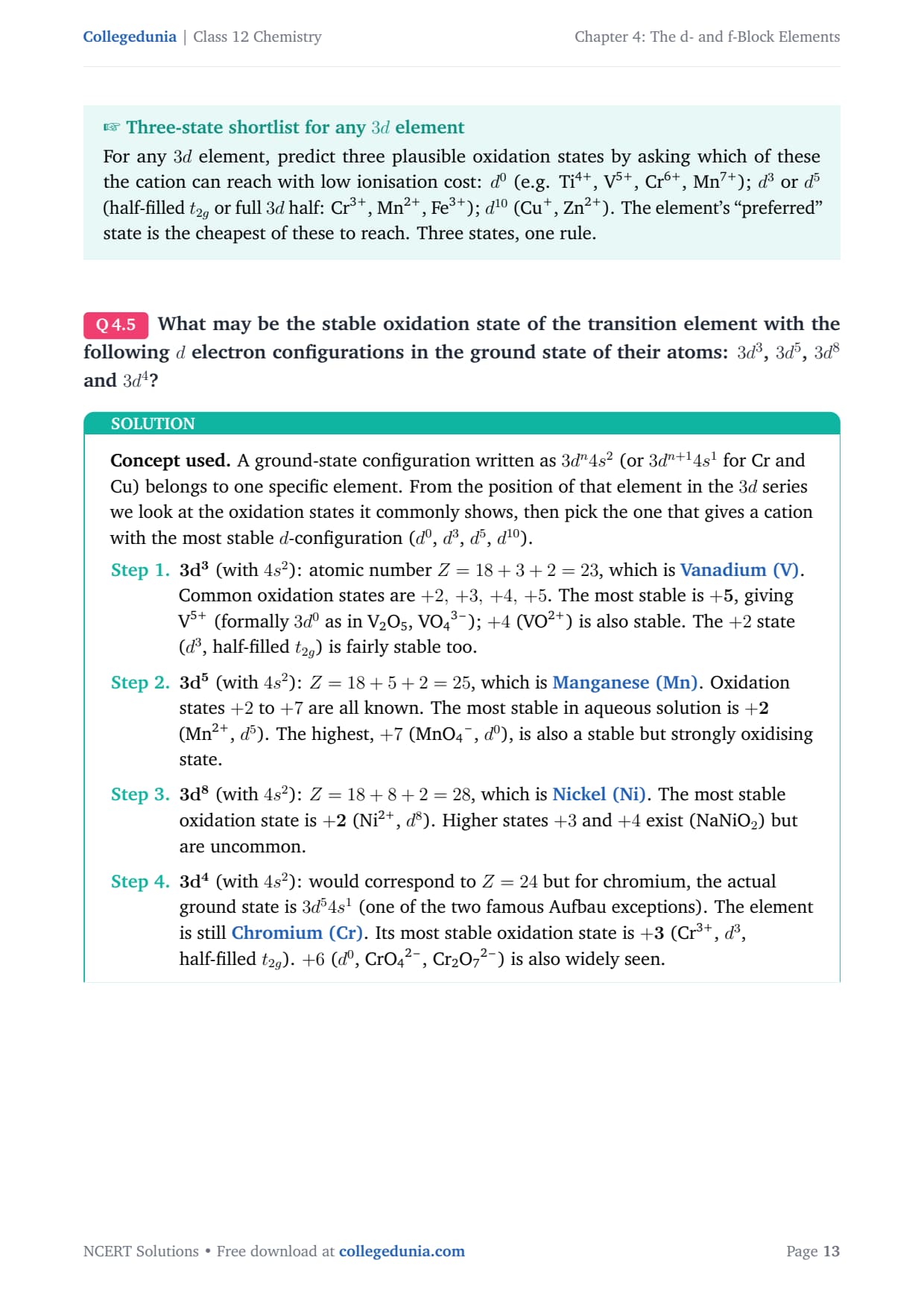

What may be the stable oxidation state of the transition element with the following d electron configurations in the ground state of their atoms: 3d3, 3d5, 3d8 and 3d4?
Concept used. A ground-state configuration written as 3dn4s2 (or 3dn+14s1 for Cr and Cu) belongs to one specific element. From the position of that element in the 3d series we look at the oxidation states it commonly shows, then pick the one that gives a cation with the most stable d-configuration (d0, d3, d5, d10).
- 3d3 (with 4s2): atomic number Z = 18 + 3 + 2 = 23, which is Vanadium (V). Common oxidation states are +2, +3, +4, +5. The most stable is +5, giving V^5+ (formally 3d0 as in V2O5, VO4^3-); +4 (VO^2+) is also stable. The +2 state (d3, half-filled t2g) is fairly stable too.
- 3d5 (with 4s2): Z = 18 + 5 + 2 = 25, which is Manganese (Mn). Oxidation states +2 to +7 are all known. The most stable in aqueous solution is +2 (Mn^2+, d5). The highest, +7 (MnO4-, d0), is also a stable but strongly oxidising state.
- 3d8 (with 4s2): Z = 18 + 8 + 2 = 28, which is Nickel (Ni). The most stable oxidation state is +2 (Ni^2+, d8). Higher states +3 and +4 exist (NaNiO2) but are uncommon.
- 3d4 (with 4s2): would correspond to Z = 24 but for chromium, the actual ground state is 3d54s1 (one of the two famous Aufbau exceptions). The element is still Chromium (Cr). Its most stable oxidation state is +3 (Cr^3+, d3, half-filled t2g). +6 (d0, CrO4^2-, Cr2O7^2-) is also widely seen.

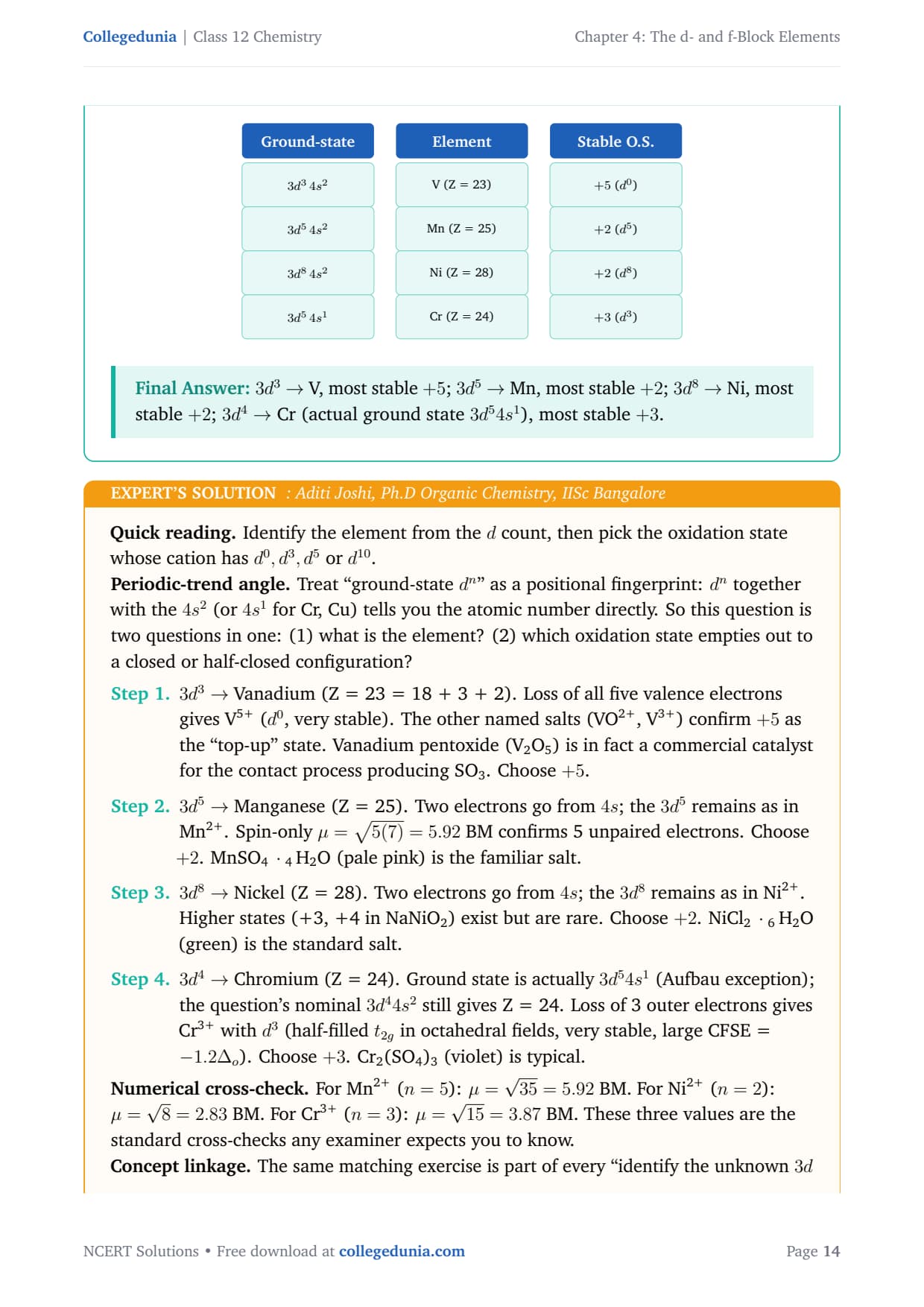

3d3 → V, most stable +5; 3d5 → Mn, most stable +2; 3d8 → Ni, most stable +2; 3d4 → Cr (actual ground state 3d54s1), most stable +3.
Quick reading. Identify the element from the d count, then pick the oxidation state whose cation has d0, d3, d5 or d10.
Periodic-trend angle. Treat ``ground-state dn'' as a positional fingerprint: dn together with the 4s2 (or 4s1 for Cr, Cu) tells you the atomic number directly. So this question is two questions in one: (1) what is the element? (2) which oxidation state empties out to a closed or half-closed configuration?
- 3d3 → Vanadium (Z = 23 = 18 + 3 + 2). Loss of all five valence electrons gives V^5+ (d0, very stable). The other named salts (VO^2+, V^3+) confirm +5 as the ``top-up'' state. Vanadium pentoxide (V2O5) is in fact a commercial catalyst for the contact process producing SO3. Choose +5.
- 3d5 → Manganese (Z = 25). Two electrons go from 4s; the 3d5 remains as in Mn^2+. Spin-only μ = √5(7) = 5.92 BM confirms 5 unpaired electrons. Choose +2. MnSO4 4 H2O (pale pink) is the familiar salt.
- 3d8 → Nickel (Z = 28). Two electrons go from 4s; the 3d8 remains as in Ni^2+. Higher states (+3, +4 in NaNiO2) exist but are rare. Choose +2. NiCl2 6 H2O (green) is the standard salt.
- 3d4 → Chromium (Z = 24). Ground state is actually 3d54s1 (Aufbau exception); the question's nominal 3d44s2 still gives Z = 24. Loss of 3 outer electrons gives Cr^3+ with d3 (half-filled t2g in octahedral fields, very stable, large CFSE = -1.2o). Choose +3. Cr2(SO4)3 (violet) is typical.
Numerical cross-check. For Mn^2+ (n=5): μ = √35 = 5.92 BM. For Ni^2+ (n=2): μ = √8 = 2.83 BM. For Cr^3+ (n=3): μ = √15 = 3.87 BM. These three values are the standard cross-checks any examiner expects you to know.
Concept linkage. The same matching exercise is part of every ``identify the unknown 3d cation from μ'' problem. Once you know μ you get n; from n you get dn; from dn plus the charge you get Z. This is the routine of Q 4.24 and Q 4.38.

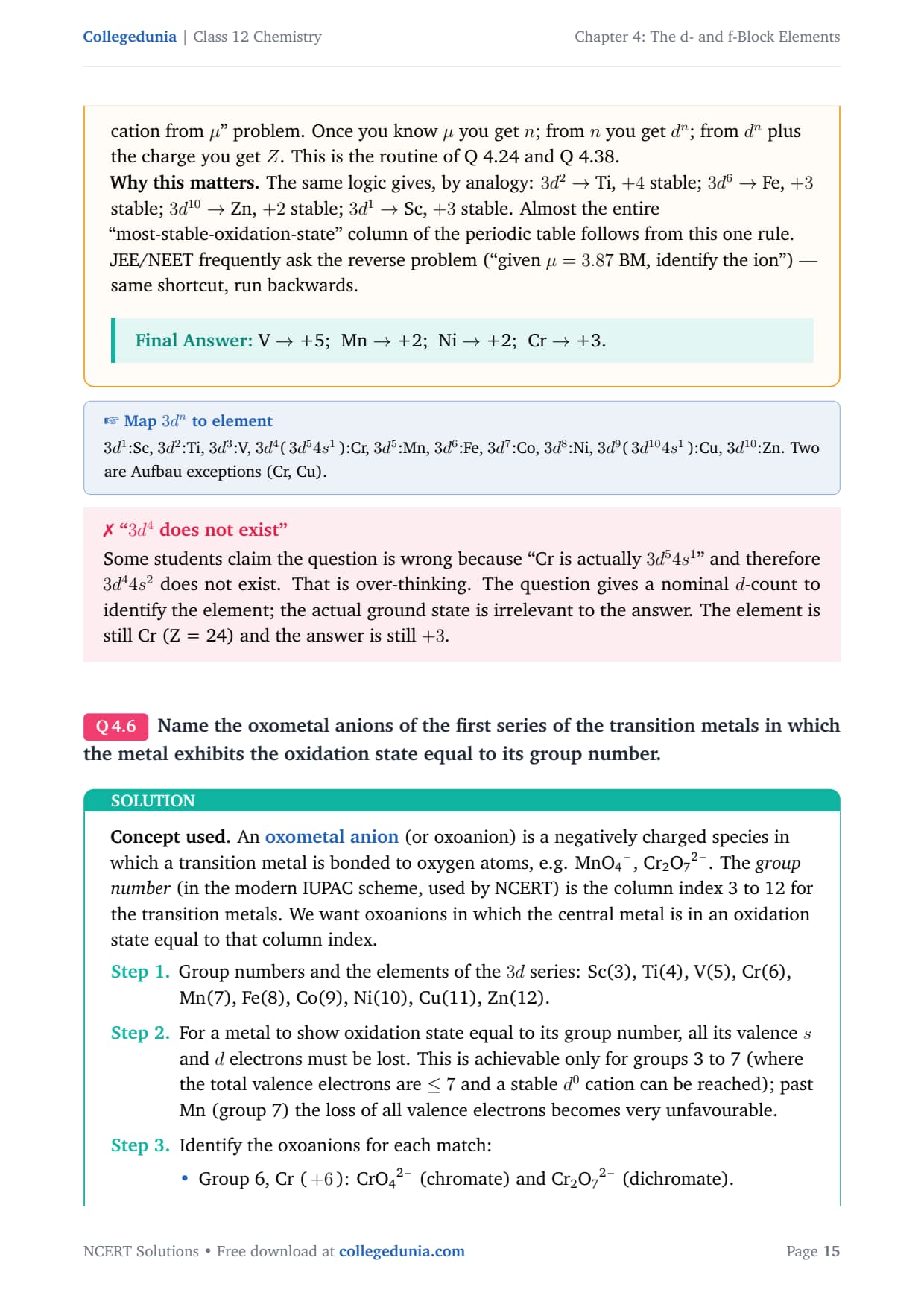

Why this matters. The same logic gives, by analogy: 3d2 → Ti, +4 stable; 3d6 → Fe, +3 stable; 3d10 → Zn, +2 stable; 3d1 → Sc, +3 stable. Almost the entire ``most-stable-oxidation-state'' column of the periodic table follows from this one rule. JEE/NEET frequently ask the reverse problem (``given μ = 3.87 BM, identify the ion'') — same shortcut, run backwards.
V → +5; Mn → +2; Ni → +2; Cr → +3.

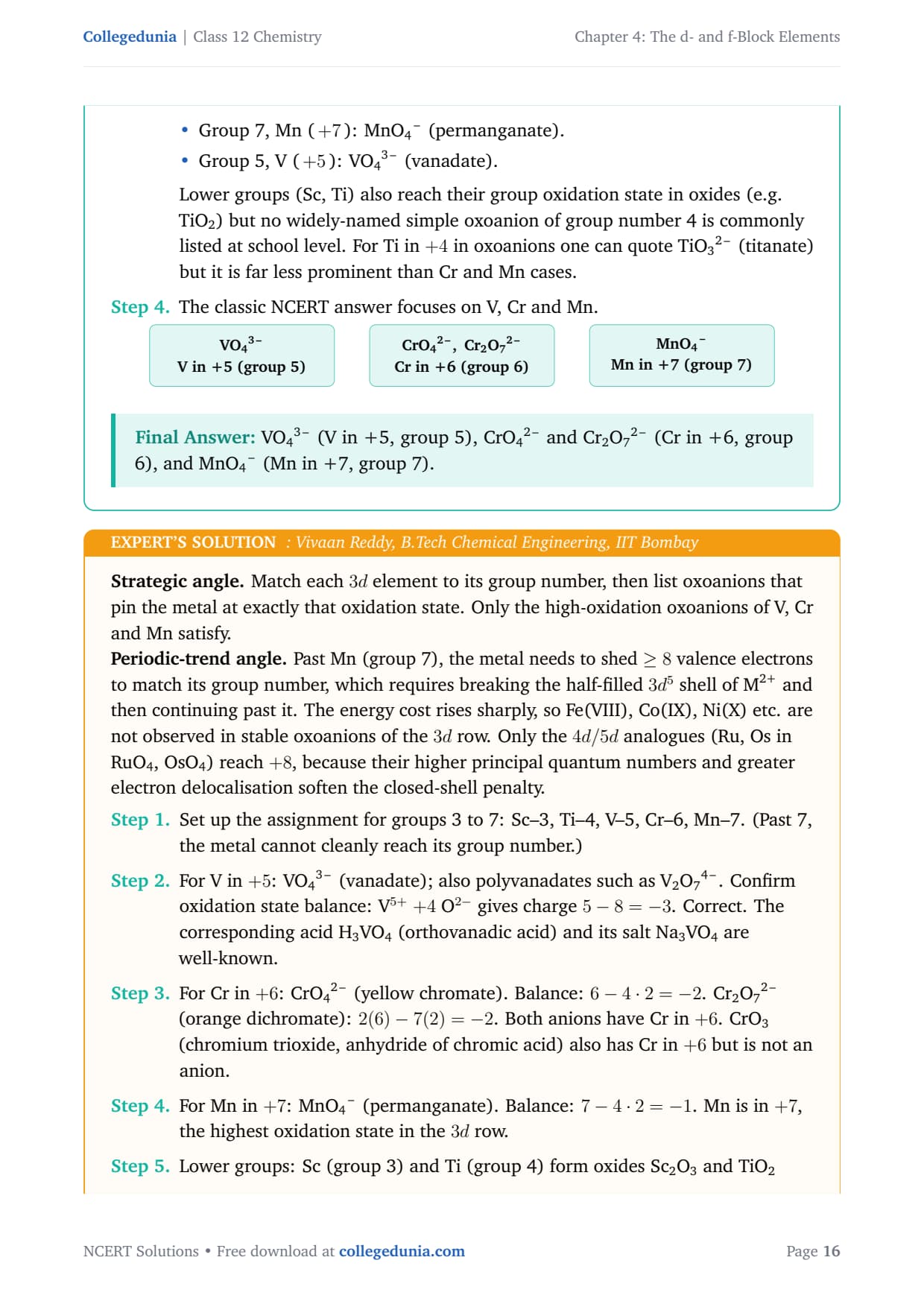

Name the oxometal anions of the first series of the transition metals in which the metal exhibits the oxidation state equal to its group number.
Concept used. An oxometal anion (or oxoanion) is a negatively charged species in which a transition metal is bonded to oxygen atoms, e.g. MnO4-, Cr2O7^2-. The group number (in the modern IUPAC scheme, used by NCERT) is the column index 3 to 12 for the transition metals. We want oxoanions in which the central metal is in an oxidation state equal to that column index.
- Group numbers and the elements of the 3d series: Sc(3), Ti(4), V(5), Cr(6), Mn(7), Fe(8), Co(9), Ni(10), Cu(11), Zn(12).
- For a metal to show oxidation state equal to its group number, all its valence s and d electrons must be lost. This is achievable only for groups 3 to 7 (where the total valence electrons are ≤ 7 and a stable d0 cation can be reached); past Mn (group 7) the loss of all valence electrons becomes very unfavourable.
- Identify the oxoanions for each match:
- Group 6, Cr ( +6 ): CrO4^2- (chromate) and Cr2O7^2- (dichromate).
- Group 7, Mn ( +7 ): MnO4- (permanganate).
- Group 5, V ( +5 ): VO4^3- (vanadate).
- The classic NCERT answer focuses on V, Cr and Mn.
VO4^3- (V in +5, group 5), CrO4^2- and Cr2O7^2- (Cr in +6, group 6), and MnO4- (Mn in +7, group 7).
Strategic angle. Match each 3d element to its group number, then list oxoanions that pin the metal at exactly that oxidation state. Only the high-oxidation oxoanions of V, Cr and Mn satisfy.
Periodic-trend angle. Past Mn (group 7), the metal needs to shed ≥ 8 valence electrons to match its group number, which requires breaking the half-filled 3d5 shell of M^2+ and then continuing past it. The energy cost rises sharply, so Fe(VIII), Co(IX), Ni(X) etc. are not observed in stable oxoanions of the 3d row. Only the 4d/5d analogues (Ru, Os in RuO4, OsO4) reach +8, because their higher principal quantum numbers and greater electron delocalisation soften the closed-shell penalty.
- Set up the assignment for groups 3 to 7: Sc–3, Ti–4, V–5, Cr–6, Mn–7. (Past 7, the metal cannot cleanly reach its group number.)
- For V in +5: VO4^3- (vanadate); also polyvanadates such as V2O7^4-. Confirm oxidation state balance: V5+ + 4 O2- gives charge 5 - 8 = -3. Correct. The corresponding acid H3VO4 (orthovanadic acid) and its salt Na3VO4 are well-known.
- For Cr in +6: CrO4^2- (yellow chromate). Balance: 6 - 4 · 2 = -2. Cr2O7^2- (orange dichromate): 2(6) - 7(2) = -2. Both anions have Cr in +6. CrO3 (chromium trioxide, anhydride of chromic acid) also has Cr in +6 but is not an anion.
- For Mn in +7: MnO4- (permanganate). Balance: 7 - 4 · 2 = -1. Mn is in +7, the highest oxidation state in the 3d row.
- Lower groups: Sc (group 3) and Ti (group 4) form oxides Sc2O3 and TiO2 where the metal is in the group oxidation state, but the corresponding simple oxoanions ScO3^3- or TiO3^2- are uncommon at the school level and so are usually omitted. The classic answer focuses on V, Cr, Mn.

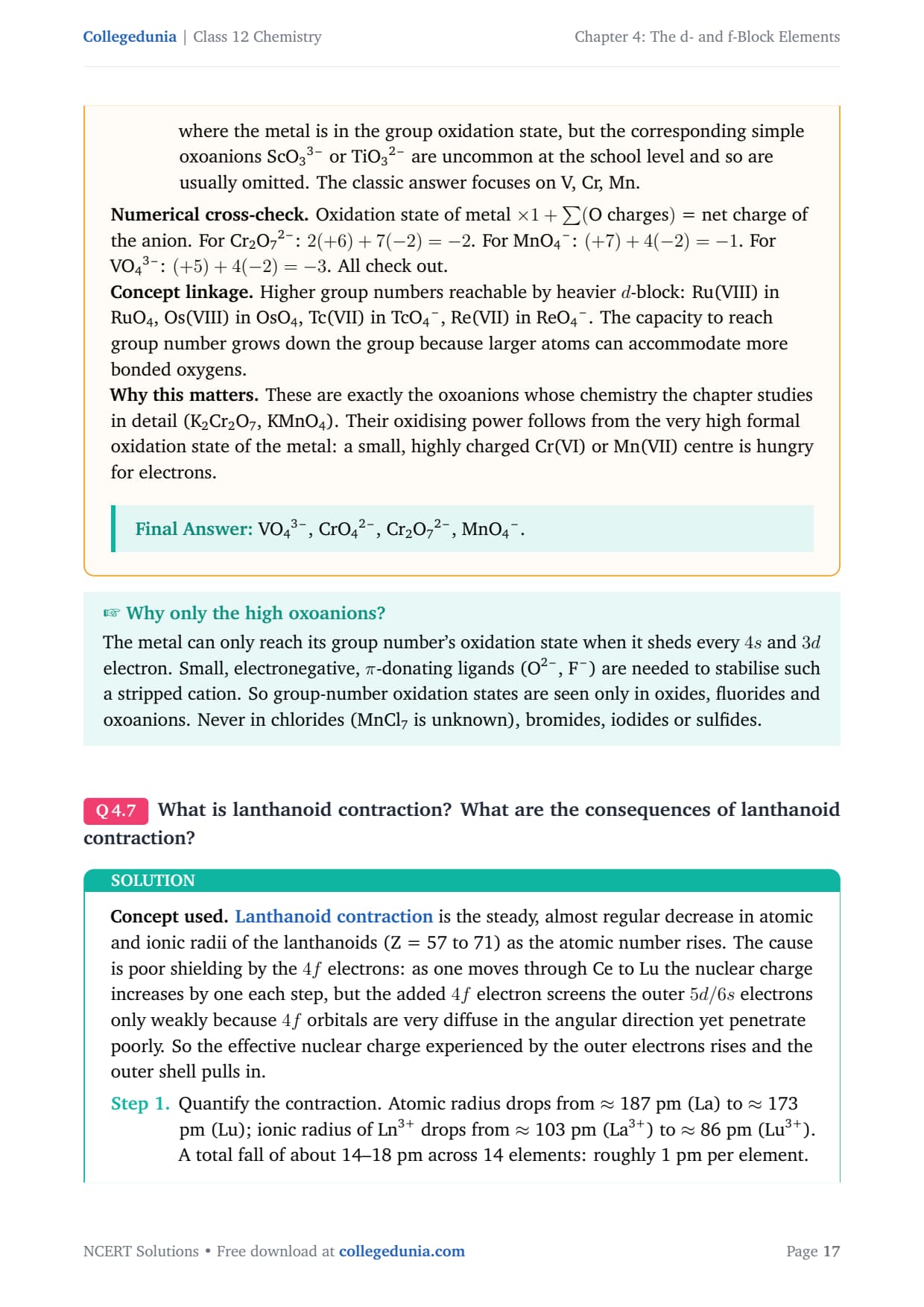

Numerical cross-check. Oxidation state of metal × 1 + ∑(O charges) = net charge of the anion. For Cr2O7^2-: 2(+6) + 7(-2) = -2. For MnO4-: (+7) + 4(-2) = -1. For VO4^3-: (+5) + 4(-2) = -3. All check out.
Concept linkage. Higher group numbers reachable by heavier d-block: Ru(VIII) in RuO4, Os(VIII) in OsO4, Tc(VII) in TcO4-, Re(VII) in ReO4-. The capacity to reach group number grows down the group because larger atoms can accommodate more bonded oxygens.
Why this matters. These are exactly the oxoanions whose chemistry the chapter studies in detail (K2Cr2O7, KMnO4). Their oxidising power follows from the very high formal oxidation state of the metal: a small, highly charged Cr(VI) or Mn(VII) centre is hungry for electrons.
VO4^3-, CrO4^2-, Cr2O7^2-, MnO4-.

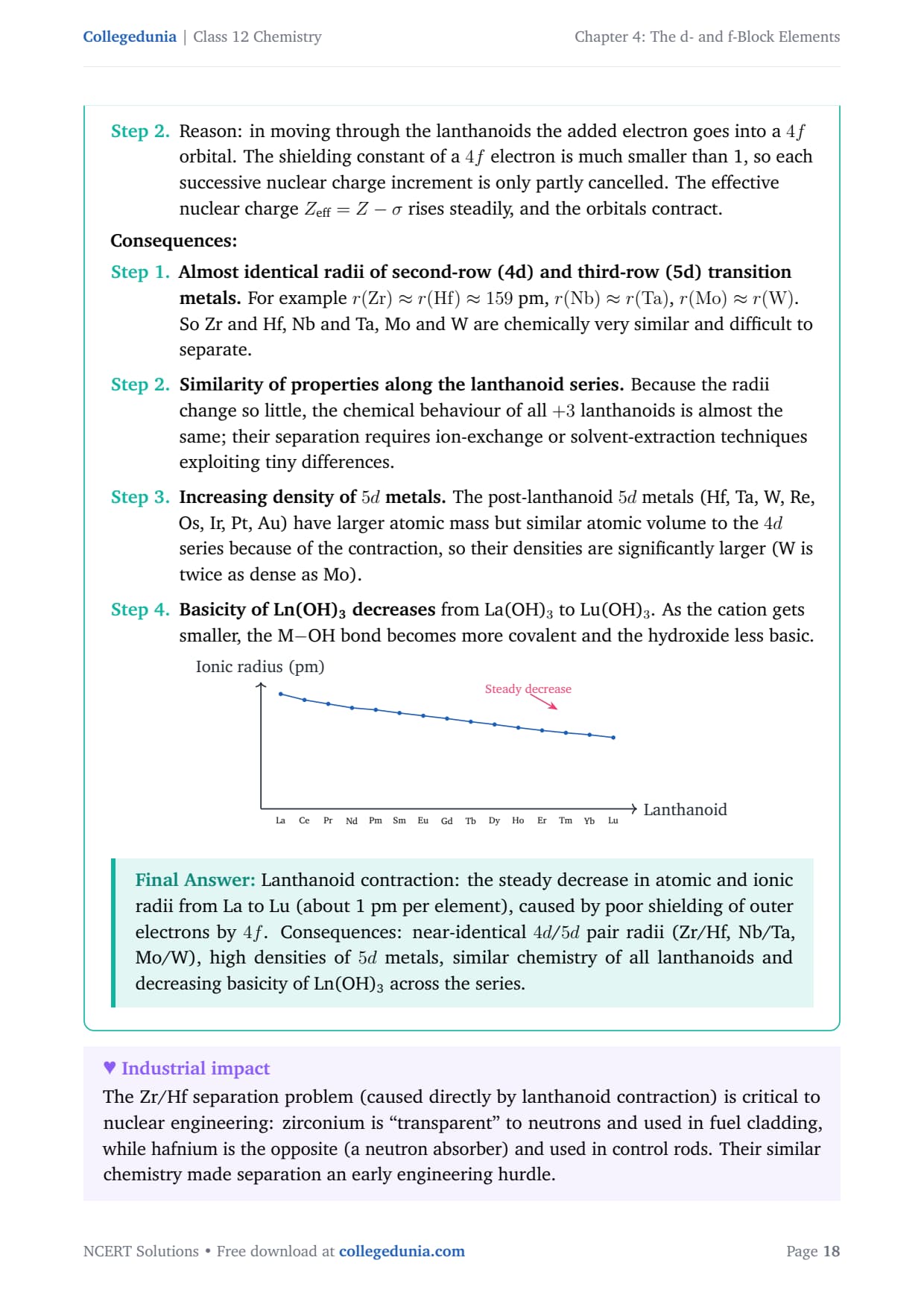

What is lanthanoid contraction? What are the consequences of lanthanoid contraction?
Concept used. Lanthanoid contraction is the steady, almost regular decrease in atomic and ionic radii of the lanthanoids (Z = 57 to 71) as the atomic number rises. The cause is poor shielding by the 4f electrons: as one moves through Ce to Lu the nuclear charge increases by one each step, but the added 4f electron screens the outer 5d / 6s electrons only weakly because 4f orbitals are very diffuse in the angular direction yet penetrate poorly. So the effective nuclear charge experienced by the outer electrons rises and the outer shell pulls in.
- Quantify the contraction. Atomic radius drops from ≈ 187 pm (La) to ≈ 173 pm (Lu); ionic radius of Ln^3+ drops from ≈ 103 pm (La^3+) to ≈ 86 pm (Lu^3+). A total fall of about 14–18 pm across 14 elements: roughly 1 pm per element.
- Reason: in moving through the lanthanoids the added electron goes into a 4f orbital. The shielding constant of a 4f electron is much smaller than 1, so each successive nuclear charge increment is only partly cancelled. The effective nuclear charge Zeff = Z - σ rises steadily, and the orbitals contract.
Consequences:
- Almost identical radii of second-row (4d) and third-row (5d) transition metals. For example r(Zr) ≈ r(Hf) ≈ 159 pm, r(Nb) ≈ r(Ta), r(Mo) ≈ r(W). So Zr and Hf, Nb and Ta, Mo and W are chemically very similar and difficult to separate.
- Similarity of properties along the lanthanoid series. Because the radii change so little, the chemical behaviour of all +3 lanthanoids is almost the same; their separation requires ion-exchange or solvent-extraction techniques exploiting tiny differences.
- Increasing density of 5d metals. The post-lanthanoid 5d metals (Hf, Ta, W, Re, Os, Ir, Pt, Au) have larger atomic mass but similar atomic volume to the 4d series because of the contraction, so their densities are significantly larger (W is twice as dense as Mo).
- Basicity of Ln(OH)3 decreases from La(OH)3 to Lu(OH)3. As the cation gets smaller, the M-OH bond becomes more covalent and the hydroxide less basic.
Lanthanoid contraction: the steady decrease in atomic and ionic radii from La to Lu (about 1 pm per element), caused by poor shielding of outer electrons by 4f. Consequences: near-identical 4d/5d pair radii (Zr/Hf, Nb/Ta, Mo/W), high densities of 5d metals, similar chemistry of all lanthanoids and decreasing basicity of Ln(OH)3 across the series.
Quick reading. ``Lanthanoid contraction'' is the 1 pm-per-element shrinkage of Ln3+ ions across La to Lu, a direct consequence of poor 4f shielding. The fall accumulates over 14 elements to about 14–18 pm: enough to wipe out the expected ``one-row growth'' between 4d and 5d transition metals.
Electronic-config reasoning. A 4f orbital has angular nodes that keep its electron density away from the nucleus in angular regions, but it lacks the radial node that the 5s, 5p and 5d shells have. So its radial distribution is buried inside the outer shells. The result is a paradox: 4f orbitals are ``inner'' in shielding behaviour (don't block the nucleus from outer electrons) yet ``outer'' in angular extent. This dual nature is the deep reason for the contraction.
- Definition with the underlying reason: nuclear charge rises by one each step but the added 4f electron shields outer electrons poorly because 4f orbitals do not penetrate close to the nucleus. Hence Zeff rises and outer-shell radius falls. Slater's rules give σ(4f → 4f) ≈ 0.35 and σ(4f → 5s,5p) ≈ 0.85, both less than 1; nuclear charge gain is therefore only partly cancelled.
- Numerical anchor: La 187 pm → Lu 173 pm (atomic radii); La^3+ 103 pm → Lu^3+ 86 pm (ionic radii). Roughly 1 pm per element over 14 steps.
- Consequences, with one example each:
- Zr (≈ 160 pm) and Hf (≈ 159 pm) are near-identical: they go through the entire chemistry of group 4 together; separation by fractional crystallisation took decades.
- Densities of 5d metals are roughly twice those of 4d: Os (22.6 g/cm3) is the densest stable element; W (19.3 g/cm3) is double Mo (10.2 g/cm3).
- All Ln^3+ salts are similar in colour and solubility; rare earth processing uses ion-exchange columns to separate them.
- Basicity La(OH)3 > Lu(OH)3. Smaller ions hold their hydroxides more tightly, so the bond is more covalent and the hydroxide is less basic.
- Lanthanoid ions of identical charge and similar radii interchange easily in minerals — that is why a single mine yields a complex Ln mixture (e.g. monazite).
Numerical cross-check. Total contraction (14 steps, La → Lu) of Ln^3+: 103 - 86 = 17 pm. The transition-metal row Mo → W spans only 1 pm in atomic radius (Mo: 140, W: 141 pm), confirming the contraction has fully absorbed the expected 5d > 4d growth.
Concept linkage. The contraction has a cousin in the actinoid series (``actinoid contraction'', ∼15–20 pm). It appears in different guises in many exam questions: ``Zr and Hf have nearly the same chemistry'' (size), ``W is denser than Mo'' (density), ``Cr(OH)3 is more basic than Lu(OH)3'' (basicity).

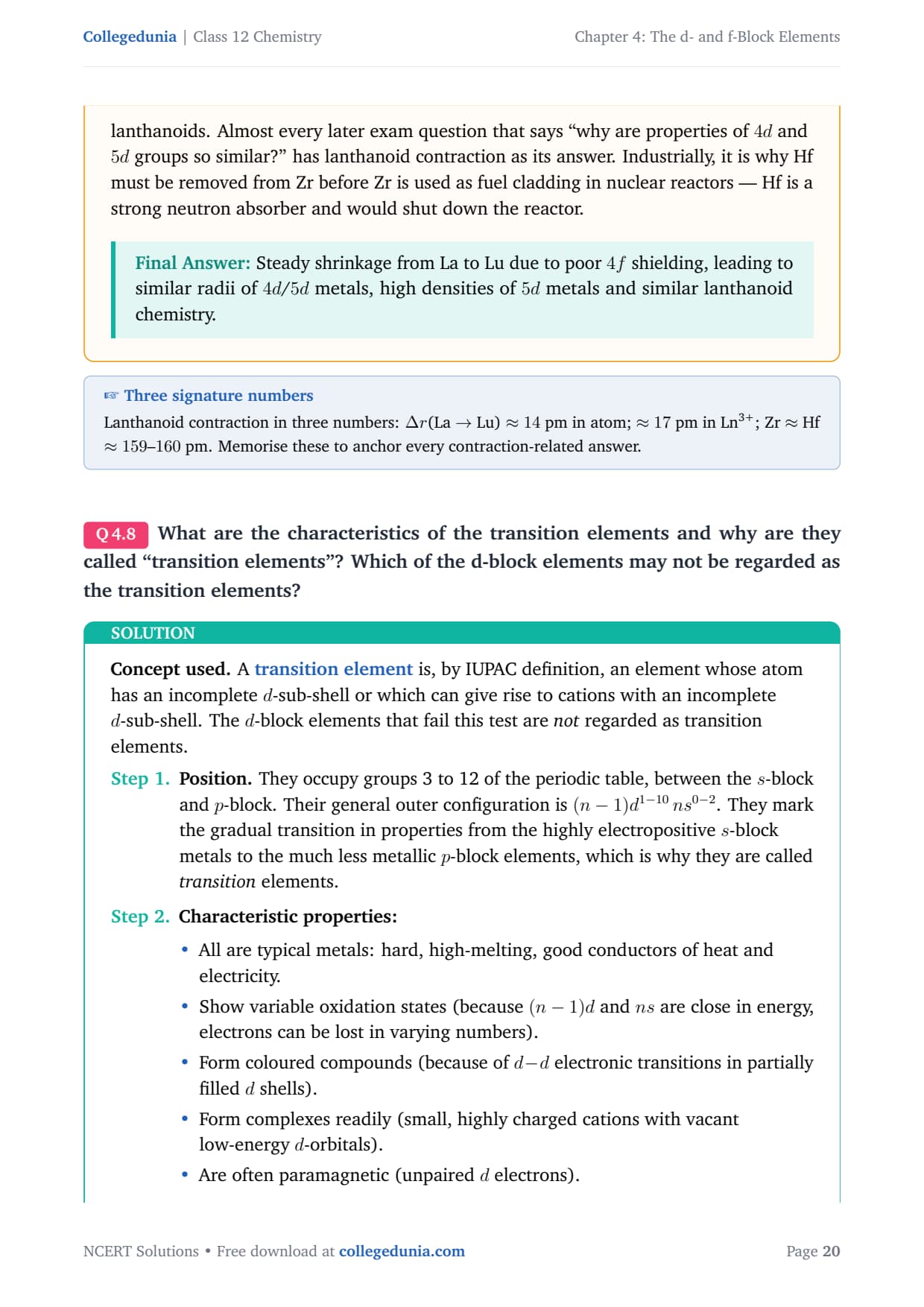

Why this matters. The contraction is the single most important structural fact about the lanthanoids. Almost every later exam question that says ``why are properties of 4d and 5d groups so similar?'' has lanthanoid contraction as its answer. Industrially, it is why Hf must be removed from Zr before Zr is used as fuel cladding in nuclear reactors — Hf is a strong neutron absorber and would shut down the reactor.
Steady shrinkage from La to Lu due to poor 4f shielding, leading to similar radii of 4d/5d metals, high densities of 5d metals and similar lanthanoid chemistry.

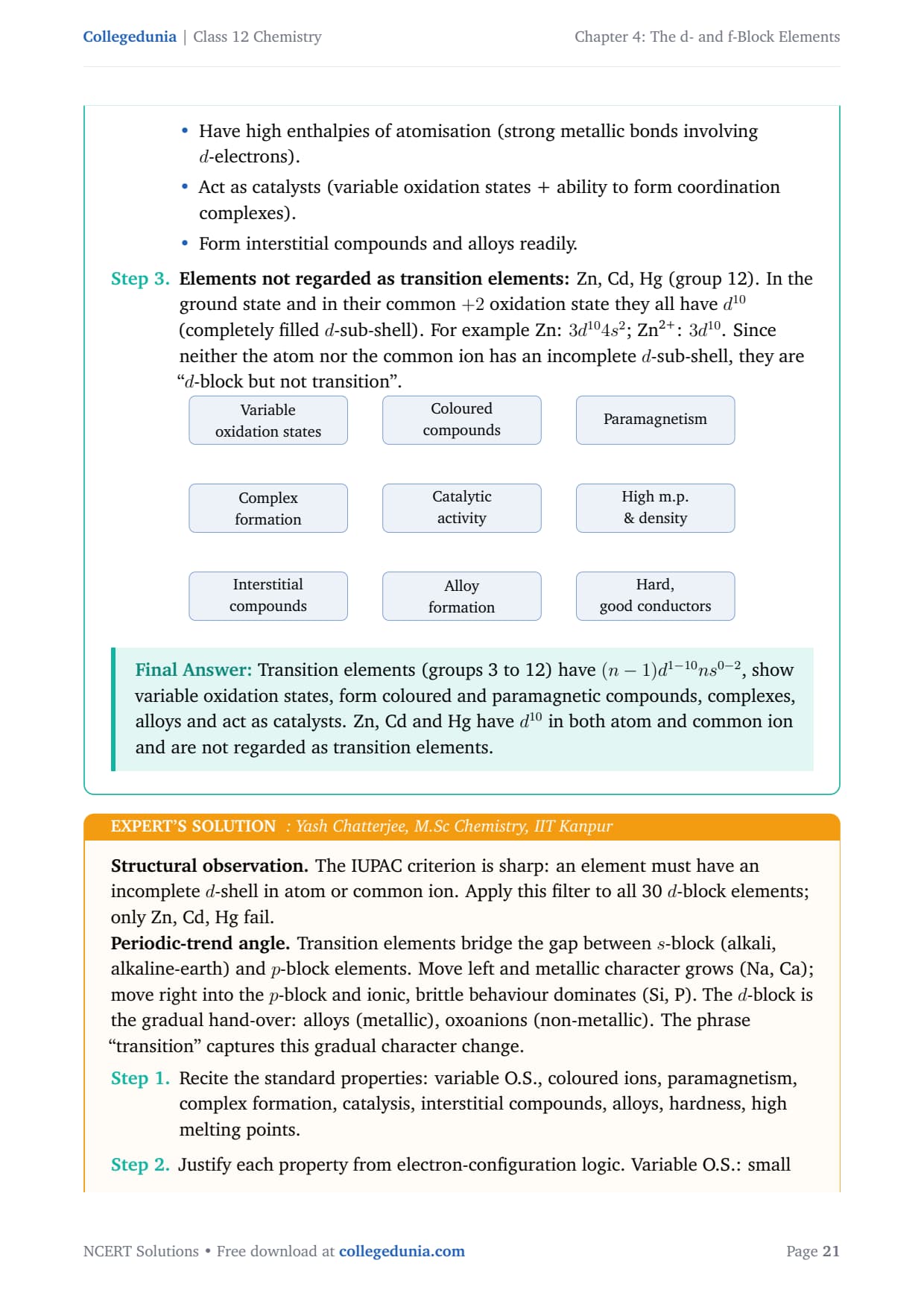

What are the characteristics of the transition elements and why are they called ``transition elements''? Which of the d-block elements may not be regarded as the transition elements?
Concept used. A transition element is, by IUPAC definition, an element whose atom has an incomplete d-sub-shell or which can give rise to cations with an incomplete d-sub-shell. The d-block elements that fail this test are not regarded as transition elements.
- Position. They occupy groups 3 to 12 of the periodic table, between the s-block and p-block. Their general outer configuration is (n-1)d1-10 ns0-2. They mark the gradual transition in properties from the highly electropositive s-block metals to the much less metallic p-block elements, which is why they are called transition elements.
- Characteristic properties:
- All are typical metals: hard, high-melting, good conductors of heat and electricity.
- Show variable oxidation states (because (n-1)d and ns are close in energy, electrons can be lost in varying numbers).
- Form coloured compounds (because of d-d electronic transitions in partially filled d shells).
- Form complexes readily (small, highly charged cations with vacant low-energy d-orbitals).
- Are often paramagnetic (unpaired d electrons).
- Have high enthalpies of atomisation (strong metallic bonds involving d-electrons).
- Act as catalysts (variable oxidation states + ability to form coordination complexes).
- Form interstitial compounds and alloys readily.
- Elements not regarded as transition elements: Zn, Cd, Hg (group 12). In the ground state and in their common +2 oxidation state they all have d10 (completely filled d-sub-shell). For example Zn: 3d104s2; Zn^2+: 3d10. Since neither the atom nor the common ion has an incomplete d-sub-shell, they are ``d-block but not transition''.
Transition elements (groups 3 to 12) have (n-1)d1-10ns0-2, show variable oxidation states, form coloured and paramagnetic compounds, complexes, alloys and act as catalysts. Zn, Cd and Hg have d10 in both atom and common ion and are not regarded as transition elements.
Structural observation. The IUPAC criterion is sharp: an element must have an incomplete d-shell in atom or common ion. Apply this filter to all 30 d-block elements; only Zn, Cd, Hg fail.
Periodic-trend angle. Transition elements bridge the gap between s-block (alkali, alkaline-earth) and p-block elements. Move left and metallic character grows (Na, Ca); move right into the p-block and ionic, brittle behaviour dominates (Si, P). The d-block is the gradual hand-over: alloys (metallic), oxoanions (non-metallic). The phrase ``transition'' captures this gradual character change.
- Recite the standard properties: variable O.S., coloured ions, paramagnetism, complex formation, catalysis, interstitial compounds, alloys, hardness, high melting points.
- Justify each property from electron-configuration logic. Variable O.S.: small energy gap between (n-1)d and ns. Coloured: d-d transitions need partially filled d. Paramagnetism: unpaired d electrons. High m.p.: strong metallic bonding from d-orbital overlap.

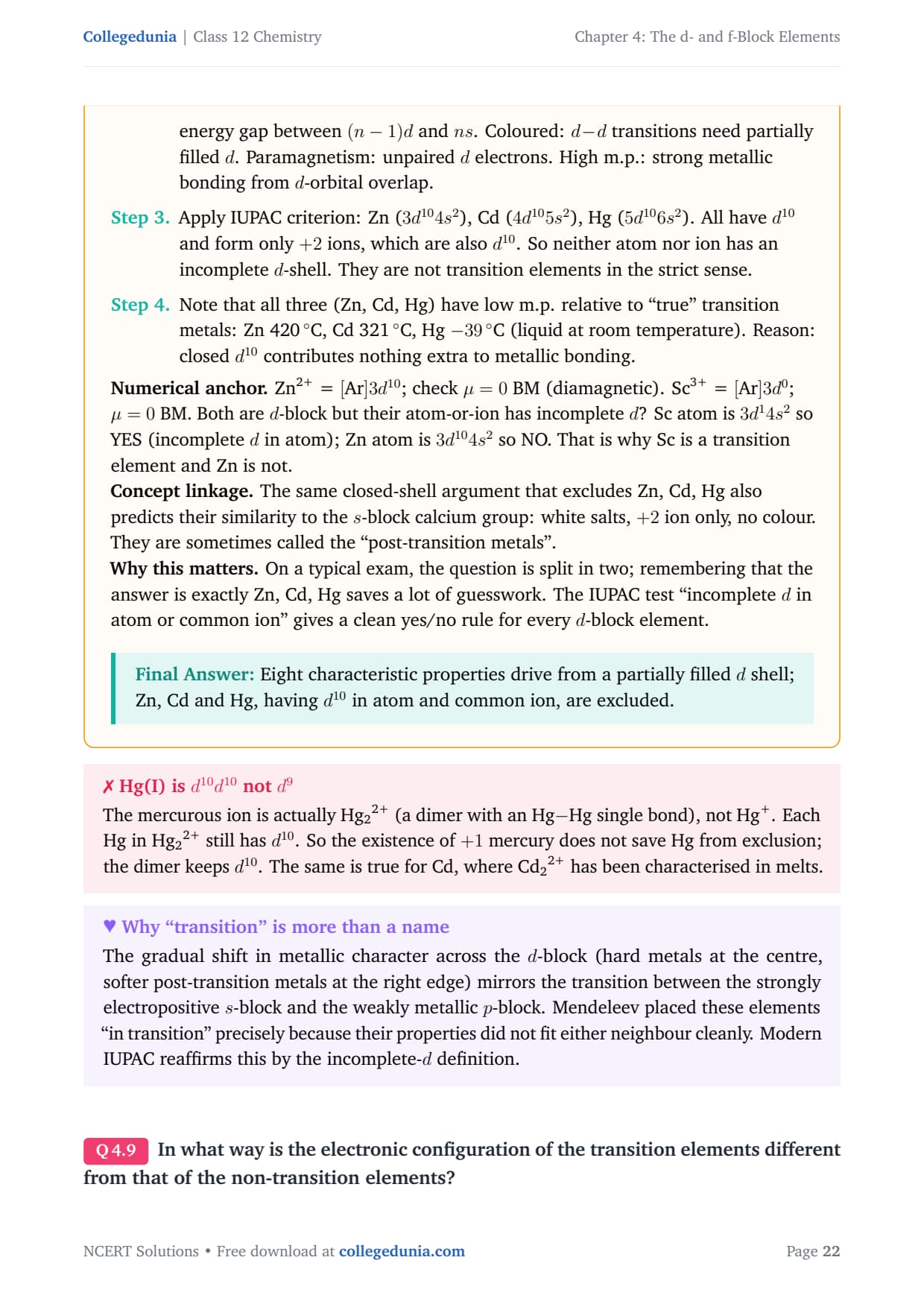

- Apply IUPAC criterion: Zn (3d104s2), Cd (4d105s2), Hg (5d106s2). All have d10 and form only +2 ions, which are also d10. So neither atom nor ion has an incomplete d-shell. They are not transition elements in the strict sense.
- Note that all three (Zn, Cd, Hg) have low m.p. relative to ``true'' transition metals: Zn 420 ∘C, Cd 321 ∘C, Hg -39 ∘C (liquid at room temperature). Reason: closed d10 contributes nothing extra to metallic bonding.
Numerical anchor. Zn^2+ = [Ar]3d10; check μ = 0 BM (diamagnetic). Sc^3+ = [Ar]3d0; μ = 0 BM. Both are d-block but their atom-or-ion has incomplete d? Sc atom is 3d14s2 so YES (incomplete d in atom); Zn atom is 3d104s2 so NO. That is why Sc is a transition element and Zn is not.
Concept linkage. The same closed-shell argument that excludes Zn, Cd, Hg also predicts their similarity to the s-block calcium group: white salts, +2 ion only, no colour. They are sometimes called the ``post-transition metals''.
Why this matters. On a typical exam, the question is split in two; remembering that the answer is exactly Zn, Cd, Hg saves a lot of guesswork. The IUPAC test ``incomplete d in atom or common ion'' gives a clean yes/no rule for every d-block element.
Eight characteristic properties drive from a partially filled d shell; Zn, Cd and Hg, having d10 in atom and common ion, are excluded.
In what way is the electronic configuration of the transition elements different from that of the non-transition elements?

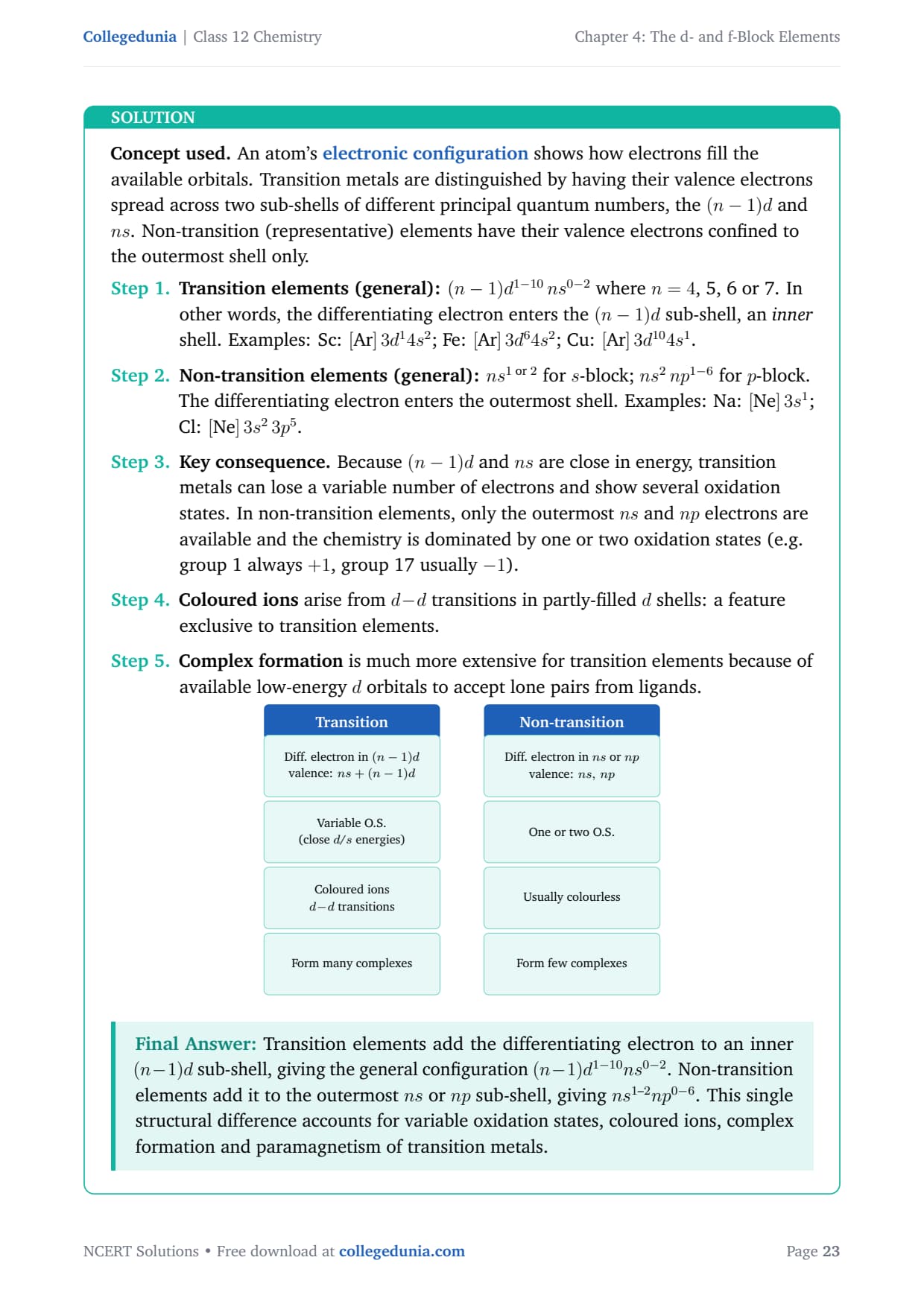

Concept used. An atom's electronic configuration shows how electrons fill the available orbitals. Transition metals are distinguished by having their valence electrons spread across two sub-shells of different principal quantum numbers, the (n-1)d and ns. Non-transition (representative) elements have their valence electrons confined to the outermost shell only.
- Transition elements (general): (n-1)d1-10 ns0-2 where n = 4, 5, 6 or 7. In other words, the differentiating electron enters the (n-1)d sub-shell, an inner shell. Examples: Sc: [Ar] 3d14s2; Fe: [Ar] 3d64s2; Cu: [Ar] 3d104s1.
- Non-transition elements (general): ns1 or 2 for s-block; ns2 np1-6 for p-block. The differentiating electron enters the outermost shell. Examples: Na: [Ne] 3s1; Cl: [Ne] 3s2 3p5.
- Key consequence. Because (n-1)d and ns are close in energy, transition metals can lose a variable number of electrons and show several oxidation states. In non-transition elements, only the outermost ns and np electrons are available and the chemistry is dominated by one or two oxidation states (e.g. group 1 always +1, group 17 usually -1).
- Coloured ions arise from d-d transitions in partly-filled d shells: a feature exclusive to transition elements.
- Complex formation is much more extensive for transition elements because of available low-energy d orbitals to accept lone pairs from ligands.
Transition elements add the differentiating electron to an inner (n-1)d sub-shell, giving the general configuration (n-1)d1-10ns0-2. Non-transition elements add it to the outermost ns or np sub-shell, giving ns1--2np0-6. This single structural difference accounts for variable oxidation states, coloured ions, complex formation and paramagnetism of transition metals.

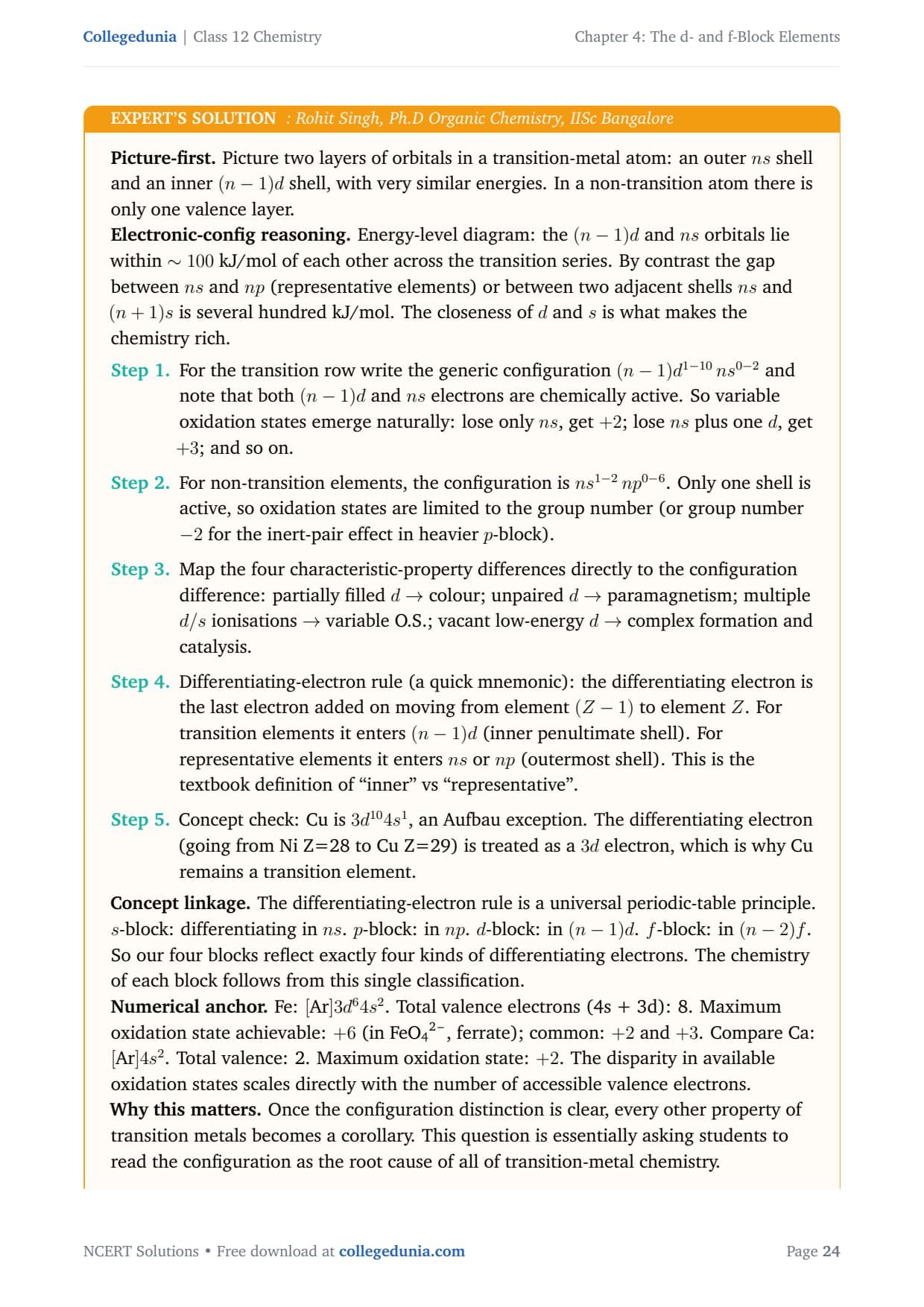

Picture-first. Picture two layers of orbitals in a transition-metal atom: an outer ns shell and an inner (n-1)d shell, with very similar energies. In a non-transition atom there is only one valence layer.
Electronic-config reasoning. Energy-level diagram: the (n-1)d and ns orbitals lie within ∼ 100 kJ/mol of each other across the transition series. By contrast the gap between ns and np (representative elements) or between two adjacent shells ns and (n+1)s is several hundred kJ/mol. The closeness of d and s is what makes the chemistry rich.
- For the transition row write the generic configuration (n-1)d1-10 ns0-2 and note that both (n-1)d and ns electrons are chemically active. So variable oxidation states emerge naturally: lose only ns, get +2; lose ns plus one d, get +3; and so on.
- For non-transition elements, the configuration is ns1-2 np0-6. Only one shell is active, so oxidation states are limited to the group number (or group number -2 for the inert-pair effect in heavier p-block).
- Map the four characteristic-property differences directly to the configuration difference: partially filled d → colour; unpaired d → paramagnetism; multiple d/s ionisations → variable O.S.; vacant low-energy d → complex formation and catalysis.
- Differentiating-electron rule (a quick mnemonic): the differentiating electron is the last electron added on moving from element (Z-1) to element Z. For transition elements it enters (n-1)d (inner penultimate shell). For representative elements it enters ns or np (outermost shell). This is the textbook definition of ``inner'' vs ``representative''.
- Concept check: Cu is 3d104s1, an Aufbau exception. The differentiating electron (going from Ni Z=28 to Cu Z=29) is treated as a 3d electron, which is why Cu remains a transition element.
Concept linkage. The differentiating-electron rule is a universal periodic-table principle. s-block: differentiating in ns. p-block: in np. d-block: in (n-1)d. f-block: in (n-2)f. So our four blocks reflect exactly four kinds of differentiating electrons. The chemistry of each block follows from this single classification.
Numerical anchor. Fe: [Ar]3d64s2. Total valence electrons (4s + 3d): 8. Maximum oxidation state achievable: +6 (in FeO4^2-, ferrate); common: +2 and +3. Compare Ca: [Ar]4s2. Total valence: 2. Maximum oxidation state: +2. The disparity in available oxidation states scales directly with the number of accessible valence electrons.
Why this matters. Once the configuration distinction is clear, every other property of transition metals becomes a corollary. This question is essentially asking students to read the configuration as the root cause of all of transition-metal chemistry.
Transition: (n-1)d1-10ns0-2, valence electrons in two adjacent shells, leading to variable O.S., colour, magnetism and complex formation. Non-transition: ns1-2np0-6, valence only in the outer shell, limited O.S.

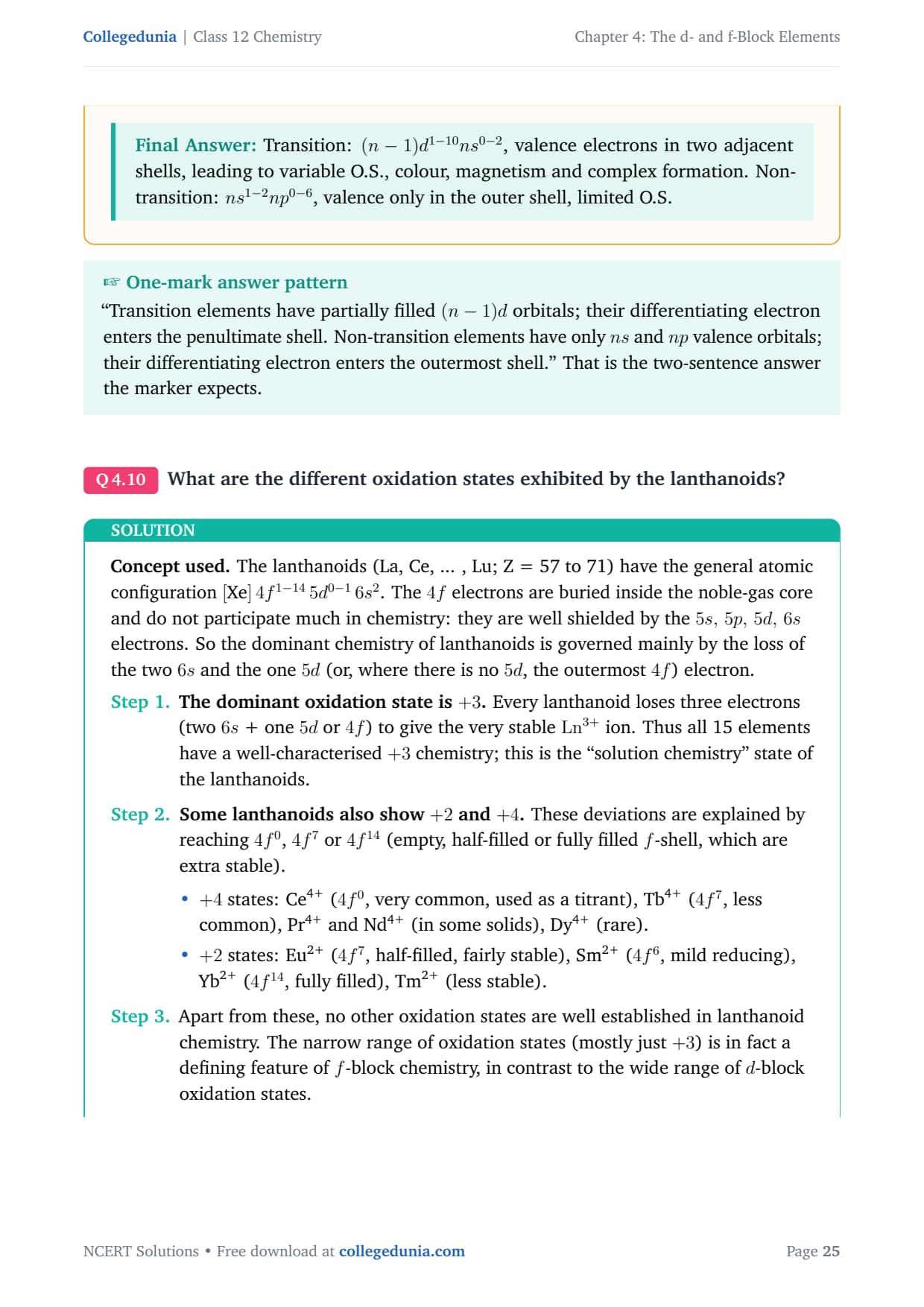

What are the different oxidation states exhibited by the lanthanoids?
Concept used. The lanthanoids (La, Ce, ... , Lu; Z = 57 to 71) have the general atomic configuration [Xe] 4f1-14 5d0-1 6s2. The 4f electrons are buried inside the noble-gas core and do not participate much in chemistry: they are well shielded by the 5s, 5p, 5d, 6s electrons. So the dominant chemistry of lanthanoids is governed mainly by the loss of the two 6s and the one 5d (or, where there is no 5d, the outermost 4f) electron.
- The dominant oxidation state is +3. Every lanthanoid loses three electrons (two 6s + one 5d or 4f) to give the very stable Ln3+ ion. Thus all 15 elements have a well-characterised +3 chemistry; this is the ``solution chemistry'' state of the lanthanoids.
- Some lanthanoids also show +2 and +4. These
deviations are explained by reaching 4f0, 4f7 or
4f14 (empty, half-filled or fully filled f-shell,
which are extra stable).
- +4 states: Ce^4+ (4f0, very common, used as a titrant), Tb^4+ (4f7, less common), Pr^4+ and Nd^4+ (in some solids), Dy^4+ (rare).
- +2 states: Eu^2+ (4f7, half-filled, fairly stable), Sm^2+ (4f6, mild reducing), Yb^2+ (4f14, fully filled), Tm^2+ (less stable).
- Apart from these, no other oxidation states are well established in lanthanoid chemistry. The narrow range of oxidation states (mostly just +3) is in fact a defining feature of f-block chemistry, in contrast to the wide range of d-block oxidation states.

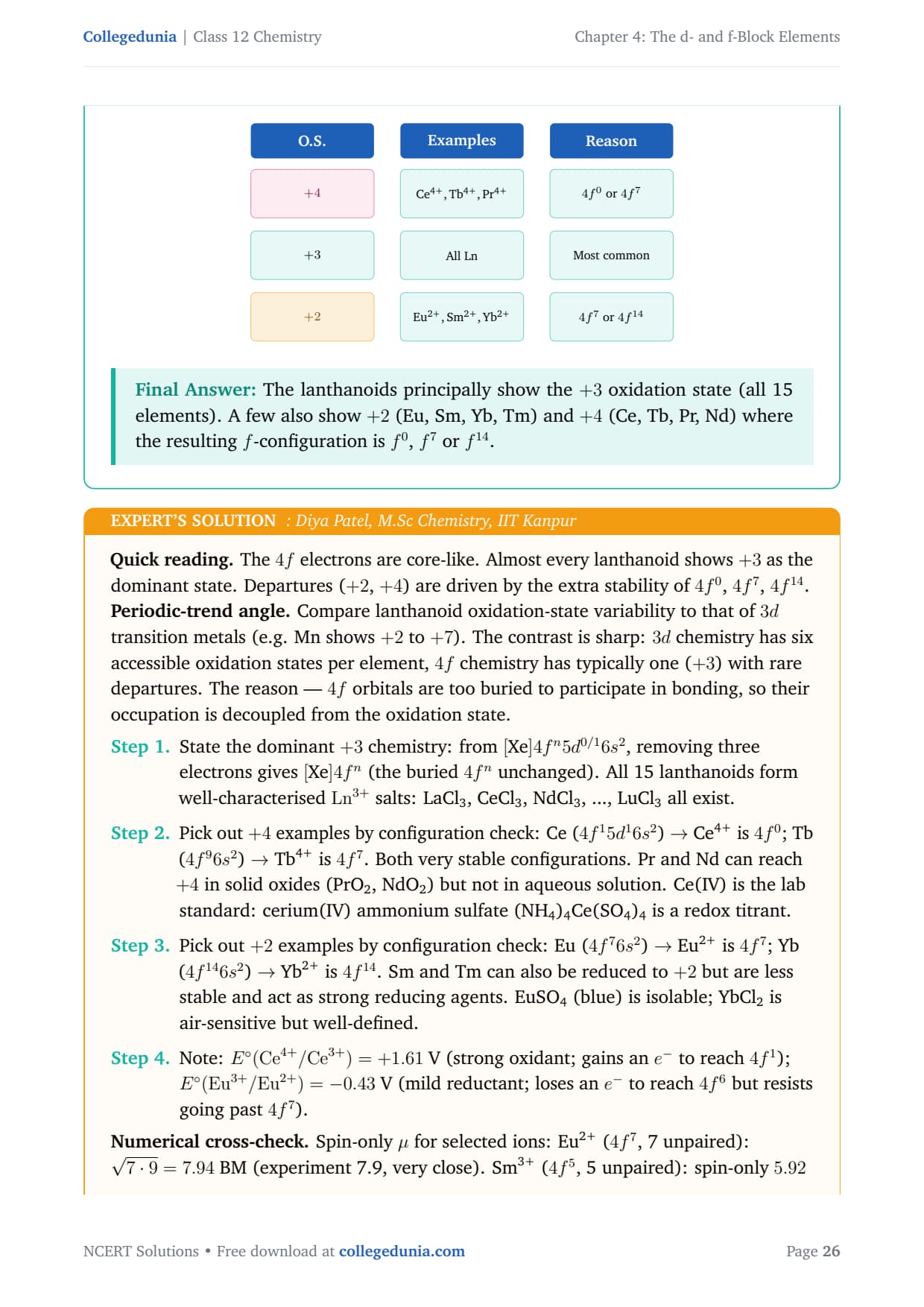

The lanthanoids principally show the +3 oxidation state (all 15 elements). A few also show +2 (Eu, Sm, Yb, Tm) and +4 (Ce, Tb, Pr, Nd) where the resulting f-configuration is f0, f7 or f14.
Quick reading. The 4f electrons are core-like. Almost every lanthanoid shows +3 as the dominant state. Departures (+2, +4) are driven by the extra stability of 4f0, 4f7, 4f14.
Periodic-trend angle. Compare lanthanoid oxidation-state variability to that of 3d transition metals (e.g. Mn shows +2 to +7). The contrast is sharp: 3d chemistry has six accessible oxidation states per element, 4f chemistry has typically one (+3) with rare departures. The reason — 4f orbitals are too buried to participate in bonding, so their occupation is decoupled from the oxidation state.
- State the dominant +3 chemistry: from [Xe]4fn 5d0/16s2, removing three electrons gives [Xe]4fn (the buried 4fn unchanged). All 15 lanthanoids form well-characterised Ln3+ salts: LaCl3, CeCl3, NdCl3, ..., LuCl3 all exist.
- Pick out +4 examples by configuration check: Ce (4f15d16s2) → Ce^4+ is 4f0; Tb (4f96s2) → Tb^4+ is 4f7. Both very stable configurations. Pr and Nd can reach +4 in solid oxides (PrO2, NdO2) but not in aqueous solution. Ce(IV) is the lab standard: cerium(IV) ammonium sulfate (NH4)4Ce(SO4)4 is a redox titrant.
- Pick out +2 examples by configuration check: Eu (4f76s2) → Eu^2+ is 4f7; Yb (4f146s2) → Yb^2+ is 4f14. Sm and Tm can also be reduced to +2 but are less stable and act as strong reducing agents. EuSO4 (blue) is isolable; YbCl2 is air-sensitive but well-defined.
- Note: E∘(Ce4+/Ce3+) = +1.61 V (strong oxidant; gains an e- to reach 4f1); E∘(Eu3+/Eu2+) = -0.43 V (mild reductant; loses an e- to reach 4f6 but resists going past 4f7).

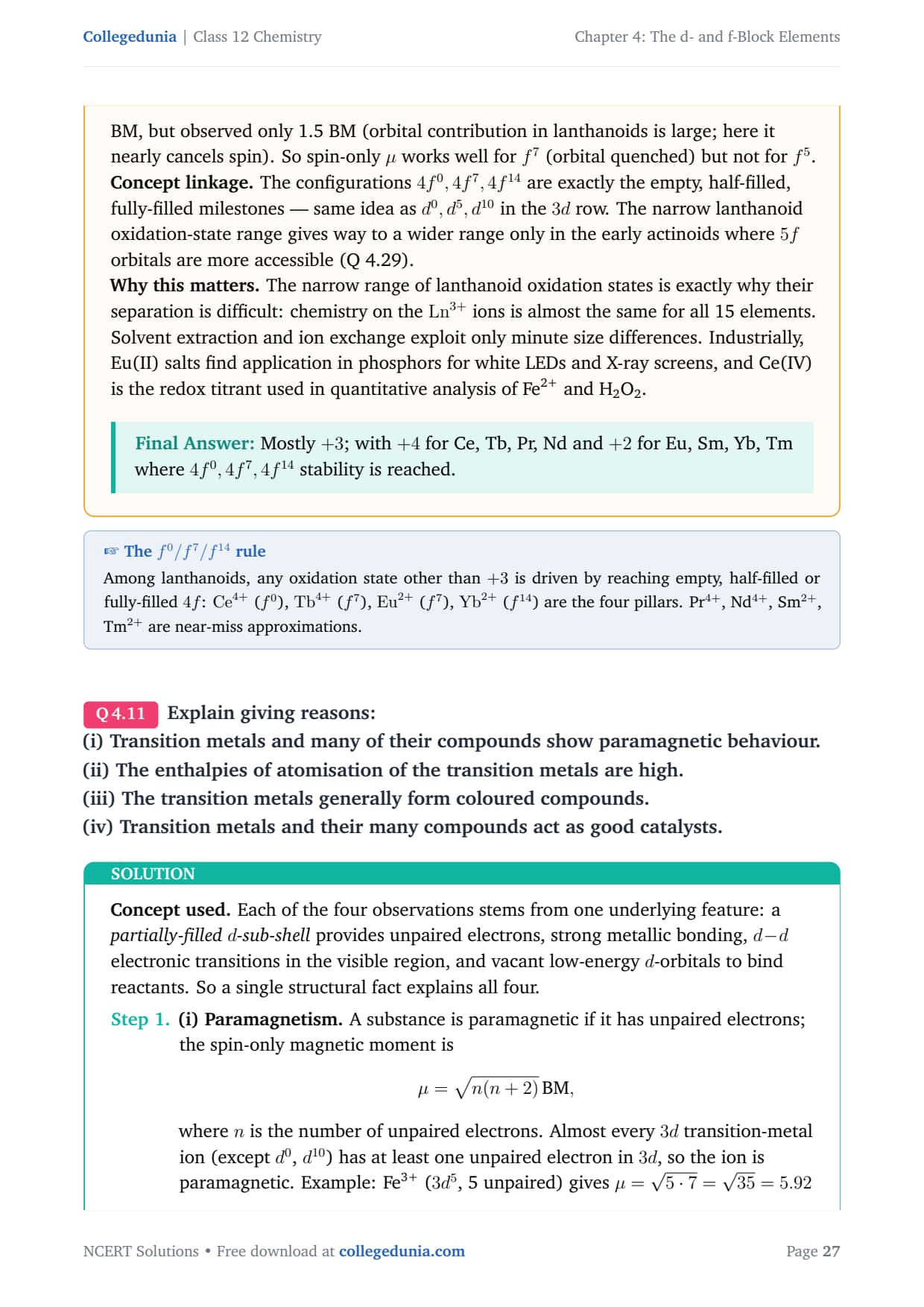

Numerical cross-check. Spin-only μ for selected ions: Eu^2+ (4f7, 7 unpaired): √7 · 9 = 7.94 BM (experiment 7.9, very close). Sm^3+ (4f5, 5 unpaired): spin-only 5.92 BM, but observed only 1.5 BM (orbital contribution in lanthanoids is large; here it nearly cancels spin). So spin-only μ works well for f7 (orbital quenched) but not for f5.
Concept linkage. The configurations 4f0, 4f7, 4f14 are exactly the empty, half-filled, fully-filled milestones — same idea as d0, d5, d10 in the 3d row. The narrow lanthanoid oxidation-state range gives way to a wider range only in the early actinoids where 5f orbitals are more accessible (Q 4.29).
Why this matters. The narrow range of lanthanoid oxidation states is exactly why their separation is difficult: chemistry on the Ln3+ ions is almost the same for all 15 elements. Solvent extraction and ion exchange exploit only minute size differences. Industrially, Eu(II) salts find application in phosphors for white LEDs and X-ray screens, and Ce(IV) is the redox titrant used in quantitative analysis of Fe^2+ and H2O2.
Mostly +3; with +4 for Ce, Tb, Pr, Nd and +2 for Eu, Sm, Yb, Tm where 4f0, 4f7, 4f14 stability is reached.

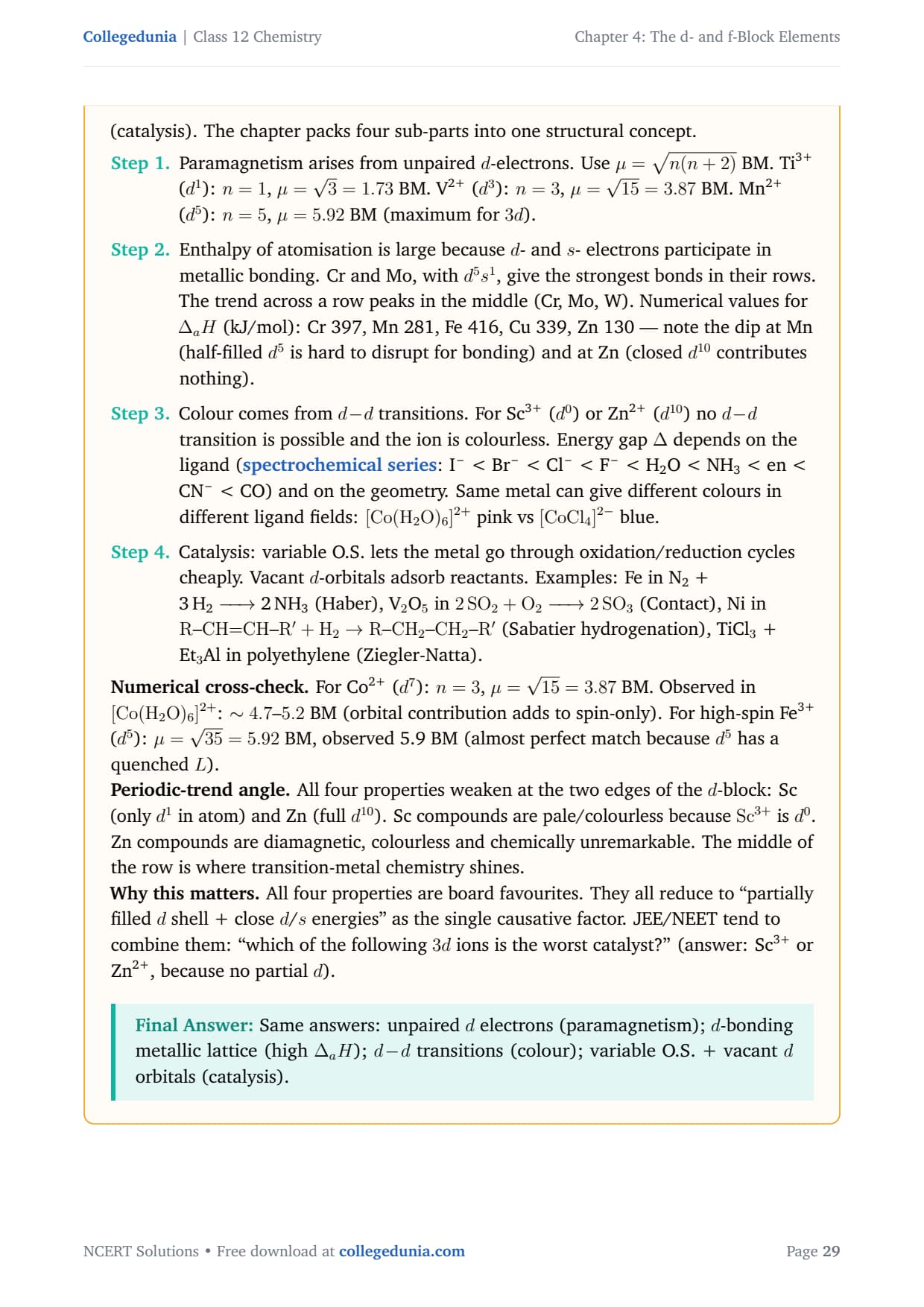

Explain giving reasons:
(i) Transition metals and many of their compounds show paramagnetic behaviour.
(ii) The enthalpies of atomisation of the transition metals are high.
(iii) The transition metals generally form coloured compounds.
(iv) Transition metals and their many compounds act as good catalysts.
Concept used. Each of the four observations stems from one underlying feature: a partially-filled d-sub-shell provides unpaired electrons, strong metallic bonding, d-d electronic transitions in the visible region, and vacant low-energy d-orbitals to bind reactants. So a single structural fact explains all four.
- (i) Paramagnetism. A substance is paramagnetic if it has unpaired electrons; the spin-only magnetic moment is μ = √n(n+2) BM, where n is the number of unpaired electrons. Almost every 3d transition-metal ion (except d0, d10) has at least one unpaired electron in 3d, so the ion is paramagnetic. Example: Fe^3+ (3d5, 5 unpaired) gives μ = √5 · 7 = √35 = 5.92 BM.

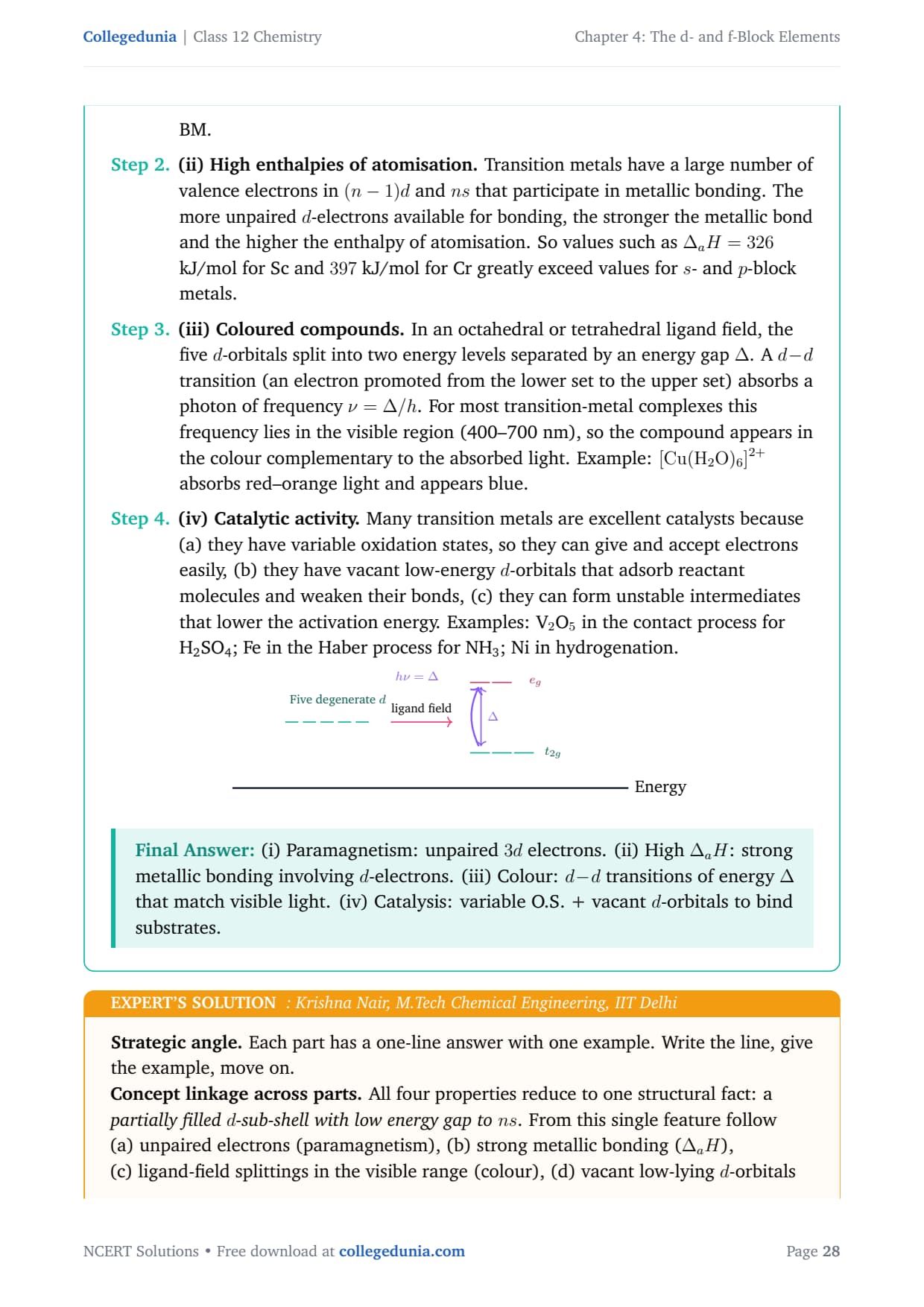

- (ii) High enthalpies of atomisation. Transition metals have a large number of valence electrons in (n-1)d and ns that participate in metallic bonding. The more unpaired d-electrons available for bonding, the stronger the metallic bond and the higher the enthalpy of atomisation. So values such as aH = 326 kJ/mol for Sc and 397 kJ/mol for Cr greatly exceed values for s- and p-block metals.
- (iii) Coloured compounds. In an octahedral or tetrahedral ligand field, the five d-orbitals split into two energy levels separated by an energy gap Δ. A d-d transition (an electron promoted from the lower set to the upper set) absorbs a photon of frequency ν = Δ/h. For most transition-metal complexes this frequency lies in the visible region (400–700 nm), so the compound appears in the colour complementary to the absorbed light. Example: [Cu(H2O)6]2+ absorbs red–orange light and appears blue.
- (iv) Catalytic activity. Many transition metals are excellent catalysts because (a) they have variable oxidation states, so they can give and accept electrons easily, (b) they have vacant low-energy d-orbitals that adsorb reactant molecules and weaken their bonds, (c) they can form unstable intermediates that lower the activation energy. Examples: V2O5 in the contact process for H2SO4; Fe in the Haber process for NH3; Ni in hydrogenation.
(i) Paramagnetism: unpaired 3d electrons. (ii) High aH: strong metallic bonding involving d-electrons. (iii) Colour: d-d transitions of energy Δ that match visible light. (iv) Catalysis: variable O.S. + vacant d-orbitals to bind substrates.
Strategic angle. Each part has a one-line answer with one example. Write the line, give the example, move on.
Concept linkage across parts. All four properties reduce to one structural fact: a partially filled d-sub-shell with low energy gap to ns. From this single feature follow (a) unpaired electrons (paramagnetism), (b) strong metallic bonding (aH), (c) ligand-field splittings in the visible range (colour), (d) vacant low-lying d-orbitals (catalysis). The chapter packs four sub-parts into one structural concept.
- Paramagnetism arises from unpaired d-electrons. Use μ = √n(n+2) BM. Ti^3+ (d1): n=1, μ = √3 = 1.73 BM. V^2+ (d3): n=3, μ = √15 = 3.87 BM. Mn^2+ (d5): n=5, μ = 5.92 BM (maximum for 3d).
- Enthalpy of atomisation is large because d- and s- electrons participate in metallic bonding. Cr and Mo, with d5s1, give the strongest bonds in their rows. The trend across a row peaks in the middle (Cr, Mo, W). Numerical values for aH (kJ/mol): Cr 397, Mn 281, Fe 416, Cu 339, Zn 130 — note the dip at Mn (half-filled d5 is hard to disrupt for bonding) and at Zn (closed d10 contributes nothing).
- Colour comes from d-d transitions. For Sc^3+ (d0) or Zn^2+ (d10) no d-d transition is possible and the ion is colourless. Energy gap Δ depends on the ligand (spectrochemical series: I- < Br- < Cl- < F- < H2O < NH3 < en < CN- < CO) and on the geometry. Same metal can give different colours in different ligand fields: [Co(H2O)6]2+ pink vs [CoCl4]2- blue.
- Catalysis: variable O.S. lets the metal go through oxidation/reduction cycles cheaply. Vacant d-orbitals adsorb reactants. Examples: Fe in N2 + 3 H2 -> 2 NH3 (Haber), V2O5 in 2 SO2 + O2 -> 2 SO3 (Contact), Ni in R--CH=CH--R' + H2 → R--CH2--CH2--R' (Sabatier hydrogenation), TiCl3 + Et3Al in polyethylene (Ziegler-Natta).
Numerical cross-check. For Co^2+ (d7): n=3, μ = √15 = 3.87 BM. Observed in [Co(H2O)6]2+: ∼ 4.7–5.2 BM (orbital contribution adds to spin-only). For high-spin Fe^3+ (d5): μ = √35 = 5.92 BM, observed 5.9 BM (almost perfect match because d5 has a quenched L).
Periodic-trend angle. All four properties weaken at the two edges of the d-block: Sc (only d1 in atom) and Zn (full d10). Sc compounds are pale/colourless because Sc3+ is d0. Zn compounds are diamagnetic, colourless and chemically unremarkable. The middle of the row is where transition-metal chemistry shines.
Why this matters. All four properties are board favourites. They all reduce to ``partially filled d shell + close d/s energies'' as the single causative factor. JEE/NEET tend to combine them: ``which of the following 3d ions is the worst catalyst?'' (answer: Sc^3+ or Zn^2+, because no partial d).
Same answers: unpaired d electrons (paramagnetism); d-bonding metallic lattice (high aH); d-d transitions (colour); variable O.S. + vacant d orbitals (catalysis).
What are interstitial compounds? Why are such compounds well known for transition metals?
Concept used. Interstitial compounds are non-stoichiometric materials in which small atoms (H, B, C, N) lodge themselves in the empty interstitial sites of a host metal lattice. The host's crystal structure is essentially preserved; only the interstices are partly occupied.
- Define and exemplify. Important interstitial compounds of transition metals include TiH1.7, VH0.56, TiC, Mn4N, Fe3H, Fe3C (cementite, in steel). The composition is usually not a whole-number ratio, hence ``non-stoichiometric''. Hydrides of palladium absorb many times their volume of H2.
- Recognise the key properties of these compounds: (a) They are very hard (often harder than the pure metal); some approach diamond hardness, e.g. TiC. (b) They have high melting points, often higher than the host metal. (c) They retain metallic conductivity. (d) They are chemically inert.
- Why transition metals form them so well:
- Their crystal lattices are close-packed but still have octahedral and tetrahedral holes large enough to accommodate small atoms like H (r ≈ 25 pm), C (r ≈ 70 pm) or N (r ≈ 70 pm).
- Empty (n-1)d orbitals can form bonds with the incoming small atom (a partial covalent contribution).
- Transition-metal lattices have strong metallic bonds (high aH), so the host stays intact even when interstices are partly filled.
Interstitial compounds are non-stoichiometric solids formed when small atoms (H, B, C, N) fit into the lattice holes of a host metal. Transition metals form them readily because their close-packed lattices have suitable holes, they have vacant d-orbitals that bond with the small atoms and strong metallic bonds that hold the lattice together.
Structural observation. Picture a face-centred cubic lattice of large metal atoms. The geometric ``gaps'' (octahedral holes: r/R = 0.414; tetrahedral holes: r/R = 0.225) match the sizes of H, C, N exactly. So the chemistry is essentially the geometry working out.
Geometry calculation. For an FCC host of metallic radius R = 130 pm (typical for 3d metals), the octahedral-hole radius is 0.414 × 130 = 54 pm. Hydrogen (atomic radius ∼ 25 pm) fits comfortably; carbon (∼ 70 pm) is a tight fit but bonds covalently to compensate; nitrogen (∼ 70 pm) likewise. Halide or sulfide atoms (∼ 100+ pm) cannot fit interstitially and must displace metal atoms, giving rise to true ionic compounds instead.
- Define interstitial compound, with named examples (TiC, Fe3C, Mn4N, VH_0.56, ZrH_1.93). Note the non-stoichiometric subscripts — a hallmark of interstitial phases.
- State the three driving forces: (a) suitable hole sizes, (b) vacant d-orbitals for partial covalent bonding with the small atom, (c) strong metallic bonds to hold the host lattice. All three are properties of transition metals; that is why s- and p-block metals do not form such phases.
- List the four signature properties (hardness, high m.p., conductivity, chemical inertness). Use Fe3C (cementite) to illustrate: it is the carbon-containing phase that gives steel its hardness while remaining electrically conducting. TiC melts at 3160 ∘C (vs Ti metal at 1668 ∘C) — proof of how interstitial bonding raises the m.p.
- Hydrogen storage example: Pd metal can absorb up to 935 times its volume of H2 gas at room temperature, storing it as PdH0.7. This is the basis of fuel-cell hydrogen storage research.
Numerical anchor. For an FCC lattice, the number of octahedral holes equals the number of atoms (N); tetrahedral holes = 2N. So an interstitial compound like TiC can have C:Ti ratio up to 1:1 (filling all octahedral holes) without disturbing the host lattice geometry. Above ratio 1:1, the structure has to change.
Concept linkage. Interstitial alloys (small atoms in holes) contrast with substitutional alloys (similar-size atoms replacing host atoms; e.g. brass, bronze). Both are alloys, but the geometry is opposite. The transition metals provide both, depending on the partner.
Why this matters. Industrially, the entire steel industry rides on the formation of Fe3C (and similar carbides in tool steels). Interstitial hydrides of Pd are the basis of hydrogen storage and the hydrogenation catalysis you see in margarine production. TiC, ZrC, HfC are used in rocket-nozzle ceramics. WC (tungsten carbide) is the cutting edge of every machine-tool drill.
Small atoms in metal-lattice holes give hard, high-melting, conducting, inert non-stoichiometric phases. Transition metals are perfect hosts because of geometry plus vacant d-orbitals.
How is the variability in oxidation states of transition metals different from that of the non-transition metals? Illustrate with examples.
Concept used. Variability in oxidation state means the ability of an element to exist in more than one positive oxidation state in its compounds. In transition metals the variability is wide and the consecutive states differ by 1, while in non-transition metals the variability is narrow and consecutive states usually differ by 2 (the inert-pair effect).
- Transition metals: consecutive states (differ by 1).
Because (n-1)d and ns are close in energy, electrons can
be removed one at a time. So a single element exhibits a
ladder of oxidation states.

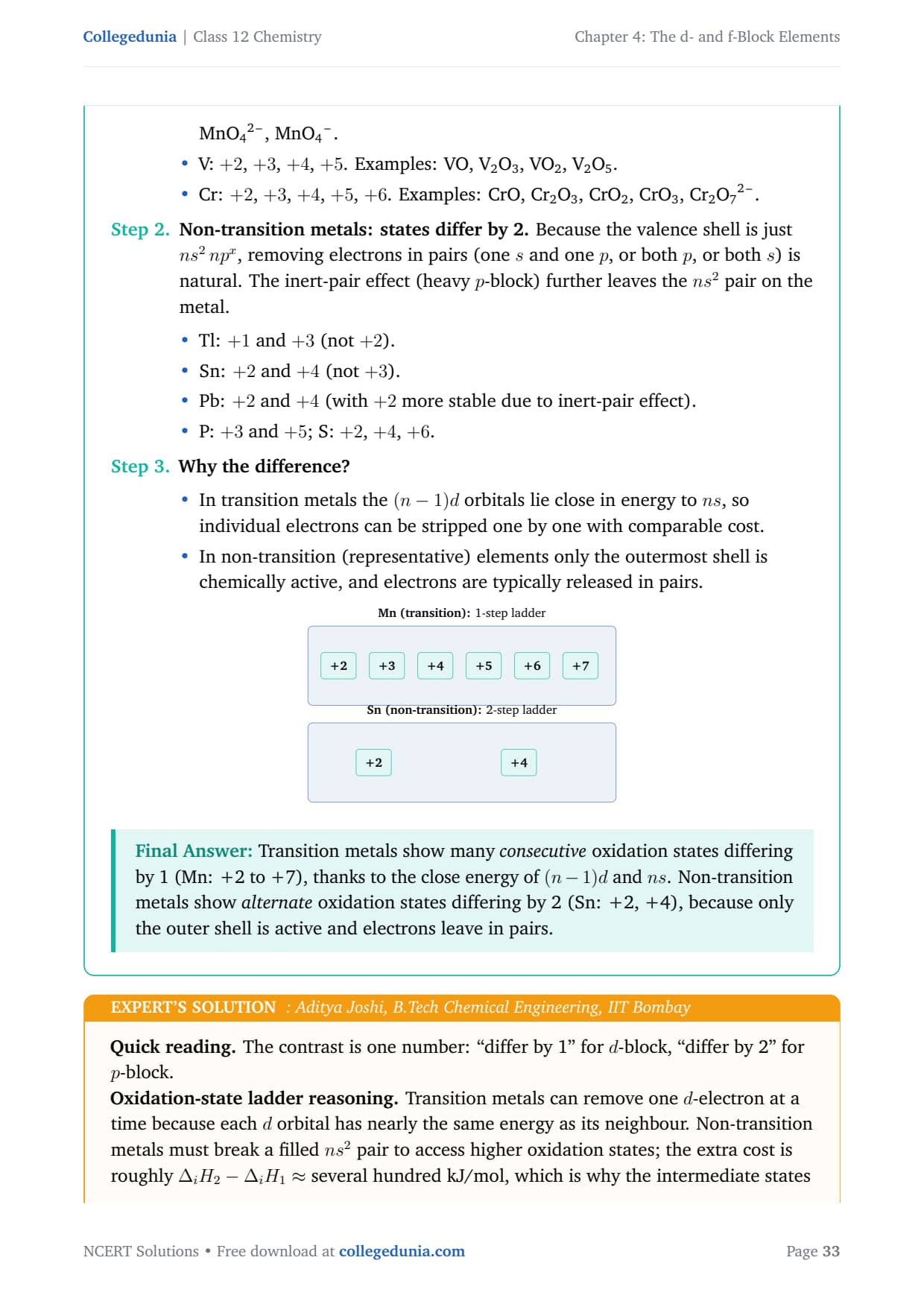

- Mn: +2, +3, +4, +5, +6, +7. Examples: MnO, Mn2O3, MnO2, MnO4^3-, MnO4^2-, MnO4-.
- V: +2, +3, +4, +5. Examples: VO, V2O3, VO2, V2O5.
- Cr: +2, +3, +4, +5, +6. Examples: CrO, Cr2O3, CrO2, CrO3, Cr2O7^2-.
- Non-transition metals: states differ by 2. Because
the valence shell is just ns2 npx, removing electrons
in pairs (one s and one p, or both p, or both s) is
natural. The inert-pair effect (heavy p-block) further
leaves the ns2 pair on the metal.
- Tl: +1 and +3 (not +2).
- Sn: +2 and +4 (not +3).
- Pb: +2 and +4 (with +2 more stable due to inert-pair effect).
- P: +3 and +5; S: +2, +4, +6.
- Why the difference?
- In transition metals the (n-1)d orbitals lie close in energy to ns, so individual electrons can be stripped one by one with comparable cost.
- In non-transition (representative) elements only the outermost shell is chemically active, and electrons are typically released in pairs.
Transition metals show many consecutive oxidation states differing by 1 (Mn: +2 to +7), thanks to the close energy of (n-1)d and ns. Non-transition metals show alternate oxidation states differing by 2 (Sn: +2, +4), because only the outer shell is active and electrons leave in pairs.
Quick reading. The contrast is one number: ``differ by 1'' for d-block, ``differ by 2'' for p-block.
Oxidation-state ladder reasoning. Transition metals can remove one d-electron at a time because each d orbital has nearly the same energy as its neighbour. Non-transition metals must break a filled ns2 pair to access higher oxidation states; the extra cost is roughly iH2 - iH1 ≈ several hundred kJ/mol, which is why the intermediate states are skipped.

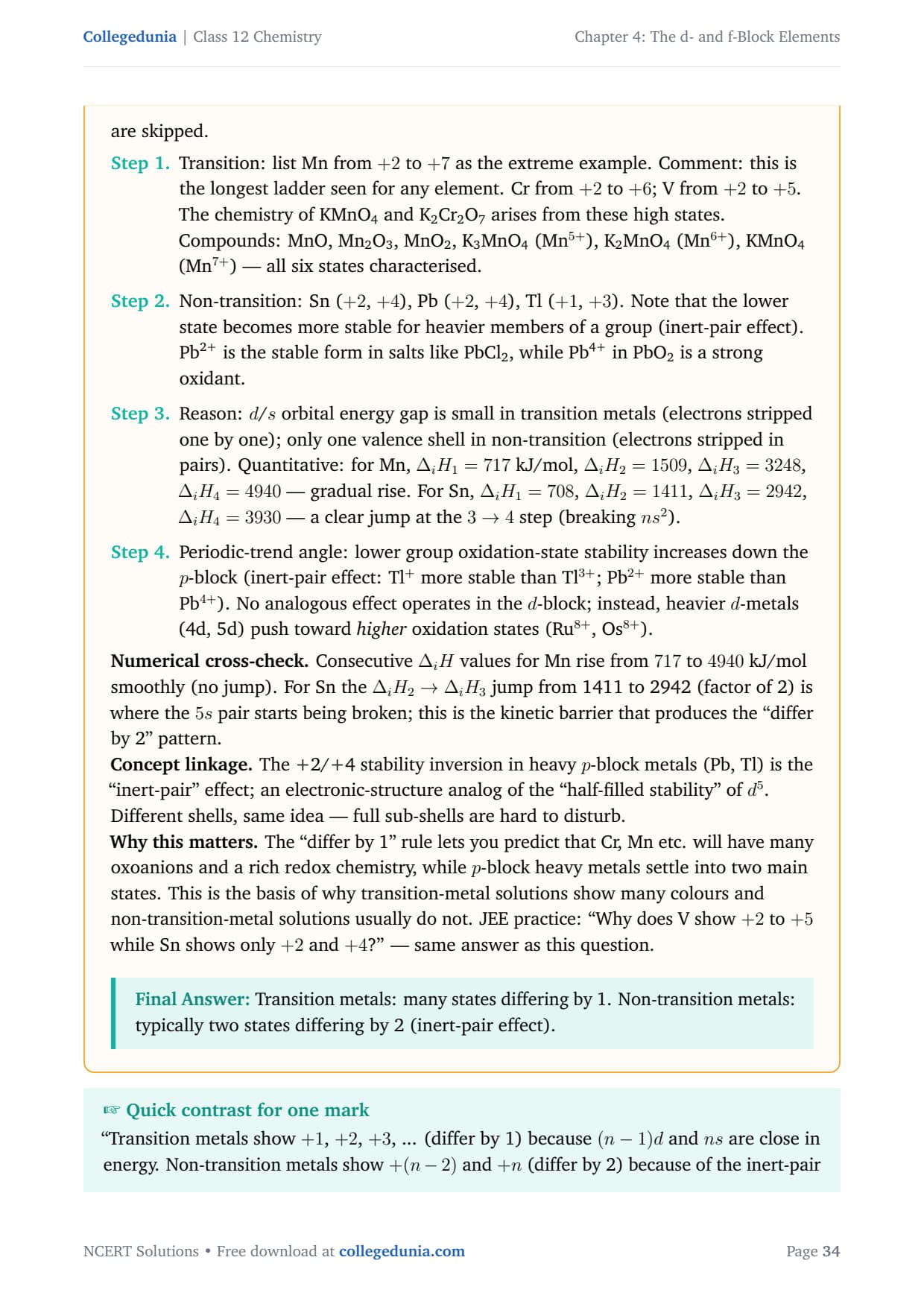

- Transition: list Mn from +2 to +7 as the extreme example. Comment: this is the longest ladder seen for any element. Cr from +2 to +6; V from +2 to +5. The chemistry of KMnO4 and K2Cr2O7 arises from these high states. Compounds: MnO, Mn2O3, MnO2, K3MnO4 (Mn5+), K2MnO4 (Mn6+), KMnO4 (Mn7+) — all six states characterised.
- Non-transition: Sn (+2, +4), Pb (+2, +4), Tl (+1, +3). Note that the lower state becomes more stable for heavier members of a group (inert-pair effect). Pb^2+ is the stable form in salts like PbCl2, while Pb^4+ in PbO2 is a strong oxidant.
- Reason: d/s orbital energy gap is small in transition metals (electrons stripped one by one); only one valence shell in non-transition (electrons stripped in pairs). Quantitative: for Mn, iH1 = 717 kJ/mol, iH2 = 1509, iH3 = 3248, iH4 = 4940 — gradual rise. For Sn, iH1 = 708, iH2 = 1411, iH3 = 2942, iH4 = 3930 — a clear jump at the 3 → 4 step (breaking ns2).
- Periodic-trend angle: lower group oxidation-state stability increases down the p-block (inert-pair effect: Tl+ more stable than Tl3+; Pb2+ more stable than Pb4+). No analogous effect operates in the d-block; instead, heavier d-metals (4d, 5d) push toward higher oxidation states (Ru8+, Os8+).
Numerical cross-check. Consecutive iH values for Mn rise from 717 to 4940 kJ/mol smoothly (no jump). For Sn the iH2 → iH3 jump from 1411 to 2942 (factor of 2) is where the 5s pair starts being broken; this is the kinetic barrier that produces the ``differ by 2'' pattern.
Concept linkage. The +2/+4 stability inversion in heavy p-block metals (Pb, Tl) is the ``inert-pair'' effect; an electronic-structure analog of the ``half-filled stability'' of d5. Different shells, same idea — full sub-shells are hard to disturb.
Why this matters. The ``differ by 1'' rule lets you predict that Cr, Mn etc. will have many oxoanions and a rich redox chemistry, while p-block heavy metals settle into two main states. This is the basis of why transition-metal solutions show many colours and non-transition-metal solutions usually do not. JEE practice: ``Why does V show +2 to +5 while Sn shows only +2 and +4?'' — same answer as this question.
Transition metals: many states differing by 1. Non-transition metals: typically two states differing by 2 (inert-pair effect).

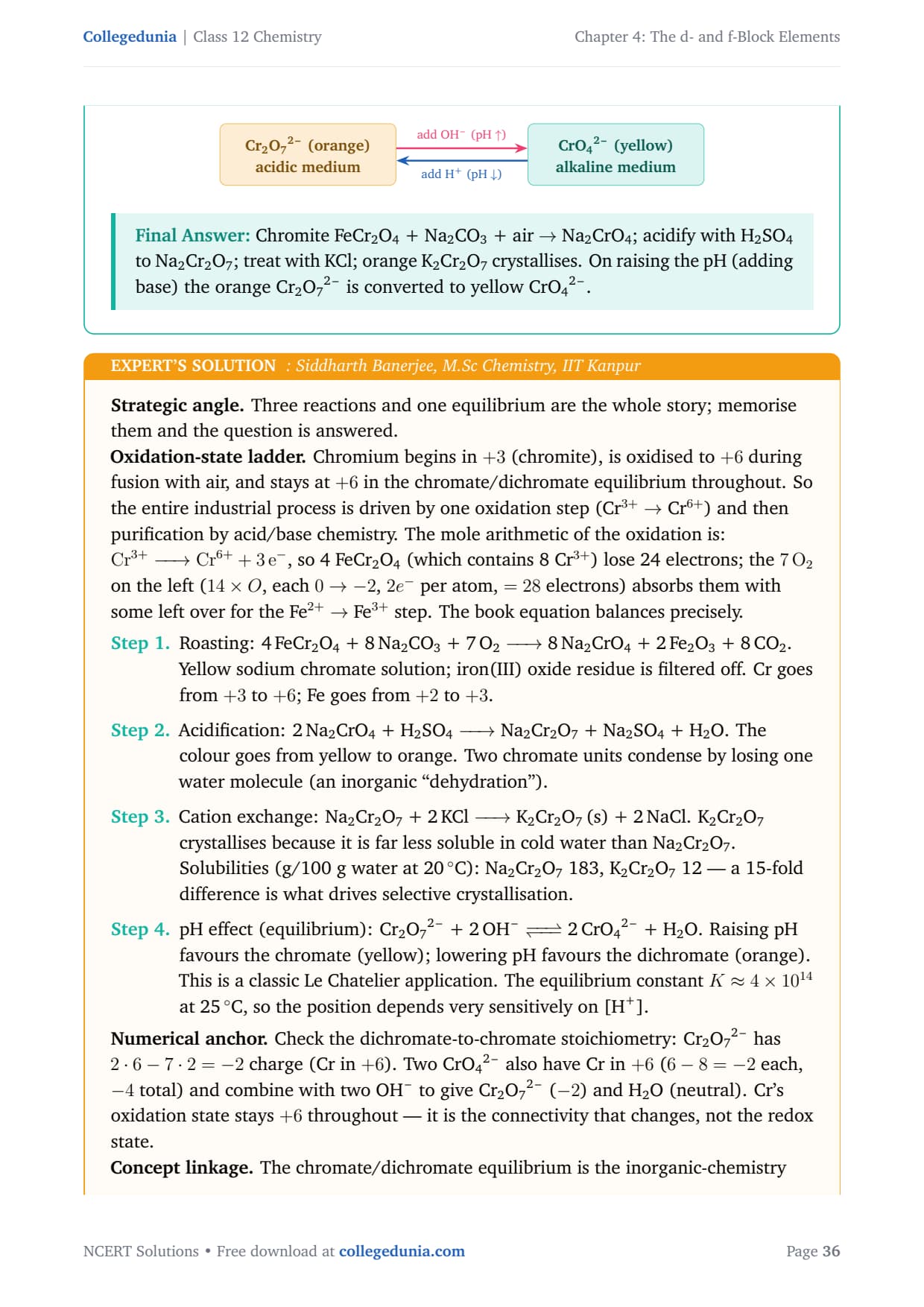

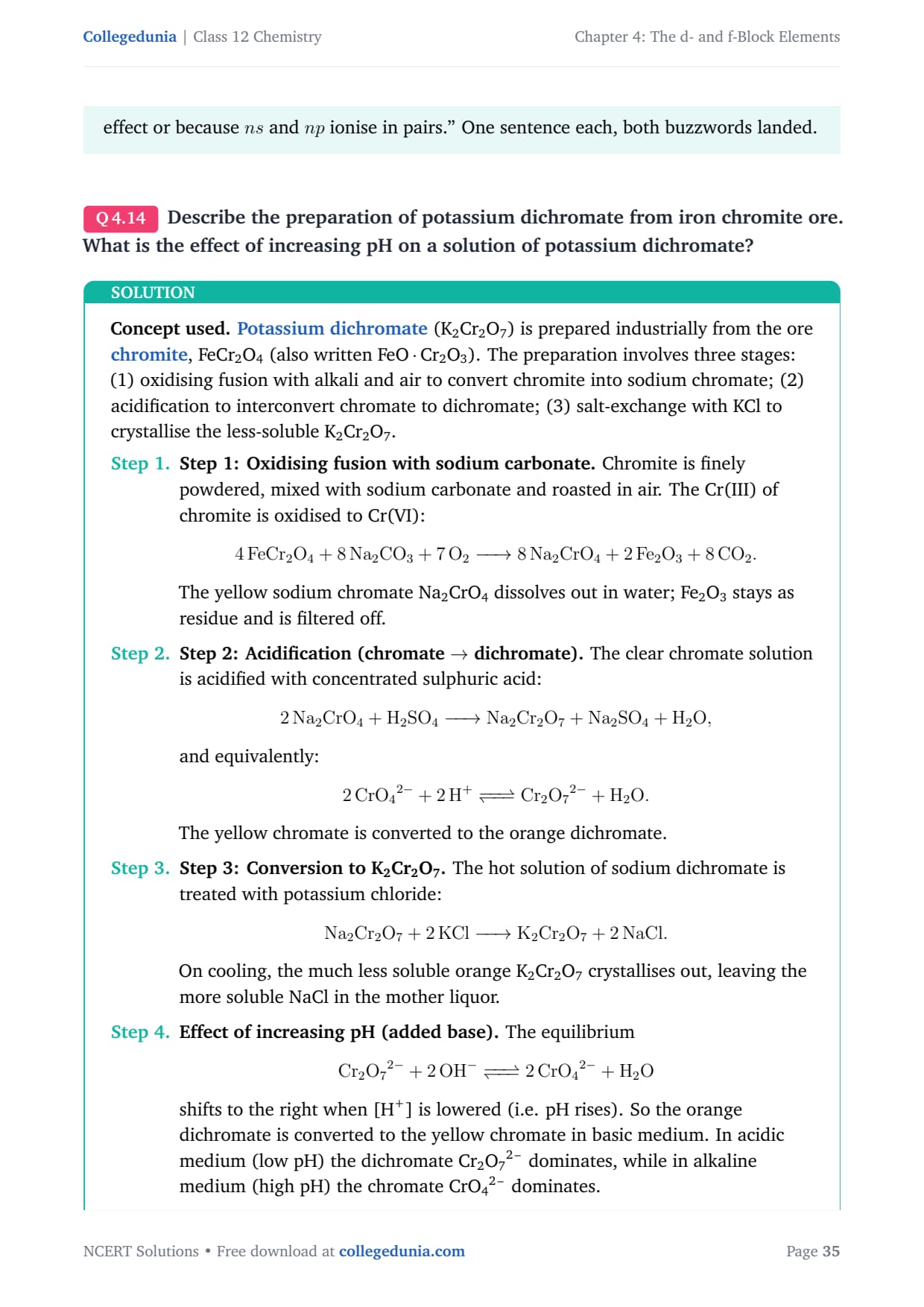

Describe the preparation of potassium dichromate from iron chromite ore. What is the effect of increasing pH on a solution of potassium dichromate?
Concept used. Potassium dichromate (K2Cr2O7) is prepared industrially from the ore chromite, FeCr2O4 (also written FeO.Cr2O3). The preparation involves three stages: (1) oxidising fusion with alkali and air to convert chromite into sodium chromate; (2) acidification to interconvert chromate to dichromate; (3) salt-exchange with KCl to crystallise the less-soluble K2Cr2O7.
- Step 1: Oxidising fusion with sodium carbonate. Chromite is finely powdered, mixed with sodium carbonate and roasted in air. The Cr(III) of chromite is oxidised to Cr(VI): 4 FeCr2O4 + 8 Na2CO3 + 7 O2 -> 8 Na2CrO4 + 2 Fe2O3 + 8 CO2. The yellow sodium chromate Na2CrO4 dissolves out in water; Fe2O3 stays as residue and is filtered off.
- Step 2: Acidification (chromate → dichromate). The clear chromate solution is acidified with concentrated sulphuric acid: 2 Na2CrO4 + H2SO4 -> Na2Cr2O7 + Na2SO4 + H2O, and equivalently: 2 CrO42- + 2 H+ <=> Cr2O72- + H2O. The yellow chromate is converted to the orange dichromate.
- Step 3: Conversion to K2Cr2O7. The hot solution of sodium dichromate is treated with potassium chloride: Na2Cr2O7 + 2 KCl -> K2Cr2O7 + 2 NaCl. On cooling, the much less soluble orange K2Cr2O7 crystallises out, leaving the more soluble NaCl in the mother liquor.
- Effect of increasing pH (added base). The equilibrium Cr2O72- + 2 OH- <=> 2 CrO42- + H2O shifts to the right when [H+] is lowered (i.e. pH rises). So the orange dichromate is converted to the yellow chromate in basic medium. In acidic medium (low pH) the dichromate Cr2O7^2- dominates, while in alkaline medium (high pH) the chromate CrO4^2- dominates.

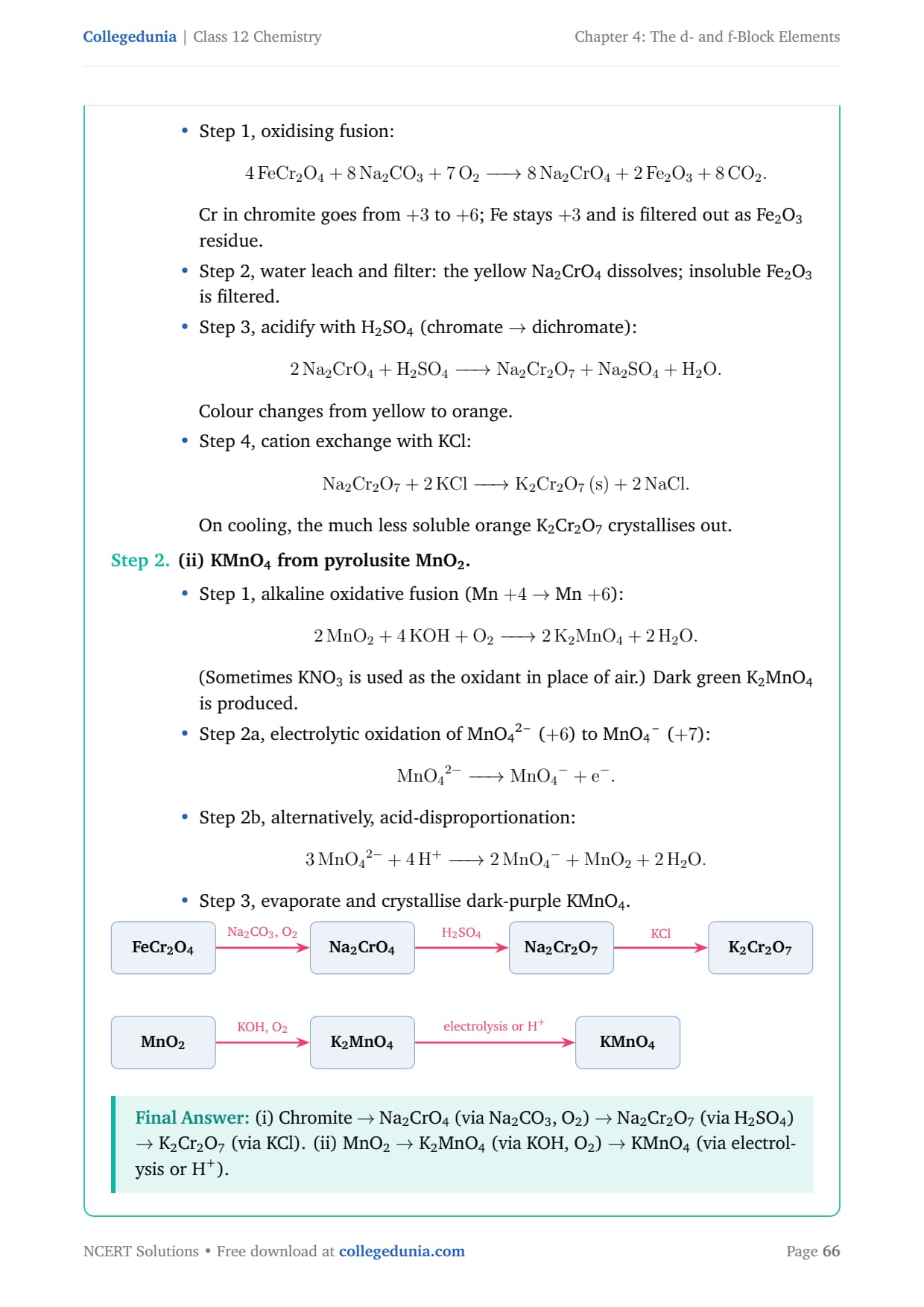

Chromite FeCr2O4 + Na2CO3 + air → Na2CrO4; acidify with H2SO4 to Na2Cr2O7; treat with KCl; orange K2Cr2O7 crystallises. On raising the pH (adding base) the orange Cr2O7^2- is converted to yellow CrO4^2-.
Strategic angle. Three reactions and one equilibrium are the whole story; memorise them and the question is answered.
Oxidation-state ladder. Chromium begins in +3 (chromite), is oxidised to +6 during fusion with air, and stays at +6 in the chromate/dichromate equilibrium throughout. So the entire industrial process is driven by one oxidation step (Cr3+ → Cr6+) and then purification by acid/base chemistry. The mole arithmetic of the oxidation is: Cr3+ -> Cr6+ + 3 e-, so 4 FeCr2O4 (which contains 8 Cr3+) lose 24 electrons; the 7 O2 on the left (14 × O, each 0 → -2, 2 e- per atom, = 28 electrons) absorbs them with some left over for the Fe2+ → Fe3+ step. The book equation balances precisely.
- Roasting: 4 FeCr2O4 + 8 Na2CO3 + 7 O2 -> 8 Na2CrO4 + 2 Fe2O3 + 8 CO2. Yellow sodium chromate solution; iron(III) oxide residue is filtered off. Cr goes from +3 to +6; Fe goes from +2 to +3.
- Acidification: 2 Na2CrO4 + H2SO4 -> Na2Cr2O7 + Na2SO4 + H2O. The colour goes from yellow to orange. Two chromate units condense by losing one water molecule (an inorganic ``dehydration'').
- Cation exchange: Na2Cr2O7 + 2 KCl -> K2Cr2O7 (s) + 2 NaCl. K2Cr2O7 crystallises because it is far less soluble in cold water than Na2Cr2O7. Solubilities (g/100 g water at 20 ∘C): Na2Cr2O7 183, K2Cr2O7 12 — a 15-fold difference is what drives selective crystallisation.
- pH effect (equilibrium): Cr2O7^2- + 2 OH- <=> 2 CrO4^2- + H2O. Raising pH favours the chromate (yellow); lowering pH favours the dichromate (orange). This is a classic Le Chatelier application. The equilibrium constant K ≈ 4 × 1014 at 25 ∘C, so the position depends very sensitively on [H+].
Numerical anchor. Check the dichromate-to-chromate stoichiometry: Cr2O7^2- has 2 · 6 - 7 · 2 = -2 charge (Cr in +6). Two CrO4^2- also have Cr in +6 (6 - 8 = -2 each, -4 total) and combine with two OH- to give Cr2O7^2- (-2) and H2O (neutral). Cr's oxidation state stays +6 throughout — it is the connectivity that changes, not the redox state.
Concept linkage. The chromate/dichromate equilibrium is the inorganic-chemistry textbook example of Le Chatelier in acid-base shifting. Compare with the analogous equilibrium between phosphate and pyrophosphate, 2 HPO42- <=> P2O74- + H2O. Same condensation pattern.
Why this matters. The colour change with pH is exploited in indicator/titration chemistry. The chromate/dichromate ratio in soil runoff is also a useful indicator of acidity in Cr(VI) waste streams. Industrially, K2Cr2O7 is the cheaper, less-soluble crystalline form preferred for shipping and lab use. The salt-exchange step (Na2Cr2O7 -> K2Cr2O7) is a model of differential-solubility purification.
Three-stage preparation: roast chromite + Na2CO3 + air; acidify to dichromate with H2SO4; precipitate as K2Cr2O7 with KCl. Increasing pH converts Cr2O7^2- (orange) to CrO4^2- (yellow).

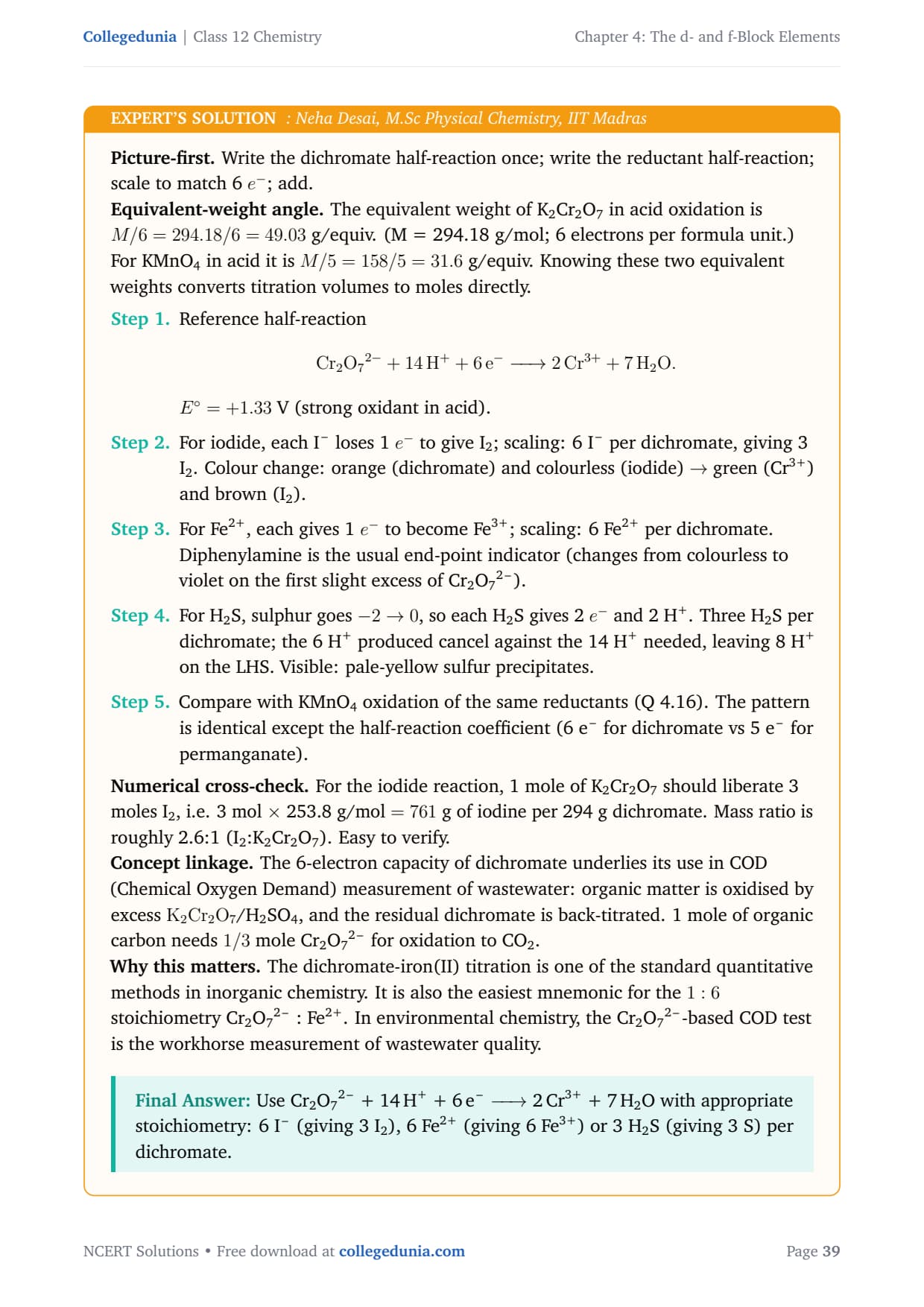

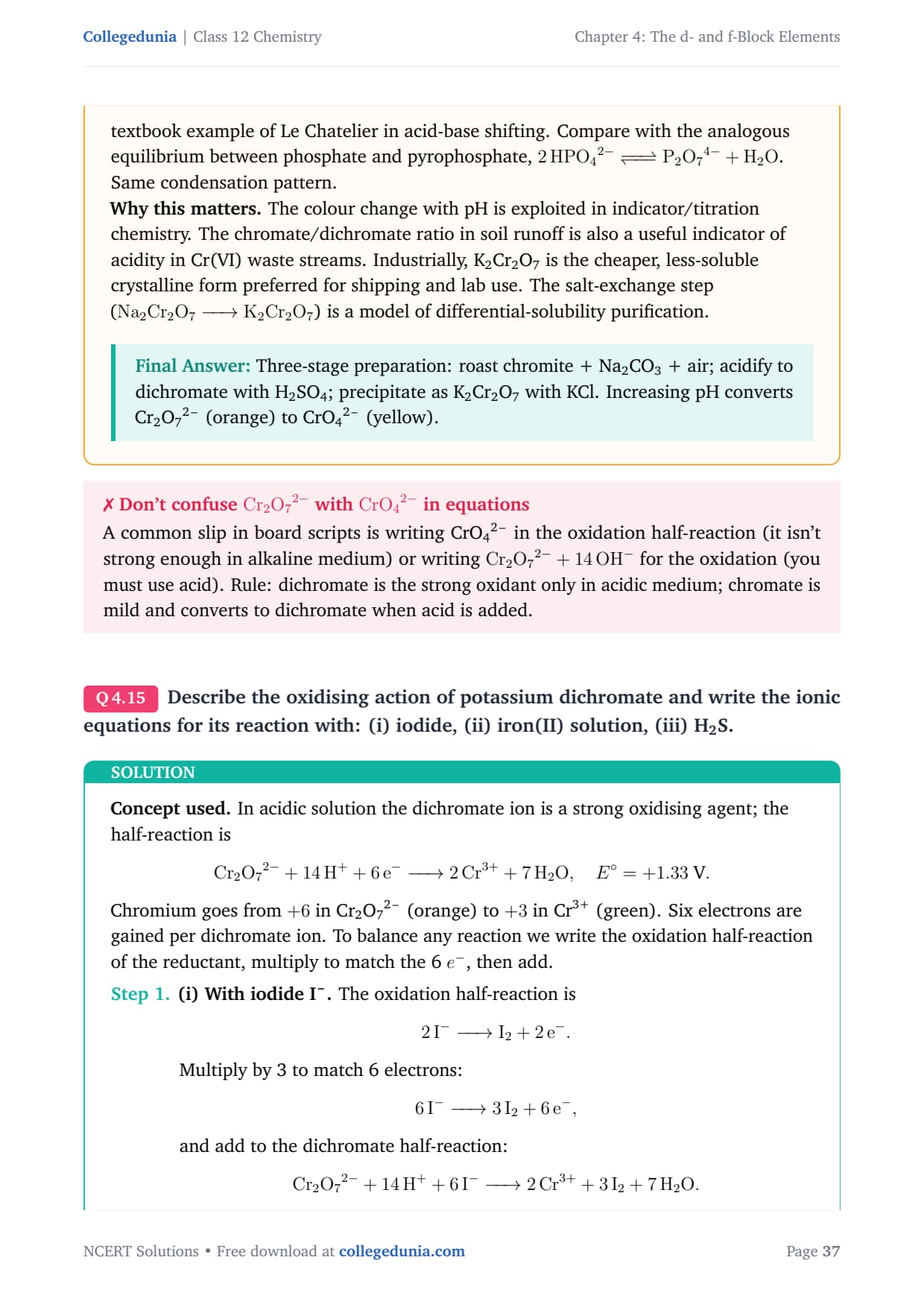

Describe the oxidising action of potassium dichromate and write the ionic equations for its reaction with: (i) iodide, (ii) iron(II) solution, (iii) H2S.
Concept used. In acidic solution the dichromate ion is a strong oxidising agent; the half-reaction is Cr2O72- + 14 H+ + 6 e- -> 2 Cr3+ + 7 H2O, E∘ = +1.33 V. Chromium goes from +6 in Cr2O7^2- (orange) to +3 in Cr^3+ (green). Six electrons are gained per dichromate ion. To balance any reaction we write the oxidation half-reaction of the reductant, multiply to match the 6 e-, then add.
- (i) With iodide I-. The oxidation half-reaction is 2 I- -> I2 + 2 e-. Multiply by 3 to match 6 electrons: 6 I- -> 3 I2 + 6 e-, and add to the dichromate half-reaction: Cr2O72- + 14 H+ + 6 I- -> 2 Cr3+ + 3 I2 + 7 H2O. Colour change: orange dichromate → green Cr^3+; iodine (brown solution) liberated.

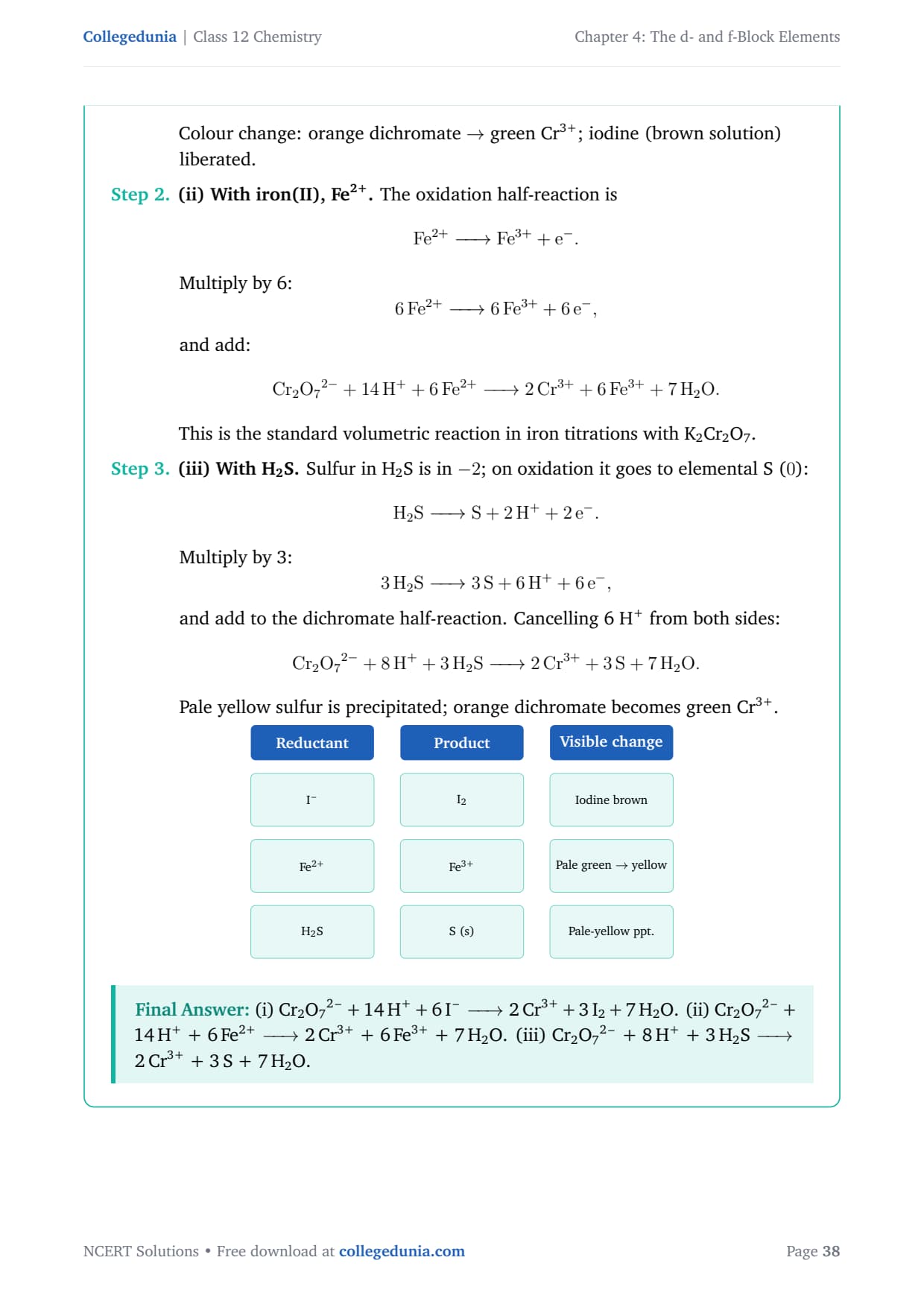

- (ii) With iron(II), Fe^2+. The oxidation half-reaction is Fe2+ -> Fe3+ + e-. Multiply by 6: 6 Fe2+ -> 6 Fe3+ + 6 e-, and add: Cr2O72- + 14 H+ + 6 Fe2+ -> 2 Cr3+ + 6 Fe3+ + 7 H2O. This is the standard volumetric reaction in iron titrations with K2Cr2O7.
- (iii) With H2S. Sulfur in H2S is in -2; on oxidation it goes to elemental S (0): H2S -> S + 2 H+ + 2 e-. Multiply by 3: 3 H2S -> 3 S + 6 H+ + 6 e-, and add to the dichromate half-reaction. Cancelling 6 H+ from both sides: Cr2O72- + 8 H+ + 3 H2S -> 2 Cr3+ + 3 S + 7 H2O. Pale yellow sulfur is precipitated; orange dichromate becomes green Cr^3+.
(i) Cr2O7^2- + 14 H+ + 6 I- -> 2 Cr^3+ + 3 I2 + 7 H2O. (ii) Cr2O7^2- + 14 H+ + 6 Fe^2+ -> 2 Cr^3+ + 6 Fe^3+ + 7 H2O. (iii) Cr2O7^2- + 8 H+ + 3 H2S -> 2 Cr^3+ + 3 S + 7 H2O.
Picture-first. Write the dichromate half-reaction once; write the reductant half-reaction; scale to match 6 e-; add.
Equivalent-weight angle. The equivalent weight of K2Cr2O7 in acid oxidation is M/6 = 294.18/6 = 49.03 g/equiv. (M = 294.18 g/mol; 6 electrons per formula unit.) For KMnO4 in acid it is M/5 = 158/5 = 31.6 g/equiv. Knowing these two equivalent weights converts titration volumes to moles directly.
- Reference half-reaction Cr2O72- + 14 H+ + 6 e- -> 2 Cr3+ + 7 H2O. E∘ = +1.33 V (strong oxidant in acid).
- For iodide, each I- loses 1 e- to give I2; scaling: 6 I- per dichromate, giving 3 I2. Colour change: orange (dichromate) and colourless (iodide) → green (Cr^3+) and brown (I2).
- For Fe^2+, each gives 1 e- to become Fe^3+; scaling: 6 Fe^2+ per dichromate. Diphenylamine is the usual end-point indicator (changes from colourless to violet on the first slight excess of Cr2O7^2-).
- For H2S, sulphur goes -2 → 0, so each H2S gives 2 e- and 2 H+. Three H2S per dichromate; the 6 H+ produced cancel against the 14 H+ needed, leaving 8 H+ on the LHS. Visible: pale-yellow sulfur precipitates.
- Compare with KMnO4 oxidation of the same reductants (Q 4.16). The pattern is identical except the half-reaction coefficient (6 e- for dichromate vs 5 e- for permanganate).
Numerical cross-check. For the iodide reaction, 1 mole of K2Cr2O7 should liberate 3 moles I2, i.e. 3 mol × 253.8 g/mol = 761 g of iodine per 294 g dichromate. Mass ratio is roughly 2.6:1 (I2:K2Cr2O7). Easy to verify.
Concept linkage. The 6-electron capacity of dichromate underlies its use in COD (Chemical Oxygen Demand) measurement of wastewater: organic matter is oxidised by excess K2Cr2O7/H2SO4, and the residual dichromate is back-titrated. 1 mole of organic carbon needs 1/3 mole Cr2O7^2- for oxidation to CO2.
Why this matters. The dichromate-iron(II) titration is one of the standard quantitative methods in inorganic chemistry. It is also the easiest mnemonic for the 1:6 stoichiometry Cr2O7^2- : Fe^2+. In environmental chemistry, the Cr2O7^2--based COD test is the workhorse measurement of wastewater quality.
Use Cr2O7^2- + 14 H+ + 6 e- -> 2 Cr^3+ + 7 H2O with appropriate stoichiometry: 6 I- (giving 3 I2), 6 Fe^2+ (giving 6 Fe^3+) or 3 H2S (giving 3 S) per dichromate.
Describe the preparation of potassium permanganate. How does the acidified permanganate solution react with (i) iron(II) ions, (ii) SO2 and (iii) oxalic acid? Write the ionic equations for the reactions.
Concept used. Potassium permanganate (KMnO4) is prepared from pyrolusite ore, MnO2, in two stages: (1) oxidising fusion with KOH and KNO3 (or air) to give green K2MnO4; (2) oxidation of manganate (Mn +6) to permanganate (Mn +7), either electrolytically or with disproportionation in acid. In acidic solution MnO4- is a strong oxidising agent with E∘ = +1.51 V; the half-reaction is MnO4- + 8 H+ + 5 e- -> Mn2+ + 4 H2O.
- Step 1 (oxidising fusion). Powdered MnO2 is fused with KOH in the presence of KNO3 (or air) as oxidant: 2 MnO2 + 4 KOH + O2 -> 2 K2MnO4 + 2 H2O. The dark green K2MnO4 contains Mn in +6.
- Step 2a (electrolytic oxidation). Dissolve K2MnO4 in water and oxidise to permanganate electrolytically at the anode: MnO42- -> MnO4- + e-. The purple KMnO4 crystallises on cooling.
- Step 2b (disproportionation). In acidic solution MnO4^2- disproportionates: 3 MnO42- + 4 H+ -> 2 MnO4- + MnO2 + 2 H2O. Two parts of Mn(VI) go to Mn(VII), one part to Mn(IV).
- (i) With Fe^2+. Each iron(II) loses 1 e-; five Fe^2+ per MnO4- to balance 5 e-: MnO4- + 8 H+ + 5 Fe2+ -> Mn2+ + 5 Fe3+ + 4 H2O.
- (ii) With SO2. SO2 (S in +4) is oxidised to SO4^2- (S in +6). The oxidation half-reaction is SO2 + 2 H2O -> SO42- + 4 H+ + 2 e-. Multiply by 5 (to match 10 e- when scaled to 2 MnO4-); equivalently, scale the permanganate half-reaction by 2 and the SO2 oxidation by 5: 2 MnO4- + 5 SO2 + 2 H2O -> 2 Mn2+ + 5 SO42- + 4 H+. Note that the net acid balance gives 4 H+ on the right.
- (iii) With oxalic acid H2C2O4. Carbon in oxalate is +3; it is oxidised to CO2 (C in +4), releasing 2 e- per molecule: C2O42- -> 2 CO2 + 2 e-. Scaling: 2 MnO4- per 5 C2O4^2- (to match 10 e-): 2 MnO4- + 5 C2O42- + 16 H+ -> 2 Mn2+ + 10 CO2 + 8 H2O. This is the standard reaction in the permanganate titration of oxalic acid (warm conditions, ∼ 60 ∘C, because the reaction is autocatalysed by Mn^2+).
Preparation: MnO2 + KOH + O2 → K2MnO4 (green, Mn +6); then electrolytic oxidation or acid-disproportionation gives KMnO4 (purple, Mn +7). Reactions: (i) MnO4- + 8 H+ + 5 Fe^2+ -> Mn^2+ + 5 Fe^3+ + 4 H2O; (ii) 2 MnO4- + 5 SO2 + 2 H2O -> 2 Mn^2+ + 5 SO4^2- + 4 H+; (iii) 2 MnO4- + 5 C2O4^2- + 16 H+ -> 2 Mn^2+ + 10 CO2 + 8 H2O.

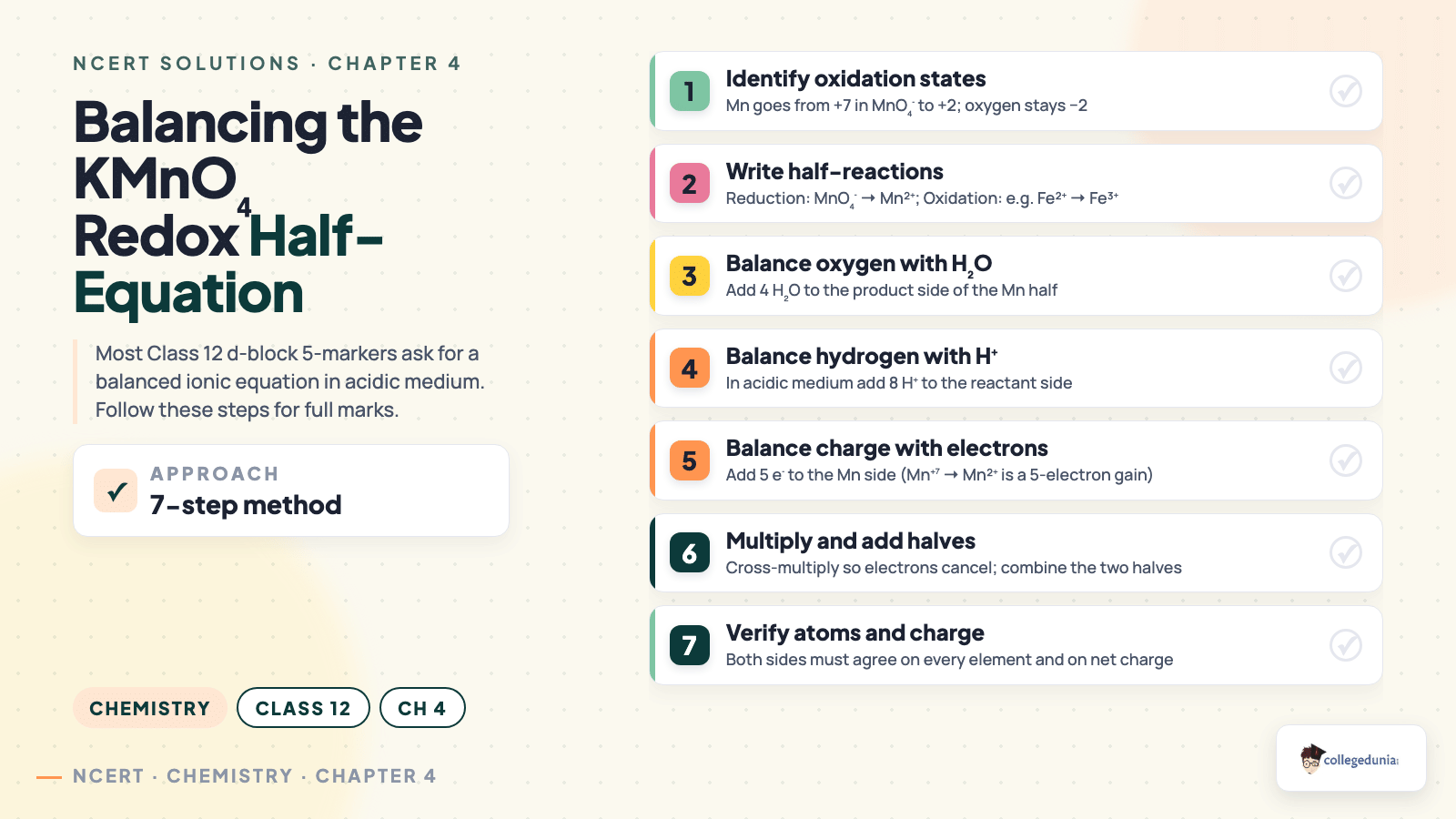

Strategic angle. The whole question is the half-reaction MnO4- + 8 H+ + 5 e- -> Mn^2+ + 4 H2O (memorise) plus three oxidation half-reactions. Scale to match 5 e- (or a multiple of 5) and add.
Oxidation-state ladder. Manganese steps from +4 in MnO2 (the starting ore) to +6 in MnO4^2- (alkaline fusion) to +7 in MnO4- (electrolysis or disproportionation). In the oxidation reactions, Mn7+ is reduced back to Mn^2+ (+7 to +2, gaining 5 e-). The full ladder of manganese oxidation states is therefore mapped onto this one chapter: +4 → +6 → +7 (synthesis), +7 → +2 (use).

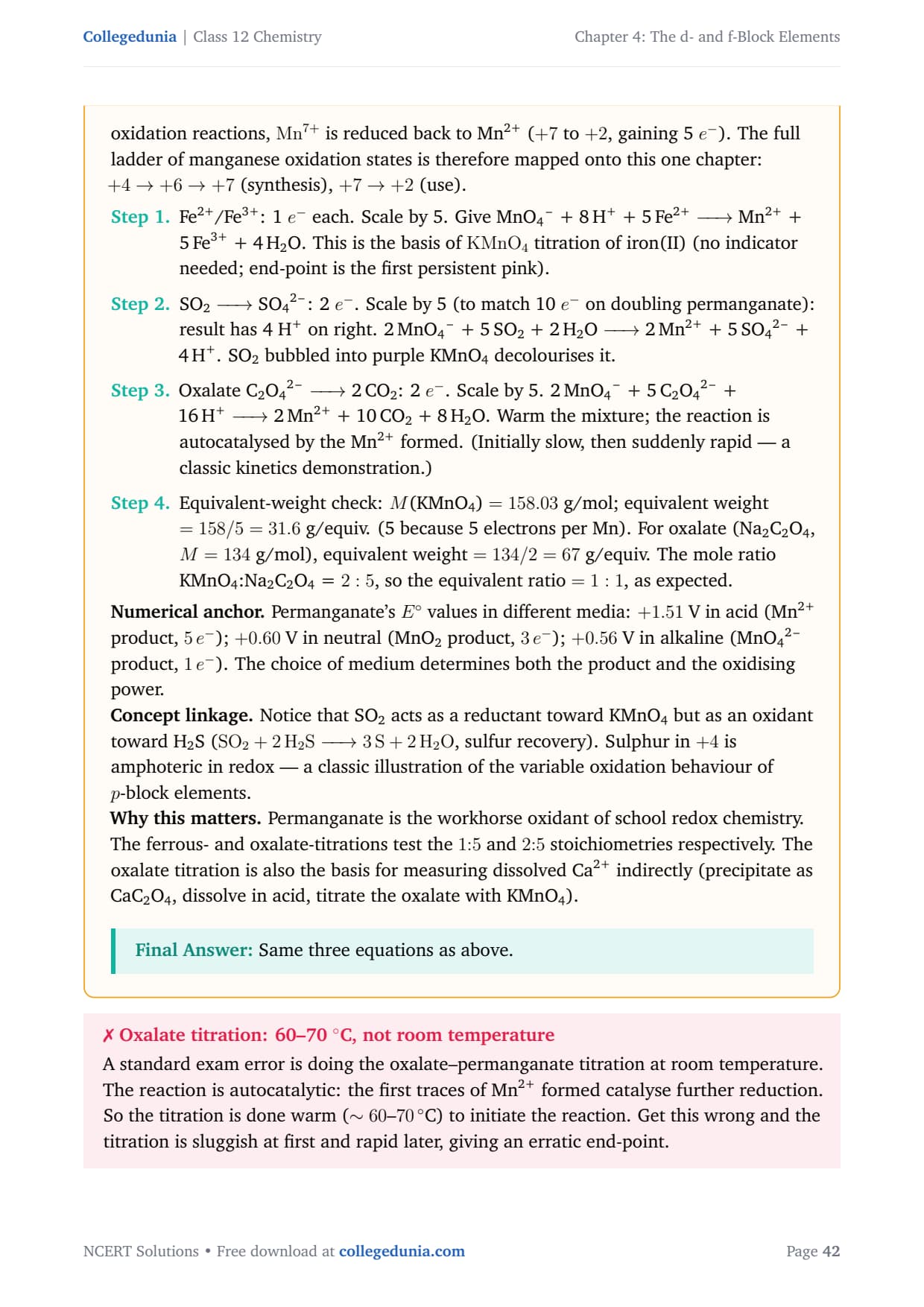

- Fe^2+/Fe^3+: 1 e- each. Scale by 5. Give MnO4- + 8 H+ + 5 Fe^2+ -> Mn^2+ + 5 Fe^3+ + 4 H2O. This is the basis of KMnO4 titration of iron(II) (no indicator needed; end-point is the first persistent pink).
- SO2 -> SO4^2-: 2 e-. Scale by 5 (to match 10 e- on doubling permanganate): result has 4 H+ on right. 2 MnO4- + 5 SO2 + 2 H2O -> 2 Mn^2+ + 5 SO4^2- + 4 H+. SO2 bubbled into purple KMnO4 decolourises it.
- Oxalate C2O4^2- -> 2 CO2: 2 e-. Scale by 5. 2 MnO4- + 5 C2O4^2- + 16 H+ -> 2 Mn^2+ + 10 CO2 + 8 H2O. Warm the mixture; the reaction is autocatalysed by the Mn^2+ formed. (Initially slow, then suddenly rapid — a classic kinetics demonstration.)
- Equivalent-weight check: M(KMnO4) = 158.03 g/mol; equivalent weight = 158/5 = 31.6 g/equiv. (5 because 5 electrons per Mn). For oxalate (Na2C2O4, M = 134 g/mol), equivalent weight = 134/2 = 67 g/equiv. The mole ratio KMnO4:Na2C2O4 = 2:5, so the equivalent ratio = 1:1, as expected.
Numerical anchor. Permanganate's E∘ values in different media: +1.51 V in acid (Mn^2+ product, 5 e-); +0.60 V in neutral (MnO2 product, 3 e-); +0.56 V in alkaline (MnO4^2- product, 1 e-). The choice of medium determines both the product and the oxidising power.
Concept linkage. Notice that SO2 acts as a reductant toward KMnO4 but as an oxidant toward H2S (SO2 + 2 H2S -> 3 S + 2 H2O, sulfur recovery). Sulphur in +4 is amphoteric in redox — a classic illustration of the variable oxidation behaviour of p-block elements.
Why this matters. Permanganate is the workhorse oxidant of school redox chemistry. The ferrous- and oxalate-titrations test the 1:5 and 2:5 stoichiometries respectively. The oxalate titration is also the basis for measuring dissolved Ca^2+ indirectly (precipitate as CaC2O4, dissolve in acid, titrate the oxalate with KMnO4).
Same three equations as above.

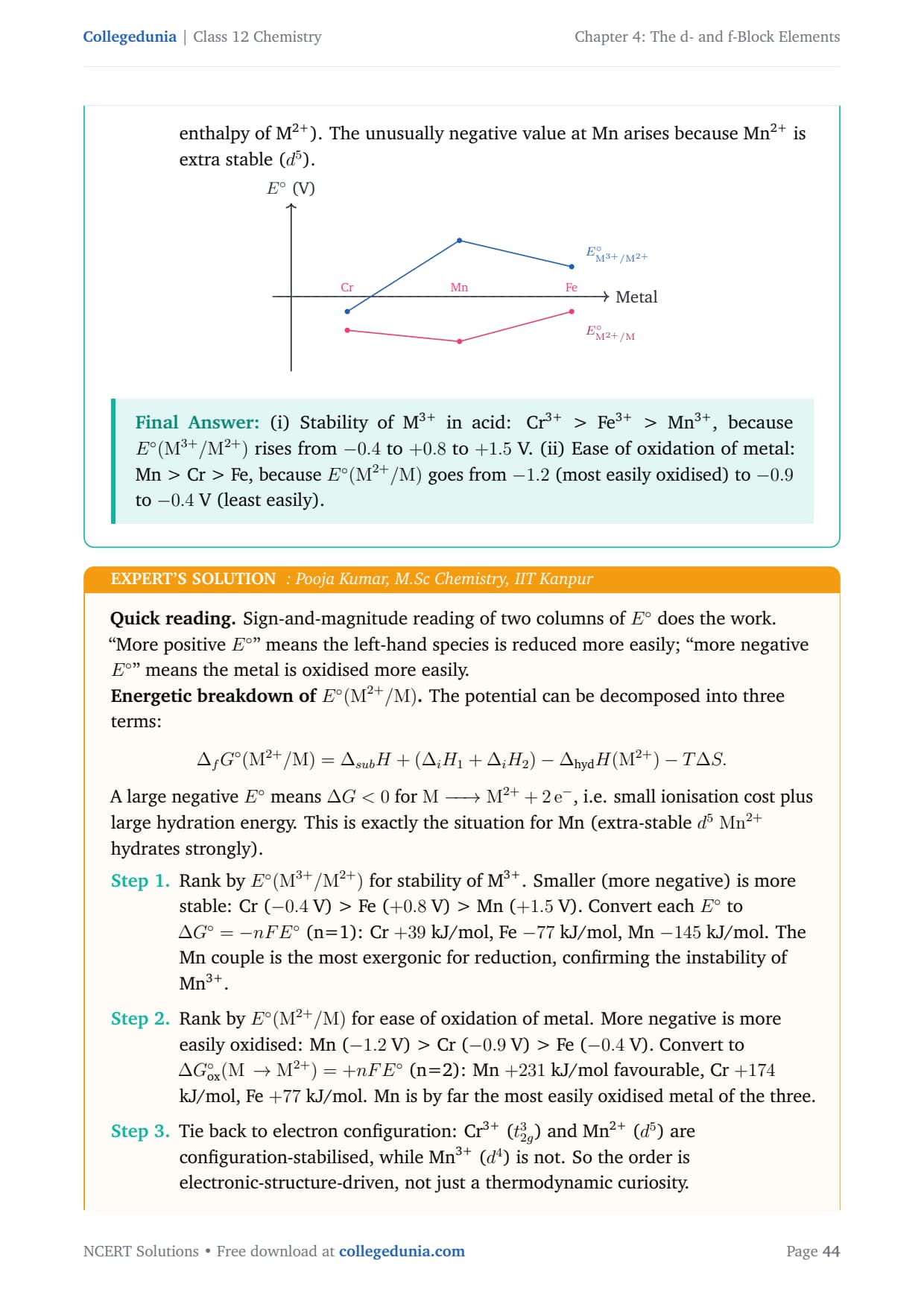

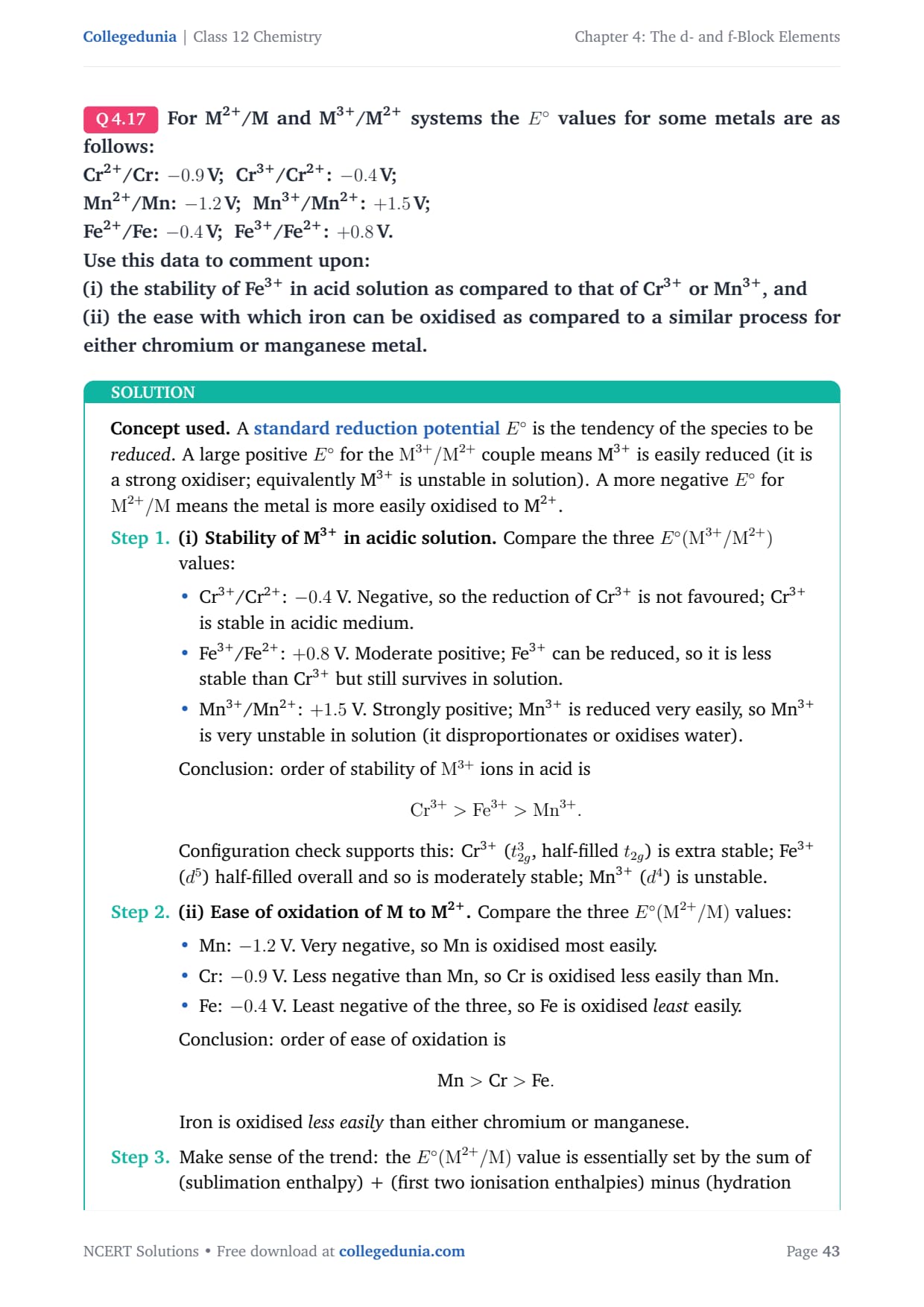

For M^2+/M and M^3+/M^2+ systems the E∘ values for some metals are as follows:
Cr^2+/Cr: -0.9 V; Cr^3+/Cr^2+: -0.4 V;
Mn^2+/Mn: -1.2 V; Mn^3+/Mn^2+: +1.5 V;
Fe^2+/Fe: -0.4 V; Fe^3+/Fe^2+: +0.8 V.
Use this data to comment upon:
(i) the stability of Fe^3+ in acid solution as compared to that of Cr^3+ or Mn^3+, and
(ii) the ease with which iron can be oxidised as compared to a similar process for either chromium or manganese metal.
Concept used. A standard reduction potential E∘ is the tendency of the species to be reduced. A large positive E∘ for the M3+/M2+ couple means M^3+ is easily reduced (it is a strong oxidiser; equivalently M^3+ is unstable in solution). A more negative E∘ for M2+/M means the metal is more easily oxidised to M^2+.
- (i) Stability of M^3+ in acidic solution.
Compare the three E∘(M3+/M2+) values:
- Cr^3+/Cr^2+: -0.4 V. Negative, so the reduction of Cr^3+ is not favoured; Cr^3+ is stable in acidic medium.
- Fe^3+/Fe^2+: +0.8 V. Moderate positive; Fe^3+ can be reduced, so it is less stable than Cr^3+ but still survives in solution.
- Mn^3+/Mn^2+: +1.5 V. Strongly positive; Mn^3+ is reduced very easily, so Mn^3+ is very unstable in solution (it disproportionates or oxidises water).
- (ii) Ease of oxidation of M to M^2+.
Compare the three E∘(M2+/M) values:
- Mn: -1.2 V. Very negative, so Mn is oxidised most easily.
- Cr: -0.9 V. Less negative than Mn, so Cr is oxidised less easily than Mn.
- Fe: -0.4 V. Least negative of the three, so Fe is oxidised least easily.
- Make sense of the trend: the E∘(M2+/M) value is essentially set by the sum of (sublimation enthalpy) + (first two ionisation enthalpies) minus (hydration enthalpy of M^2+). The unusually negative value at Mn arises because Mn^2+ is extra stable (d5).
(i) Stability of M^3+ in acid: Cr^3+ > Fe^3+ > Mn^3+, because E∘(M3+/M2+) rises from -0.4 to +0.8 to +1.5 V. (ii) Ease of oxidation of metal: Mn > Cr > Fe, because E∘(M2+/M) goes from -1.2 (most easily oxidised) to -0.9 to -0.4 V (least easily).
Quick reading. Sign-and-magnitude reading of two columns of E∘ does the work. ``More positive E∘'' means the left-hand species is reduced more easily; ``more negative E∘'' means the metal is oxidised more easily.
Energetic breakdown of E∘(M2+/M). The potential can be decomposed into three terms: f G∘(M2+/M) = sub H + (iH1 + iH2) - hyd H(M2+) - T Δ S. A large negative E∘ means Δ G < 0 for M -> M2+ + 2 e-, i.e. small ionisation cost plus large hydration energy. This is exactly the situation for Mn (extra-stable d5 Mn2+ hydrates strongly).
- Rank by E∘(M3+/M2+) for stability of M^3+. Smaller (more negative) is more stable: Cr (-0.4 V) > Fe (+0.8 V) > Mn (+1.5 V). Convert each E∘ to Δ G∘ = -nFE∘ (n=1): Cr +39 kJ/mol, Fe -77 kJ/mol, Mn -145 kJ/mol. The Mn couple is the most exergonic for reduction, confirming the instability of Mn^3+.
- Rank by E∘(M2+/M) for ease of oxidation of metal. More negative is more easily oxidised: Mn (-1.2 V) > Cr (-0.9 V) > Fe (-0.4 V). Convert to Δ G∘ox(M → M2+) = +nFE∘ (n=2): Mn +231 kJ/mol favourable, Cr +174 kJ/mol, Fe +77 kJ/mol. Mn is by far the most easily oxidised metal of the three.
- Tie back to electron configuration: Cr^3+ (t2g3) and Mn^2+ (d5) are configuration-stabilised, while Mn^3+ (d4) is not. So the order is electronic-structure-driven, not just a thermodynamic curiosity.

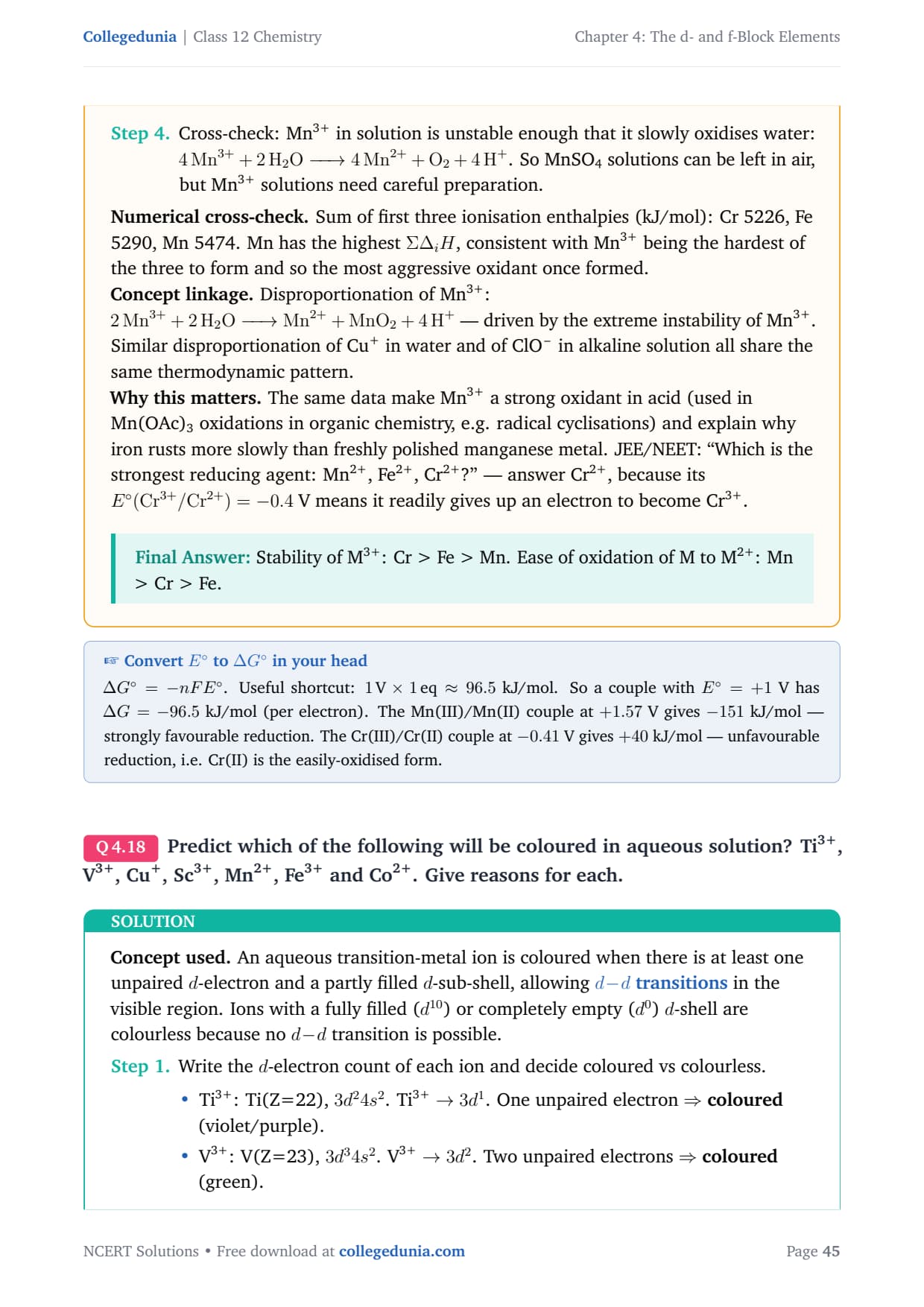

- Cross-check: Mn^3+ in solution is unstable enough that it slowly oxidises water: 4 Mn3+ + 2 H2O -> 4 Mn2+ + O2 + 4 H+. So MnSO4 solutions can be left in air, but Mn^3+ solutions need careful preparation.
Numerical cross-check. Sum of first three ionisation enthalpies (kJ/mol): Cr 5226, Fe 5290, Mn 5474. Mn has the highest ΣiH, consistent with Mn^3+ being the hardest of the three to form and so the most aggressive oxidant once formed.
Concept linkage. Disproportionation of Mn^3+: 2 Mn3+ + 2 H2O -> Mn2+ + MnO2 + 4 H+ — driven by the extreme instability of Mn^3+. Similar disproportionation of Cu+ in water and of ClO- in alkaline solution all share the same thermodynamic pattern.
Why this matters. The same data make Mn^3+ a strong oxidant in acid (used in Mn(OAc)3 oxidations in organic chemistry, e.g. radical cyclisations) and explain why iron rusts more slowly than freshly polished manganese metal. JEE/NEET: ``Which is the strongest reducing agent: Mn^2+, Fe^2+, Cr^2+?'' — answer Cr^2+, because its E∘(Cr3+/Cr2+) = -0.4 V means it readily gives up an electron to become Cr^3+.
Stability of M^3+: Cr > Fe > Mn. Ease of oxidation of M to M^2+: Mn > Cr > Fe.

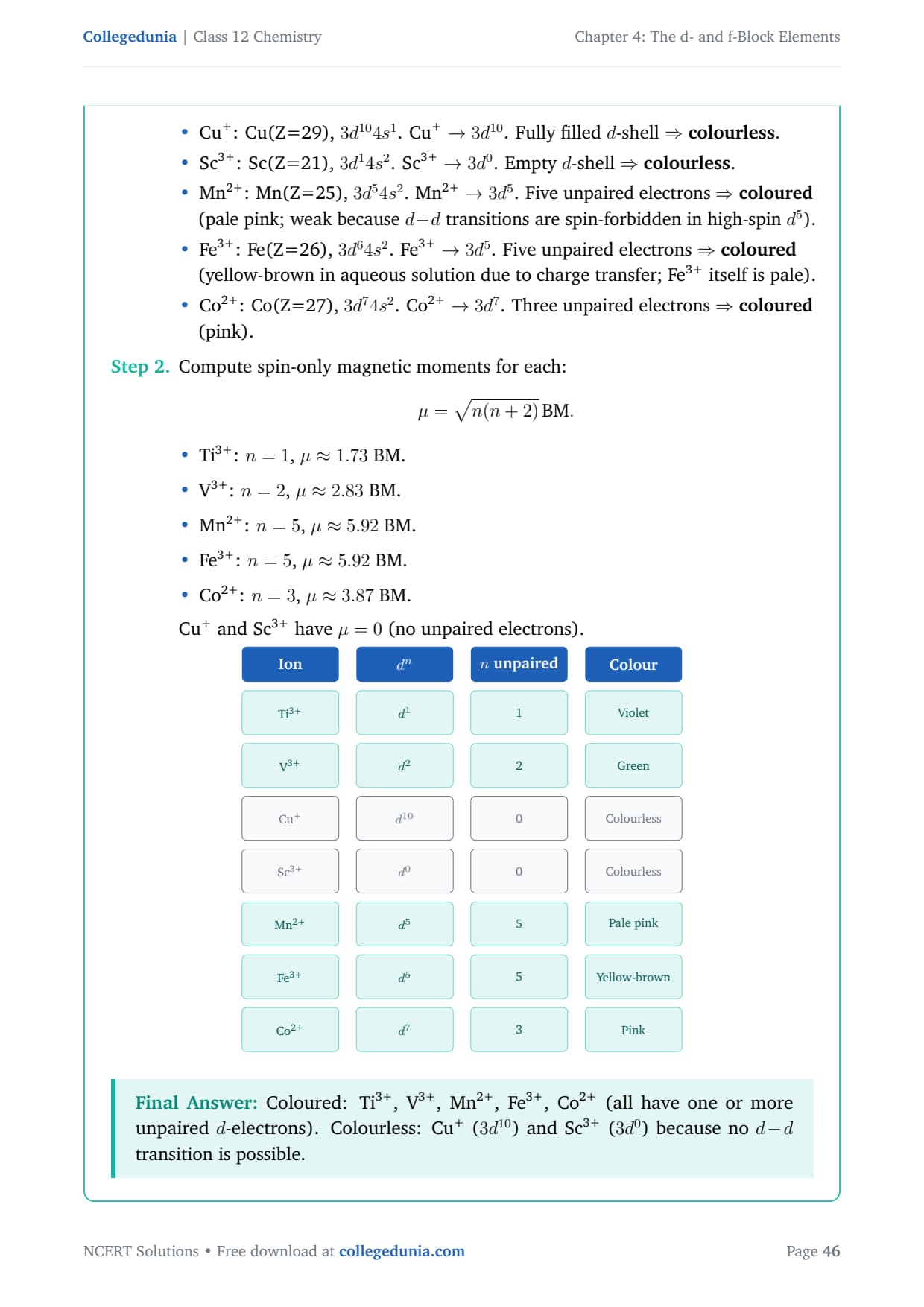

Predict which of the following will be coloured in aqueous solution? Ti^3+, V^3+, Cu+, Sc^3+, Mn^2+, Fe^3+ and Co^2+. Give reasons for each.
Concept used. An aqueous transition-metal ion is coloured when there is at least one unpaired d-electron and a partly filled d-sub-shell, allowing d-d transitions in the visible region. Ions with a fully filled (d10) or completely empty (d0) d-shell are colourless because no d-d transition is possible.
- Write the d-electron count of each ion and decide coloured
vs colourless.
- Ti^3+: Ti(Z=22), 3d24s2. Ti^3+ → 3d1. One unpaired electron ⇒ coloured (violet/purple).
- V^3+: V(Z=23), 3d34s2. V^3+ → 3d2. Two unpaired electrons ⇒ coloured (green).
- Cu+: Cu(Z=29), 3d104s1. Cu+ → 3d10. Fully filled d-shell ⇒ colourless.
- Sc^3+: Sc(Z=21), 3d14s2. Sc^3+ → 3d0. Empty d-shell ⇒ colourless.
- Mn^2+: Mn(Z=25), 3d54s2. Mn^2+ → 3d5. Five unpaired electrons ⇒ coloured (pale pink; weak because d-d transitions are spin-forbidden in high-spin d5).
- Fe^3+: Fe(Z=26), 3d64s2. Fe^3+ → 3d5. Five unpaired electrons ⇒ coloured (yellow-brown in aqueous solution due to charge transfer; Fe^3+ itself is pale).
- Co^2+: Co(Z=27), 3d74s2. Co^2+ → 3d7. Three unpaired electrons ⇒ coloured (pink).
- Compute spin-only magnetic moments for each:
μ = √n(n+2) BM.
- 6pt
- Ti^3+: n=1, μ ≈ 1.73 BM.
- V^3+: n=2, μ ≈ 2.83 BM.
- Mn^2+: n=5, μ ≈ 5.92 BM.
- Fe^3+: n=5, μ ≈ 5.92 BM.
- Co^2+: n=3, μ ≈ 3.87 BM.
Coloured: Ti^3+, V^3+, Mn^2+, Fe^3+, Co^2+ (all have one or more unpaired d-electrons). Colourless: Cu+ (3d10) and Sc^3+ (3d0) because no d-d transition is possible.
Picture-first. Five d-orbitals split in an octahedral field (water ligands) into a lower t2g set and an upper eg set. Promotion of an electron between them absorbs visible light ⇒ colour. If d-shell is empty (d0) or full (d10), no promotion is possible.
Numerical anchor. The splitting o for hydrated 3d ions falls in the range 9000–15000 cm-1, which corresponds to λ = hc/Δ = 660–1100 nm. This wavelength range overlaps the visible spectrum (400–700 nm) on the red end, so the absorbed photon lies in the visible-to-near-IR, and the observed (transmitted) colour is the complement. That single arithmetic fact controls every 3d aqua complex's colour.
- Quick filter: d0 (Sc^3+) and d10 (Cu+) are colourless. Mark them off — no d-d transition possible, so no visible absorption.
- The rest are all coloured. Magnetic moments increase from Ti^3+ (1.73 BM) to Mn^2+ (5.92 BM) and decline afterwards. The colours follow the absorbed wavelength: Ti^3+ purple (absorbs yellow-green at 500 nm), Cu(H2O)6^2+ blue (absorbs red–orange at 750 nm), Co(H2O)6^2+ pink (absorbs cyan at 510 nm).
- Note that d5 ions (Mn^2+, Fe^3+) have weak colour because their d-d transitions are spin-forbidden (they need a spin flip), so the absorption is very weak. Numerically: ε ≈ 0.01 for Mn^2+, compared with ε ≈ 10 for Ti^3+ — three orders of magnitude weaker, hence the pale-pink MnSO4 solution.
- Apply to each ion in the list (electron count in [M(H2O)6]^n+, hence colour): Ti^3+ d1 violet; V^3+ d2 green; Cu+ d10 colourless; Sc^3+ d0 colourless; Mn^2+ d5 pale pink; Fe^3+ d5 pale (yellow-brown in real solution from [Fe(OH)(H2O)5]^2+ hydrolysis and charge-transfer); Co^2+ d7 pink.
Numerical cross-check. Compute spin-only μ for each: Ti^3+ √3=1.73; V^3+ √8=2.83; Cu+ 0; Sc^3+ 0; Mn^2+ √35=5.92; Fe^3+ √35=5.92; Co^2+ √15=3.87 BM. Each non-zero μ corresponds to a coloured ion; each zero μ corresponds to a colourless one. The two predictions (colour and paramagnetism) move together.
Concept linkage. The spectrochemical series tells us the ligand-field strength order I- < Br- < Cl- < F- < H2O < NH3 < en < CN-. So the same metal in different ligand fields shows different colours (e.g. [Co(H2O)6]^2+ pink vs [CoCl4]^2- blue — and tetrahedral geometry changes Δ too).
Why this matters. The colour of a transition-metal solution is a quick diagnostic of (i) oxidation state and (ii) ligand field strength. Spectrophotometric titrations exploit exactly this. Analytical chemistry uses the intense blue of [Cu(NH3)4]^2+ or the red of [Fe(SCN)6]^3- to estimate copper and iron in trace solutions.
Five of the seven ions are coloured. Cu+ and Sc^3+ are colourless because of fully-filled and empty d-shells respectively.

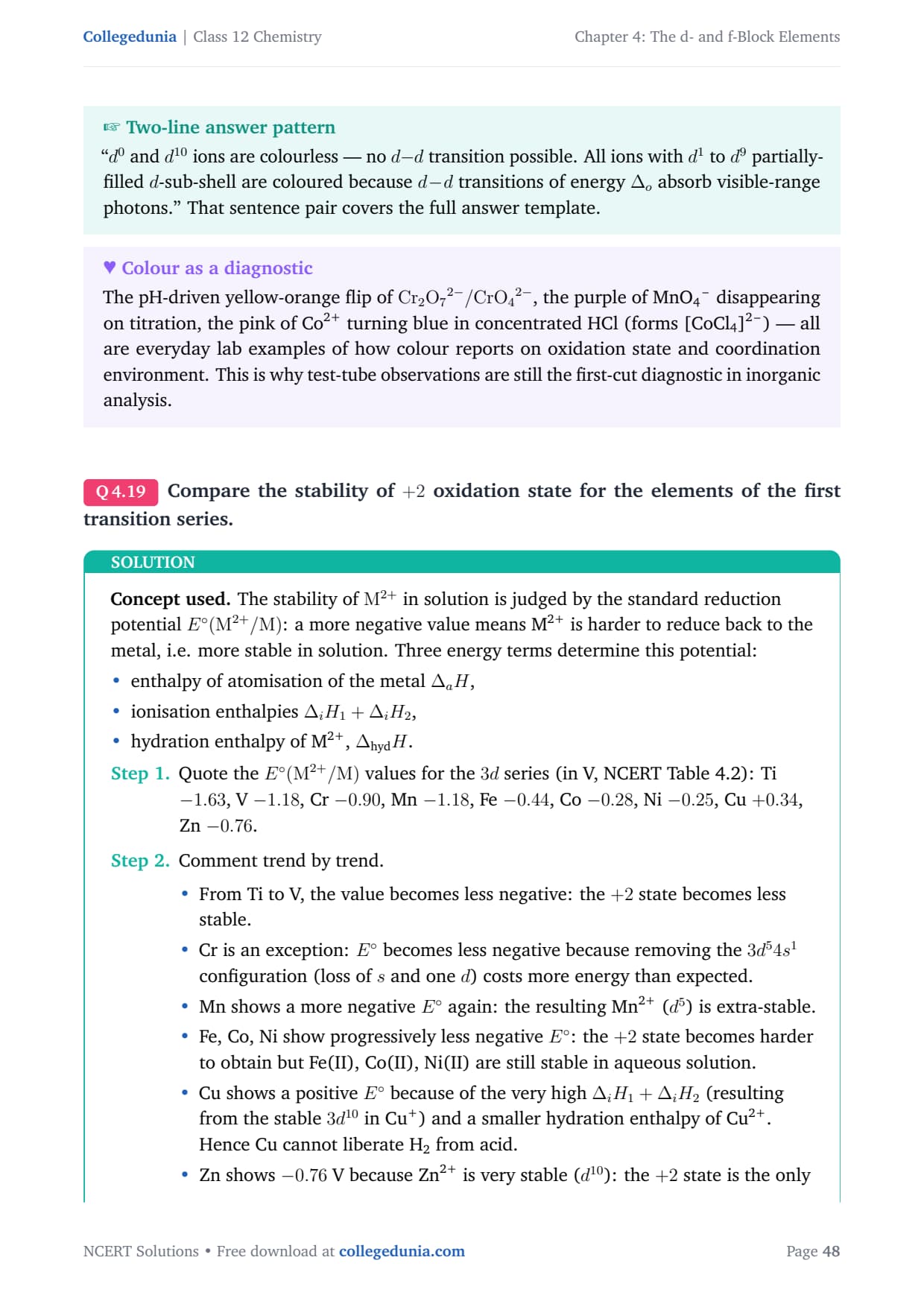

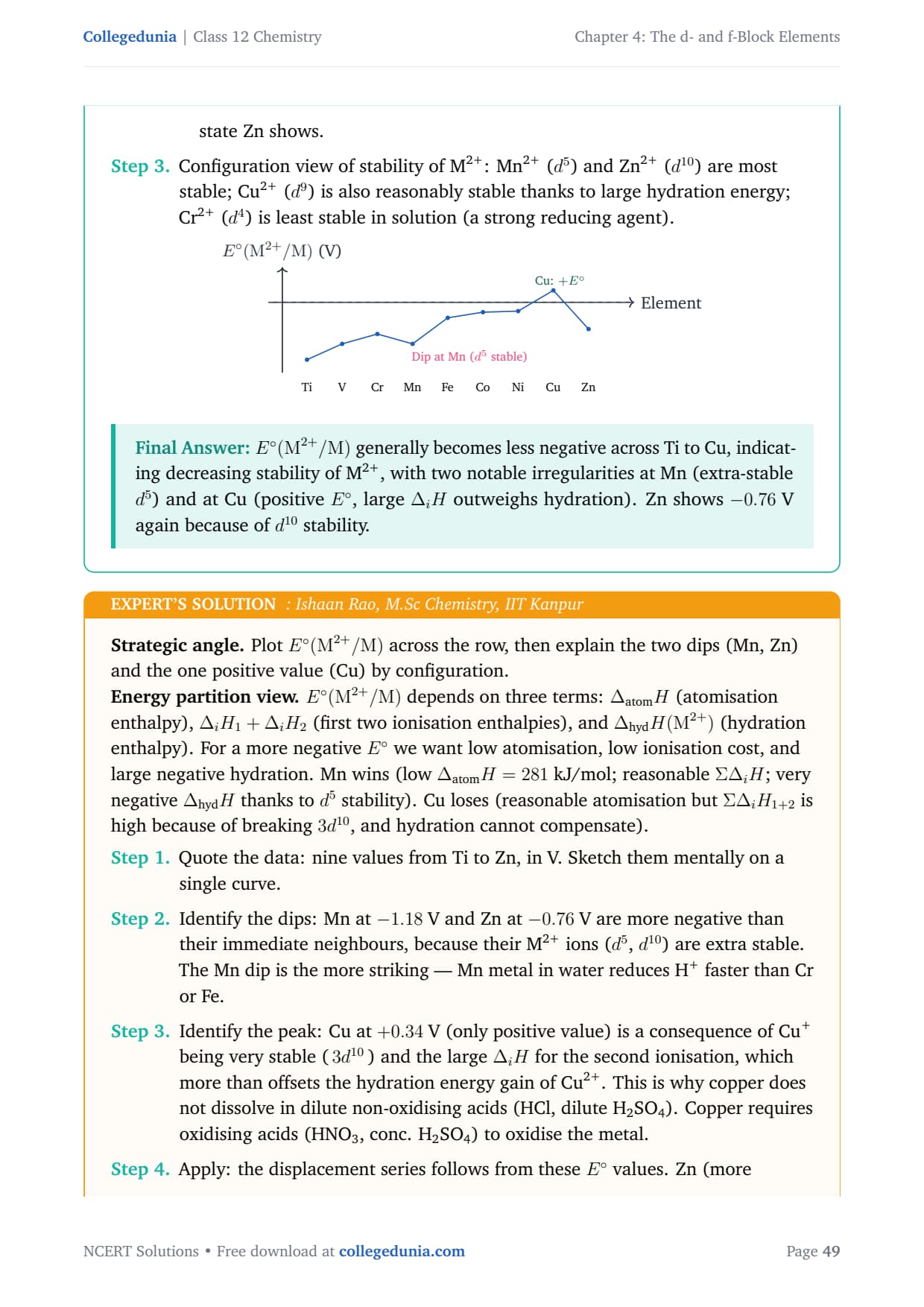

Compare the stability of +2 oxidation state for the elements of the first transition series.
Concept used. The stability of M2+ in solution is judged by the standard reduction potential E∘(M2+/M): a more negative value means M^2+ is harder to reduce back to the metal, i.e. more stable in solution. Three energy terms determine this potential:
- enthalpy of atomisation of the metal aH,
- ionisation enthalpies iH1 + iH2,
- hydration enthalpy of M^2+, hydH.
- Quote the E∘(M2+/M) values for the 3d series (in V, NCERT Table 4.2): Ti -1.63, V -1.18, Cr -0.90, Mn -1.18, Fe -0.44, Co -0.28, Ni -0.25, Cu +0.34, Zn -0.76.
- Comment trend by trend.
- From Ti to V, the value becomes less negative: the +2 state becomes less stable.
- Cr is an exception: E∘ becomes less negative because removing the 3d54s1 configuration (loss of s and one d) costs more energy than expected.
- Mn shows a more negative E∘ again: the resulting Mn^2+ (d5) is extra-stable.
- Fe, Co, Ni show progressively less negative E∘: the +2 state becomes harder to obtain but Fe(II), Co(II), Ni(II) are still stable in aqueous solution.
- Cu shows a positive E∘ because of the very high iH1 + iH2 (resulting from the stable 3d10 in Cu+) and a smaller hydration enthalpy of Cu^2+. Hence Cu cannot liberate H2 from acid.
- Zn shows -0.76 V because Zn^2+ is very stable (d10): the +2 state is the only state Zn shows.
- Configuration view of stability of M^2+: Mn^2+ (d5) and Zn^2+ (d10) are most stable; Cu^2+ (d9) is also reasonably stable thanks to large hydration energy; Cr^2+ (d4) is least stable in solution (a strong reducing agent).
E∘(M2+/M) generally becomes less negative across Ti to Cu, indicating decreasing stability of M^2+, with two notable irregularities at Mn (extra-stable d5) and at Cu (positive E∘, large iH outweighs hydration). Zn shows -0.76 V again because of d10 stability.
Strategic angle. Plot E∘(M2+/M) across the row, then explain the two dips (Mn, Zn) and the one positive value (Cu) by configuration.
Energy partition view. E∘(M2+/M) depends on three terms: atom H (atomisation enthalpy), iH1 + iH2 (first two ionisation enthalpies), and hyd H(M2+) (hydration enthalpy). For a more negative E∘ we want low atomisation, low ionisation cost, and large negative hydration. Mn wins (low atom H = 281 kJ/mol; reasonable ΣiH; very negative hyd H thanks to d5 stability). Cu loses (reasonable atomisation but ΣiH1+2 is high because of breaking 3d10, and hydration cannot compensate).
- Quote the data: nine values from Ti to Zn, in V. Sketch them mentally on a single curve.
- Identify the dips: Mn at -1.18 V and Zn at -0.76 V are more negative than their immediate neighbours, because their M^2+ ions (d5, d10) are extra stable. The Mn dip is the more striking — Mn metal in water reduces H+ faster than Cr or Fe.
- Identify the peak: Cu at +0.34 V (only positive value) is a consequence of Cu+ being very stable ( 3d10 ) and the large iH for the second ionisation, which more than offsets the hydration energy gain of Cu^2+. This is why copper does not dissolve in dilute non-oxidising acids (HCl, dilute H2SO4). Copper requires oxidising acids (HNO3, conc. H2SO4) to oxidise the metal.
- Apply: the displacement series follows from these E∘ values. Zn (more negative) displaces Cu2+ from CuSO4: Zn + CuSO4 -> ZnSO4 + Cu, with E∘cell = +0.34 - (-0.76) = +1.10 V. This is the Daniell cell.

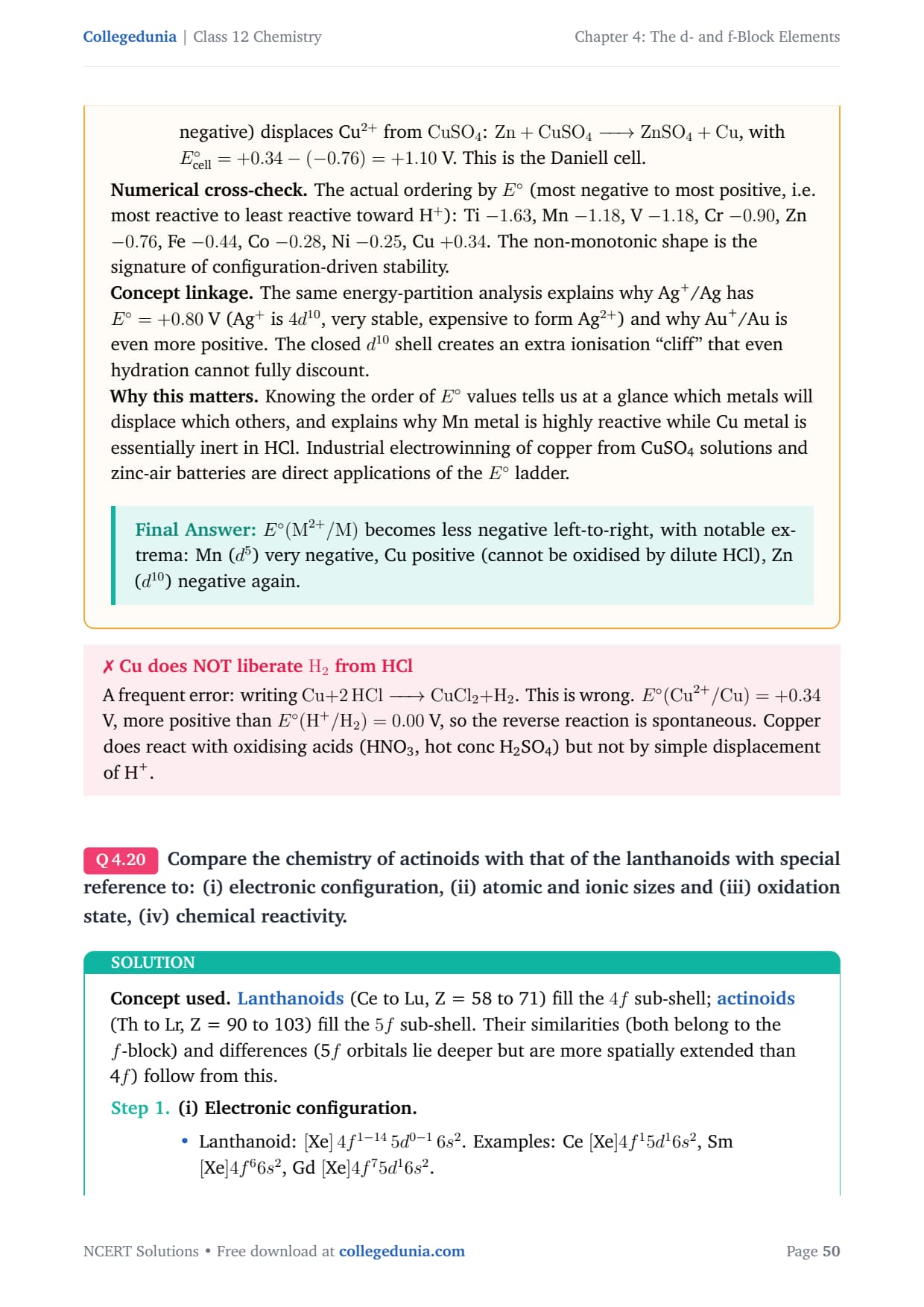

Numerical cross-check. The actual ordering by E∘ (most negative to most positive, i.e. most reactive to least reactive toward H+): Ti -1.63, Mn -1.18, V -1.18, Cr -0.90, Zn -0.76, Fe -0.44, Co -0.28, Ni -0.25, Cu +0.34. The non-monotonic shape is the signature of configuration-driven stability.
Concept linkage. The same energy-partition analysis explains why Ag+/Ag has E∘ = +0.80 V (Ag+ is 4d10, very stable, expensive to form Ag2+) and why Au^+/Au is even more positive. The closed d10 shell creates an extra ionisation ``cliff'' that even hydration cannot fully discount.
Why this matters. Knowing the order of E∘ values tells us at a glance which metals will displace which others, and explains why Mn metal is highly reactive while Cu metal is essentially inert in HCl. Industrial electrowinning of copper from CuSO4 solutions and zinc-air batteries are direct applications of the E∘ ladder.
E∘(M2+/M) becomes less negative left-to-right, with notable extrema: Mn (d5) very negative, Cu positive (cannot be oxidised by dilute HCl), Zn (d10) negative again.

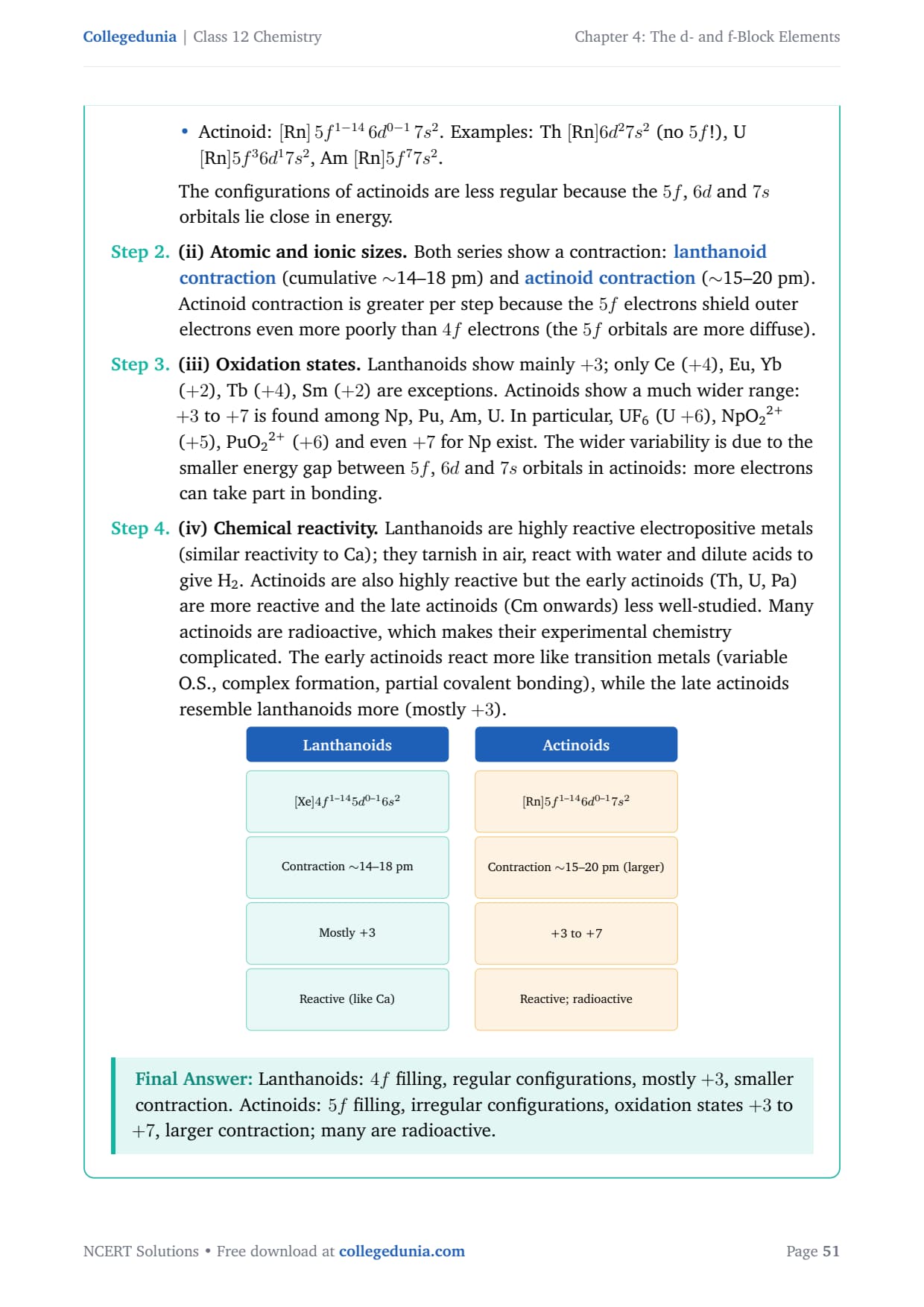

Compare the chemistry of actinoids with that of the lanthanoids with special reference to: (i) electronic configuration, (ii) atomic and ionic sizes and (iii) oxidation state, (iv) chemical reactivity.
Concept used. Lanthanoids (Ce to Lu, Z = 58 to 71) fill the 4f sub-shell; actinoids (Th to Lr, Z = 90 to 103) fill the 5f sub-shell. Their similarities (both belong to the f-block) and differences (5f orbitals lie deeper but are more spatially extended than 4f) follow from this.
- (i) Electronic configuration.
- Lanthanoid: [Xe] 4f1-14 5d0-1 6s2. Examples: Ce [Xe]4f15d16s2, Sm [Xe]4f66s2, Gd [Xe]4f75d16s2.
- Actinoid: [Rn] 5f1-14 6d0-1 7s2. Examples: Th [Rn]6d27s2 (no 5f!), U [Rn]5f36d17s2, Am [Rn]5f77s2.
- (ii) Atomic and ionic sizes. Both series show a contraction: lanthanoid contraction (cumulative ∼14–18 pm) and actinoid contraction (∼15–20 pm). Actinoid contraction is greater per step because the 5f electrons shield outer electrons even more poorly than 4f electrons (the 5f orbitals are more diffuse).
- (iii) Oxidation states. Lanthanoids show mainly +3; only Ce (+4), Eu, Yb (+2), Tb (+4), Sm (+2) are exceptions. Actinoids show a much wider range: +3 to +7 is found among Np, Pu, Am, U. In particular, UF6 (U +6), NpO2^2+ (+5), PuO2^2+ (+6) and even +7 for Np exist. The wider variability is due to the smaller energy gap between 5f, 6d and 7s orbitals in actinoids: more electrons can take part in bonding.
- (iv) Chemical reactivity. Lanthanoids are highly reactive electropositive metals (similar reactivity to Ca); they tarnish in air, react with water and dilute acids to give H2. Actinoids are also highly reactive but the early actinoids (Th, U, Pa) are more reactive and the late actinoids (Cm onwards) less well-studied. Many actinoids are radioactive, which makes their experimental chemistry complicated. The early actinoids react more like transition metals (variable O.S., complex formation, partial covalent bonding), while the late actinoids resemble lanthanoids more (mostly +3).
Lanthanoids: 4f filling, regular configurations, mostly +3, smaller contraction. Actinoids: 5f filling, irregular configurations, oxidation states +3 to +7, larger contraction; many are radioactive.

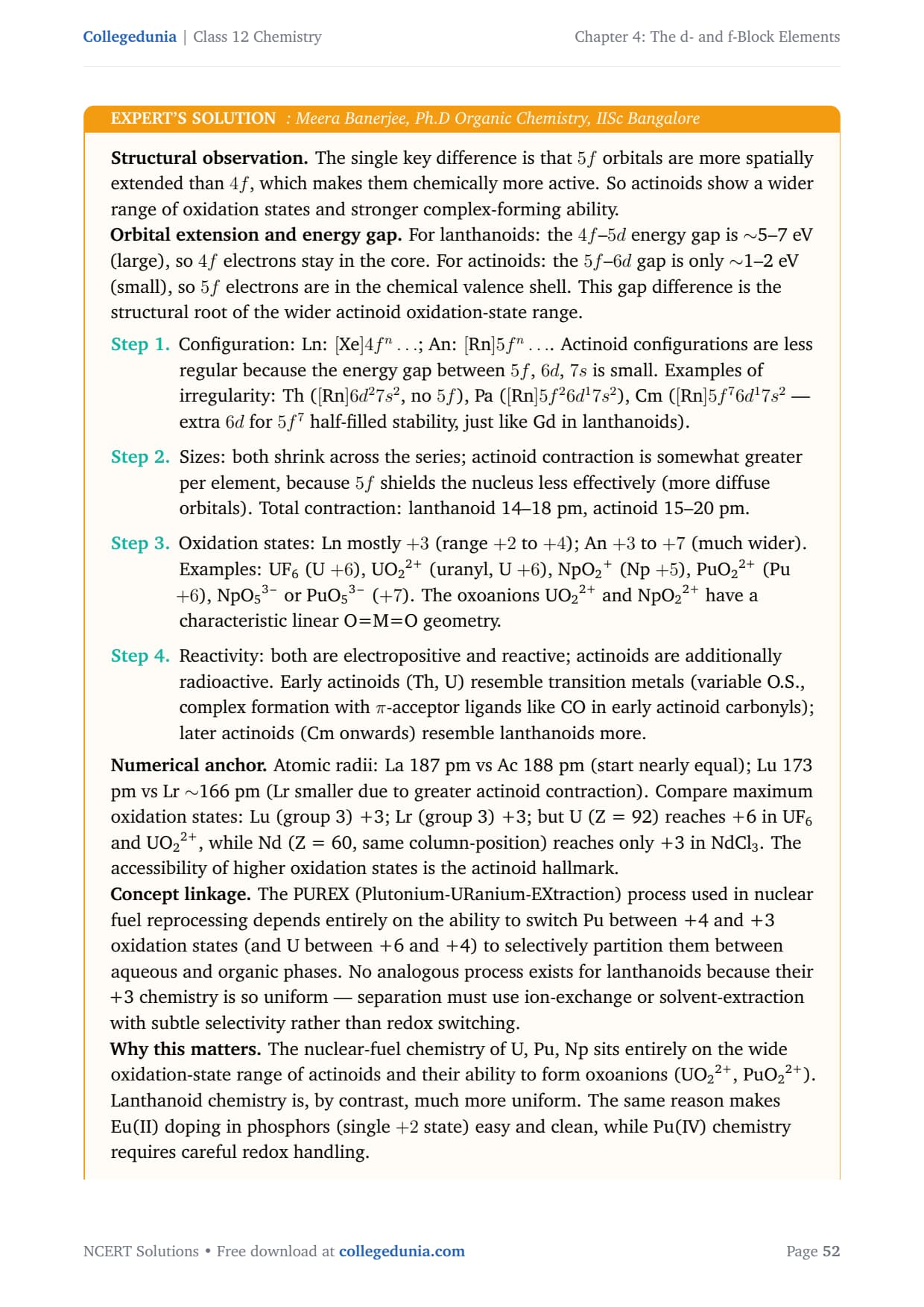

Structural observation. The single key difference is that 5f orbitals are more spatially extended than 4f, which makes them chemically more active. So actinoids show a wider range of oxidation states and stronger complex-forming ability.
Orbital extension and energy gap. For lanthanoids: the 4f–5d energy gap is ∼5–7 eV (large), so 4f electrons stay in the core. For actinoids: the 5f–6d gap is only ∼1–2 eV (small), so 5f electrons are in the chemical valence shell. This gap difference is the structural root of the wider actinoid oxidation-state range.
- Configuration: Ln: [Xe]4fn…; An: [Rn]5fn…. Actinoid configurations are less regular because the energy gap between 5f, 6d, 7s is small. Examples of irregularity: Th ([Rn]6d27s2, no 5f), Pa ([Rn]5f26d17s2), Cm ([Rn]5f76d17s2 — extra 6d for 5f7 half-filled stability, just like Gd in lanthanoids).
- Sizes: both shrink across the series; actinoid contraction is somewhat greater per element, because 5f shields the nucleus less effectively (more diffuse orbitals). Total contraction: lanthanoid 14–18 pm, actinoid 15–20 pm.
- Oxidation states: Ln mostly +3 (range +2 to +4); An +3 to +7 (much wider). Examples: UF6 (U +6), UO2^2+ (uranyl, U +6), NpO2+ (Np +5), PuO2^2+ (Pu +6), NpO5^3- or PuO5^3- (+7). The oxoanions UO2^2+ and NpO2^2+ have a characteristic linear O=M=O geometry.
- Reactivity: both are electropositive and reactive; actinoids are additionally radioactive. Early actinoids (Th, U) resemble transition metals (variable O.S., complex formation with π-acceptor ligands like CO in early actinoid carbonyls); later actinoids (Cm onwards) resemble lanthanoids more.
Numerical anchor. Atomic radii: La 187 pm vs Ac 188 pm (start nearly equal); Lu 173 pm vs Lr ∼166 pm (Lr smaller due to greater actinoid contraction). Compare maximum oxidation states: Lu (group 3) +3; Lr (group 3) +3; but U (Z = 92) reaches +6 in UF6 and UO2^2+, while Nd (Z = 60, same column-position) reaches only +3 in NdCl3. The accessibility of higher oxidation states is the actinoid hallmark.
Concept linkage. The PUREX (Plutonium-URanium-EXtraction) process used in nuclear fuel reprocessing depends entirely on the ability to switch Pu between +4 and +3 oxidation states (and U between +6 and +4) to selectively partition them between aqueous and organic phases. No analogous process exists for lanthanoids because their +3 chemistry is so uniform — separation must use ion-exchange or solvent-extraction with subtle selectivity rather than redox switching.
Why this matters. The nuclear-fuel chemistry of U, Pu, Np sits entirely on the wide oxidation-state range of actinoids and their ability to form oxoanions (UO2^2+, PuO2^2+). Lanthanoid chemistry is, by contrast, much more uniform. The same reason makes Eu(II) doping in phosphors (single +2 state) easy and clean, while Pu(IV) chemistry requires careful redox handling.
Lanthanoid: 4f filling, mostly +3; actinoid: 5f filling, +3 to +7, larger contraction, all radioactive.

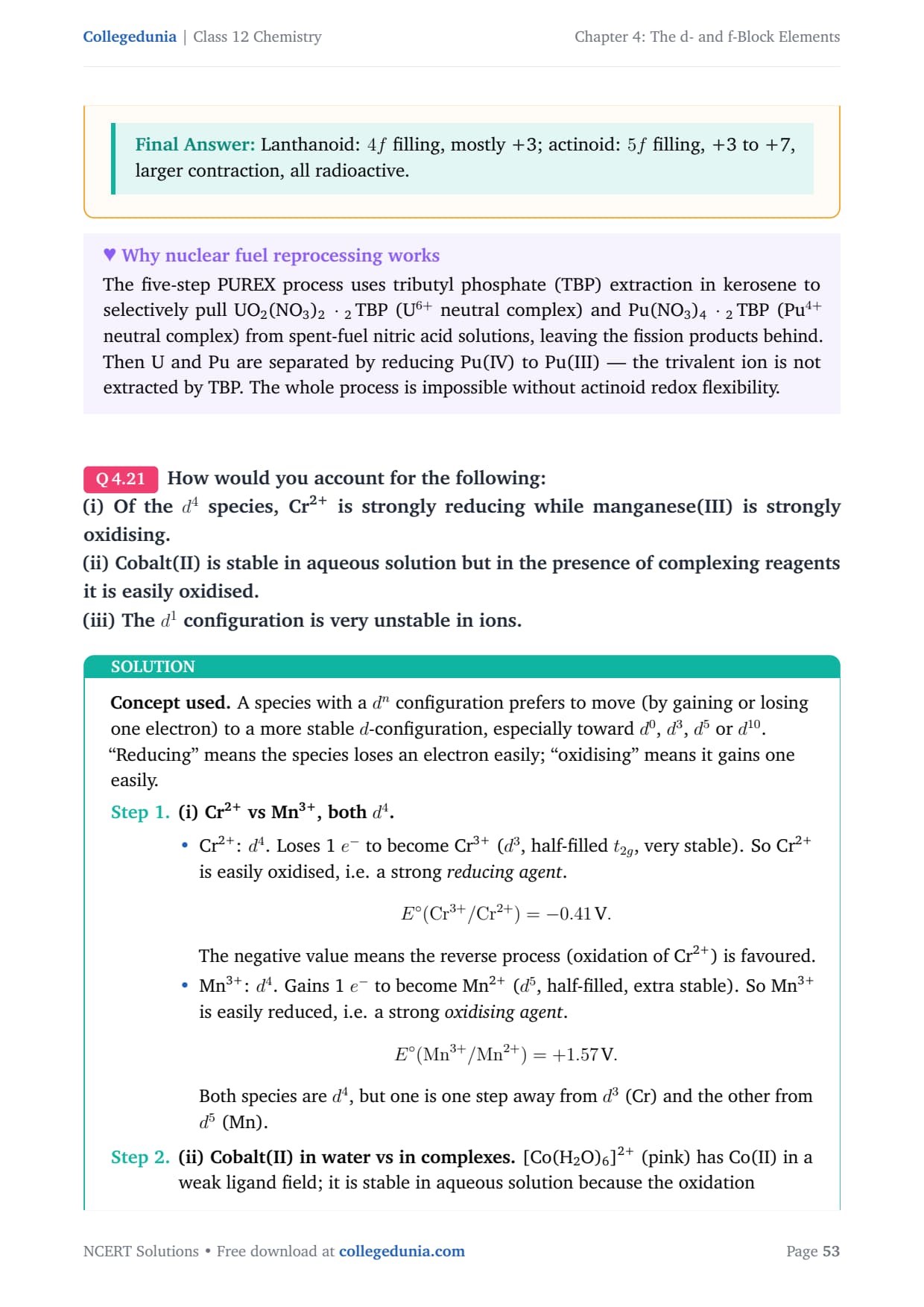

How would you account for the following:
(i) Of the d4 species, Cr^2+ is strongly reducing while manganese(III) is strongly oxidising.
(ii) Cobalt(II) is stable in aqueous solution but in the presence of complexing reagents it is easily oxidised.
(iii) The d1 configuration is very unstable in ions.
Concept used. A species with a dn configuration prefers to move (by gaining or losing one electron) to a more stable d-configuration, especially toward d0, d3, d5 or d10. ``Reducing'' means the species loses an electron easily; ``oxidising'' means it gains one easily.
- (i) Cr^2+ vs Mn^3+, both d4.
- Cr^2+: d4. Loses 1 e- to become Cr^3+ (d3, half-filled t2g, very stable). So Cr^2+ is easily oxidised, i.e. a strong reducing agent. E∘(Cr3+/Cr2+) = -0.41 V. The negative value means the reverse process (oxidation of Cr^2+) is favoured.
- Mn^3+: d4. Gains 1 e- to become Mn^2+ (d5, half-filled, extra stable). So Mn^3+ is easily reduced, i.e. a strong oxidising agent. E∘(Mn3+/Mn2+) = +1.57 V. Both species are d4, but one is one step away from d3 (Cr) and the other from d5 (Mn).

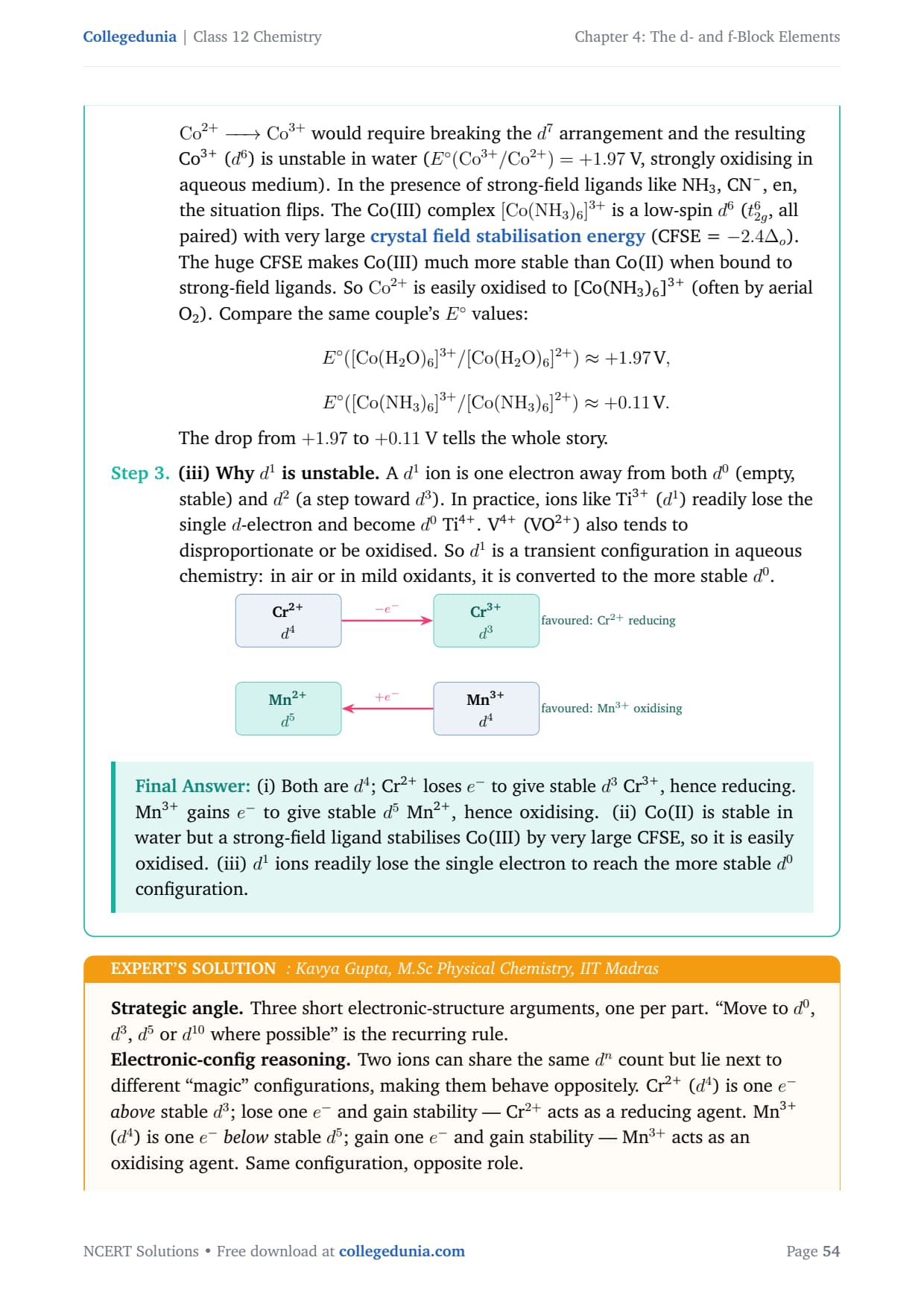

- (ii) Cobalt(II) in water vs in complexes. [Co(H2O)6]^2+ (pink) has Co(II) in a weak ligand field; it is stable in aqueous solution because the oxidation Co2+ -> Co3+ would require breaking the d7 arrangement and the resulting Co^3+ (d6) is unstable in water (E∘(Co3+/Co2+) = +1.97 V, strongly oxidising in aqueous medium). In the presence of strong-field ligands like NH3, CN-, en, the situation flips. The Co(III) complex [Co(NH3)6]3+ is a low-spin d6 (t2g6, all paired) with very large crystal field stabilisation energy (CFSE = -2.4o). The huge CFSE makes Co(III) much more stable than Co(II) when bound to strong-field ligands. So Co2+ is easily oxidised to [Co(NH3)6]^3+ (often by aerial O2). Compare the same couple's E∘ values: E∘([Co(H2O)6]3+/[Co(H2O)6]2+) ≈ +1.97 V, E∘([Co(NH3)6]3+/[Co(NH3)6]2+) ≈ +0.11 V. The drop from +1.97 to +0.11 V tells the whole story.
- (iii) Why d1 is unstable. A d1 ion is one electron away from both d0 (empty, stable) and d2 (a step toward d3). In practice, ions like Ti^3+ (d1) readily lose the single d-electron and become d0 Ti^4+. V^4+ (VO^2+) also tends to disproportionate or be oxidised. So d1 is a transient configuration in aqueous chemistry: in air or in mild oxidants, it is converted to the more stable d0.
(i) Both are d4; Cr^2+ loses e- to give stable d3 Cr^3+, hence reducing. Mn^3+ gains e- to give stable d5 Mn^2+, hence oxidising. (ii) Co(II) is stable in water but a strong-field ligand stabilises Co(III) by very large CFSE, so it is easily oxidised. (iii) d1 ions readily lose the single electron to reach the more stable d0 configuration.
Strategic angle. Three short electronic-structure arguments, one per part. ``Move to d0, d3, d5 or d10 where possible'' is the recurring rule.
Electronic-config reasoning. Two ions can share the same dn count but lie next to different ``magic'' configurations, making them behave oppositely. Cr^2+ (d4) is one e- above stable d3; lose one e- and gain stability — Cr2+ acts as a reducing agent. Mn^3+ (d4) is one e- below stable d5; gain one e- and gain stability — Mn3+ acts as an oxidising agent. Same configuration, opposite role.

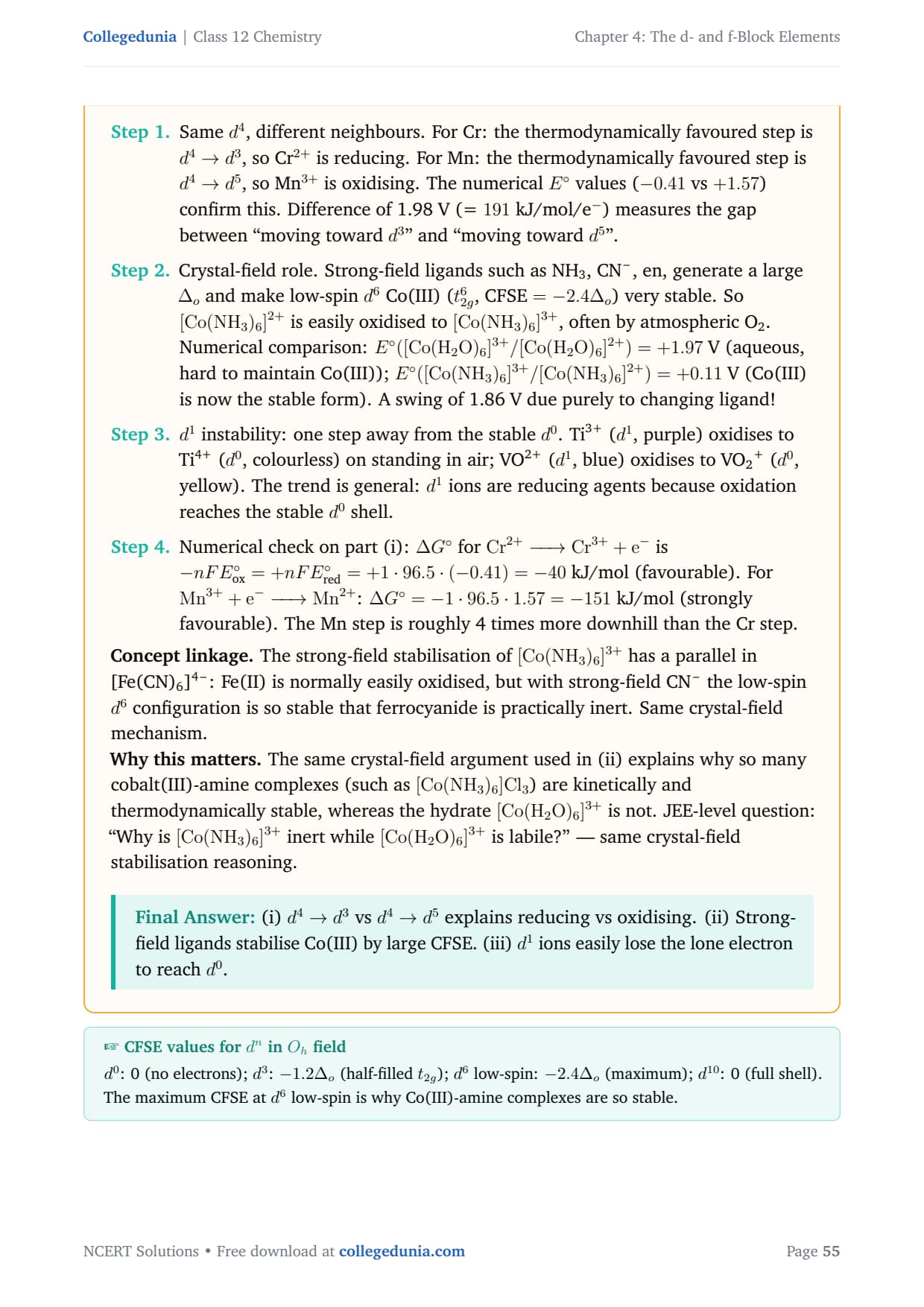

- Same d4, different neighbours. For Cr: the thermodynamically favoured step is d4 → d3, so Cr2+ is reducing. For Mn: the thermodynamically favoured step is d4 → d5, so Mn3+ is oxidising. The numerical E∘ values (-0.41 vs +1.57) confirm this. Difference of 1.98 V (= 191 kJ/mol/e-) measures the gap between ``moving toward d3'' and ``moving toward d5''.
- Crystal-field role. Strong-field ligands such as NH3, CN-, en, generate a large o and make low-spin d6 Co(III) (t2g6, CFSE =-2.4o) very stable. So [Co(NH3)6]2+ is easily oxidised to [Co(NH3)6]3+, often by atmospheric O2. Numerical comparison: E∘([Co(H2O)6]3+/[Co(H2O)6]2+) = +1.97 V (aqueous, hard to maintain Co(III)); E∘([Co(NH3)6]3+/[Co(NH3)6]2+) = +0.11 V (Co(III) is now the stable form). A swing of 1.86 V due purely to changing ligand!
- d1 instability: one step away from the stable d0. Ti^3+ (d1, purple) oxidises to Ti^4+ (d0, colourless) on standing in air; VO^2+ (d1, blue) oxidises to VO2+ (d0, yellow). The trend is general: d1 ions are reducing agents because oxidation reaches the stable d0 shell.
- Numerical check on part (i): Δ G∘ for Cr2+ -> Cr3+ + e- is -nFE∘ox = +nFE∘red = +1 · 96.5 · (-0.41) = -40 kJ/mol (favourable). For Mn3+ + e- -> Mn2+: Δ G∘ = -1 · 96.5 · 1.57 = -151 kJ/mol (strongly favourable). The Mn step is roughly 4 times more downhill than the Cr step.
Concept linkage. The strong-field stabilisation of [Co(NH3)6]3+ has a parallel in [Fe(CN)6]^4-: Fe(II) is normally easily oxidised, but with strong-field CN- the low-spin d6 configuration is so stable that ferrocyanide is practically inert. Same crystal-field mechanism.
Why this matters. The same crystal-field argument used in (ii) explains why so many cobalt(III)-amine complexes (such as [Co(NH3)6]Cl3) are kinetically and thermodynamically stable, whereas the hydrate [Co(H2O)6]3+ is not. JEE-level question: ``Why is [Co(NH3)6]3+ inert while [Co(H2O)6]3+ is labile?'' — same crystal-field stabilisation reasoning.
(i) d4 → d3 vs d4 → d5 explains reducing vs oxidising. (ii) Strong-field ligands stabilise Co(III) by large CFSE. (iii) d1 ions easily lose the lone electron to reach d0.

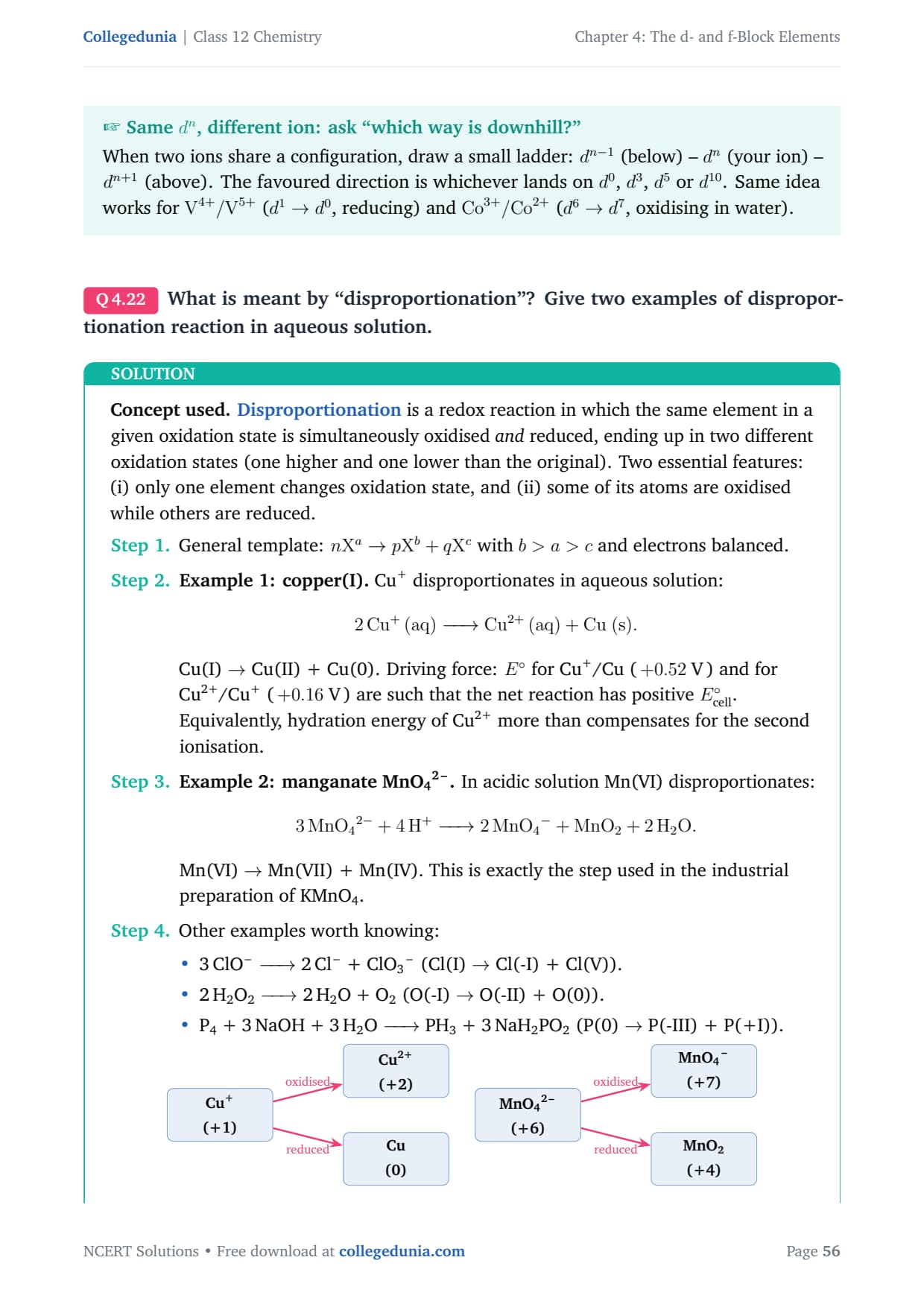

What is meant by ``disproportionation''? Give two examples of disproportionation reaction in aqueous solution.
Concept used. Disproportionation is a redox reaction in which the same element in a given oxidation state is simultaneously oxidised and reduced, ending up in two different oxidation states (one higher and one lower than the original). Two essential features: (i) only one element changes oxidation state, and (ii) some of its atoms are oxidised while others are reduced.
- General template: n Xa → p Xb + q Xc with b > a > c and electrons balanced.
- Example 1: copper(I). Cu+ disproportionates in aqueous solution: 2 Cu+ (aq) -> Cu2+ (aq) + Cu (s). Cu(I) → Cu(II) + Cu(0). Driving force: E∘ for Cu+/Cu ( +0.52 V ) and for Cu^2+/Cu+ ( +0.16 V ) are such that the net reaction has positive E∘cell. Equivalently, hydration energy of Cu^2+ more than compensates for the second ionisation.
- Example 2: manganate MnO4^2-. In acidic solution Mn(VI) disproportionates: 3 MnO42- + 4 H+ -> 2 MnO4- + MnO2 + 2 H2O. Mn(VI) → Mn(VII) + Mn(IV). This is exactly the step used in the industrial preparation of KMnO4.
- Other examples worth knowing:
- 3 ClO- -> 2 Cl- + ClO3- (Cl(I) → Cl(-I) + Cl(V)).
- 2 H2O2 -> 2 H2O + O2 (O(-I) → O(-II) + O(0)).
- P4 + 3 NaOH + 3 H2O -> PH3 + 3 NaH2PO2 (P(0) → P(-III) + P(+I)).
Disproportionation: one element in a single oxidation state ends up in two states (one higher, one lower). Examples: 2 Cu+ -> Cu^2+ + Cu; 3 MnO4^2- + 4 H+ -> 2 MnO4- + MnO2 + 2 H2O.

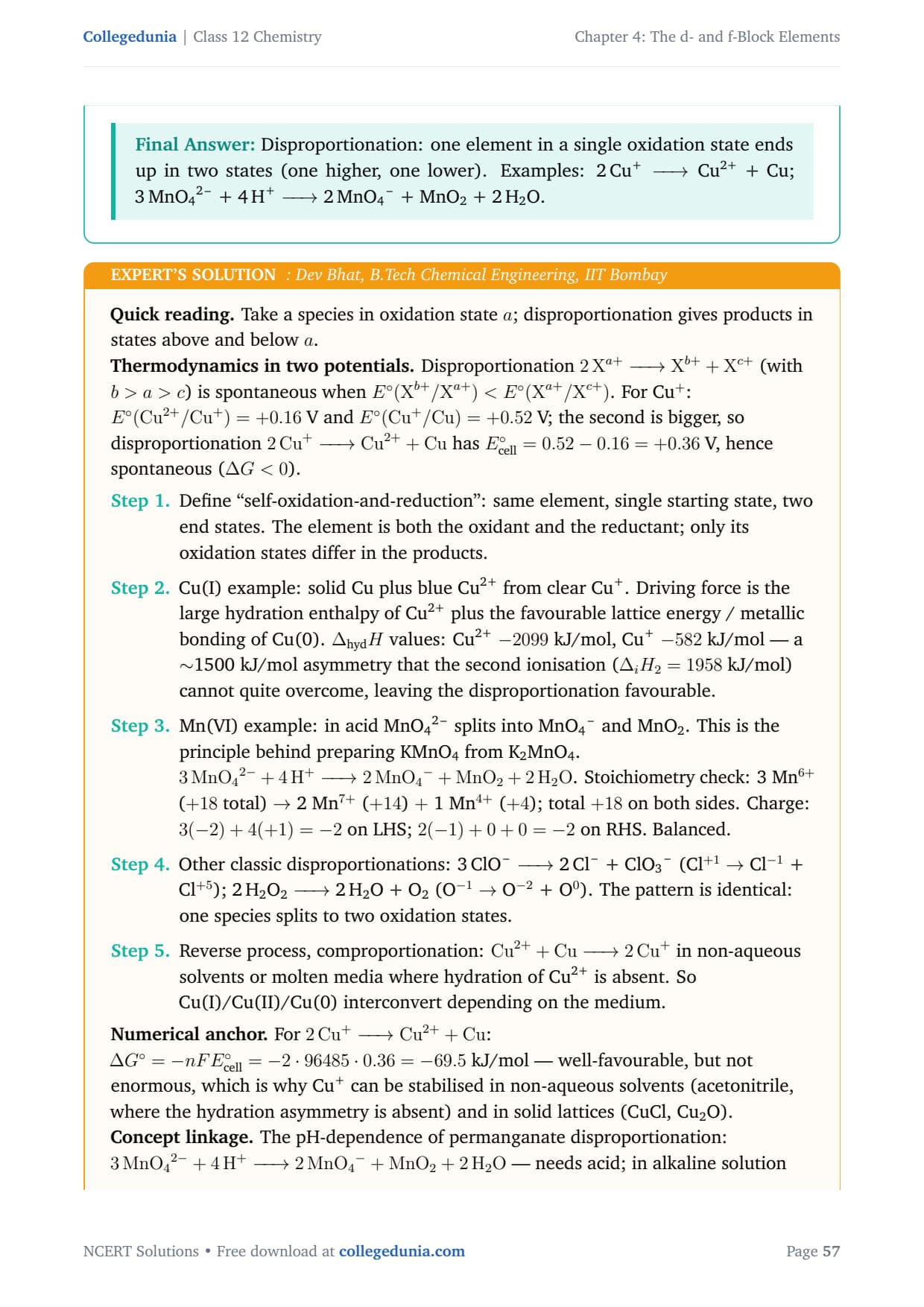

Quick reading. Take a species in oxidation state a; disproportionation gives products in states above and below a.
Thermodynamics in two potentials. Disproportionation 2 Xa+ -> Xb+ + Xc+ (with b > a > c) is spontaneous when E∘(Xb+/Xa+) < E∘(Xa+/Xc+). For Cu+: E∘(Cu2+/Cu+) = +0.16 V and E∘(Cu+/Cu) = +0.52 V; the second is bigger, so disproportionation 2 Cu+ -> Cu2+ + Cu has E∘cell = 0.52 - 0.16 = +0.36 V, hence spontaneous (Δ G < 0).
- Define ``self-oxidation-and-reduction'': same element, single starting state, two end states. The element is both the oxidant and the reductant; only its oxidation states differ in the products.
- Cu(I) example: solid Cu plus blue Cu^2+ from clear Cu+. Driving force is the large hydration enthalpy of Cu^2+ plus the favourable lattice energy / metallic bonding of Cu(0). hydH values: Cu^2+ -2099 kJ/mol, Cu+ -582 kJ/mol — a ∼1500 kJ/mol asymmetry that the second ionisation (iH2 = 1958 kJ/mol) cannot quite overcome, leaving the disproportionation favourable.
- Mn(VI) example: in acid MnO4^2- splits into MnO4- and MnO2. This is the principle behind preparing KMnO4 from K2MnO4. 3 MnO42- + 4 H+ -> 2 MnO4- + MnO2 + 2 H2O. Stoichiometry check: 3 Mn6+ (+18 total) → 2 Mn7+ (+14) + 1 Mn4+ (+4); total +18 on both sides. Charge: 3(-2)+4(+1) = -2 on LHS; 2(-1)+0+0 = -2 on RHS. Balanced.
- Other classic disproportionations: 3 ClO- -> 2 Cl- + ClO3- (Cl+1 → Cl-1 + Cl+5); 2 H2O2 -> 2 H2O + O2 (O-1 → O-2 + O0). The pattern is identical: one species splits to two oxidation states.
- Reverse process, comproportionation: Cu2+ + Cu -> 2 Cu+ in non-aqueous solvents or molten media where hydration of Cu^2+ is absent. So Cu(I)/Cu(II)/Cu(0) interconvert depending on the medium.
Numerical anchor. For 2 Cu+ -> Cu2+ + Cu: Δ G∘ = -nFE∘cell = -2 · 96485 · 0.36 = -69.5 kJ/mol — well-favourable, but not enormous, which is why Cu+ can be stabilised in non-aqueous solvents (acetonitrile, where the hydration asymmetry is absent) and in solid lattices (CuCl, Cu2O).
Concept linkage. The pH-dependence of permanganate disproportionation: 3 MnO42- + 4 H+ -> 2 MnO4- + MnO2 + 2 H2O — needs acid; in alkaline solution MnO4^2- is stable. So the prep of KMnO4 from K2MnO4 requires careful pH control. The same species, two media, two different outcomes — Le Chatelier in action.
Why this matters. Disproportionation explains why Cu(I) salts are rare in aqueous solution (yet stable in solids: CuCl, Cu2O, Cu2S) and why KMnO4 has to be purified through a careful acid-precipitation cycle. Industrially, the disproportionation of Cl2 in cold dilute NaOH gives household bleach (Cl2 + 2 NaOH -> NaCl + NaClO + H2O), and in hot conc. NaOH gives NaClO3 (3 Cl2 + 6 NaOH -> 5 NaCl + NaClO3 + 3 H2O).
Disproportionation: same element, same starting O.S., two product O.S. (one higher, one lower). Examples: Cu+ and MnO4^2-.

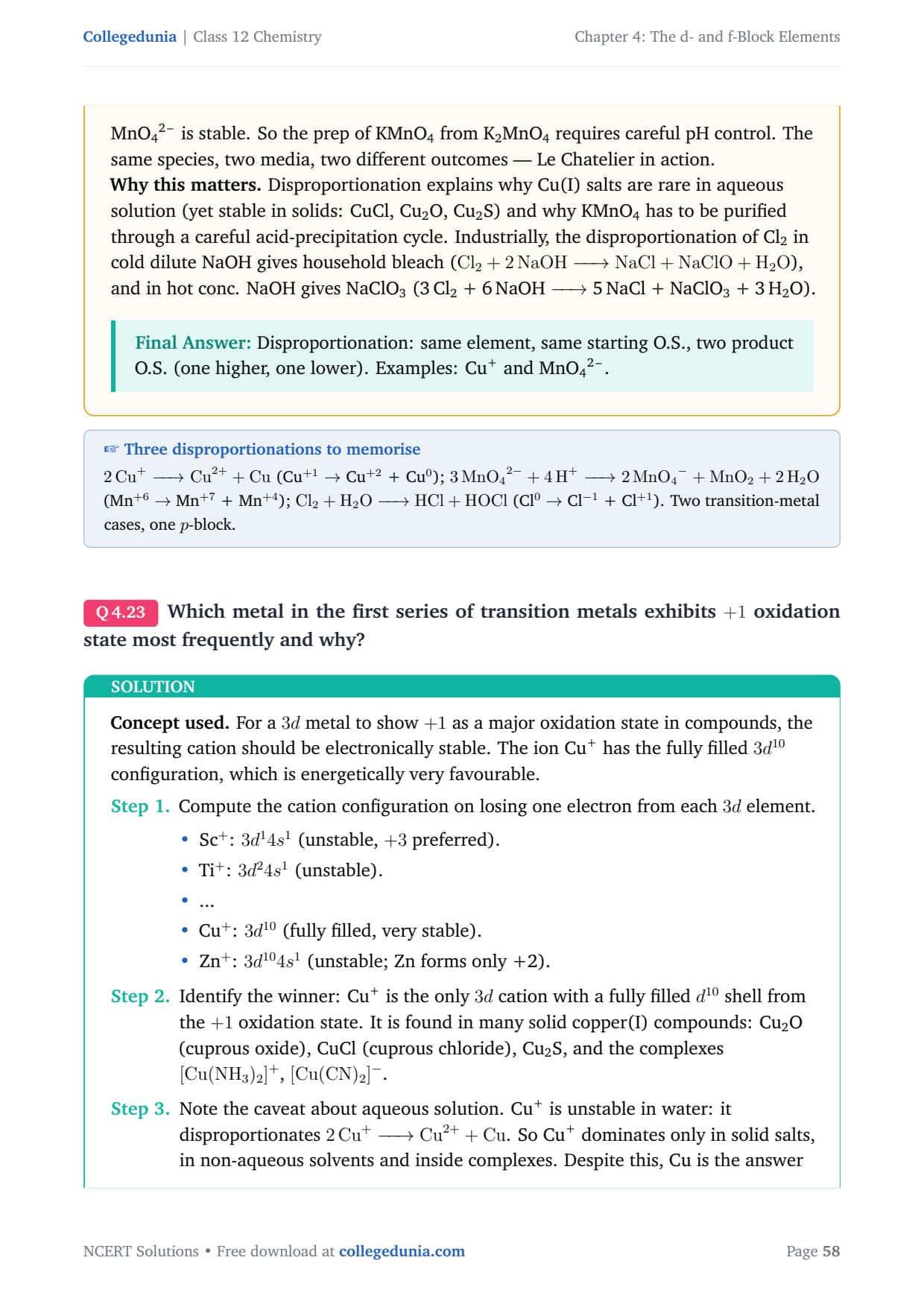

Which metal in the first series of transition metals exhibits +1 oxidation state most frequently and why?
Concept used. For a 3d metal to show +1 as a major oxidation state in compounds, the resulting cation should be electronically stable. The ion Cu+ has the fully filled 3d10 configuration, which is energetically very favourable.
- Compute the cation configuration on losing one electron from
each 3d element.
- Sc+: 3d14s1 (unstable, +3 preferred).
- Ti+: 3d24s1 (unstable).
- ...
- Cu+: 3d10 (fully filled, very stable).
- Zn+: 3d104s1 (unstable; Zn forms only +2).
- Identify the winner: Cu+ is the only 3d cation with a fully filled d10 shell from the +1 oxidation state. It is found in many solid copper(I) compounds: Cu2O (cuprous oxide), CuCl (cuprous chloride), Cu2S, and the complexes [Cu(NH3)2]+, [Cu(CN)2]-.
- Note the caveat about aqueous solution. Cu+ is unstable in water: it disproportionates 2 Cu+ -> Cu2+ + Cu. So Cu+ dominates only in solid salts, in non-aqueous solvents and inside complexes. Despite this, Cu is the answer because no other 3d metal gives a stable +1 ion at all.

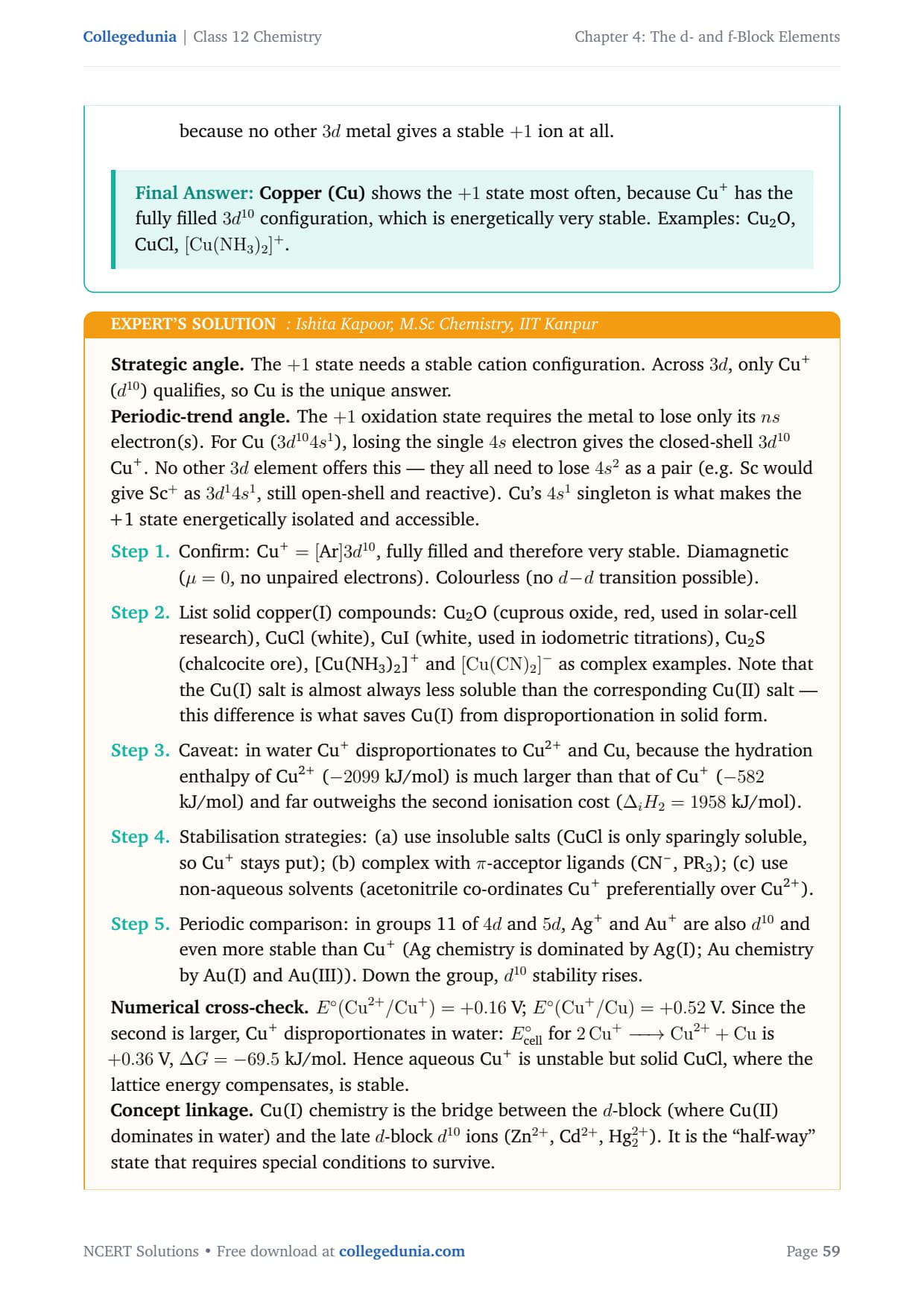

Copper (Cu) shows the +1 state most often, because Cu+ has the fully filled 3d10 configuration, which is energetically very stable. Examples: Cu2O, CuCl, [Cu(NH3)2]+.
Strategic angle. The +1 state needs a stable cation configuration. Across 3d, only Cu+ (d10) qualifies, so Cu is the unique answer.
Periodic-trend angle. The +1 oxidation state requires the metal to lose only its ns electron(s). For Cu (3d104s1), losing the single 4s electron gives the closed-shell 3d10 Cu+. No other 3d element offers this — they all need to lose 4s2 as a pair (e.g. Sc would give Sc+ as 3d14s1, still open-shell and reactive). Cu's 4s1 singleton is what makes the +1 state energetically isolated and accessible.
- Confirm: Cu+ = [Ar]3d10, fully filled and therefore very stable. Diamagnetic (μ = 0, no unpaired electrons). Colourless (no d-d transition possible).
- List solid copper(I) compounds: Cu2O (cuprous oxide, red, used in solar-cell research), CuCl (white), CuI (white, used in iodometric titrations), Cu2S (chalcocite ore), [Cu(NH3)2]+ and [Cu(CN)2]- as complex examples. Note that the Cu(I) salt is almost always less soluble than the corresponding Cu(II) salt — this difference is what saves Cu(I) from disproportionation in solid form.
- Caveat: in water Cu+ disproportionates to Cu^2+ and Cu, because the hydration enthalpy of Cu^2+ (-2099 kJ/mol) is much larger than that of Cu+ (-582 kJ/mol) and far outweighs the second ionisation cost (iH2 = 1958 kJ/mol).
- Stabilisation strategies: (a) use insoluble salts (CuCl is only sparingly soluble, so Cu+ stays put); (b) complex with π-acceptor ligands (CN-, PR3); (c) use non-aqueous solvents (acetonitrile co-ordinates Cu+ preferentially over Cu^2+).
- Periodic comparison: in groups 11 of 4d and 5d, Ag+ and Au+ are also d10 and even more stable than Cu+ (Ag chemistry is dominated by Ag(I); Au chemistry by Au(I) and Au(III)). Down the group, d10 stability rises.
Numerical cross-check. E∘(Cu2+/Cu+) = +0.16 V; E∘(Cu+/Cu) = +0.52 V. Since the second is larger, Cu+ disproportionates in water: E∘cell for 2 Cu+ -> Cu2+ + Cu is +0.36 V, Δ G = -69.5 kJ/mol. Hence aqueous Cu^+ is unstable but solid CuCl, where the lattice energy compensates, is stable.
Concept linkage. Cu(I) chemistry is the bridge between the d-block (where Cu(II) dominates in water) and the late d-block d10 ions (Zn2+, Cd2+, Hg22+). It is the ``half-way'' state that requires special conditions to survive.
Why this matters. Recognising d10 stability is the 3d-block analogue of the inert-pair effect in the p-block: a full sub-shell is hard to disturb. Industrially, CuCl catalyses the Sandmeyer reaction (diazonium → aryl halide), and Cu2O is the basis of the Tollens reagent test for aldehydes (Cu+ oxidising to Cu^2+ via aldehyde-mediated Fehling's solution).
Cu, because Cu+ has 3d10 (fully filled and very stable). Solid Cu(I) compounds include Cu2O and CuCl.
Calculate the number of unpaired electrons in the following gaseous ions: Mn^3+, Cr^3+, V^3+ and Ti^3+. Which one of these is the most stable in aqueous solution?
Concept used. To count unpaired electrons in a gaseous 3d ion, write its electron configuration and place the electrons in the five degenerate 3d orbitals following Hund's rule: first fill each orbital with one electron of parallel spin, then pair them up. The number left unpaired gives n. The spin-only magnetic moment is then μ = √n(n+2) BM.
- Ti^3+ (Z = 22). Neutral Ti: [Ar] 3d24s2. Ti^3+: remove 3 electrons (two 4s, one 3d): [Ar] 3d1. So n = 1, and μ = √1 · 3 = √3 = 1.73 BM.
- V^3+ (Z = 23). Neutral V: [Ar] 3d34s2. V^3+: [Ar] 3d2. So n = 2, and μ = √2 · 4 = √8 = 2.83 BM.
- Cr^3+ (Z = 24). Neutral Cr: [Ar] 3d54s1. Cr^3+: [Ar] 3d3. So n = 3, and μ = √3 · 5 = √15 = 3.87 BM.
- Mn^3+ (Z = 25). Neutral Mn: [Ar] 3d54s2. Mn^3+: [Ar] 3d4. So n = 4, and μ = √4 · 6 = √24 = 4.90 BM.

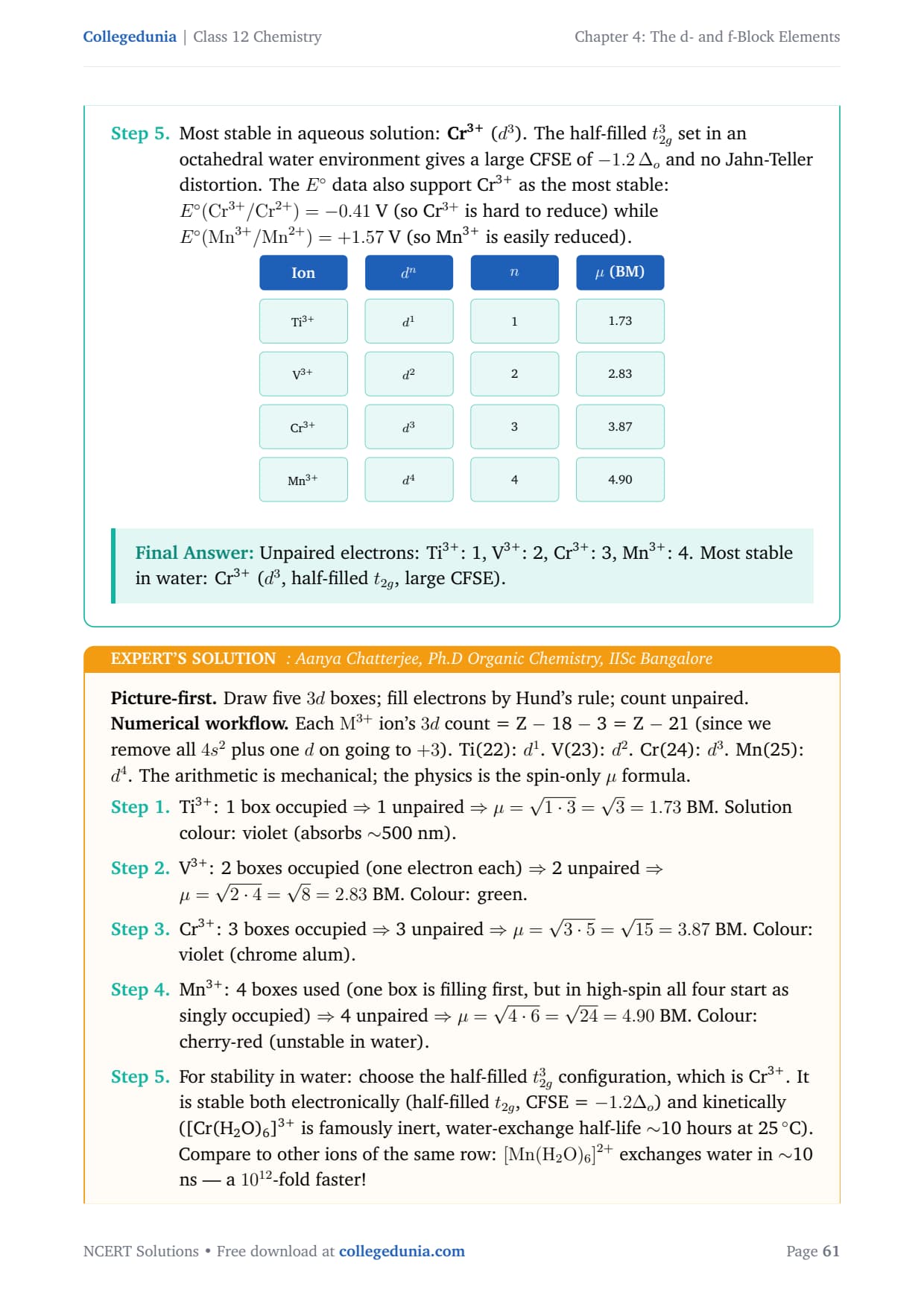

- Most stable in aqueous solution: Cr^3+ (d3). The half-filled t2g3 set in an octahedral water environment gives a large CFSE of -1.2 o and no Jahn-Teller distortion. The E∘ data also support Cr^3+ as the most stable: E∘(Cr3+/Cr2+) = -0.41 V (so Cr3+ is hard to reduce) while E∘(Mn3+/Mn2+) = +1.57 V (so Mn^3+ is easily reduced).
Unpaired electrons: Ti^3+: 1, V^3+: 2, Cr^3+: 3, Mn^3+: 4. Most stable in water: Cr^3+ (d3, half-filled t2g, large CFSE).
Picture-first. Draw five 3d boxes; fill electrons by Hund's rule; count unpaired.
Numerical workflow. Each M3+ ion's 3d count = Z - 18 - 3 = Z - 21 (since we remove all 4s2 plus one d on going to +3). Ti(22): d1. V(23): d2. Cr(24): d3. Mn(25): d4. The arithmetic is mechanical; the physics is the spin-only μ formula.
- Ti^3+: 1 box occupied ⇒ 1 unpaired ⇒ μ = √1 · 3 = √3 = 1.73 BM. Solution colour: violet (absorbs ∼500 nm).
- V^3+: 2 boxes occupied (one electron each) ⇒ 2 unpaired ⇒ μ = √2 · 4 = √8 = 2.83 BM. Colour: green.
- Cr^3+: 3 boxes occupied ⇒ 3 unpaired ⇒ μ = √3 · 5 = √15 = 3.87 BM. Colour: violet (chrome alum).
- Mn^3+: 4 boxes used (one box is filling first, but in high-spin all four start as singly occupied) ⇒ 4 unpaired ⇒ μ = √4 · 6 = √24 = 4.90 BM. Colour: cherry-red (unstable in water).
- For stability in water: choose the half-filled t2g3 configuration, which is Cr^3+. It is stable both electronically (half-filled t2g, CFSE = -1.2o) and kinetically ([Cr(H2O)6]^3+ is famously inert, water-exchange half-life ∼10 hours at 25 ∘C). Compare to other ions of the same row: [Mn(H2O)6]2+ exchanges water in ∼10 ns — a 1012-fold faster!

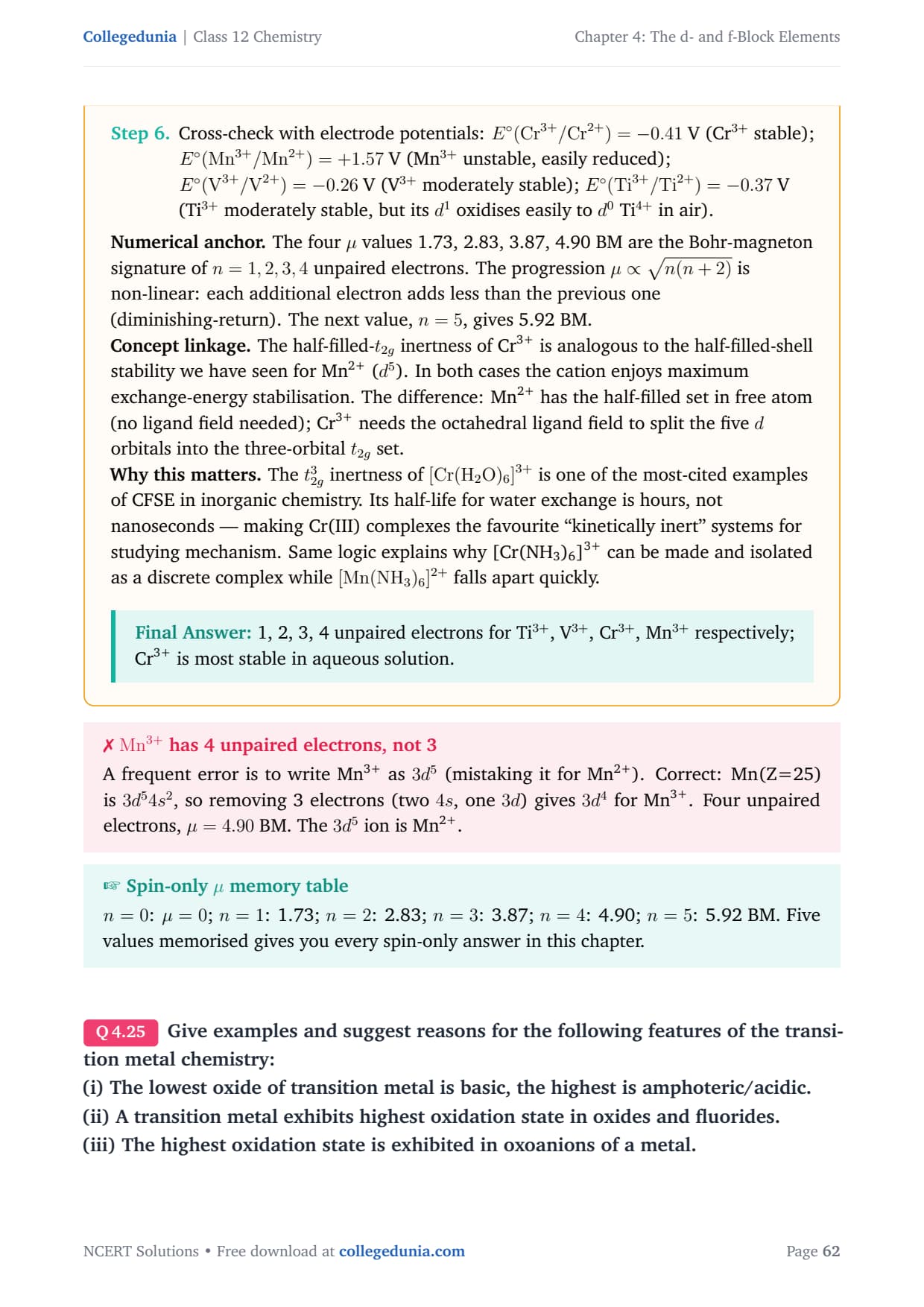

- Cross-check with electrode potentials: E∘(Cr3+/Cr2+) = -0.41 V (Cr3+ stable); E∘(Mn3+/Mn2+) = +1.57 V (Mn3+ unstable, easily reduced); E∘(V3+/V2+) = -0.26 V (V3+ moderately stable); E∘(Ti3+/Ti2+) = -0.37 V (Ti3+ moderately stable, but its d1 oxidises easily to d0 Ti4+ in air).
Numerical anchor. The four μ values 1.73, 2.83, 3.87, 4.90 BM are the Bohr-magneton signature of n = 1, 2, 3, 4 unpaired electrons. The progression μ ∝ √n(n+2) is non-linear: each additional electron adds less than the previous one (diminishing-return). The next value, n = 5, gives 5.92 BM.
Concept linkage. The half-filled-t2g inertness of Cr^3+ is analogous to the half-filled-shell stability we have seen for Mn^2+ (d5). In both cases the cation enjoys maximum exchange-energy stabilisation. The difference: Mn^2+ has the half-filled set in free atom (no ligand field needed); Cr^3+ needs the octahedral ligand field to split the five d orbitals into the three-orbital t2g set.
Why this matters. The t2g3 inertness of [Cr(H2O)6]3+ is one of the most-cited examples of CFSE in inorganic chemistry. Its half-life for water exchange is hours, not nanoseconds — making Cr(III) complexes the favourite ``kinetically inert'' systems for studying mechanism. Same logic explains why [Cr(NH3)6]^3+ can be made and isolated as a discrete complex while [Mn(NH3)6]2+ falls apart quickly.
1, 2, 3, 4 unpaired electrons for Ti3+, V3+, Cr3+, Mn3+ respectively; Cr^3+ is most stable in aqueous solution.
Give examples and suggest reasons for the following features of the transition metal chemistry:
(i) The lowest oxide of transition metal is basic, the highest is amphoteric/acidic.
(ii) A transition metal exhibits highest oxidation state in oxides and fluorides.
(iii) The highest oxidation state is exhibited in oxoanions of a metal.

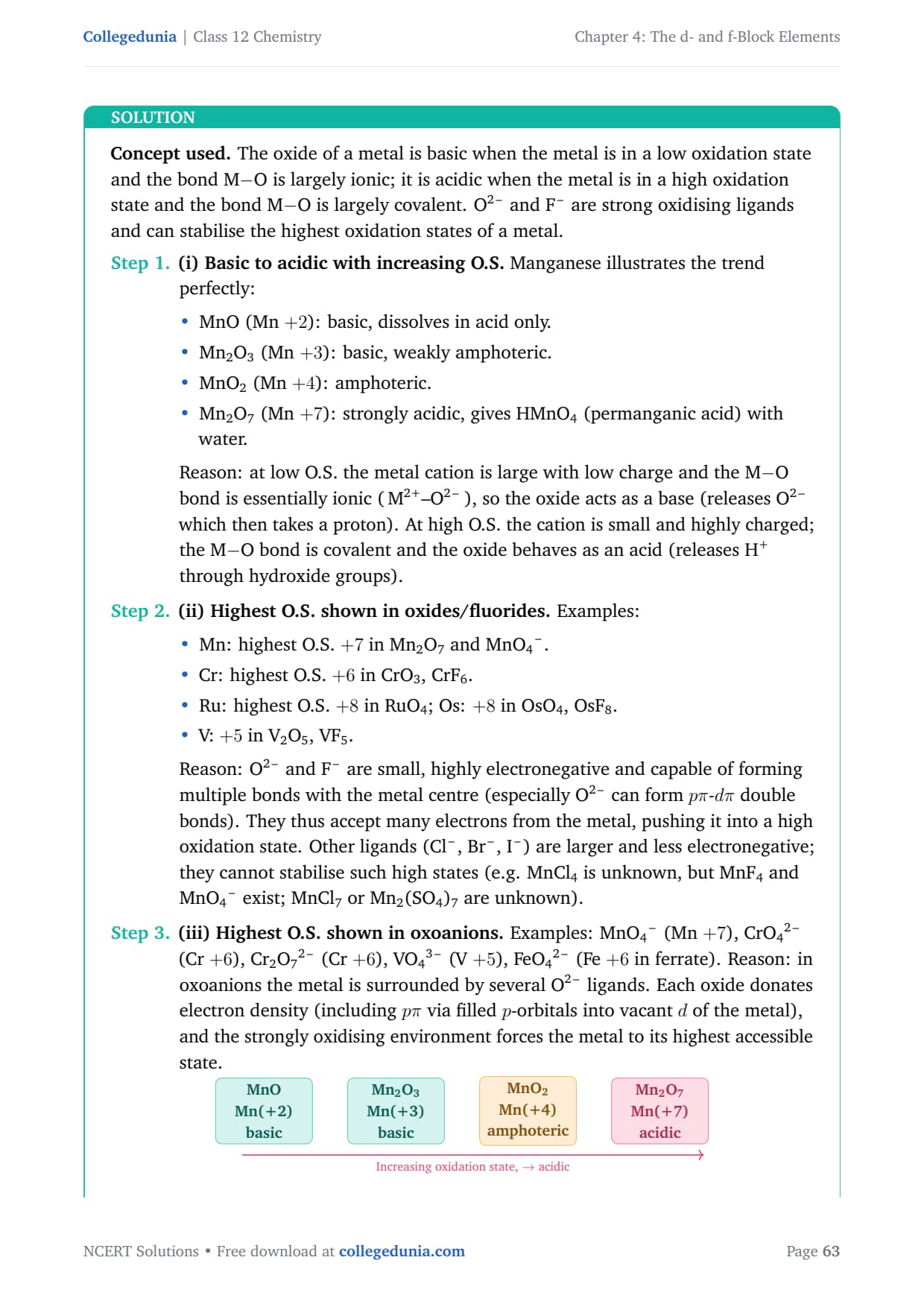

Concept used. The oxide of a metal is basic when the metal is in a low oxidation state and the bond M-O is largely ionic; it is acidic when the metal is in a high oxidation state and the bond M-O is largely covalent. O^2- and F- are strong oxidising ligands and can stabilise the highest oxidation states of a metal.
- (i) Basic to acidic with increasing O.S.
Manganese illustrates the trend perfectly:
- MnO (Mn +2): basic, dissolves in acid only.
- Mn2O3 (Mn +3): basic, weakly amphoteric.
- MnO2 (Mn +4): amphoteric.
- Mn2O7 (Mn +7): strongly acidic, gives HMnO4 (permanganic acid) with water.
- (ii) Highest O.S. shown in oxides/fluorides.
Examples:
- Mn: highest O.S. +7 in Mn2O7 and MnO4-.
- Cr: highest O.S. +6 in CrO3, CrF6.
- Ru: highest O.S. +8 in RuO4; Os: +8 in OsO4, OsF8.
- V: +5 in V2O5, VF5.
- (iii) Highest O.S. shown in oxoanions. Examples: MnO4- (Mn +7), CrO4^2- (Cr +6), Cr2O7^2- (Cr +6), VO4^3- (V +5), FeO4^2- (Fe +6 in ferrate). Reason: in oxoanions the metal is surrounded by several O^2- ligands. Each oxide donates electron density (including pπ via filled p-orbitals into vacant d of the metal), and the strongly oxidising environment forces the metal to its highest accessible state.

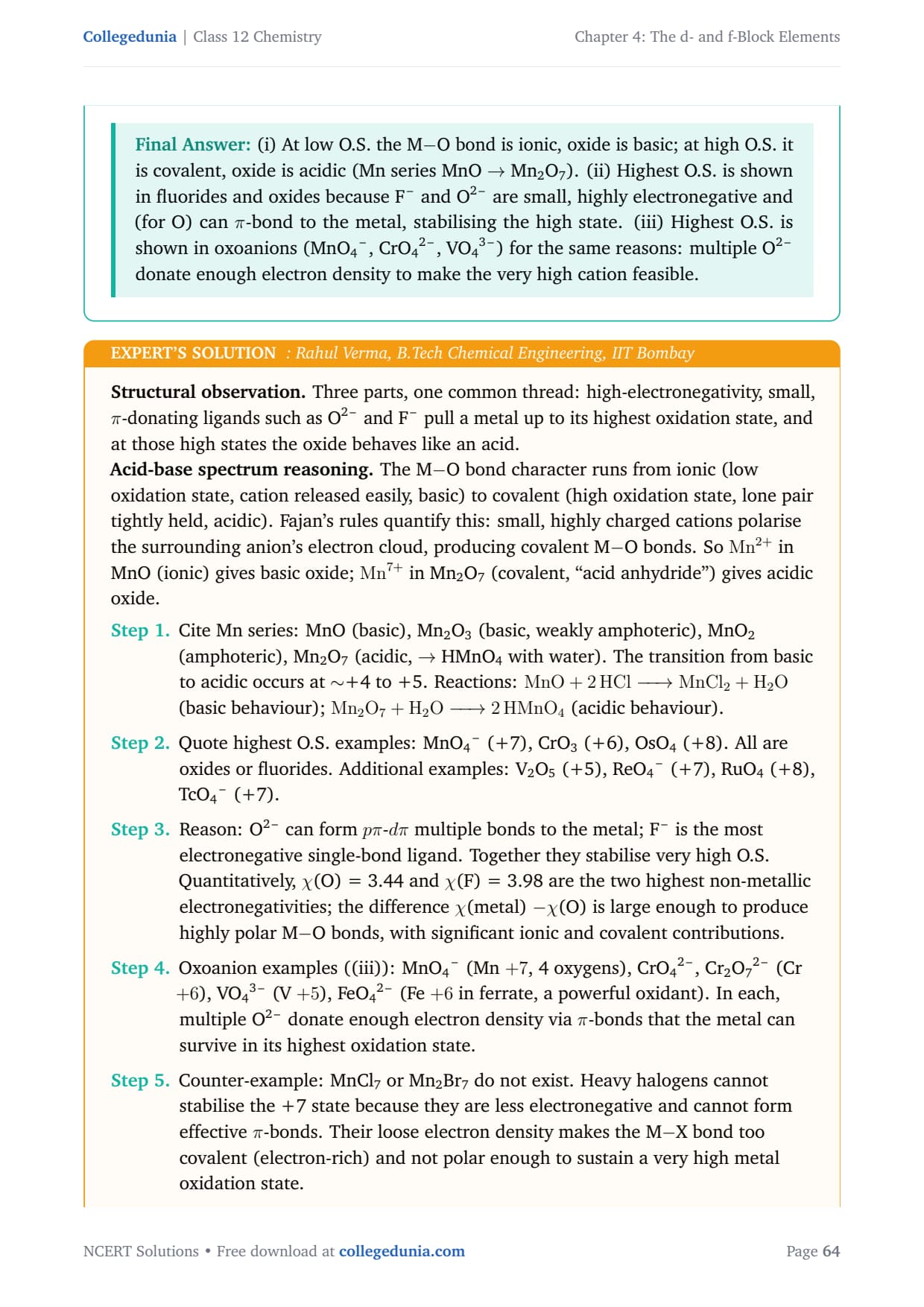

(i) At low O.S. the M-O bond is ionic, oxide is basic; at high O.S. it is covalent, oxide is acidic (Mn series MnO → Mn2O7). (ii) Highest O.S. is shown in fluorides and oxides because F- and O^2- are small, highly electronegative and (for O) can π-bond to the metal, stabilising the high state. (iii) Highest O.S. is shown in oxoanions (MnO4-, CrO4^2-, VO4^3-) for the same reasons: multiple O^2- donate enough electron density to make the very high cation feasible.
Structural observation. Three parts, one common thread: high-electronegativity, small, π-donating ligands such as O^2- and F- pull a metal up to its highest oxidation state, and at those high states the oxide behaves like an acid.
Acid-base spectrum reasoning. The M-O bond character runs from ionic (low oxidation state, cation released easily, basic) to covalent (high oxidation state, lone pair tightly held, acidic). Fajan's rules quantify this: small, highly charged cations polarise the surrounding anion's electron cloud, producing covalent M-O bonds. So Mn2+ in MnO (ionic) gives basic oxide; Mn7+ in Mn2O7 (covalent, ``acid anhydride'') gives acidic oxide.
- Cite Mn series: MnO (basic), Mn2O3 (basic, weakly amphoteric), MnO2 (amphoteric), Mn2O7 (acidic, → HMnO4 with water). The transition from basic to acidic occurs at ∼+4 to +5. Reactions: MnO + 2 HCl -> MnCl2 + H2O (basic behaviour); Mn2O7 + H2O -> 2 HMnO4 (acidic behaviour).
- Quote highest O.S. examples: MnO4- (+7), CrO3 (+6), OsO4 (+8). All are oxides or fluorides. Additional examples: V2O5 (+5), ReO4- (+7), RuO4 (+8), TcO4- (+7).
- Reason: O^2- can form pπ-dπ multiple bonds to the metal; F- is the most electronegative single-bond ligand. Together they stabilise very high O.S. Quantitatively, χ(O) = 3.44 and χ(F) = 3.98 are the two highest non-metallic electronegativities; the difference χ(metal) - χ(O) is large enough to produce highly polar M-O bonds, with significant ionic and covalent contributions.
- Oxoanion examples ((iii)): MnO4- (Mn +7, 4 oxygens), CrO4^2-, Cr2O7^2- (Cr +6), VO4^3- (V +5), FeO4^2- (Fe +6 in ferrate, a powerful oxidant). In each, multiple O^2- donate enough electron density via π-bonds that the metal can survive in its highest oxidation state.
- Counter-example: MnCl7 or Mn2Br7 do not exist. Heavy halogens cannot stabilise the +7 state because they are less electronegative and cannot form effective π-bonds. Their loose electron density makes the M-X bond too covalent (electron-rich) and not polar enough to sustain a very high metal oxidation state.

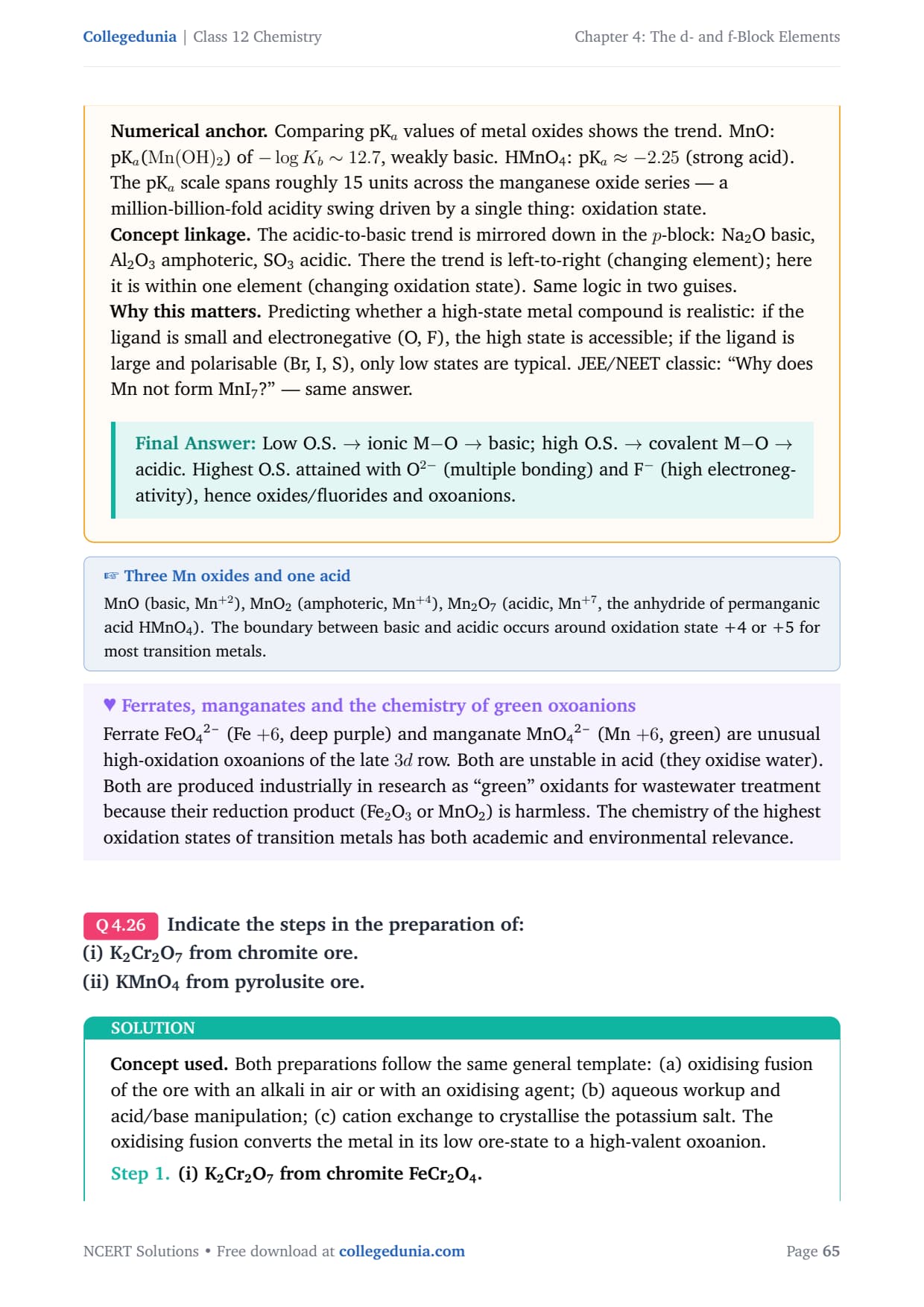

Numerical anchor. Comparing pKa values of metal oxides shows the trend. MnO: pKa(Mn(OH)2) of -log Kb ∼ 12.7, weakly basic. HMnO4: pKa ≈ -2.25 (strong acid). The pKa scale spans roughly 15 units across the manganese oxide series — a million-billion-fold acidity swing driven by a single thing: oxidation state.
Concept linkage. The acidic-to-basic trend is mirrored down in the p-block: Na2O basic, Al2O3 amphoteric, SO3 acidic. There the trend is left-to-right (changing element); here it is within one element (changing oxidation state). Same logic in two guises.
Why this matters. Predicting whether a high-state metal compound is realistic: if the ligand is small and electronegative (O, F), the high state is accessible; if the ligand is large and polarisable (Br, I, S), only low states are typical. JEE/NEET classic: ``Why does Mn not form MnI7?'' — same answer.
Low O.S. → ionic M-O → basic; high O.S. → covalent M-O → acidic. Highest O.S. attained with O2- (multiple bonding) and F- (high electronegativity), hence oxides/fluorides and oxoanions.
Indicate the steps in the preparation of:
(i) K2Cr2O7 from chromite ore.
(ii) KMnO4 from pyrolusite ore.
Concept used. Both preparations follow the same general template: (a) oxidising fusion of the ore with an alkali in air or with an oxidising agent; (b) aqueous workup and acid/base manipulation; (c) cation exchange to crystallise the potassium salt. The oxidising fusion converts the metal in its low ore-state to a high-valent oxoanion.
- (i) K2Cr2O7 from chromite FeCr2O4.
- Step 1, oxidising fusion: 4 FeCr2O4 + 8 Na2CO3 + 7 O2 -> 8 Na2CrO4 + 2 Fe2O3 + 8 CO2. Cr in chromite goes from +3 to +6; Fe stays +3 and is filtered out as Fe2O3 residue.
- Step 2, water leach and filter: the yellow Na2CrO4 dissolves; insoluble Fe2O3 is filtered.
- Step 3, acidify with H2SO4 (chromate → dichromate): 2 Na2CrO4 + H2SO4 -> Na2Cr2O7 + Na2SO4 + H2O. Colour changes from yellow to orange.
- Step 4, cation exchange with KCl: Na2Cr2O7 + 2 KCl -> K2Cr2O7 (s) + 2 NaCl. On cooling, the much less soluble orange K2Cr2O7 crystallises out.
- (ii) KMnO4 from pyrolusite MnO2.
- Step 1, alkaline oxidative fusion (Mn +4 → Mn +6): 2 MnO2 + 4 KOH + O2 -> 2 K2MnO4 + 2 H2O. (Sometimes KNO3 is used as the oxidant in place of air.) Dark green K2MnO4 is produced.
- Step 2a, electrolytic oxidation of MnO4^2- (+6) to MnO4- (+7): MnO42- -> MnO4- + e-.
- Step 2b, alternatively, acid-disproportionation: 3 MnO42- + 4 H+ -> 2 MnO4- + MnO2 + 2 H2O.
- Step 3, evaporate and crystallise dark-purple KMnO4.
(i) Chromite → Na2CrO4 (via Na2CO3, O2) → Na2Cr2O7 (via H2SO4) → K2Cr2O7 (via KCl). (ii) MnO2 → K2MnO4 (via KOH, O2) → KMnO4 (via electrolysis or H+).
Strategic angle. Each preparation has three or four named steps; learn them as one flow chart per metal.
Comparison of two preps. The two preparations follow the same template: oxidising fusion of the ore → aqueous extraction → further oxidation → crystallisation. The first metal (Cr) needs alkaline carbonate fusion to handle the chromite (FeCr2O4) and an acidification step to convert chromate to dichromate. The second (Mn) needs alkaline hydroxide fusion of MnO2 and a second electrochemical or acid step to reach +7. Both involve a total oxidation-state change of +3 in chromium, +3 in manganese (starting from the ore's value).
- K2Cr2O7: chromite (Cr3+) + soda + air → Na2CrO4 (Cr6+); acidify with H2SO4 to dichromate; crystallise with KCl. The final orange product is the well-known oxidising agent. Equation: 4 FeCr2O4 + 8 Na2CO3 + 7 O2 -> 8 Na2CrO4 + 2 Fe2O3 + 8 CO2. Δ H ≈ -1700 kJ/mol — strongly exothermic, no external heating needed once the fusion starts.
- KMnO4: pyrolusite (MnO2, Mn4+) + KOH + air → K2MnO4 (Mn6+); then +6 → +7 by electrolysis (anodic oxidation in alkaline solution) or acidification (disproportionation). Purple crystals on cooling. Equations: 2 MnO2 + 4 KOH + O2 -> 2 K2MnO4 + 2 H2O; 3 K2MnO4 + 4 HCl -> 2 KMnO4 + MnO2 + 4 KCl + 2 H2O (acid method); or anodic oxidation: MnO42- -> MnO4- + e- (at the anode).
- Side products: in the chromite process, Fe2O3 residue is a saleable iron oxide. In the pyrolusite process, the electrolytic step produces H2 at the cathode (recoverable as fuel gas).
- Common pitfall: the second step in KMnO4 preparation (K2MnO4 → KMnO4) needs careful pH control. Acidify too much and KMnO4 disproportionates further to MnO2. The lab-scale equation is run at pH ∼3–4 or by electrolytic oxidation in alkaline medium.
Numerical anchor. The Cr balance: 4 FeCr2O4 contains 8 Cr3+. Each Cr loses 3 electrons going to Cr6+, so total electrons lost = 24. Plus 4 Fe2+ losing 1 electron each = 4. Total electrons lost = 28. The 7 O2 (= 14 O atoms, each gaining 2 e-) absorbs exactly 28 electrons. Stoichiometry balances.
Concept linkage. Both preparations involve transformation of a metal ion from a low oxidation state in the ore to a high oxidation state in the product. The fundamental method (oxidising alkaline fusion in air) is the same for many metallurgical preparations including chromium, manganese, vanadium and tungsten.
Why this matters. Both compounds are industrially important oxidising agents and the basis of standard volumetric analyses. K2Cr2O7 is used in leather tanning and wood preservation; KMnO4 in water purification, organic synthesis (Baeyer's test, oxidative cleavage of alkenes), and as a disinfectant (``Condy's crystals'').

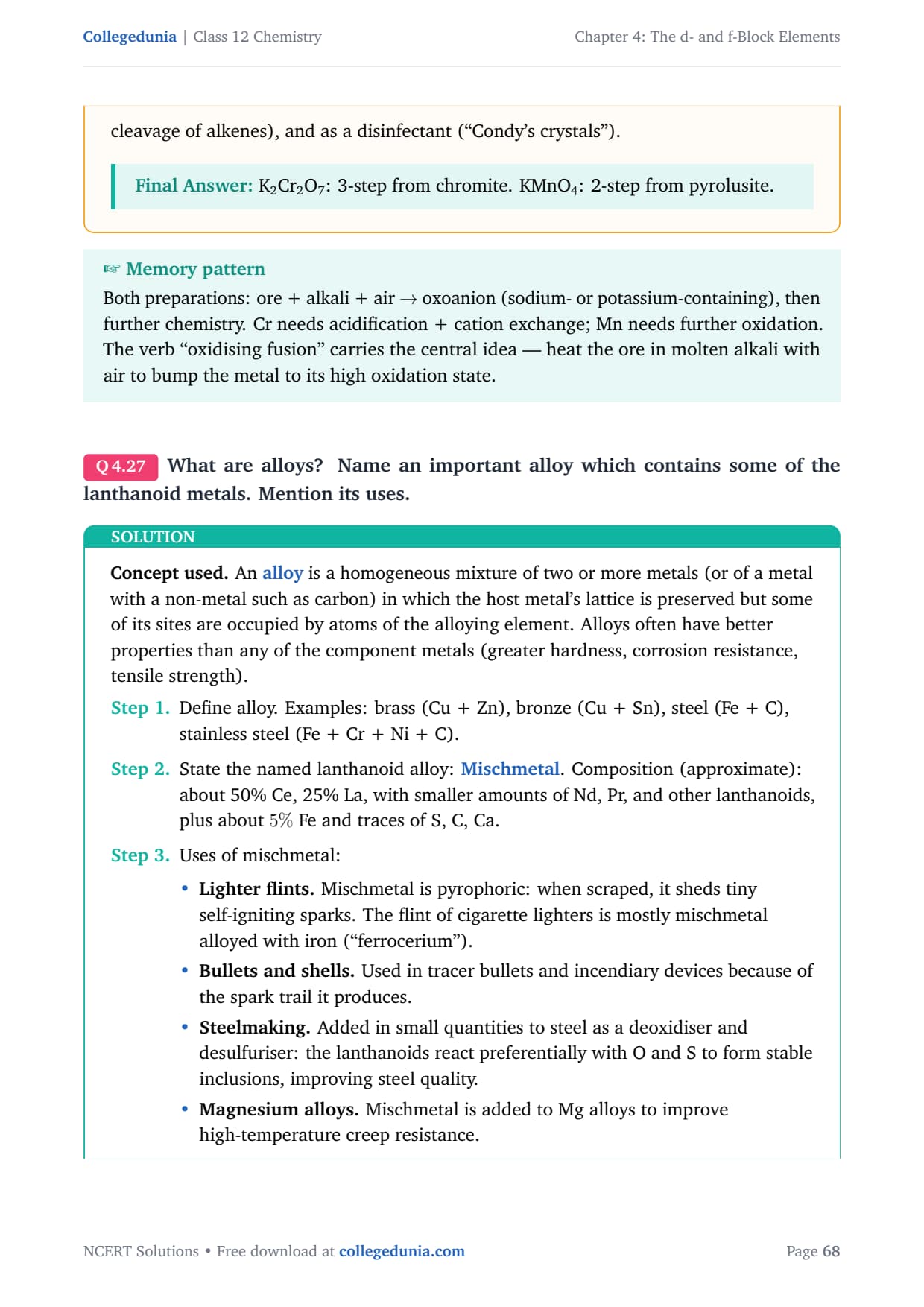

K2Cr2O7: 3-step from chromite. KMnO4: 2-step from pyrolusite.

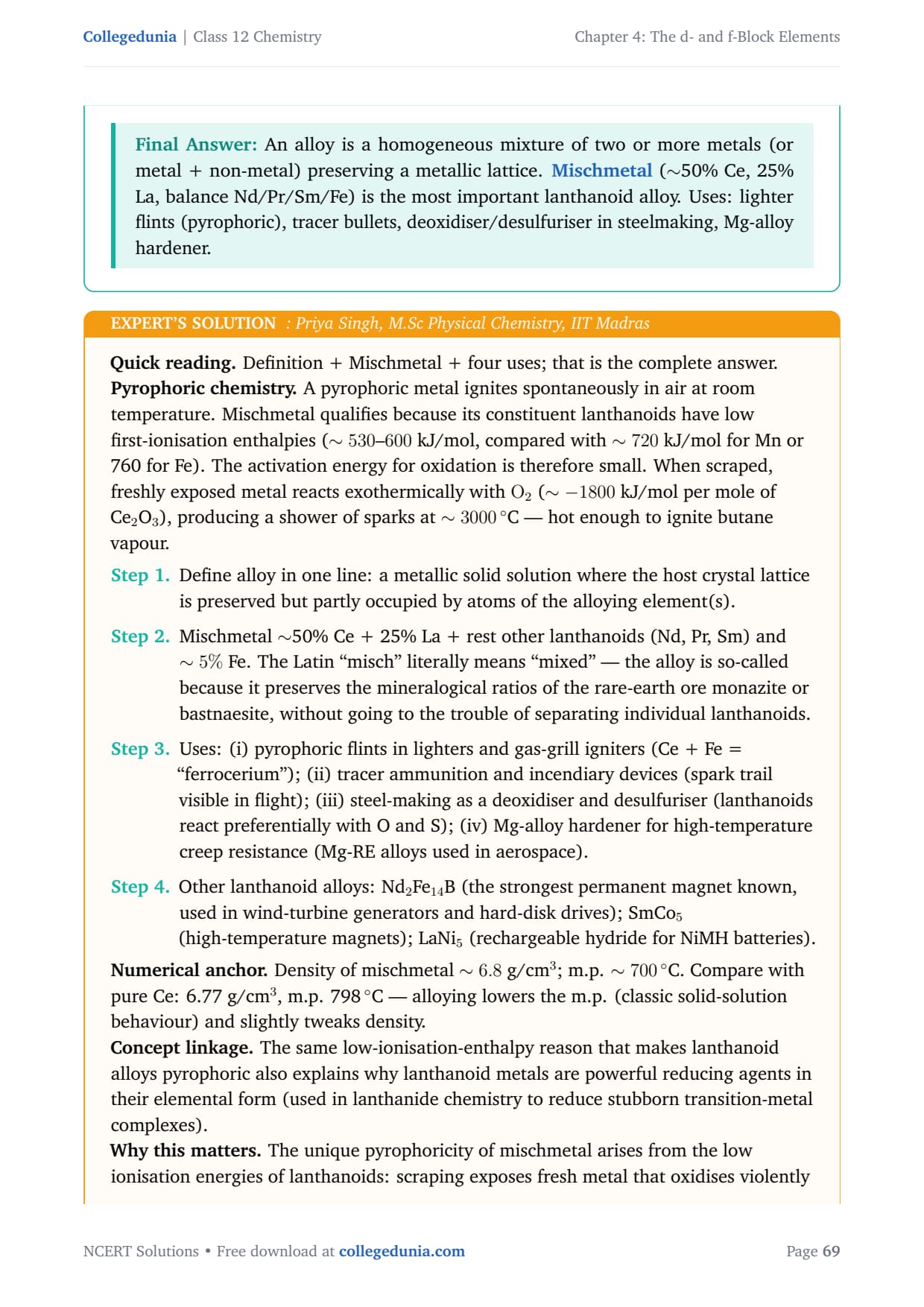

What are alloys? Name an important alloy which contains some of the lanthanoid metals. Mention its uses.
Concept used. An alloy is a homogeneous mixture of two or more metals (or of a metal with a non-metal such as carbon) in which the host metal's lattice is preserved but some of its sites are occupied by atoms of the alloying element. Alloys often have better properties than any of the component metals (greater hardness, corrosion resistance, tensile strength).
- Define alloy. Examples: brass (Cu + Zn), bronze (Cu + Sn), steel (Fe + C), stainless steel (Fe + Cr + Ni + C).
- State the named lanthanoid alloy: Mischmetal. Composition (approximate): about 50% Ce, 25% La, with smaller amounts of Nd, Pr, and other lanthanoids, plus about 5% Fe and traces of S, C, Ca.
- Uses of mischmetal:
- Lighter flints. Mischmetal is pyrophoric: when scraped, it sheds tiny self-igniting sparks. The flint of cigarette lighters is mostly mischmetal alloyed with iron (``ferrocerium'').
- Bullets and shells. Used in tracer bullets and incendiary devices because of the spark trail it produces.
- Steelmaking. Added in small quantities to steel as a deoxidiser and desulfuriser: the lanthanoids react preferentially with O and S to form stable inclusions, improving steel quality.
- Magnesium alloys. Mischmetal is added to Mg alloys to improve high-temperature creep resistance.
An alloy is a homogeneous mixture of two or more metals (or metal + non-metal) preserving a metallic lattice. Mischmetal (∼50% Ce, 25% La, balance Nd/Pr/Sm/Fe) is the most important lanthanoid alloy. Uses: lighter flints (pyrophoric), tracer bullets, deoxidiser/desulfuriser in steelmaking, Mg-alloy hardener.
Quick reading. Definition + Mischmetal + four uses; that is the complete answer.
Pyrophoric chemistry. A pyrophoric metal ignites spontaneously in air at room temperature. Mischmetal qualifies because its constituent lanthanoids have low first-ionisation enthalpies (∼ 530–600 kJ/mol, compared with ∼ 720 kJ/mol for Mn or 760 for Fe). The activation energy for oxidation is therefore small. When scraped, freshly exposed metal reacts exothermically with O2 (∼ -1800 kJ/mol per mole of Ce2O3), producing a shower of sparks at ∼ 3000 ∘C — hot enough to ignite butane vapour.
- Define alloy in one line: a metallic solid solution where the host crystal lattice is preserved but partly occupied by atoms of the alloying element(s).
- Mischmetal ∼50% Ce + 25% La + rest other lanthanoids (Nd, Pr, Sm) and ∼ 5% Fe. The Latin ``misch'' literally means ``mixed'' — the alloy is so-called because it preserves the mineralogical ratios of the rare-earth ore monazite or bastnaesite, without going to the trouble of separating individual lanthanoids.
- Uses: (i) pyrophoric flints in lighters and gas-grill igniters (Ce + Fe = ``ferrocerium''); (ii) tracer ammunition and incendiary devices (spark trail visible in flight); (iii) steel-making as a deoxidiser and desulfuriser (lanthanoids react preferentially with O and S); (iv) Mg-alloy hardener for high-temperature creep resistance (Mg-RE alloys used in aerospace).
- Other lanthanoid alloys: Nd2Fe14B (the strongest permanent magnet known, used in wind-turbine generators and hard-disk drives); SmCo5 (high-temperature magnets); LaNi5 (rechargeable hydride for NiMH batteries).
Numerical anchor. Density of mischmetal ∼ 6.8 g/cm3; m.p. ∼ 700 ∘C. Compare with pure Ce: 6.77 g/cm3, m.p. 798 ∘C — alloying lowers the m.p. (classic solid-solution behaviour) and slightly tweaks density.
Concept linkage. The same low-ionisation-enthalpy reason that makes lanthanoid alloys pyrophoric also explains why lanthanoid metals are powerful reducing agents in their elemental form (used in lanthanide chemistry to reduce stubborn transition-metal complexes).
Why this matters. The unique pyrophoricity of mischmetal arises from the low ionisation energies of lanthanoids: scraping exposes fresh metal that oxidises violently in air, releasing enough heat to ignite the spark. The same physics powers every flint-based lighter in the world. Today, neodymium magnets, Nd-doped lasers and Eu-based phosphors make rare-earth alloys central to modern electronics.
Mischmetal: ∼50% Ce + 25% La + minor lanthanoids/Fe. Used in lighter flints, tracer bullets, steel-making and Mg-alloys.
What are inner transition elements? Decide which of the following atomic numbers are the atomic numbers of the inner transition elements: 29, 59, 74, 95, 102, 104.
Concept used. Inner transition elements are the f-block elements: lanthanoids (Z = 57 to 71, also called rare earths) and actinoids (Z = 89 to 103). Their differentiating electron enters the deeply buried 4f (lanthanoids) or 5f (actinoids) sub-shell.
- State the inclusive ranges:
- Lanthanoids: Z = 57 (La) to 71 (Lu).
- Actinoids: Z = 89 (Ac) to 103 (Lr).
- Test each given atomic number:
- Z = 29: copper. d-block element (group 11). Not inner transition.
- Z = 59: praseodymium (Pr). Lies in 57–71 ⇒ lanthanoid, inner transition.
- Z = 74: tungsten (W). d-block element (group 6). Not inner transition.
- Z = 95: americium (Am). Lies in 89–103 ⇒ actinoid, inner transition.
- Z = 102: nobelium (No). Lies in 89–103 ⇒ actinoid, inner transition.
- Z = 104: rutherfordium (Rf). d-block (group 4 of the 6d series, a transactinide). Not inner transition.
Inner transition elements (the f-block) are the lanthanoids (Z = 57 to 71) and actinoids (Z = 89 to 103). From the list, Z = 59, 95, 102 are inner transition; the others (Z = 29, 74, 104) are not.
Quick reading. Memorise the two windows: 57–71 and 89–103. Anything inside is an inner transition element; anything outside is not.
Position rationale. The f-block sits below the main table because there are 14 elements per row (the f-sub-shell holds 14 electrons, 2 × (2 · 3 + 1) = 14). They share group labels with the main table because their differentiating electron enters the buried (n-2)f orbital, so chemically they all behave like group-3 metals. Placing them inside the main table would make it absurdly wide; pulling them out keeps the periodic table compact.
- Z = 29 (Cu): no — 3d transition metal (group 11).
- Z = 59 (Pr): yes, lanthanoid (Z in 57–71, 4f filling). Configuration: [Xe]4f36s2.
- Z = 74 (W): no, 5d transition metal (group 6 of 5d series). Configuration: [Xe]4f145d46s2.
- Z = 95 (Am): yes, actinoid (Z in 89–103, 5f filling). Configuration: [Rn]5f77s2 — note the half-filled 5f7.
- Z = 102 (No): yes, actinoid. Configuration: [Rn]5f147s2 — the fully filled 5f14 marker right before lawrencium closes the row.
- Z = 104 (Rf, rutherfordium): no, 6d transactinide (group 4 of 6d series). Configuration: [Rn]5f146d27s2, the post-actinoid analogue of Hf or Zr.
Numerical cross-check. Sum check: out of six given atomic numbers (29, 59, 74, 95, 102, 104), three (59, 95, 102) fall inside the two f-block windows; three (29, 74, 104) fall outside. So 3 inner-transition elements and 3 non-inner-transition.
Concept linkage. The same ``window'' test gives all 30 f-block elements: 15 lanthanoids (57–71) and 15 actinoids (89–103). The f-block thus comprises 30 of the periodic table's 118 elements (∼ 25% of the table).
Why this matters. The f-block sits below the main table because there are 14 elements per row and they share their group labels with the main table. Asking ``inner transition or not'' is really asking ``does the differentiating electron sit in an f orbital?'' — a simple yes/no question once the windows are memorised.
Z = 59 (Pr), 95 (Am), 102 (No) are inner transition.
The chemistry of the actinoid elements is not so smooth as that of the lanthanoids. Justify this statement by giving some examples from the oxidation state of these elements.
Concept used. The lanthanoids show a remarkably uniform chemistry dominated by the +3 oxidation state because the 4f orbitals are deeply buried and barely participate in bonding. In contrast, the actinoids' 5f orbitals are spatially more extended and lie close in energy to 6d and 7s, so multiple oxidation states arise easily.
- Lanthanoid pattern (smooth). All 15 lanthanoids show +3 as their dominant oxidation state. Only a few exceptions (+4 in Ce, +2 in Eu and Yb) and these are configuration-driven (reach 4f0 or 4f7 or 4f14). The chemistry of Ln^3+ salts is so similar across the row that they are hard to separate.
- Actinoid pattern (irregular). Almost every actinoid
from Th to Am shows several oxidation states:
- Th: +3, +4. ThO2, ThF4.
- U: +3, +4, +5, +6. UF6, UO2^2+, UO2+, UCl3.
- Np: +3, +4, +5, +6, +7. NpO2^+ (+5), NpO2^2+ (+6).
- Pu: +3, +4, +5, +6, +7. PuF4, PuO2, PuO2^2+, PuO5^3- (+7).
- Am: +3 to +6.
- Reason. The 5f, 6d and 7s energy levels in actinoids are very close, so removing 4, 5 or even 6 electrons from the metal is energetically accessible. In lanthanoids, by contrast, the gap between 4f and 5d/6s is too large for 4f electrons to be lost easily; only 3 electrons (6s2, 5d1 or one 4f) participate in bonding.
Lanthanoids: nearly uniform +3 state because 4f orbitals are buried. Actinoids: wide range of oxidation states (+3 to +7) because 5f orbitals are more spatially extended and lie close to 6d and 7s in energy. Examples: U shows +3, +4, +5, +6; Np and Pu show +3 to +7.
Strategic angle. Contrast configurations: lanthanoid 4f electrons are core-like, actinoid 5f electrons are valence-like.
Orbital extension reasoning. The radial maximum of a 4f orbital lies at ∼ 0.4 from the nucleus, well inside the 5s and 5p shells. The radial maximum of 5f lies at ∼ 0.9 , in the same range as 6d and 7s. So 5f electrons can overlap with ligand orbitals while 4f cannot. This single fact explains the difference in oxidation-state range.
- Lanthanoids: +3 ubiquitous; only a few deviations. Specifically: +2 for Eu, Yb (and weakly Sm, Tm); +4 for Ce, Tb (and weakly Pr, Nd). Each deviation is configuration- driven (reach f0, f7, f14).
- Actinoids: +3 to +7 widely seen; mention U, Np, Pu as
prototypes.
- U: +3, +4, +5, +6 all stable in suitable conditions. UO2^2+ (uranyl, +6) is the dominant solution form.
- Np: +3, +4, +5, +6, +7. Notable for stabilising the elusive +7 state in NpO5^3-.
- Pu: +3, +4, +5, +6, +7. Famous for the colour-coded solution chemistry: Pu(III) blue, Pu(IV) brown, Pu(V) pink, Pu(VI) orange. The PUREX process exploits the redox cycle Pu(IV)/Pu(III) to separate Pu from U.
- Th: only +4 stable, with no 5f in ground state (6d27s2). Th behaves more like Zr/Hf than like a lanthanoid.
- Reason: 5f orbitals are more extended in space and overlap 6d/7s in energy, so more electrons are chemically active. Quantitatively: E(5f) - E(6d) is only ∼1–2 eV for early actinoids, compared with ∼5–7 eV for 4f vs 5d in early lanthanoids. The smaller gap explains the wider O.S. range.
- Numerical evidence: the cumulative iH for going from U^3+ to U^6+ is ∼ 5500 kJ/mol — large but feasible because of low-energy 5f/6d orbitals. The corresponding values for Sm going to +6 would be far higher and the +6 state is consequently not observed.
Concept linkage. Lanthanoid behaviour is summarised as ``unitary +3 chemistry''; actinoid behaviour as ``transition-metal- like wide +3 to +7 chemistry''. The transition between the two patterns happens at the middle of the actinoid series: early actinoids (Th, Pa, U, Np, Pu) act like transition metals; late actinoids (Cm onwards) act like lanthanoids.
Why this matters. The nuclear-fuel cycle's redox chemistry (extraction of U from ore as UO2^2+, reduction to U^4+ during purification) depends entirely on the actinoid wide-range oxidation chemistry. The Mn(VI)/Mn(VII) couple in KMnO4 chemistry (3d) is mirrored by the U(IV)/U(VI) couple in nuclear chemistry (5f) — both rely on accessible higher oxidation states. The PUREX process is worth understanding deeply because it underpins both weapons-grade Pu separation and civilian-fuel recycling.
Lanthanoid chemistry is uniform (+3); actinoid chemistry is varied (+3 to +7) because 5f orbitals are more accessible.
Which is the last element in the series of the actinoids? Write the electronic configuration of this element. Comment on the possible oxidation state of this element.
Concept used. The actinoid series runs from Ac (Z = 89) to Lr (Z = 103). The last element is lawrencium, Lr.
- Identity: Lawrencium (Lr), Z = 103, atomic mass approximately ∼ 262. Element 103, named after E. O. Lawrence.
- Electronic configuration: Lr: [Rn] 5f14 6d1 7s2. The 5f sub-shell is fully filled with 14 electrons; the last (differentiating) electron entered the 6d, which makes Lr formally a transition-metal-like end of the actinoid series. (Some sources prefer [Rn]5f147s27p1 on the basis of relativistic calculations, but the IUPAC and NCERT convention uses the 6d1 form.)
- Oxidation state: Like the last lanthanoid Lu (which is [Xe]4f145d16s2 and shows only +3), Lr is expected to show predominantly the +3 oxidation state. On losing 3 electrons (7s2 + 6d1) it reaches [Rn]5f14, a fully filled 5f shell. There is no easy way to access +2 or +4 because the next ionisation would have to break the closed 5f14 shell. So Lr's chemistry is essentially Lr(III).
Last actinoid: Lawrencium (Lr, Z = 103). Configuration [Rn] 5f14 6d1 7s2. The only common and expected oxidation state is +3, giving the closed-shell [Rn] 5f14 Lr^3+ ion.
Quick reading. Z = 103, Lr, [Rn]5f146d17s2, oxidation state +3.
Closing-the-row analogy. The lanthanoid row closes at Lu (Z=71, [Xe]4f145d16s2) with only the +3 state. The actinoid row closes at Lr (Z=103) with the same closed-shell f14 pattern and a single d1s2 valence shell. Both elements lose three electrons to a closed-shell core; both show +3 chemistry exclusively.
- Identify Lr at the end of the actinoid row. Lawrencium, named after Ernest O. Lawrence, was first synthesised in 1961 at Berkeley. All known isotopes are radioactive; the longest-lived is 266Lr (half-life ∼11 hours).
- Configuration: 14 5f electrons, plus 6d17s2 (three valence electrons available). Total electrons: 86 + 14 + 1 + 2 = 103. Note: some relativistic calculations suggest [Rn]5f147s27p1 for Lr because the 7p1/2 orbital is lowered by relativistic effects below the 6d. The NCERT/IUPAC textbook convention uses the 6d1 form, which we follow here.
- Lose all three valence electrons to give closed [Rn]5f14 as Lr^3+. Hence +3 is the only expected stable state. The closed 5f14 shell is so stable that further ionisation (to +4) would mean breaking it, requiring much more energy.
- Magnetic/colour check: Lr^3+ = 5f14. All paired, μ = 0 BM (diamagnetic). No f-f transitions possible (no vacancies), so Lr^3+ compounds would be colourless. (In practice, Lr is so short-lived that compound characterisation is limited.)
Numerical anchor. Mass-103 element with 103 electrons; in Lr^3+, 100 electrons. Configuration check: 86 + 14 = 100 (matches). First ionisation enthalpy of Lr is calculated to be ∼478 kJ/mol, low compared with ∼524 kJ/mol for Lu — consistent with the loosely bound 7p or 6d electron.
Concept linkage. ``Periodic'' analogy between the last lanthanoid (Lu) and the last actinoid (Lr): both have closed inner f-shells plus a d1s2 outer shell, and both show only +3 chemistry. The actinoid row mimics the lanthanoid row at its endpoints but diverges in the middle (where actinoids show variable O.S.).
Why this matters. The closing of the actinoid row at lawrencium mirrors the closing of the lanthanoid row at lutetium: both reach the configurations f14d1s2 and both show only the +3 oxidation state in compounds. The post-Lr elements (rutherfordium Z=104 onwards) start a new transition row, the 6d series, where ``transactinide'' chemistry is studied with atom-at-a- time techniques.
Lr (Z = 103), [Rn]5f146d17s2, +3 oxidation state.
Use Hund's rule to derive the electronic configuration of Ce^3+ ion, and calculate its magnetic moment on the basis of ``spin-only'' formula.
Concept used. Hund's rule of maximum multiplicity states that when electrons occupy degenerate orbitals (orbitals of the same energy), they enter singly with parallel spins until each of the degenerate orbitals has one electron; pairing begins only after that. The spin-only formula for the magnetic moment of an ion is μ = √n(n+2) BM, where n is the number of unpaired electrons and BM is the Bohr magneton.
- Start with the neutral atom Ce (Z = 58): [Xe] 4f1 5d1 6s2. The Xe core supplies the inner 54 electrons; the remaining four are valence.
- To form Ce^3+, remove three electrons starting from
the highest-n shell. So remove the two 6s electrons
first, then the one 5d electron:
aligned
Ce &: [Xe] 4f1 5d1 6s2,
Ce+ &: [Xe] 4f1 5d1 6s1,
Ce2+ &: [Xe] 4f1 5d1,
Ce3+ &: [Xe] 4f1. aligned - By Hund's rule, the single 4f electron occupies one of the seven 4f orbitals on its own. So there is exactly n = 1 unpaired electron in Ce^3+.
- Apply the spin-only formula: μ = √n(n+2) = √1 · (1 + 2) = √3. Evaluate the square root: √3 = 1.732. Therefore μ ≈ 1.73 BM.
- Caveat for lanthanoids: the spin-only formula often underestimates the observed moment of f-block ions because the orbital angular momentum is not quenched. For Ce^3+ the experimental value is about 2.4 BM (using the Land'e formula); the question, however, asks for the spin-only value.
Ce^3+: [Xe] 4f1; n = 1; spin-only μ = √3 = 1.73 BM.
Strategic angle. Identify the cation, count unpaired electrons, plug into the formula. The answer is one line.
Why spin-only fails for lanthanoids. Lanthanoid 4f electrons retain significant orbital angular momentum because the 4f orbitals are spatially compact (small radial extent) and relatively unperturbed by the surroundings (the crystal field on 4f is small, Δ ∼ 100 cm-1, much less than the spin-orbit coupling). So the orbital moment is not quenched for lanthanoids — unlike 3d ions where the orbital moment is quenched and spin-only μ works. The proper formula is the Land'e expression: μ = gJ √J(J+1) BM, where J is the total angular momentum quantum number.
- Neutral Ce has 58 electrons: [Xe]4f15d16s2. Three electrons leave on +3 ionisation, starting from the outermost shell. So lose 6s2 first, then 5d1. Result: Ce^3+ = [Xe]4f1.
- By Hund's rule the single 4f electron is unpaired. So n=1.
- Apply spin-only formula: μ = √n(n+2) = √1 · 3 = √3 = 1.732 BM ≈ 1.73 BM.
- Compare to experimental value: obs(Ce3+) ≈ 2.4 BM. Discrepancy is due to orbital contribution: the 4f1 electron has = 3, s = 1/2, so by Land'e: L = 3, S = 1/2, J = L - S = 5/2 (since shell is less than half full, J = |L-S|). Then gJ = 6/7, μ = (6/7) √(5/2)(7/2) = (6/7) × 2.96 ≈ 2.54 BM, matching observation. The textbook calculation gives spin-only √3 = 1.73 BM as asked.
Numerical anchor. Useful Land'e values to know: Pr^3+ (f2) spin-only 2.83 BM, Land'e 3.62 BM (obs 3.5); Nd^3+ (f3) spin-only 3.87, Land'e 3.68 (obs 3.5); Sm^3+ (f5) spin-only 5.92, Land'e 0.84 (obs 1.5). Note how Land'e and spin-only diverge dramatically for some f-ions.
Concept linkage. The spin-only formula's accuracy is a property of orbital-moment quenching. For 3d ions in an octahedral field, the ligand field strongly splits the d orbitals, quenching L. For 4f ions, the field is too weak to do so. This is a key distinction between d-block and f-block magnetism.
Why this matters. For most 3d ions the spin-only formula gives a good estimate. For lanthanoid ions, orbital contribution is significant; but the NCERT exercise asks for the spin-only number, which is what we calculated. JEE/NEET style: ``Why does the measured magnetic moment of Sm^3+ differ greatly from the spin-only value?'' — orbital contribution is the answer.
Ce^3+ is 4f1 with one unpaired electron; spin-only μ = √3 ≈ 1.73 BM.
Name the members of the lanthanoid series which exhibit +4 oxidation states and those which exhibit +2 oxidation states. Try to correlate this type of behaviour with the electronic configurations of these elements.
Concept used. Lanthanoids predominantly show the +3 oxidation state. Deviations to +4 or +2 occur when the resulting Ln^4+ or Ln^2+ ion has an extra-stable f-shell configuration: 4f0, 4f7 or 4f14.
- +4 oxidation states. The four lanthanoids that
show +4 in well-characterised compounds are Ce, Pr, Tb,
Nd (and to a lesser extent Dy). Check each:
- Ce (4f15d16s2) → Ce^4+: 4f0, noble-gas [Xe] core. Very stable.
- Pr (4f36s2) → Pr^4+: 4f1. Less stable, exists in some solid oxides.
- Nd (4f46s2) → Nd^4+: 4f2. Even less stable.
- Tb (4f96s2) → Tb^4+: 4f7, half-filled, extra-stable.
- Dy (4f106s2) → Dy^4+: 4f8. Rarely observed.
- +2 oxidation states. Show in Eu, Yb, Sm and Tm.
- Sm (4f66s2) → Sm^2+: 4f6. Mildly stable, reducing.
- Eu (4f76s2) → Eu^2+: 4f7, half-filled, extra-stable.
- Tm (4f136s2) → Tm^2+: 4f13. Less stable.
- Yb (4f146s2) → Yb^2+: 4f14, fully filled, very stable.
- Correlation. In every case the deviation from +3 is driven by the configuration of the resulting ion landing on or near an f0, f7 or f14 stable configuration. Configuration is the controlling factor; compounds of Ln^2+ (or Ln^4+) far from these configurations are unstable or unknown.
+4 shown by Ce, Pr, Nd, Tb, (Dy); most stable for Ce ( 4f0 ) and Tb ( 4f7 ). +2 shown by Sm, Eu, Tm, Yb; most stable for Eu ( 4f7 ) and Yb ( 4f14 ). All deviations from +3 are driven by the resulting ion landing on or near f0, f7 or f14.
Strategic angle. Match each non-standard oxidation state to the stable f-configuration it produces.
Symmetry argument. Three configurations are unusually stable: 4f0 (empty shell, noble-gas core), 4f7 (half-filled, maximum exchange energy), 4f14 (fully filled). Around each of these, adjacent lanthanoids can be pulled to non-standard oxidation states because the ion ``wants'' to reach them. So the deviations cluster near positions 0, 7, 14 — i.e. near La, Gd, Lu (which themselves are always +3 because their neutral configuration plus charge +3 already lands them at 4f0, 4f7, 4f14).
- +4 states (going to f0 or f7): Ce^4+ (f0), Tb^4+ (f7). Less stable: Pr, Nd, Dy. Ce is by far the most prominent — (NH4)2[Ce(NO3)6] is ceric ammonium nitrate (CAN), the textbook one-electron oxidant in organic chemistry. E∘(Ce4+/Ce3+) = +1.61 V (in HClO4): strong but clean oxidant. E∘(Tb4+/Tb3+) ≈ +3.1 V: enormous, so Tb(IV) only exists in solid oxides like TbO2.
- +2 states (going to f7 or f14): Eu^2+ (f7), Yb^2+ (f14). Less stable: Sm, Tm. E∘(Eu3+/Eu2+) = -0.43 V: only mildly reducing, so Eu(II) salts are isolable. E∘(Yb3+/Yb2+) = -1.05 V: more reducing but still accessible. E∘(Sm3+/Sm2+) = -1.55 V: strongly reducing. Used in SmI2 (Kagan's reagent) for organic synthesis.
- Rule: lanthanoids prefer +3; deviations occur when the new ion has an exceptionally stable f-shell. The pattern across the series: deviations occur in the neighbourhood of the ``magic'' positions (f0, f7, f14).
- Configuration check for Yb^2+ (4f14): all electrons paired; μ = 0 BM (diamagnetic). For Eu^2+ (4f7): 7 unpaired electrons; spin-only μ = √63 = 7.94 BM, observed ∼ 7.9 BM (great agreement because L is quenched for half-filled f7).
Numerical anchor. Across the lanthanoid series, the deviation count is 4 (Eu, Yb +2; Ce, Tb +4, well-established) out of 15 elements — i.e. ∼ 27% show non-+3 chemistry. The other 11 lanthanoids stay strictly +3 in all isolated compounds.
Concept linkage. The exception/rule logic is the same as for the 3d row's stability of d0, d5, d10 oxidation states. In the lanthanoids it's f0, f7, f14; in the d-block d0, d5, d10. Closed-shell-driven deviation is universal across blocks.
Why this matters. Ce^4+ is a standard analytical oxidant (ceric sulphate titrations) precisely because Ce(III)/Ce(IV) is reversible and clean. Eu^2+ salts are blue-fluorescent and used in modern lighting and X-ray screens. Both deviations are exploited industrially: rare-earth phosphor science is built on Eu(II) and Eu(III) emission; redox chemistry uses Ce(IV)/Ce(III).
+4: Ce, Pr, Nd, Tb (Dy). +2: Sm, Eu, Tm, Yb. Drivers: f0, f7, f14 stability.
Compare the chemistry of the actinoids with that of lanthanoids with reference to: (i) electronic configuration, (ii) oxidation states and (iii) chemical reactivity.
Concept used. The lanthanoids (4f filling) and actinoids (5f filling) show parallel but not identical trends. The key distinction is that 5f orbitals are spatially more extended than 4f orbitals and have lower binding energy, so they are far more chemically accessible.
- (i) Electronic configuration.
- Lanthanoids: general [Xe] 4f1-14 5d0-1 6s2. Configurations are fairly regular: each successive element adds one 4f electron, with a 5d contribution at La, Ce, Gd, Lu.
- Actinoids: general [Rn] 5f0-14 6d0-2 7s2. Less regular: Th has 6d27s2 (no 5f), Pa, U, Np have a mixed 5fn6d17s2, while later actinoids (Cm onwards) start to settle into 5fn7s2 form.
- (ii) Oxidation states.
- Lanthanoids show mainly +3, with sporadic +2 (Eu, Yb, Sm, Tm) and +4 (Ce, Pr, Nd, Tb).
- Actinoids show a much wider range: +3, +4, +5, +6 and +7. For instance Np shows +3 to +7 (NpO5^3- is the +7 species).
- (iii) Chemical reactivity.
- Lanthanoids: very reactive, behave like Ca-type metals; tarnish in air to form oxides; react with water to release H2.
- Actinoids: also highly reactive; react with boiling water to give oxide and H2; with non-oxidising acids give An^3+ and H2. Many actinoids show variable redox chemistry in solution (e.g., UO2^2+/UO2+ couple, E∘ = 0.06 V) and form numerous oxo-, halide-, organometallic complexes. Additionally, all actinoids are radioactive.
(i) Both are f-block; lanthanoids fill 4f, actinoids fill 5f; lanthanoid configurations are regular, actinoid ones irregular. (ii) Lanthanoids mainly +3; actinoids +3 to +7. (iii) Both reactive and electropositive; actinoids additionally radioactive and form a richer complex chemistry because 5f orbitals are more extended.
Quick reading. The headline difference is the extension of the 5f orbitals into the bonding region, which gives actinoids a wider oxidation-state range, more covalent character and (unrelatedly but importantly) radioactivity.
Numerical comparison. Cumulative contractions across the two series: lanthanoid ∼14–18 pm (atomic), ∼17 pm (ionic); actinoid ∼15–20 pm. Maximum oxidation state observed: lanthanoid +4 (Ce, Tb); actinoid +7 (Np, Pu). Both contractions are real and important; the actinoid wider O.S. range is the more chemically consequential difference.
- Configurations: 4f1-145d0-16s2 vs 5f0-146d0-27s2. Actinoid configs are less regular. Specific irregularities to remember: Th (6d27s2, no 5f); Pa (5f26d17s2); U (5f36d17s2); Np (5f46d17s2); Cm (5f76d17s2, with the extra 6d for half-filled 5f7 stability — Gd-analog).
- Oxidation states: lanthanoids mostly +3; actinoids +3 to +7. Pu and Np uniquely show all states from +3 to +7. NpO5^3- and PuO5^3- for +7; UO2^2+ and PuO2^2+ for +6; NpO2+, UO2+ for +5; Pu(NO3)4, ThF4 for +4; PuCl3 for +3.
- Reactivity: both highly reactive electropositive metals; actinoids also radioactive. The complex chemistry of actinoids (e.g. UO2(NO3)2, Pu(IV) oxidation/reduction in the PUREX process) far exceeds that of lanthanoids. Actinoids attack water, halogens, oxygen, sulfur, nitrogen at moderate heat; concentrated nitric or hydrochloric acid dissolves them readily.
- Radioactivity: every actinoid isotope is unstable (all decay by α, β, or fission). Half-lives range from seconds (Lr) to billions of years (Th-232, U-238). No lanthanoid is radioactive (except 147Pm, an artificial radio-isotope; natural Pm does not exist on Earth).
- Concept link to bonding character: 5f electrons can contribute to chemical bonds in early actinoids — this gives actinoid complexes a more covalent character (e.g. UO2^2+ has a triple-bond character in the linear O=U=O moiety, with significant 5f → ligand backbonding). Lanthanoid complexes are almost purely ionic.
Numerical cross-check. E∘ for lanthanoid Ln^3+/Ln couples range from -1.99 V (Eu) to -2.52 V (Lu) — all negative, all reducing. Actinoid An^3+/An couples range from -1.83 V (U) to -2.13 V (Es) — also strongly reducing. Both series are electropositive but actinoids show a wider range due to varied electronic structure.
Concept linkage. Just as the chemistry of 3d (Sc-Zn) is more varied than the chemistry of 4d and 5d in some respects (more colour, easier +2 states), the chemistry of 5f (early actinoids) is more varied than that of 4f. Across both pairs, the heavier (deeper-orbital) series shows more diversity through shell-overlap effects.
Why this matters. The PUREX process used to recycle nuclear fuel rides on switching Pu between +4 and +3 to separate it from U. Such redox manipulation is impossible for lanthanoids because of their fixed +3 chemistry. Modern actinoid research (Th-fuel reactors, recycling of spent fuel, transmutation of long-lived waste) is built on the same wide redox range of actinoids.
Lanthanoids: regular 4f filling, +3-dominant chemistry. Actinoids: irregular 5f filling, +3 to +7 chemistry, radioactive.
Write the electronic configurations of the elements with the atomic numbers 61, 91, 101, and 109.
Concept used. Identify each element from its atomic number, then write the configuration by filling sub-shells in the order given by the Aufbau diagonal rule, with the famous exceptions for d- and f-block elements.
- Z = 61: Promethium (Pm). A lanthanoid (between Nd and Sm). Pm: [Xe] 4f5 6s2. Check: 54 (Xe core) + 5 (4f) + 2 (6s) = 61. Correct.
- Z = 91: Protactinium (Pa). An actinoid (between Th and U). Pa: [Rn] 5f2 6d1 7s2. Check: 86 (Rn core) + 2 + 1 + 2 = 91. Correct.
- Z = 101: Mendelevium (Md). An actinoid (between Fm and No). Md: [Rn] 5f13 7s2. Check: 86 + 13 + 2 = 101. Correct. (No 6d electron.)
- Z = 109: Meitnerium (Mt). A transactinide (group 9, 6d series). Mt: [Rn] 5f14 6d7 7s2. Check: 86 + 14 + 7 + 2 = 109. Correct.
Z=61 Pm: [Xe]4f56s2. Z=91 Pa: [Rn]5f26d17s2. Z=101 Md: [Rn]5f137s2. Z=109 Mt: [Rn]5f146d77s2.
Quick reading. Identify each by element then add electrons on top of the noble-gas core.
Block identification. Z values map to blocks: 57–71 lanthanoid (4f); 89–103 actinoid (5f); 104–118 transactinide (6d + 7p). So a quick three-rule sort: 61 is lanthanoid, 91 and 101 are actinoid, 109 is transactinide (6d series).
- Z = 61: Pm (promethium), [Xe]4f56s2 (lanthanoid, fits 4f series). Total electrons: 54 + 5 + 2 = 61. Verify: Pm is artificial, no stable isotope on Earth; longest-lived 145Pm has half-life 17.7 years. Used in luminous paints for instrument dials and as a β-source.
- Z = 91: Pa (protactinium), [Rn]5f26d17s2 (early actinoid, retains a 6d electron). Total electrons: 86 + 2 + 1 + 2 = 91. Verify: Pa is the daughter of 235U decay; named ``proto-actinium'' (parent of actinium). One of the rarest naturally-occurring elements.
- Z = 101: Md (mendelevium), [Rn]5f137s2 (late actinoid, 6d empty). Total electrons: 86 + 13 + 2 = 101. Verify: Md is synthetic; named after Dmitri Mendeleev. Configuration has no 6d — the 5f shell is nearly full so electrons prefer 5f over 6d. Common oxidation state: +3, but Md(II) (5f14, fully filled) is unusually stable.
- Z = 109: Mt (meitnerium), [Rn]5f146d77s2 (transactinide, group 9 of the 6d series). Total electrons: 86 + 14 + 7 + 2 = 109. Verify: synthesised in 1982 at GSI Darmstadt; named after Lise Meitner. Group 9 means it sits below Ir/Rh/Co — but its chemistry is barely studied because of the very short half-lives (longest 278Mt: 7 seconds).
Numerical cross-check. For each, confirm total e- matches Z: Pm: 54 + 5 + 2 = 61. Pa: 86 + 2 + 1 + 2 = 91. Md: 86 + 13 + 2 = 101. Mt: 86 + 14 + 7 + 2 = 109.
Concept linkage. Three of the four elements (Pm, Md, Mt) are synthetic and short-lived; only Pa is found naturally (and even then in tiny amounts). The configurations illustrate the pattern: early actinoid (Pa) retains 6d for variable oxidation states; late actinoid (Md) loses 6d for stable +3 behaviour; transactinide (Mt) is a 6d transition metal proper.
Why this matters. The presence or absence of a 6d electron in the early actinoids is a small but important detail: it explains why Pa and U show easily accessible +5 and +6 oxidation states. Configurations of synthesised elements are predicted by Aufbau but verified by atom-at-a-time chemistry at heavy-ion accelerators (GSI Darmstadt, LBNL Berkeley, JINR Dubna).
Configurations: Pm 4f56s2; Pa 5f26d17s2; Md 5f137s2; Mt 5f146d77s2 (each on top of the appropriate noble-gas core).
Compare the general characteristics of the first series of the transition metals with those of the second and third series metals in the respective vertical columns. Give special emphasis on the following points:
(i) electronic configurations, (ii) oxidation states, (iii) ionisation enthalpies and (iv) atomic sizes.
Concept used. Going down a group within the d-block we move from 3d to 4d to 5d series. Several global trends emerge: configurations become less regular because of s-d promotion; heavier elements tend to show higher oxidation states; ionisation enthalpies of 5d are unusually high because of lanthanoid contraction; and atomic sizes of 4d and 5d within the same group are almost identical for the same reason.
- (i) Electronic configurations.
- 3d series: 3d1-104s1-2.
- 4d series: less regular; e.g. Pd has 4d105s0, Ru is 4d75s1, Ag is 4d105s1, Rh is 4d85s1, Mo is 4d55s1.
- 5d series: includes lanthanoid contraction. Configurations of W, Re, Os, Ir, Pt, Au show 5dx6s1-2 with several exceptions; e.g. Au is 5d106s1.
- (ii) Oxidation states. Higher oxidation states are
more common (and more stable) in 4d and 5d series than
in 3d.
- Group 6: Cr (max +6) but for Mo and W +6 is stable (MoO3, WO3).
- Group 7: Mn (max +7); Tc and Re also reach +7 (TcO4-, ReO4-) but +7 is more stable for Re than for Mn.
- Group 8: Fe (max +6, rare); Ru and Os reach +8 (RuO4, OsO4), unique to heavier transition metals.
- (iii) Ionisation enthalpies.
- 4d ionisation enthalpies are smaller than 3d in the same group (because of larger size).
- 5d ionisation enthalpies are typically higher than 4d, because of (a) lanthanoid contraction (no real size gain) and (b) poor shielding of 5d by intervening 4f.
- (iv) Atomic sizes.
- 3d < 4d: as expected from adding a shell.
- 4d ≈ 5d: lanthanoid contraction wipes out the expected size increase. Atomic radius of Zr (160 pm) is almost equal to that of Hf (159 pm); Nb ≈ Ta; Mo ≈ W.
Heavier transition series have less regular configurations, show higher and more stable oxidation states, larger atomic radii than 3d but with 4d ≈ 5d (lanthanoid contraction), and unusually high 5d ionisation enthalpies.
Strategic angle. The contrasts to highlight are: more exceptions in heavier configurations; higher max O.S. for 4d/5d; 4d ≈ 5d in size and high 5d ionisation enthalpies caused by lanthanoid contraction.
Lanthanoid contraction is the master variable. Almost every contrast between 3d and 4d/5d is downstream of lanthanoid contraction. It makes 5d atoms about the same size as 4d, leading to similar chemistry within group; it raises Zeff on the 5d shell, raising ionisation enthalpies; it stabilises higher oxidation states for 4d/5d because the metal cation is more compact.
- Configurations: 4dn5s1 or 2 with many exceptions (Mo 4d55s1, Ru 4d75s1, Rh 4d85s1, Pd 4d105s0, Ag 4d105s1); 5dn6s2 generally, with Pt (5d96s1) and Au (5d106s1). Reason for exceptions: smaller energy gap between (n-1)d and ns, plus half-/fully-filled d-shell stability.
- Higher max O.S.: OsO4 (+8), RuO4 (+8), ReO4- (+7 more stable than MnO4-), WO3 (+6, more stable than CrO3). Higher states are thermodynamically more accessible for heavier metals. Numerical evidence: the highest oxidation state across the 3d row peaks at Mn (+7) and then falls; across 4d it peaks at Ru (+8); across 5d at Os (+8). Heavier metals sustain higher states because they have more d-orbital radius and less repulsion in the high state.
- Ionisation enthalpies: 5d > 4d > 3d for many groups, with 5d being unexpectedly high because of lanthanoid contraction increasing Zeff. Sample values (group 4, iH1 in kJ/mol): Ti 661, Zr 660, Hf 654 — nearly flat for Zr/Hf because the contraction has wiped out the expected size growth. Group 11: Cu 745, Ag 731, Au 890 — Au is unusual because of strong relativistic effects in 6s.
- Atomic sizes: Zr (160 pm) ≈ Hf (159 pm); Mo (140 pm) ≈ W (141 pm), within a few pm. The 4d and 5d series are pinned together by lanthanoid contraction. Densities: Mo 10.2, W 19.3 g/cm3 — twofold ratio for equal atomic radius, because W has twice the atomic mass in roughly the same volume. Hence W's reputation for density.
- Coordination number trend: 3d usually 4 or 6; 4d/5d often higher (7, 8, 9, sometimes 12). [Mo(CN)8]^4- and [W(CN)8]^4- are dodecahedral 8-coordinate complexes that have no 3d analog.
Numerical anchor. Across the four most-tested groups:
- Group 4: r(Ti, Zr, Hf) = 132, 160, 159 pm. Note 4d → 5d gain = -1 pm (contraction effect).
- Group 6: max O.S. Cr (+6), Mo (+6), W (+6); the +6 state gets more stable down the group.
- Group 8: max O.S. Fe (+6 rare), Ru (+8), Os (+8) — Ru and Os unique in reaching +8.
- Group 11: E∘(M+/M) Cu +0.34, Ag +0.80, Au +1.69 V — increasingly noble down the group.
Concept linkage. The chemistry of Zr/Hf, Nb/Ta and Mo/W similarities is the practical manifestation of lanthanoid contraction. The chemistry of Ru/Os max-O.S. similarity (RuO4, OsO4 both volatile, both +8) is the manifestation of heavier-metal high-state stability.
Why this matters. The chemistry of Zr/Hf, Nb/Ta and Mo/W pairs is so similar that it took decades to separate them. The pairs also share important industrial uses: Zr/Hf in nuclear engineering, Nb/Ta in capacitors and superconductors. Au and Pt are the noble metals of jewellery, catalysis (Pt in catalytic converters), and medicine (cisplatin).
Heavier series: less regular configurations, higher and more stable oxidation states, 4d ≈ 5d in size due to lanthanoid contraction, and higher 5d ionisation enthalpies than 3d/4d.
Write down the number of 3d electrons in each of the following ions: Ti^2+, V^2+, Cr^3+, Mn^2+, Fe^2+, Fe^3+, Co^2+, Ni^2+ and Cu^2+. Indicate how would you expect the five 3d orbitals to be occupied for these hydrated ions (octahedral).
Concept used. For a hydrated ion [M(H2O)6]^n+, the ligand field is weak (water is a weak-field ligand in the spectrochemical series). Therefore the d-electrons occupy the t2g and eg orbitals in the high-spin manner: each of the five d-orbitals first receives one electron with parallel spin (Hund's rule), pairing begins only after all five are singly occupied.
- Write the cation configuration and count 3d electrons.
- For each, place electrons in the split t2g (lower, 3 orbitals) and eg (upper, 2 orbitals) following Hund's rule, high-spin in water.
3d electron counts (and unpaired electrons in high-spin water environment): Ti^2+ d2 (2); V^2+ d3 (3); Cr^3+ d3 (3); Mn^2+ d5 (5); Fe^2+ d6 (4); Fe^3+ d5 (5); Co^2+ d7 (3); Ni^2+ d8 (2); Cu^2+ d9 (1).
Picture-first. Five d-orbitals split by a water (weak) ligand field into a lower 3-orbital t2g set and an upper 2-orbital eg set. Apply Hund's rule, fill singly first.
Procedure summary. Steps: (i) find dn for the ion; (ii) fill t2g singly to a max of 3 e-; (iii) fill eg singly to a max of 2 e- (now 5 electrons, all unpaired); (iv) pair electrons in t2g first (HS-water; LS would jump straight to t2g filling). After all 5 orbitals are singly occupied, the 6th electron pairs in t2g, and so on.
- For each ion read off dn from neutral atom configuration minus the charge (electrons leave 4s first). Ti^2+: d2. V^2+: d3. Cr^3+: d3. Mn^2+: d5. Fe^2+: d6. Fe^3+: d5. Co^2+: d7. Ni^2+: d8. Cu^2+: d9.
- Place n electrons in the (t2g)x(eg)y pattern, with x ≤ 6, y ≤ 4, Hund's rule. Ti^2+: t2g2eg0, 2 unpaired. V^2+: t2g3eg0, 3 unpaired. Cr^3+: t2g3eg0, 3 unpaired. Mn^2+: t2g3eg2, 5 unpaired. Fe^2+: t2g4eg2, 4 unpaired. Fe^3+: t2g3eg2, 5 unpaired. Co^2+: t2g5eg2, 3 unpaired. Ni^2+: t2g6eg2, 2 unpaired. Cu^2+: t2g6eg3, 1 unpaired.
- Unpaired count formula: n if n ≤ 5, else 10 - n (high-spin octahedral). Confirm with the table above.
- Magnetic moment table (spin-only): Ti^2+ 2.83; V^2+ 3.87; Cr^3+ 3.87; Mn^2+ 5.92; Fe^2+ 4.90; Fe^3+ 5.92; Co^2+ 3.87; Ni^2+ 2.83; Cu^2+ 1.73 BM.
Numerical anchor. Note that V^2+, Cr^3+, Co^2+ all give spin-only μ = 3.87 BM despite having different dn counts (3, 3, and 7 respectively). The reason is the symmetry of the spin-only formula around half-filled d5.
Concept linkage. Without information about ligand field strength, octahedral 3d ions almost always default to high-spin in water. With strong-field ligands (CN-, NH3, en), low-spin configurations become possible: e.g. [Fe(CN)6]^4- is t2g6eg0, 0 unpaired, diamagnetic — same Fe(II), different ligand, opposite magnetism.
Why this matters. The number of unpaired electrons is what the magnetic moment measures via μ = √n(n+2) BM. So this table is the foundation for every magnetic-property question about hydrated 3d ions. NEET-level question: ``Compute the magnetic moment of [Co(H2O)6]^2+'' — answer 3.87 BM from this table.
dn counts: 2, 3, 3, 5, 6, 5, 7, 8, 9; unpaired electrons: 2, 3, 3, 5, 4, 5, 3, 2, 1 (high-spin in water).
Comment on the statement that elements of the first transition series possess many properties different from those of heavier transition elements.
Concept used. Going from 3d to 4d and 5d, several properties change qualitatively because of: larger ion sizes, deeper-penetrating 5d orbitals, lanthanoid contraction (which makes 5d smaller than expected) and more covalent metal-ligand bonds.
- Atomic sizes. 3d atoms are the smallest; 4d are larger; 5d are about the same size as 4d (lanthanoid contraction).
- Oxidation states. 3d metals show many states with the lower state often the most stable in water (e.g. Fe^2+ comparable in stability to Fe^3+). 4d and 5d metals tend to show higher and more stable oxidation states (e.g. OsO4 +8; ReO4- +7 more stable than MnO4-).
- Coordination. 3d metals usually adopt coordination number 6 (octahedral). 4d and 5d metals more frequently adopt higher coordination numbers (7, 8) and form more covalent compounds.
- Magnetic properties. 3d metal ions are often magnetically described well by the spin-only formula (μ = √n(n+2) BM). For 4d and 5d the orbital angular momentum makes a bigger contribution, so the spin-only formula is less accurate.
- Metallic and lattice properties. 4d and 5d metals have higher melting points (W has the highest m.p. of any metal, 3422 ∘C), greater hardness and often higher density (because of lanthanoid contraction + heavier nuclei).
- Ionisation enthalpies. 4d values are lower than 3d, but 5d values are higher than 4d because of the lanthanoid contraction effect.
- Coloured compounds. 3d compounds tend to be more coloured (smaller o for weak-field water, falling in the visible). 4d and 5d have larger o, often pushing the d-d transitions into the UV.
The first series differs from heavier series in: smaller atoms, lower stable oxidation states, more reliable spin-only magnetism, lower melting points and densities, and a wider colour range. The heavier series have larger maximum oxidation states, higher m.p./density, more covalent bonding, and (because of lanthanoid contraction) 4d and 5d are similar in size and many properties.
Strategic angle. List five contrasts and put a one-line reason for each.
Root-cause logic. Most of the contrasts have one of three root causes: (a) lanthanoid contraction making 5d smaller than expected; (b) larger spatial extent of 4d/5d orbitals (compared to 3d); (c) stronger ligand-field interactions in 4d/5d because of deeper-penetrating orbitals. Once you trace each contrast to one of these three, the answer practically writes itself.
- Size: 3d smallest; 4d and 5d similar (lanthanoid contraction). r(3d, group 6, Cr) = 128 pm; r(4d, Mo) = 140 pm; r(5d, W) = 141 pm. Cause (a): lanthanoid contraction pins 5d to 4d.
- Oxidation states: heavier series favour higher and more stable states; OsO4 and ReO4- have no 3d analogue in stability. Maximum O.S. across 3d: Mn +7 (only as oxidant in KMnO4); 4d: Ru +8 (stable in RuO4 solid); 5d: Os +8 (very stable OsO4). Cause (b): larger orbital radius makes high-O.S. cations easier to form because electron-electron repulsion is smaller.
- Magnetism: spin-only formula works for 3d; not for 4d/5d because of larger spin-orbit coupling. For 3d, ζ ∼ 300–600 cm-1; for 4d, ζ ∼ 1000–2000 cm-1; for 5d, ζ ∼ 3000–6000 cm-1. Increasing ζ couples spin and orbital moments, breaking spin-only's assumption. Cause (b): heavier nuclei have larger spin-orbit coupling.
- Coordination: 3d prefers 4 or 6 coordinate; 4d and 5d often go to 7, 8 (e.g. [Mo(CN)8]^4-, [W(CN)8]^4-). Cause (a) + (b): larger atoms can host more ligands.
- Physical: heavier series higher m.p., density, ionisation enthalpies. W has the highest m.p. of any metal, 3422 ∘C. Os density 22.6 g/cm3 is highest stable element. iH1(Au) = 890 kJ/mol, very high due to relativistic effects on 6s orbital. Cause (a): high Zeff from contraction; cause (c): tighter d-orbital overlap in metallic lattice.
- Coloured compounds: 3d compounds tend to be more deeply coloured (smaller o in the visible). 4d and 5d complexes often colourless or yellow because o is large enough to push transitions into UV. Numerical: o in [Co(NH3)6]3+ ∼23 000 cm-1; in [Rh(NH3)6]^3+ ∼34 000 cm-1 (UV-absorbing, so the complex is colourless).
Numerical cross-check. Spin-only μ for 5d Os(IV) (d4): predicted 4.90 BM; observed ∼ 1.6 BM. The huge discrepancy is due to spin-orbit coupling — orbital moment partially opposes spin moment. This is one reason that μ for 5d complexes is rarely the simple Hund value.
Concept linkage. The same five contrasts run through every exam question on transition-metal periodicity. ``Why is W refractory?'' (metallic bonding + contraction). ``Why does OsO4 exist but FeO4 barely?'' (heavier max O.S.). ``Why do [Mo(CN)8]4- and [Cr(CN)6]3- have different coordination numbers?'' (4d larger than 3d).
Why this matters. The qualitative differences feed directly into industrial chemistry: refractory 5d metals (W, Re) are used in high-temperature alloys (jet-engine turbine blades); high-coordination 4d/5d complexes are key in homogeneous catalysis (Wilkinson's catalyst Rh(PPh3)3Cl for hydrogenation; Pt complexes in cisplatin for chemotherapy).
First series: smaller atoms, lower max O.S., simpler magnetism, lower m.p. Heavier series: larger atoms, higher and more stable O.S., complex magnetism, higher density and m.p.
What can be inferred from the magnetic moment values of the following complex species?
K4[Mn(CN)6]: 2.2 BM
[Fe(H2O)6]^2+: 5.3 BM
K2[MnCl4]: 5.9 BM
Concept used. For a transition-metal complex, the observed magnetic moment (in BM) is compared with the spin-only value μ = √n(n+2) BM. A close match indicates the number of unpaired electrons and reveals whether the complex is high-spin (weak-field ligands, maximum unpaired) or low-spin (strong-field ligands, electrons paired into t2g).
- K4[Mn(CN)6], μ = 2.2 BM.
- Mn is in +2 (since CN- is -1 and the four K+ balance four units of negative charge from the complex; complex anion is [Mn(CN)6]^4-; with 6 CN- contributing -6, Mn must be +2).
- Mn^2+: 3d5 (5 electrons).
- CN- is a strong-field ligand ⇒ low-spin. In a low-spin d5 octahedral, the t2g orbitals hold all 5 electrons: t2g5 eg0. Pair up to give 1 unpaired electron.
- Spin-only μ = √1 · 3 = √3 = 1.73 BM. Observed 2.2 BM is slightly larger because of a small orbital contribution, consistent with 1 unpaired electron.
- [Fe(H2O)6]^2+, μ = 5.3 BM.
- Fe in +2, 3d6.
- H2O is a weak-field ligand ⇒ high-spin. In a high-spin d6 octahedral the configuration is t2g4 eg2 with 4 unpaired electrons.
- Spin-only μ = √4 · 6 = √24 = 4.90 BM. Observed 5.3 BM is slightly higher because of a modest orbital contribution and is consistent with 4 unpaired electrons.
- K2[MnCl4], μ = 5.9 BM.
- Mn in +2 (Mn charge + 4(Cl-) = -2; with two K+ balancing, Mn = +2).
- Mn^2+: 3d5. Five electrons.
- Cl- is a weak-field ligand ⇒ high-spin. Five electrons singly occupy the five d orbitals: 5 unpaired.
- Spin-only μ = √5 · 7 = √35 = 5.92 BM. Observed 5.9 BM matches almost perfectly.
From the moments: (i) K4[Mn(CN)6] 2.2 BM → low-spin d5 with 1 unpaired electron (CN- strong-field). (ii) [Fe(H2O)6]^2+ 5.3 BM → high-spin d6 with 4 unpaired (H2O weak-field). (iii) K2[MnCl4] 5.9 BM → high-spin d5 with 5 unpaired (Cl- weak-field).
Strategic angle. Pair each observed moment with a spin-only-calculated moment, choose the unpaired-electron count that matches, then read off the spin state.
Workflow. (1) Determine the metal's oxidation state from the complex's overall charge minus ligand charges. (2) Find dn from the cation. (3) Calculate spin-only μ for both possible spin states (HS and LS for d4 through d7 in Oh). (4) Match observed μ to one of these. (5) Cross-check with ligand-field strength (spectrochemical series).
- K4[Mn(CN)6]: Mn(II) d5. Possible n values: 5 (high-spin, μ = 5.92 BM) or 1 (low-spin, μ = 1.73). Observed 2.2 BM is close to 1.73, so low-spin with 1 unpaired. CN- is a strong-field ligand, confirming. Octahedral splitting check: o(CN- with Mn(II)) ∼ 35000 cm-1; pairing energy P ∼ 25000 cm-1. Since o > P, low-spin is favoured.
- [Fe(H2O)6]^2+: Fe(II) d6. Possible n values: 4 (high-spin) or 0 (low-spin). Observed 5.3 BM is close to 4.90, so 4 unpaired, high-spin. H2O is weak-field. o(H2O on Fe(II)) ∼ 10000 cm-1; pairing energy ∼ 17600 cm-1. o < P enforces high-spin.
- K2[MnCl4]: Mn(II) d5 but tetrahedral. In tetrahedral t = (4/9) o, so for any ligand t < P and tetrahedral complexes are essentially always high-spin. With d5 this gives 5 unpaired electrons, μ = √35 = 5.92 BM. Observed 5.9 matches almost perfectly.
- Compare the three numbers: Mn(CN)6/MnCl4 = 2.2/5.9 = 0.37. Same metal (Mn2+), ∼3-fold change in μ from switching ligand. This is what crystal-field theory predicts.
- Note the role of geometry. In octahedral [Mn(H2O)6]^2+ with weak-field water, μ would also be 5.92 BM (high-spin d5). So octahedral-CN- vs octahedral-H2O changes spin state; octahedral-H2O vs tetrahedral-Cl- gives same spin state.
Numerical cross-check. For [Mn(CN)6]^4-, the orbital contribution slightly raises observed μ above spin-only 1.73 BM to 2.2 BM. The orbital contribution formula for low-spin t2g5: μ = √S2 + α L2 where α depends on geometry and ligand. For t2g5, there is one t2g vacancy, so some orbital moment survives — hence the lift from 1.73 to 2.2 BM.
Concept linkage. The same logic applies to [Co(NH3)6]^3+ (low-spin d6, μ = 0, diamagnetic), [Fe(CN)6]^4- (low-spin d6, μ = 0), [FeF6]^3- (high-spin d5, μ = 5.92). Strong-field ligands force low-spin in d4–d7 octahedral cases; weak-field ligands enforce high-spin.
Why this matters. Magnetic-moment measurements are the most direct route to deducing geometry, oxidation state and spin state of a transition-metal complex. This question shows the standard workflow. Bioinorganic chemists use magnetic susceptibility to identify the Fe(II)/Fe(III) and high-spin/low-spin state of haemoglobin's iron in different states (oxy-, deoxy-, met-).
Low-spin Mn(II) in [Mn(CN)6]^4- (1 unpaired); high-spin Fe(II) in [Fe(H2O)6]^2+ (4 unpaired); high-spin Mn(II) in [MnCl4]^2- (5 unpaired).
More The d- and f-Block Elements Chemistry Class 12 Resources
- The d- and f-Block Elements Class 12 Chemistry NCERT Notes
- The d- and f-Block Elements Class 12 Chemistry Formula Sheet
- The d- and f-Block Elements Class 12 Chemistry NCERT Book PDF
- The d- and f-Block Elements Class 12 Chemistry NCERT Exemplar Book PDF
- The d- and f-Block Elements Class 12 Chemistry NCERT Exemplar Solutions
- The d- and f-Block Elements Class 12 Chemistry Handwritten Notes
NCERT Solutions for Class 12 Chemistry: All Chapters
The full Collegedunia library of NCERT Solutions for Class 12 Chemistry is listed below for quick navigation across the syllabus.
| Chapter | Resource |
|---|---|
| Chapter 1 | Solutions NCERT Solutions |
| Chapter 2 | Electrochemistry NCERT Solutions |
| Chapter 3 | Chemical Kinetics NCERT Solutions |
| Chapter 5 | Coordination Compounds NCERT Solutions |
| Chapter 6 | Haloalkanes and Haloarenes NCERT Solutions |
| Chapter 7 | Alcohols, Phenols and Ethers NCERT Solutions |
| Chapter 8 | Aldehydes, Ketones and Carboxylic Acids NCERT Solutions |
| Chapter 9 | Amines NCERT Solutions |
| Chapter 10 | Biomolecules NCERT Solutions |
The d- and f-Block Elements Class 12 Chemistry NCERT Solutions FAQs
Ques. Where can I download The d- and f-Block Elements Class 12 Chemistry NCERT Solutions PDF?
Ans. You can download The d- and f-Block Elements Class 12 Chemistry NCERT Solutions PDF directly from this page. Both Normal and HD versions are available, and both are free. The PDF covers every intext question and every exercise from the 2026-27 NCERT print.
Ques. Is this NCERT Solutions PDF aligned with the 2026-27 NCERT?
Ans. Yes. The PDF reflects the current 2026-27 syllabus for Class 12 Chemistry. Chapter 4 retains all 16 sub-sections including general trends, KMnO4, K2Cr2O7, lanthanoid and actinoid chemistry. No content was removed in the latest NCERT print.
Ques. How many pages is the Class 12th Chemistry The d- and f-Block Elements NCERT Solutions PDF?
Ans. The Solutions PDF runs approximately 30 pages and covers all 11 intext questions plus 30 textbook exercises, with each answer marked for the CBSE keyword that earns the mark.
Ques. What is the CBSE Board weightage of The d- and f-Block Elements in Class 12 Chemistry?
Ans. Chapter 4 typically carries 6 to 8 marks in the CBSE Board paper, usually split as one short answer on KMnO4 or K2Cr2O7 preparation plus one reasoning question on lanthanoid contraction or magnetic moment. The chapter is part of the Inorganic Chemistry unit which together contributes 19 marks.
Ques. Which questions from The d- and f-Block Elements are most likely to repeat in CBSE 2026?
Ans. KMnO4 preparation (5-marker) and lanthanoid contraction effects (2 to 3 marker) have appeared in four of the last five CBSE Board cycles. Cu+ versus Cu2+ colour reasoning, why Mn(II) is more stable, and the chromate-dichromate equilibrium are the three strongest VSA candidates.
Ques. How important is The d- and f-Block Elements for JEE Main and NEET 2026?
Ans. The chapter accounts for roughly 3 to 4% of JEE Main Chemistry and 2 to 3 NEET questions per year. The most-asked topics are spin-only magnetic moment, oxidation states of Mn and Cr, electronic configurations of 3d-series ions, and lanthanoid contraction.
Ques. How should I attempt the NCERT exercises for The d- and f-Block Elements?
Ans. Solve the 11 intext questions first since they anchor the electronic-configuration logic. Then attempt exercises 4.1 to 4.10 for general trends, exercises 4.11 to 4.20 for KMnO4 and K2Cr2O7, and the rest for lanthanoid and actinoid topics. A two-pass approach over six days closes the chapter for boards.
Ques. Are the NCERT Solutions on this page enough for CBSE Boards or should I also use the Exemplar?
Ans. The NCERT Solutions cover every CBSE-style reasoning and equation-writing pattern asked in the past five years and are sufficient for Boards on their own. For JEE Main and NEET aspirants the Exemplar adds twist-style MCQs and multi-step MCQ-IIs; pair the two for entrance prep.
Ques. What is lanthanide contraction in Class 12 Chemistry?
Ans. Lanthanide contraction (also called lanthanoid contraction) is the steady decrease in atomic and Ln3+ ionic radius from La (103 pm) to Lu (86 pm), a total drop of about 17 pm across the 4f series. It occurs because the 4f electrons shield the outer electrons very poorly, so the effective nuclear charge increases progressively across Ce, Pr, Nd ... Lu.
Ques. What are the main lanthanoid contraction consequences?
Ans. The three exam-mandatory consequences are: (i) nearly identical sizes of 4d and 5d transition metals of the same group, so Zr/Hf and Nb/Ta are chemically inseparable; (ii) decreasing basicity of trivalent hydroxides from La(OH)3 to Lu(OH)3; (iii) closely spaced ionisation enthalpies that make individual lanthanoid separation industrially difficult.
Ques. Why do Cr and Cu show anomalous electronic configuration?
Ans. Chromium (Z = 24) is [Ar] 3d5 4s1 instead of 3d4 4s2, and copper (Z = 29) is [Ar] 3d10 4s1 instead of 3d9 4s2. The extra stability of the half-filled (d5) and fully-filled (d10) sub-shell, driven by symmetrical distribution of electrons and the maximum exchange energy, overrides the Aufbau order.
Ques. How is KMnO4 prepared from pyrolusite and what are its main properties?
Ans. Pyrolusite (MnO2) is fused with KOH in the presence of O2 or KNO3 to give green K2MnO4: 2MnO2 + 4KOH + O2 → 2K2MnO4 + 2H2O . K2MnO4 then disproportionates in neutral/acidic medium to purple KMnO4: 3MnO42- + 4H+ → 2MnO4- + MnO2 + 2H2O . KMnO4 is a strong oxidising agent with E° (MnO4-/Mn2+) = +1.51 V in acidic medium.
Ques. How is K2Cr2O7 prepared and what is the chromate-dichromate equilibrium?
Ans. K2Cr2O7 is prepared by roasting chromite ore (FeCr2O4) with Na2CO3 in air to give Na2CrO4, then acidifying to dichromate and treating with KCl. The chromate-dichromate equilibrium is pH-dependent: 2CrO42- + 2H+ Cr2O72- + H2O . Yellow CrO42- predominates in alkaline medium; orange Cr2O72- predominates in acidic medium.
Ques. How do I calculate magnetic moment using the spin-only formula?
Ans. Use μ = √n(n+2) Bohr Magneton, where n is the number of unpaired d-electrons in the Mn+ ion (NOT the neutral atom). Always remove the 4s electrons before the 3d ones. For Fe3+ (3d5), n = 5, μ = √35 = 5.92 BM. For Cr3+ (3d3), n = 3, μ = √15 = 3.87 BM.
Ques. Why do transition metals show variable oxidation states?
Ans. Transition metals have (n-1)d and ns electrons of comparable energy, so both shells can lose electrons in chemical bonding. Mn shows the widest range (+2 to +7) because its 3d5 4s2 configuration provides seven outer electrons capable of bonding; +2 stability rises across the 3d row because additional d-electrons stabilise the M2+ state.
Ques. Why are transition metal compounds coloured?
Ans. Colour in transition-metal compounds arises from d-d electronic transitions: an electron absorbs a part of the visible spectrum and jumps from one d-orbital to another of slightly higher energy in the crystal field. The observed colour is complementary to the absorbed wavelength. Ions with d0 (Sc3+, Ti4+) or d10 (Cu+, Zn2+) have no possible d-d transition and are colourless.
Ques. What are interstitial compounds and alloys of transition metals?
Ans. Interstitial compounds form when small atoms like H, C, N or B occupy octahedral or tetrahedral voids in transition-metal lattices, giving non-stoichiometric, hard, high-melting, chemically inert solids (TiC, Mn4N, Fe3H). Alloy formation is favoured because transition metals have similar atomic radii, so they substitute freely; common examples are brass (Cu-Zn), bronze (Cu-Sn) and stainless steel (Fe-Cr-Ni). Misch metal (95% Ln + 5% Fe) is the lanthanoid alloy used in lighter flints.
Ques. How do actinoids differ from lanthanoids?
Ans. Actinoids (Th to Lr) and lanthanoids (Ce to Lu) both undergo contraction, but actinoids show many more oxidation states (up to +7 in Np, Pu) because 5f, 6d and 7s levels are close in energy. All actinoids are radioactive and only Th and U occur naturally in significant amounts. Lanthanoids are predominantly +3; actinoid contraction is larger per element than lanthanoid contraction because 5f electrons shield even less effectively than 4f.
Ques. Why are transition metals good catalysts?
Ans. The catalytic activity of transition metals comes from two features: variable oxidation states that allow them to accept and donate electrons during a reaction cycle, and partially filled d-orbitals that provide adsorption sites for reactant molecules on the catalyst surface. Standard examples are Fe in the Haber process, V2O5 in the Contact process, Ni in catalytic hydrogenation, and Pt in catalytic converters.







Comments
