Electrochemistry is the branch of chemistry that links chemical change and electrical energy, governing how galvanic cells generate current and how electrolytic cells use current to drive reactions. Class 12 Chemistry Chapter 2 Electrochemistry is a high-scoring unit for CBSE Boards and a recurring favourite in JEE Main and NEET. This page hosts the 2026-27 NCERT notes PDF, sub-topic weightage, and the latest 2025 PYQ trends.
- CBSE Weightage: 5 to 7 marks (Unit III shares 13 marks with Chapters 1 and 3)
- JEE Main Weightage: 4 to 5% (typically 2 questions per shift)
- NEET Weightage: 2 to 3 questions per year
The Collegedunia notes condense every Nernst derivation, Kohlrausch application, and battery / corrosion case-study from the 2026-27 NCERT into a 24-page PDF, with worked board-style numericals after each topic.
These notes are curated by subject experts, mapped to the 2026-27 NCERT, and refined against the last five years of CBSE Board, JEE Main, and NEET papers.
Also Check:
- CBSE Class 12 Chemistry Syllabus 2026-27
- JEE Main Chemistry Syllabus
- NEET Chemistry Syllabus
How will Collegedunia's NCERT Notes Help You with Electrochemistry?
The notes target the four sub-topics where students lose marks most: Nernst-equation algebra, molar-conductivity plots, Faraday-counting, and corrosion diagrams.
- 2026-27 NCERT Alignment: every section matches the current NCERT, with the topics dropped from the older syllabus flagged.
- Diagrams and Step-by-Step Working: Daniell cell, salt-bridge, and corrosion picture redrawn in colour with cell-notation conventions shown.
- Expert Verification: every E∘ value and Kohlrausch application cross-checked against the NCERT Appendix.
- Formula Recap: each topic closes with a yellow formula strip and a "what CBSE asks" tag for last-day revision.
Electrochemistry Video Walkthrough
Source: Magnet Brains on YouTube
Electrochemistry Topic-by-Topic Notes for Class 12 Chemistry
The chapter splits cleanly into six themes. Each H3 below summarises the core concept and the formulae that drive most exam questions.

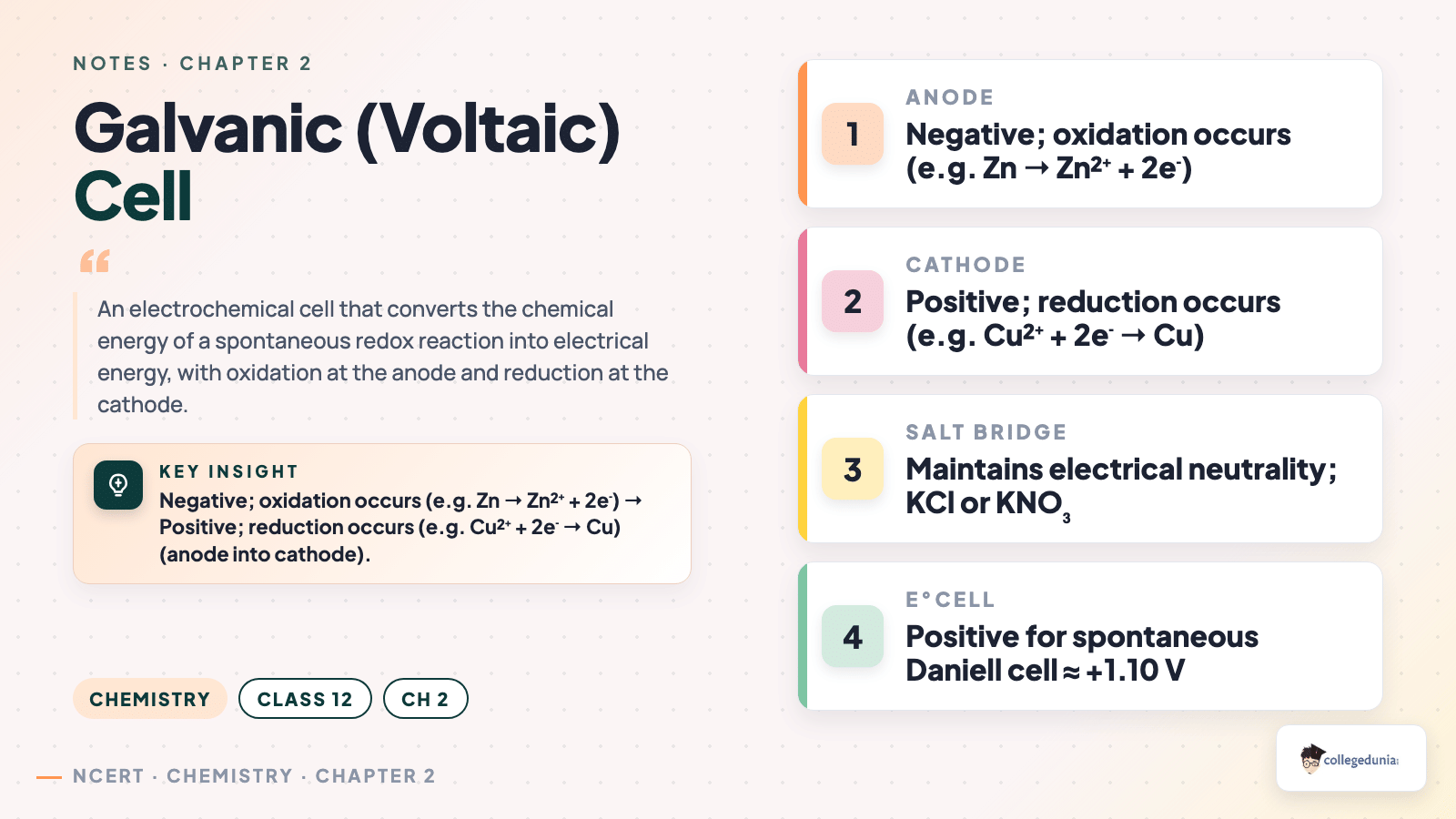

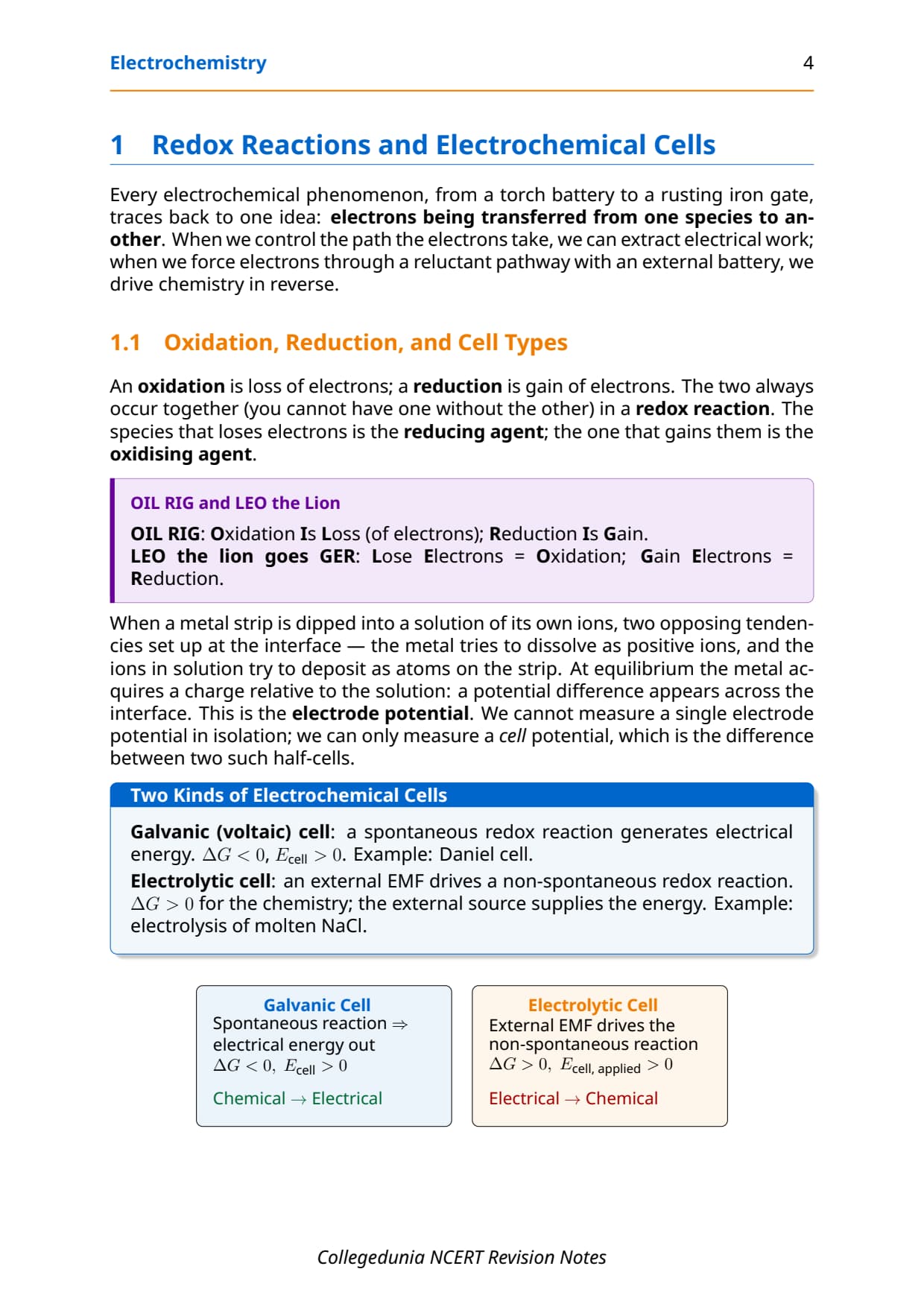

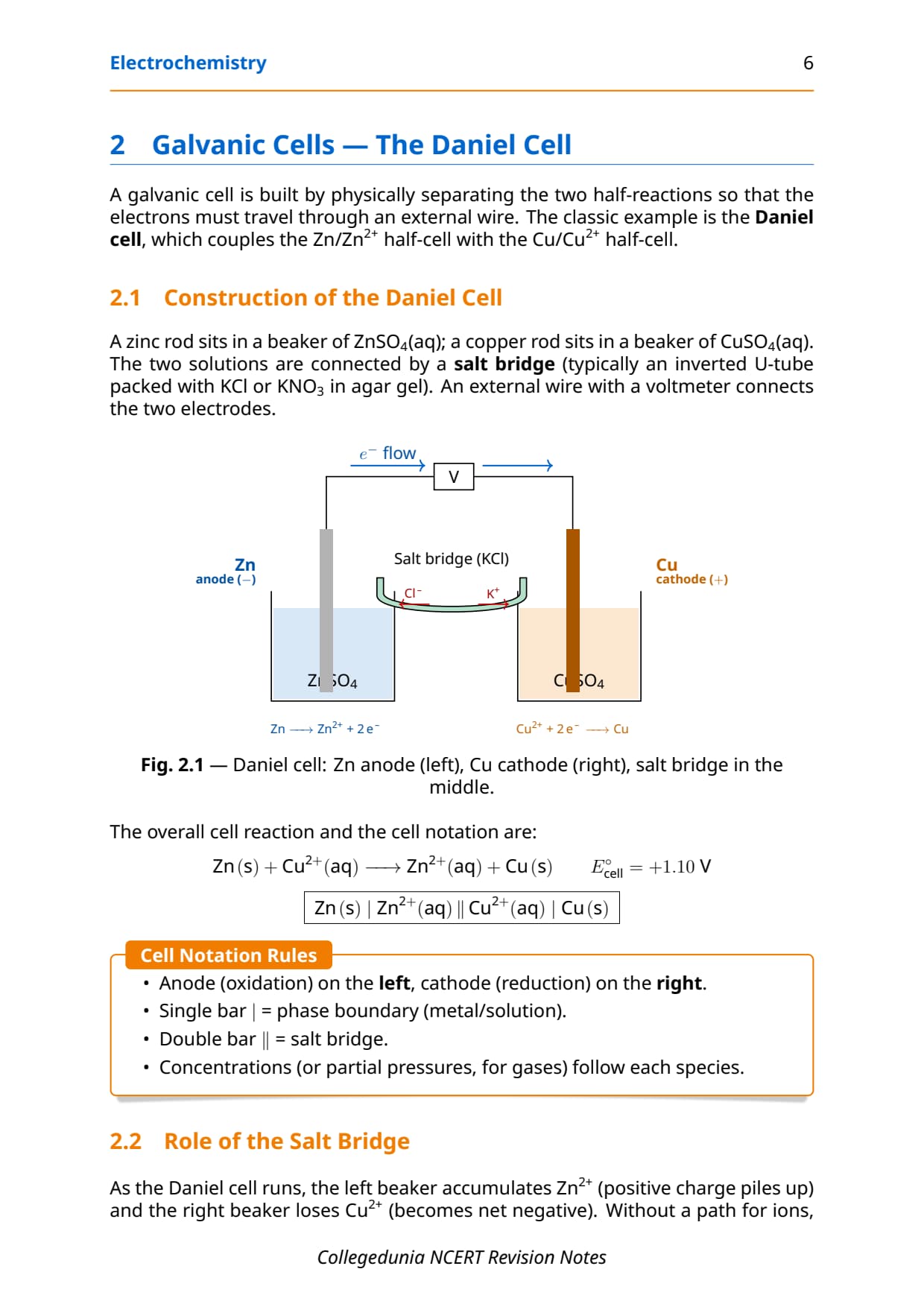

Redox Reactions and Electrochemical Cells
An electrochemical cell either converts chemical energy into electrical energy (galvanic cell) or uses electrical energy to drive a non-spontaneous reaction (electrolytic cell). In the Daniell cell, Zn is oxidised at the anode and Cu2+ reduced at the cathode, giving an EMF of 1.1 V under standard conditions. Cell notation: anode | anode solution || cathode solution | cathode.

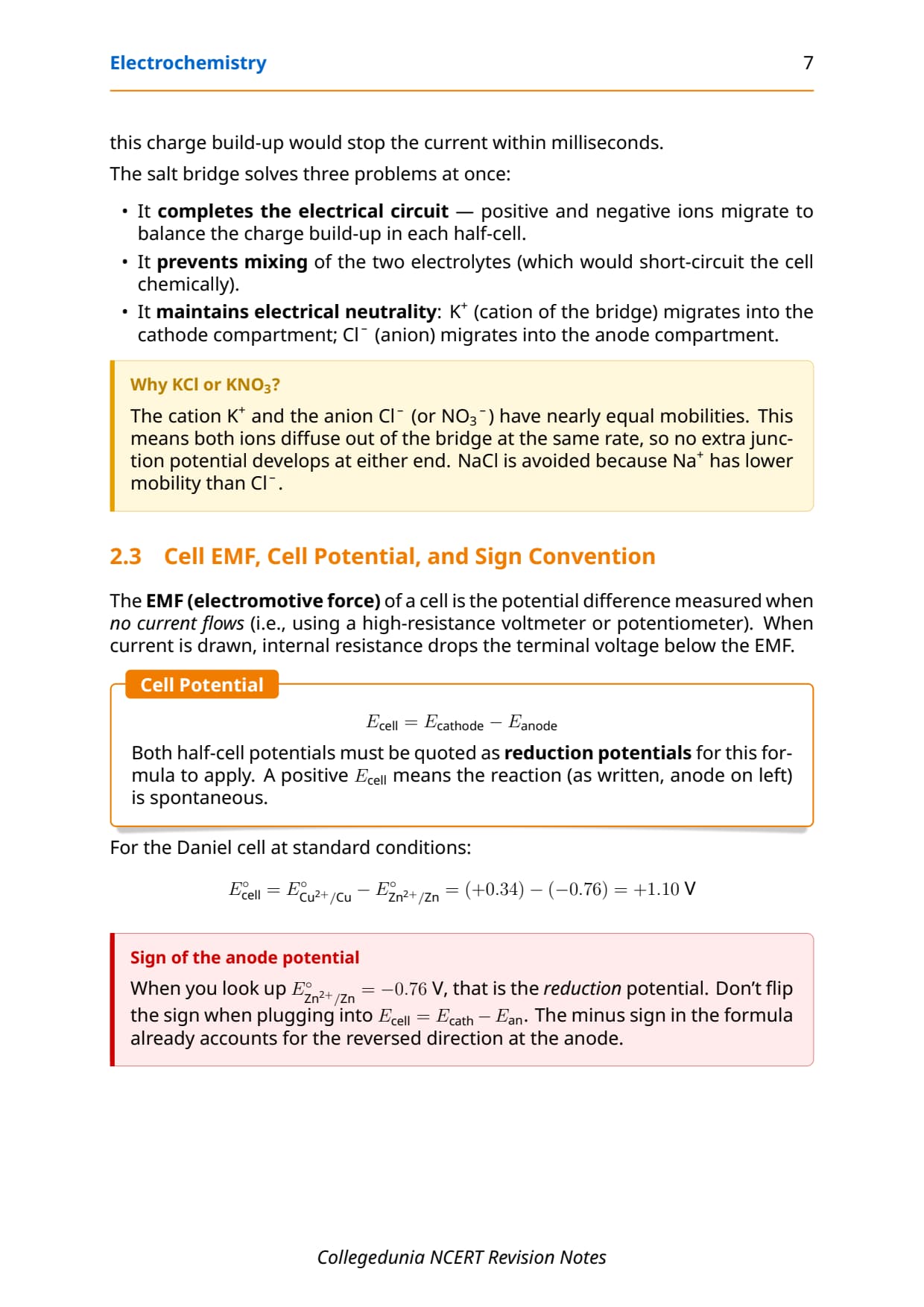

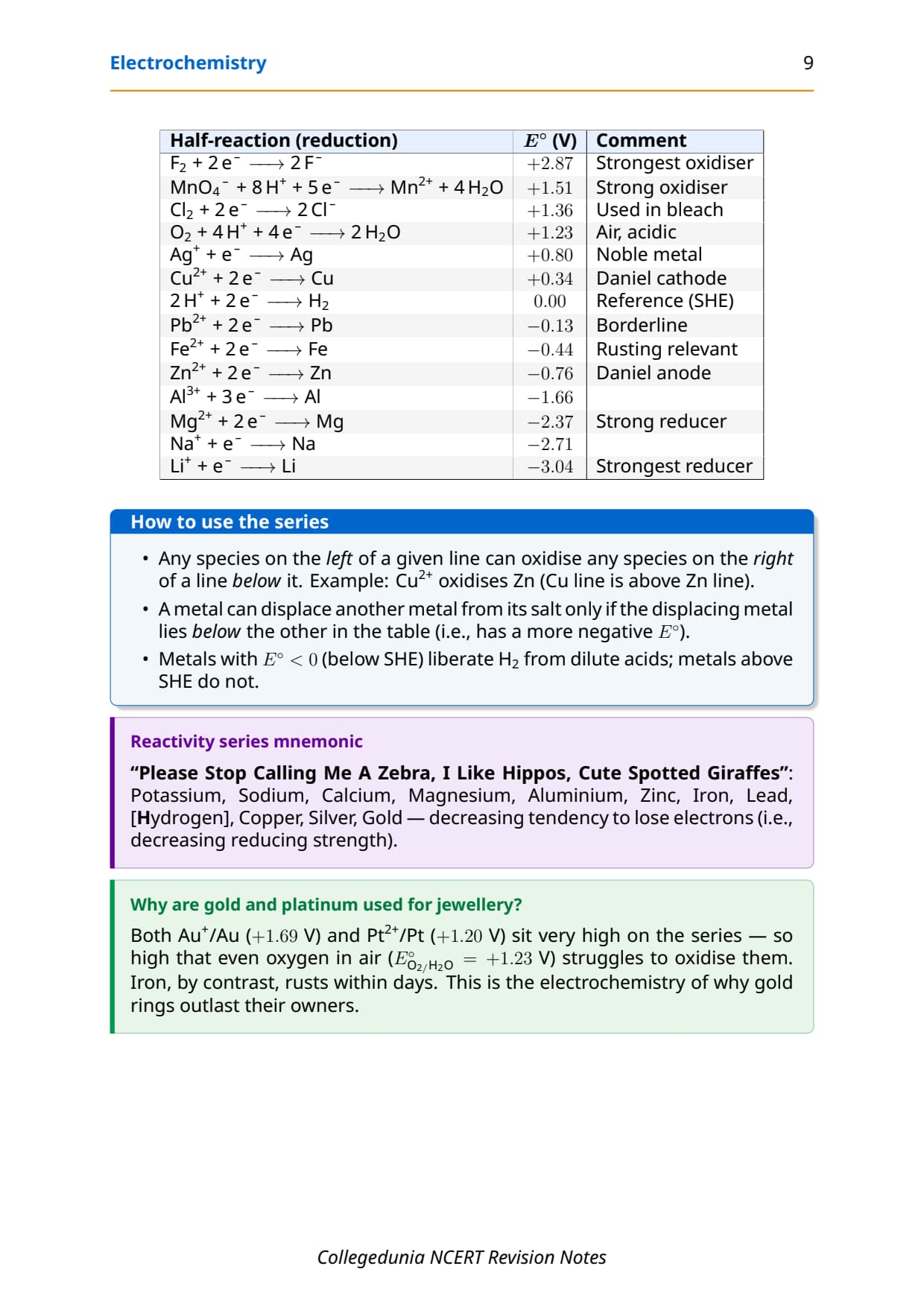

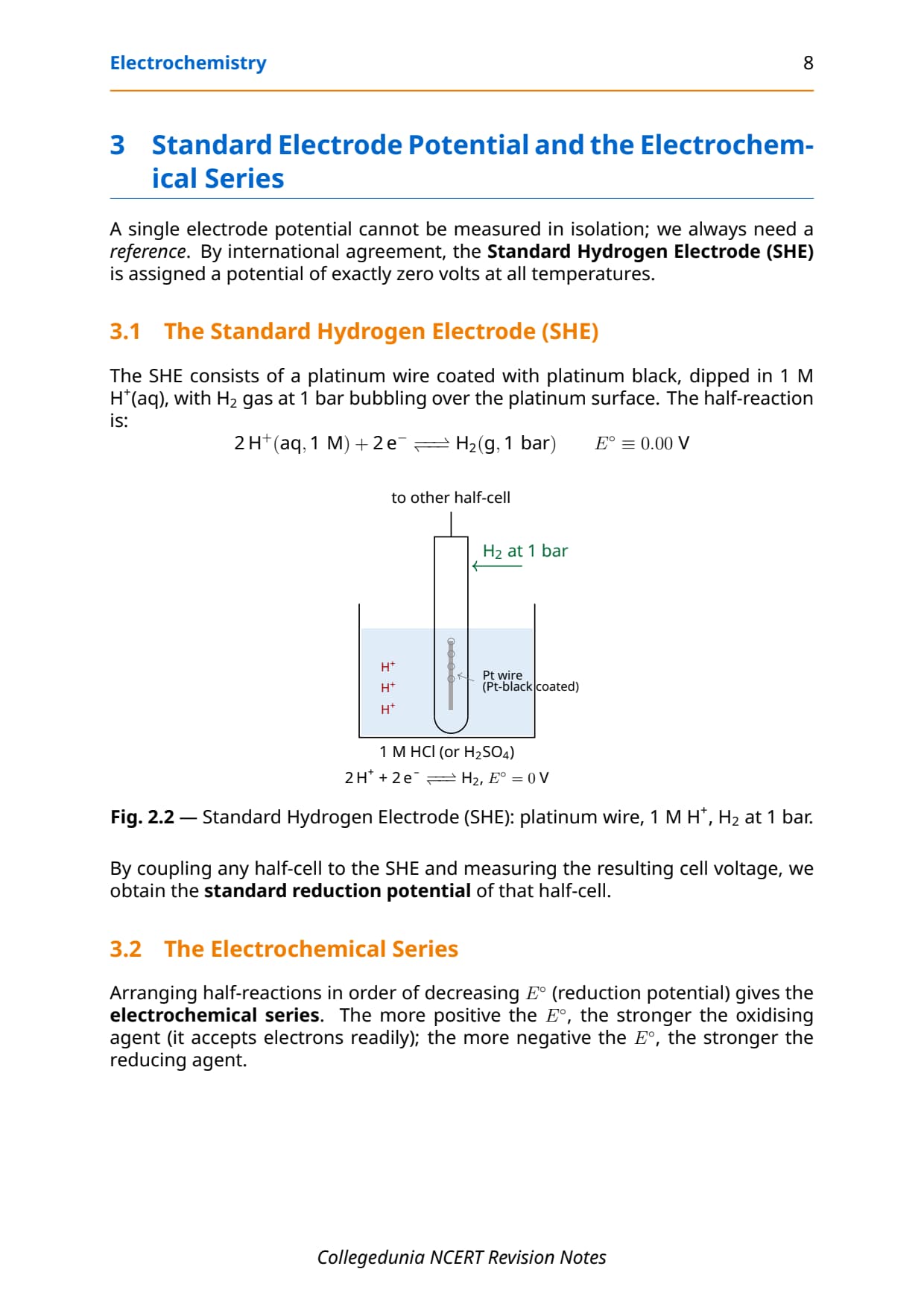

Standard Electrode Potential and the EMF of a Cell
The standard hydrogen electrode (SHE) is assigned E° = 0.00 V as the reference. The standard EMF is E∘cell = E∘cathode - E∘anode , with both values read as reduction potentials from the electrochemical series. Positive E∘cell means the reaction is spontaneous as written.

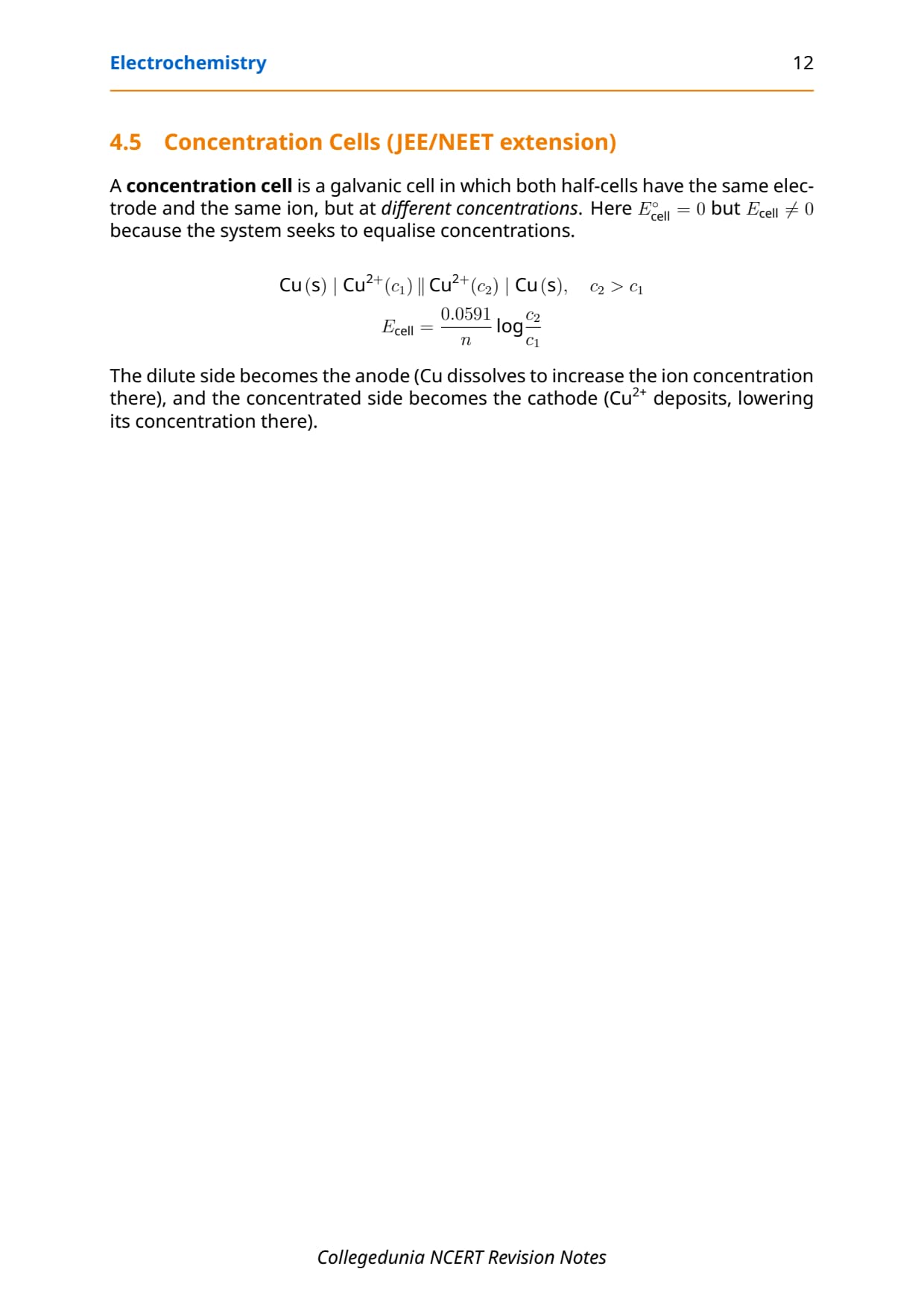

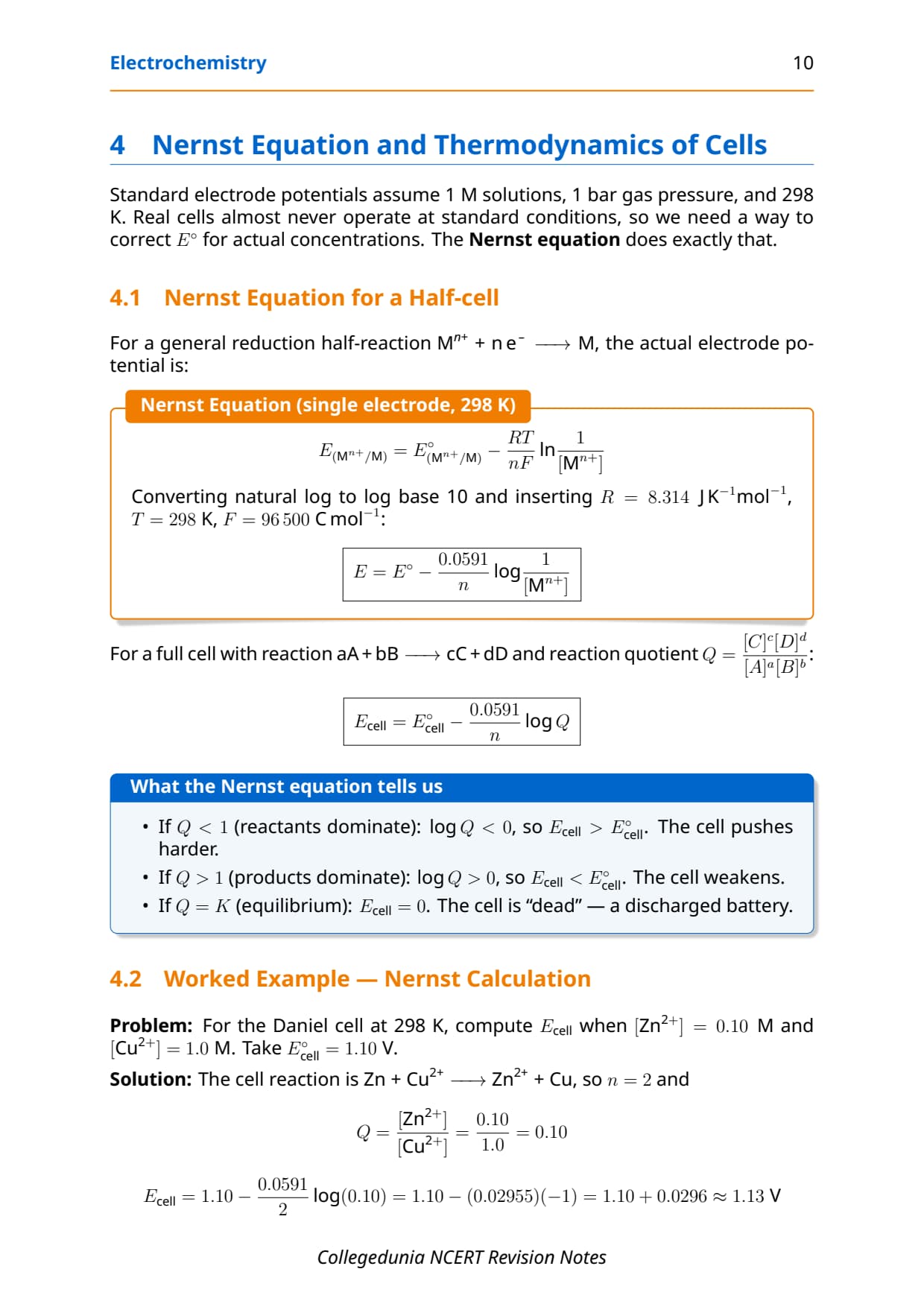

Nernst Equation and Cell EMF Under Non-Standard Conditions
The Nernst equation gives cell EMF at any concentration: $$ E_{cell} = E^{\circ}_{cell} - \frac{0.0591}{n} \log Q \quad (\text{at 298 K}) $$ with n the electrons transferred and Q the reaction quotient. At equilibrium, Ecell = 0 and Q = Kc , giving log Kc = n E∘cell0.0591 , the link between electrochemistry and equilibrium.

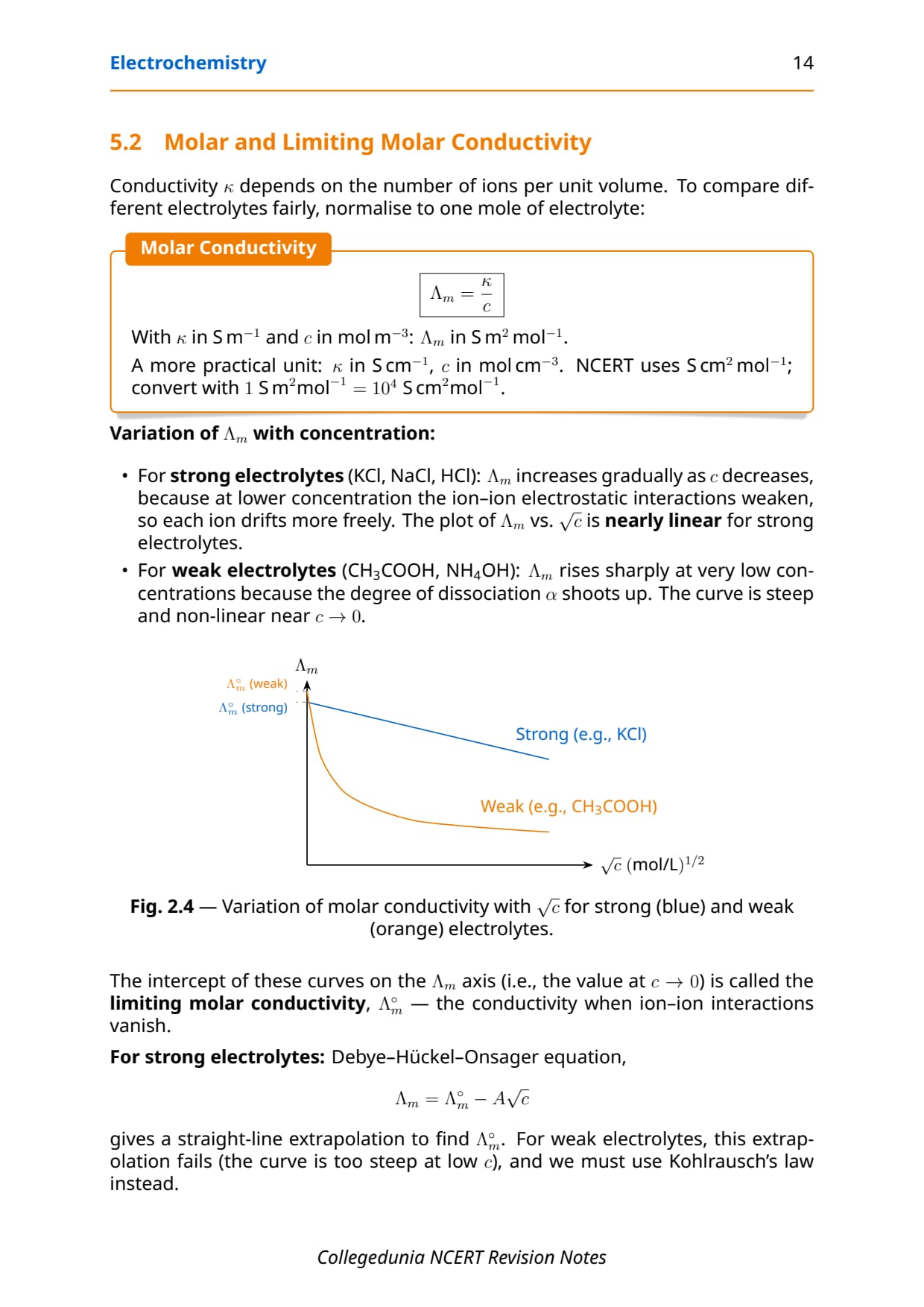

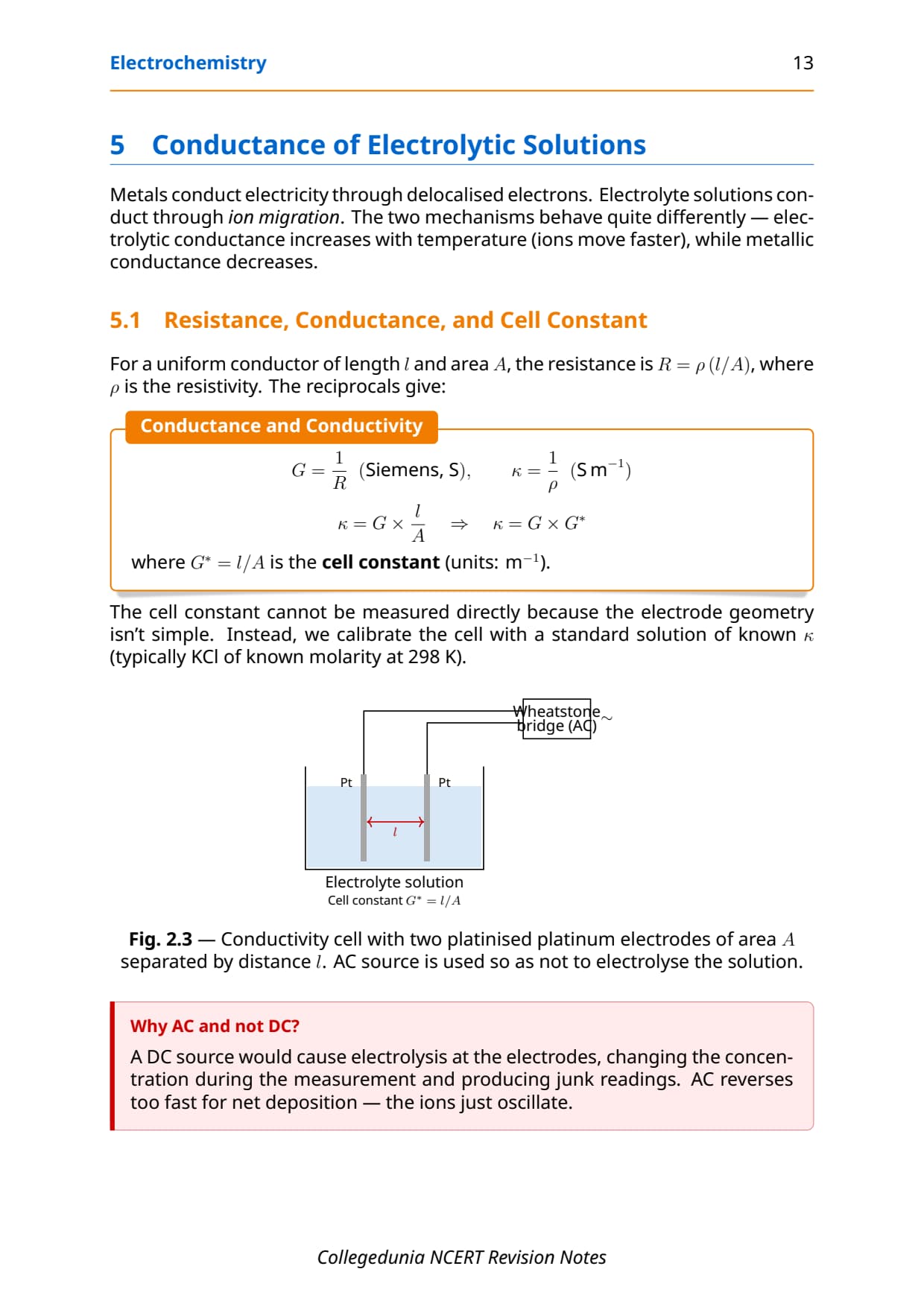

Conductance of Electrolytic Solutions
Specific conductivity κ = 1/ρ is the conductance of a 1-cm cube. Molar conductivity m = κ × 1000/c is the conductance per mole. Strong electrolytes show a small rise in m on dilution; weak electrolytes show a large rise because their degree of dissociation jumps sharply at low concentration.

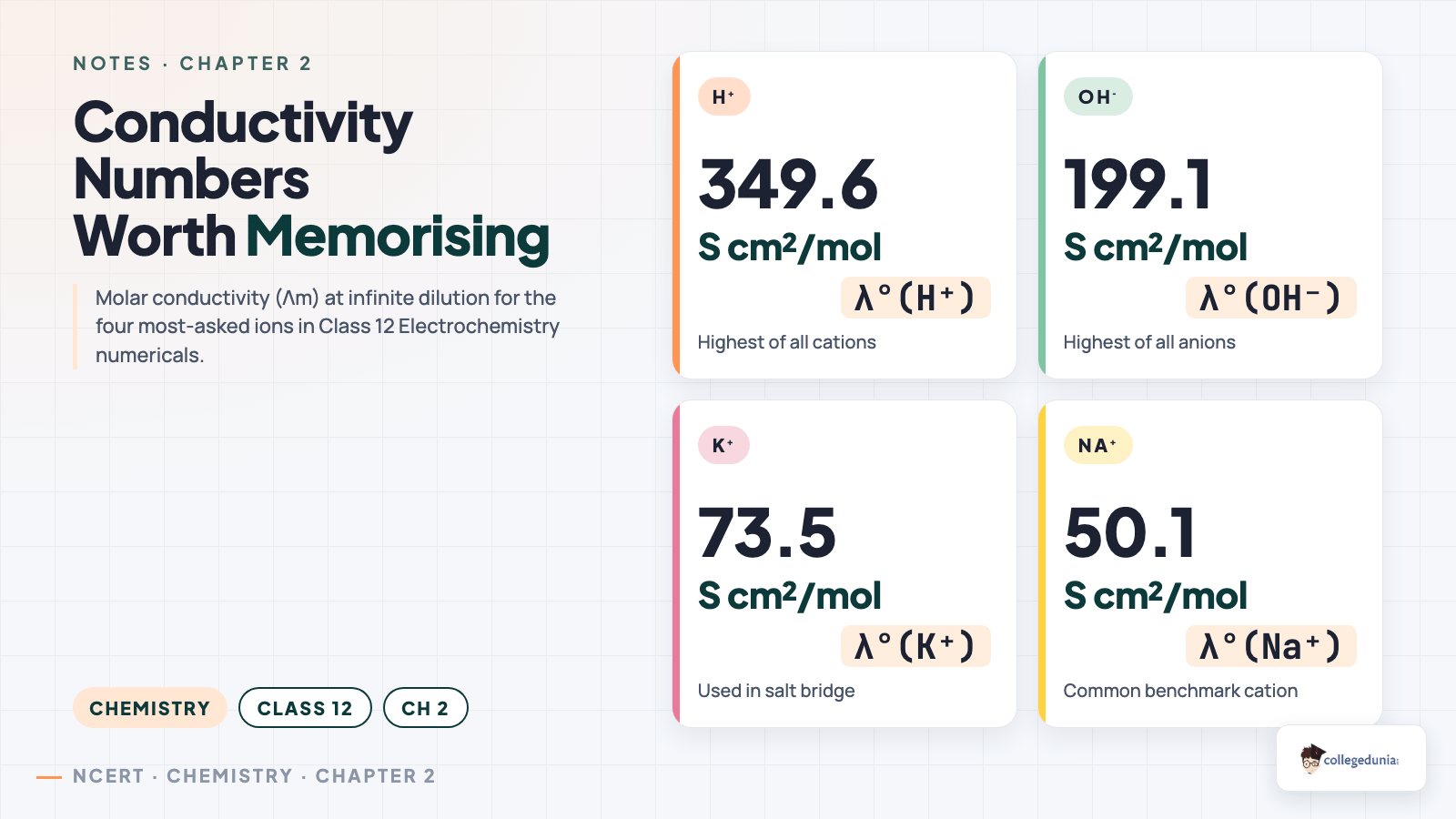

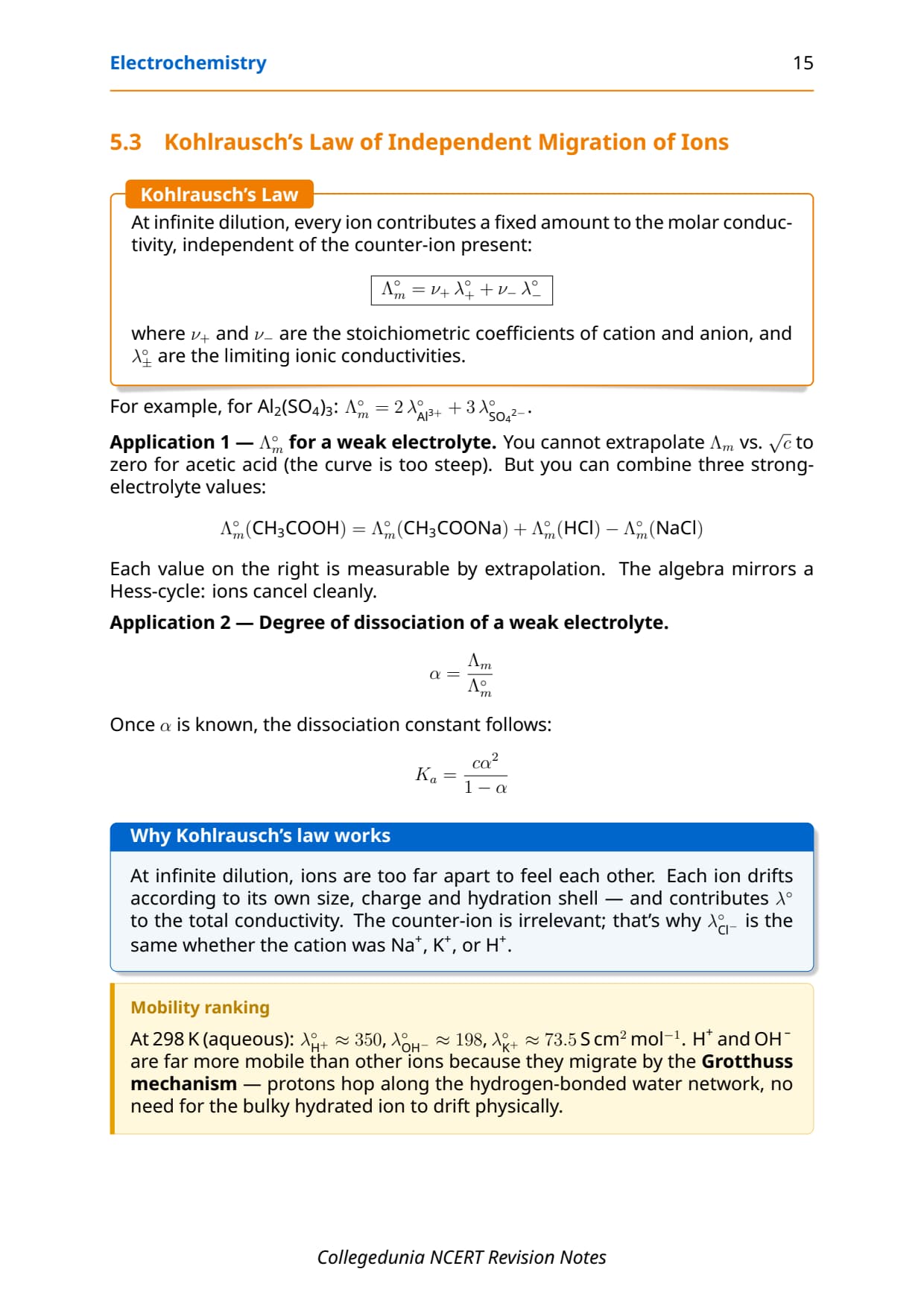

Kohlrausch's Law and Its Applications
At infinite dilution, the molar conductivity equals the sum of the limiting ionic conductivities: m∘ = + +∘ + - -∘ . The law lets you (i) find m∘ for weak electrolytes, (ii) compute the degree of dissociation α = mc / m∘ , and (iii) calculate Ka of a weak acid.

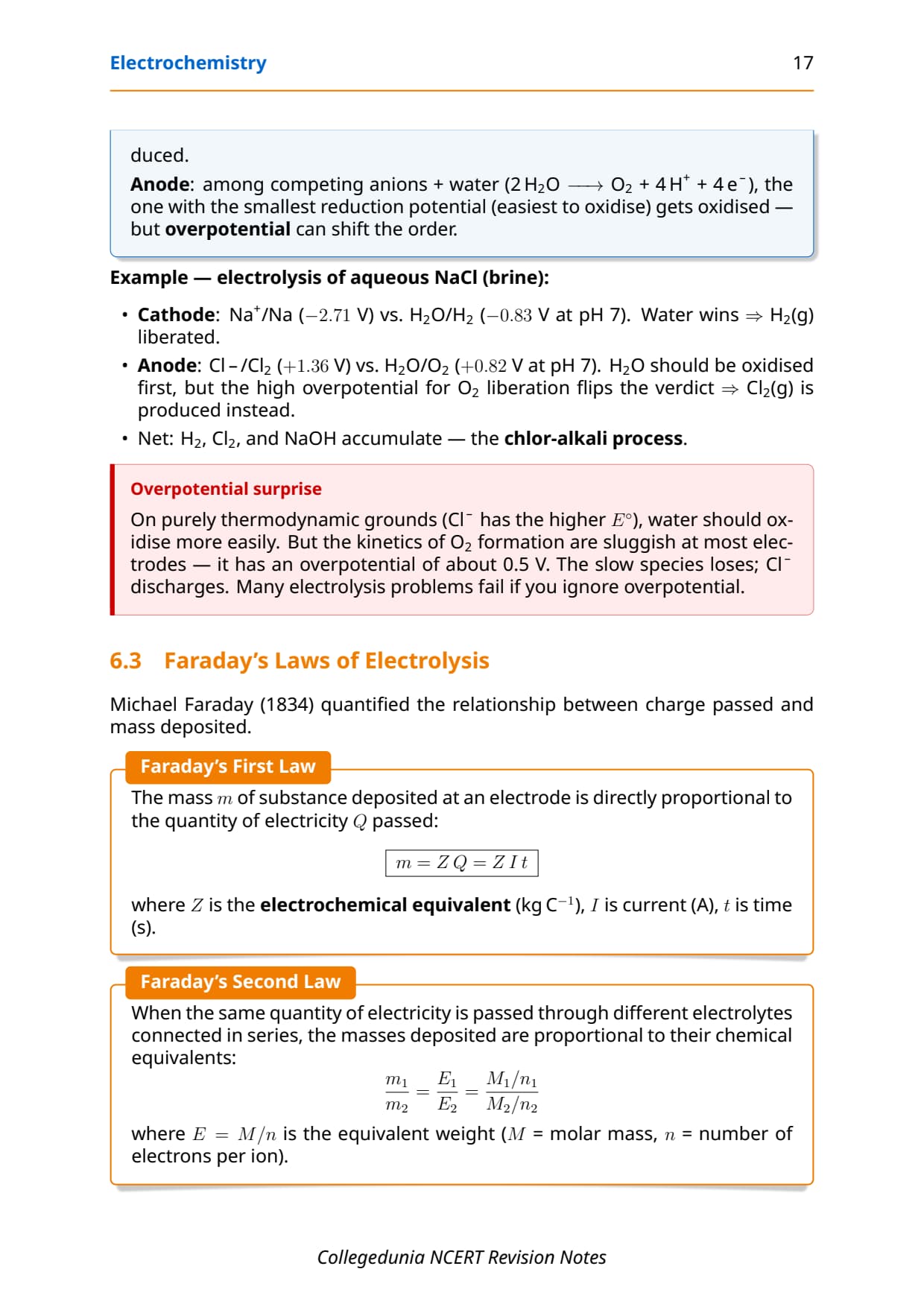

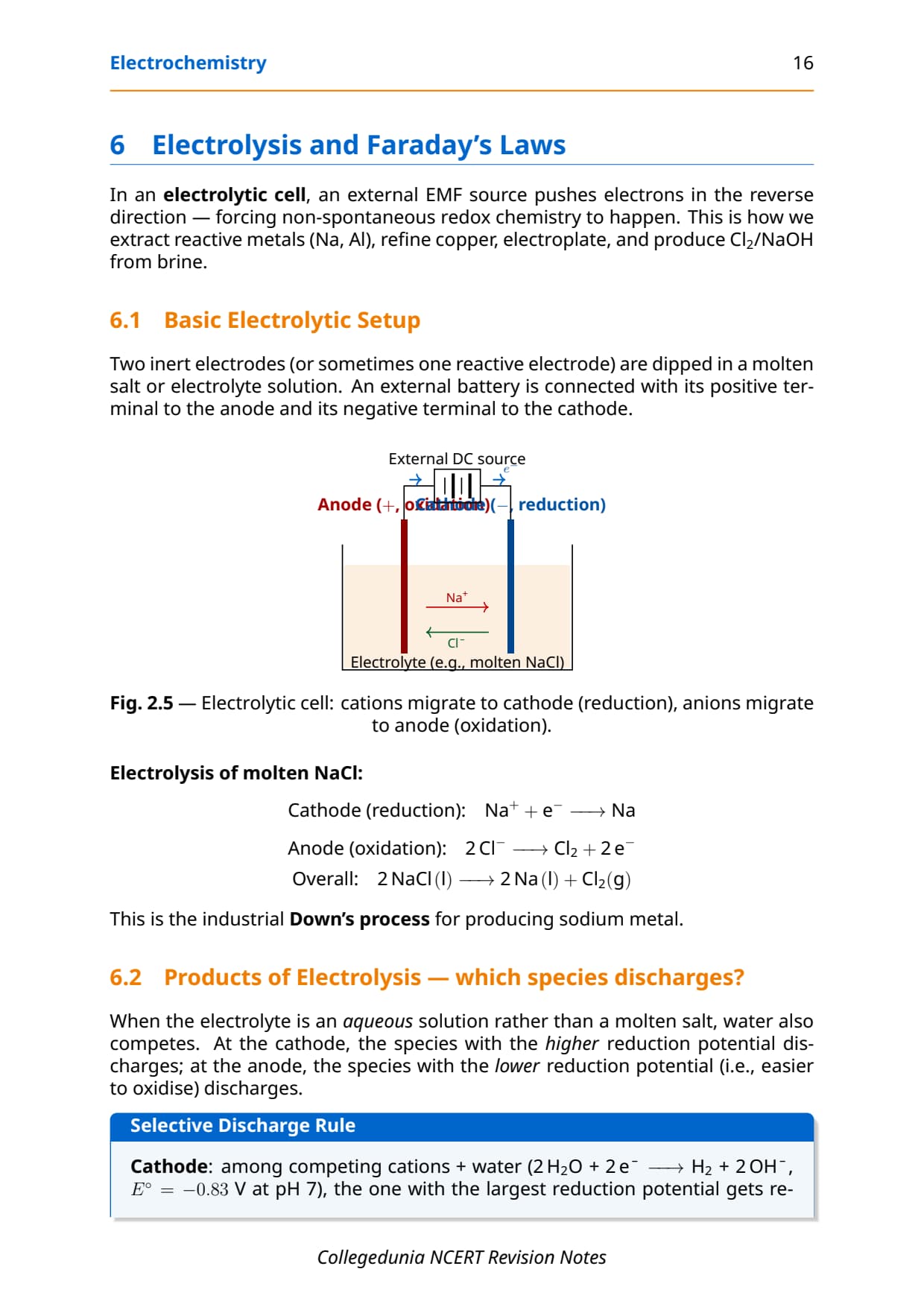

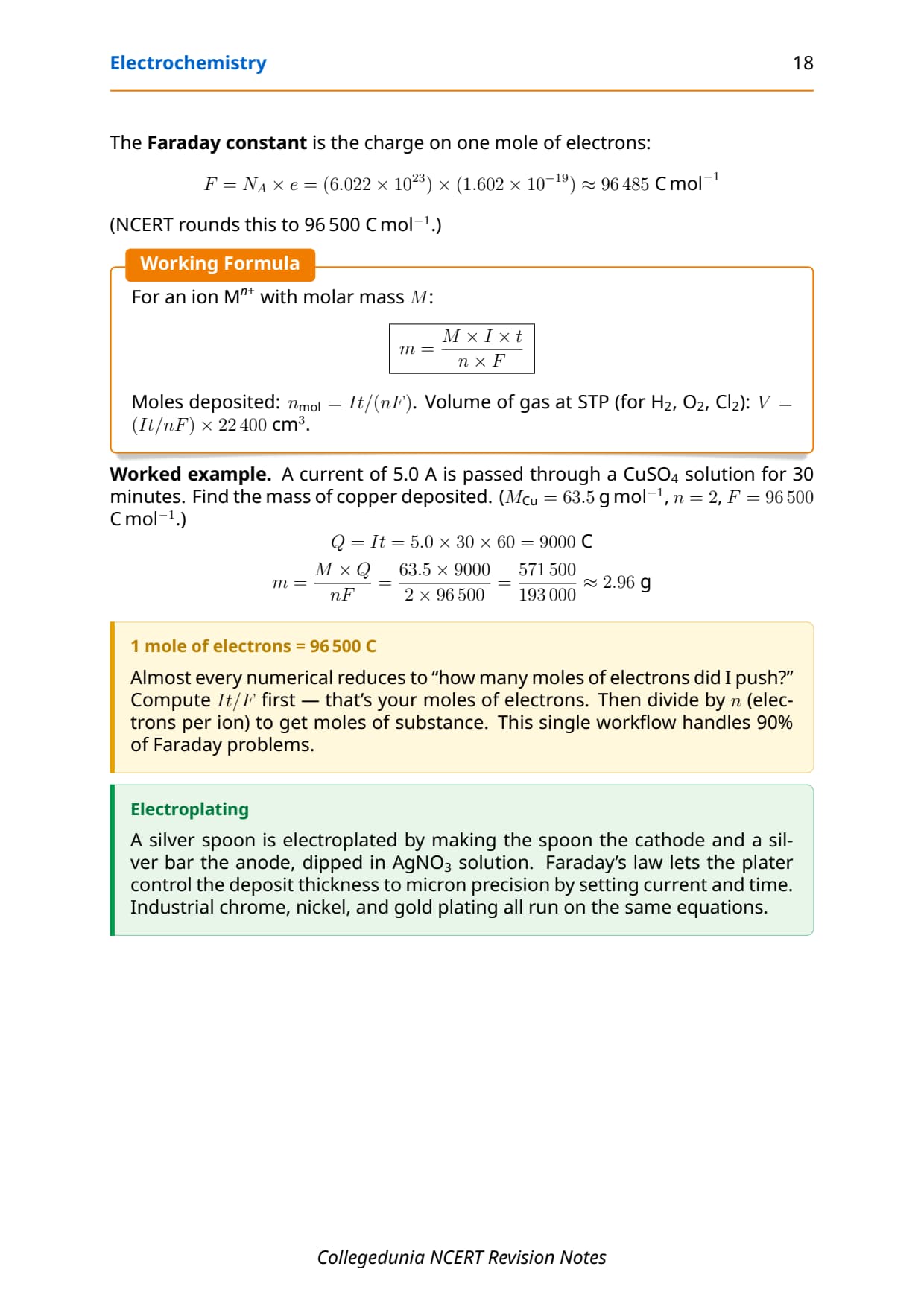

Electrolysis and Faraday's Laws
Faraday's first law: mass deposited at an electrode is proportional to charge passed: m = M I tn F . Second law: equal charge through different electrolytes deposits masses in the ratio of equivalent masses. The Faraday constant F = 96{,}500 C mol-1 is the charge on one mole of electrons.

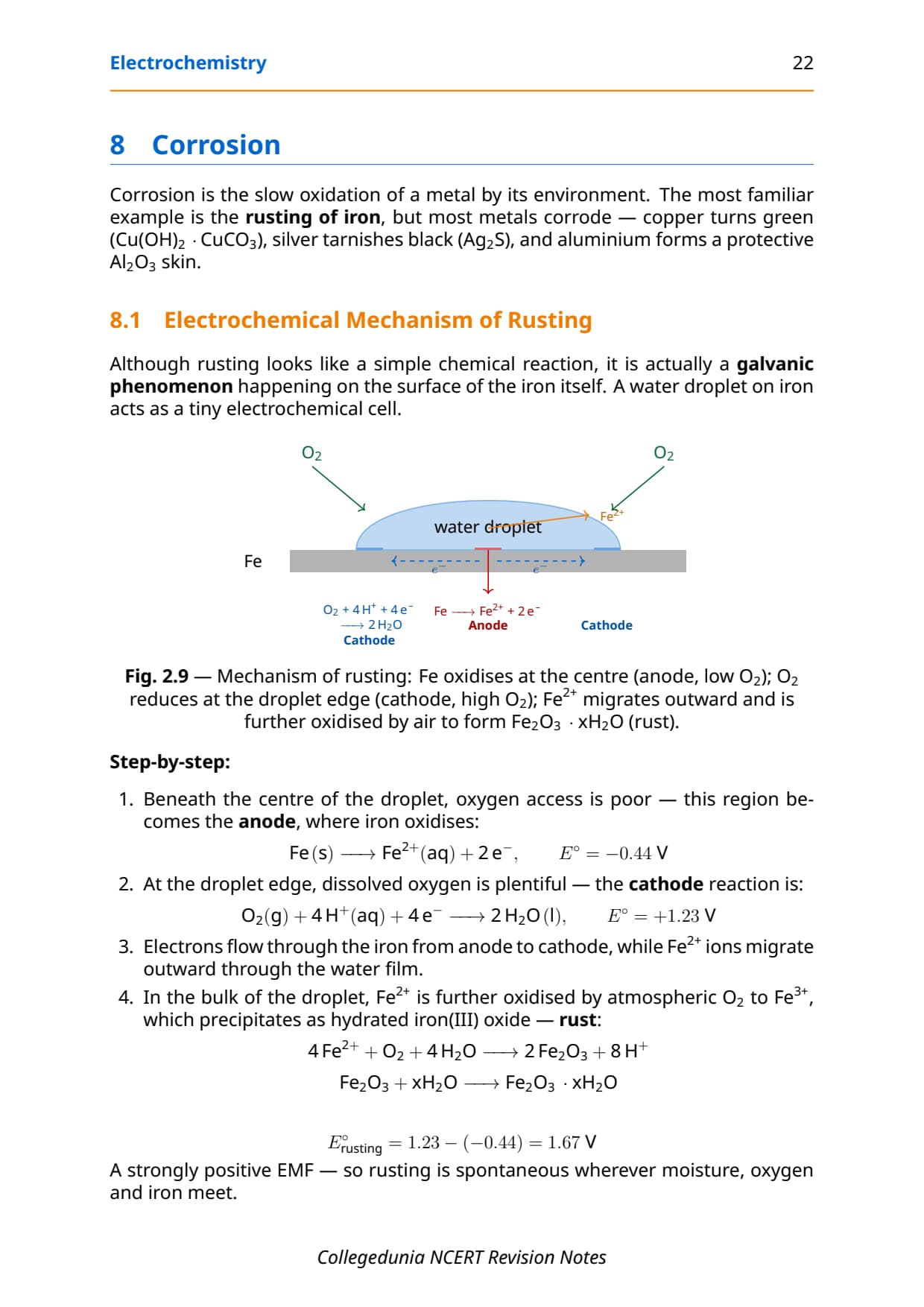

Batteries, Fuel Cells and Corrosion

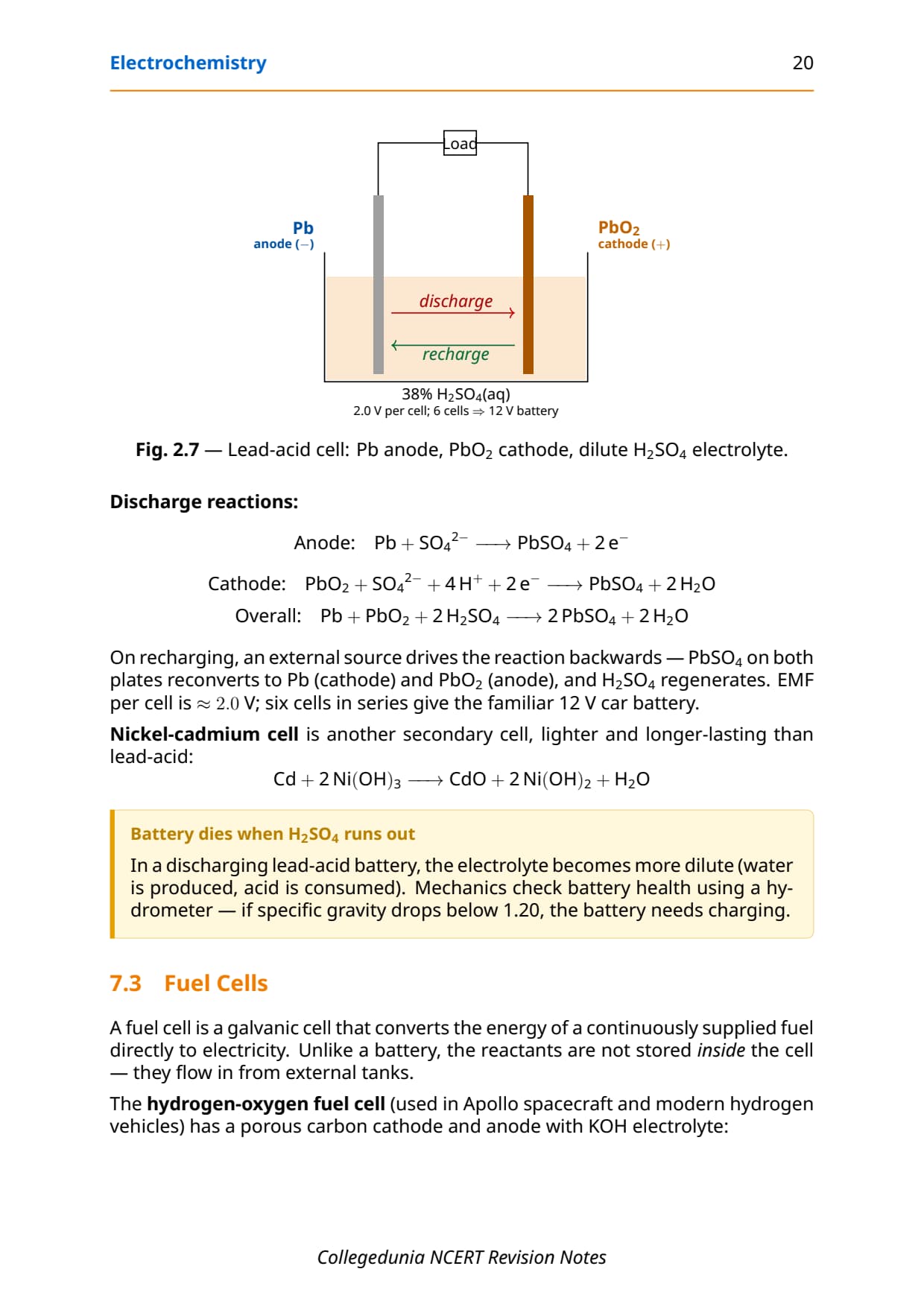

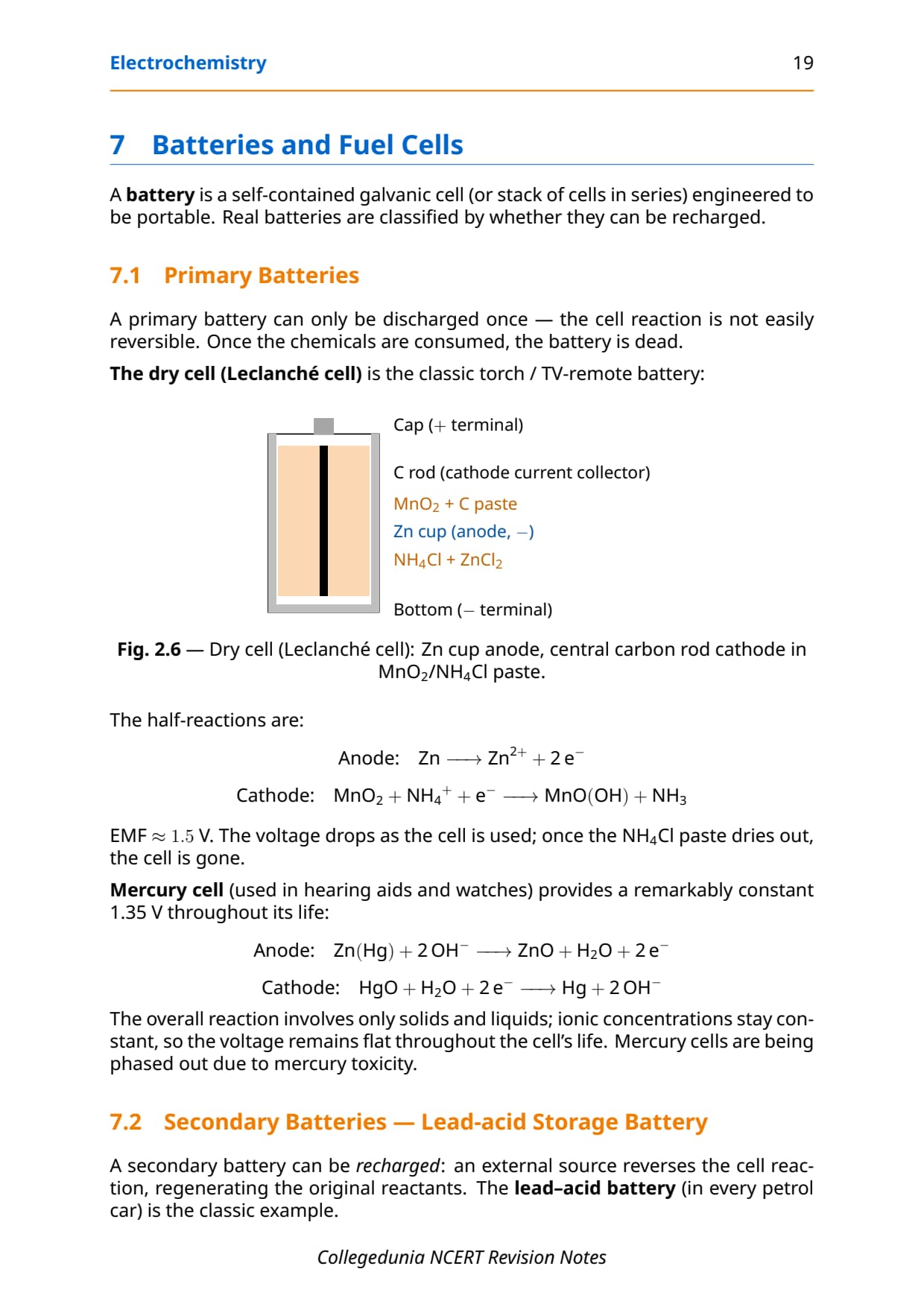

Primary cells (dry, mercury) cannot be recharged; secondary cells (lead-acid, nickel-cadmium) can. Hydrogen-oxygen fuel cells generate continuous electricity from gaseous fuels and are used in spacecraft. Corrosion is an electrochemical process where iron acts as the anode in the presence of water and oxygen; protective measures include galvanising, painting, and cathodic protection.
Electrochemistry Topic-wise Weightage for CBSE Class 12 Chemistry
The table below shows which Electrochemistry sub-topics CBSE has favoured across the last five board papers. Use it to prioritise revision time on the High-frequency rows.
| Sub-topic | Weightage | CBSE Frequency |
|---|---|---|
| Nernst Equation and Cell EMF | High | Almost every year |
| Kohlrausch's Law and Molar Conductivity | High | 4 out of last 5 years |
| Electrolysis and Faraday's Laws (numerical) | Medium | 3 out of last 5 years |
| Standard Electrode Potential / Electrochemical Series | Medium | 3 out of last 5 years |
| Batteries (Lead-Acid, Mercury, Fuel Cell) | Medium | 2 out of last 5 years |
| Corrosion Mechanism | Low | 1 out of last 5 years |
Electrochemistry Important Derivations for Class 12 Boards
The four derivations below carry the bulk of the 3-mark and 5-mark long-answer questions in Boards and JEE Main. Every Electrochemistry notes PDF should walk you through the algebra step by step.
- Nernst Equation from Gibbs Energy: proves Ecell = E∘cell - RTnF ln Q and its 298 K form. Appeared in CBSE 2024, 2022 and JEE Main 2025.

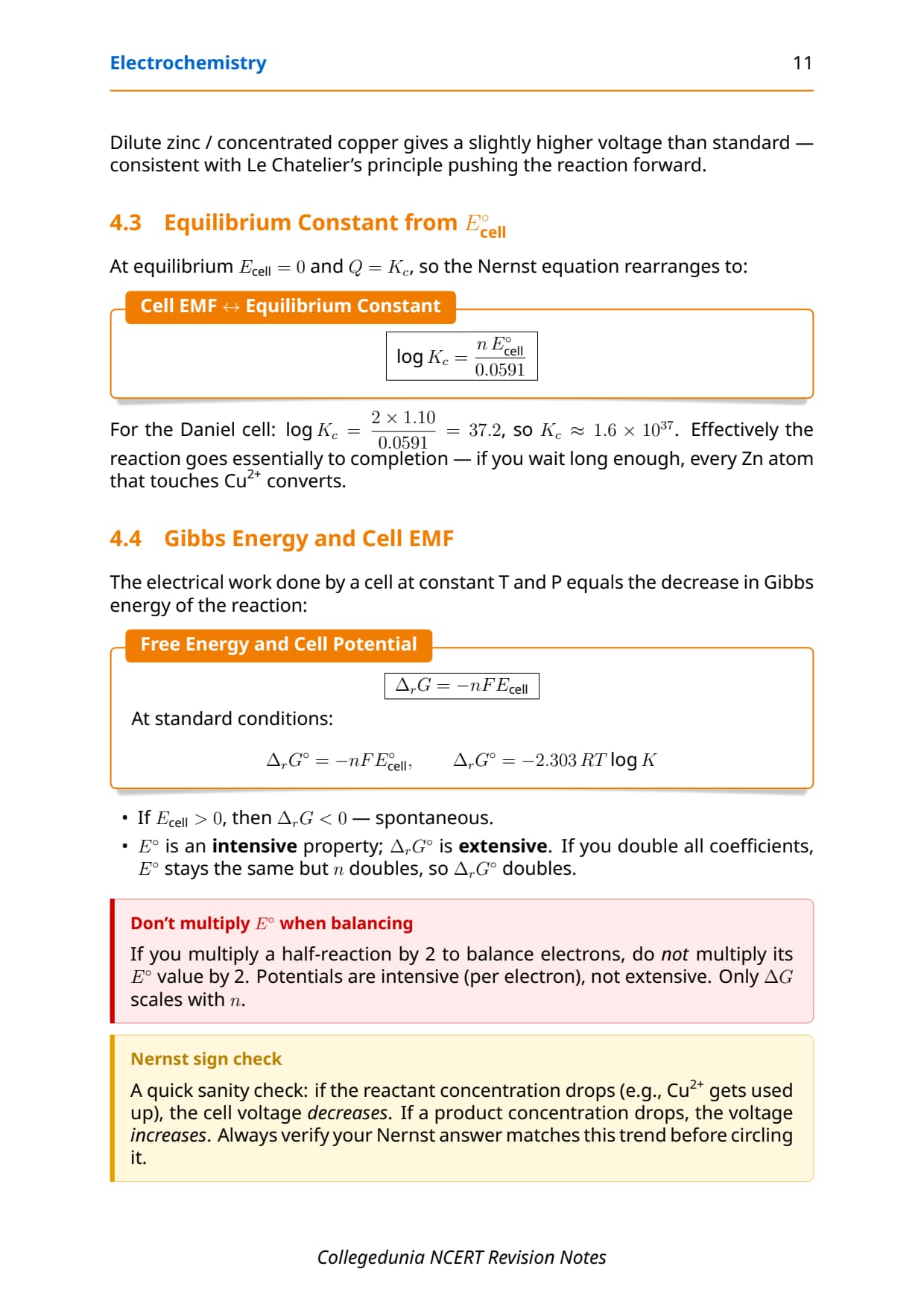

- Relation between E∘cell and Equilibrium Constant: proves log Kc = n E∘cell0.0591 . Appeared in CBSE 2023, 2021.
- Kohlrausch's Law for Weak Electrolyte m∘ : shows how m∘ of acetic acid is obtained from those of HCl, NaCl, and CH3COONa. Appeared in CBSE 2025, 2023.
- Quantitative Aspects of Electrolysis: derives m = M I tn F from Faraday's first law. Appeared in CBSE 2024, JEE Main 2024.
Most Repeated Chemistry Board Questions in Electrochemistry
The five stems below have appeared in CBSE Class 12 Chemistry Board papers in at least three of the last six years. Practice each in full marking-scheme format.
- State Kohlrausch's law of independent migration of ions. How is m∘ of a weak electrolyte determined? (3 marks, CBSE 2025, 2023)
- Derive the Nernst equation for a single electrode and write it for the Daniell cell at 298 K. (3 marks, CBSE 2024, 2022)
- Why does m of a weak electrolyte rise sharply on dilution while that of a strong electrolyte rises slowly? (2 marks, CBSE 2024, 2021)
- Define corrosion. With a diagram, explain the electrochemical rusting of iron. (3 marks, CBSE 2023)
- Calculate the mass of Cu deposited when 5 A flows through CuSO4 for 30 minutes. (3 marks, CBSE 2022, 2020)
Related Links:

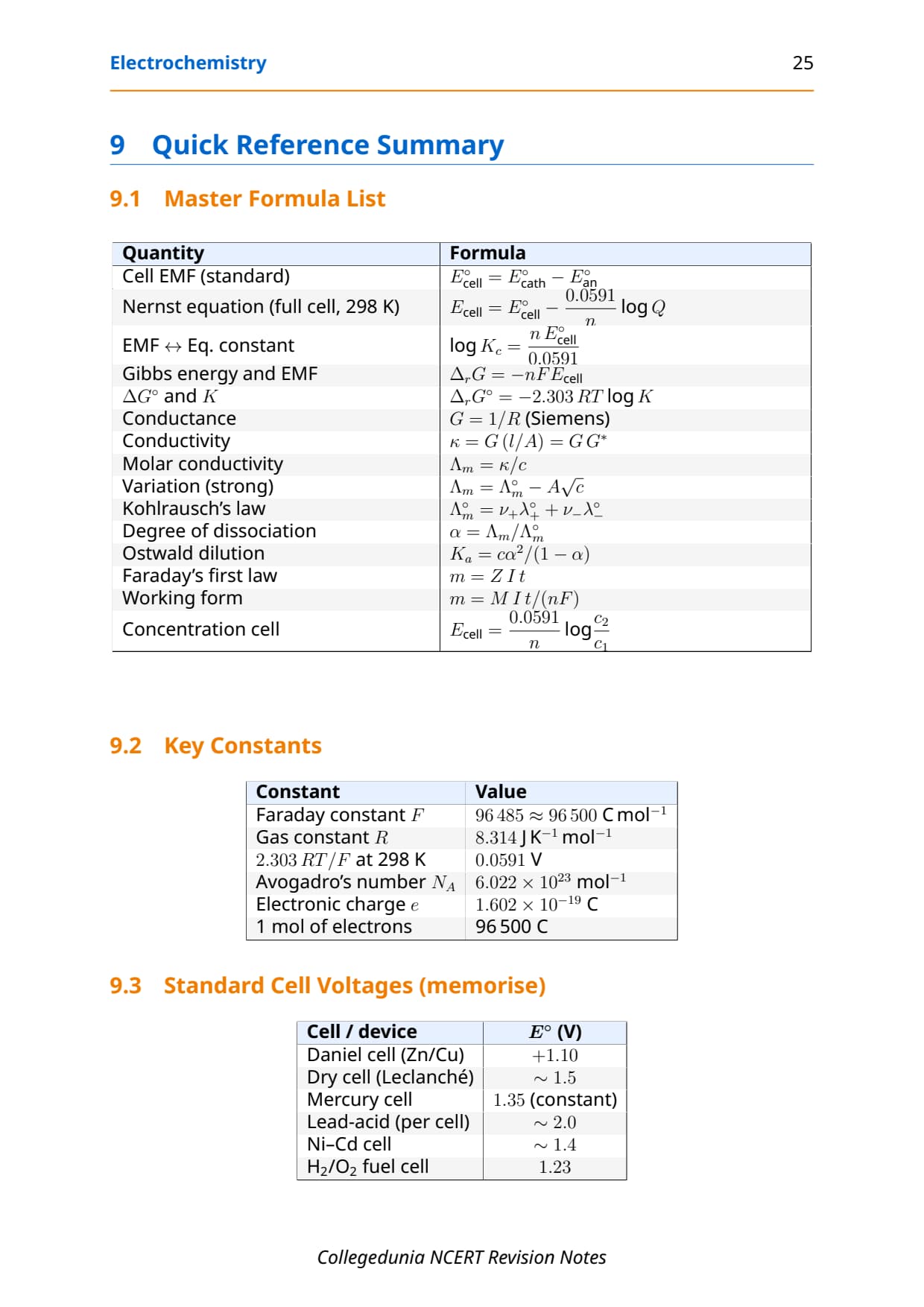

Electrochemistry Top 6 Formulae for Quick Recall
The six formulae below cover almost every numerical Boards and JEE Main sets on Electrochemistry. The complete master sheet with units, dimensional checks, and a "when to use which" decision tree lives on the dedicated Collegedunia Formula Sheet for this chapter.
| Quantity | Formula |
|---|---|
| Standard cell EMF | E∘cell = E∘cathode - E∘anode |
| Nernst equation (298 K) | Ecell = E∘cell - 0.0591n log Q |
| Gibbs energy from EMF | Δ G∘ = -nFE∘cell |
| Molar conductivity | m = κ × 1000c |
| Kohlrausch's law | m∘ = + +∘ + - -∘ |
| Faraday's first law | m = M I tn F |
Full master sheet: Electrochemistry Class 12 Chemistry Formula Sheet
Electrochemistry Common Misconceptions to Unlearn
Three persistent confusions cost students easy marks. Each is a 1- to 2-mark hit on a typical paper.
Electrochemistry Class 12th Real-World Applications You Should Know
NCERT mentions four modern applications that often surface as 1-mark assertion-reason questions or source-based passages.
- Lithium-ion batteries in phones and EVs use the same redox half-cell principle as the Daniell cell, with lithium intercalation in place of zinc-copper exchange.
- Hydrogen-oxygen fuel cells power spacecraft like Apollo and ISS modules, generating electricity continuously while emitting only water.
- Electroplating applies Faraday's first law to deposit chrome on car parts and silver on cutlery.

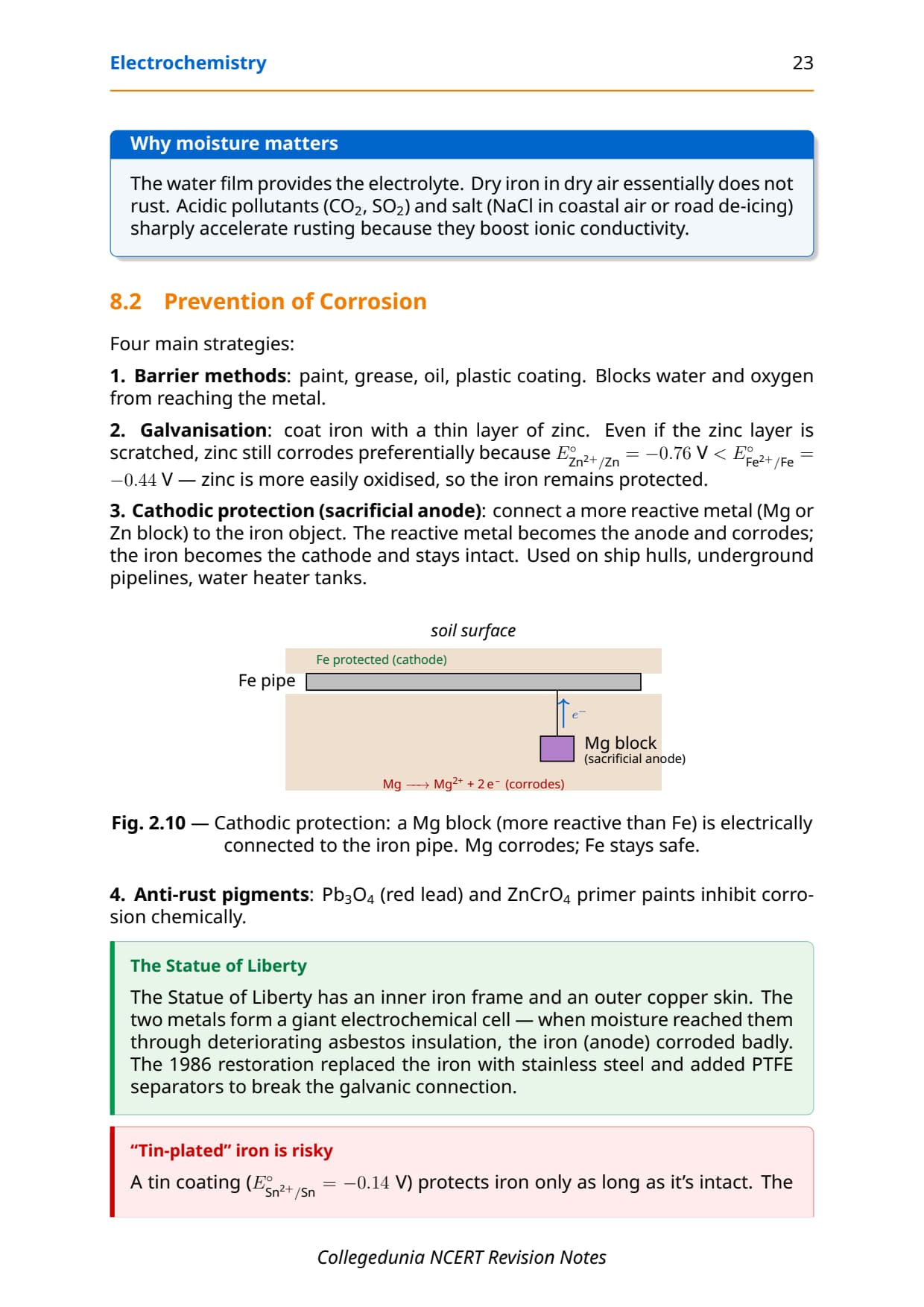

- Cathodic protection of pipelines connects iron to a more easily oxidised metal (Mg, Zn), forcing iron to act as the cathode.
Electrochemistry Previous Year Questions and Their Frequency
The three topics below have been the most-asked across CBSE Class 12 Chemistry, JEE Main and NEET papers from 2021 to 2026. The full year-wise question map with paper-shift breakdowns lives on the dedicated Collegedunia NCERT Solutions page for this chapter.
| Topic | Asked in |
|---|---|
| Nernst equation numerical (find Ecell at given concentration) | CBSE 2025, 2024, 2022; JEE Main 2025, 2024, 2023; NEET 2024, 2023 |
| Molar conductivity vs concentration plot interpretation | CBSE 2024, 2023, 2021; JEE Main 2025, 2022; NEET 2025 |
| Faraday's-law charge / mass calculation | CBSE 2025, 2022; JEE Main 2024; NEET 2022 |
Full year-wise PYQ map: Electrochemistry Class 12 Chemistry NCERT Solutions
Electrochemistry Glossary for Class 12 Chemistry
Eight high-frequency definitions to write in one line each. CBSE often picks one as a 1-mark VSA.
| Term | One-line definition |
|---|---|
| Galvanic cell | Converts chemical energy of a spontaneous redox reaction into electrical energy. |
| Electrolytic cell | Uses electrical energy to drive a non-spontaneous redox reaction. |
| Salt bridge | Inverted-U tube with inert electrolyte; closes the circuit and maintains charge balance. |
| EMF | Potential difference across cell electrodes when no current flows. |
| Standard hydrogen electrode | Reference half-cell H2(1 atm) / H+(1 M) / Pt with E∘ = 0.00 V. |
| Molar conductivity ( m ) | Conductance of all ions from one mole of electrolyte in solution. |
| Limiting molar conductivity ( m∘ ) | m at infinite dilution where ions move independently. |
| Corrosion | Spontaneous oxidative degradation of a metal by atmospheric O2 and moisture. |
Electrochemistry Weightage Compared Across Class 12 Chemistry Chapters
The visual below maps the typical CBSE Board marks distribution across all nine chapters of the 2026-27 NCERT, averaged over the last five Board papers.
More Electrochemistry Chemistry Class 12 Resources
- Electrochemistry Class 12 Chemistry NCERT Solutions
- Electrochemistry Class 12 Chemistry Formula Sheet
- Electrochemistry Class 12 Chemistry NCERT Book PDF
- Electrochemistry Class 12 Chemistry NCERT Exemplar Book PDF
- Electrochemistry Class 12 Chemistry NCERT Exemplar Solutions
- Electrochemistry Class 12 Chemistry Handwritten Notes
NCERT Notes for Class 12 Chemistry: All Chapters
The table below indexes Collegedunia's Class 12 Chemistry Notes for every chapter in the 2026-27 NCERT. Use it to plan your revision sequence across the year.
| Chapter | Resource |
|---|---|
| Chapter 1 | Solutions Notes |
| Chapter 3 | Chemical Kinetics Notes |
| Chapter 4 | The d- and f-Block Elements Notes |
| Chapter 5 | Coordination Compounds Notes |
| Chapter 6 | Haloalkanes and Haloarenes Notes |
| Chapter 7 | Alcohols, Phenols and Ethers Notes |
| Chapter 8 | Aldehydes, Ketones and Carboxylic Acids Notes |
| Chapter 9 | Amines Notes |
Electrochemistry Class 12 Chemistry Notes FAQs
Ques. Where can I download Electrochemistry Class 12 Chemistry Notes PDF?
Ans. You can download the Electrochemistry Class 12 Chemistry Notes PDF directly from this page. Both the Normal and HD versions are available, and both are free.
Ques. Are these notes aligned with the 2026-27 NCERT?
Ans. Yes. The notes reflect the current 2026-27 syllabus for Class 12 Chemistry. The new NCERT edition retained Electrochemistry in full, so every Nernst equation, Kohlrausch's law application, electrolysis numerical, and corrosion mechanism in the older edition is preserved.
Ques. How many pages is the Class 12th Chemistry Electrochemistry Notes PDF?
Ans. The Notes PDF runs approximately 24 pages and covers all six themes of the chapter: redox basics, standard electrode potential, the Nernst equation, electrolytic conductance and Kohlrausch's law, Faraday's laws of electrolysis, and batteries plus corrosion.
Ques. Which derivations are most important in Class 12 Electrochemistry?
Ans. Four derivations carry the bulk of long-answer questions: the Nernst equation from Gibbs energy, the relation between standard cell EMF and the equilibrium constant, the determination of limiting molar conductivity of a weak electrolyte using Kohlrausch's law, and the derivation of m = MIt/nF from Faraday's first law. All four have appeared in CBSE Boards within the last three years.
Ques. Is Electrochemistry a high-scoring chapter for Class 12 Boards?
Ans. Yes. Electrochemistry typically carries 5 to 7 marks in CBSE Class 12 Chemistry, with at least one 3-mark derivation or numerical asked every year. The chapter also contributes 4 to 5% of JEE Main Chemistry and 2 to 3 questions per NEET paper, making it a strong return on revision time.
Ques. What is the weightage of Electrochemistry in JEE Main and NEET?
Ans. Electrochemistry contributes about 4 to 5% of the JEE Main Chemistry section, typically two questions per shift. In NEET, the chapter contributes 2 to 3 questions per year, usually one conceptual question on cell EMF and one Nernst-equation numerical.
Ques. How is the Nernst equation different at 298 K compared to other temperatures?
Ans. The general form is Ecell = E∘cell - (RT/nF)ln Q . At 298 K, substituting R, T and F and converting natural log to base-10 log gives the compact CBSE form Ecell = E∘cell - (0.0591/n)log Q . Use the 0.0591 form only when the problem specifies 298 K.
Ques. Why does molar conductivity of a strong electrolyte increase slowly on dilution but that of a weak electrolyte rises sharply?
Ans. In a strong electrolyte (e.g. KCl), all ions are already present at any concentration; dilution only reduces ion-ion attraction, so molar conductivity rises modestly. In a weak electrolyte (e.g. CH3COOH), the degree of dissociation rises sharply on dilution, releasing many more ions per mole, so molar conductivity rises steeply.
Ques. What is the standard hydrogen electrode and why is its potential taken as 0.00 V?
Ans. The standard hydrogen electrode (SHE) is a platinised-platinum strip dipped in 1 M H+ with H2(g) bubbled at 1 bar and 298 K. The half-reaction 2H+(aq) + 2e- → H2(g) is assigned E∘ = 0.00 V by convention so that every other half-cell can be ranked against it on the electrochemical series. Positive E∘ values are stronger oxidising agents than H+; negative values are stronger reducing agents than H2.

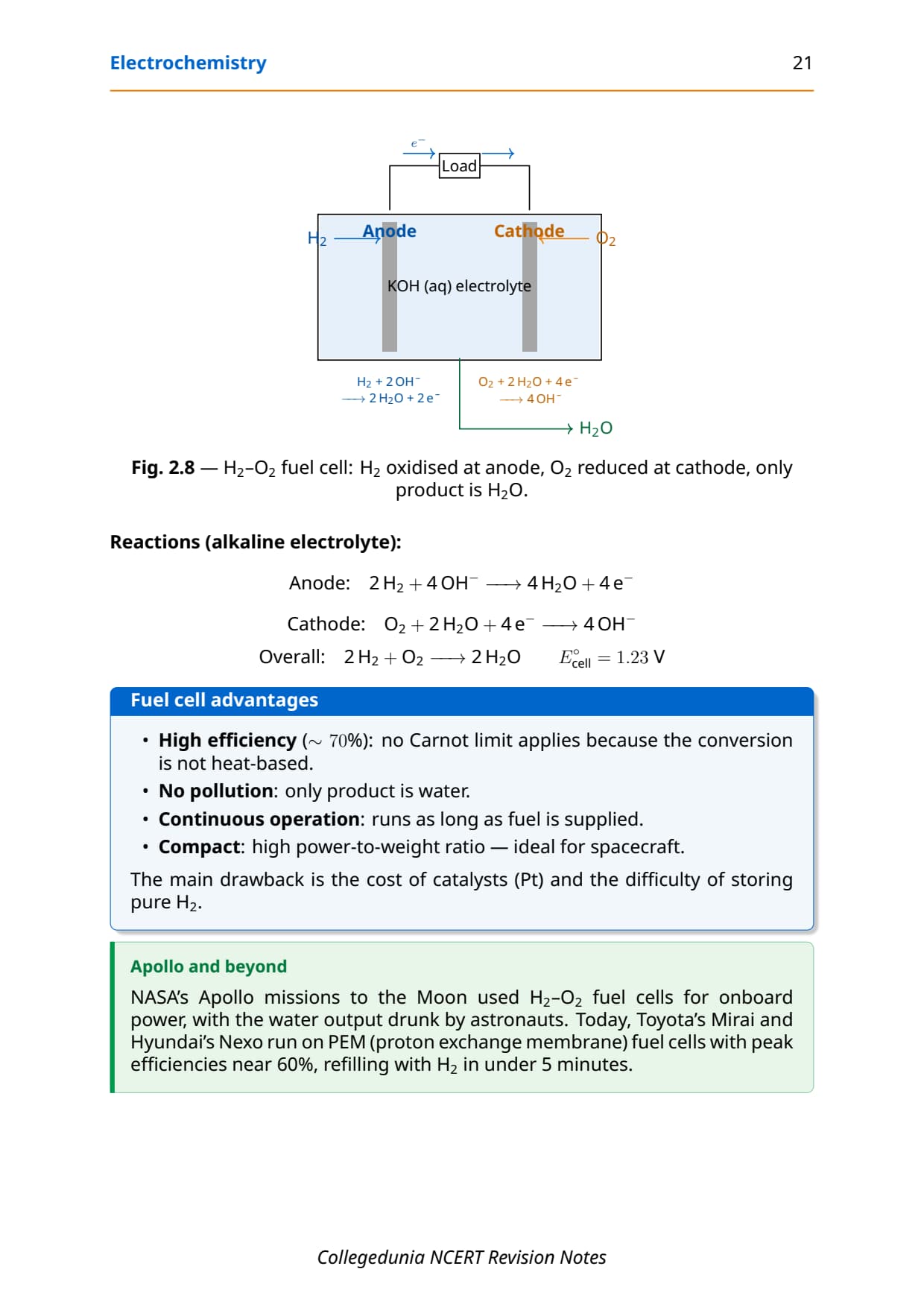

Ques. How does a hydrogen-oxygen fuel cell work and where is it used?
Ans. An H2-O2 fuel cell uses porous carbon electrodes loaded with a Pt/Ag catalyst in aqueous KOH at ~ 523-573 K. At the anode H2 + 2OH- → 2H2O + 2e-; at the cathode O2 + 2H2O + 4e- → 4OH-. Net reaction 2H2 + O2 → 2H2O with EMF ~ 1.23 V. Used in Apollo spacecraft and modern fuel-cell EVs because it is ~ 70% efficient and the only by-product is water.
Ques. What is the lead-acid battery reaction and why is it rechargeable?
Ans. A lead storage cell has Pb at the anode, PbO2 at the cathode and 38% H2SO4 as electrolyte, giving ~ 2.0 V per cell (six in series = 12 V car battery). Discharge: Pb + PbO2 + 2H2SO4 → 2PbSO4 + 2H2O. On charging, an external EMF reverses the reaction, regenerating Pb and PbO2. The reversibility of the PbSO4 crust is what makes the cell a secondary (rechargeable) battery.
