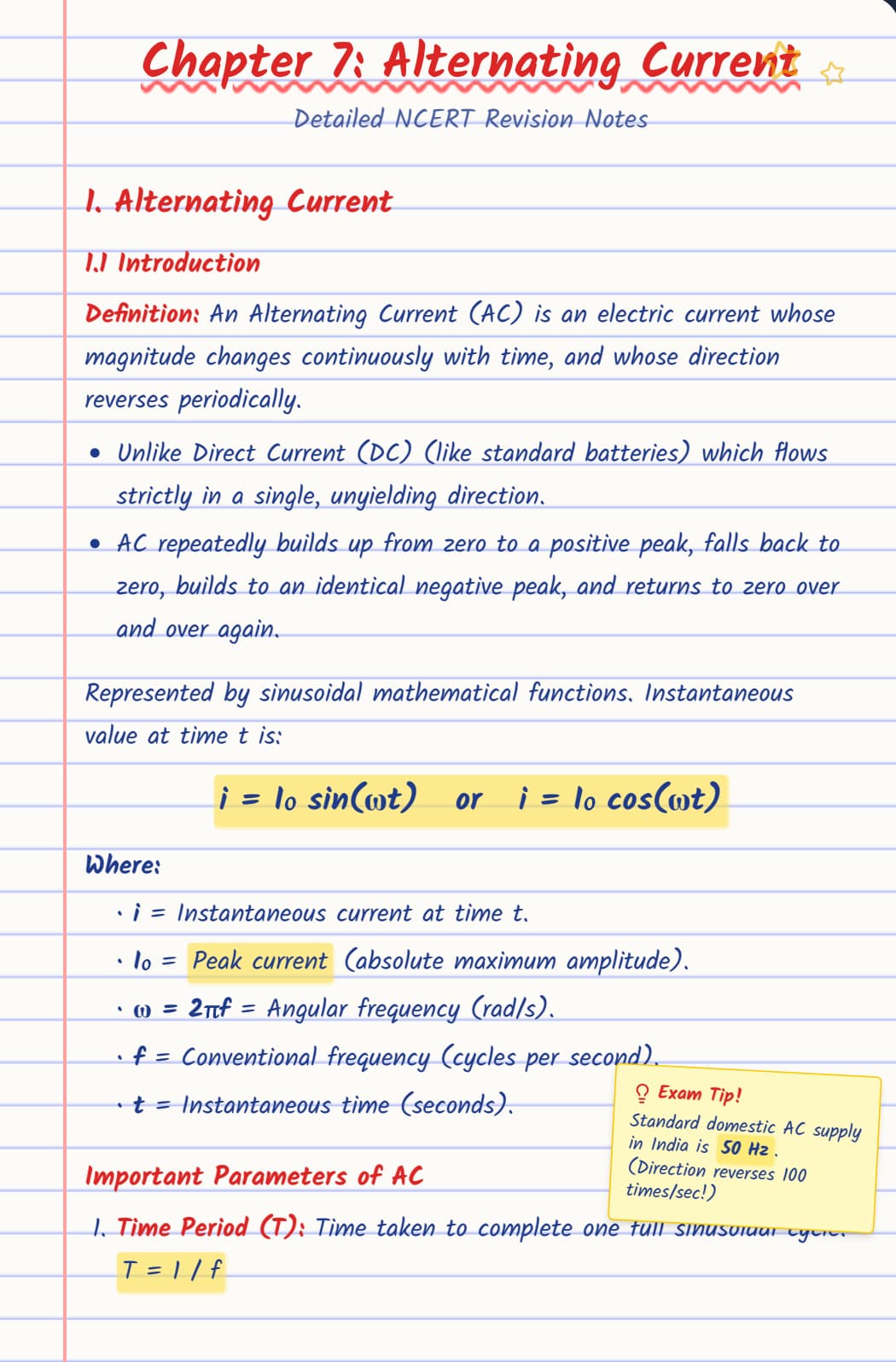

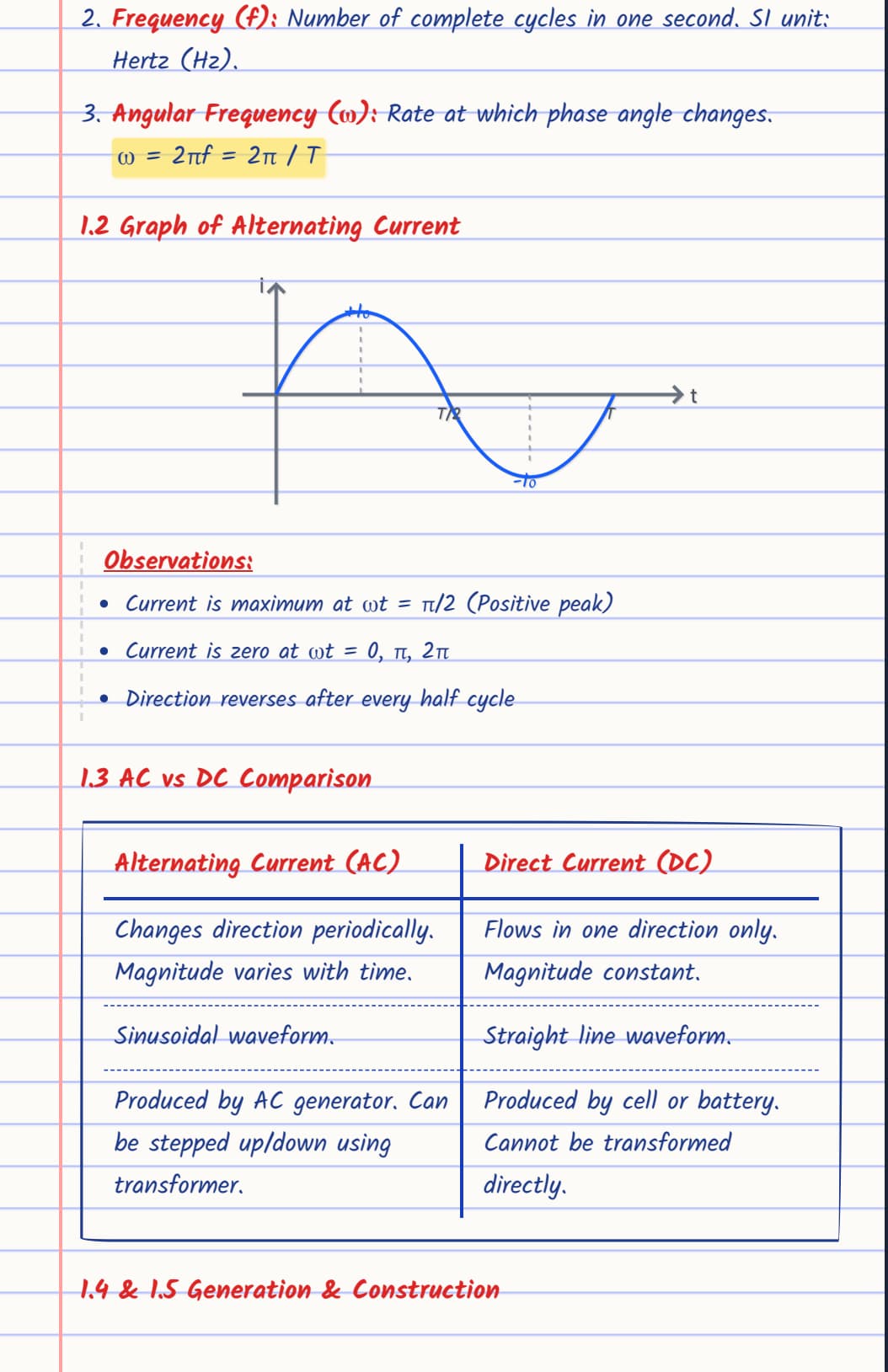

1. Basics of Alternating Current

Alternating Current (AC) is a type of electric current that continuously changes both its magnitude and direction with time. Unlike direct current (DC), which flows only in one direction, AC reverses its direction periodically, making it ideal for transmission over long distances.

Mathematical Representation (Instantaneous Value)

$$ i = I_0 \sin(\omega t) \quad \text{or} \quad i = I_0 \cos(\omega t) $$

Where:

• \( I_0 \) = Peak current
• \( \omega = 2\pi f = \dfrac{2\pi}{T} \) = Angular frequency

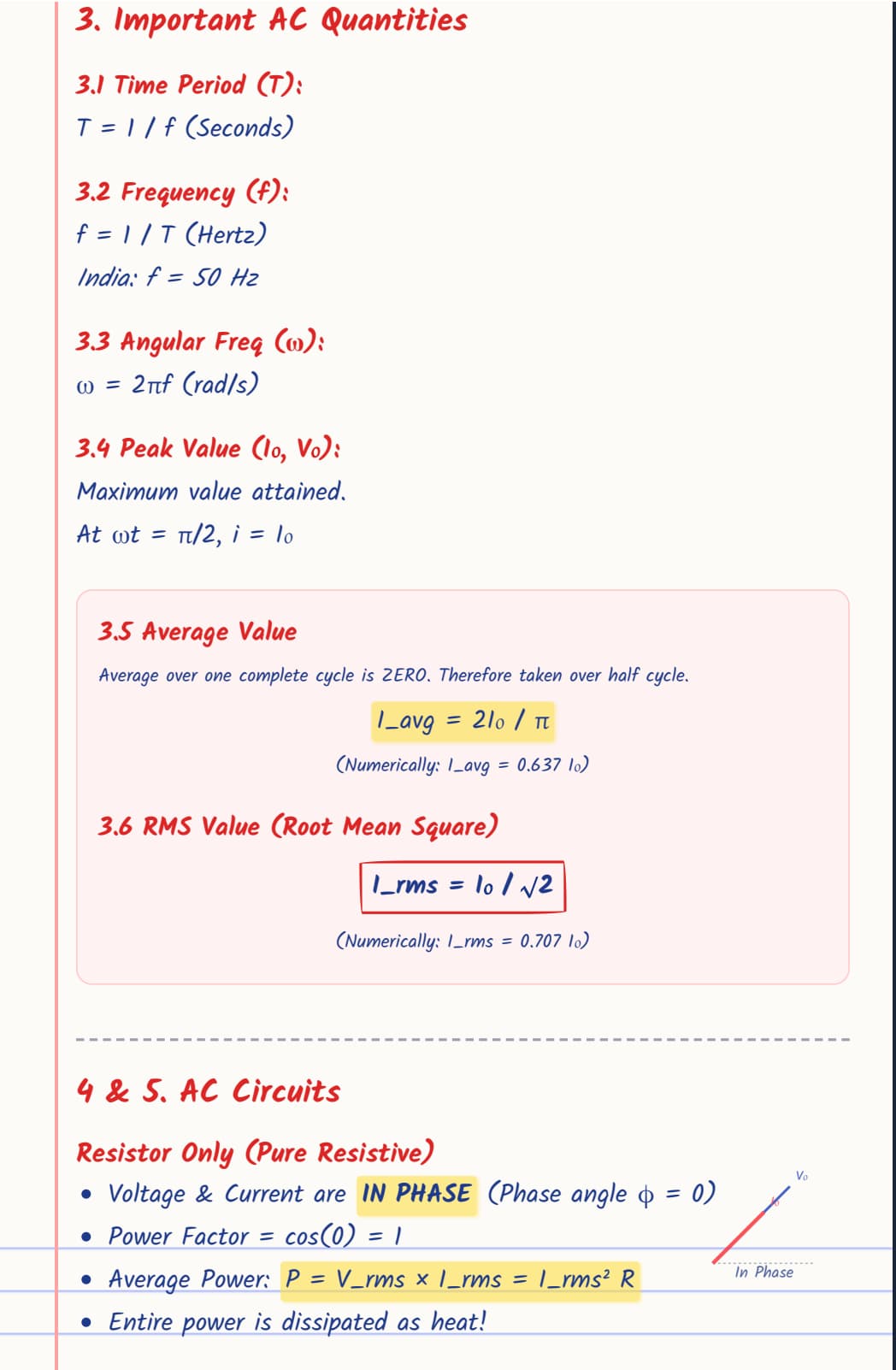

Average (Mean) Value (Over Half Cycle)

$$ I_{avg} = \frac{2I_0}{\pi} \approx 0.637 \, I_0 $$

Result:

• \( I_{avg} = 0.637 \, I_0 \)  (63.7% of peak value)

RMS (Root Mean Square) Value (Effective Value)

$$ I_{rms} = \frac{I_0}{\sqrt{2}}, \quad V_{rms} = \frac{V_0}{\sqrt{2}} $$

Result:

• \( I_{rms} = 0.707 \, I_0 \)
• \( V_{rms} = 0.707 \, V_0 \)

2. AC Circuit with Pure Resistance (R only)

When AC is applied to a resistor, current and voltage vary together without any phase difference. The circuit behaves exactly like a DC circuit.

Equations

$$ E = E_0 \sin(\omega t), \quad I = I_0 \sin(\omega t) $$

Where:

$$ I_0 = \frac{E_0}{R} $$

Key Points

• Voltage and current are in phase (\( \phi = 0^\circ \))
• Power is continuously consumed
• Phasor diagram: Same direction

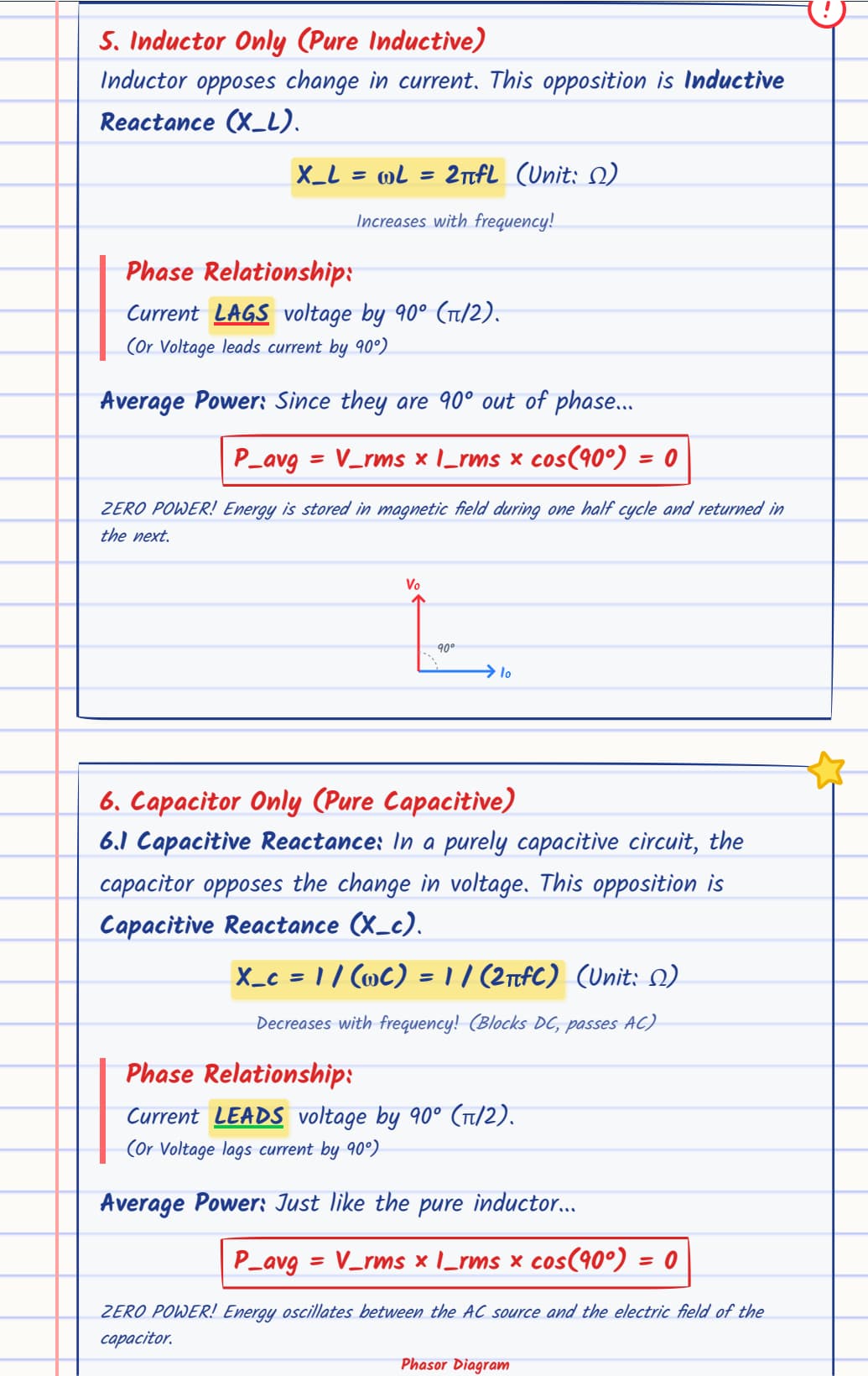

3. AC Circuit with Pure Inductance (L only)

An inductor resists a change in current due to self-induction. Hence, the current lags behind the voltage.

Current Equation (Phase Lag)

$$ I = I_0 \sin\left(\omega t - \frac{\pi}{2}\right) $$

Inductive Reactance

$$ X_L = \omega L $$

$$ I_0 = \frac{E_0}{X_L} $$

Key Points

• Current lags voltage by 90°
• \( X_L = 0 \) for DC
• No average power consumed

4. AC Circuit with Pure Capacitance (C only)

Current leads voltage by \( 90^\circ \) (or voltage lags current by \( 90^\circ \)).

A capacitor allows current to change easily, so current leads voltage.

Current Equation (Phase Lead)

$$ I = I_0 \sin\left(\omega t + \frac{\pi}{2}\right) $$

Capacitive Reactance

$$ X_C = \frac{1}{\omega C} $$

$$ I_0 = \frac{E_0}{X_C} $$

Key Points

• Current leads voltage by 90°
• No power consumption
• Phasor: Current ahead

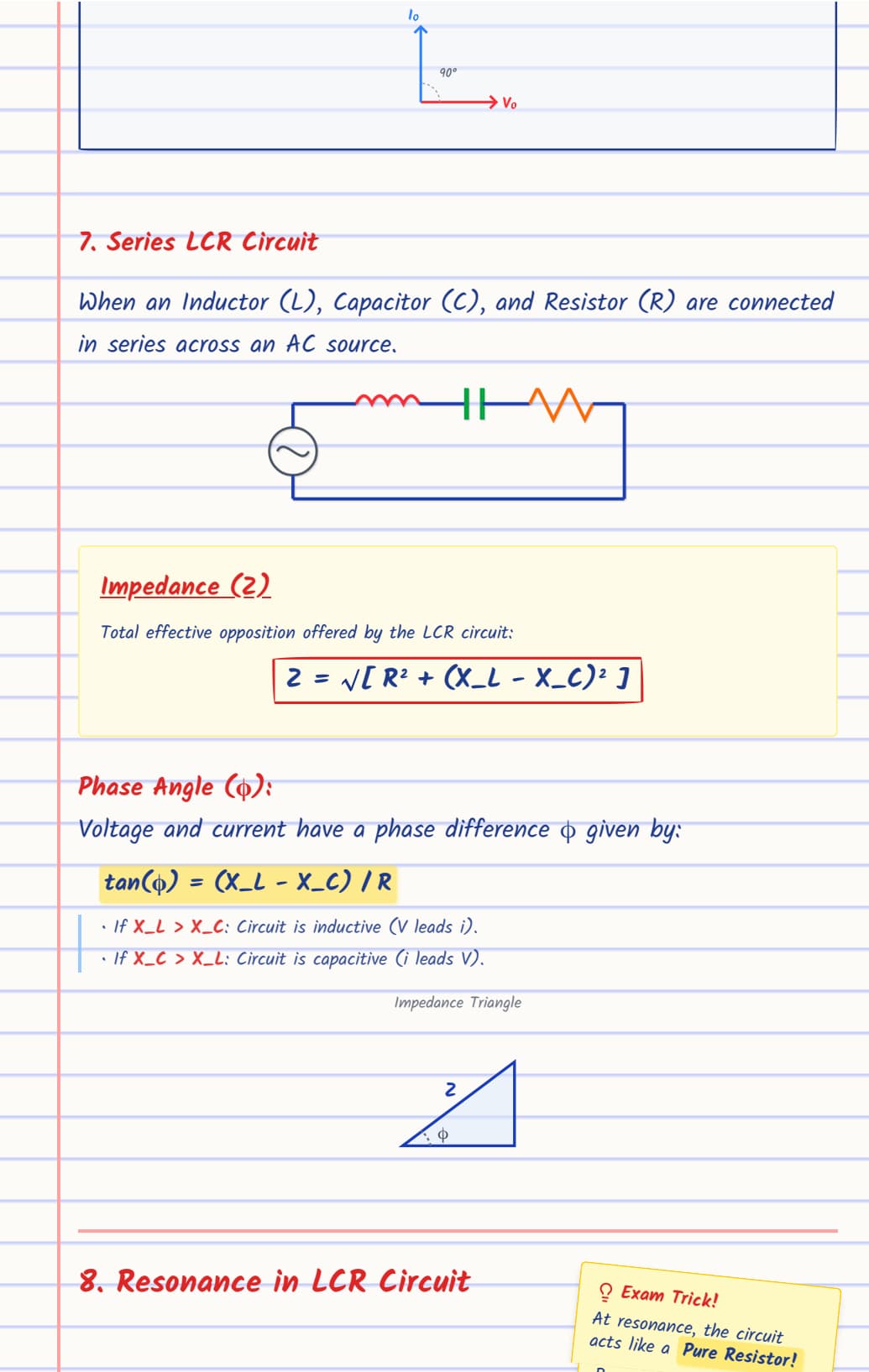

5. Series LCR Circuit (Most Important Section)

In an LCR circuit, resistance, inductance, and capacitance are connected in series, and the same current flows through all.

R, L, and C in series → same current through all.

Voltage Relations

• \( V_R = I_0 R \) (in phase)
• \( V_L = I_0 X_L \) (leads by 90°)
• \( V_C = I_0 X_C \) (lags by 90°)

Impedance

$$ Z = \sqrt{R^2 + (X_L - X_C)^2} $$

$$ I_0 = \frac{E_0}{Z} $$

Phase Angle

$$ \tan \phi = \frac{X_L - X_C}{R} $$

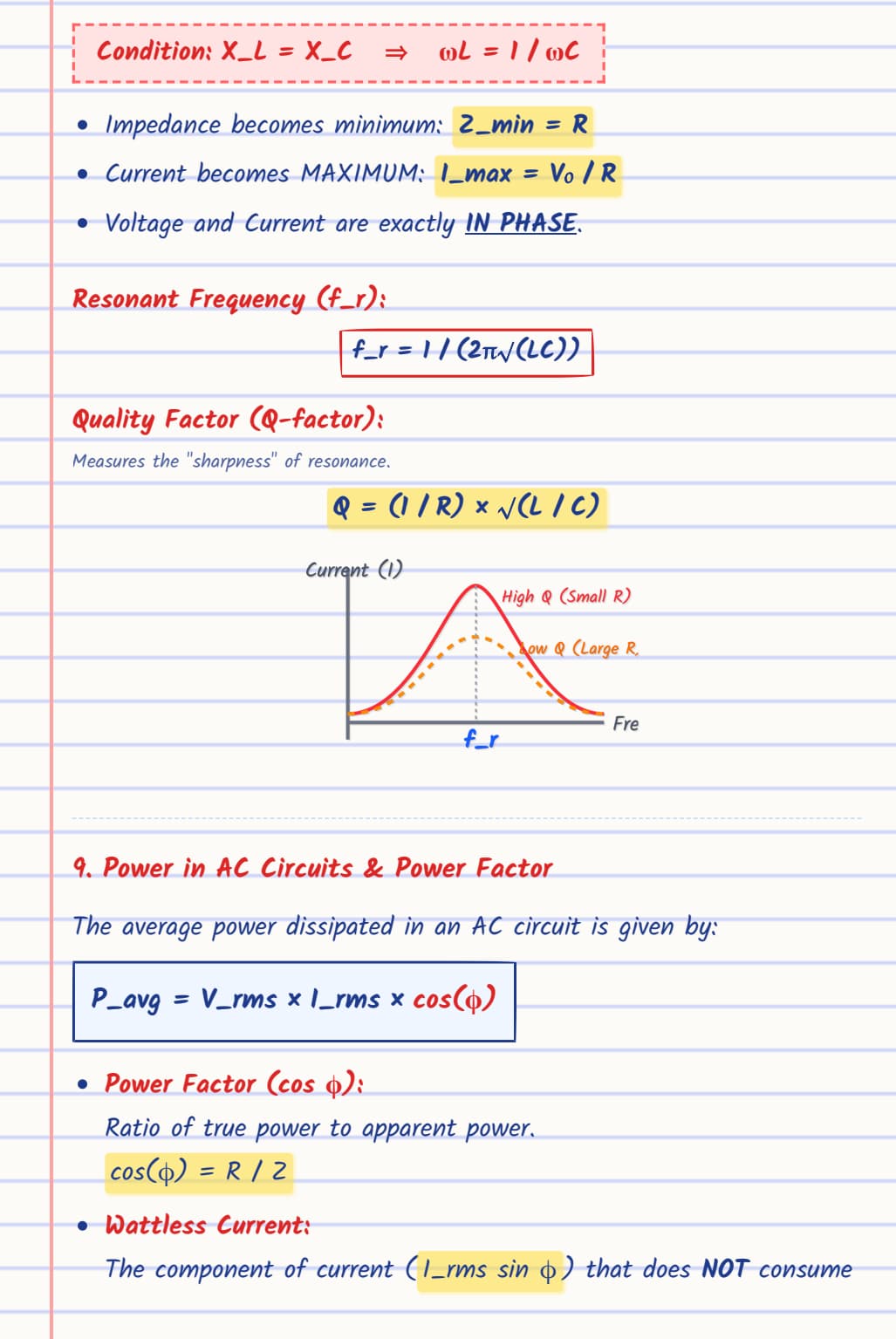

Resonance Condition

$$ \omega_r = \frac{1}{\sqrt{LC}}, \quad f_r = \frac{1}{2\pi\sqrt{LC}} $$

At Resonance

• \( X_L = X_C \)
• \( Z = R \) (minimum)
• Current = maximum
• \( \phi = 0 \), power factor = 1

Quality Factor (Q)

$$ Q = \frac{\omega_r L}{R} = \frac{1}{R}\sqrt{\frac{L}{C}} $$

6. Power in AC Circuit

Power in AC depends on phase difference between voltage and current.

Instantaneous Power

$$ P = EI $$

Average Power

$$ P_{avg} = V_{rms} I_{rms} \cos \phi = \frac{E_0 I_0}{2} \cos \phi $$

Power Factor

$$ \cos \phi = \frac{R}{Z} $$

Key Points

• Pure L/C → \( \cos\phi = 0 \) (wattless current)
• Max power when \( \phi = 0 \)

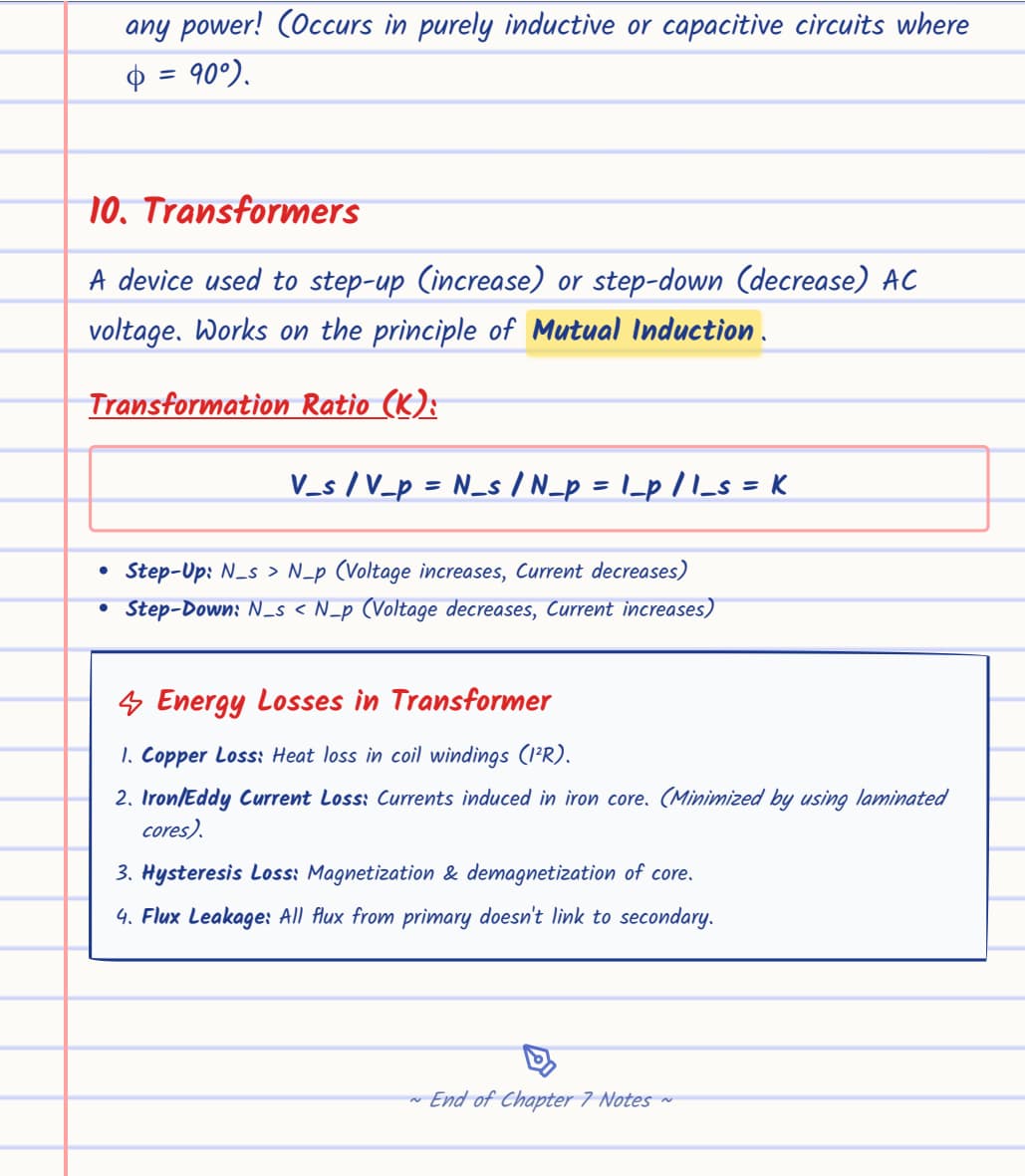

7. Transformers (Very High Weightage)

Construction: Soft iron laminated core + primary (P) and secondary (S) coils.

Principle: Mutual induction.

A transformer changes AC voltage using mutual induction.

Turns Ratio

$$ \frac{E_s}{E_p} = \frac{N_s}{N_p} $$

Power Relation

$$ E_p I_p = E_s I_s $$

Efficiency

$$ \eta = \frac{E_s I_s}{E_p I_p} \times 100\% $$

Key Points

• Step-up: \( N_s > N_p \)
• Step-down: \( N_s < N_p \)
• Losses: Copper, eddy current, hysteresis

Quick Formula Sheet (Memorise These!)

• \( X_L = \omega L \),   \( X_C = \dfrac{1}{\omega C} \)
• \( Z = \sqrt{R^2 + (X_L - X_C)^2} \)
• Resonance: \( f_r = \dfrac{1}{2\pi \sqrt{LC}} \),   \( Z_{\min} = R \)
• \( P_{\text{avg}} = V_{\text{rms}} I_{\text{rms}} \cos \phi \)
• Transformer: \( \dfrac{E_s}{E_p} = \dfrac{N_s}{N_p} = \dfrac{I_p}{I_s} \)

Ques. How many marks is alternating current class 12?

Expect 2–3 marks directly, but with EMI, this unit can contribute up to 6–8 marks, making it an important scoring chapter.

Marks Breakdown (Based on Trends)

• AC alone: Usually 2–3 marks
• Combined with EMI: Can go up to 5–6 marks
• Overall Unit IV weightage: ~11–12% of the Physics paper (8/70 marks)

Question Pattern Insights

• 1 short question (1–2 marks) → theory (e.g., why AC is preferred over DC)
• OR 1 simple numerical (2–3 marks) → LCR circuit, power, or transformer
• Occasionally part of a case-based or diagram question
