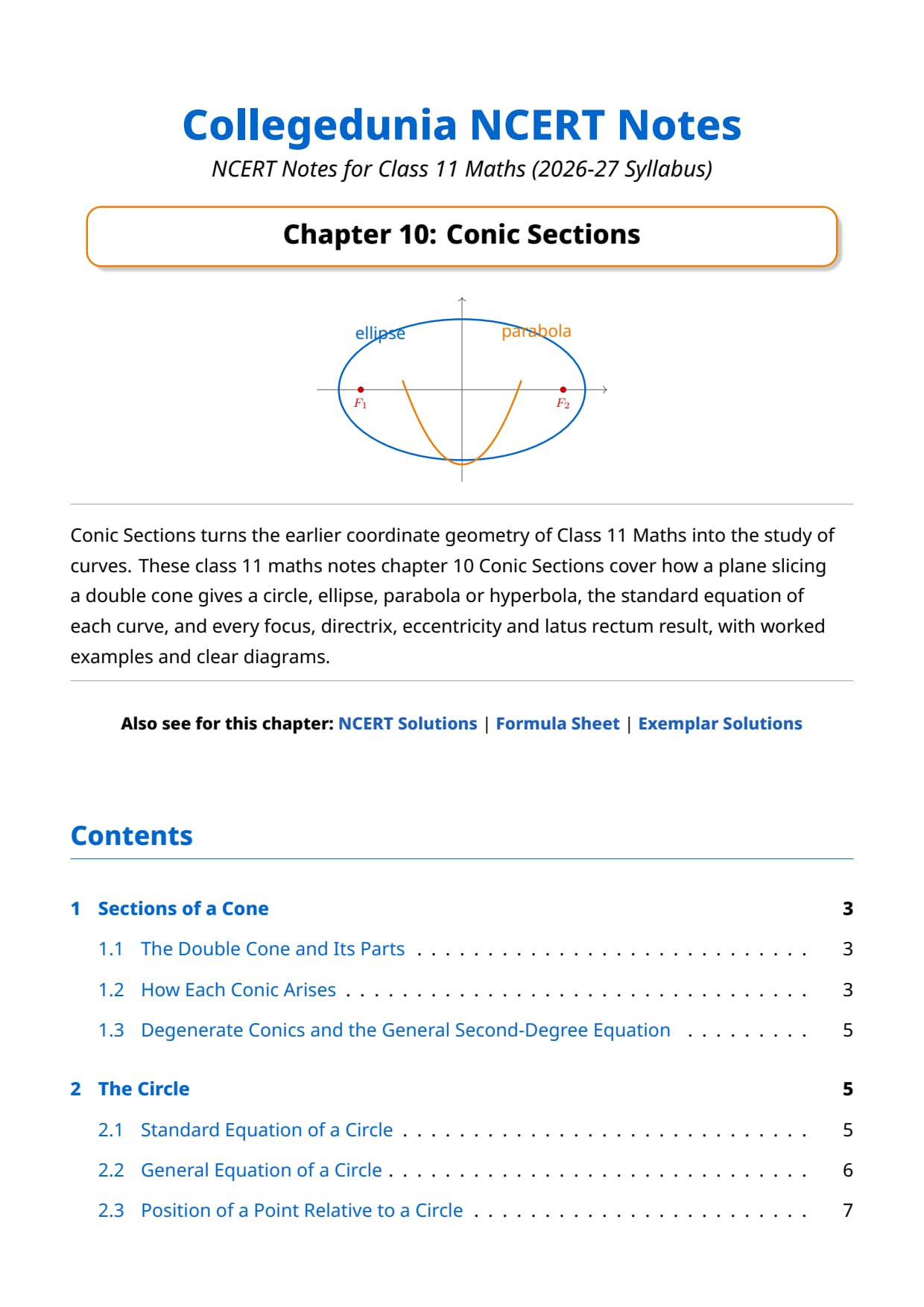

The class 11 maths notes chapter 10 conic sections pull together every standard equation, focus, directrix, and eccentricity that the CBSE Boards, JEE Main, JEE Advanced, and CUET actually test in 2026-27. These revision notes explain the circle, parabola, ellipse, and hyperbola in plain language, with a full formula table for quick recall.
You can download the complete Conic Sections notes PDF above, then use the topic-by-topic summary and the formula table on this page for a fast last-minute revision.
- CBSE Boards: Conic Sections sits in Unit 2 (Coordinate Geometry) and carries roughly 5 to 7 marks along with Straight Lines.
- JEE Main and JEE Advanced: expect 1 to 2 questions on the ellipse and parabola every year, mostly on eccentricity and latus rectum.
- What is covered: sections of a cone, circle, parabola, ellipse, and hyperbola with their standard equations and key elements.
Every entry in these Conic Sections notes is curated by Collegedunia subject experts, based on the 2026-27 NCERT textbook, and checked against the last five years of CBSE Board and JEE Main papers.
Also Check:
Topic-by-Topic Summary of the Conic Sections Chapter for Class 11 Maths
The Conic Sections chapter splits into five sub-topic blocks. The class 11 maths notes chapter 10 conic sections map each block to what the exam asks, so students know where the marks sit before they revise.
- Sections of a cone: how a plane cutting a double cone gives a circle, ellipse, parabola, or hyperbola. Usually a 1-mark idea-based question.
- Circle: the standard and general equation, centre, and radius. A frequent 1 to 2-mark question.
- Parabola: four standard forms, focus, directrix, axis, and latus rectum. The 3 to 4-mark core for many boards.
- Ellipse: standard equation, foci, vertices, eccentricity, and latus rectum. A common 3-mark question.
- Hyperbola: standard equation, eccentricity, asymptotes, and latus rectum. Usually a 2 to 3-mark question.
The rest of these notes take each block in order, so a first read from top to bottom mirrors the NCERT chapter flow.

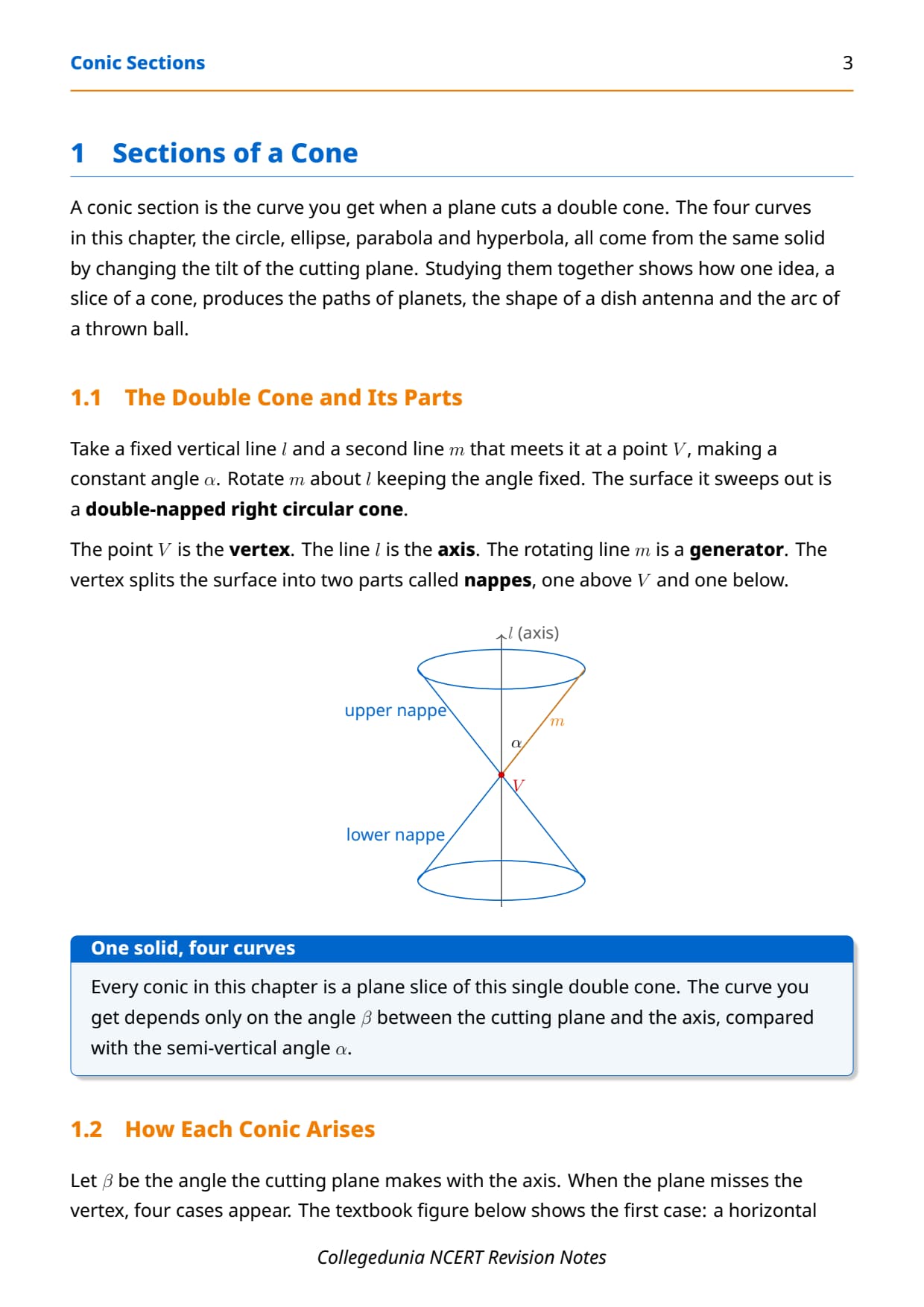

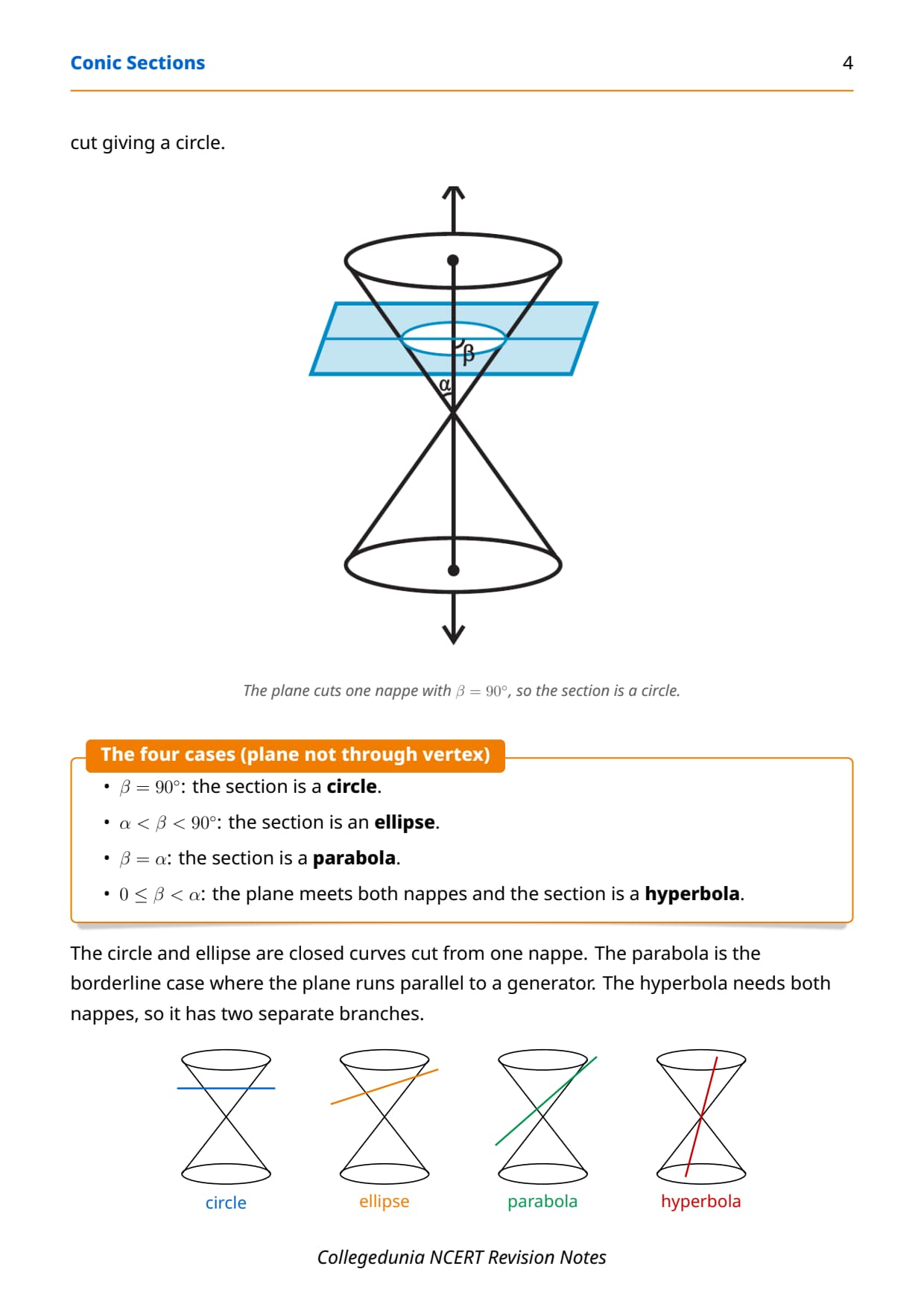

Sections of a Cone: How the Four Conics Are Formed
A conic section is the curve you get when a plane cuts a double right circular cone. The tilt of the plane against the axis of the cone decides which curve appears. This single idea links all four conics into one family.
Let α be the semi-vertical angle of the cone and β the angle the cutting plane makes with the axis. The four cases are:
- Circle: the plane is perpendicular to the axis, so β = 90°.
- Ellipse: the plane is tilted so that α < β < 90°.
- Parabola: the plane is parallel to a slant edge, so β = α.
- Hyperbola: the plane cuts both parts of the cone, so 0 ≤ β < α.

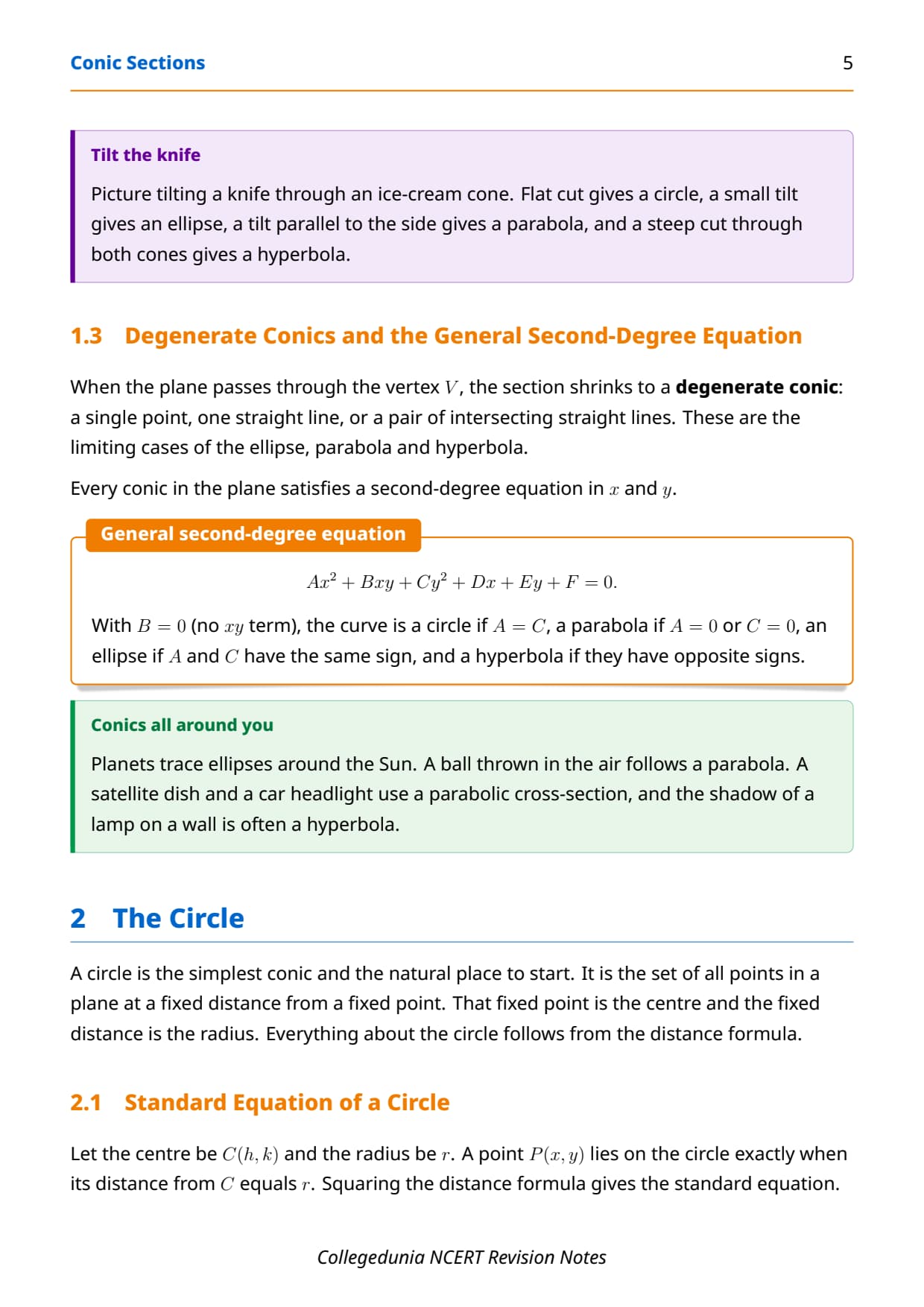

When the plane passes through the vertex, you instead get a degenerate conic: a point, a straight line, or a pair of intersecting lines. All four conics share one definition: the set of points whose distance from a fixed point (focus) and a fixed line (directrix) keep a constant ratio, the eccentricity e.

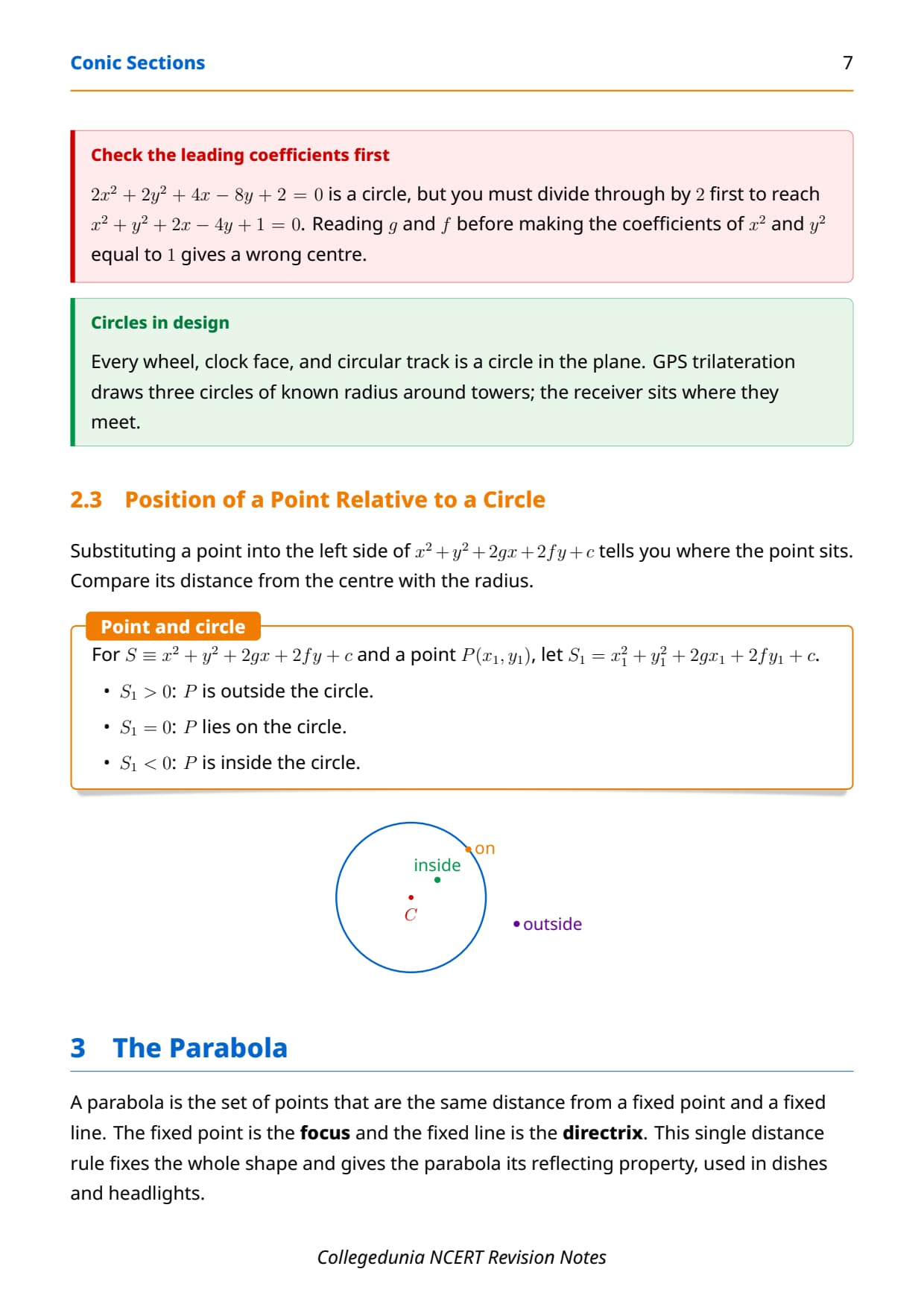

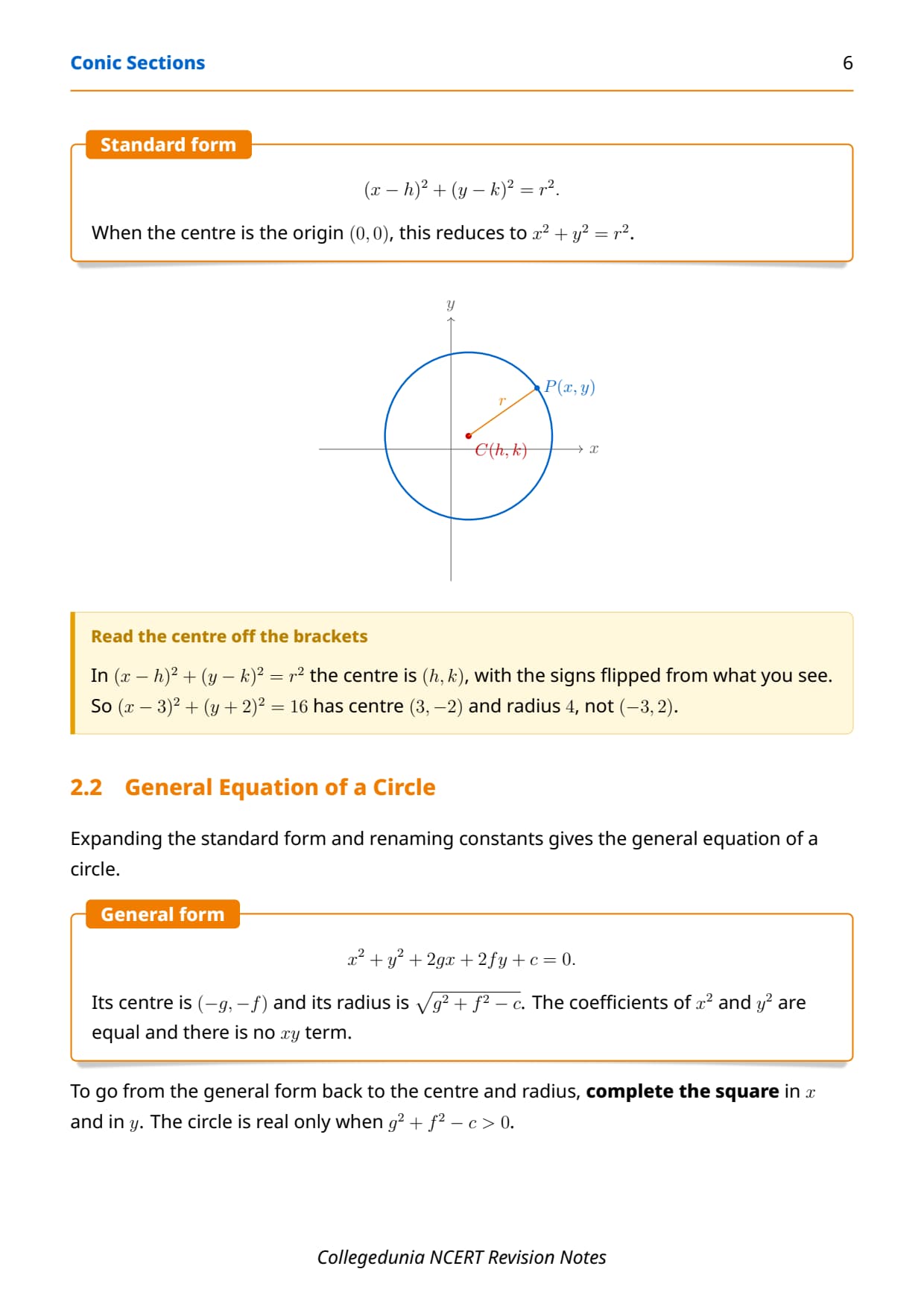

Circle: Standard Equation, Centre and Radius
A circle is the set of all points in a plane that are a fixed distance (the radius) from a fixed point (the centre). It is the simplest conic and the one students meet first. Its equation drops straight out of the distance formula.
- Standard equation: a circle with centre (h, k) and radius r is (x − h)² + (y − k)² = r².
- Centre at origin: when the centre is (0, 0), this reduces to x² + y² = r².
- General form: x² + y² + 2gx + 2fy + c = 0, with centre (−g, −f) and radius √(g² + f² − c).
The eccentricity of a circle is e = 0, because it is the special case of an ellipse whose two foci meet at the centre. To move from the general form to centre-radius form, complete the square in x and y.

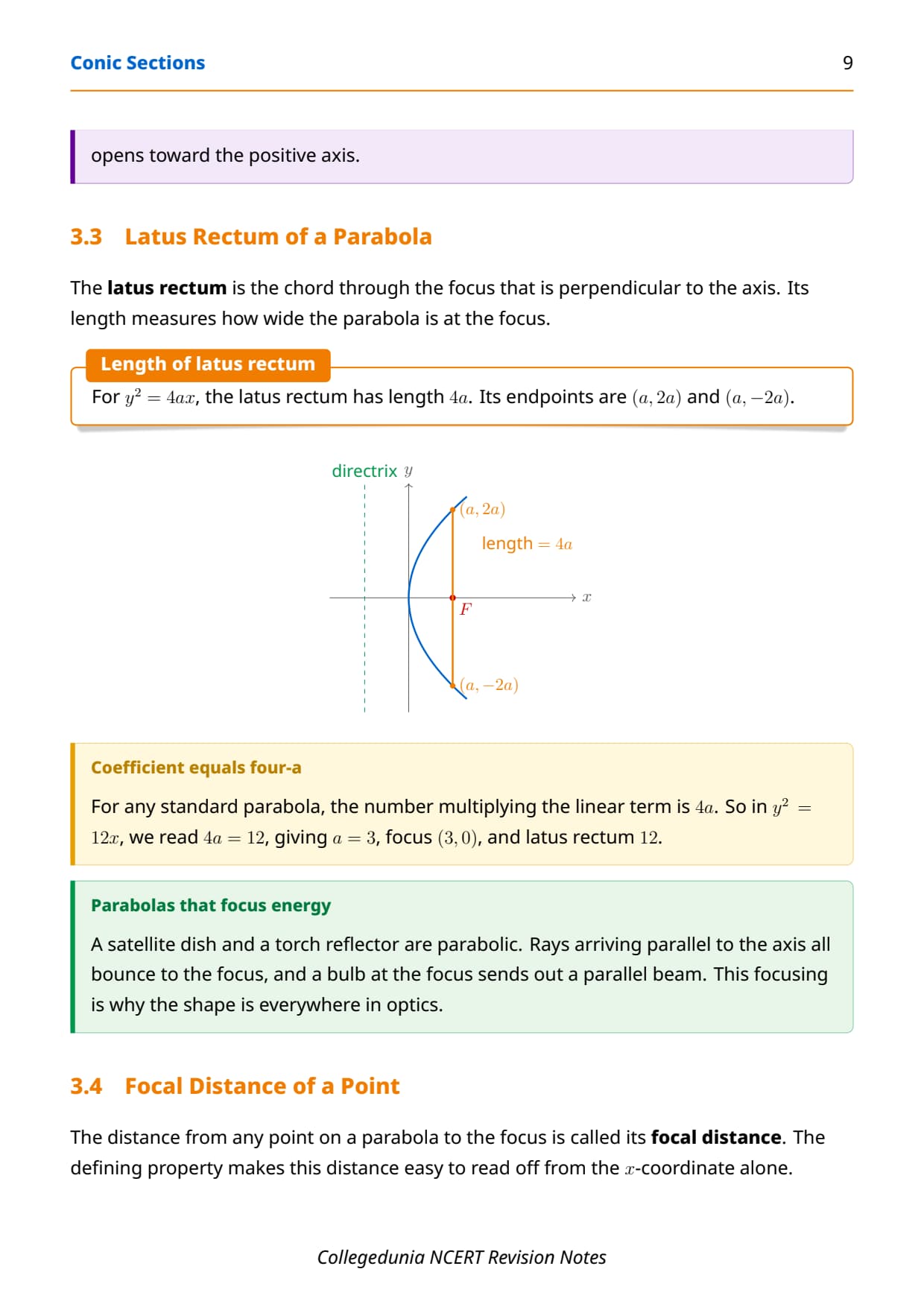

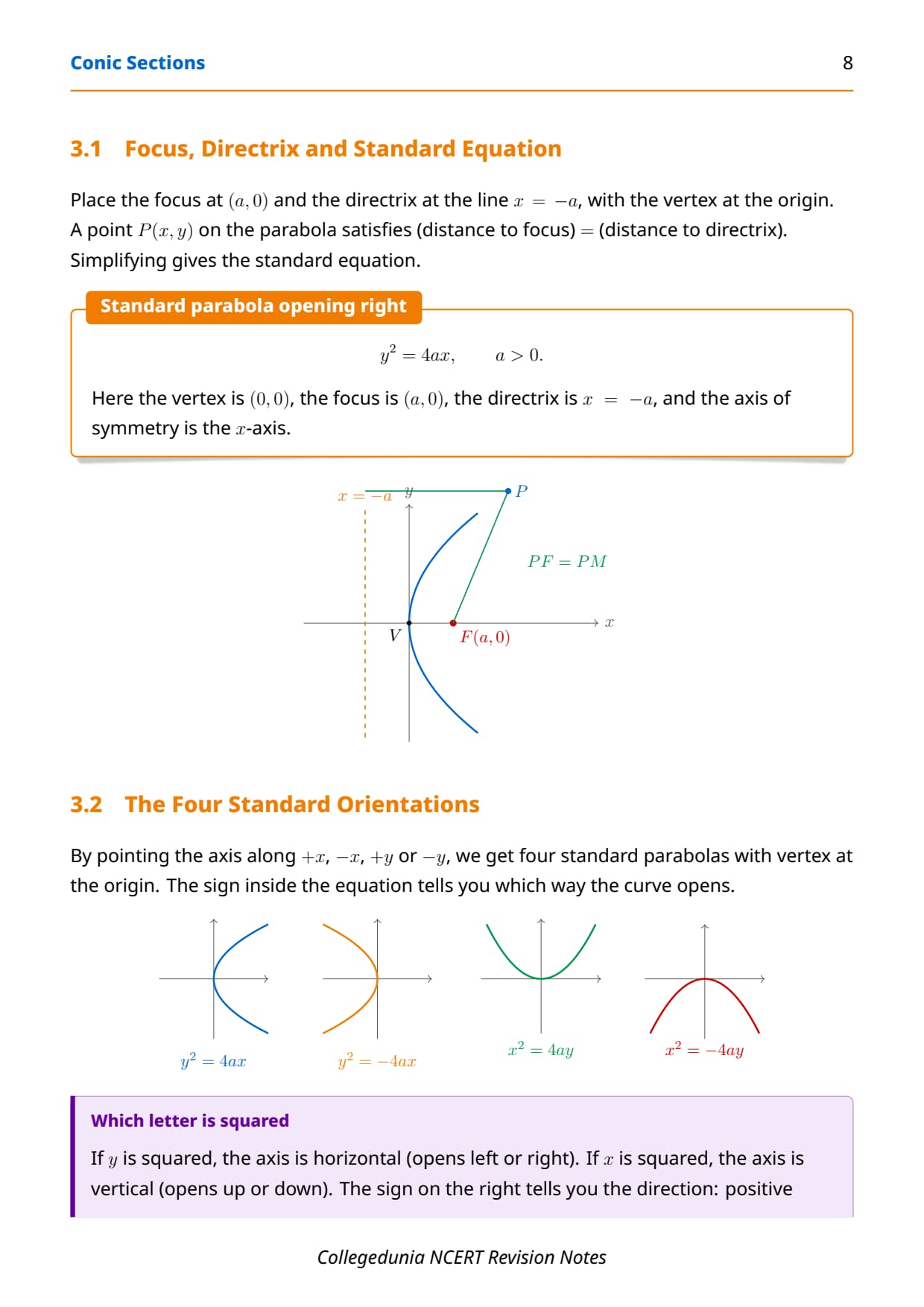

Parabola: Standard Forms, Focus, Directrix and Latus Rectum
A parabola is the set of points that are equidistant from a fixed point (the focus) and a fixed line (the directrix). Its eccentricity is exactly e = 1. The parabola is the most-drawn conic in boards, so students should know all four standard forms by heart.
Taking the vertex at the origin, the four standard equations and their key elements are set out below. The class 11 maths notes chapter 10 conic sections use this table as the master reference for parabola questions.
| Equation | Opens Towards | Focus | Directrix |
|---|---|---|---|
| y² = 4ax | Right (positive x) | (a, 0) | x = −a |
| y² = −4ax | Left (negative x) | (−a, 0) | x = a |
| x² = 4ay | Up (positive y) | (0, a) | y = −a |
| x² = −4ay | Down (negative y) | (0, −a) | y = a |
For every one of these, the length of the latus rectum is 4a, and the axis is the line of symmetry through the focus. The latus rectum is the chord through the focus perpendicular to the axis, and it fixes how wide the parabola opens.

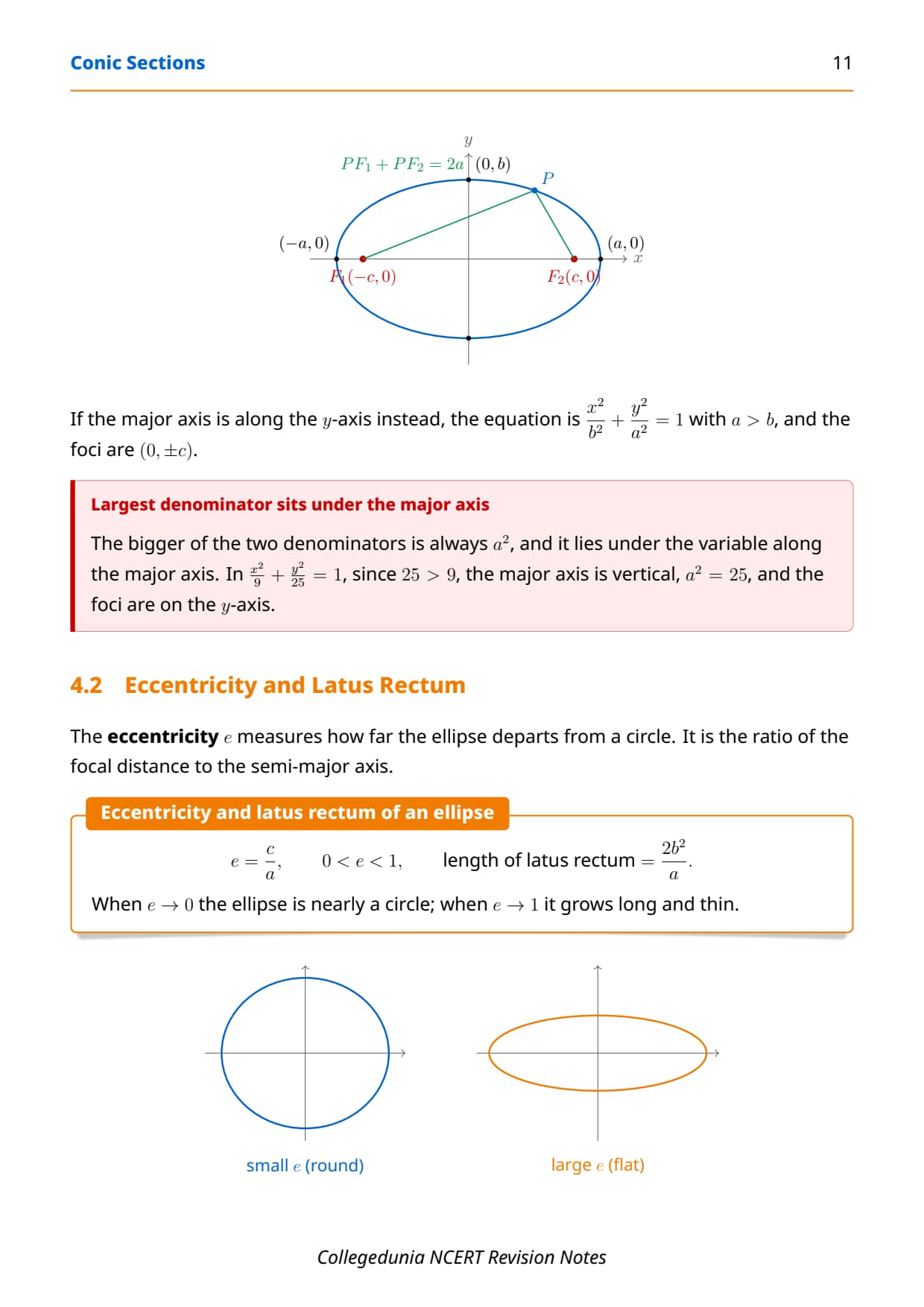

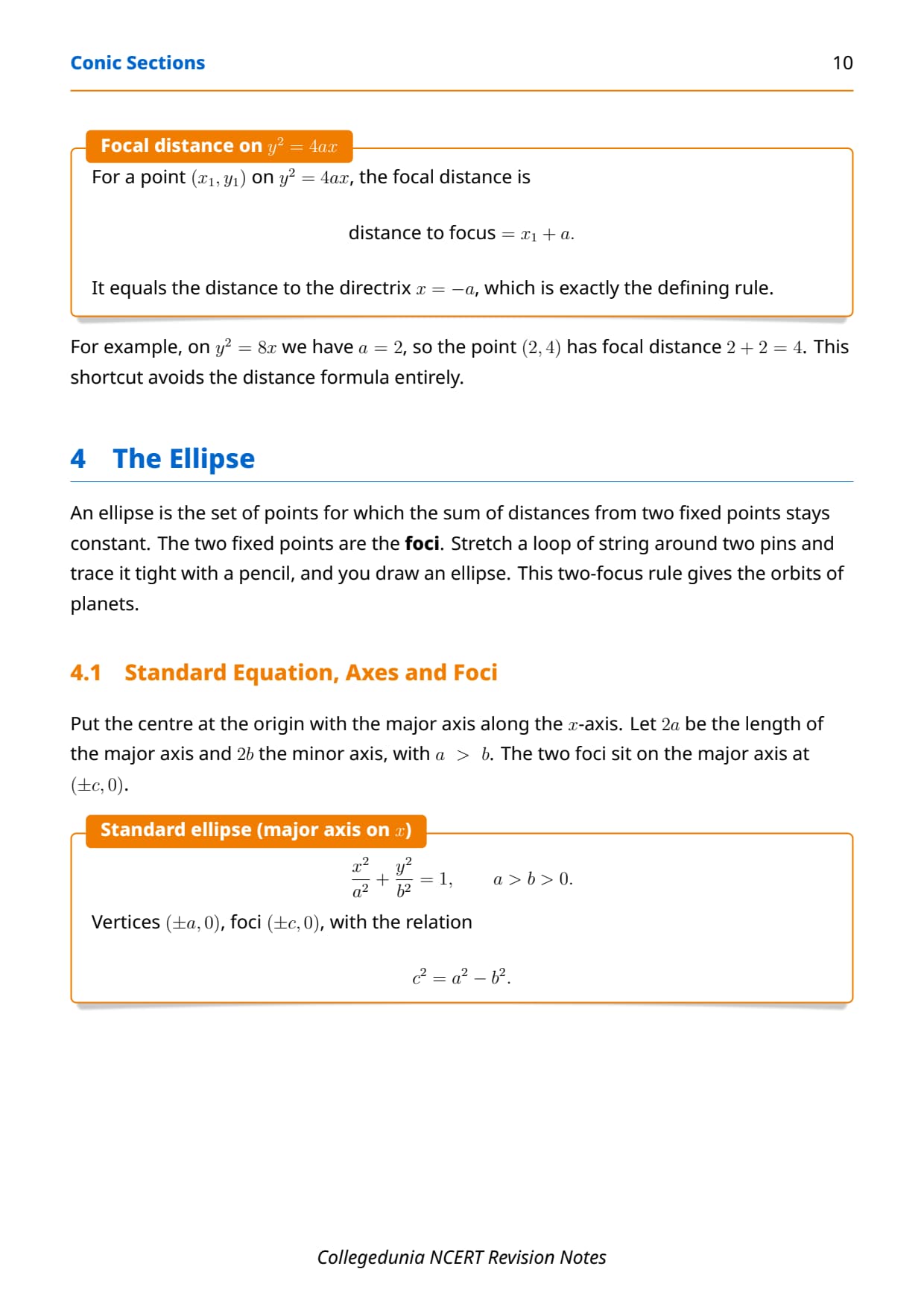

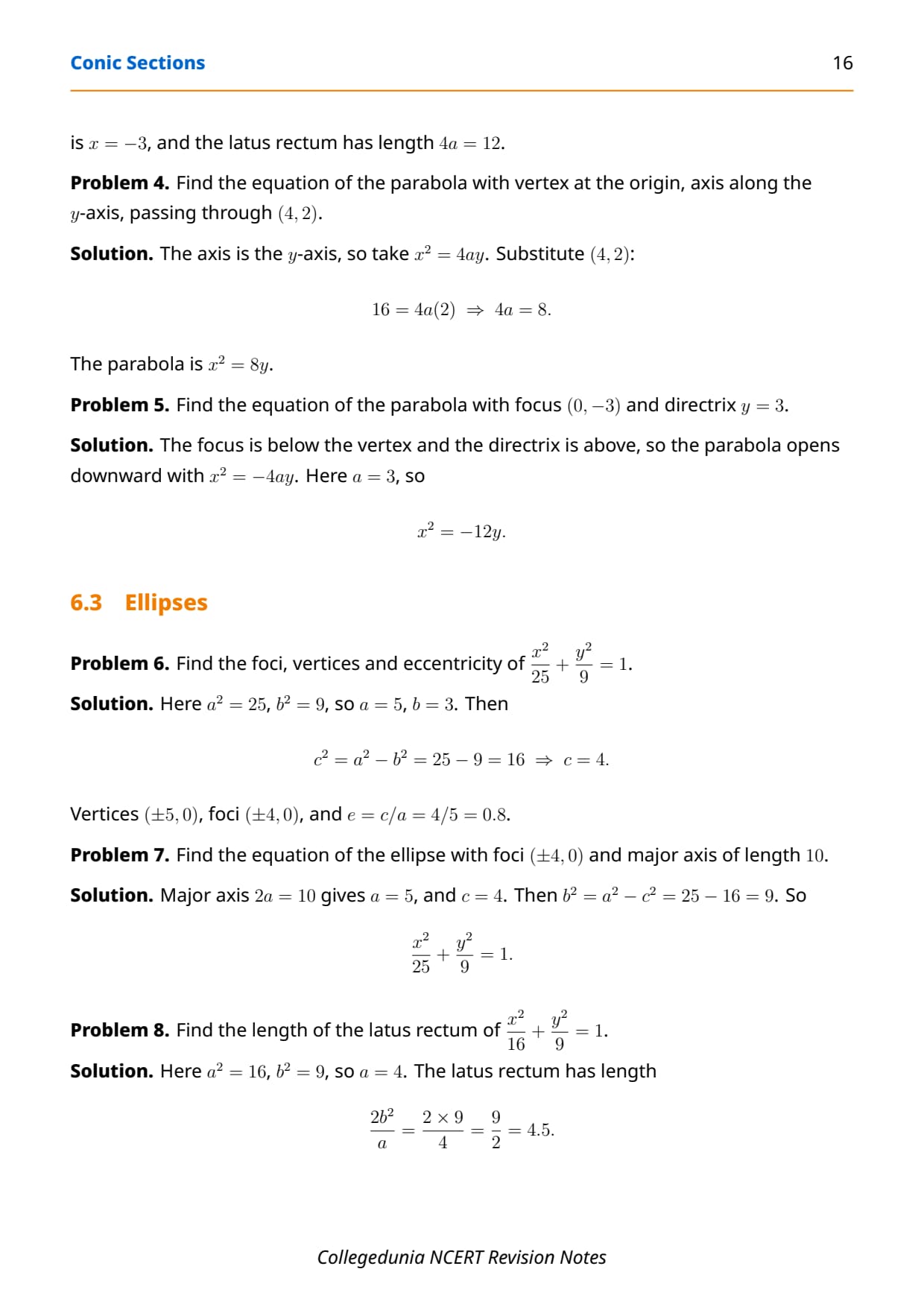

Ellipse: Standard Equation, Foci and Eccentricity
An ellipse is the set of points the sum of whose distances from two fixed points (the foci) stays constant. Its eccentricity lies between 0 and 1. With the centre at the origin and the major axis along the x-axis, its standard equation is x²/a² + y²/b² = 1, where a > b.
Here a is the semi-major axis and b is the semi-minor axis. The two are tied to the focal distance c by the relation below, and every other element follows from it.
- Focal relation: c² = a² − b², so the foci are at (±c, 0).
- Eccentricity: e = c/a, always between 0 and 1 for an ellipse.
- Vertices: (±a, 0); the major axis has length 2a and the minor axis 2b.
- Latus rectum: length 2b²/a for each of the two focal chords.
If the major axis lies along the y-axis instead, the equation becomes x²/b² + y²/a² = 1 with a > b, and the foci shift to (0, ±c). Always compare the denominators first: the larger one sits under the axis that is longer.

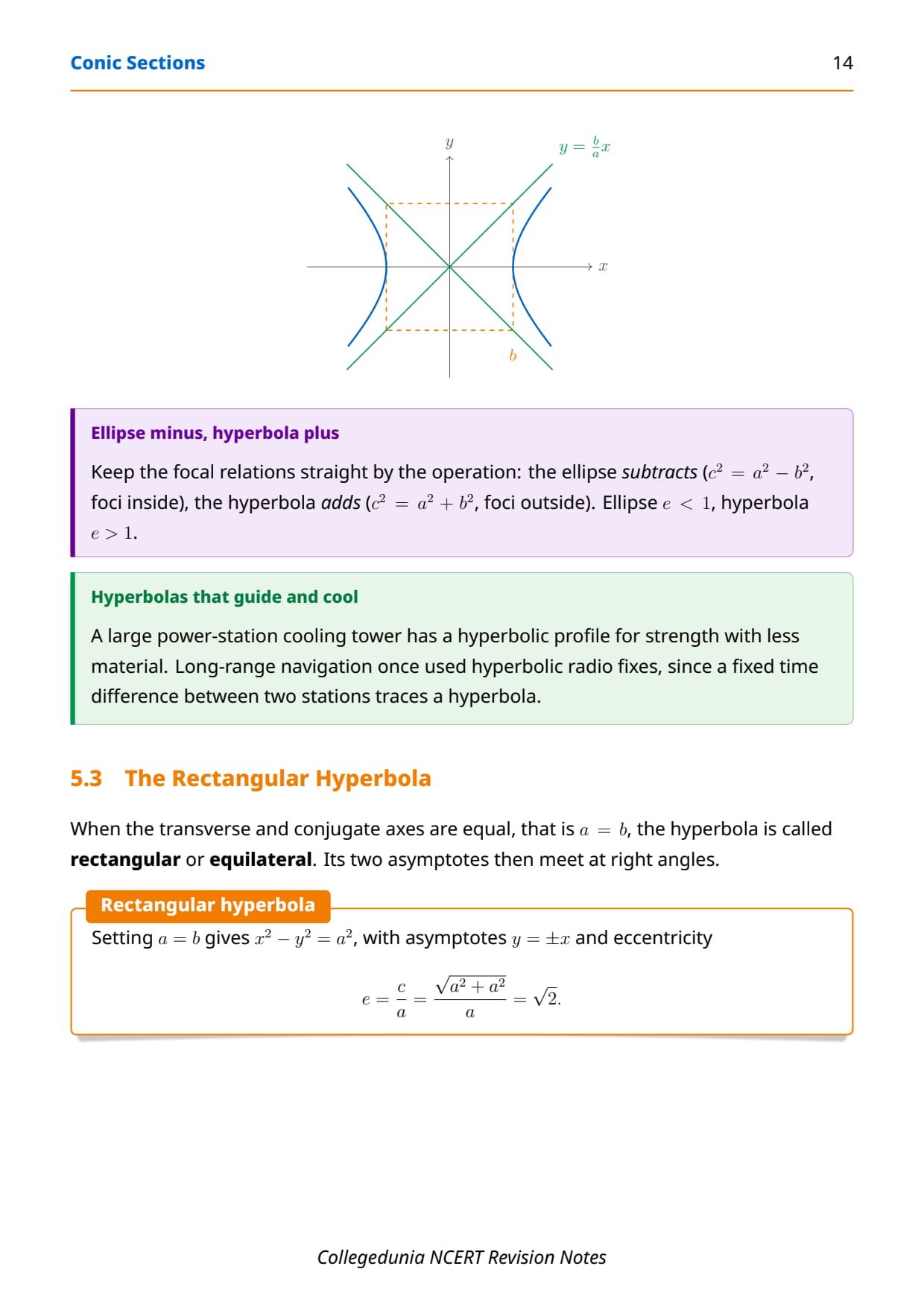

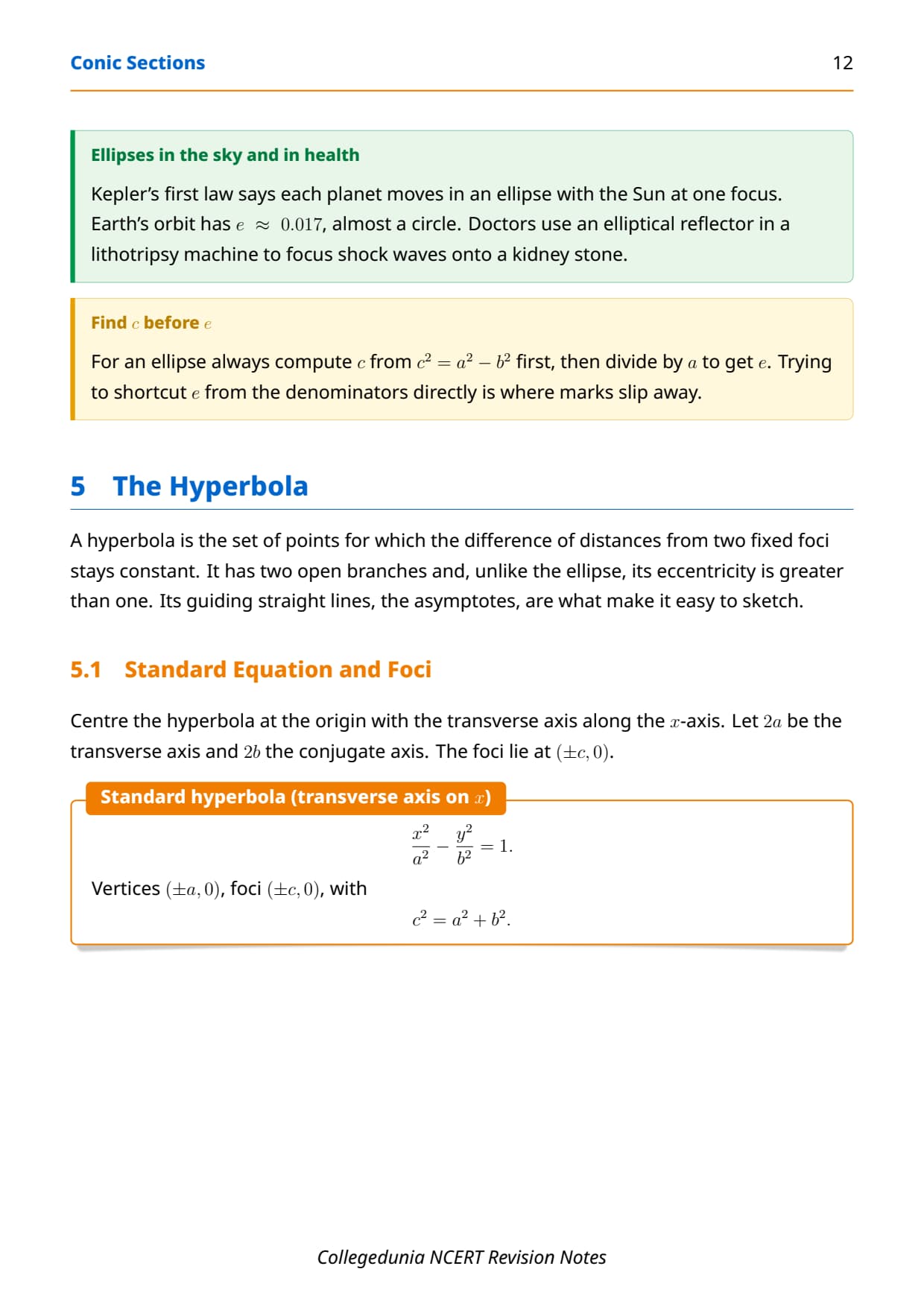

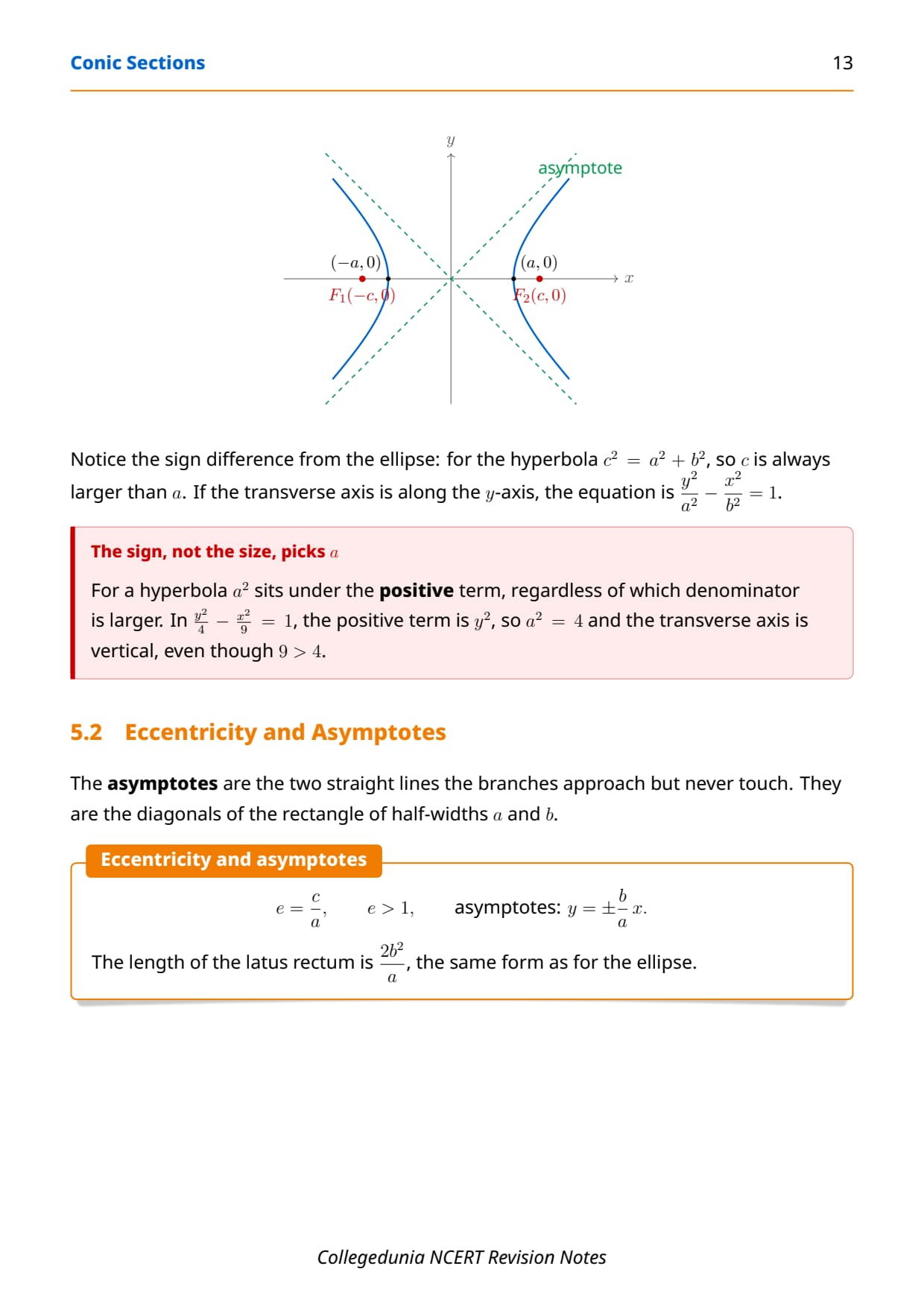

Hyperbola: Standard Equation, Eccentricity and Asymptotes
A hyperbola is the set of points the difference of whose distances from two fixed foci stays constant. Its eccentricity is always greater than 1. With the centre at the origin and the transverse axis along the x-axis, the standard equation is x²/a² − y²/b² = 1.
The hyperbola looks like two mirror-image branches. Its elements mirror the ellipse, except the focal relation now adds the two squares instead of subtracting them.
- Focal relation: c² = a² + b², with foci at (±c, 0).
- Eccentricity: e = c/a, always greater than 1.
- Asymptotes: the lines y = ±(b/a)x that the branches approach but never touch.
- Latus rectum: length 2b²/a, same form as the ellipse.

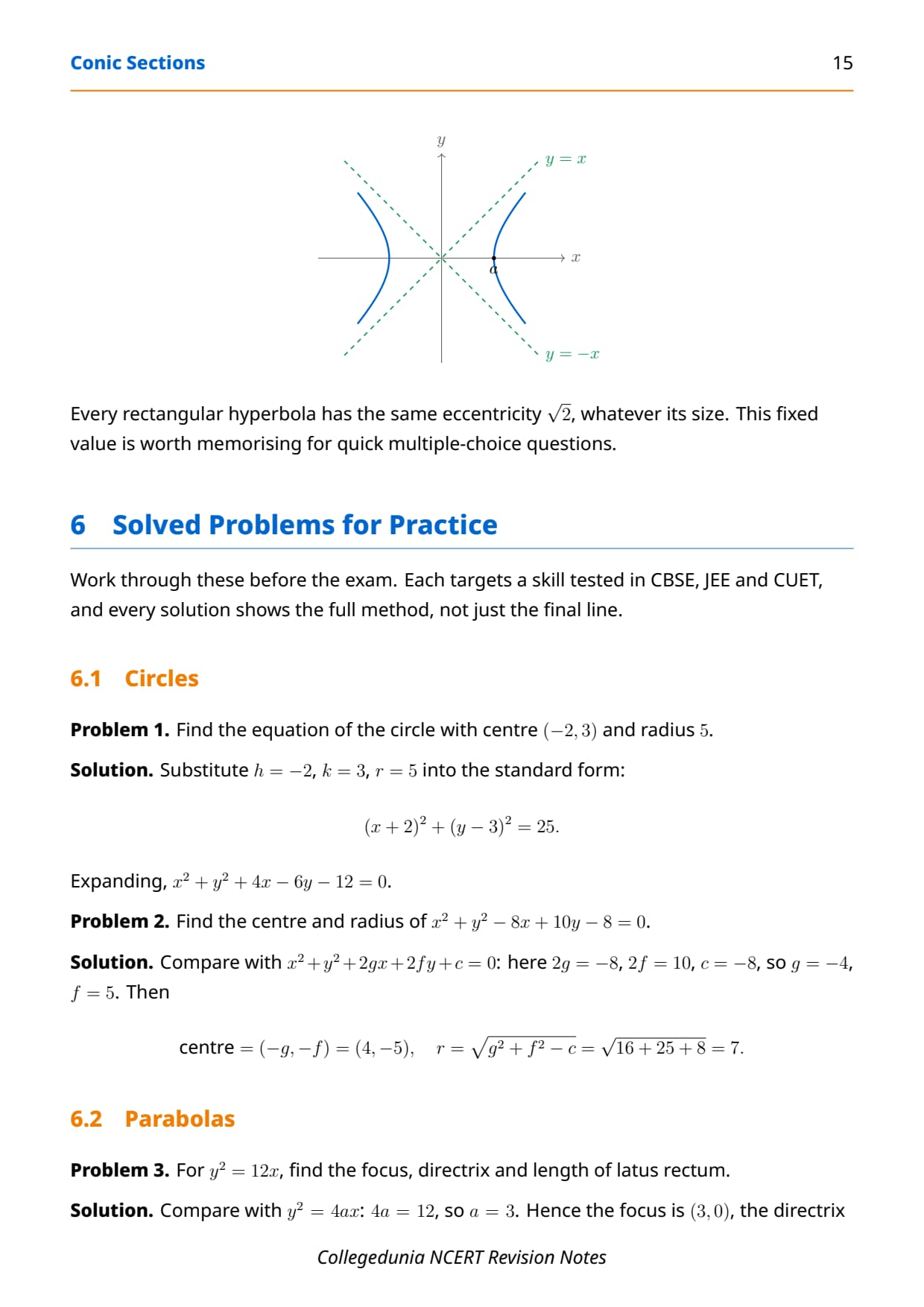

When a = b the curve is a rectangular hyperbola, and its eccentricity is e = √2. If the transverse axis is along the y-axis, the equation flips to y²/a² − x²/b² = 1.

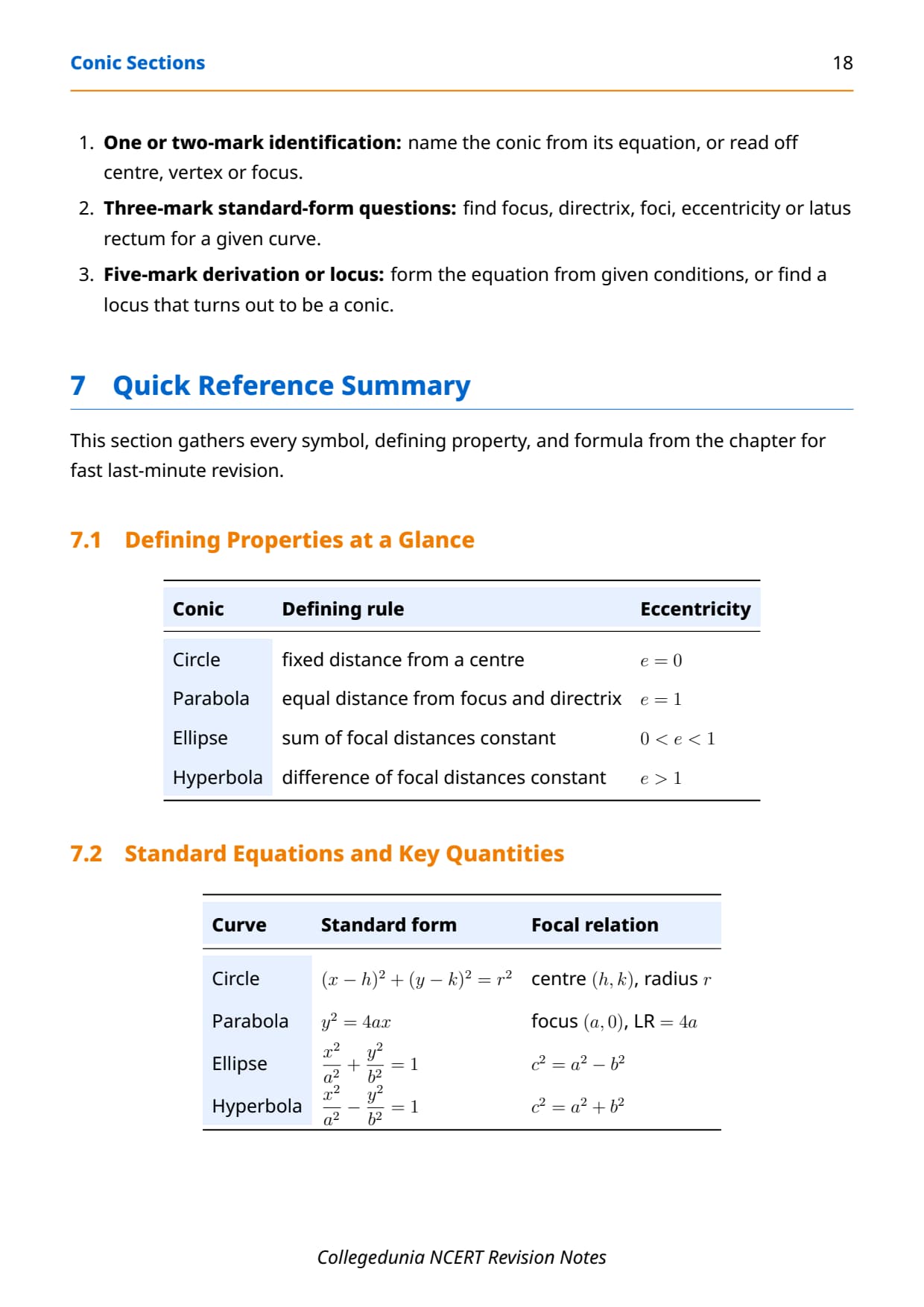

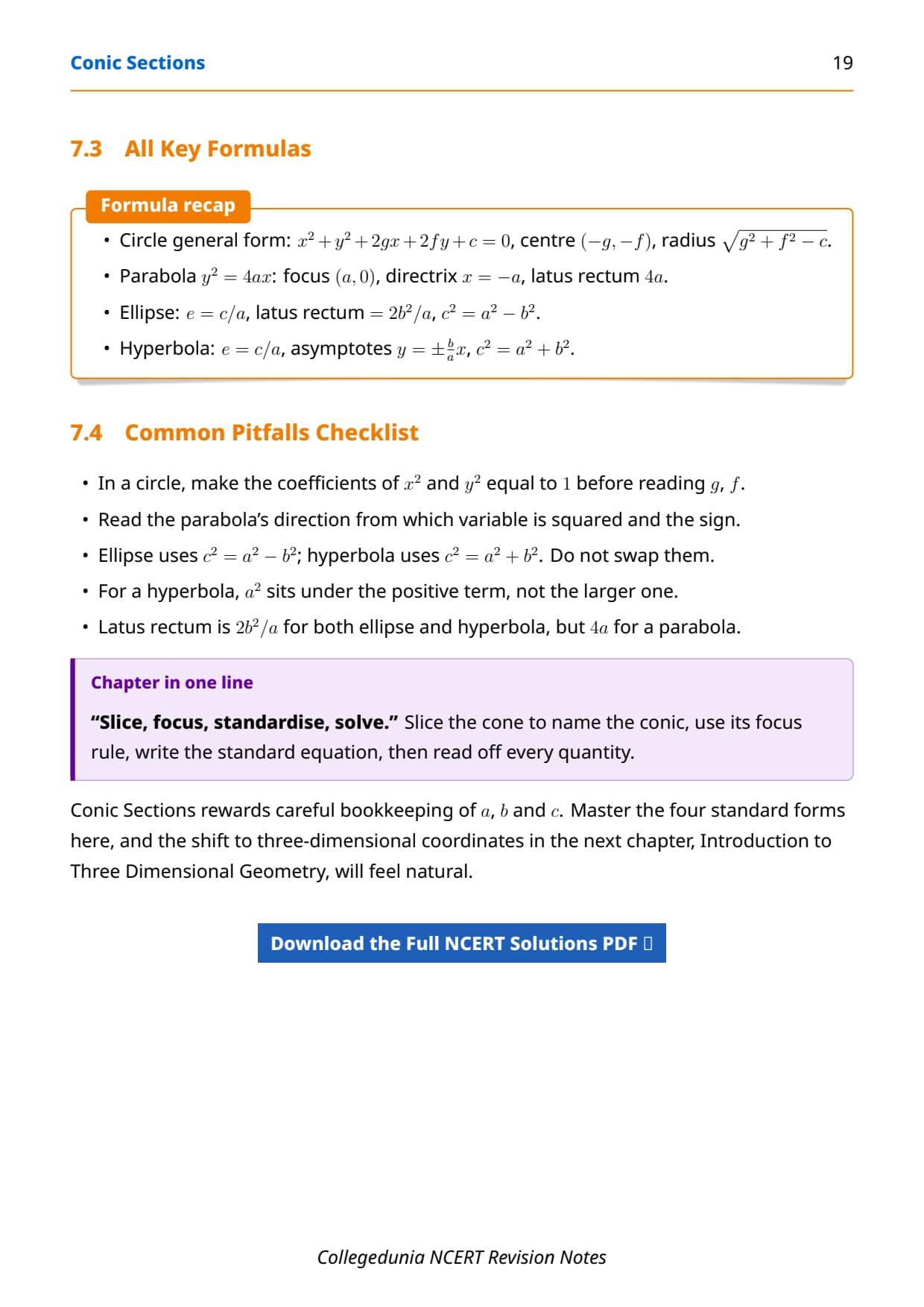

All Formulas for Conic Sections: Quick-Reference Table
The formula table below covers every standard equation and key element the Conic Sections chapter can generate. These formulas for conic sections are the ones students should copy onto a flashcard before the exam.
| Formula | What It Means | When to Use |
|---|---|---|
| (x − h)² + (y − k)² = r² | Circle, centre (h, k), radius r | Any circle problem |
| x² + y² + 2gx + 2fy + c = 0 | General circle; centre (−g, −f) | Finding centre and radius |
| y² = 4ax | Parabola, focus (a, 0) | Right-opening parabola |
| Latus rectum of parabola = 4a | Focal chord length | Parabola width |
| x²/a² + y²/b² = 1 | Ellipse, a > b | Ellipse elements |
| c² = a² − b² (ellipse) | Focal distance of ellipse | Finding foci or e |
| x²/a² − y²/b² = 1 | Hyperbola, transverse axis on x | Hyperbola elements |
| c² = a² + b² (hyperbola) | Focal distance of hyperbola | Finding foci or e |
| e = c/a | Eccentricity of ellipse and hyperbola | All eccentricity questions |
| Latus rectum of conic = 2b²/a | Focal chord of ellipse or hyperbola | Latus-rectum questions |
Important: the eccentricity e = c/a is the single most-tested idea from this chapter in both CBSE Boards and JEE Main, because it separates the four conics at a glance.
Key Definitions and Theorems in the Conic Sections Chapter
Beyond the formulas, a few named terms carry marks in the reasoning-style questions. These are the results the class 11 maths notes chapter 10 conic sections expect students to state precisely.
- Focus: the fixed point used to define a conic. The parabola has one focus; the ellipse and hyperbola have two.
- Directrix: the fixed line paired with the focus. The distance ratio from focus to directrix is the eccentricity.
- Eccentricity (e): circle e = 0, parabola e = 1, ellipse 0 < e < 1, hyperbola e > 1.
- Latus rectum: the focal chord drawn perpendicular to the axis of the conic.
- Asymptote: a line a hyperbola approaches without ever meeting; given by y = ±(b/a)x.
The single ratio definition (distance to focus divided by distance to directrix equals e) unifies all four conics, so a question can hand you e and ask you to name the curve.
Common Mistakes Students Make in the Conic Sections Chapter
Mistake 1: Swapping the ellipse and hyperbola focal relations. Ellipse uses c² = a² − b², hyperbola uses c² = a² + b².
Mistake 2: Reading 4a as a in the parabola. The focus of y² = 4ax is (a, 0), not (4a, 0).
Mistake 3: Not checking which denominator is larger in an ellipse, so the major axis is placed on the wrong axis.
Mistake 4: Forgetting that a > b always holds for the standard ellipse, which flips b and a in the eccentricity.
Each slip costs 1 to 2 marks in the board exam.
Conic Sections Weightage in CBSE Boards, JEE Main and CUET
Conic Sections is a scoring chapter because most questions plug directly into a standard formula. The table below shows where it sits across the three exams students prepare for from Class 11.
| Exam | Typical Weightage | Most-Tested Topic |
|---|---|---|
| CBSE Class 11 Boards | 5 to 7 marks (with Straight Lines) | Ellipse and parabola standard equations |
| JEE Main | 1 to 2 questions per year | Eccentricity and latus rectum |
| CUET (UG) Mathematics | 1 to 2 MCQs per paper | Circle equation and eccentricity values |
Tip: because Conic Sections returns in Class 12 for tangents and in JEE for locus problems, a firm grip here pays off across the whole Class 11 and Class 12 syllabus.
How to Revise the Conic Sections Chapter Quickly
Conic Sections can be revised in about two hours because the content is formula-driven. Use the class 11 maths notes chapter 10 conic sections in the three-block plan below for a last-minute recap.
- 0 to 40 min: sections of a cone, the circle, and the four standard parabola forms with their foci.
- 40 to 80 min: the ellipse and hyperbola standard equations, foci, and eccentricity relations.
- 80 to 120 min: the formula table, latus rectum lengths, and two or three mixed practice questions.
Finish by writing out the ten-row formula table from memory until every standard equation and eccentricity value comes back without a peek.
Student Feedback on the Conic Sections Notes
In a Collegedunia poll of 12,840 Class 11 Maths students conducted before the 2026 boards, 67% of students rated the hyperbola asymptotes and eccentricity as the trickiest part of the chapter, ahead of the parabola standard forms.
What 12,840 students told us about the Conic Sections revision journey:
- 67% of students surveyed found the hyperbola the hardest of the four conics.
- 59% said they had mixed up the ellipse and hyperbola focal relations at least once in a class test.
- 4 out of 5 students revised the standard-equation table the night before the exam.
- Out of 12,840 students, 63% said sketching each conic once made the formulas easier to recall.
Source: 2026-27 Class 11 Maths student poll. Sample of 12,840 students from CBSE schools across 14 states.

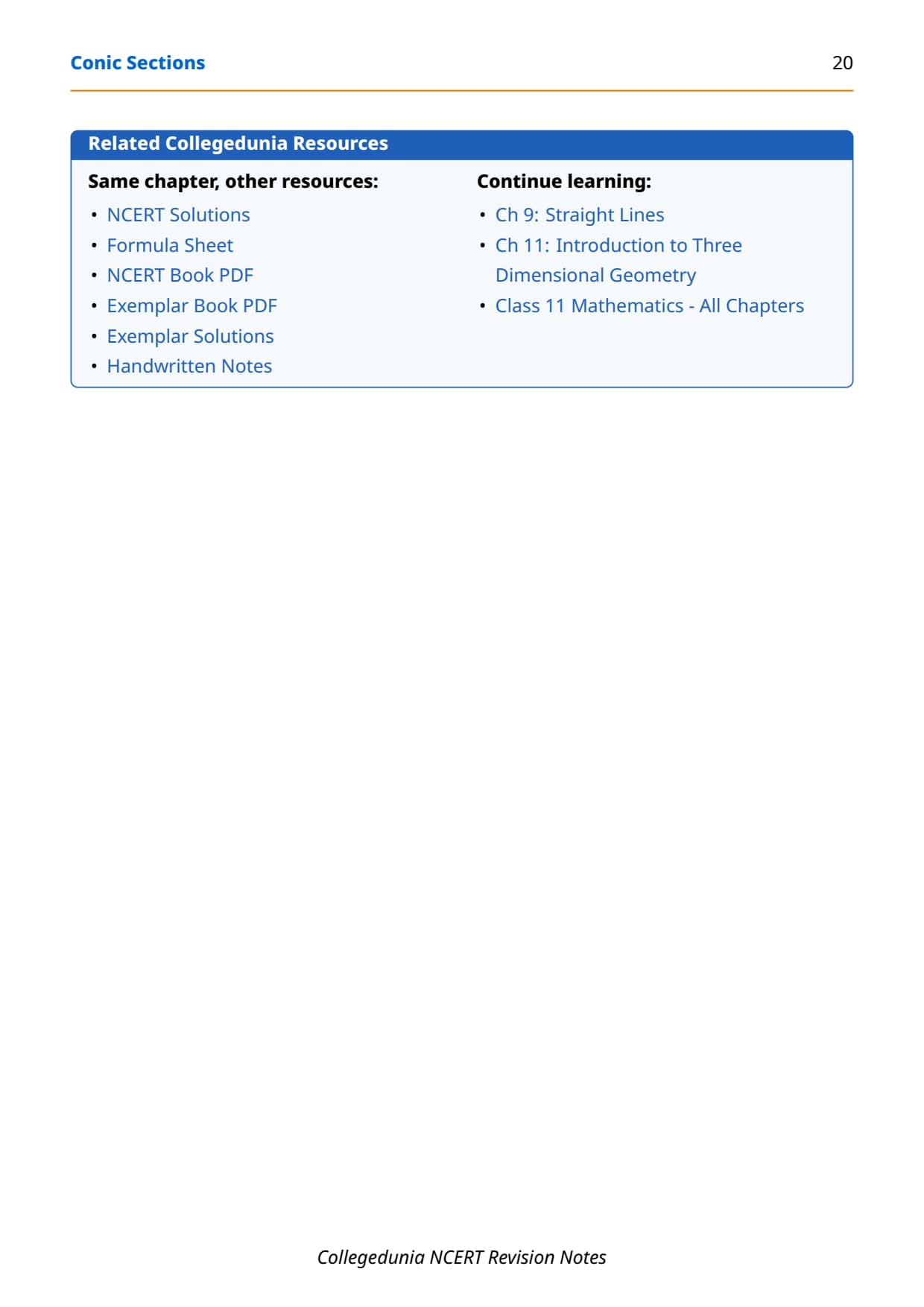

Other Conic Sections Class 11 Maths Resources
Use these notes together with the linked resources below for the full Conic Sections study set. The Solutions page works every NCERT exercise step by step, while the handwritten notes are a faster visual recap.
| Resource | What It Gives You |
|---|---|
| NCERT Solutions for Class 11 Maths Conic Sections | Step-by-step answers to every exercise question |
| Class 11 Maths Conic Sections Handwritten Notes | Neat handwritten revision notes with formula boxes |
| Class 11 Maths Conic Sections NCERT Book PDF | The official NCERT chapter PDF to read alongside |
NCERT Notes for Class 11 Maths: All Chapters
| Chapter | Revision Notes |
|---|---|
| Chapter 1 | Sets Notes |
| Chapter 2 | Relations and Functions Notes |
| Chapter 3 | Trigonometric Functions Notes |
| Chapter 4 | Complex Numbers and Quadratic Equations Notes |
| Chapter 5 | Linear Inequalities Notes |
| Chapter 6 | Permutations and Combinations Notes |
| Chapter 7 | Binomial Theorem Notes |
| Chapter 8 | Sequences and Series Notes |
| Chapter 9 | Straight Lines Notes |
| Chapter 10 | Conic Sections Notes (this page) |
| Chapter 11 | Introduction to Three Dimensional Geometry Notes |
| Chapter 12 | Limits and Derivatives Notes |
| Chapter 13 | Statistics Notes |
| Chapter 14 | Probability Notes |
FAQs on Conic Sections Class 11 Maths Notes
Conic Sections Notes - Frequently Asked Questions
Ques. What are the main topics in the class 11 maths notes chapter 10 conic sections?
Ans. These Conic Sections notes cover the sections of a cone, the circle (standard and general equation), the parabola (four standard forms, focus, directrix, latus rectum), the ellipse (standard equation, foci, eccentricity), and the hyperbola (standard equation, eccentricity, asymptotes).
Ques. What is a conic section?
Ans. A conic section is the curve you get when a plane cuts a double right circular cone. Depending on the angle of the plane, you get a circle, an ellipse, a parabola, or a hyperbola. All four share one focus-directrix definition using the eccentricity.
Ques. How is eccentricity defined for the four conics?
Ans. Eccentricity e is the ratio of a point's distance from the focus to its distance from the directrix. For a circle e = 0, for a parabola e = 1, for an ellipse 0 < e < 1, and for a hyperbola e > 1. For the ellipse and hyperbola, e = c/a.
Ques. What is the standard equation of a parabola?
Ans. The four standard forms with vertex at the origin are y² = 4ax, y² = −4ax, x² = 4ay, and x² = −4ay. For y² = 4ax the focus is (a, 0), the directrix is x = −a, and the length of the latus rectum is 4a.
Ques. What is the difference between the ellipse and hyperbola focal relations?
Ans. For a standard ellipse x²/a² + y²/b² = 1 with a > b, the foci come from c² = a² − b². For a hyperbola x²/a² − y²/b² = 1, the foci come from c² = a² + b². Mixing these two is the most common mistake in the chapter.
Ques. What are the asymptotes of a hyperbola?
Ans. The asymptotes of a hyperbola are the straight lines the branches approach but never touch. For the standard hyperbola x²/a² − y²/b² = 1, the asymptotes are y = (b/a)x and y = −(b/a)x. When a = b, the hyperbola is rectangular with eccentricity √2.
Ques. Is Conic Sections important for JEE Main and CUET?
Ans. Yes. Conic Sections usually gives 1 to 2 questions in JEE Main and CUET (UG) Mathematics every year, mostly on eccentricity, latus rectum, and the standard equations of the ellipse and parabola. It is a formula-driven, scoring chapter worth revising fully.
Ques. Where can I download the Class 11 Maths Conic Sections notes PDF?
Ans. The Conic Sections notes PDF is available on this page through the download card above. It covers all definitions, the full formula table, the four standard conics, and the eccentricity values, and it matches the 2026-27 NCERT chapter.
