This page hosts the Inverse Trigonometric Functions Formulas, and hosts the Inverse Trigonometric Functions Formulas for Class 12 Mathematics Chapter 2 Inverse Trigonometric Functions. The file presents the formula sheet in the order they appear in the NCERT textbook, with each entry followed by a one-line note on its standard use. the PDF are intended for last-revision and exam-day recall.
6 pages · complete sheet
24 formulas · full chapter
6 functions · principal branches
- CBSE Weightage: 4 to 5 marks (typically one 2-mark simplification plus one MCQ on principal value).
- JEE Main Weightage: 3 to 5% of the Maths section (1 to 2 questions per shift).
- CUET (UG) Weightage: 1 to 2 MCQs in nearly every shift.

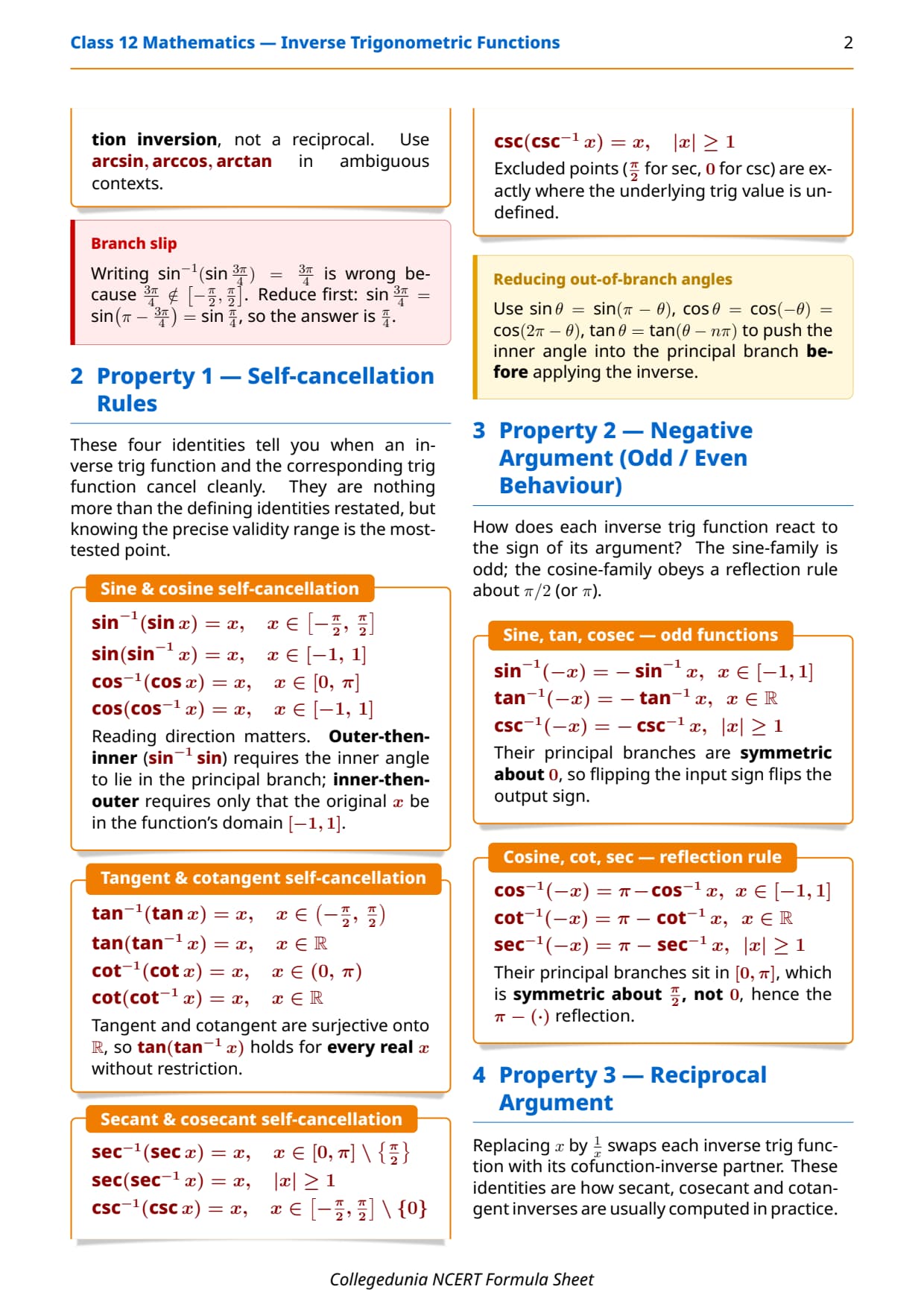

Chapter 2 Inverse Trigonometric Functions Formula Sheet PDF
Complete Inverse Trigonometric Functions Formulas with Principal-Value Branches

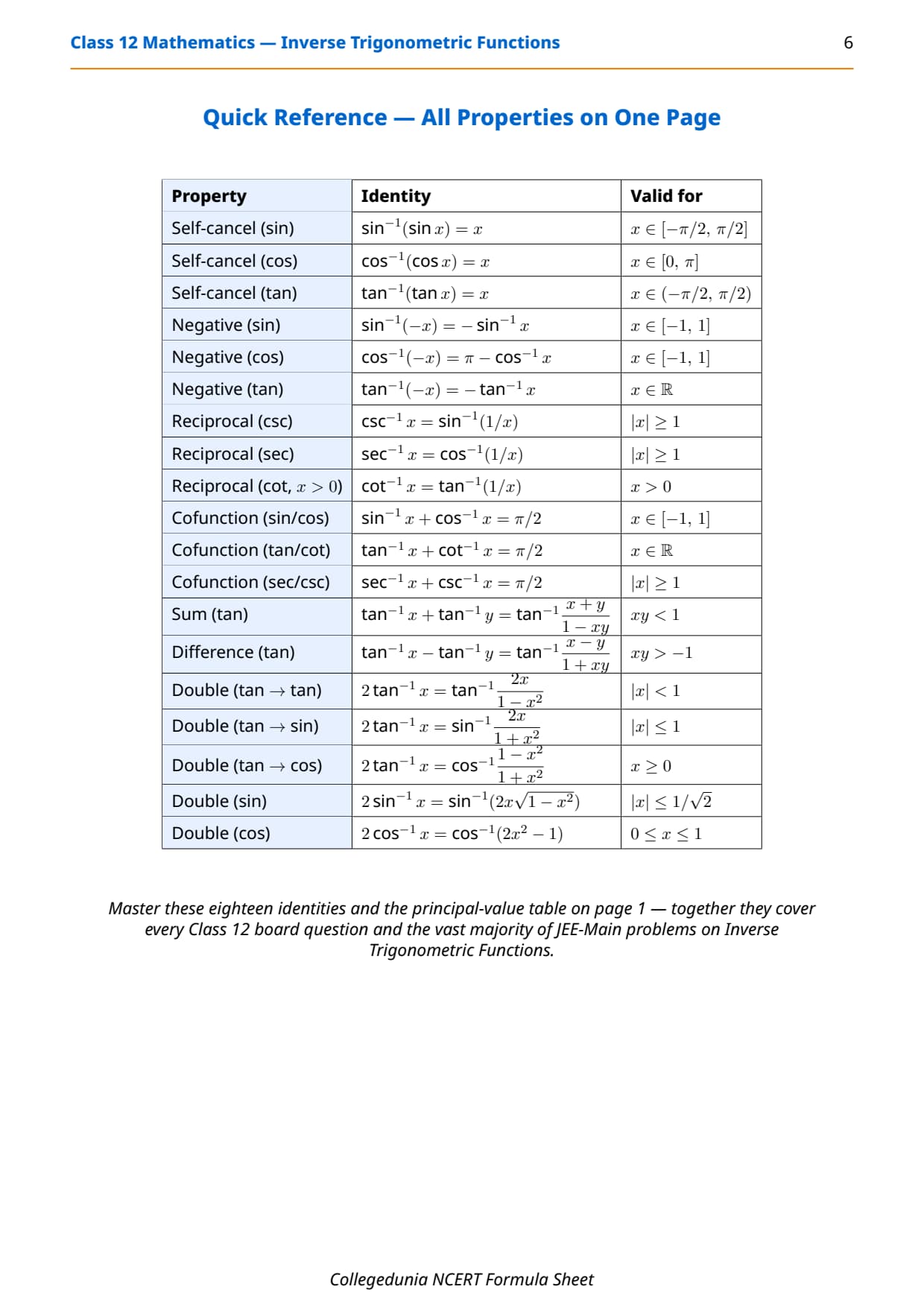

| Concept | Formula / Rule | NCERT Section | Common Use |
|---|---|---|---|

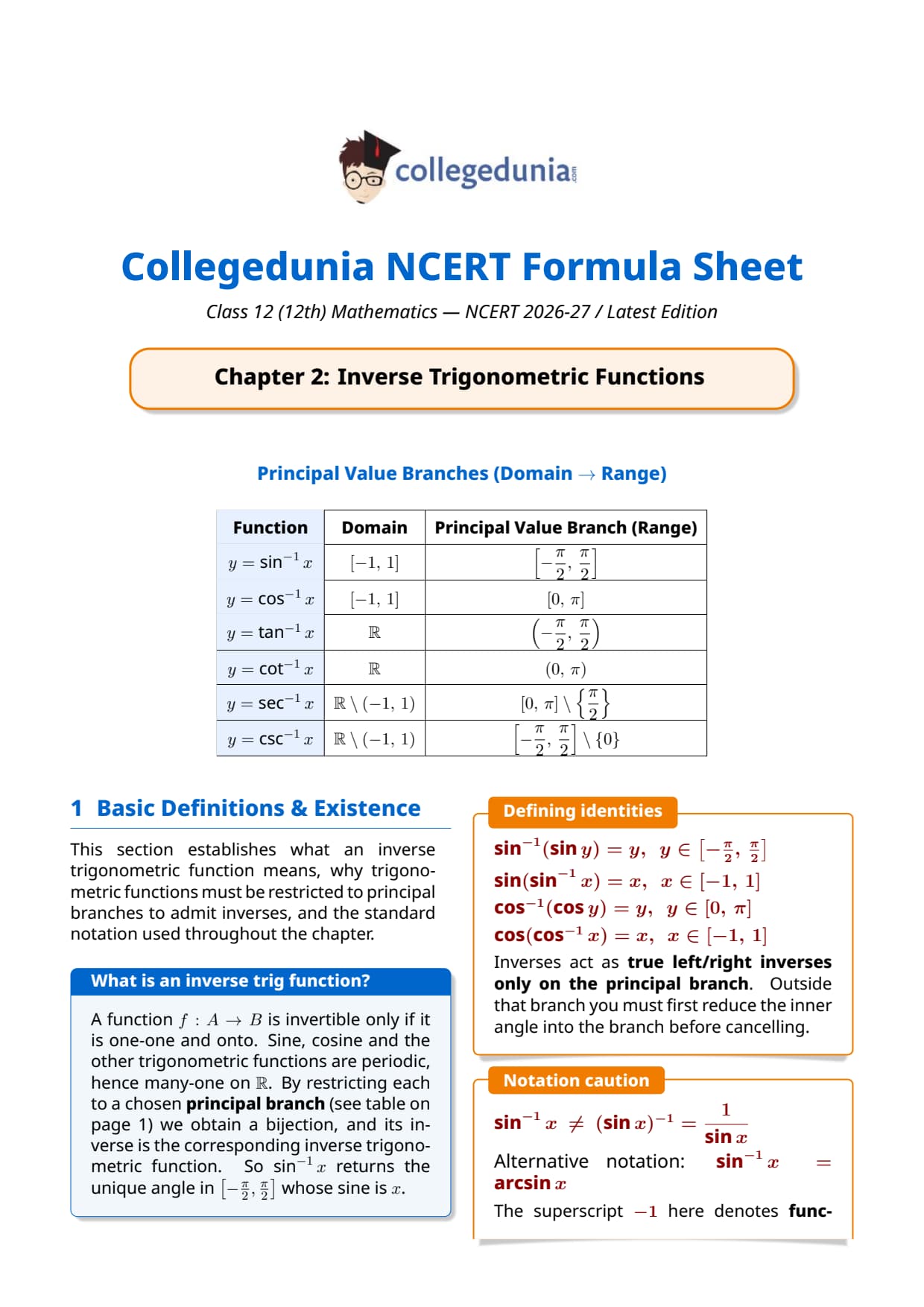

| Principal range of sin-1 x | [-π2, π2] , domain [-1, 1] | 2.2 | Sign decision in every Q |
| Principal range of cos-1 x | [0, π] , domain [-1, 1] | 2.2 | Sign decision in every Q |
| Principal range of tan-1 x | (-π2, π2) , domain R | 2.2 | Sign decision in every Q |
| Principal range of cot-1 x | (0, π) , domain R | 2.2 | Sign decision in every Q |
| Principal range of sec-1 x | [0, π] π2 , domain |x| ≥ 1 | 2.2 | Domain check |
| Principal range of csc-1 x | [-π2, π2] 0 , domain |x| ≥ 1 | 2.2 | Domain check |
| Negative-argument (sin) | sin-1(-x) = -sin-1 x | 2.3 | Sign flipping |
| Negative-argument (cos) | cos-1(-x) = π - cos-1 x | 2.3 | Sign flipping |
| Negative-argument (tan) | tan-1(-x) = -tan-1 x | 2.3 | Sign flipping |
| Negative-argument (cot) | cot-1(-x) = π - cot-1 x | 2.3 | Sign flipping |
| Reciprocal identity (sin) | csc-1 x = sin-1(1/x) , |x| ≥ 1 | 2.3 | Converting csc to sin |
| Reciprocal identity (cos) | sec-1 x = cos-1(1/x) , |x| ≥ 1 | 2.3 | Converting sec to cos |
| Reciprocal identity (tan) | cot-1 x = tan-1(1/x) , x > 0 | 2.3 | Converting cot to tan |

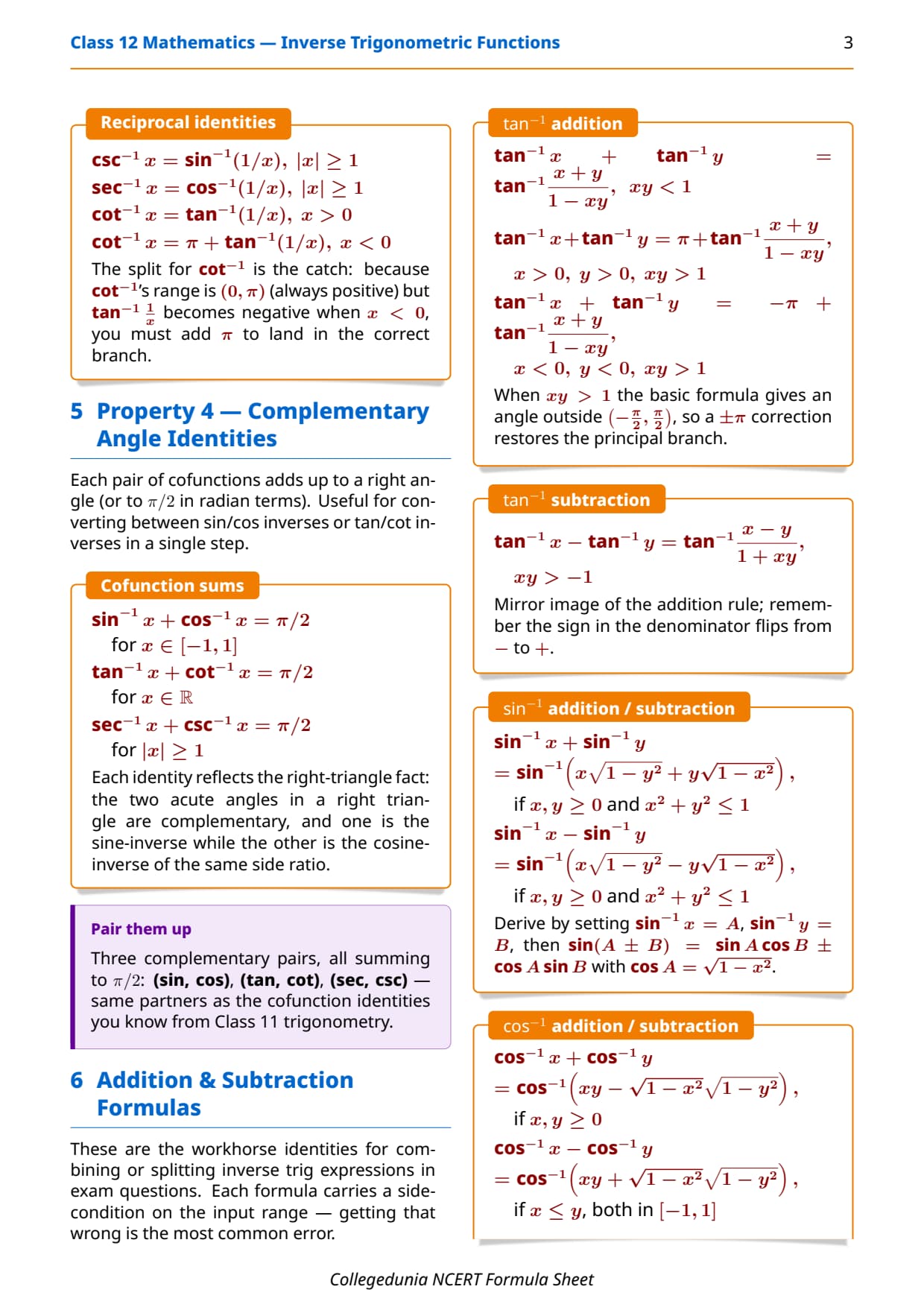

| Complementary sin-cos | sin-1 x + cos-1 x = π2 , x ∈ [-1, 1] | 2.3 | 2-mark CBSE |
| Complementary tan-cot | tan-1 x + cot-1 x = π2 , x ∈ R | 2.3 | 2-mark CBSE |
| Complementary sec-csc | sec-1 x + csc-1 x = π2 , |x| ≥ 1 | 2.3 | 1-mark MCQ |
| Sum formula (tan) | tan-1 x + tan-1 y = tan-1(x+y1-xy) , xy < 1 | 2.3 (JEE extension) | JEE Main |
| Difference formula (tan) | tan-1 x - tan-1 y = tan-1(x-y1+xy) , xy > -1 | 2.3 (JEE extension) | JEE Main |

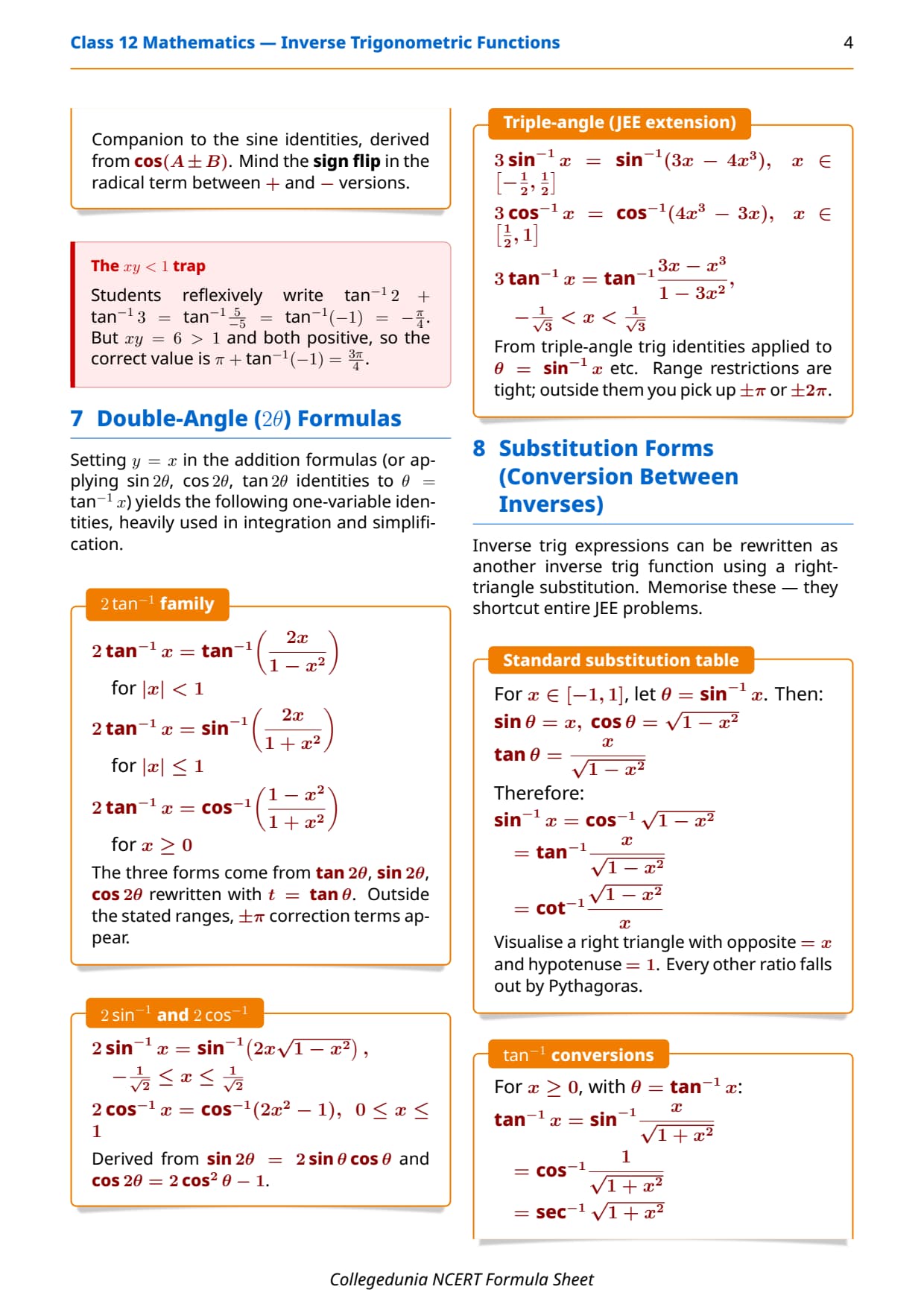

| Double-angle (tan to sin) | 2tan-1 x = sin-1(2x1+x2) , |x| ≤ 1 | 2.3 (JEE extension) | JEE Main |
| Double-angle (tan to cos) | 2tan-1 x = cos-1(1-x21+x2) , x ≥ 0 | 2.3 (JEE extension) | JEE Main |
| Double-angle (tan to tan) | 2tan-1 x = tan-1(2x1-x2) , |x| < 1 | 2.3 (JEE extension) | JEE Main |
| sin-1 x in terms of cos | sin-1 x = cos-1√1-x2 , x ∈ [0, 1] | 2.3 | Right-triangle conversion |
| sin-1 x in terms of tan | sin-1 x = tan-1(x√1-x2) , x ∈ (-1, 1) | 2.3 | Right-triangle conversion |
| Composite inverse identities | sin(sin-1 x) = x on [-1,1]; sin-1(sin x) = x on [-π2, π2] | 2.2 | 1-mark MCQ |
Inverse Trigonometric Functions Video Walkthrough
Source: Magnet Brains on YouTube
Principal-Value Branch Quick-Fact Cards for MCQ Recall
sin-1
Range [-π2, π2], domain [-1, 1].
cos-1
Range [0, π], domain [-1, 1].
tan-1
Range (-π2, π2), domain R.
cot-1
Range (0, π), domain R.
sec-1
Range [0, π] π2, domain |x| ≥ 1.
csc-1
Range [-π2, π2] 0, domain |x| ≥ 1.
How the Inverse Trigonometric Functions Formulas on the Inverse Trigonometric Functions Formulas Help You
- 2026-27 NCERT Alignment: Every formula matches the current edition; JEE-only sum, difference, and double-angle rules are clearly flagged as extension rows so board-only students can skip them.
- Principal-Value Shortcuts: The six ranges are formatted as quick-fact cards because deciding the correct branch is the single highest-use 1-mark question of the Inverse Trigonometric Functions Formulas.
- Complementary-Pair Recall: The three π2 pair identities sit on consecutive rows; CBSE 2-mark questions almost always test one of these.
- Triangle-Conversion Map: The rows that translate sin-1 x into cos-1 or tan-1 cover the right-triangle simplification setup CBSE has asked four of the last five years.
When to Use Which Formula in Inverse Trigonometric Functions
- Question asks "principal value of sin-1(sin x) ": reduce x to the range [-π2, π2] using sin(π - x) = sin x or sin(2π + x) = sin x ; the answer is the reduced value, not x itself.
- Question simplifies sin-1 x + cos-1 x : apply sin-1 x + cos-1 x = π2 immediately; do not expand into sin and cos.
- Question simplifies tan-1 x + tan-1 y : check the sign of xy first. If xy < 1, use the direct sum; if xy > 1 and both are positive, add π to the formula's output.
- Question converts 2tan-1 x : the result depends on the range of x: sin form for |x| ≤ 1, cos form for x ≥ 0, tan form for |x| < 1. Pick by what the answer choices look like.
- Question asks "draw the graph": sketch using the principal-value range as the y-axis ceiling and floor; sin-1 x and tan-1 x are monotonically increasing, cos-1 x and cot-1 x are decreasing.
- Question gives a right-triangle setup: convert the inverse function into a triangle (opposite, adjacent, hypotenuse) and read off the required ratio.
Quick Tip: The output of sin-1(sin x) is NOT always x. It equals x only when x ∈ [-π2, π2]. For x = 2π3, the answer is π3 (since sin(2π3) = sin(π3) and π3 is in the principal range). This single trap has appeared on CBSE papers in 2022 and 2024.
CBSE and JEE Numerical Pattern Templates for Inverse Trigonometric Functions
| Template | Typical Setup | Formula to Reach For |
|---|---|---|
| Principal-value evaluation | "Find the principal value of tan-1(-√3) ." | Range of tan-1 = (-π2, π2); answer -π3 |
| Complementary simplification | "Simplify sin-1(0.6) + cos-1(0.6) ." | sin-1 x + cos-1 x = π2 |
| Sum of two tan inverses | "Find tan-1(1/2) + tan-1(1/3) ." | Tan sum formula; xy = 1/6 < 1; answer π4 |
| Double-angle conversion | "Express 2tan-1(13) as a single sin inverse." | 2tan-1 x = sin-1(2x1+x2) ; answer sin-1(35) |
Common Mistakes Students Make in Inverse Trigonometric Functions
Watch Out: sin-1(sin x) ≠ x outside the principal range. Always reduce x into [-π2, π2] before writing the answer.
Watch Out: cos-1(-x) = π - cos-1 x , not -cos-1 x. The cos and cot families flip with π - θ; only sin, tan, and csc inverses are pure odd.
Watch Out: The tan sum formula tan-1 x + tan-1 y = tan-1(x+y1-xy) is only valid when xy < 1. For xy > 1 with positive x, y, add π ; for xy > 1 with negative x, y, subtract π .
Watch Out: sec-1 x is NOT defined for |x| < 1. The domain restriction |x| ≥ 1 appears in CBSE assertion-reason MCQs almost every year.
Memory Mnemonics for Inverse Trigonometric Functions
Remember: "Sin and Tan live below the line, Cos and Cot live above." Sin, tan, csc inverses use the symmetric range around zero (-π2 to π2 ); cos, cot, sec inverses use the upper range (0 to π ).
Remember: "Pi-over-two pairs". The three identities sin-1 + cos-1 , tan-1 + cot-1 , sec-1 + csc-1 all sum to π2 . Each is a 1-mark MCQ ready to happen.
Remember: Negative goes inside for sin, tan, csc (odd functions); negative becomes π - for cos, cot, sec. Use the phrase "STC odd, CCS pi-minus" to lock it in.
Top 5 Most-Asked Inverse Trigonometric Functions Topics in Class 12 Board Exams
- Principal-value evaluation of sin-1(sin x) or cos-1(cos x) with x outside the principal range (2 marks, almost every year).
- Simplification using complementary pairs like sin-1 x + cos-1 x = π2 (1-mark MCQ, every year).
- Sum or difference of two tan-1 terms with a check on xy < 1 (2 marks, recurring).
- Right-triangle conversion such as sin-1 x = tan-1(x√1-x2) (2-mark short-answer).
- Graphical recognition of the six inverse functions and their principal ranges (assertion-reason MCQ).
