The class 11 maths notes chapter 9 straight lines pull together every slope rule, line equation, and distance formula that the CBSE Boards, JEE Main, JEE Advanced, and CUET actually test in 2026-27. These revision notes explain the slope of a line, the angle between two lines, collinearity, all five forms of a line equation, and the distance formulas in plain language, with a full formula table for quick recall.

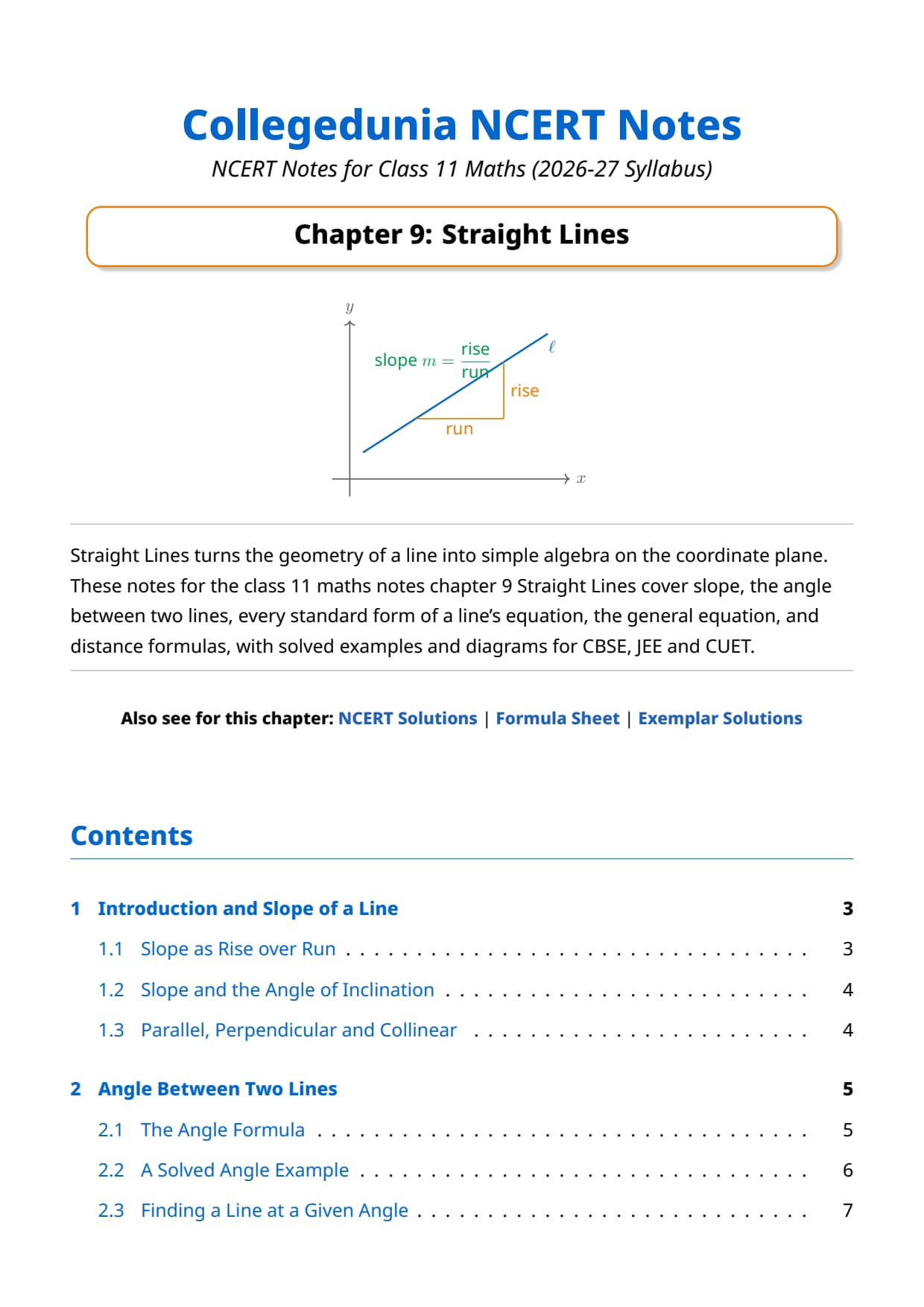

You can download the complete Straight Lines notes PDF above, then use the topic-by-topic summary and the formula table on this page for a fast last-minute revision.
- CBSE Boards: Straight Lines sits in the Coordinate Geometry unit and carries roughly 5 to 6 marks most years.
- JEE Main and CUET: expect 1 to 2 direct questions on slope, the angle between two lines, and distance of a point from a line.
- What is covered: slope, angle between lines, collinearity, the five forms of a line, the general equation, and both distance formulas.
Every entry in these Straight Lines notes is curated by Collegedunia subject experts, according to the 2026-27 NCERT textbook, and checked against the last five years of CBSE Board and JEE Main papers.
Also Check:
Topic-by-Topic Summary of the Straight Lines Chapter for Class 11 Maths
The Straight Lines chapter splits into four main blocks. The class 11 maths notes chapter 9 straight lines map each block to what the exam asks, so students know where the marks sit before they revise.
- Slope and angle: slope of a line, the angle between two lines, and conditions for parallel and perpendicular lines. A frequent 1 to 2-mark source.
- Collinearity: checking whether three points lie on one line using equal slopes. A short 1-mark question.
- Forms of a line: slope-intercept, point-slope, two-point, intercept, and normal form. The 3 to 4-mark core of the chapter.
- General equation and distance: the general form, distance of a point from a line, and distance between parallel lines. A common 2 to 3-mark question.
The rest of these notes take each block in order, so a first read from top to bottom mirrors the NCERT chapter flow.

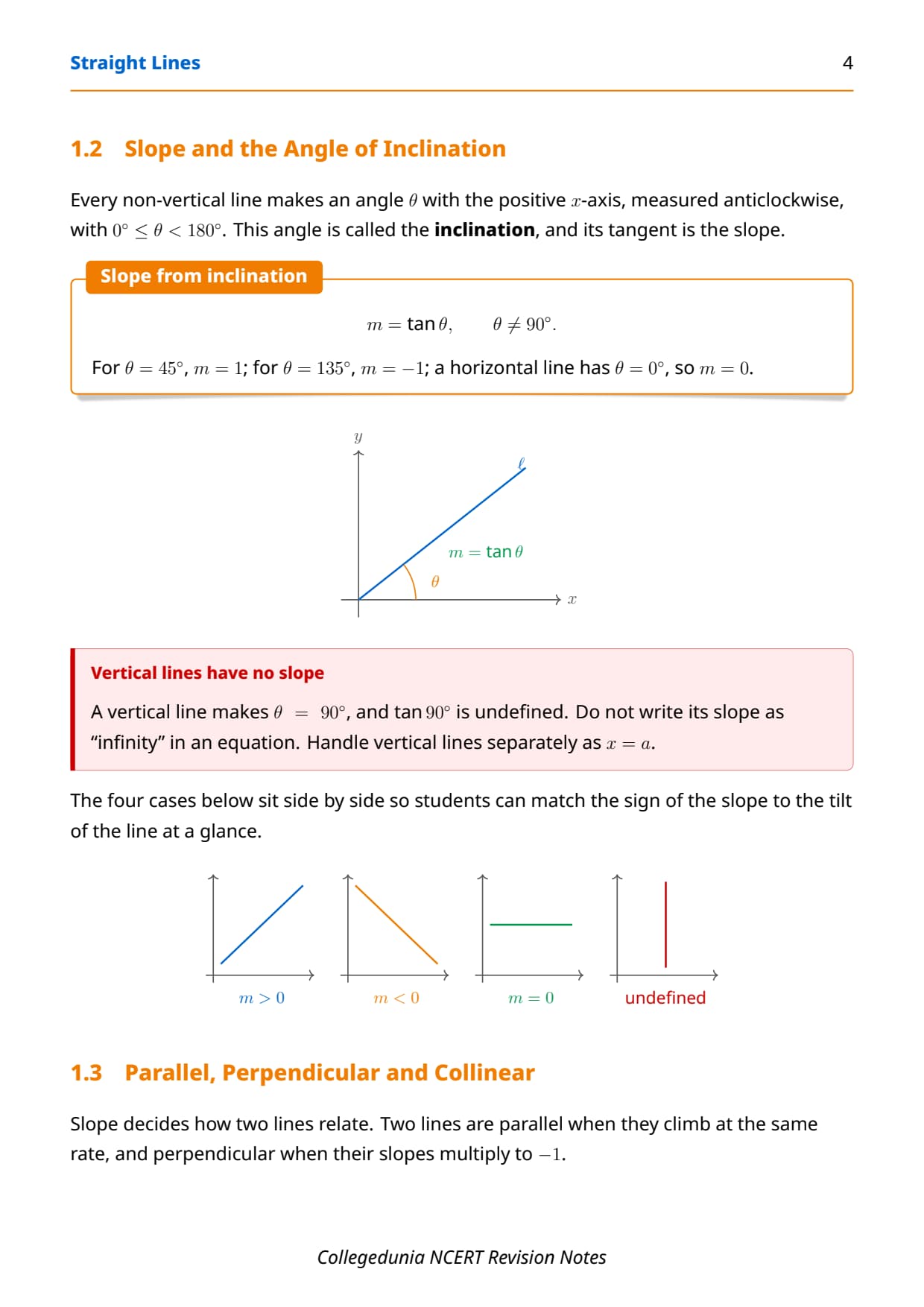

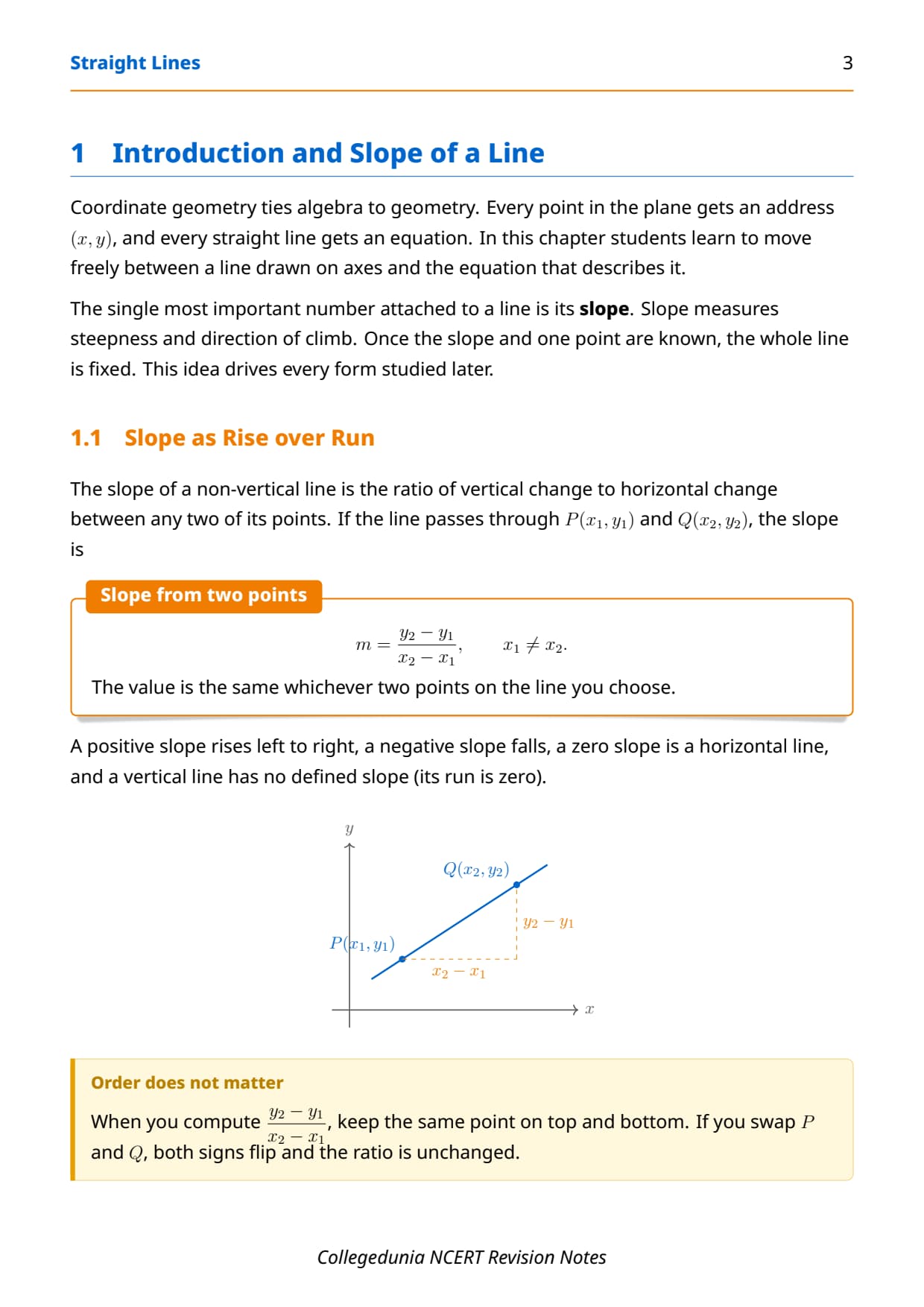

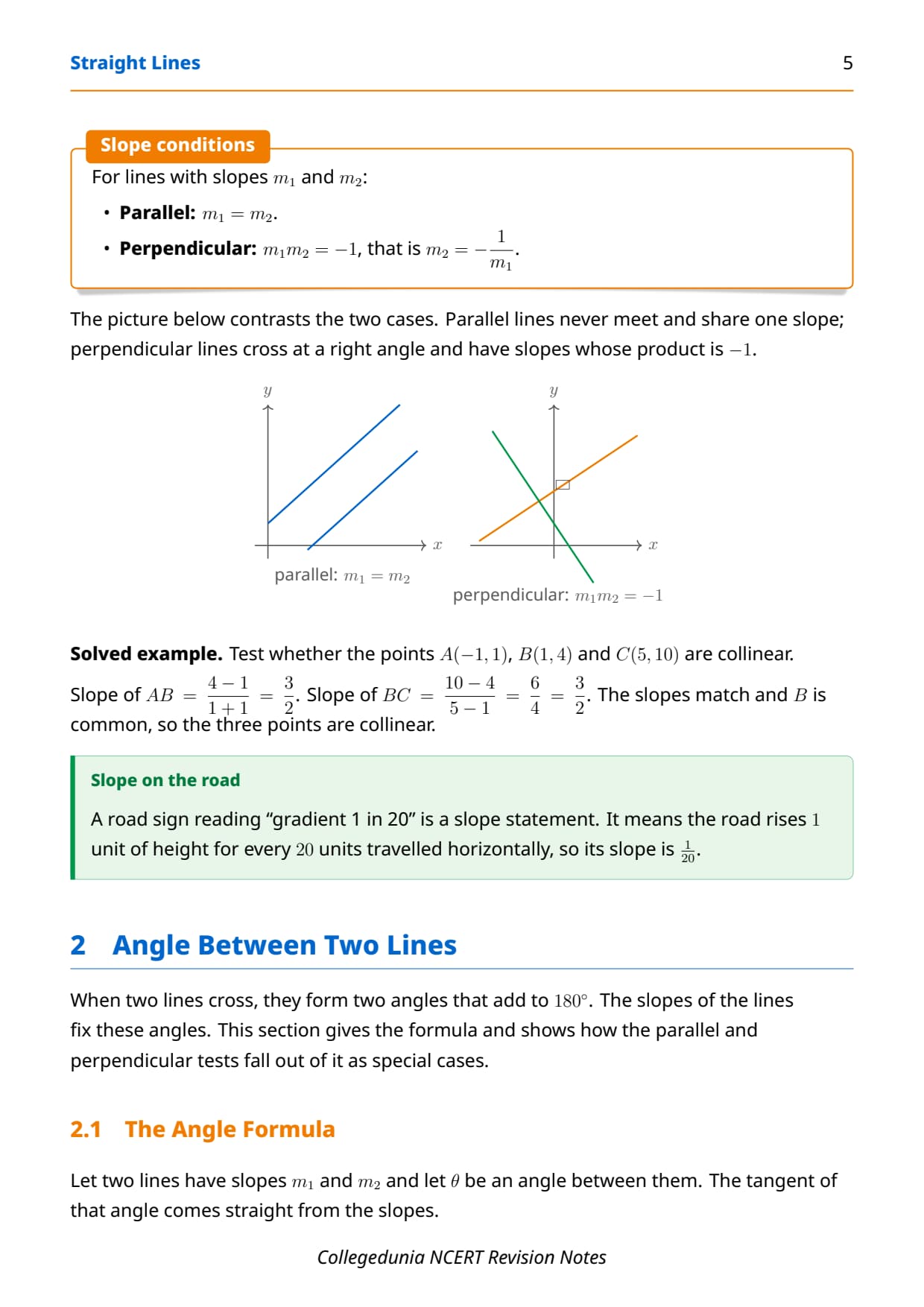

Slope of a Line and the Angle Between Two Lines
The slope (or gradient) of a line measures how steep it is. If a line makes an angle θ with the positive x-axis, then its slope is m = tan θ. A line through two points (x₁, y₁) and (x₂, y₂) has slope m = (y₂ − y₁) / (x₂ − x₁), provided x₁ ≠ x₂.
- Parallel lines: two lines are parallel when their slopes are equal, so m₁ = m₂.
- Perpendicular lines: two lines are perpendicular when m₁ · m₂ = −1.
- Horizontal line: slope is 0, because the angle with the x-axis is 0°.
- Vertical line: slope is undefined, because tan 90° is not defined.

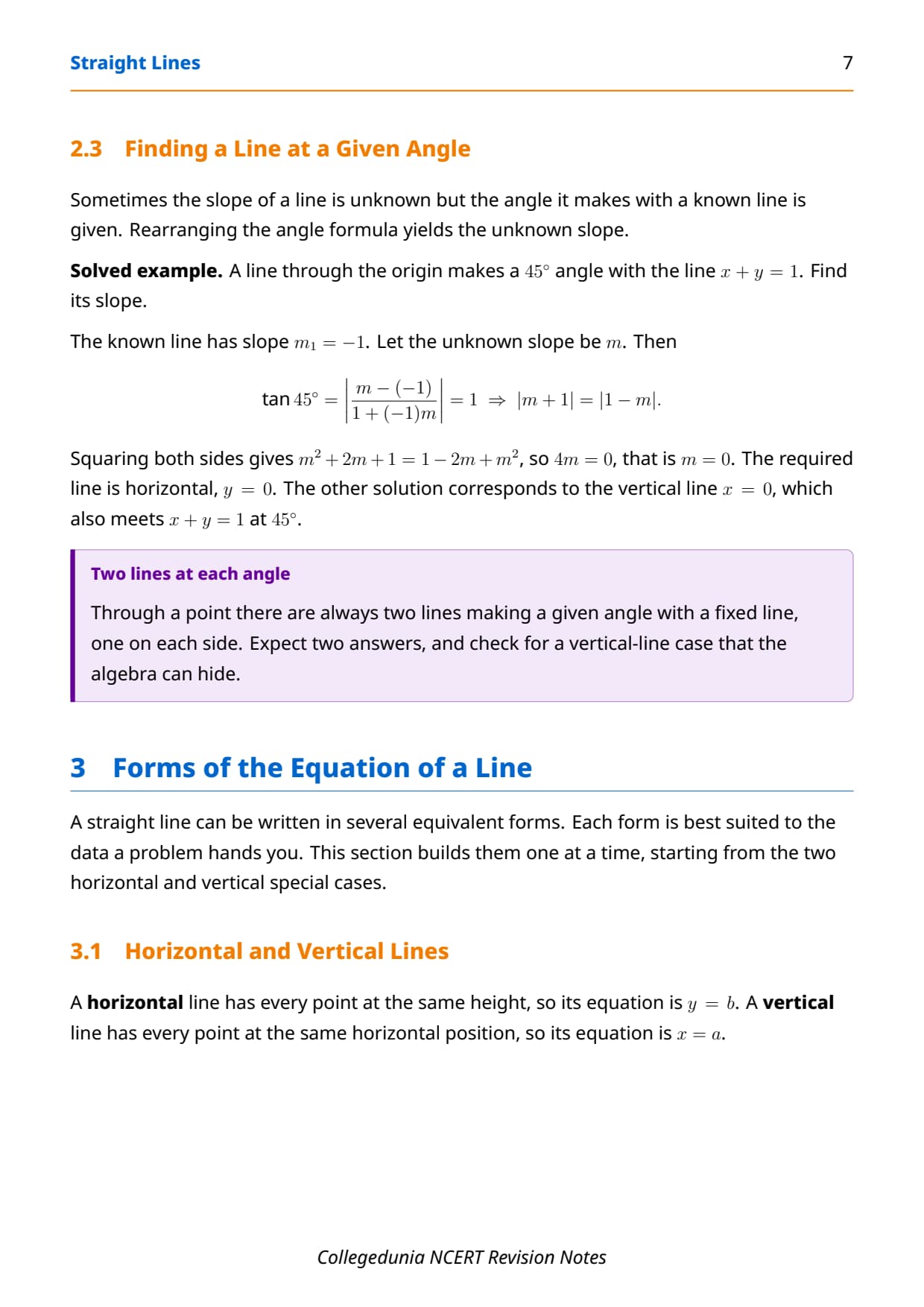

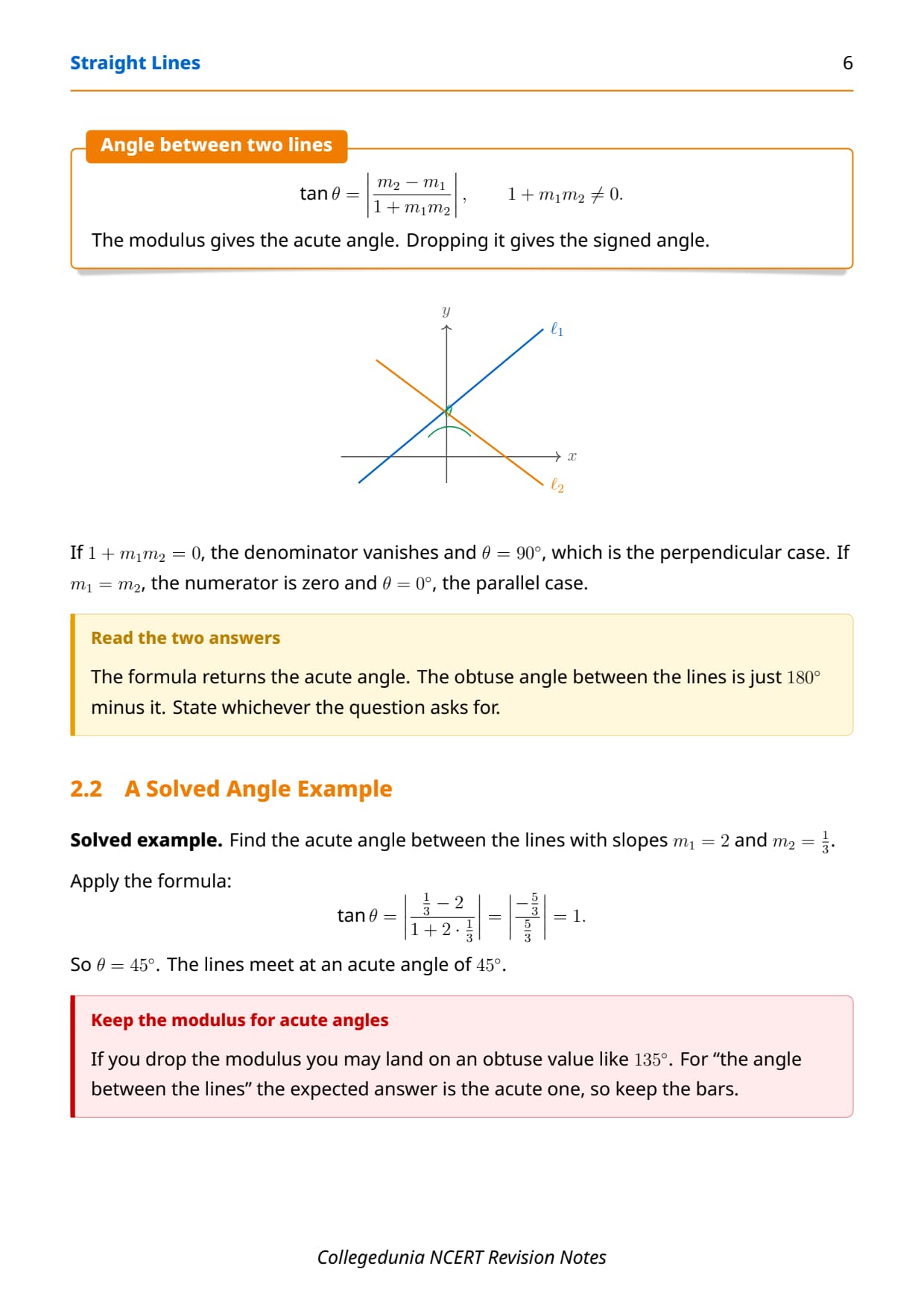

The angle between two lines with slopes m₁ and m₂ is found from tan θ = |(m₂ − m₁) / (1 + m₁m₂)|. The formula gives the acute angle when you take the positive value. This is a favourite 2-mark question in both boards and JEE Main.

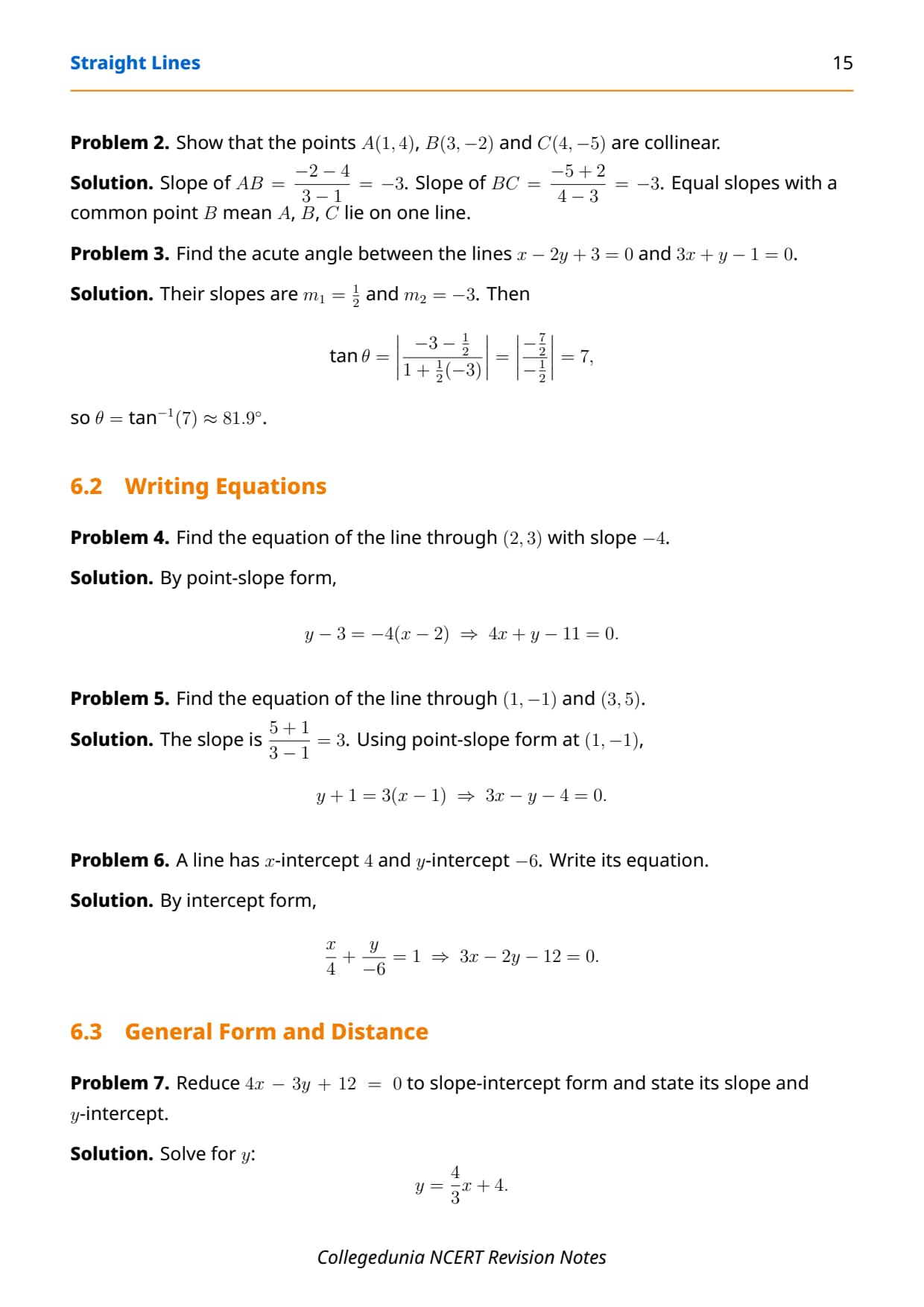

Collinearity of Three Points in Straight Lines
Three points are collinear when they all lie on one straight line. The simplest test uses slopes: three points A, B, and C are collinear if the slope of AB equals the slope of BC. Because the two segments share point B, equal slopes force all three points onto the same line.
- Slope test: slope of AB = slope of BC means A, B, and C are collinear.
- Area test: the area of triangle ABC is 0 when the three points are collinear.
- Quick check: if any two slopes between the three points match, the third is automatic.
Important: a vertical set of points all share an undefined slope, so treat that case separately by checking that every point has the same x-coordinate.

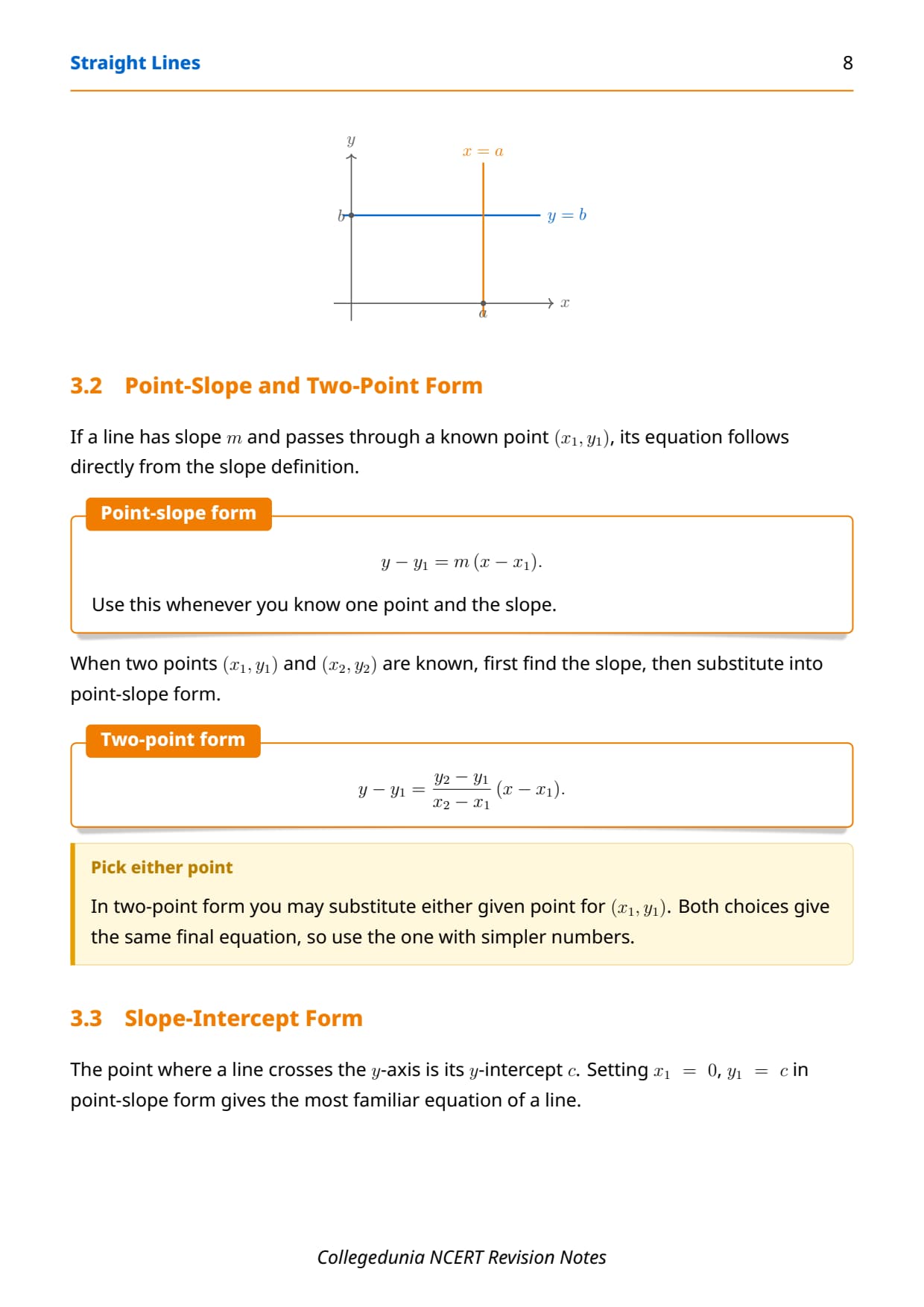

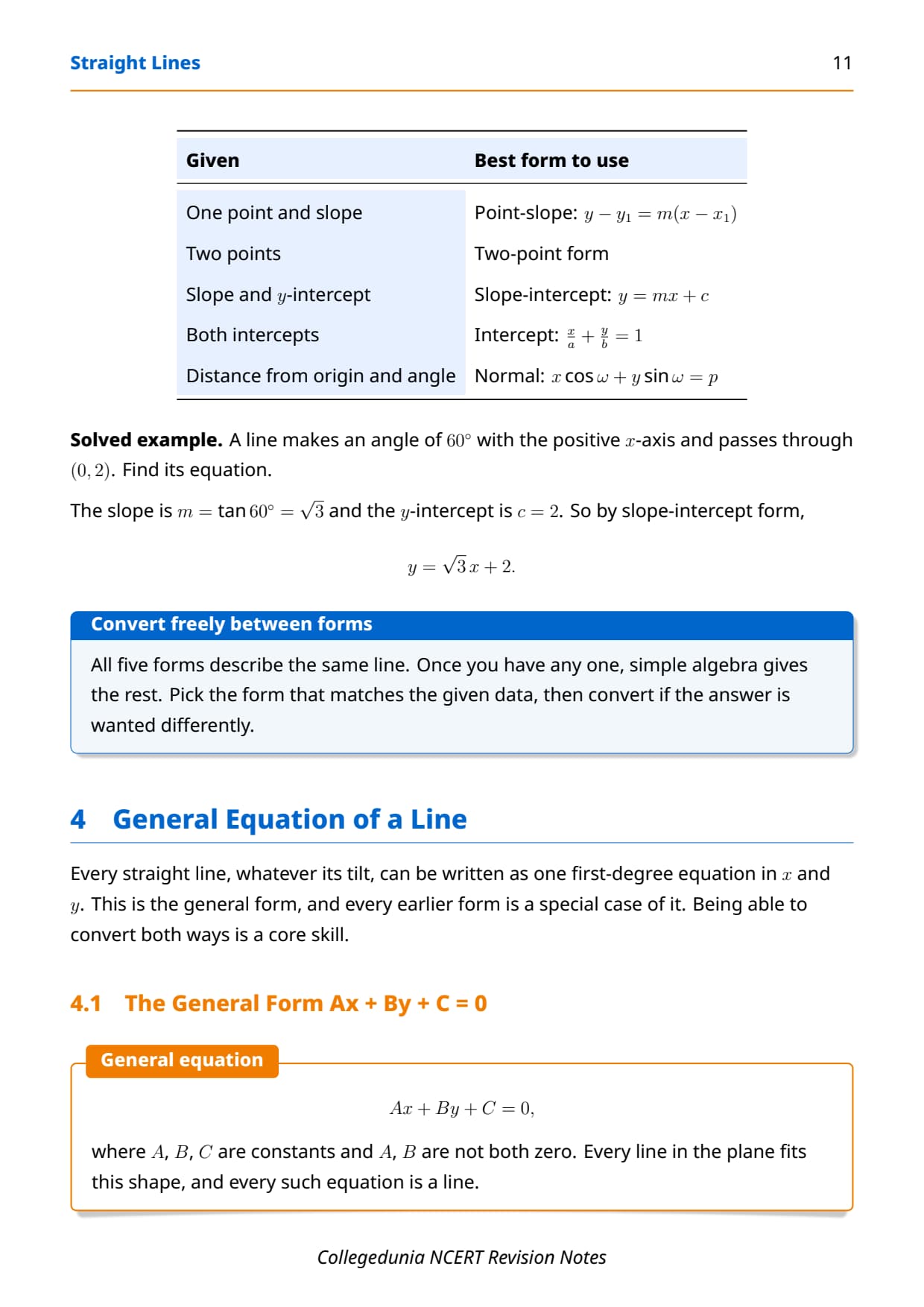

The Five Forms of the Equation of a Line
Most Straight Lines questions ask students to write a line in a required form. The class 11 maths notes chapter 9 straight lines cover all five standard forms, so students can pick the one that matches the data given in the question.

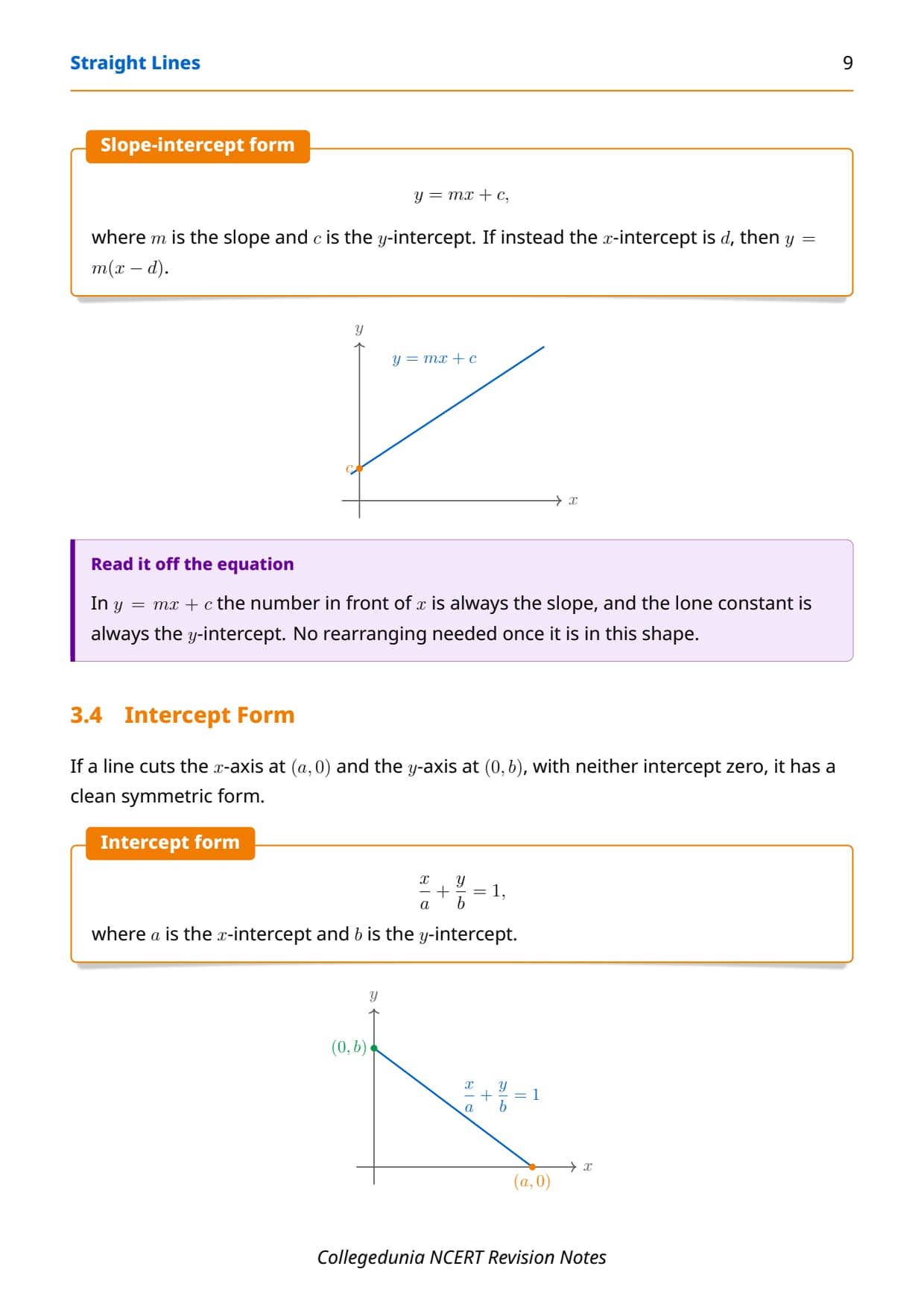

- Slope-intercept form: y = mx + c, where m is the slope and c is the y-intercept. Use when the slope and y-intercept are known.
- Point-slope form: y − y₁ = m(x − x₁). Use when one point and the slope are known.
- Two-point form: y − y₁ = [(y₂ − y₁) / (x₂ − x₁)](x − x₁). Use when two points are known.
- Intercept form: x/a + y/b = 1, where a and b are the x- and y-intercepts. Use when both intercepts are known.

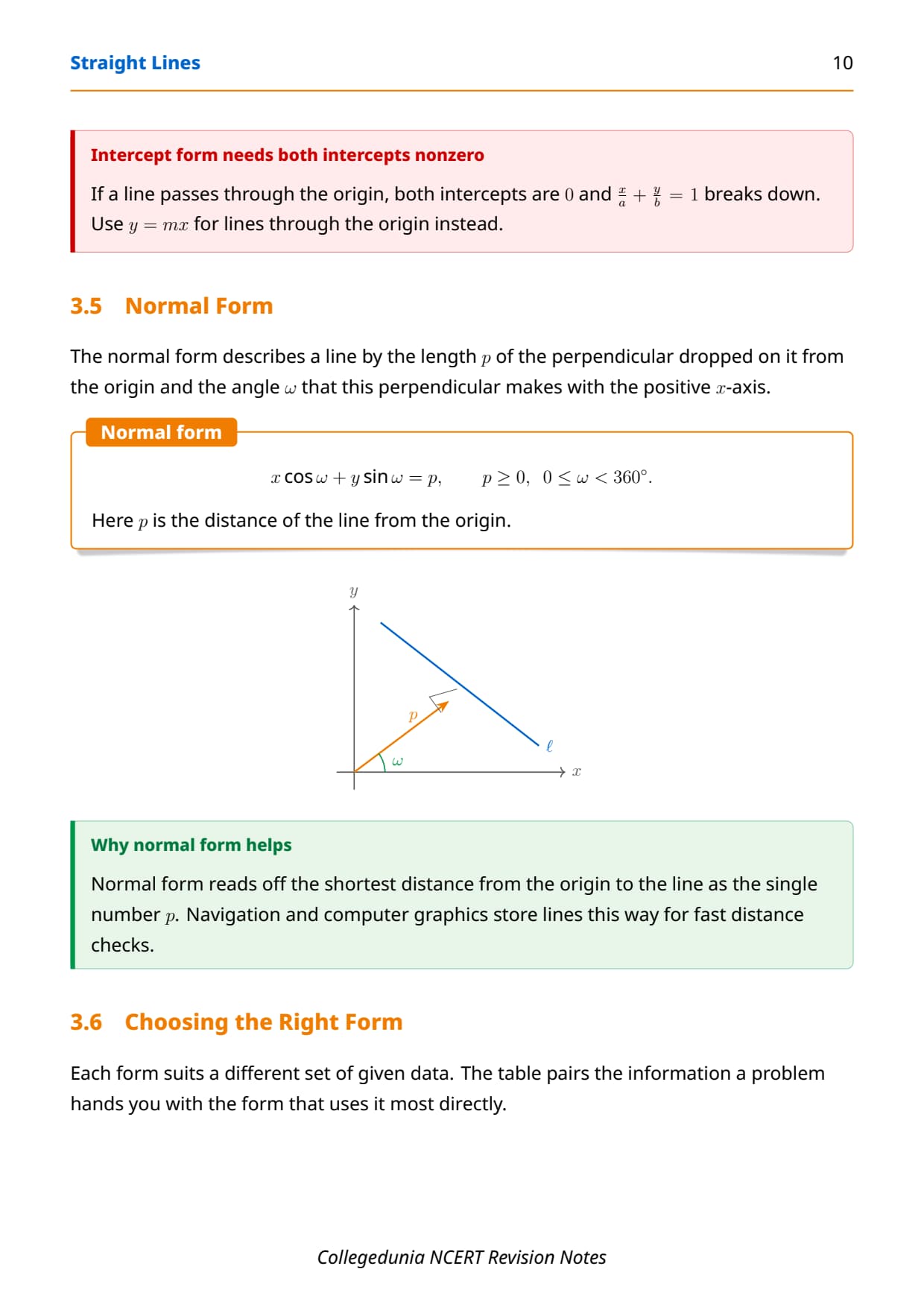

- Normal form: x cos ω + y sin ω = p, where p is the perpendicular distance from the origin and ω is its angle. Use for perpendicular-from-origin data.
Every one of these can be rearranged into the general equation, so students should be able to move between forms freely. In the exam, always read which quantities are given before choosing a form.

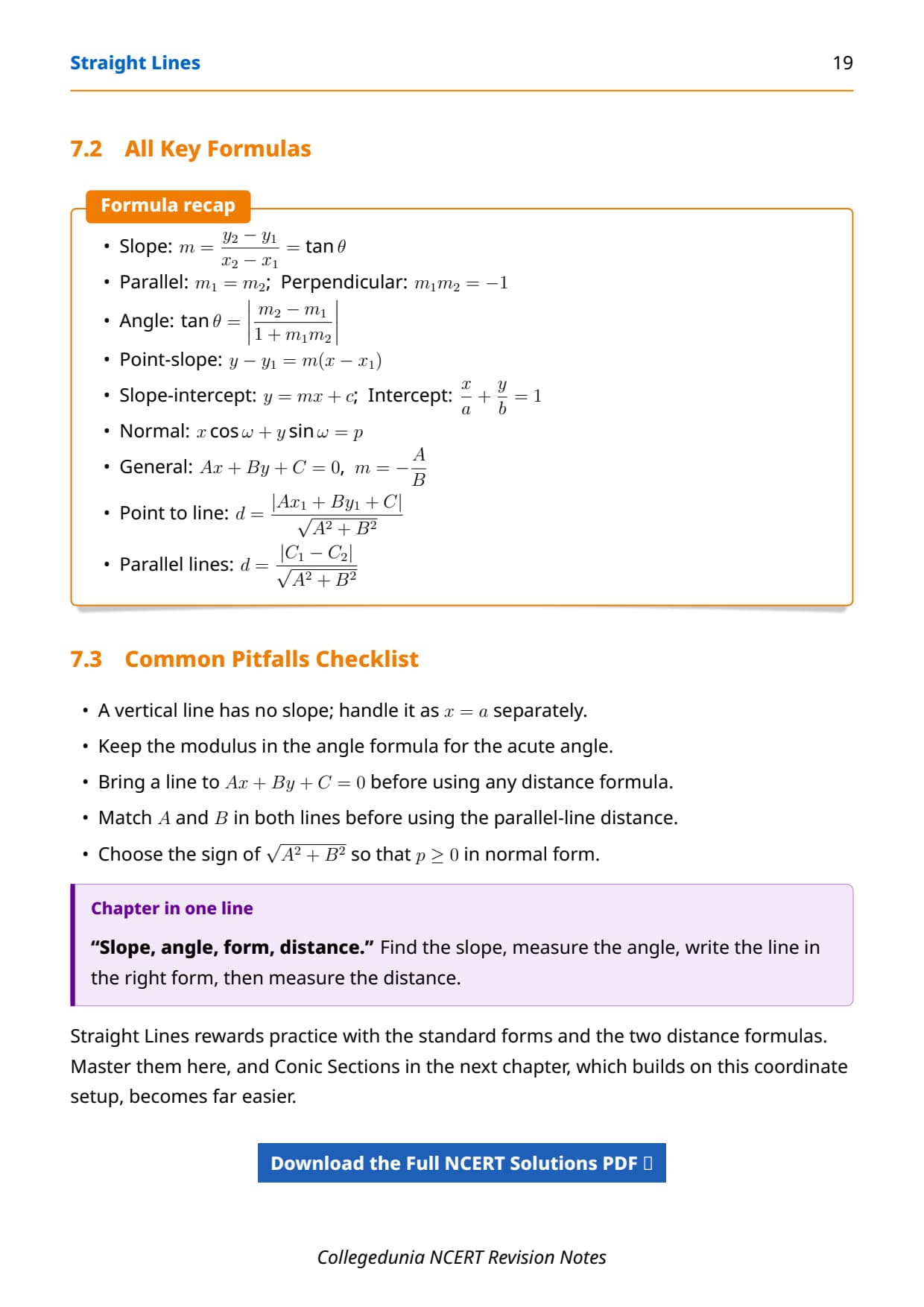

All Formulas for Straight Lines: Quick-Reference Table
The formula table below covers every slope rule, line form, and distance rule the Straight Lines chapter can generate. These formulas for straight lines are the ones students should copy onto a flashcard before the exam.
| Formula | What It Means | When to Use |
|---|---|---|
| m = tan θ | Slope from the angle with the x-axis | Angle of inclination given |
| m = (y₂ − y₁) / (x₂ − x₁) | Slope through two points | Two points given |
| m₁ = m₂ | Condition for parallel lines | Testing parallelism |
| m₁ · m₂ = −1 | Condition for perpendicular lines | Testing perpendicularity |
| tan θ = |(m₂ − m₁) / (1 + m₁m₂)| | Angle between two lines | Two slopes given |
| y − y₁ = m(x − x₁) | Point-slope form of a line | One point and slope |
| y = mx + c | Slope-intercept form | Slope and y-intercept |
| x/a + y/b = 1 | Intercept form | Both intercepts given |
| x cos ω + y sin ω = p | Normal form | Perpendicular from origin |
| Ax + By + C = 0 | General equation of a line | Any straight line |
| d = |Ax₁ + By₁ + C| / √(A² + B²) | Distance of a point from a line | Point and line given |
| d = |C₁ − C₂| / √(A² + B²) | Distance between two parallel lines | Two parallel lines |
Important: the d = |Ax₁ + By₁ + C| / √(A² + B²) rule is the single most-tested formula from this chapter in both CBSE Boards and JEE Main.
Key Definitions and Theorems in the Straight Lines Chapter
Beyond the formulas, a few named results carry marks in the reasoning-style questions. These are the results the class 11 maths notes chapter 9 straight lines expect students to state precisely.
- Slope (gradient): the tangent of the angle a line makes with the positive x-axis, measured anticlockwise.

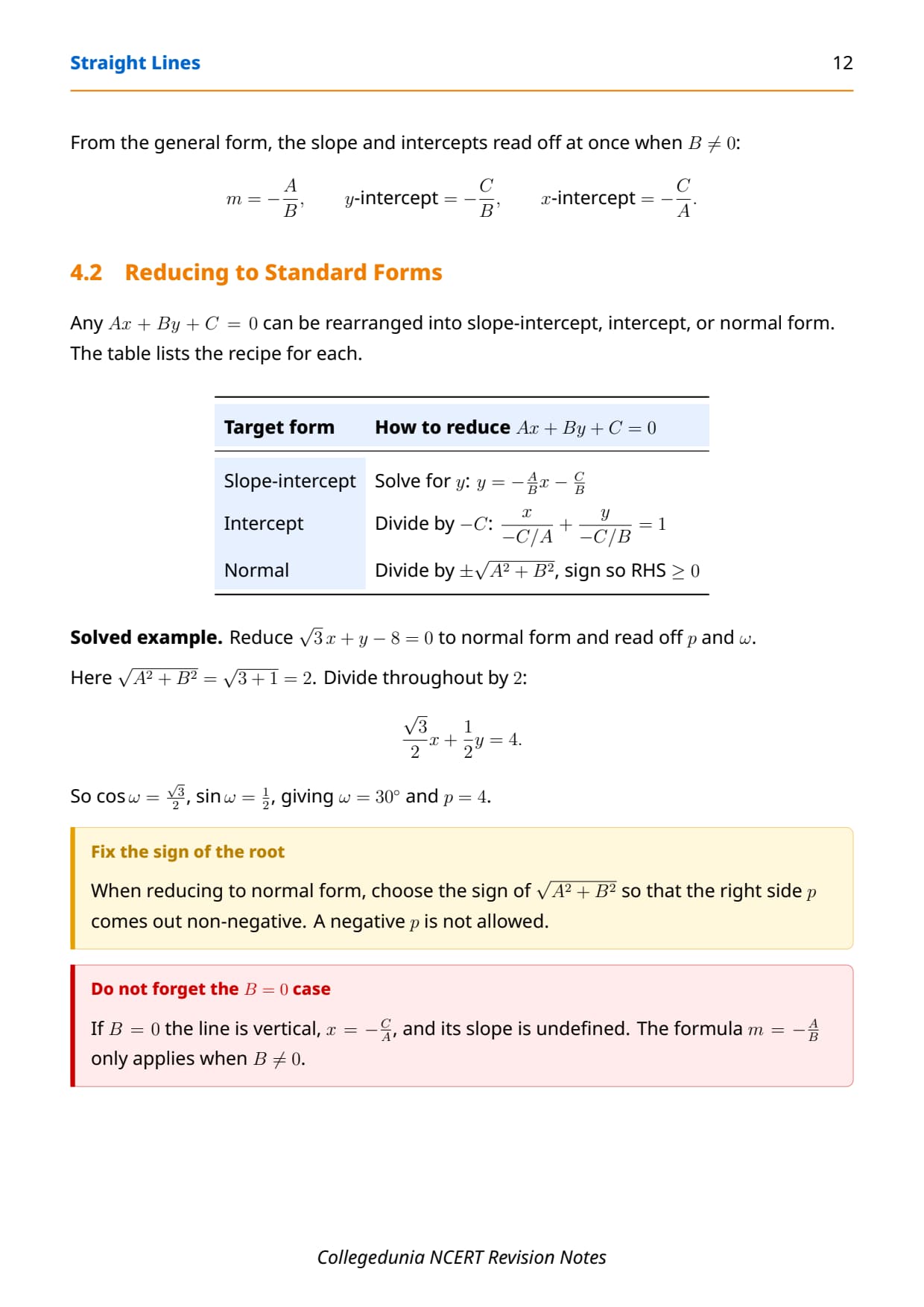

- General equation: every straight line can be written as Ax + By + C = 0, where A and B are not both zero. Its slope is −A/B.
- Intercepts: the x-intercept is where the line meets the x-axis (y = 0) and the y-intercept is where it meets the y-axis (x = 0).
- Distance of a point from a line: the length of the perpendicular dropped from the point to the line.
- Parallel and perpendicular: parallel lines never meet and share a slope; perpendicular lines meet at 90° with slopes multiplying to −1.
When a line is horizontal, its equation is y = constant; when it is vertical, its equation is x = constant. Both are special cases of the general equation.

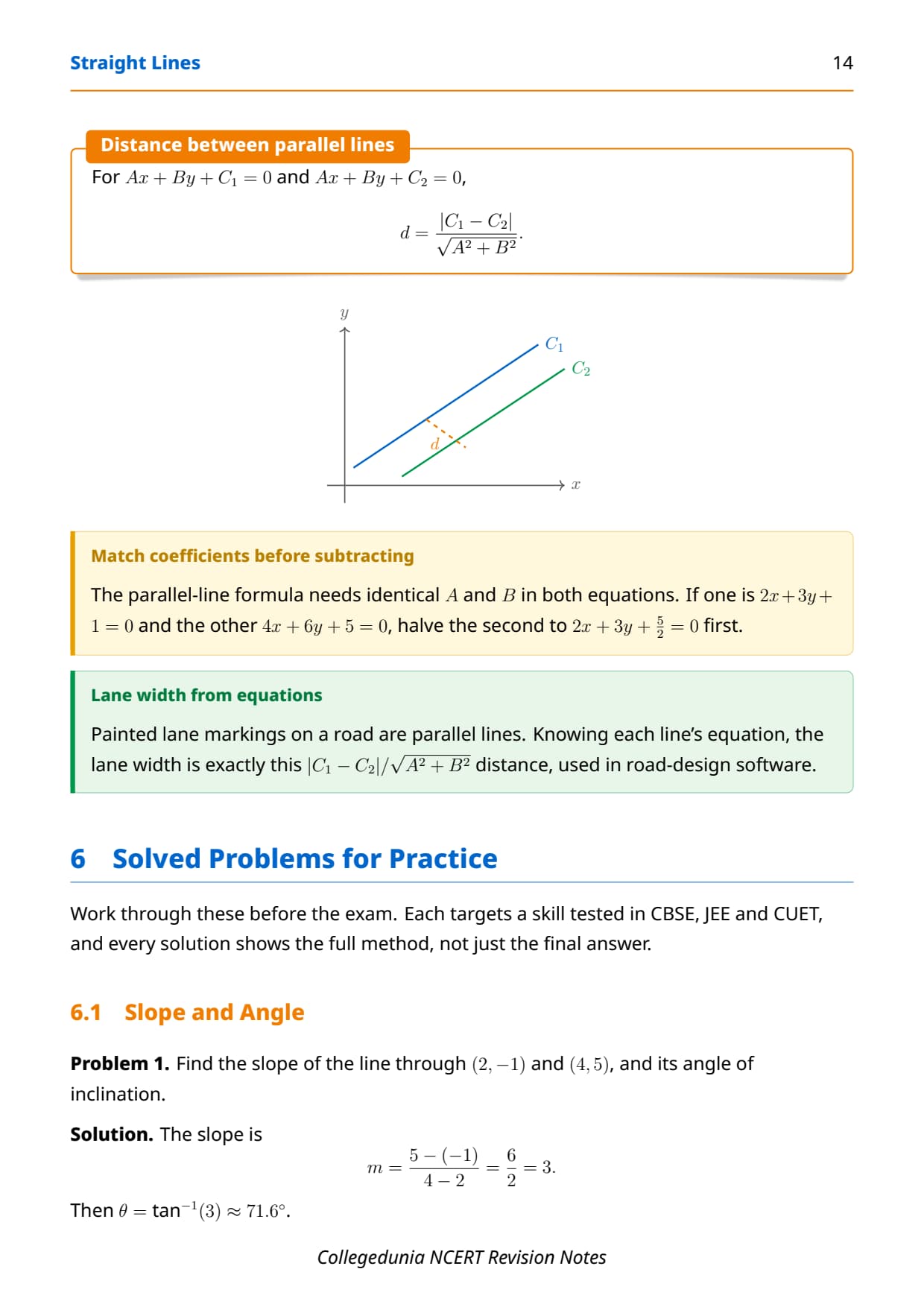

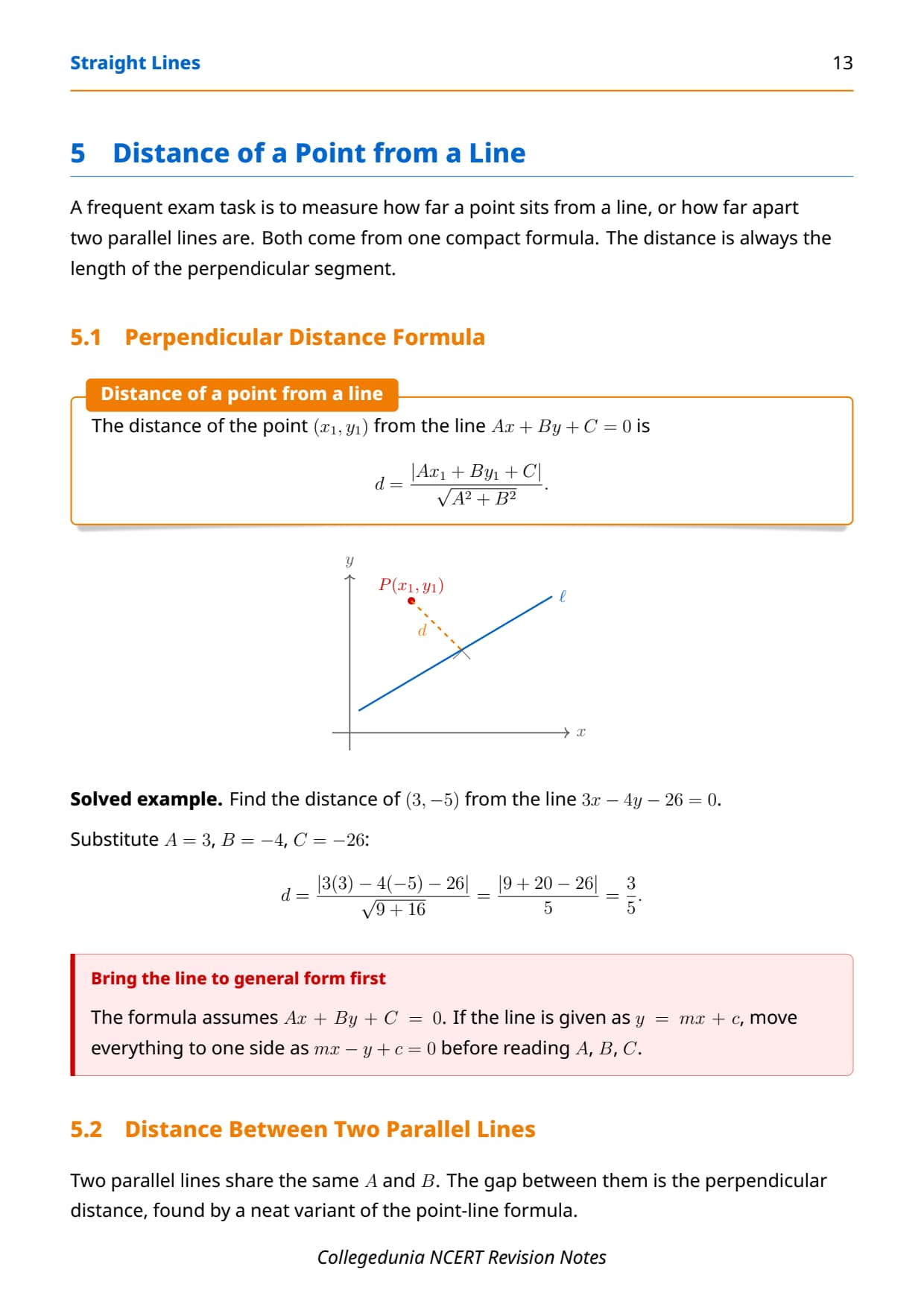

Distance of a Point from a Line and Between Two Parallel Lines
The two distance formulas close the chapter and are worth learning together, because they share the same denominator. Both come straight from the general equation Ax + By + C = 0, so students should convert any line to that form first.
- Distance of a point from a line: for a point (x₁, y₁) and a line Ax + By + C = 0, the distance is |Ax₁ + By₁ + C| / √(A² + B²). The bars mean take the positive value.
- Distance between two parallel lines: for Ax + By + C₁ = 0 and Ax + By + C₂ = 0, the distance is |C₁ − C₂| / √(A² + B²). The A and B values must match first.
Common exam trap: for the parallel-lines formula, the coefficients of x and y in both equations must be identical before you subtract the constants. Scale one equation if they are not.
Common Mistakes Students Make in the Straight Lines Chapter
Mistake 1: Writing the slope as (x₂ − x₁) / (y₂ − y₁). The change in y goes on top, not the change in x.
Mistake 2: Forgetting the modulus in the angle or distance formula, which can give a negative or wrong-sign answer.
Mistake 3: Using the parallel-lines distance formula without first matching the x and y coefficients in both equations.
Mistake 4: Treating a vertical line as having slope 0 instead of an undefined slope.
Each slip costs 1 to 2 marks in the board exam.

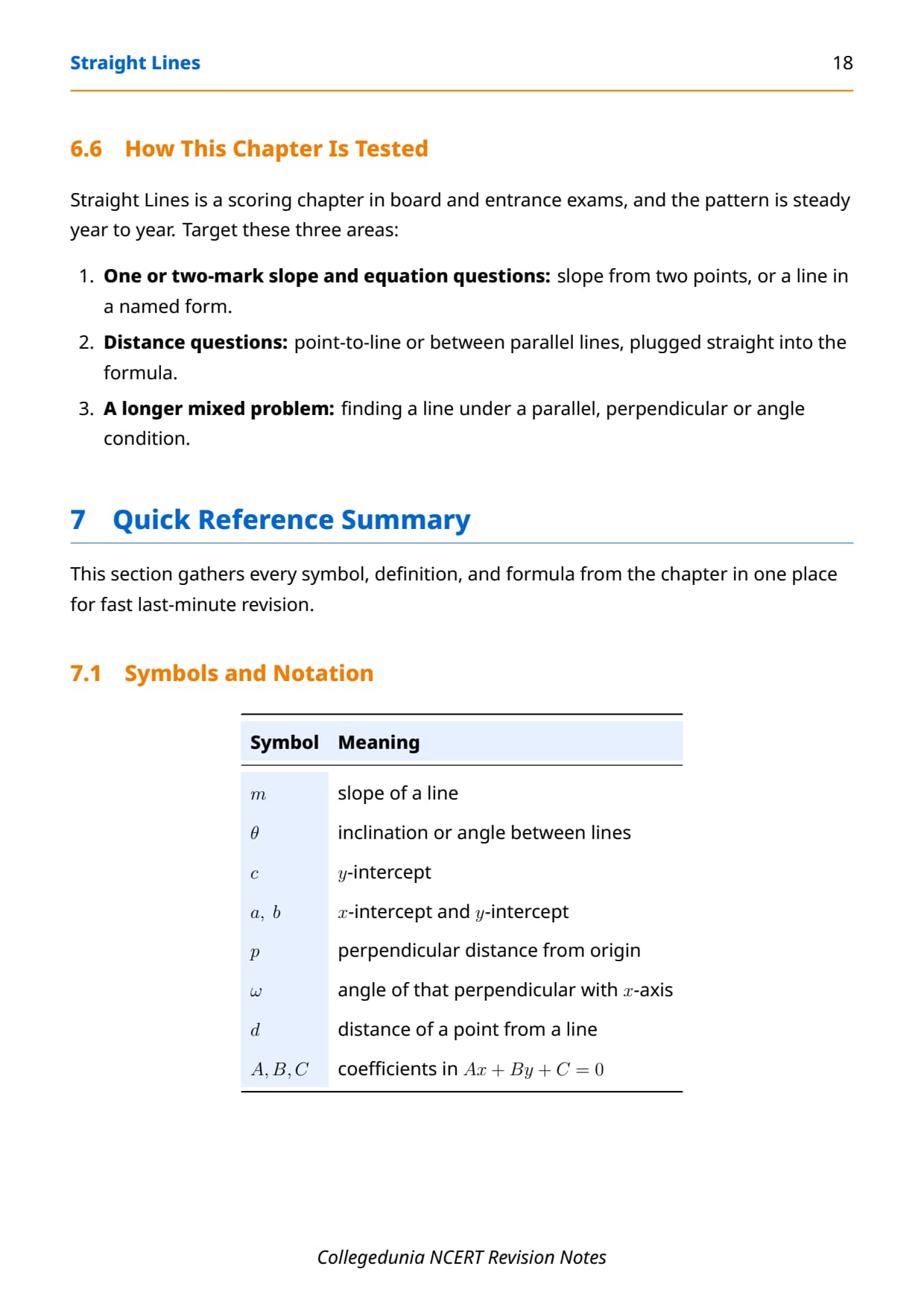

Straight Lines Weightage in CBSE Boards, JEE Main and CUET
Straight Lines is a scoring chapter because the questions are short and formula-based. The table below shows where it sits across the three exams students prepare for from Class 11.
| Exam | Typical Weightage | Most-Tested Topic |
|---|---|---|
| CBSE Class 11 Boards | 5 to 6 marks (Coordinate Geometry unit) | Forms of a line and distance of a point |
| JEE Main | 1 to 2 questions per year | Angle between lines and perpendicular distance |
| CUET (UG) Mathematics | 1 to 2 MCQs per paper | Slope, collinearity, and line forms |
Tip: because Straight Lines feeds directly into Conic Sections and Three Dimensional Geometry, a strong grip here pays off across the whole Class 11 and Class 12 syllabus.
How to Revise the Straight Lines Chapter Quickly
Straight Lines can be revised in about 90 minutes because the content is formula-driven. Use the class 11 maths notes chapter 9 straight lines in the three-block plan below for a last-minute recap.
- 0 to 30 min: slope, angle between two lines, and the parallel and perpendicular conditions.
- 30 to 60 min: the five forms of a line and one worked example of each conversion.
- 60 to 90 min: the general equation, both distance formulas, and two or three mixed problems.
Finish by writing the twelve-row formula table from memory until every rule can be recalled without notes.
Student Feedback on the Straight Lines Notes
In a Collegedunia poll of 10,940 Class 11 Maths students conducted before the 2026 boards, 62% of students rated the angle-between-two-lines formula as the trickiest part of the chapter, ahead of the normal form of a line.
What 10,940 students told us about the Straight Lines revision journey:
- 62% of students surveyed found the angle-between-lines formula the hardest sub-topic.
- 55% said they had mixed up the two-point and point-slope forms at least once in a test.
- 4 out of 5 students revised the formula table the night before the exam.
- Out of 10,940 students, 59% said the distance-of-a-point formula was the easiest to score on.
Source: 2026-27 Class 11 Maths student poll. Sample of 10,940 students from CBSE schools across 14 states.

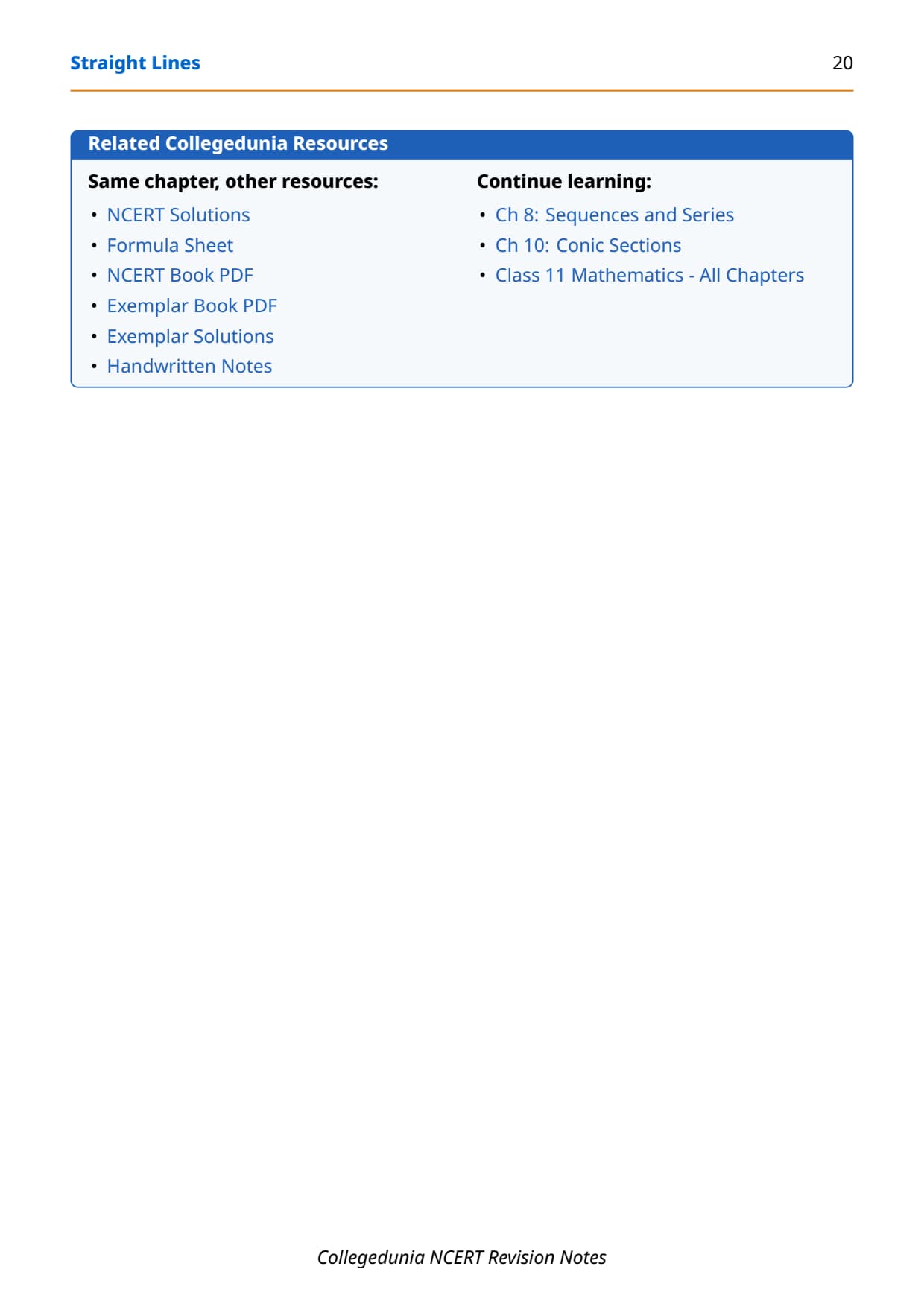

Other Straight Lines Class 11 Maths Resources
Use these notes together with the linked resources below for the full Straight Lines study set. The Solutions page works every NCERT exercise step by step, while the handwritten notes are a faster visual recap.
| Resource | What It Gives You |
|---|---|
| NCERT Solutions for Class 11 Maths Straight Lines | Step-by-step answers to every exercise question |
| Class 11 Maths Straight Lines Handwritten Notes | Neat handwritten revision notes with formula boxes |
| Class 11 Maths Straight Lines NCERT Book PDF | The official NCERT chapter PDF to read alongside |
NCERT Notes for Class 11 Maths: All Chapters
| Chapter | Revision Notes |
|---|---|
| Chapter 1 | Sets Notes |
| Chapter 2 | Relations and Functions Notes |
| Chapter 3 | Trigonometric Functions Notes |
| Chapter 4 | Complex Numbers and Quadratic Equations Notes |
| Chapter 5 | Linear Inequalities Notes |
| Chapter 6 | Permutations and Combinations Notes |
| Chapter 7 | Binomial Theorem Notes |
| Chapter 8 | Sequences and Series Notes |
| Chapter 9 | Straight Lines Notes (this page) |
| Chapter 10 | Conic Sections Notes |
| Chapter 11 | Introduction to Three Dimensional Geometry Notes |
| Chapter 12 | Limits and Derivatives Notes |
| Chapter 13 | Statistics Notes |
| Chapter 14 | Probability Notes |
FAQs on Straight Lines Class 11 Maths Notes
Straight Lines Notes - Frequently Asked Questions
Ques. What are the main topics in the class 11 maths notes chapter 9 straight lines?
Ans. These Straight Lines notes cover the slope of a line, the angle between two lines, conditions for parallel and perpendicular lines, collinearity of points, the five forms of a line (slope-intercept, point-slope, two-point, intercept, normal), the general equation, the distance of a point from a line, and the distance between two parallel lines.
Ques. What is the slope of a line?
Ans. The slope of a line is m = tan θ, where θ is the angle the line makes with the positive x-axis. For a line through two points, the slope is (y₂ − y₁) / (x₂ − x₁). A horizontal line has slope 0, and a vertical line has an undefined slope.
Ques. How do you find the angle between two lines?
Ans. The angle between two lines with slopes m₁ and m₂ is given by tan θ = |(m₂ − m₁) / (1 + m₁m₂)|. Taking the positive value gives the acute angle. If the product m₁m₂ equals −1, the lines are perpendicular.
Ques. What are the five forms of the equation of a line?
Ans. The five standard forms are slope-intercept (y = mx + c), point-slope (y − y₁ = m(x − x₁)), two-point form, intercept form (x/a + y/b = 1), and normal form (x cos ω + y sin ω = p). Choose the form that matches the data given in the question.
Ques. What is the formula for the distance of a point from a line?
Ans. The distance of a point (x₁, y₁) from the line Ax + By + C = 0 is d = |Ax₁ + By₁ + C| / √(A² + B²). The modulus keeps the distance positive. This is the most-tested formula from the chapter.
Ques. How do you check if three points are collinear?
Ans. Three points A, B, and C are collinear if the slope of AB equals the slope of BC. Equivalently, the area of triangle ABC is 0. If any two slopes between the three points match, all three points lie on one line.
Ques. What is the distance between two parallel lines?
Ans. For two parallel lines Ax + By + C₁ = 0 and Ax + By + C₂ = 0, the distance is d = |C₁ − C₂| / √(A² + B²). The x and y coefficients in both equations must be identical first, so scale one equation if they are not.
Ques. Is the Straight Lines chapter important for JEE Main and CUET?
Ans. Yes. Straight Lines usually gives 1 to 2 questions in JEE Main and CUET (UG) Mathematics every year, mostly on slope, the angle between two lines, and the perpendicular distance. It is a short, scoring chapter, so it is worth revising fully.
Ques. Where can I download the Class 11 Maths Straight Lines notes PDF?
Ans. The Straight Lines notes PDF is available on this page through the download card above. It covers all definitions, the full formula table, the five forms of a line, and both distance formulas, and matches the 2026-27 NCERT chapter.
