The Three Dimensional Geometry Class 12 Formula Sheet page compiles NCERT Class 12 Mathematics Chapter 11 into a single download-ready resource, aligned to the 2026-27 NCERT syllabus. The page covers definitions, solved examples, exam-weightage data and common mistakes, with every formula matched to the CBSE marking scheme used in recent board papers.
- CBSE Weightage: 5 to 8 marks in the Class 12 Maths board paper, usually a 5-mark long answer on shortest distance or plane equations plus a 2 or 3-mark question on direction cosines.
The chapter packs 26 working formulas across 5 concept blocks, which is why a one-page recall sheet outperforms re-reading the full NCERT text the night before the paper.
You can find the full three dimensional geometry class 12 formulas reference below, including the direction-cosine identity, both equation forms of a line, the angle and parallel and perpendicular conditions, the skew-line shortest distance templates, and the three plane-equation forms.
This Formula Sheet is curated by Class 12 Maths experts at Collegedunia, mapped to the 2026-27 NCERT edition, and refined against the last five years of CBSE Board and JEE Main papers.

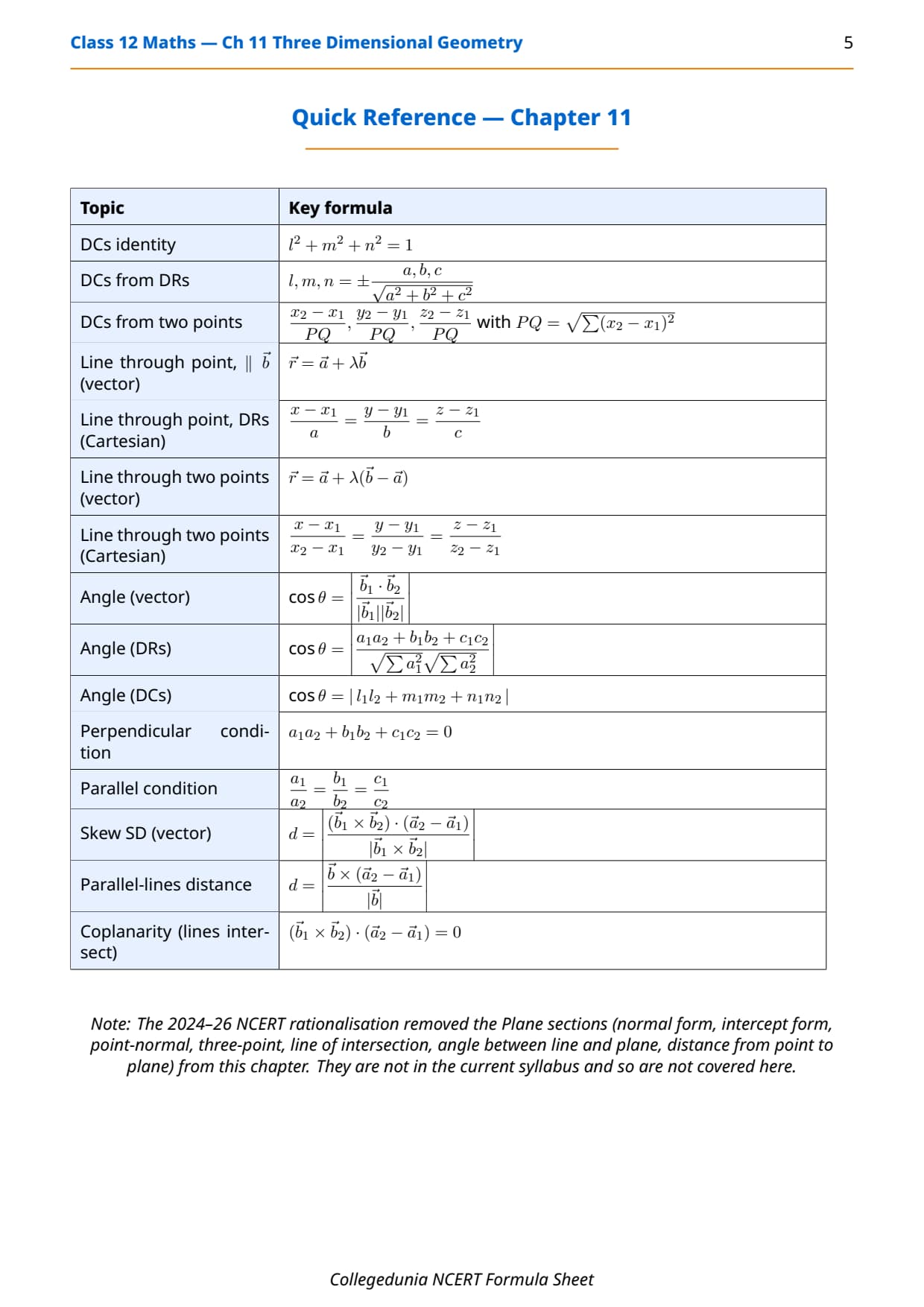

Three Dimensional Geometry Class 12 Formulas at a Glance
Chapter 11 is the second 3D-vectors chapter in the Class 12 Maths paper, paired with Vector Algebra, and the Three Dimensional Geometry Formulas where the solution method is almost entirely formula-driven. About 75% of CBSE board marks on the Three Dimensional Geometry Formulas are awarded for correctly applying the shortest-distance, line, and plane formulas verbatim. Recalling the cross-product form of shortest distance, the two-point form of a line, and the normal form of a plane is therefore the highest-use revision step before the exam.
Three Dimensional Geometry Video Walkthrough
Source: Magnet Brains on YouTube

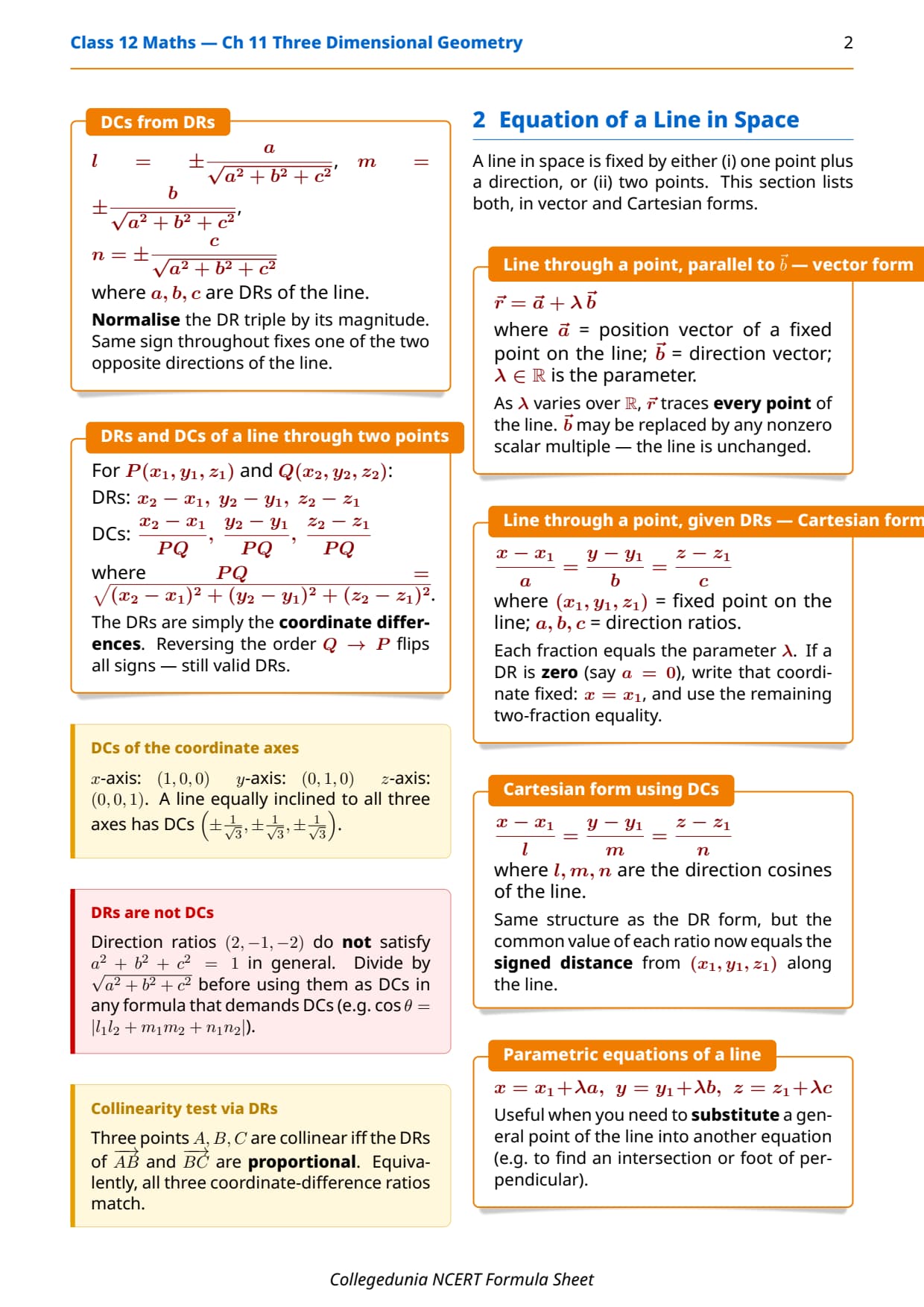

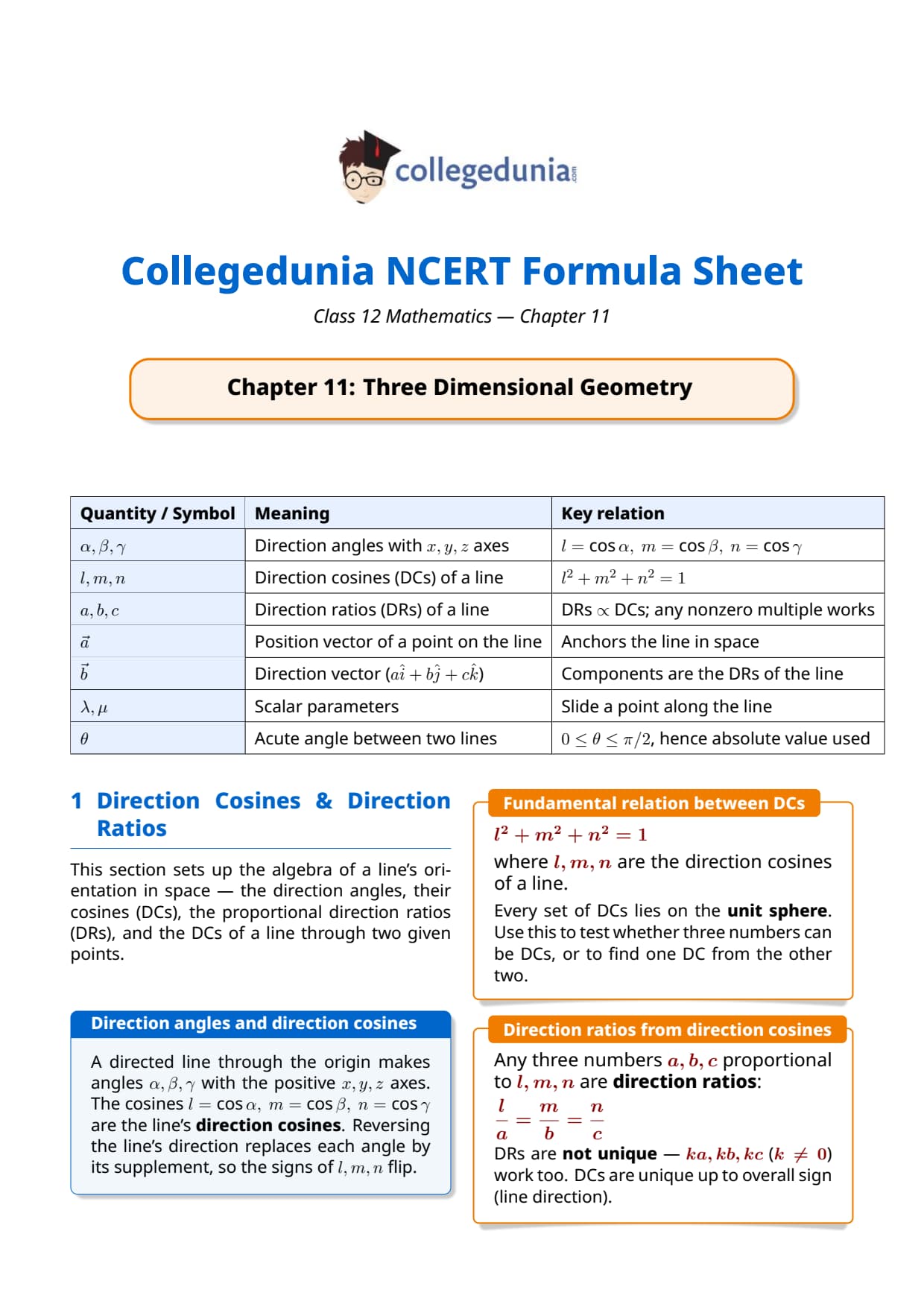

Lines in 3D: Direction Cosines, Direction Ratios and Equations
The Three Dimensional Geometry Formulas address this in the same order as the NCERT textbook.
The 14 formulas below cover everything Section 11.2 to 11.5 of the NCERT prints for lines in space. Direction cosines and direction ratios feed into both the line equation and the angle formula, so anchor them first.
| # | Concept | Formula |
|---|---|---|
| 1 | Direction-cosine identity | l2 + m2 + n2 = 1 |
| 2 | Direction cosines from direction ratios | l = a√a2+b2+c2, m = b√a2+b2+c2, n = c√a2+b2+c2 |
| 3 | Direction ratios from two points | (x2 - x1, y2 - y1, z2 - z1) |
| 4 | Direction cosines from two points | l = x2 - x1PQ, m = y2 - y1PQ, n = z2 - z1PQ |
| 5 | Distance between two points | PQ = √(x2-x1)2 + (y2-y1)2 + (z2-z1)2 |
| 6 | Vector equation of a line through a point | r⃗ = a⃗ + λ b⃗ |
| 7 | Cartesian equation of a line | x - x1a = y - y1b = z - z1c |
| 8 | Vector form through two points | r⃗ = a⃗ + λ(b⃗ - a⃗) |
| 9 | Cartesian form through two points | x-x1x2-x1 = y-y1y2-y1 = z-z1z2-z1 |

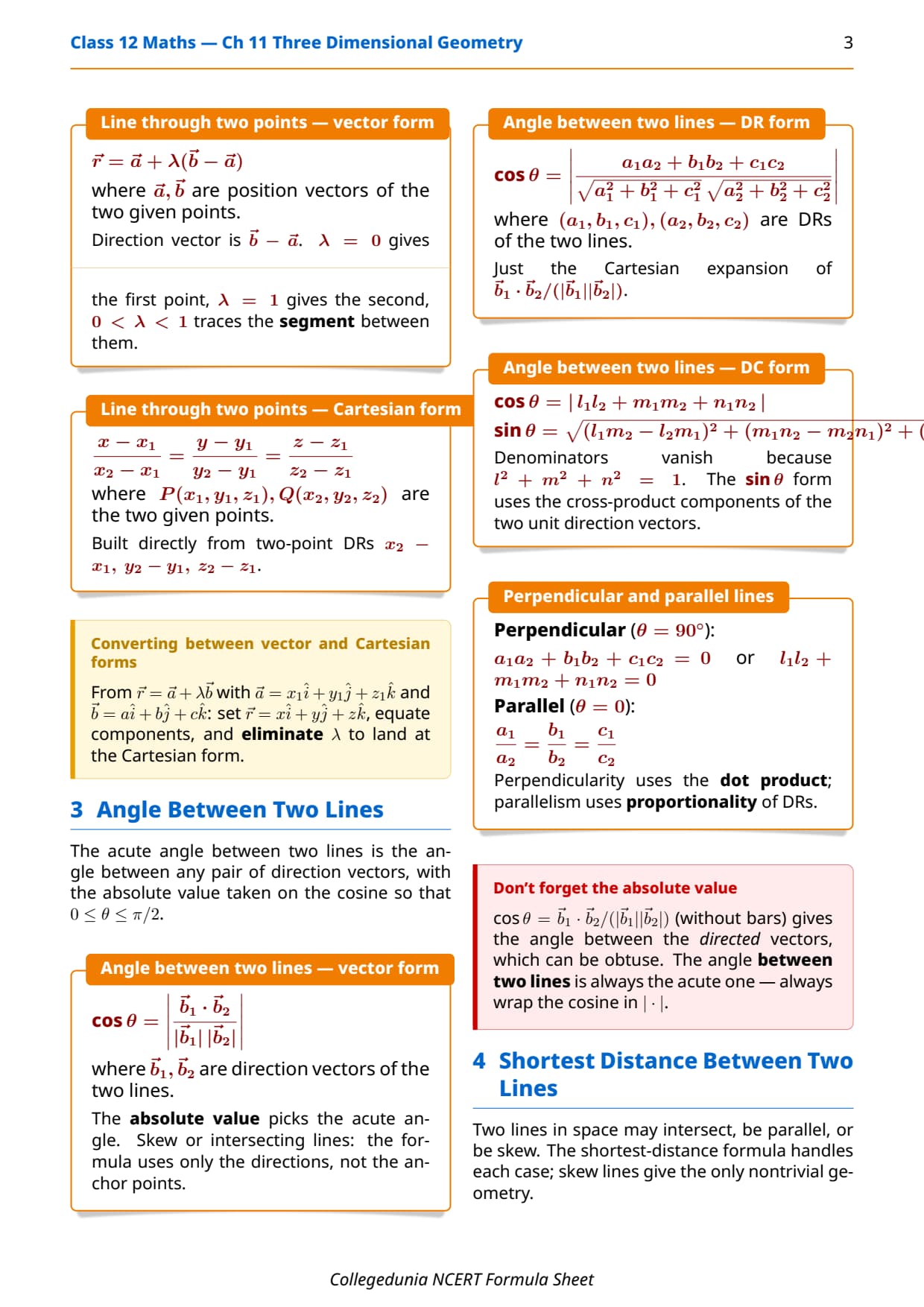

| 10 | Angle between two lines, vector form | cosθ = |b1⃗ · b2⃗||b1⃗||b2⃗| |
| 11 | Angle between two lines, direction ratio form | cosθ = |a1 a2 + b1 b2 + c1 c2|√a12+b12+c12 √a22+b22+c22 |
| 12 | Angle between two lines, direction cosine form | cosθ = |l1 l2 + m1 m2 + n1 n2| |
| 13 | Parallel lines condition | a1a2 = b1b2 = c1c2 |
| 14 | Perpendicular lines condition | a1 a2 + b1 b2 + c1 c2 = 0 |

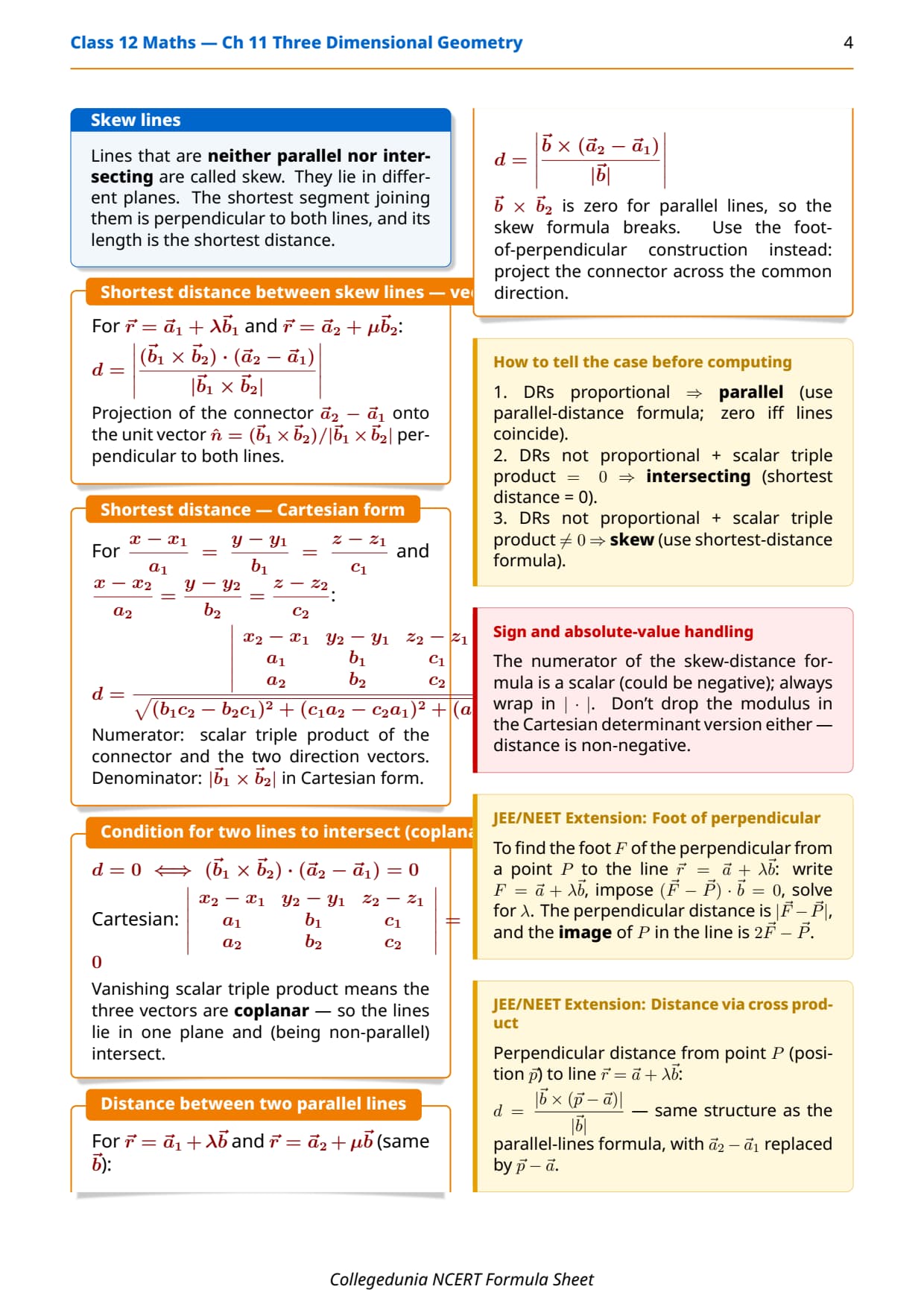

Shortest Distance Between Two Lines in 3D
The shortest-distance block is the single highest-marks segment of the Three Dimensional Geometry Formulas. Formula 15 is the vector template that CBSE markers expect for full marks on a 5-mark long answer.
| # | Concept | Formula |
|---|---|---|

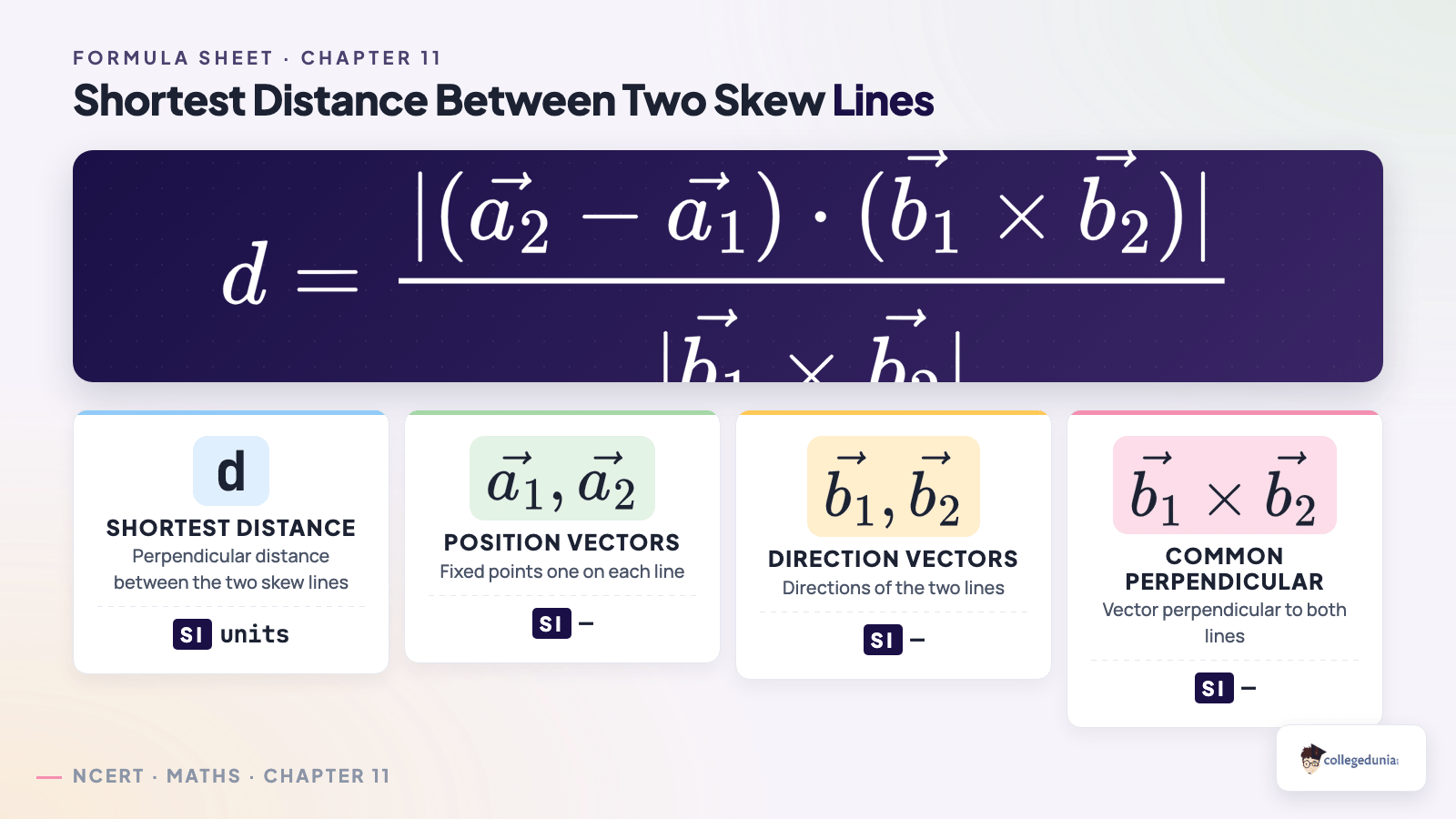

| 15 | Shortest distance between skew lines, vector form | d = |(b1⃗ × b2⃗) · (a2⃗ - a1⃗)||b1⃗ × b2⃗| |
| 16 | Shortest distance between skew lines, Cartesian form | Determinant of the rows (a2⃗-a1⃗),b1⃗,b2⃗ divided by |b1⃗ × b2⃗| |
| 17 | Distance between two parallel lines | d = |b⃗ × (a2⃗ - a1⃗)||b⃗| |
| 18 | Condition for intersection or coplanarity | (b1⃗ × b2⃗) · (a2⃗ - a1⃗) = 0 |

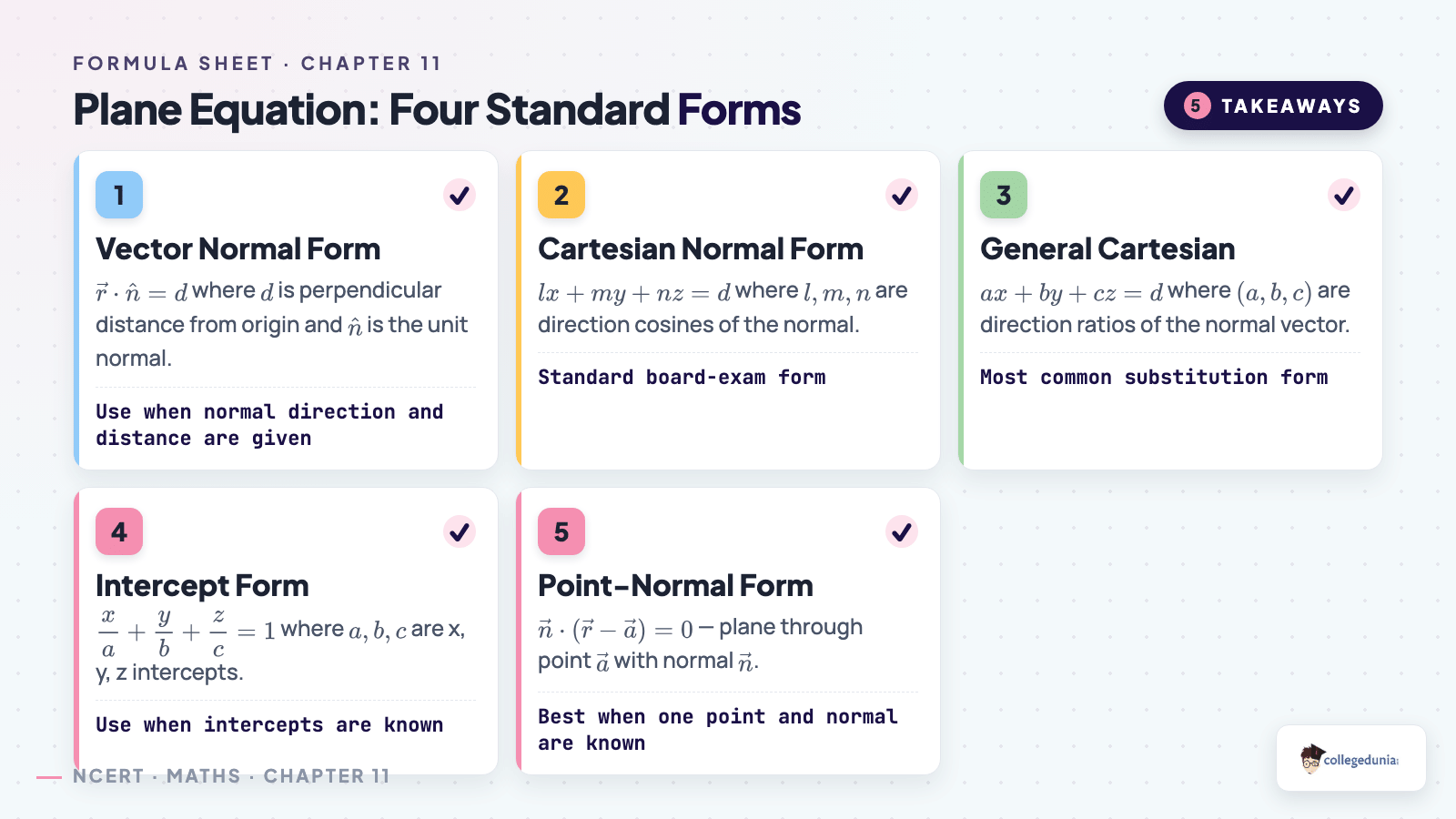

Equation of a Plane in Vector, Cartesian and Intercept Form
The Three Dimensional Geometry Formulas address this in the same order as the NCERT textbook.
The plane-equation block carries 5 or 6 marks every alternate year, usually combined with a distance-from-point sub-part. Recall the three equivalent forms below and the conversion between them.
| # | Concept | Formula |
|---|---|---|
| 19 | Vector equation of a plane, normal form | n̂ · r⃗ = d |
| 20 | Cartesian equation of a plane | ax + by + cz = d , where (a,b,c) are direction ratios of the normal |
| 21 | Intercept form of a plane | xa + yb + zc = 1 , with intercepts a, b, c on the three axes |
| 22 | Plane through a point with normal n⃗ | (r⃗ - a⃗) · n⃗ = 0 |
| 23 | Distance of a point (x1,y1,z1) from ax+by+cz=d | D = |ax1 + by1 + cz1 - d|√a2+b2+c2 |
| 24 | Angle between two planes | cosθ = |n1⃗ · n2⃗||n1⃗||n2⃗| |
| 25 | Angle between a line and a plane | sinφ = |b⃗ · n⃗||b⃗||n⃗| |
| 26 | Distance of a point from a plane in vector form | D = |n̂ · a⃗ - d| |
Decision Tree: Which Formula to Use
The Three Dimensional Geometry Formulas address this in the same order as the NCERT textbook.
Step 1: Read the question stem. Is the unknown a direction cosine, an equation, an angle, a distance, or a plane?
Step 2: If lines are given in Cartesian symmetric form, read off (x1, y1, z1) as a point and (a, b, c) as direction ratios. If a plane is given as ax+by+cz=d, the normal direction ratios are (a,b,c).
Step 3:
For an angle between two lines, use #10 or #11. For an angle between two planes, use #24. For a line and a plane, use #25 (note the sin).
Step 4: For distance: parallel lines use #17, skew lines use #15, point to a plane uses #23. Always cross-check using #13 first to confirm the lines are not parallel before reaching for #15.
How the Three Dimensional Geometry Formulas on the Three Dimensional Geometry Formulas Help You
This Collegedunia formula sheet is built for the final 48-hour revision pass. It compresses about 28 NCERT pages into a printable single-look sheet, organised by concept block so any board question can be matched to the right template inside 30 seconds.
- Concept-first layout orders formulas by topic block: direction cosines, line equations, angle, distance, planes.
- Shortest-distance block isolates both vector and determinant forms, since it is the highest-marks segment in the Three Dimensional Geometry Formulas.
- Plane-equation block shows all three equivalent forms side by side, so you can rewrite quickly when the question demands a specific form.
- PYQ hit-rate tags flag which formulas appeared in CBSE 2021 to 2025 and JEE Main 2021 to 2025 papers.
- 2026-27 syllabus aligned with the current NCERT print, including both the lines and planes sections.
Class 12 Maths Chapter 11 PYQ-Linked Formulas
The mini-table below tags each PYQ year with the exact formula it tested. Use it to prioritise the drill order before the board paper.
| Year | Marks | Formula tested |
|---|---|---|
| CBSE 2025 | 5 | Shortest distance, vector form (#15) |
| CBSE 2024 | 5 | Two-point line equation (#8) and shortest distance (#15) |
| CBSE 2023 | 3 | Direction cosines from two points (#4) |
| CBSE 2022 | 3 | Distance of point from plane (#23) |
| JEE Main 2025 | 4 | Shortest distance, Cartesian determinant form (#16) |
| JEE Main 2024 | 4 | Coplanarity check (#18) |
Full year-wise PYQ map: NCERT Solutions for Class 12 Maths Chapter 11.
Common Slips Examiners Penalise
- Dropping the modulus in the angle formula and reporting an obtuse angle in the answer.
- Using direction ratios in place of direction cosines in the identity l2+m2+n2=1; only the cosines satisfy it.
- Forgetting to verify parallel versus skew before applying the shortest-distance formula.
- Dividing by zero in the Cartesian symmetric form when a direction ratio is zero.
- Sign error when taking the difference a2⃗ - a1⃗ in the shortest-distance numerator.
- Using cos instead of sin in the angle between a line and a plane (#25).
