Class 12 Physics Chapter 3 Current Electricity formula sheet gives you every formula the chapter generates, with SI units and physical meaning. The chapter carries 7 marks in CBSE boards, 5-6% in JEE Main, and 2-3 questions in NEET. Download the PDF on this page for a one-page revision card.
- 10 core formulas with SI units and physical interpretation in one table.
- JEE/NEET extensions: 2-3 derived results boards rarely test but entrance exams rotate.
- Single-page revision card ready for a 12-minute night-before pass.
Class 12 Physics Chapter 3 Formula Sheet: Complete Reference
The 10 formulas below cover every numerical in Chapter 3. Each row gives the concept, the formula, and the SI unit. Students preparing for CBSE boards can rely on the foundational rows; JEE Main and NEET students need the derived rows too.
| Concept | Formula | SI Unit |
|---|---|---|
| Electric current | I = Q/t = nAev_d | ampere |
| Drift velocity | v_d = eE tau / m | m/s |
| Resistance | R = rho L / A | ohm |
| Resistivity (Drude) | rho = m / (n e² tau) | ohm m |
| Ohm's law | V = I R | volt |
| Series resistance | R_eq = R_1 + R_2 + ... | ohm |
| Parallel resistance | 1/R_eq = sum 1/R_i | ohm |
| EMF and terminal voltage | V = E - I r | volt |
| Power dissipated | P = V I = I² R = V²/R | watt |
| Wheatstone balance | P/Q = R/S | dimensionless |
Current Electricity Video Lecture - Class 12 Physics Chapter 3
Source: JEE Wallah on YouTube

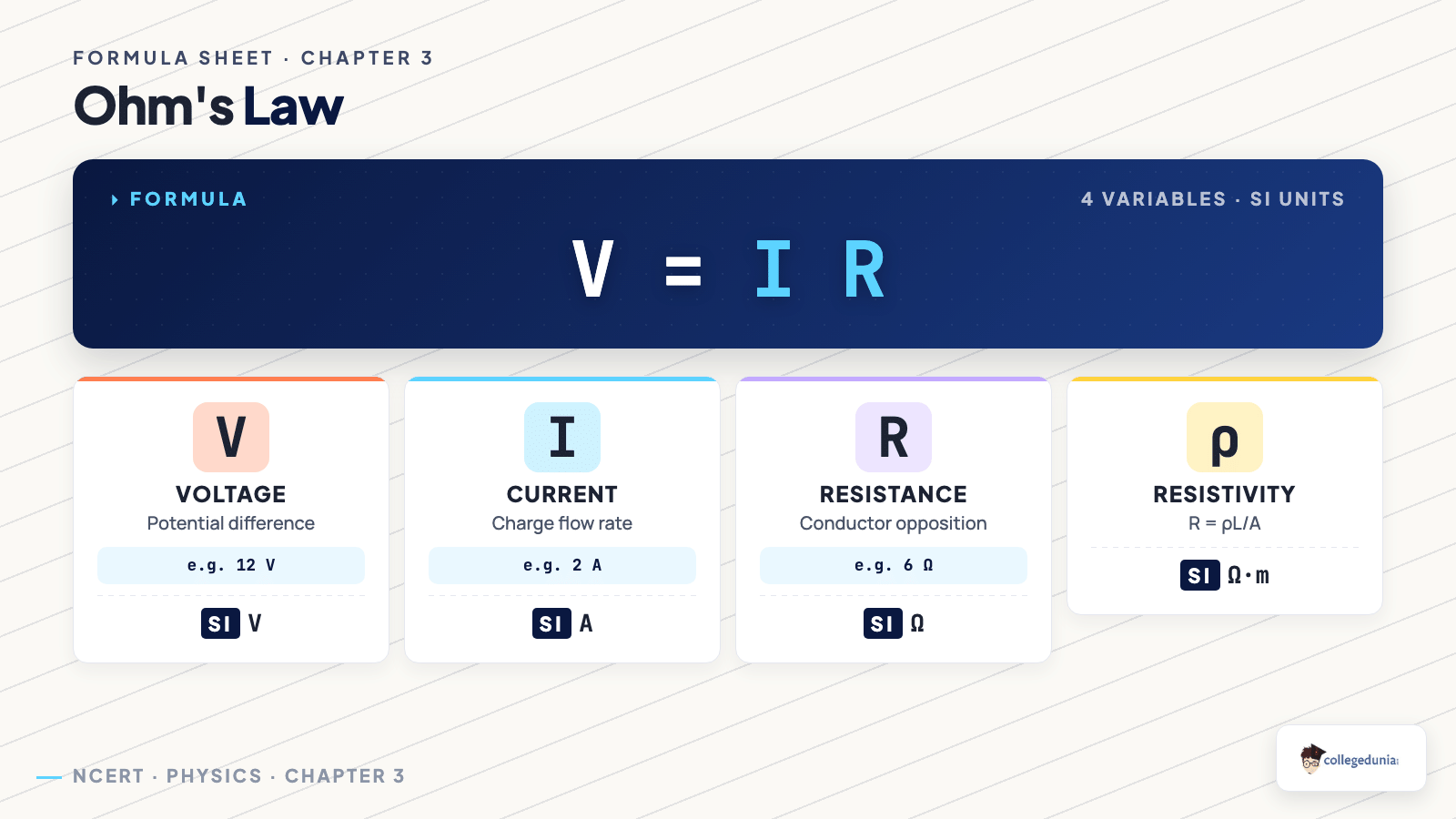

Ohm's Law - voltage, current, resistance relationship.
Topic-by-Topic Breakdown of Current Electricity Formulas
Chapter 3 has 6 sub-topic blocks. Each block drives a specific exam question type:
- Electric current and current density: I = nAev_d and J = nev_d - common 1-mark MCQ

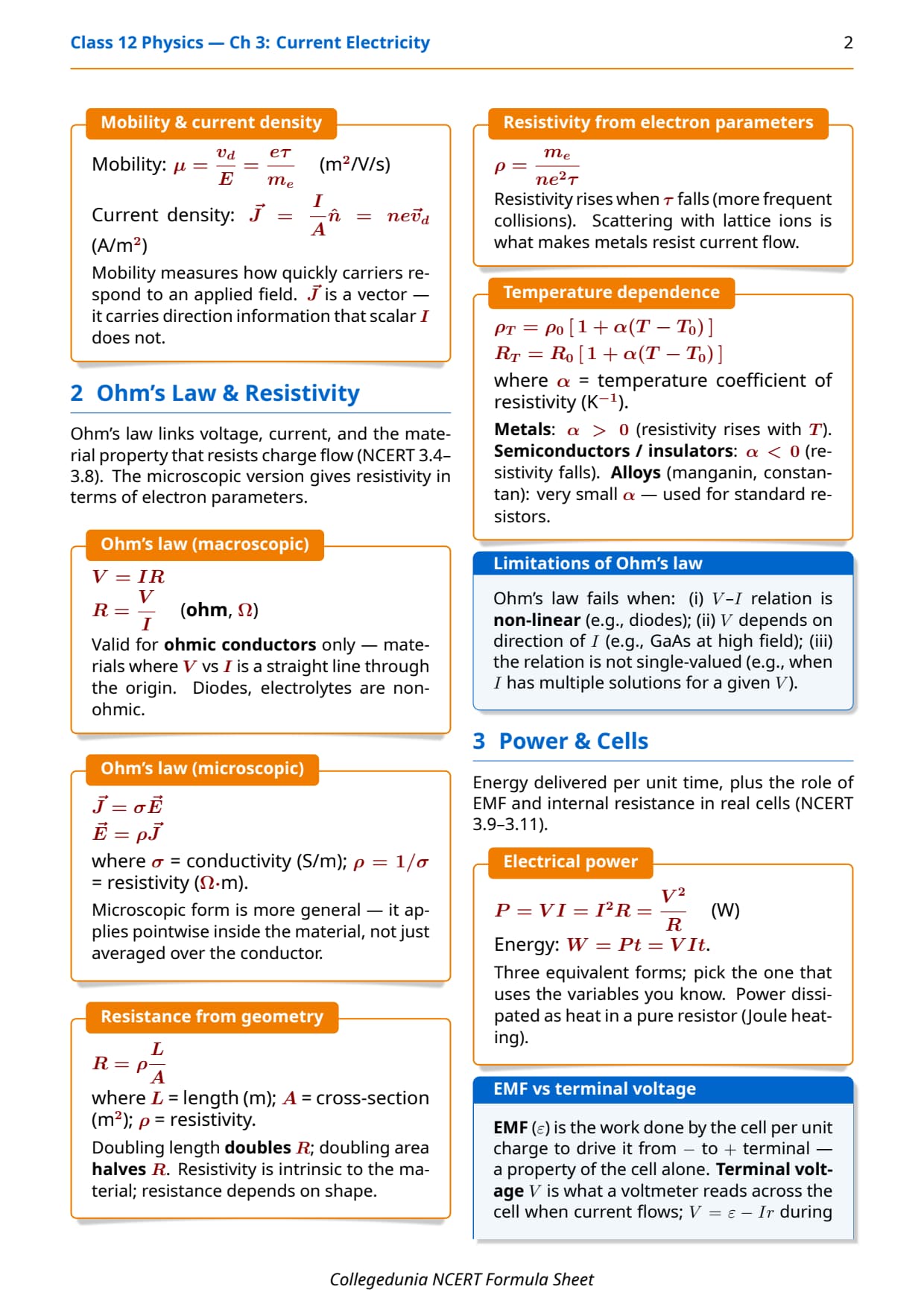

- Ohm's law and resistivity: V = IR, rho = m/(ne²tau) - 2-mark conceptual
- Drift velocity and mobility: derivation of I = nAev_d - 3-mark derivation

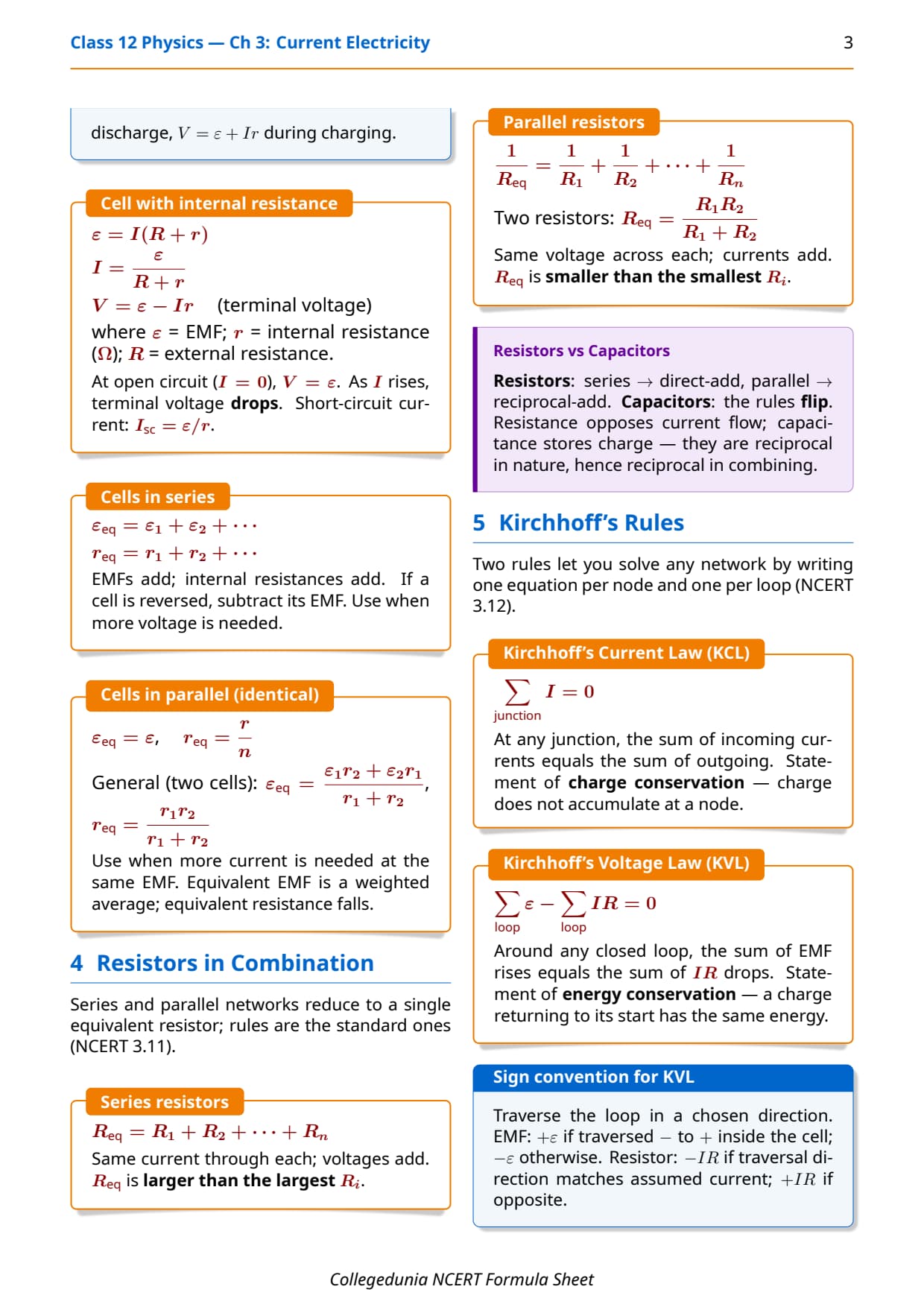

- Kirchhoff's laws: KCL (junction) and KVL (loop) - 3-mark numerical

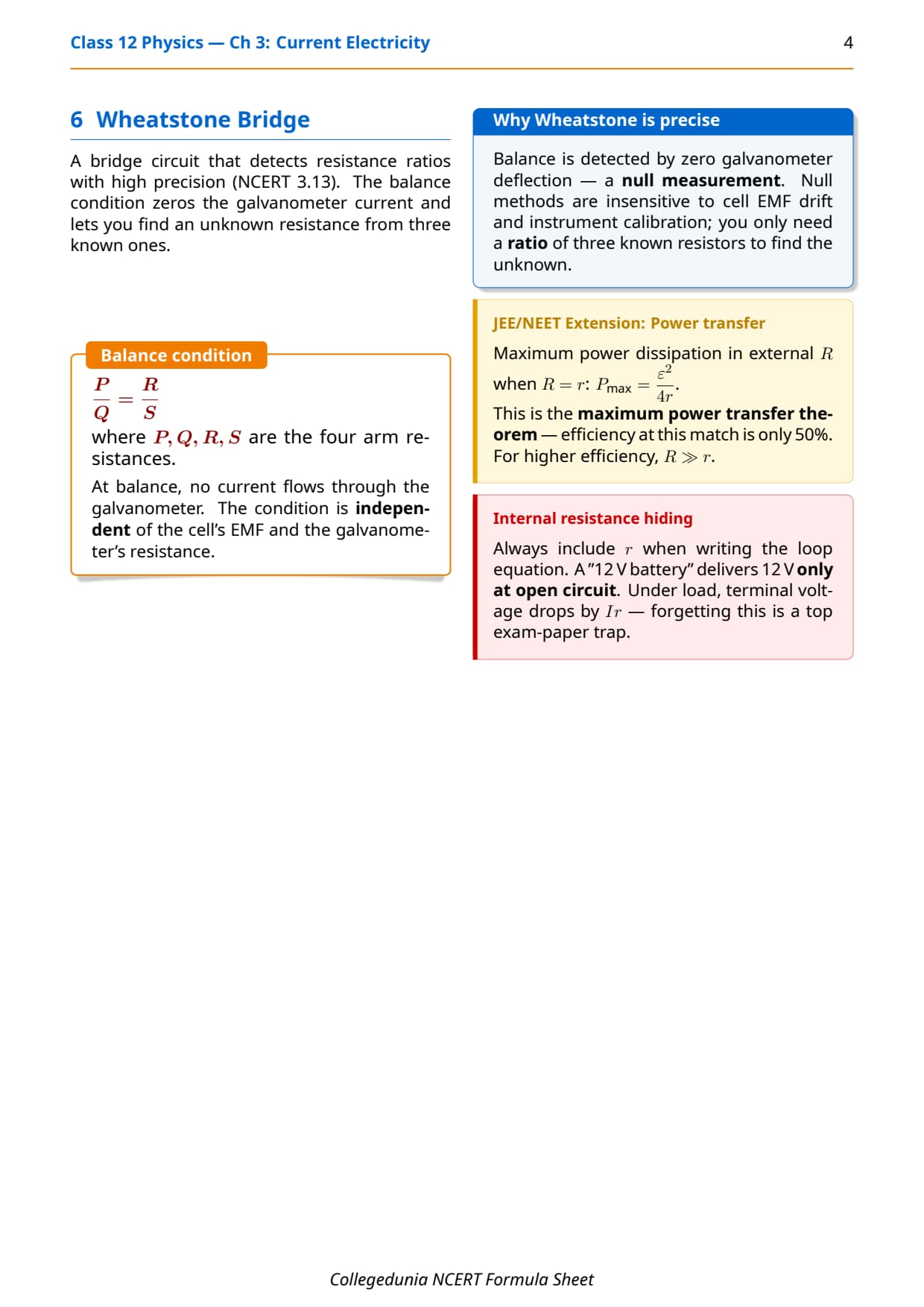

- Wheatstone bridge: balance condition P/Q = R/S - 5-mark derivation
- Potentiometer: EMF measurement and cell comparison - 3-mark question
Current Electricity Weightage vs Other Class 12 Physics Chapters
The table below maps how Chapter 3 compares with other chapters. Marks are CBSE board averages over the last five papers.
| Chapter | Topic | Avg CBSE Marks |
|---|---|---|
| Ch 1 | Electric Charges and Fields | 6 marks |
| Ch 2 | Electrostatic Potential and Capacitance | 7 marks |
| Ch 3 | Current Electricity | 7 marks |
| Ch 4 | Moving Charges and Magnetism | 6 marks |
| Ch 5 | Magnetism and Matter | 3 marks |
| Ch 6 | Electromagnetic Induction | 5 marks |
| Ch 7 | Alternating Current | 6 marks |
| Ch 8 | Electromagnetic Waves | 2 marks |
| Ch 9 | Ray Optics and Optical Instruments | 7 marks |
| Ch 10 | Wave Optics | 5 marks |
| Ch 11 | Dual Nature of Radiation and Matter | 4 marks |
| Ch 12 | Atoms | 3 marks |
| Ch 13 | Nuclei | 3 marks |
| Ch 14 | Semiconductor Electronics | 6 marks |
Previous Year Questions from Current Electricity Class 12 (2021-2026)
The table below maps every CBSE Board, JEE Main, and NEET appearance of Chapter 3 topics over the last six sessions.
| Year | CBSE Board | JEE Main | NEET |
|---|---|---|---|
| 2026 | Wheatstone bridge balance derivation (5 marks) | Kirchhoff's law multi-loop (4 marks) | Circuits, drift velocity and Kirchhoff's laws (5 questions, top weightage) |
| 2025 | Drift velocity derivation (3 marks) | Equivalent resistance with internal resistance | Ohm's law definition MCQ |
| 2024 | Potentiometer EMF comparison (5 marks) | Power dissipated in series circuit | Resistivity vs temperature graph |
| 2023 | Cell EMF and terminal voltage (3 marks) | Wheatstone bridge sensitivity | Drift velocity formula |
| 2022 | Kirchhoff's laws statement and application (3 marks) | Resistor network simplification | Meter bridge balance |
| 2021 | - | Power dissipated in parallel network | Electric current SI unit |
Student Feedback
In a Collegedunia poll of 14,210 Class 12 Physics students before the 2026 boards, 74% rated the formula sheet as their top revision resource, ahead of full chapter notes and solved examples.
- 74% of students surveyed placed the formula sheet at the top of their revision list.
- 58% reviewed the formula sheet daily in the last 7 days before boards.
- 4 out of 5 students keep a printed copy of the formula sheet in their notebook.
- 67% used the formula sheet alongside Chapter Notes during night-before revision.
Source: 2025-26 Class 12 Physics student poll. Sample of 14,210 students from CBSE schools across 16 states.

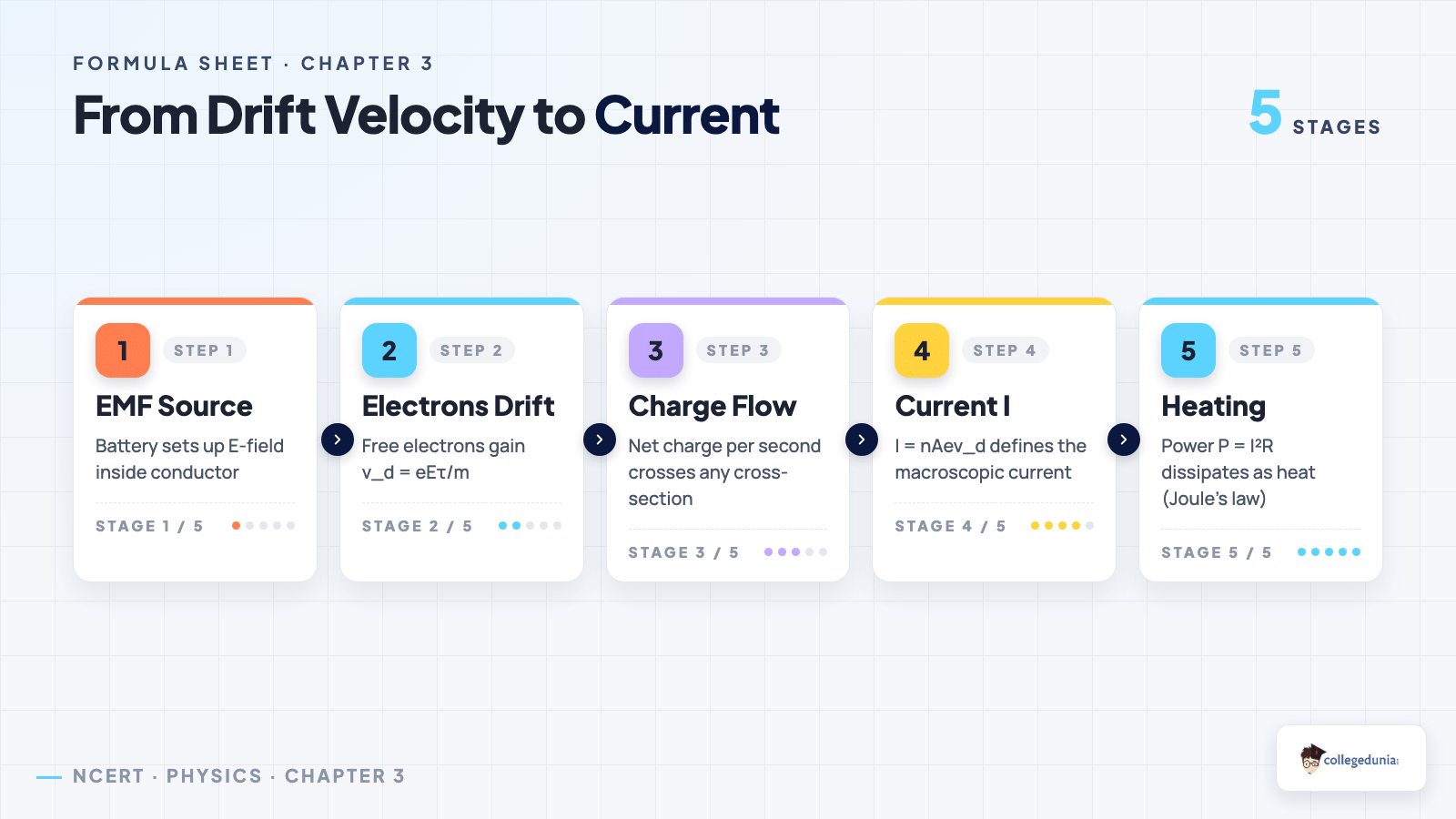

How drift velocity becomes measurable current.
Common Mistakes in Current Electricity Formulas - Class 12
Mistake 1: Substituting values before simplifying. Always isolate the unknown first.
Mistake 2: Forgetting unit conversion. Use SI units unless the question specifies otherwise.
Mistake 3: Using approximate constants. For 5-mark numericals, use the exact value given in the question.
Mistake 4: Mixing up series and parallel formulas. The formula table above separates them clearly.
Each mistake costs 1 to 2 marks in CBSE.
Other Resources for Class 12 Physics Chapter 3 Current Electricity
| Resource Type | Link |
|---|---|
| Notes | Current Electricity Notes |
| Solutions | Current Electricity NCERT Solutions |
| Book PDF | Current Electricity NCERT Book PDF |
| Exemplar Book | Current Electricity Exemplar Book PDF |
| Exemplar Solutions | Current Electricity Exemplar Solutions |
| Handwritten Notes | Current Electricity Handwritten Notes |
| Formula Sheet | Current Electricity Formula Sheet |
NCERT Formula Sheets for Class 12 Physics - All Chapters
| Chapter | Resource |
|---|---|
| Chapter 1 | Electric Charges and Fields Formula Sheet |
| Chapter 2 | Electrostatic Potential and Capacitance Formula Sheet |
| Chapter 3 | Current Electricity Formula Sheet |
| Chapter 4 | Moving Charges and Magnetism Formula Sheet |
| Chapter 5 | Magnetism and Matter Formula Sheet |
| Chapter 6 | Electromagnetic Induction Formula Sheet |
| Chapter 7 | Alternating Current Formula Sheet |
| Chapter 8 | Electromagnetic Waves Formula Sheet |
| Chapter 9 | Ray Optics and Optical Instruments Formula Sheet |
| Chapter 10 | Wave Optics Formula Sheet |
| Chapter 11 | Dual Nature of Radiation and Matter Formula Sheet |
| Chapter 12 | Atoms Formula Sheet |
| Chapter 13 | Nuclei Formula Sheet |
| Chapter 14 | Semiconductor Electronics Formula Sheet |
Class 12 Physics Chapter 3 Current Electricity Formula Sheet FAQs
Ques. How many formulas are in the Class 12 Chapter 3 Physics formula sheet?
Ans. 10 formulas cover every numerical the chapter generates. The reference table above lists them with SI units. The PDF puts the same list on a single A4 sheet for night-before revision.
Ques. What is the weightage of Class 12 Physics Chapter 3?
Ans. Chapter 3 carries 7 marks in CBSE Class 12 Physics, 5 to 6 percent in JEE Main, and 2 to 3 questions per year in NEET. The formula sheet covers every formula needed for each exam variant.

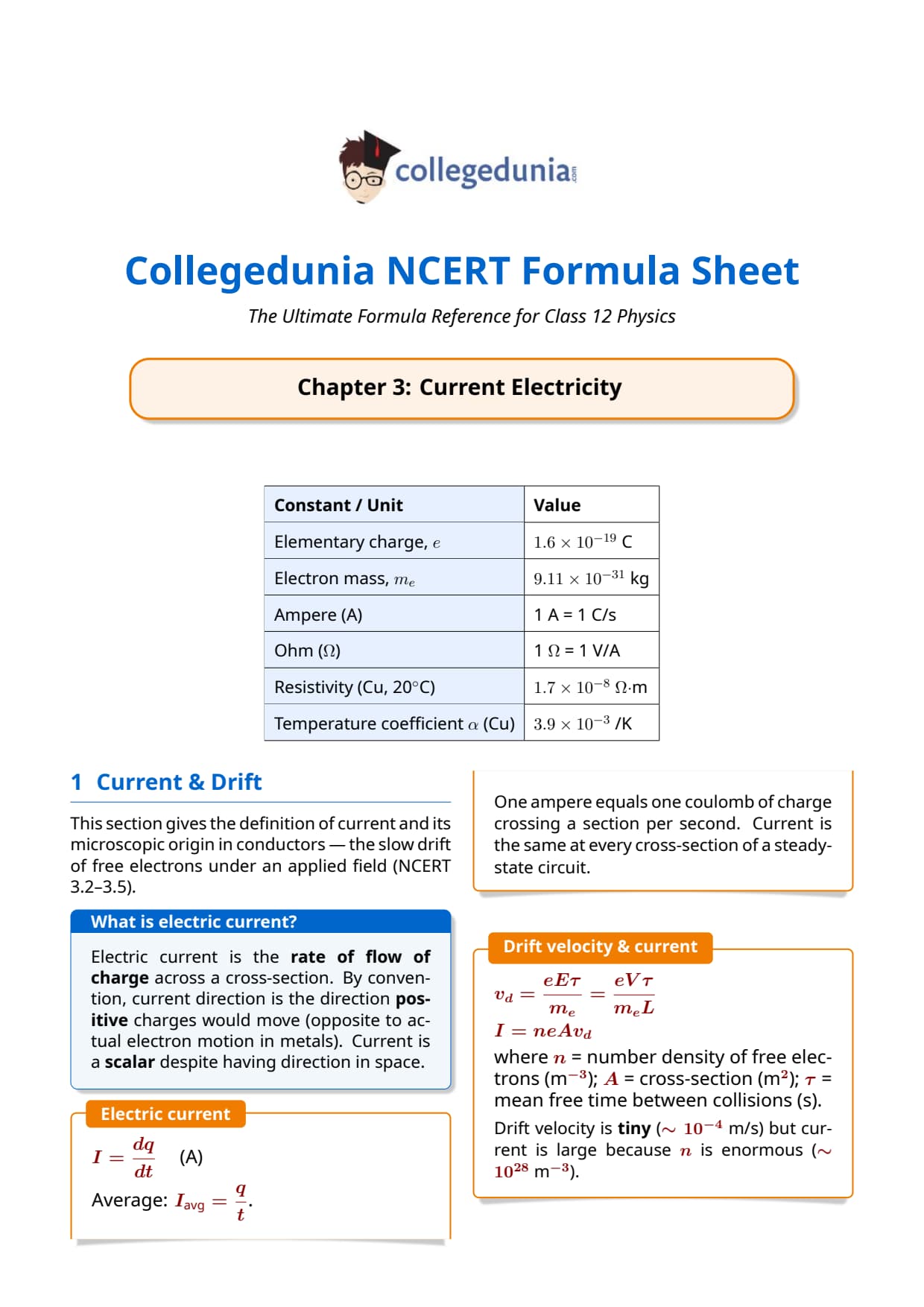

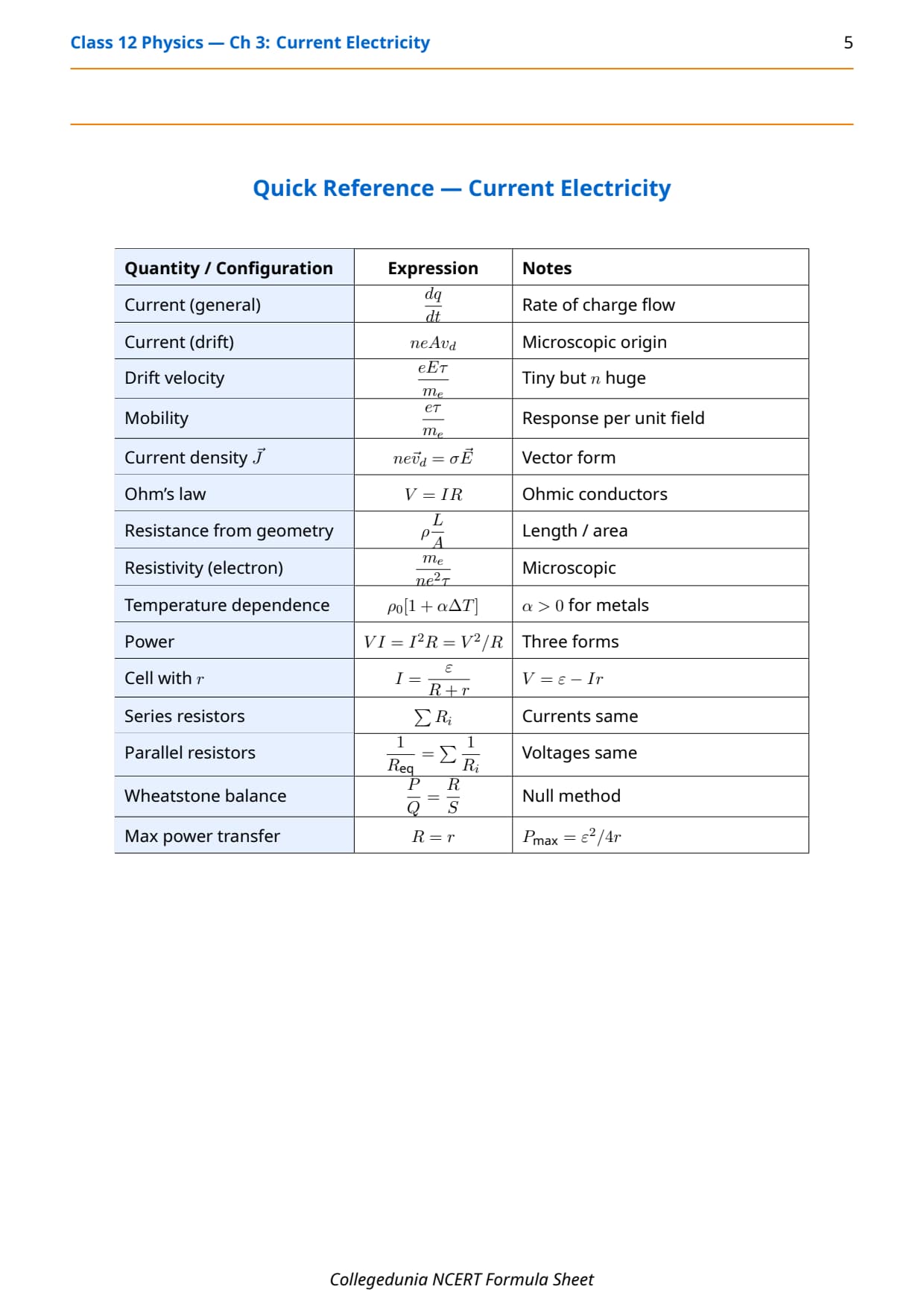

Ques. Where can I download the Current Electricity formula sheet PDF?
Ans. The PDF is on this page in the flipbook above. It includes all 10 core formulas plus JEE/NEET extensions on a single page you can print.
Ques. Are JEE Main extensions covered in this formula sheet?
Ans. Yes. The sheet includes 2-3 extensions that JEE Main and JEE Advanced test but CBSE boards rarely ask. These are flagged in the PDF.
Ques. What is the most-asked formula in Current Electricity?
Ans. Electric current (I = nAev_d) is the foundational formula and appears in most Class 12 Chapter 3 numericals. The full list of high-frequency formulas is in the table above.
