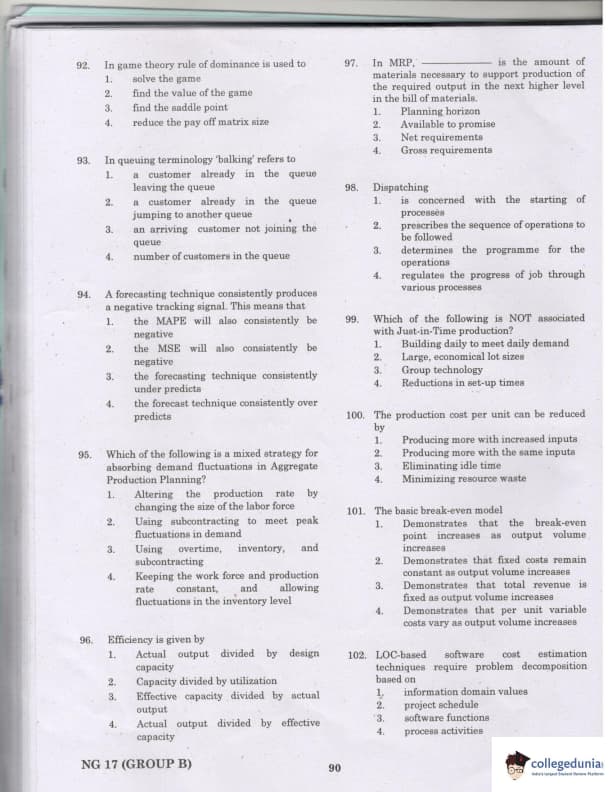

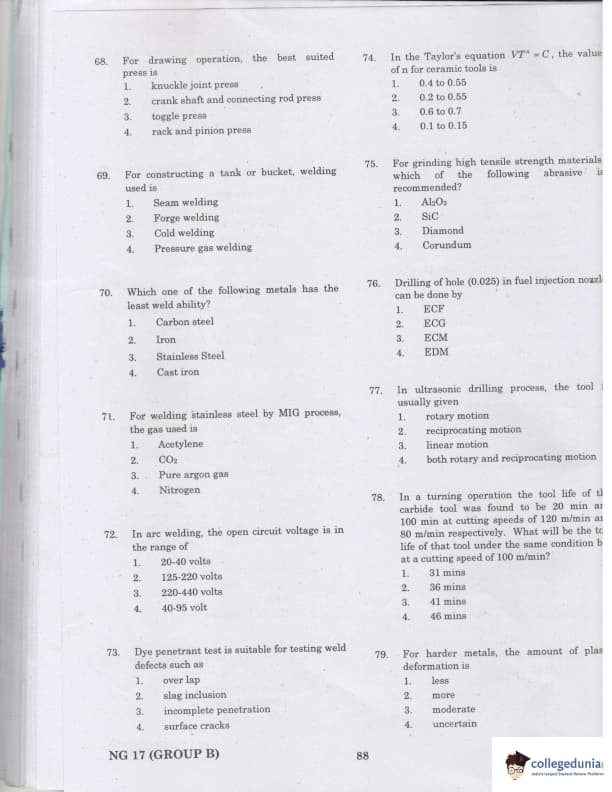

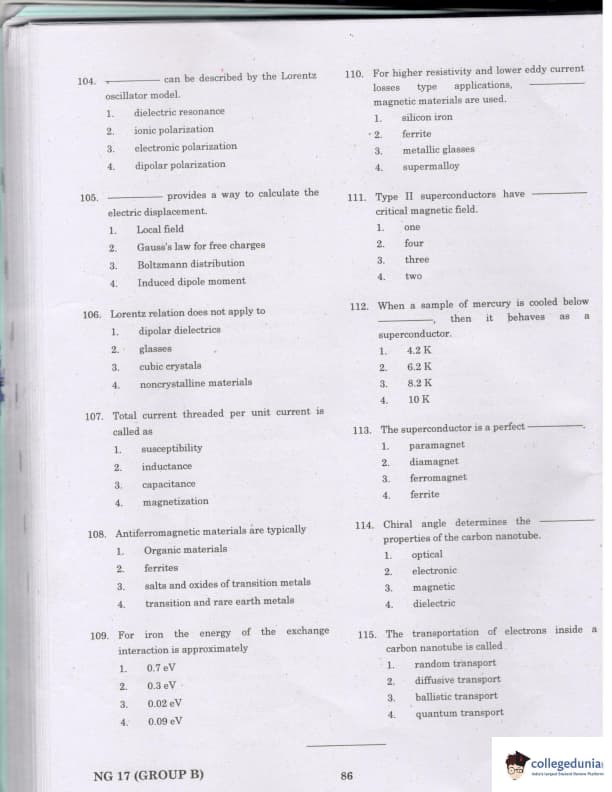

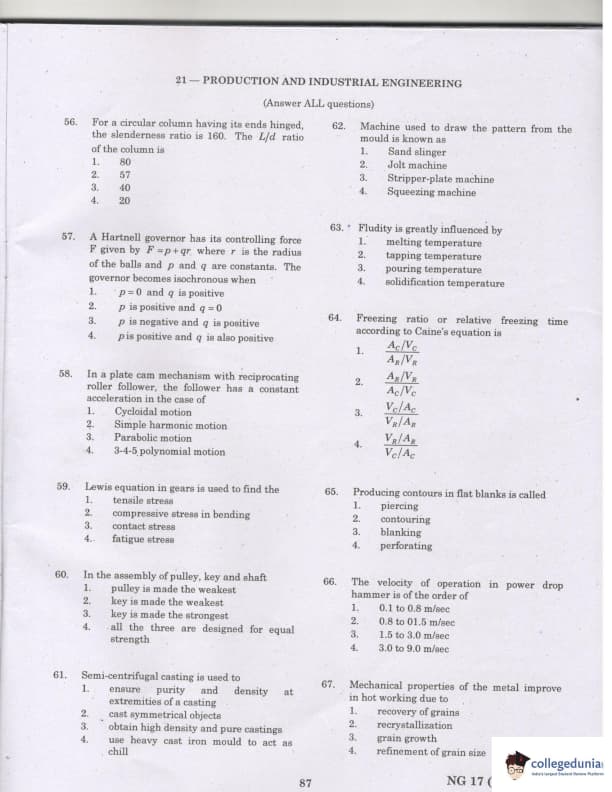

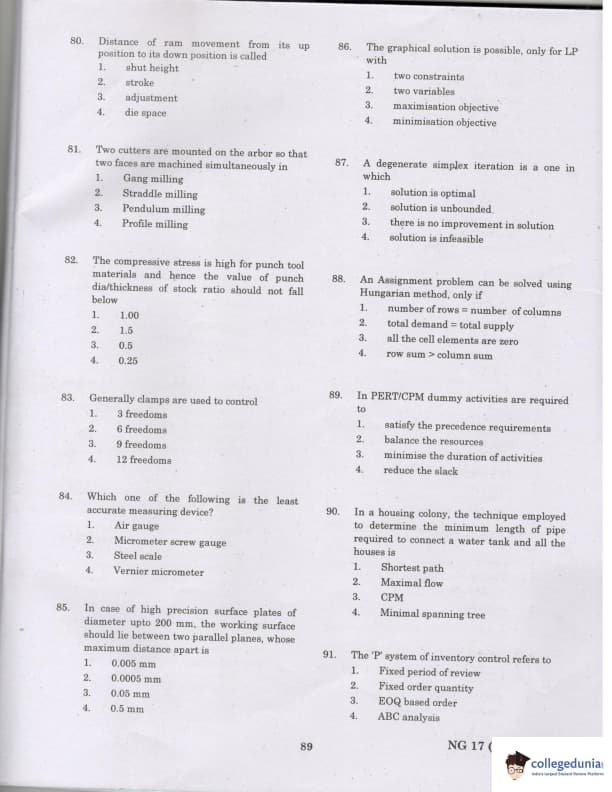

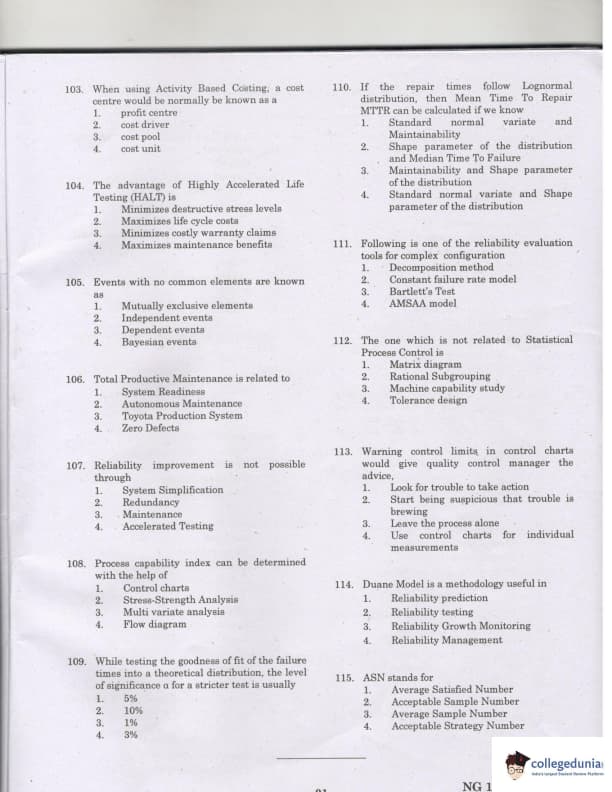

TANCET 2017 Production & Industrial Engineering Question Paper with Answer Key PDFs (March 26)

TANCET Questions

• 1.

  Bio-deterioration of hides and skin before tanning process, Hair slip occurs due to

  • Aspergillus niger

  • Streptococcus sp

  • Aspergillus fumigatus

  • Pseudomonas sp
  View Solution

  ---

• 2.

  In a closed traverse ABC, the following readings were taken: If station A is free from local attraction, correct bearing of CB is:


  • \(280^\circ \)
  • \(279^\circ \)
  • \(276^\circ \)
  • \(277^\circ \)
  View Solution

  ---

• 3.

  An intermediate shaft of a gearbox, supporting two spur gears A and B and mounted between two bearings C1 and C2, is shown in the below figure. The pitch circle diameters of gears A and B are 500 and 250 mm respectively. The shaft is made of alloy steel 20MnCr5. (\( S_{ut} = 620 \) and \( S_{yt} = 480 \) N/mm\(^2\)). The factors \( k_b \) and \( k_t \) of the ASME code are 2 and 1.5 respectively. The gears are keyed to the shaft. Determine the shaft diameter using the ASME code.


  • 44.52 mm
  • 59.36 mm
  • 27.15 mm
  • 38.87 mm
  View Solution

  ---

• 4.

  Which of the following causal analog transfer functions is used to design causal IIR digital filter with transfer function? $$ H(z) = \frac{0.05z}{z-e^{-0.42}} + \frac{0.05z}{z-e^{-0.2}} $$ Assume impulse invariance transformation with \( T = 0.1 \, \text{s} \).

  • \( H(S) = \frac{0.5}{S+4.2} + \frac{0.5}{S+2} \)
  • \( H(S) = \frac{0.5}{S+2.1} + \frac{0.5}{S+4} \)
  • \( H(S) = \frac{0.5}{S-2.1} + \frac{0.5}{S-4} \)
  • \( H(S) = \frac{0.5}{S-4.2} + \frac{0.5}{S-2} \)

  View Solution

  ---

• 5.

  The Laplace transform of a signal $X(t)$ is $$ X(s) = \frac{4s + 1}{s^2 + 6s + 3}. $$ The initial value $X(0)$ is:

  • \( 0 \)

  • \( 4 \)

  • \( 1/6 \)

  • \( 4/3 \)

  View Solution

  ---

• 6.

  A closed-loop system has the characteristic equation given by: $ s^3 + k s^2 + (k+2) s + 3 = 0 $.
  For the system to be stable, the value of $ k $ is:

  • \( k>1 \)

  • \( 0.5<k<1 \)

  • \( 0<k<1 \)

  • \( 0<k<0.5 \)

  View Solution
