Class 12 Physics Chapter 14 Semiconductor Electronics covers energy bands (conductor, insulator, semiconductor) through zener diode and logic gates. The chapter carries 6 marks in CBSE and 3 to 4 percent in JEE Main. This page hosts the handwritten notes PDF for Class 12 Physics Chapter 14 Semiconductor Electronics.
- CBSE Boards: 6 marks, usually one derivation block plus one short-answer concept question.
- JEE Main: 3 to 4 percent, with steady annual coverage on derivations and numericals.
- NEET: 2 to 3 questions every year on chapter concepts.
Topic-by-Topic Concept Summary for Class 12 Physics Chapter 14 Semiconductor Electronics
The chapter splits into 6 sub-topic blocks. Each block maps to a CBSE marking band.

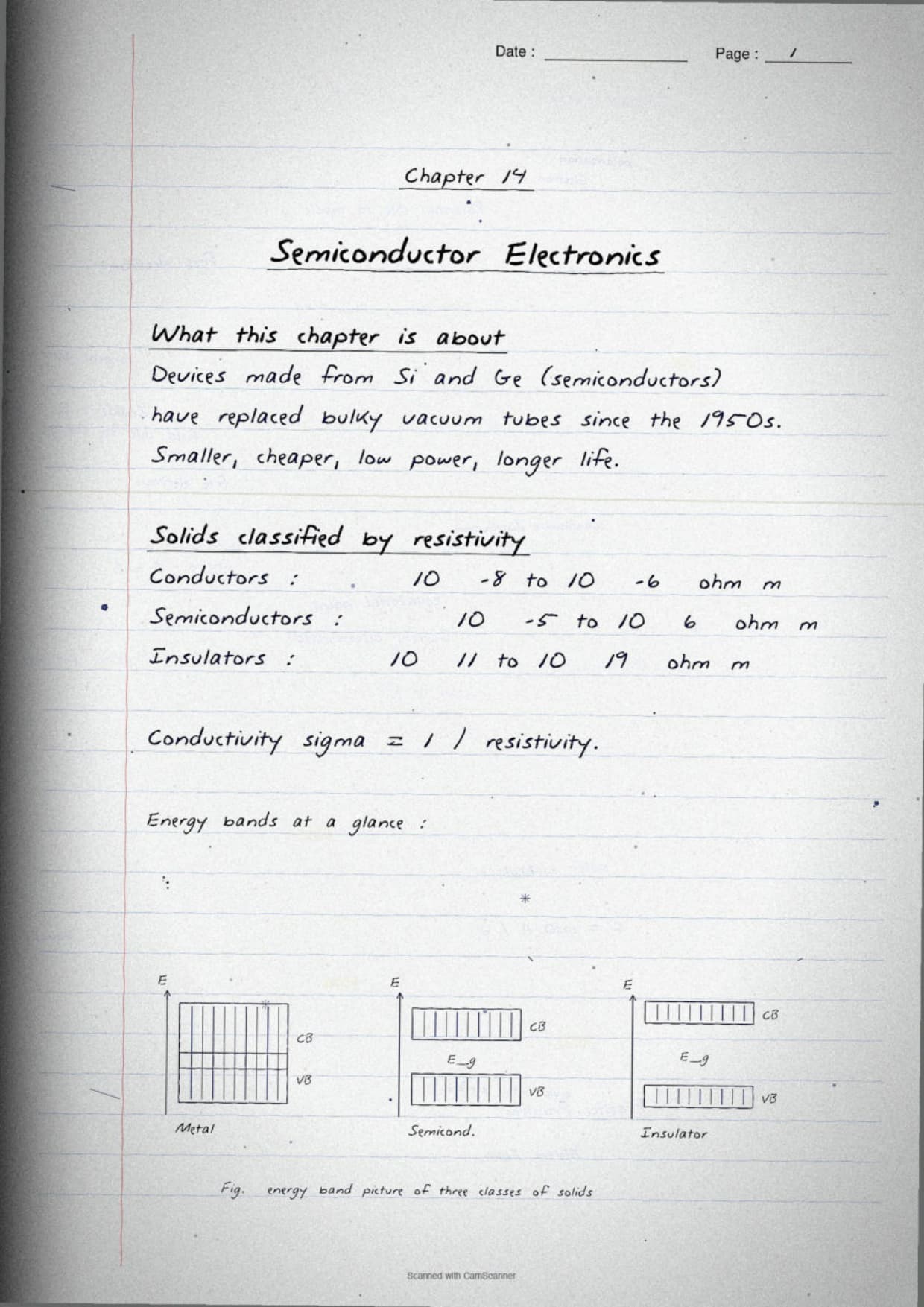

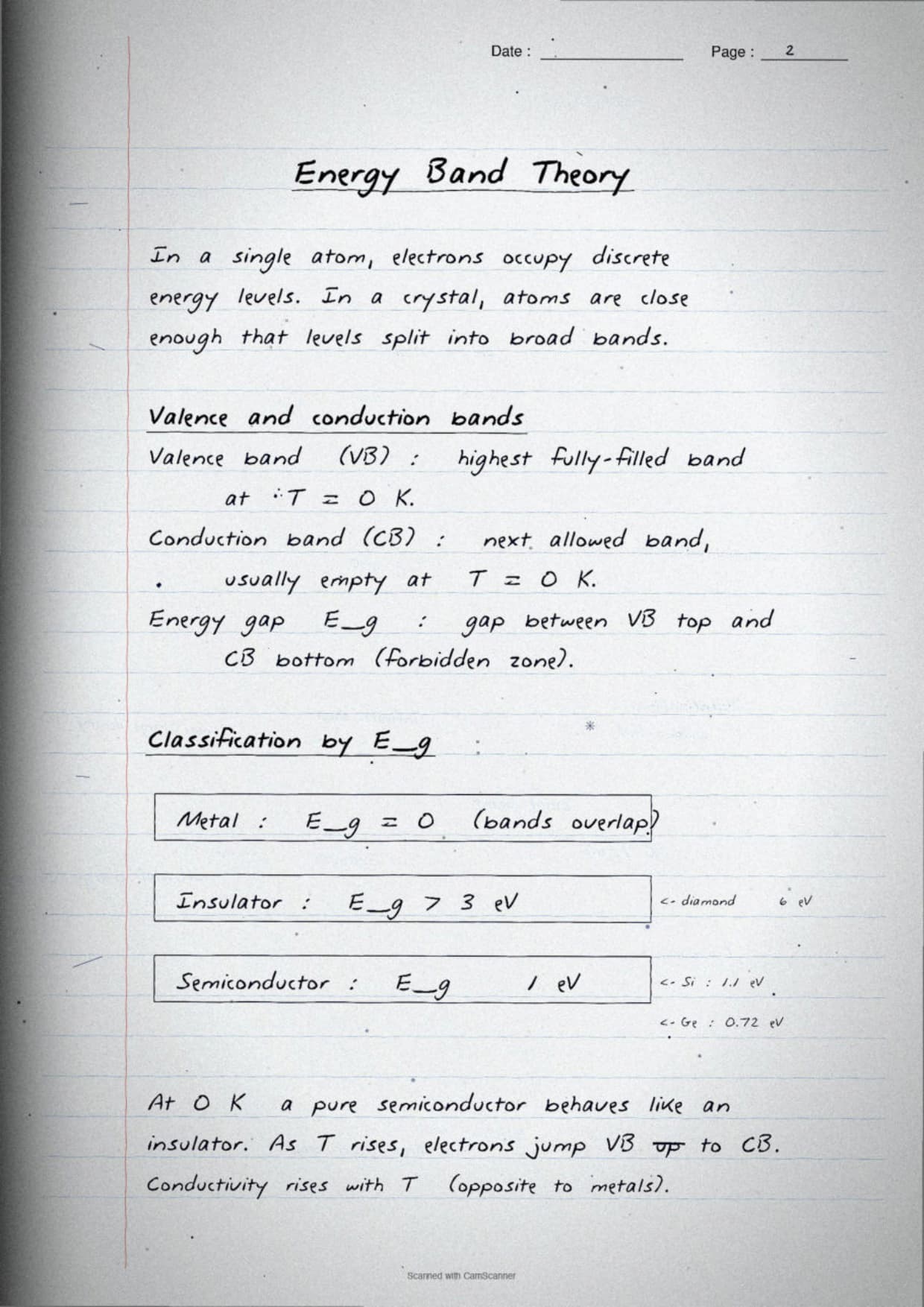

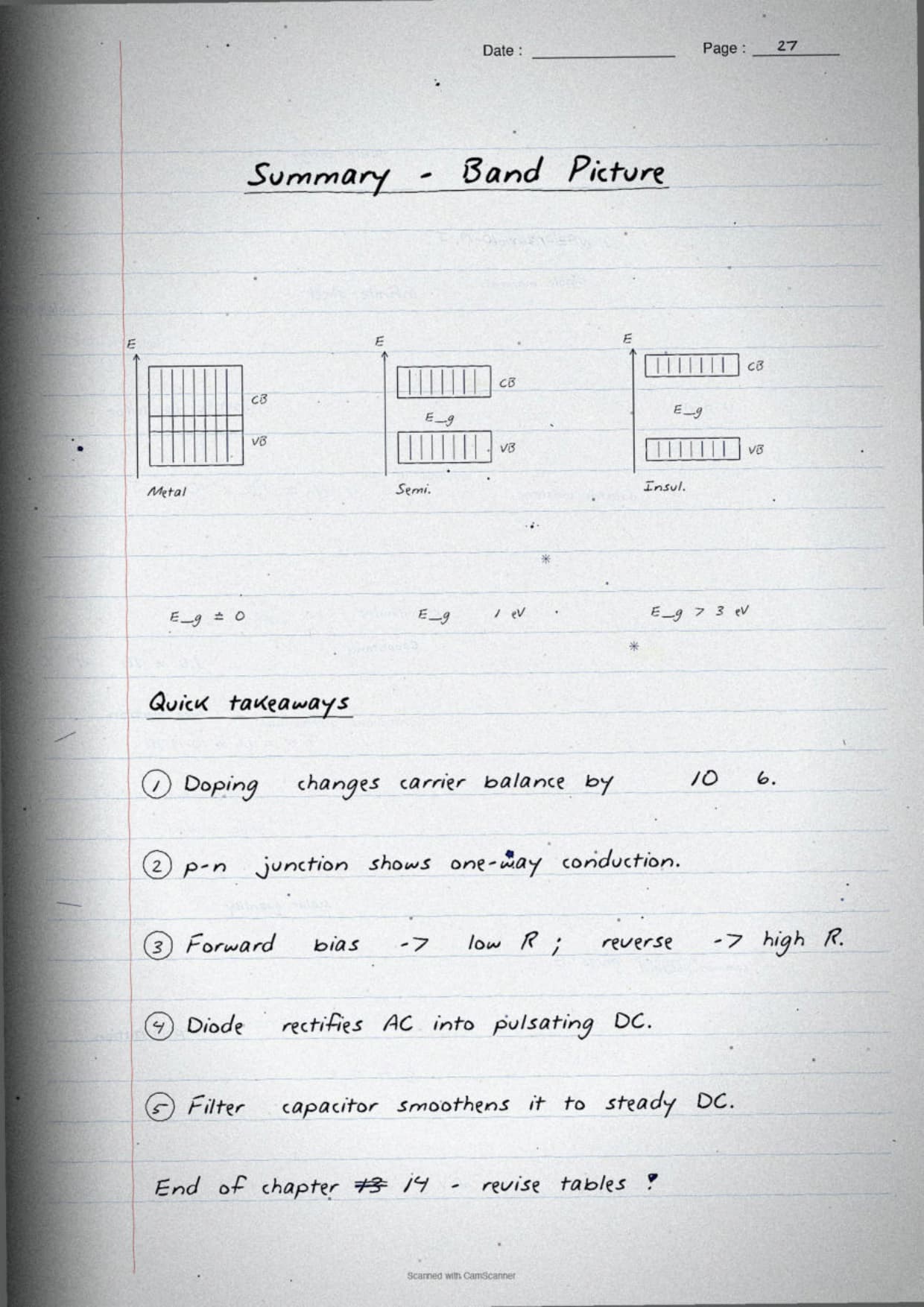

- Energy bands (conductor, insulator, semiconductor): 2-mark conceptual

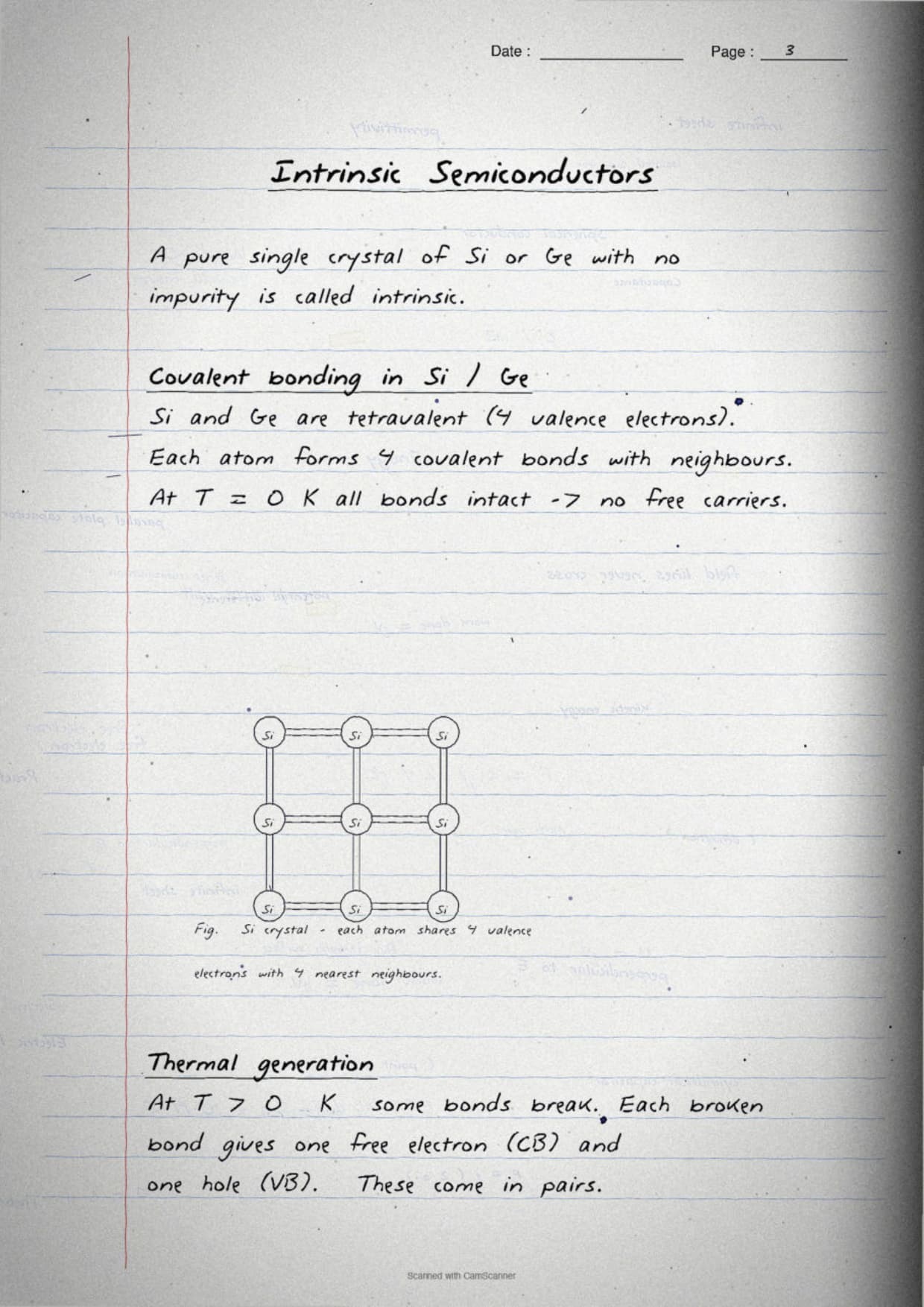

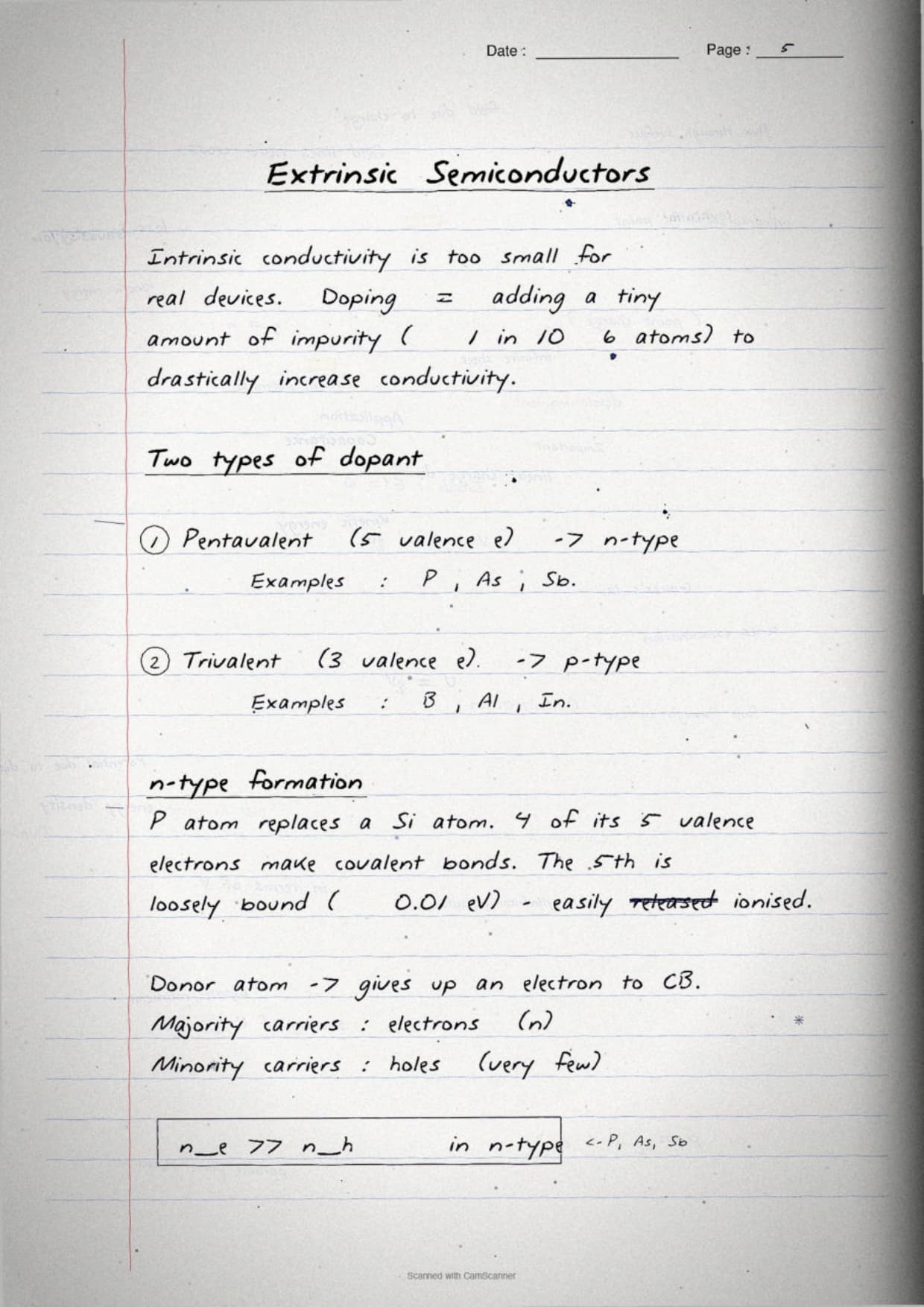

- Intrinsic vs extrinsic semiconductors: 3-mark on doping

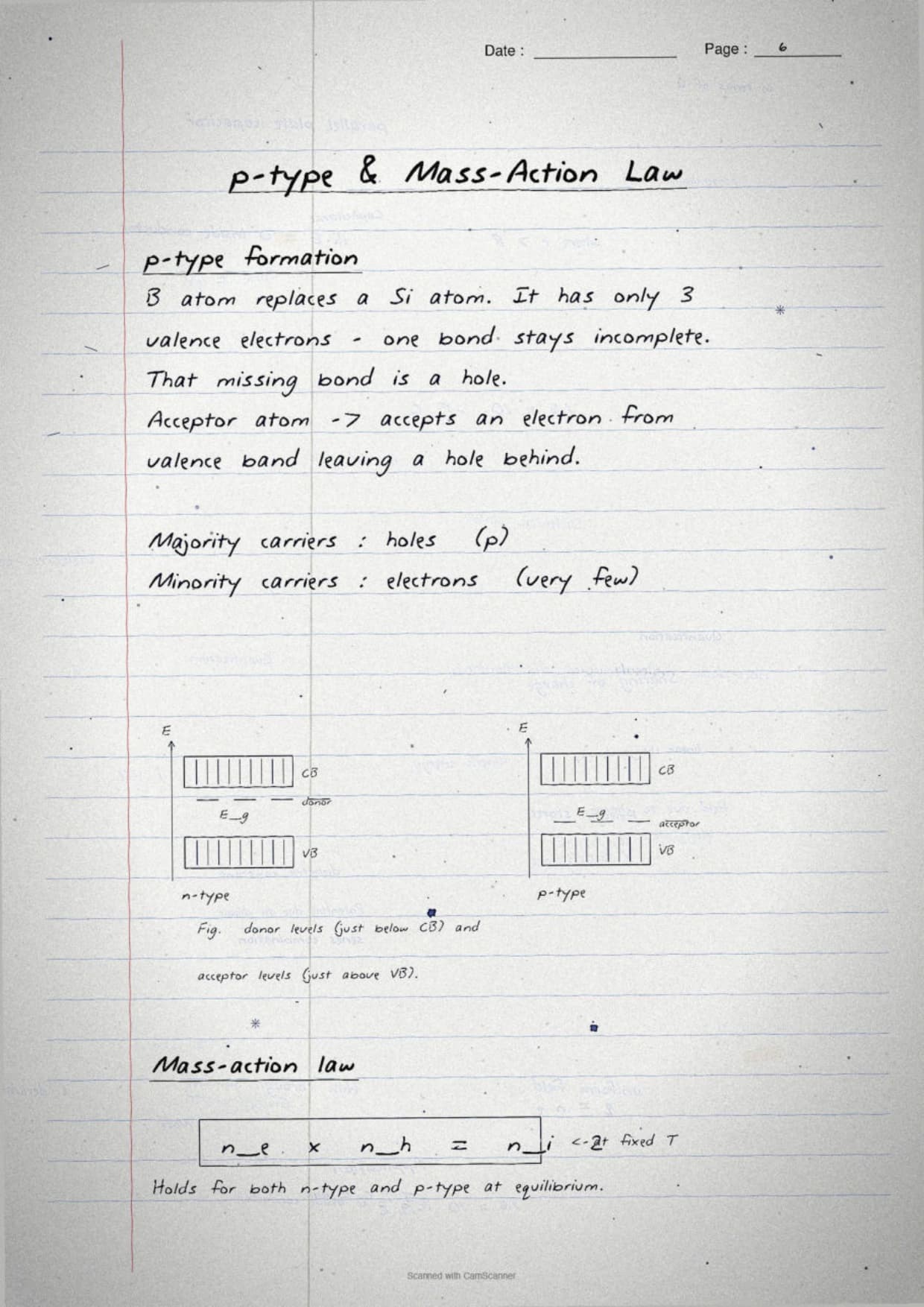

- n-type and p-type semiconductors: 2-mark on donor/acceptor
- p-n junction and diode: 5-mark on biasing and I-V curve

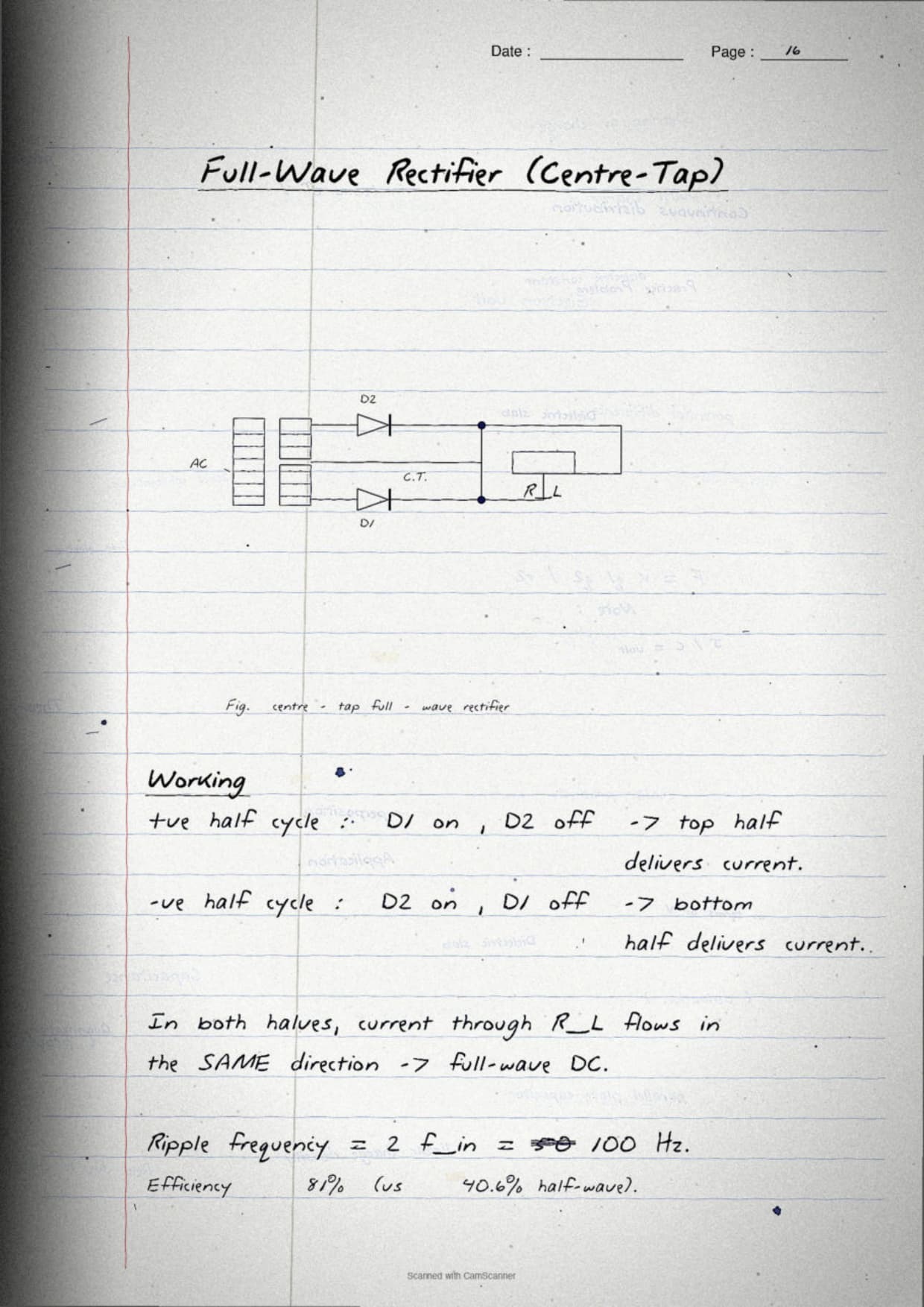

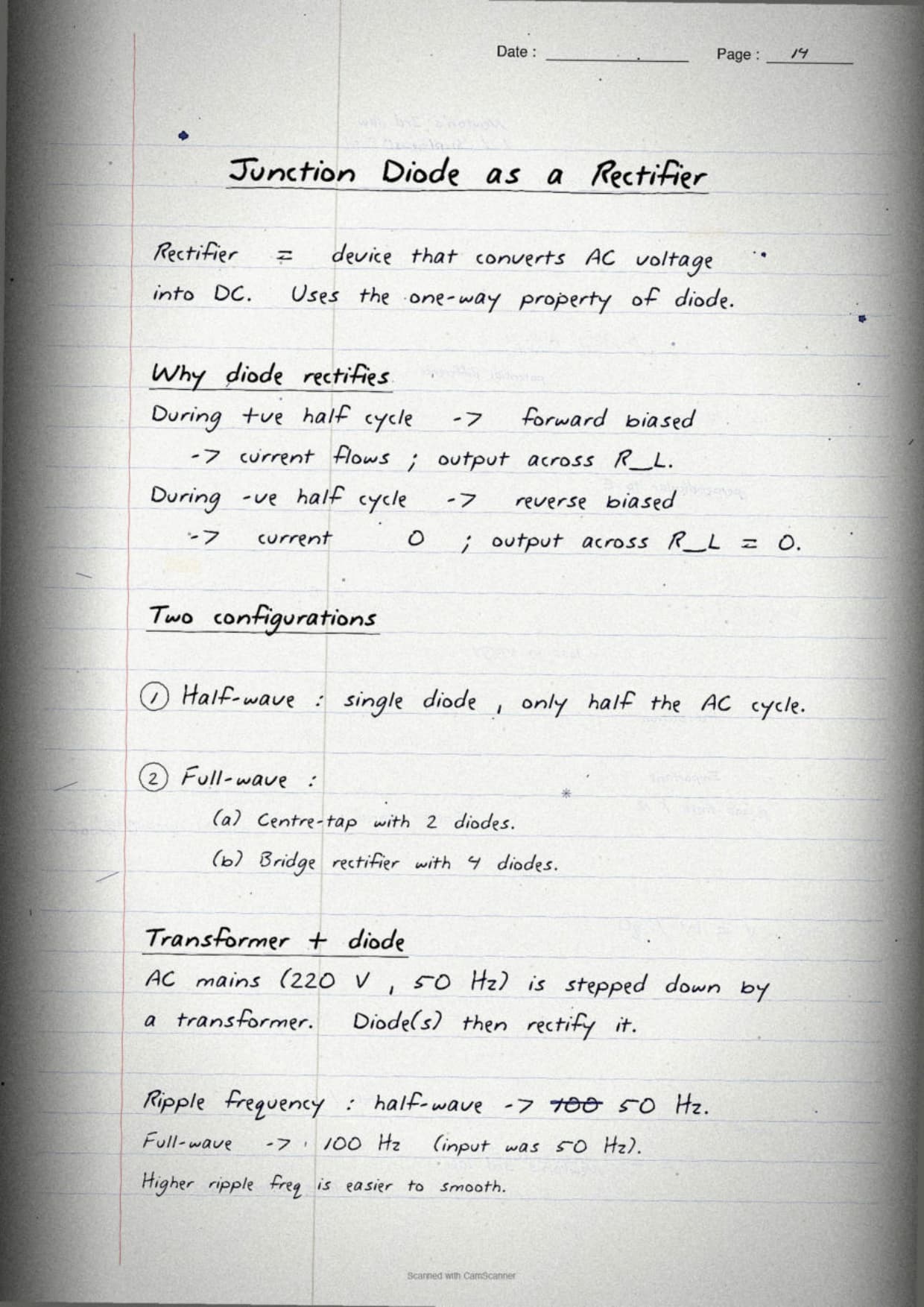

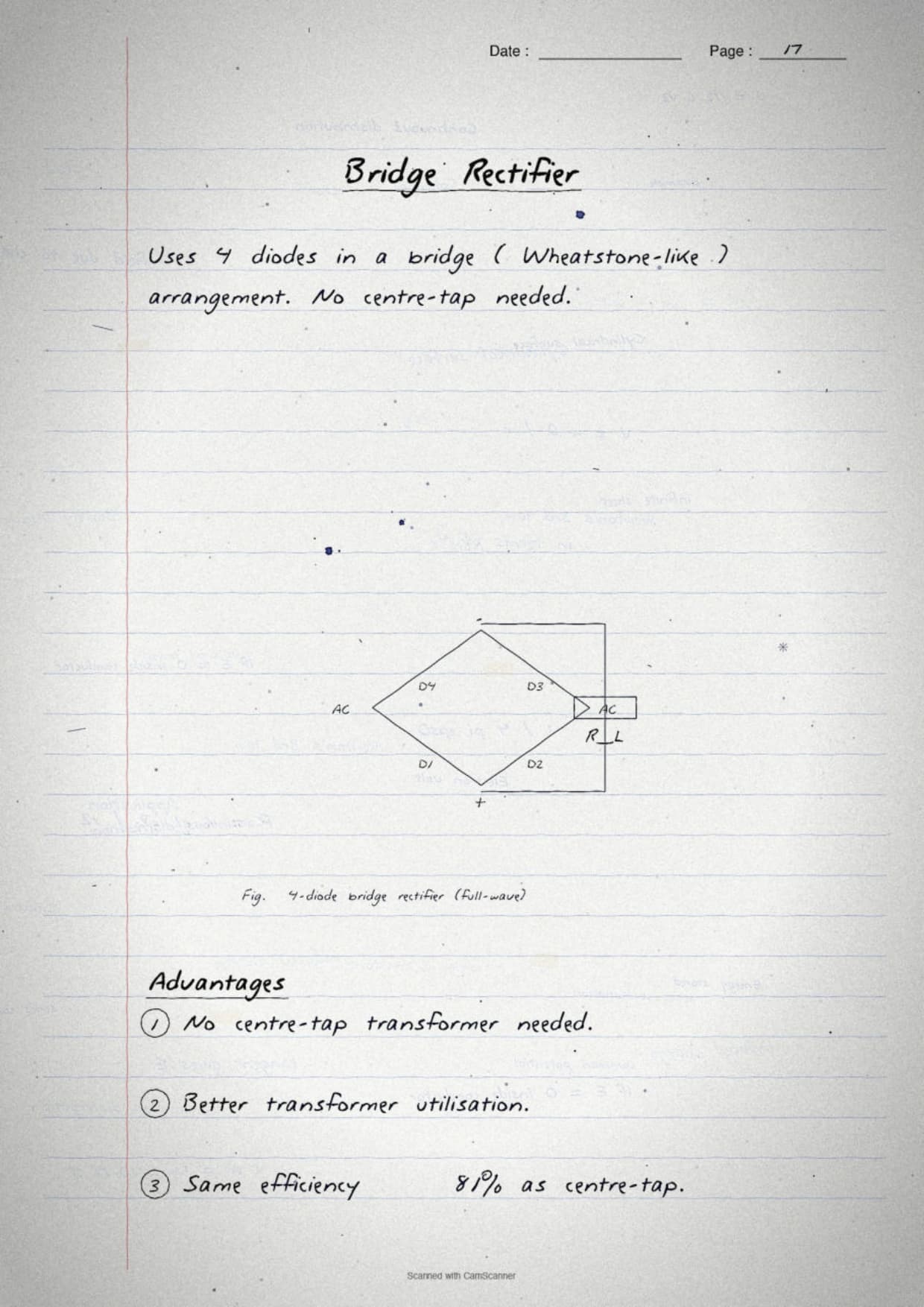

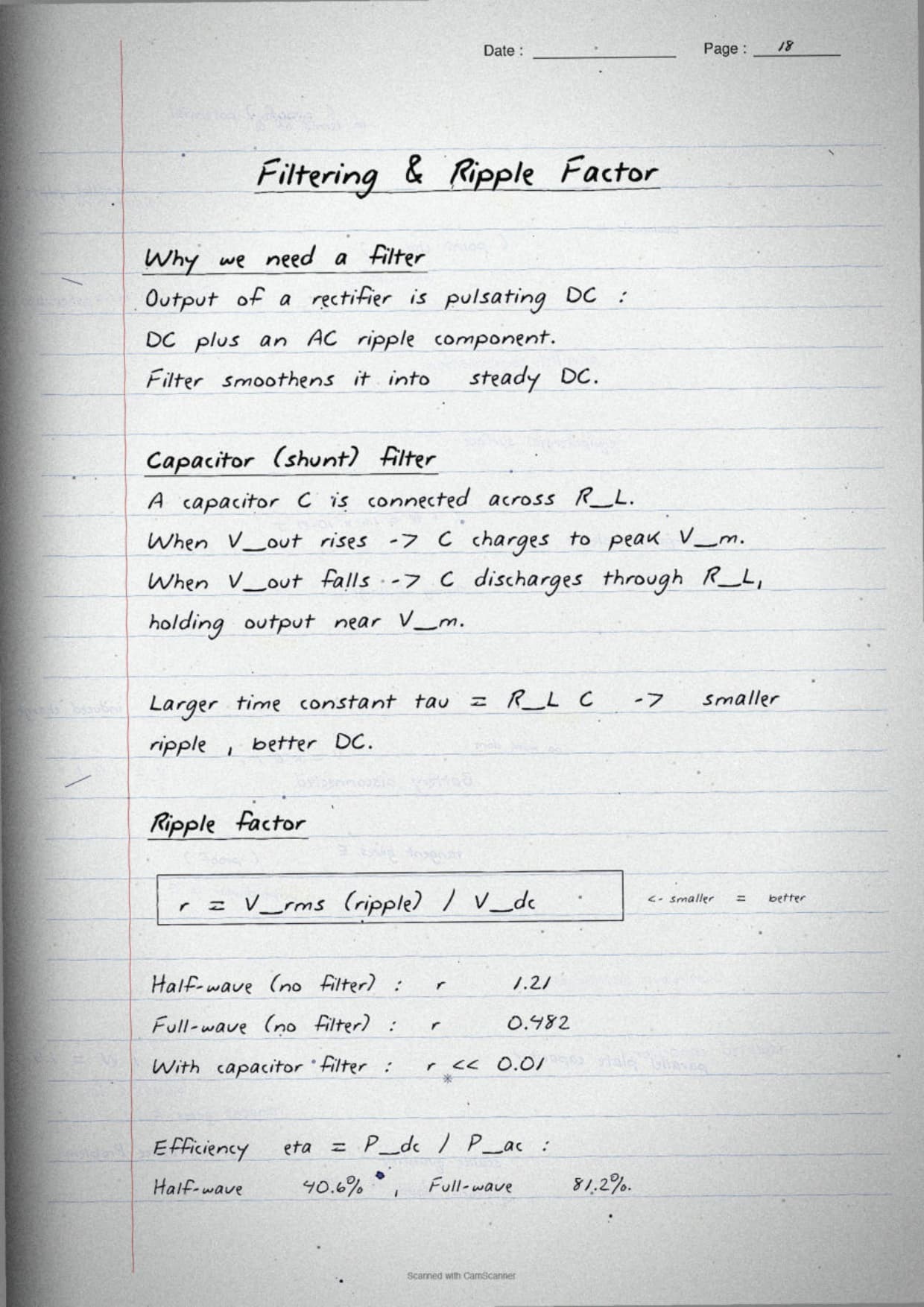

- Rectifiers (half-wave and full-wave): 3-mark on output and ripple

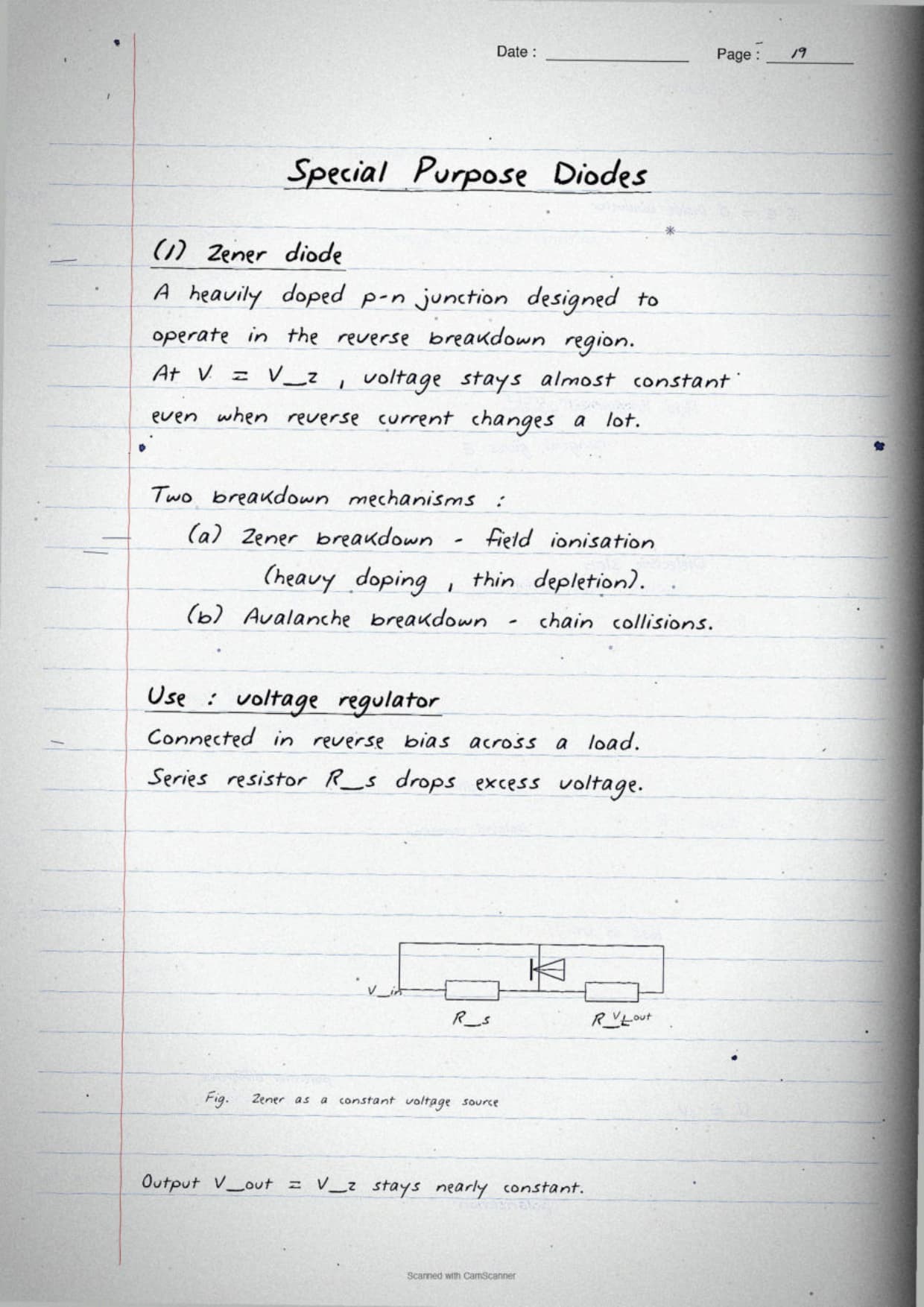

- Zener diode and logic gates: 3-mark on truth tables
Semiconductor Electronics Class 12 Video Lecture
Source: NCERT Wallah on YouTube

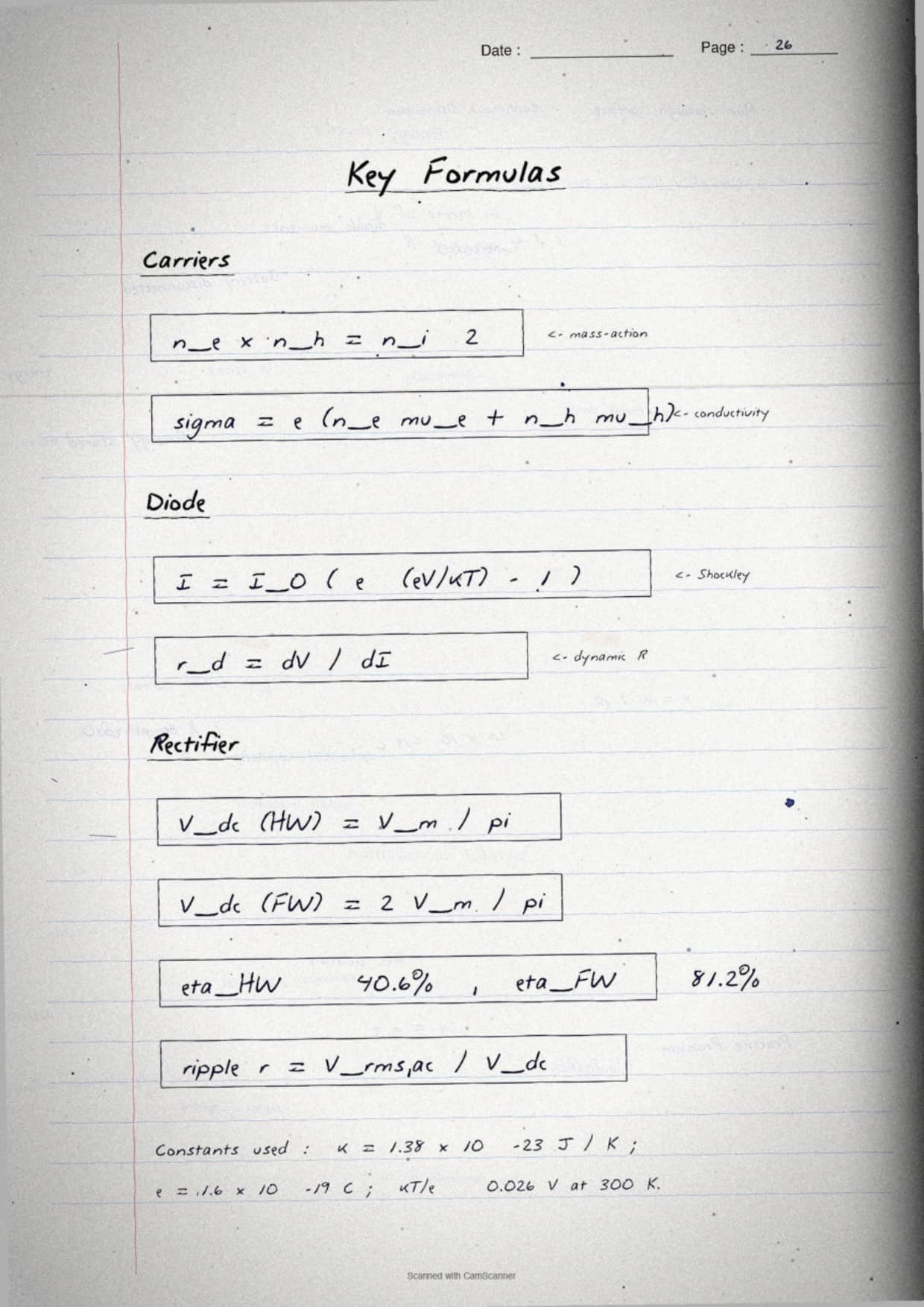

Class 12 Physics Chapter 14 All Formulas: Quick-Reference Table
These 9 formulas cover every numerical the chapter generates. The PDF carries the same list on its cover sheet for last-minute revision.
| Concept | Formula | SI Unit |
|---|---|---|

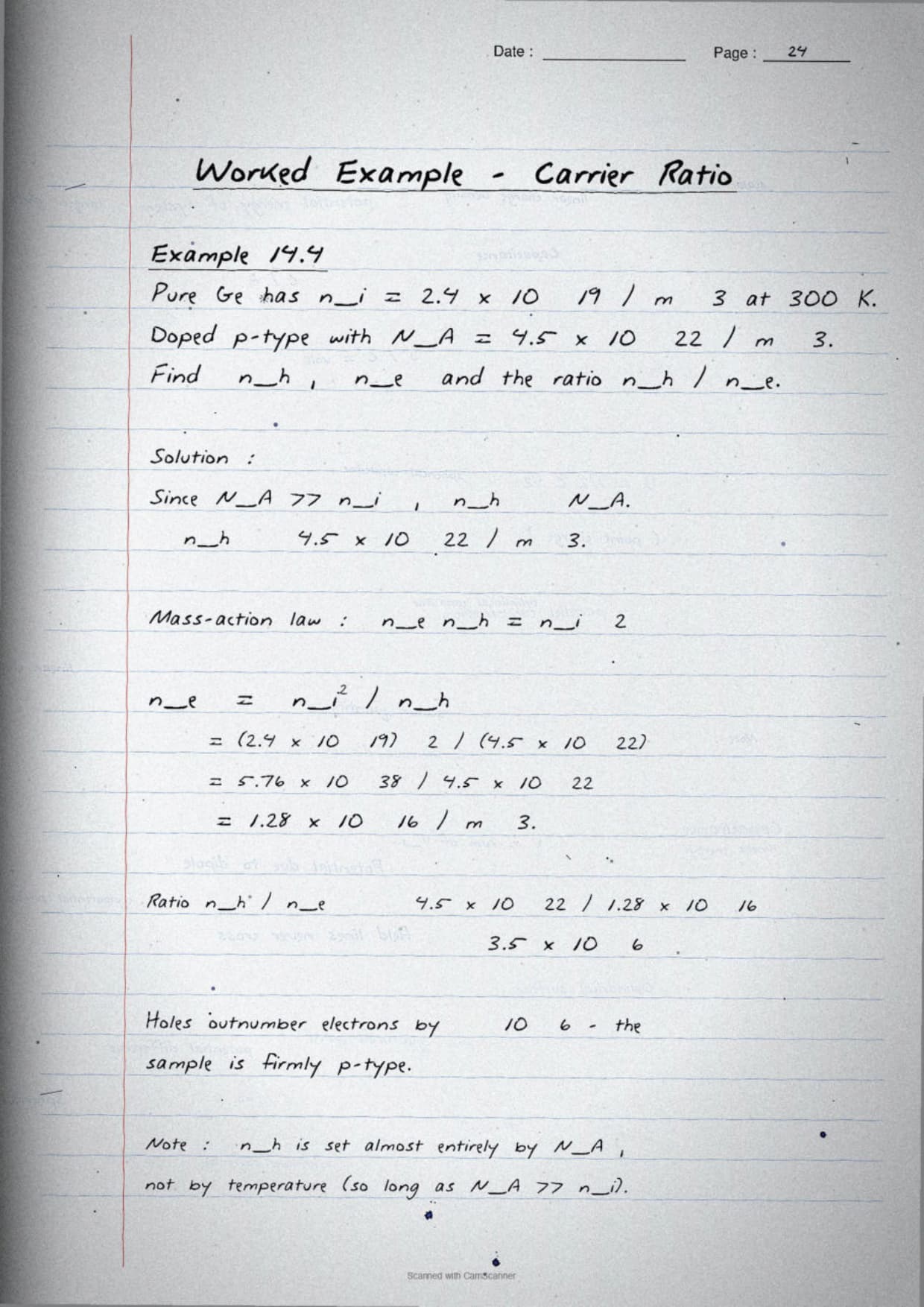

| Mass-action law | n p = n_i² | 1/m^6 |
| Conductivity | sigma = e (n mu_e + p mu_h) | S/m |
| Diode current (Shockley) | I = I_0 (e^(eV/kT) - 1) | ampere |
| Half-wave DC voltage | V_dc = V_max / pi | volt |

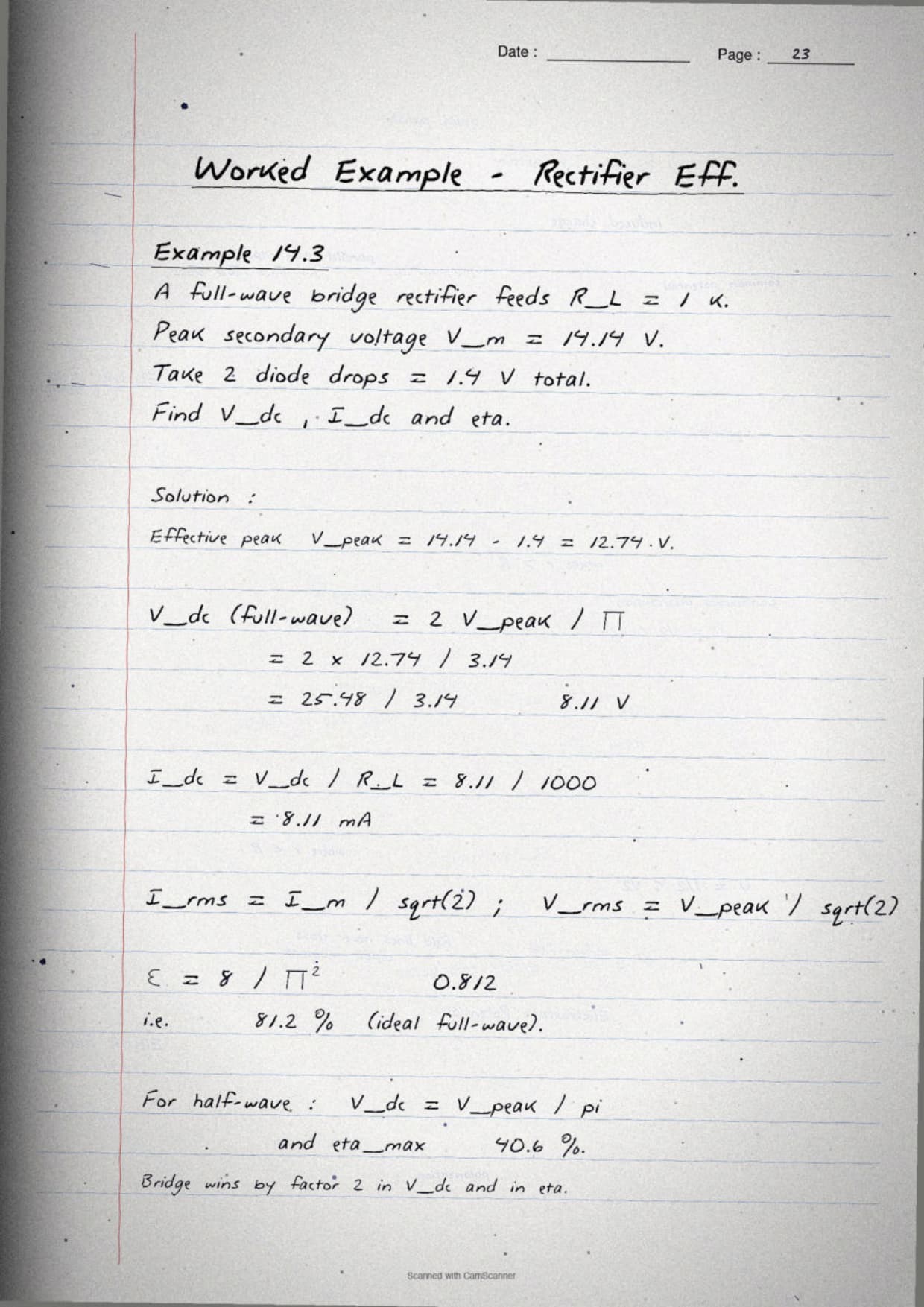

| Full-wave DC voltage | V_dc = 2 V_max / pi | volt |
| Half-wave efficiency | eta = 40.6% | % |
| Full-wave efficiency | eta = 81.2% | % |
| Ripple factor (half-wave) | r = 1.21 | n/a |
| Ripple factor (full-wave) | r = 0.48 | n/a |
Full formula sheet with derivations: Class 12 Physics Chapter 14 Formula Sheet
Class 12 Physics Chapter 14 All Derivations: Index Table
These 5 derivations carry the bulk of marks. Each one in the PDF includes the full geometry sketch and boundary-condition substitution.
| Derivation | Marks (CBSE) |
|---|---|

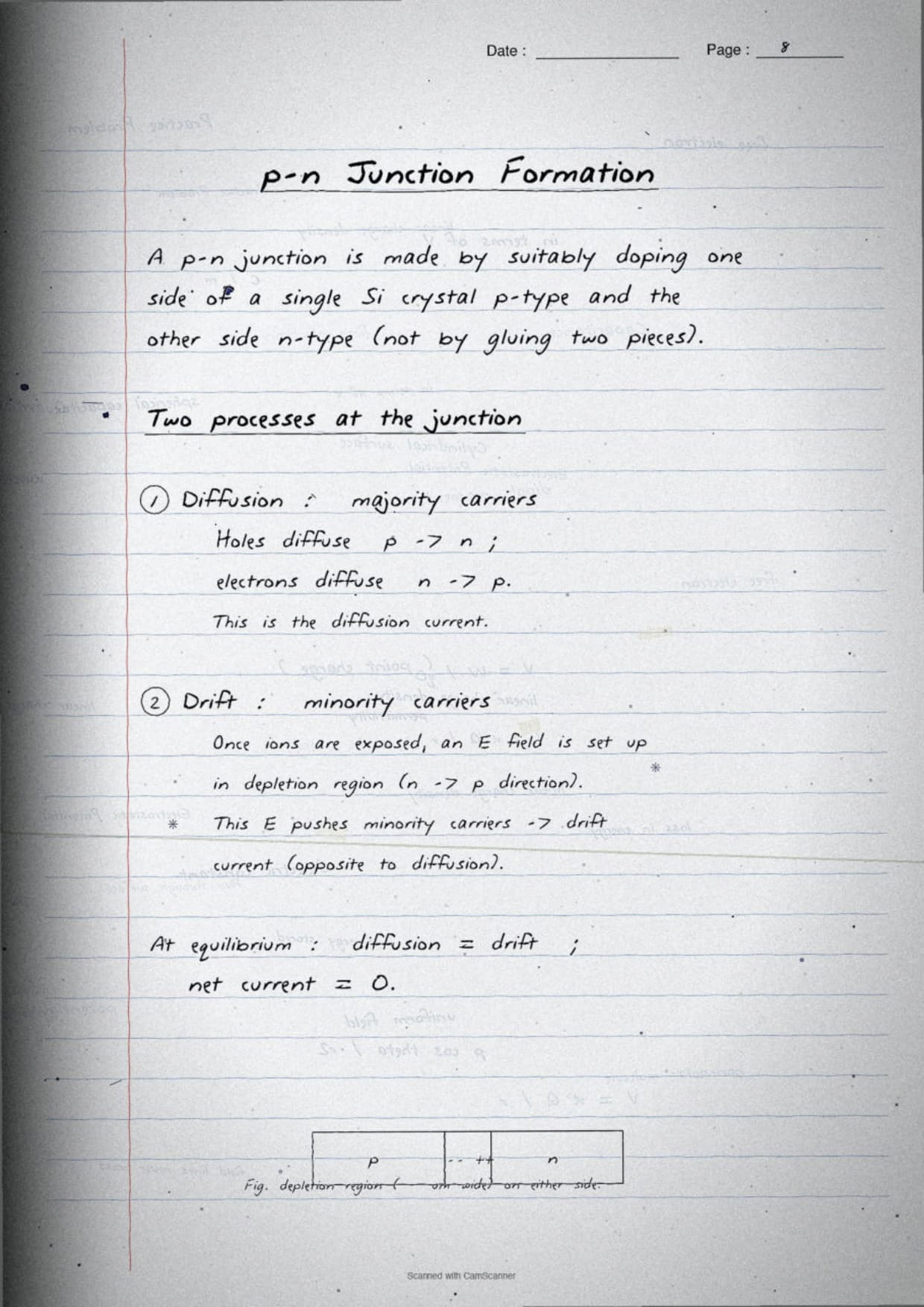

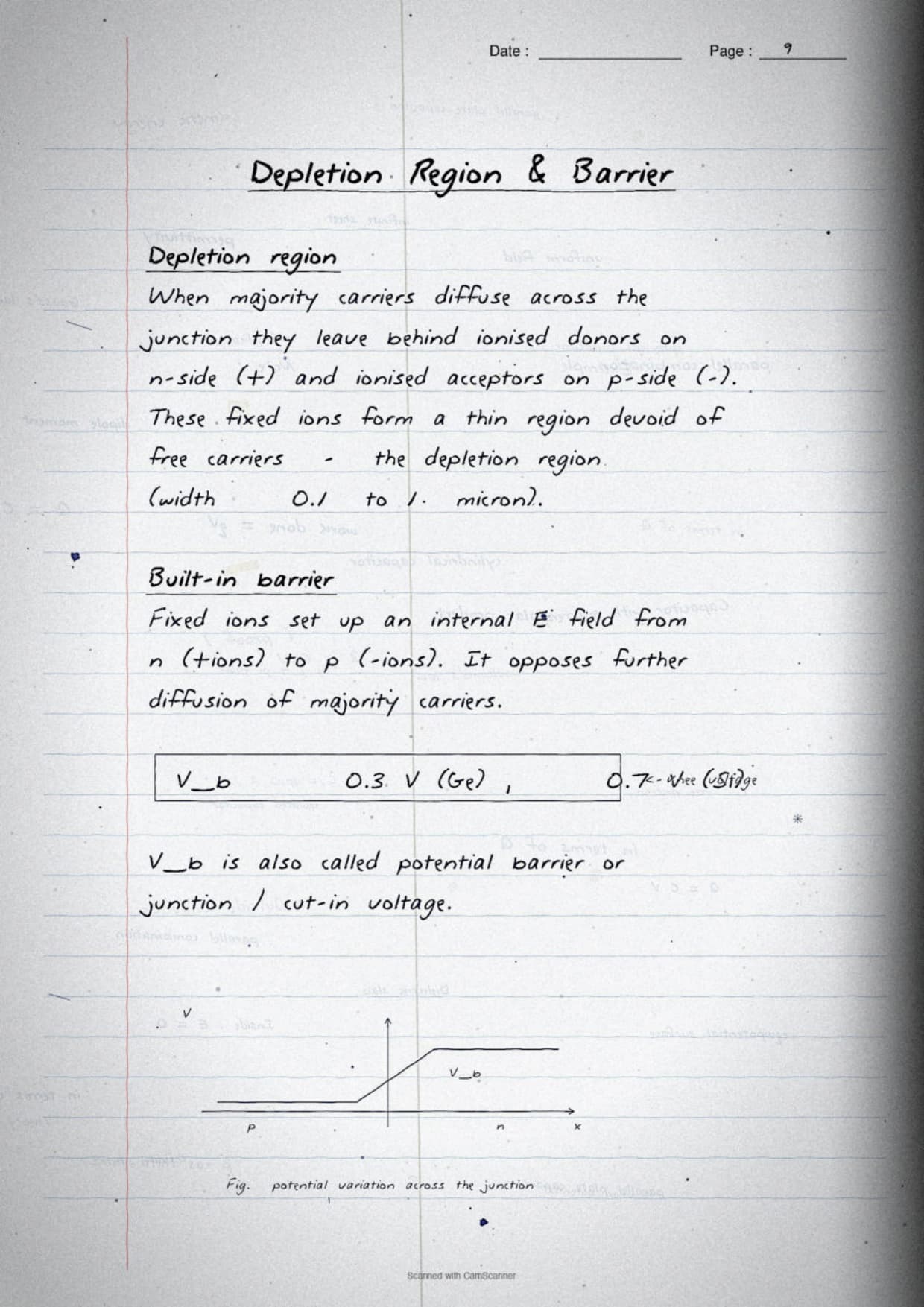

| p-n junction formation and depletion region | 3 |

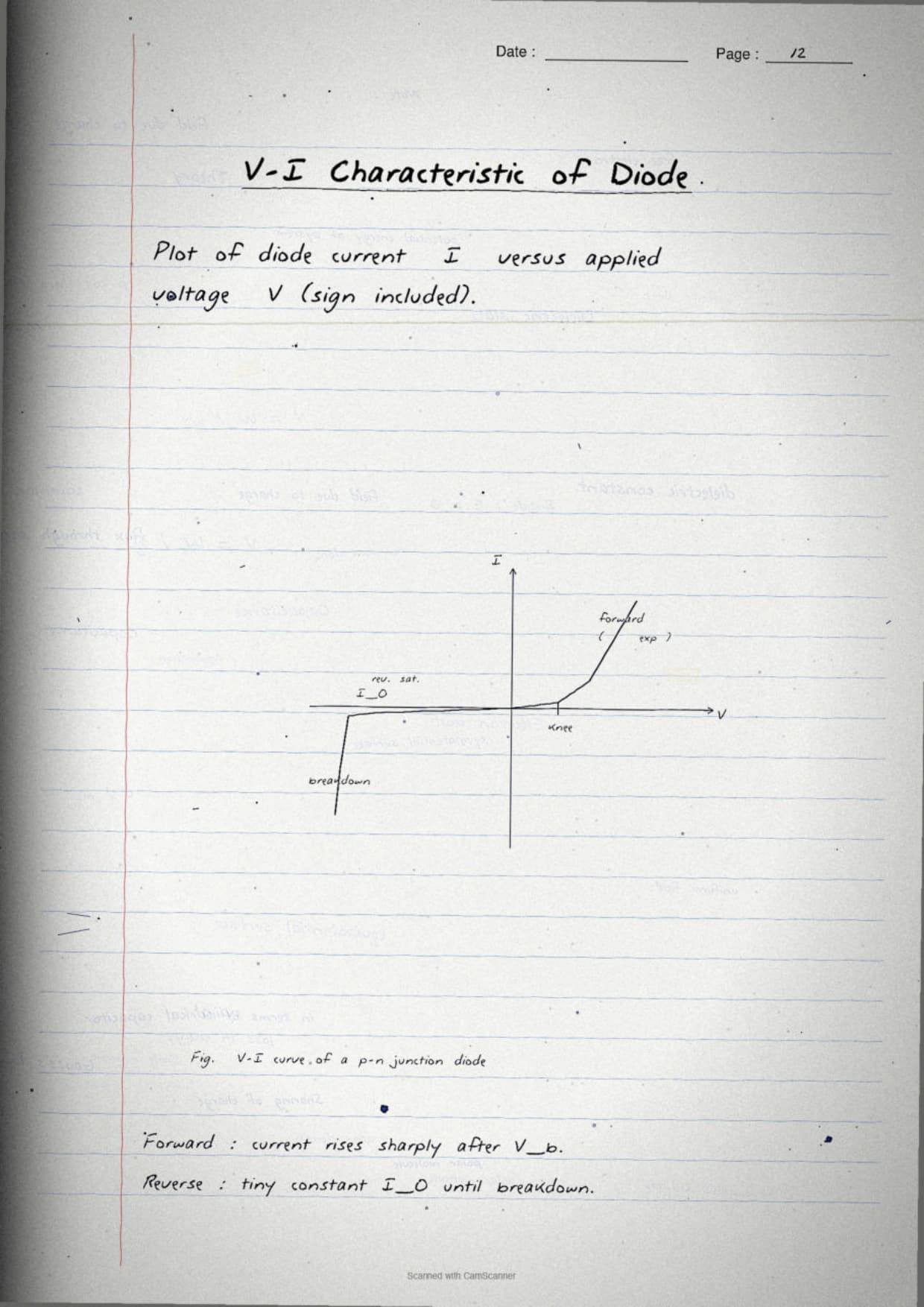

| Diode forward and reverse I-V characteristics | 3 |

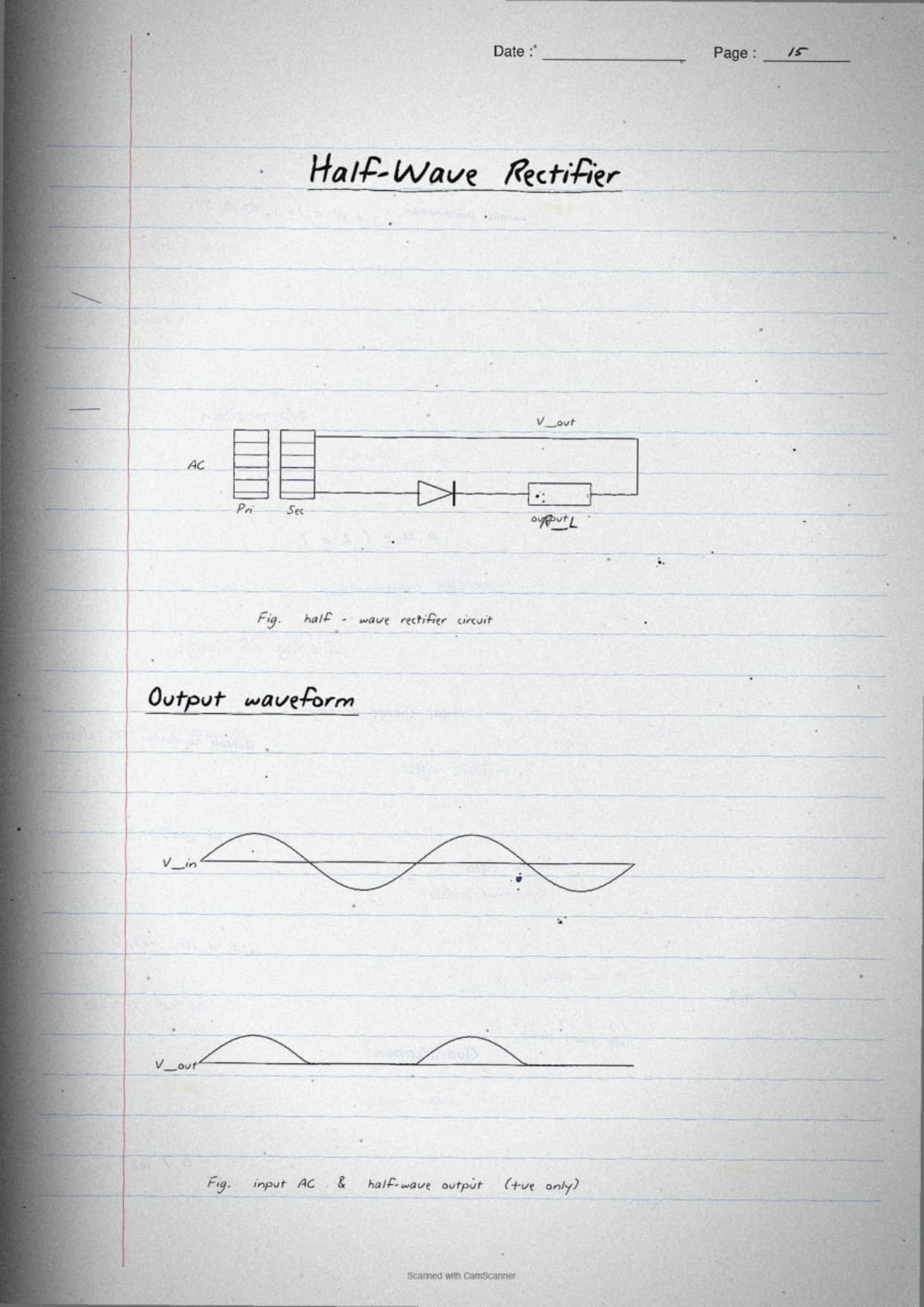

| Half-wave rectifier output | 3 |
| Full-wave rectifier output and ripple factor | 5 |
| Zener diode as voltage regulator | 3 |
Semiconductor Electronics Weightage Compared Across Class 12 Physics Chapters
CBSE board average marks over the last five papers, by chapter.
| Chapter | Topic | Avg CBSE Marks |
|---|---|---|
| Ch 1 | Electric Charges and Fields | 6 marks |
| Ch 2 | Electrostatic Potential and Capacitance | 7 marks |
| Ch 3 | Current Electricity | 7 marks |
| Ch 4 | Moving Charges and Magnetism | 6 marks |
| Ch 5 | Magnetism and Matter | 3 marks |
| Ch 6 | Electromagnetic Induction | 5 marks |
| Ch 7 | Alternating Current | 6 marks |
| Ch 8 | Electromagnetic Waves | 2 marks |
| Ch 9 | Ray Optics and Optical Instruments | 7 marks |
| Ch 10 | Wave Optics | 5 marks |
| Ch 11 | Dual Nature of Radiation and Matter | 4 marks |
| Ch 12 | Atoms | 3 marks |
| Ch 13 | Nuclei | 3 marks |
| Ch 14 | Semiconductor Electronics | 6 marks |
Semiconductor Electronics Previous Year Questions Weightage (2021 to 2026)
Every CBSE Board, JEE Main, and NEET appearance of Chapter 14 topics over the last six sessions.
| Year | CBSE Board | JEE Main | NEET |
|---|---|---|---|
| 2026 | p-n junction diode I-V (5 marks) | Zener voltage regulator (4 marks) | Diodes, logic gates and rectifiers (3 questions) |
| 2025 | Full-wave rectifier (5 marks) | LED working principle | Doping type MCQ |
| 2024 | Intrinsic vs extrinsic semiconductor (3 marks) | Diode forward bias characteristic | Logic gate truth table |
| 2023 | Half-wave rectifier output (3 marks) | n-type vs p-type comparison | NAND gate MCQ |
| 2022 | Energy band diagram (3 marks) | Ripple factor calculation | Solar cell working |
| 2021 | - | Zener breakdown mechanism | Conduction band MCQ |
Student Feedback
In a Collegedunia poll of 14,260 Class 12 Physics students before the 2026 boards:
- 69% of students rated rectifier output computations as the trickiest sub-topic, ahead of logic-gate truth tables.
- 57% found logic-gate truth tables confusing in at least one class test.
- 4 out of 5 students practised the p-n junction derivation the night before boards.
- Average first-read time: 5.0 hours; focused revision: 2.4 hours.
- 61% of students read these notes at least twice before boards.
Source: 2025-26 Class 12 Physics student poll. Sample of 14,260 students from CBSE schools across 16 states.
How to Revise Semiconductor Electronics Class 12 Chapter 14 in 2 Hours
- 0 to 30 min: Energy bands + intrinsic vs extrinsic semiconductors. Solve 2 numericals.
- 30 to 60 min: n-type and p-type semiconductors derivation walkthrough.
- 60 to 90 min: Rectifiers (half-wave and full-wave) block.
- 90 to 120 min: Flush through the 9-formula table and the 5-derivation index.
Budget 5 to 6 hours for first-read. Start after finishing the Atoms chapter as the prerequisite.
Common Mistakes in Semiconductor Electronics Class 12
Mistake 1: Skipping the unit balance step. CBSE markers award marks for showing dimensional consistency on derivations.
Mistake 2: Confusing scalar and vector quantities in formulas. Add scalars algebraically, vectors as components.
Mistake 3: Forgetting boundary conditions in the p-n junction derivation. State assumptions explicitly before doing the algebra.
Mistake 4: Using approximate values when the question demands exact symbolic answers. Boards mark down for premature numerical substitution.
Each one costs 1 to 2 marks.
Other Resources for Class 12 Physics Chapter 14 Semiconductor Electronics
| Resource | Link |
|---|---|
| NCERT Solutions | Class 12 Semiconductors NCERT Solutions |
| Formula Sheet | Class 12 Physics Chapter 14 Formula Sheet |
| NCERT Book PDF | Class 12 Semiconductors NCERT Book PDF |
| Exemplar Book PDF | Class 12 Semiconductors NCERT Exemplar Book PDF |
| Exemplar Solutions | Class 12 Semiconductors NCERT Exemplar Solutions |
| Handwritten Notes | Semiconductor Electronics Handwritten Notes (this page) |
NCERT Handwritten Notes for Class 12 Physics: All Chapters
| Chapter | Resource |
|---|---|
| Chapter 1 | Electric Charges and Fields Handwritten Notes |
| Chapter 2 | Electrostatic Potential and Capacitance Handwritten Notes |
| Chapter 3 | Current Electricity Handwritten Notes |
| Chapter 4 | Moving Charges and Magnetism Handwritten Notes |
| Chapter 5 | Magnetism and Matter Handwritten Notes |
| Chapter 6 | Electromagnetic Induction Handwritten Notes |
| Chapter 7 | Alternating Current Handwritten Notes |
| Chapter 8 | Electromagnetic Waves Handwritten Notes |
| Chapter 9 | Ray Optics and Optical Instruments Handwritten Notes |
| Chapter 10 | Wave Optics Handwritten Notes |
| Chapter 11 | Dual Nature of Radiation and Matter Handwritten Notes |
| Chapter 12 | Atoms Handwritten Notes |
| Chapter 13 | Nuclei Handwritten Notes |
| Chapter 14 | Semiconductor Electronics Handwritten Notes |
Class 12 Physics Chapter 14 Semiconductor Electronics Handwritten Notes FAQs
Ques. What are the main topics in Class 12 Physics Chapter 14 handwritten notes?
Ans. The notes cover energy bands (conductor, insulator, semiconductor), intrinsic vs extrinsic semiconductors, n-type and p-type semiconductors, p-n junction and diode, rectifiers (half-wave and full-wave), and zener diode and logic gates.
Ques. What are the most-asked derivations in Semiconductor Electronics Class 12?
Ans. Five derivations carry the chapter's mark weight: p-n junction formation and depletion region, diode forward and reverse I-V characteristics, half-wave rectifier output, full-wave rectifier output and ripple factor, and zener diode as voltage regulator.
Ques. How many formulas are in the Chapter 14 handwritten notes PDF?
Ans. Nine formulas cover every numerical the chapter generates. The Quick-Reference Table above lists all of them with SI units. The PDF carries the same table on its cover sheet.
Ques. What is the weightage of Class 12 Physics Chapter 14 Semiconductor Electronics?
Ans. Chapter 14 carries 6 marks in CBSE Class 12 Physics, 3 to 4 percent in JEE Main, and 2 to 3 questions per year in NEET.
Ques. Where can I download the Class 12 Physics Chapter 14 handwritten notes PDF?
Ans. The PDF is available on this page via the flipbook above. It covers all 9 formulas, 5 derivations, and worked numericals for the 2026-27 NCERT syllabus.
