This page hosts the Vector Algebra Class 12 Formulas, and hosts the Vector Algebra Class 12 Formulas for Class 12 Mathematics Chapter 10 Vector Algebra. The file presents the formula sheet in the order they appear in the NCERT textbook, with each entry followed by a one-line note on its standard use. the PDF are intended for last-revision and exam-day recall.
- CBSE Weightage: 5 to 7 marks, typically one 5-mark long answer on cross product or projection plus a 2-mark short answer on direction cosines.

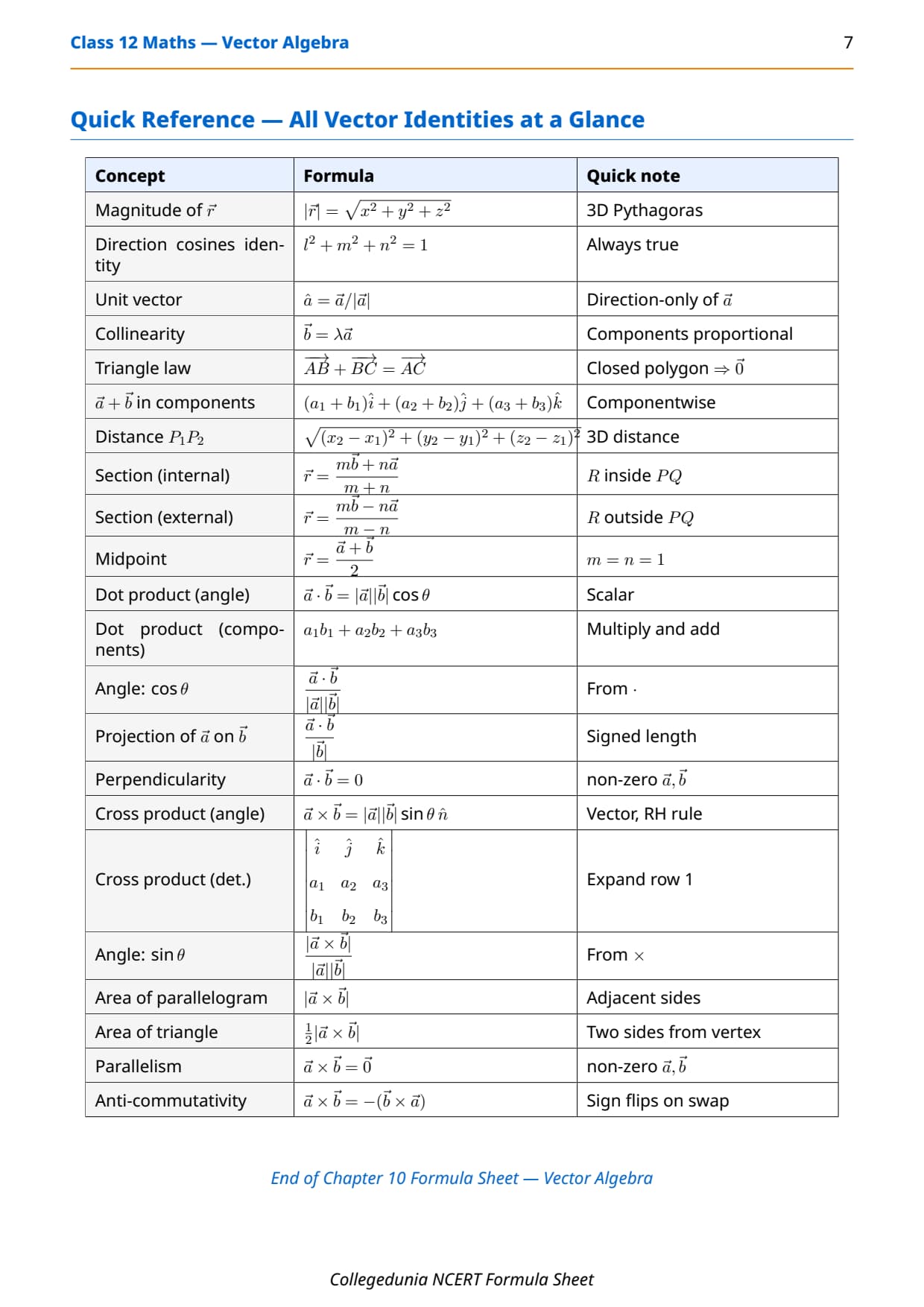

The full sheet carries 38 working formulas across 6 NCERT sections, organised by operation so a student can map a question stem to a recipe in under thirty seconds.
This Formula Sheet is curated by Class 12 Maths experts at Collegedunia, mapped to the 2026-27 NCERT edition, and refined against the last five years of CBSE Board and JEE Main papers.

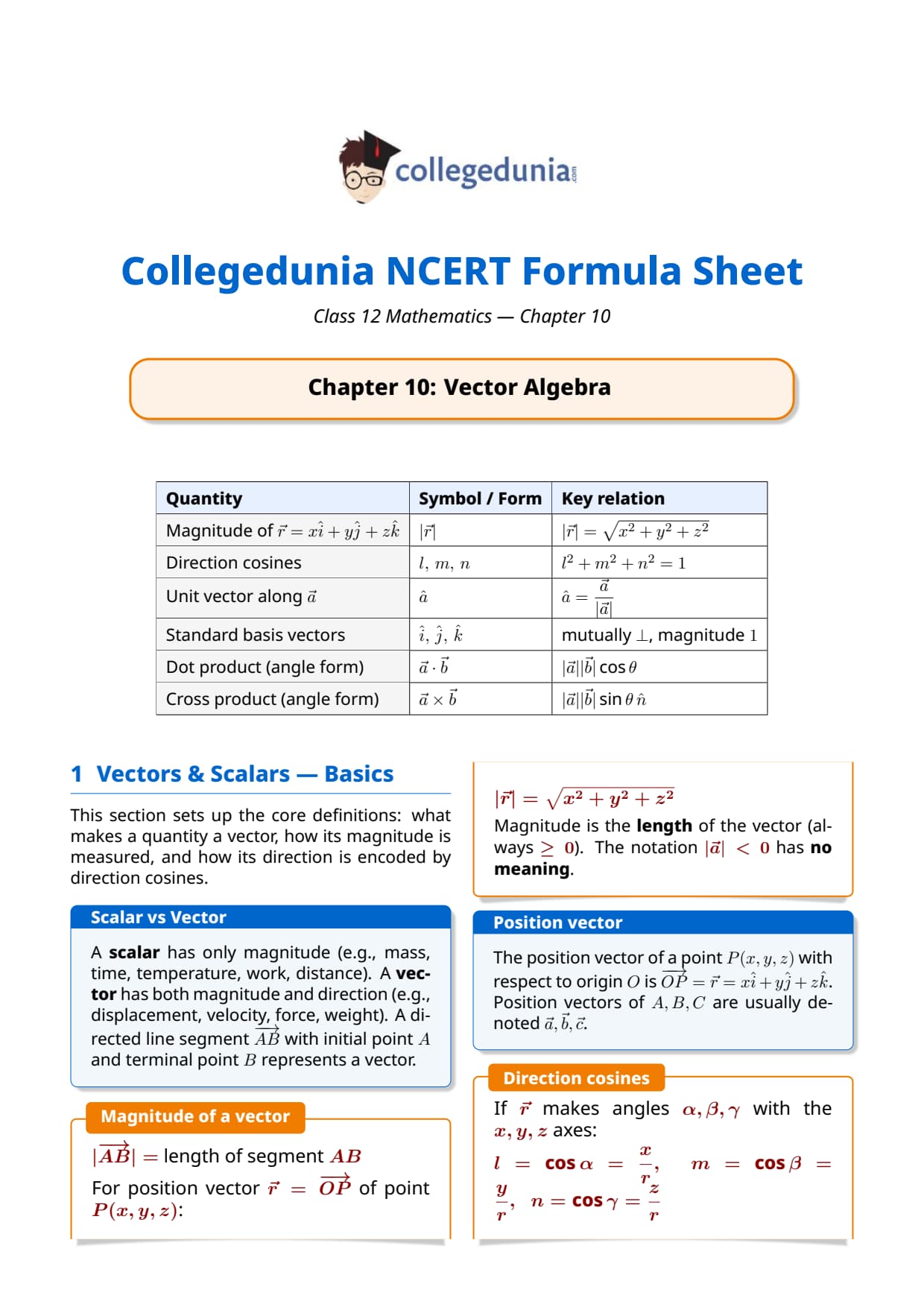

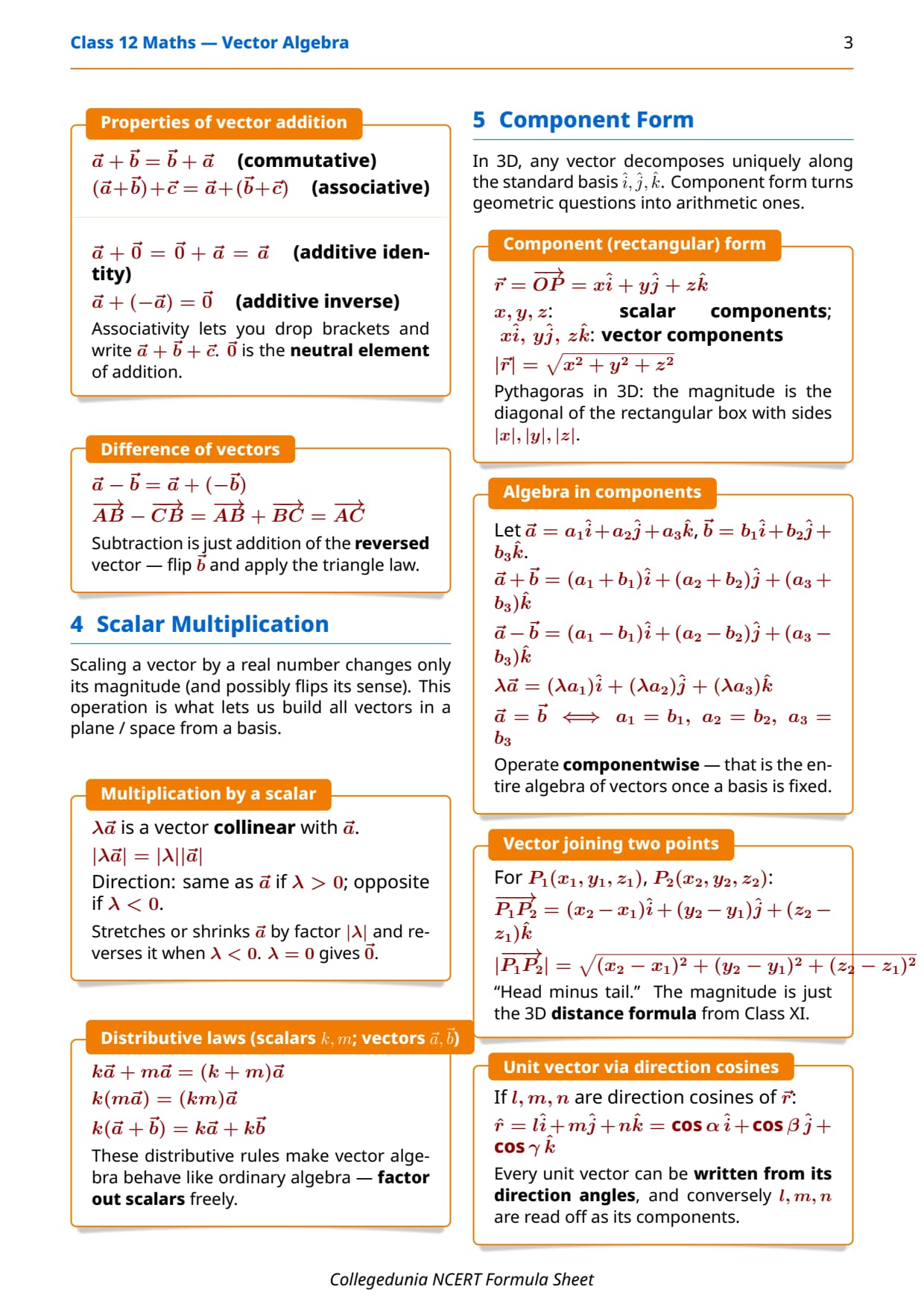

Vector Algebra Class 12 Formulas: Sheet Structure
These notes sheet compresses 40 NCERT pages into six pages of pure formulas, organised by operation so the student can map a question stem to a recipe in seconds. Roughly 75% of CBSE board marks on Vector Algebra are awarded for correctly applying the dot product, cross product, and projection formulas verbatim.
- Operation-first layout groups formulas by vector operation (addition, dot, cross, projection), not by NCERT section.
- Cross product block isolates the determinant form, the area formulas, and the right-hand rule as a standalone box.
- PYQ hit-rate tags flag which standard forms appeared in CBSE and JEE Main 2021 to 2025 papers.
Vector Algebra Video Walkthrough
Source: Magnet Brains on YouTube

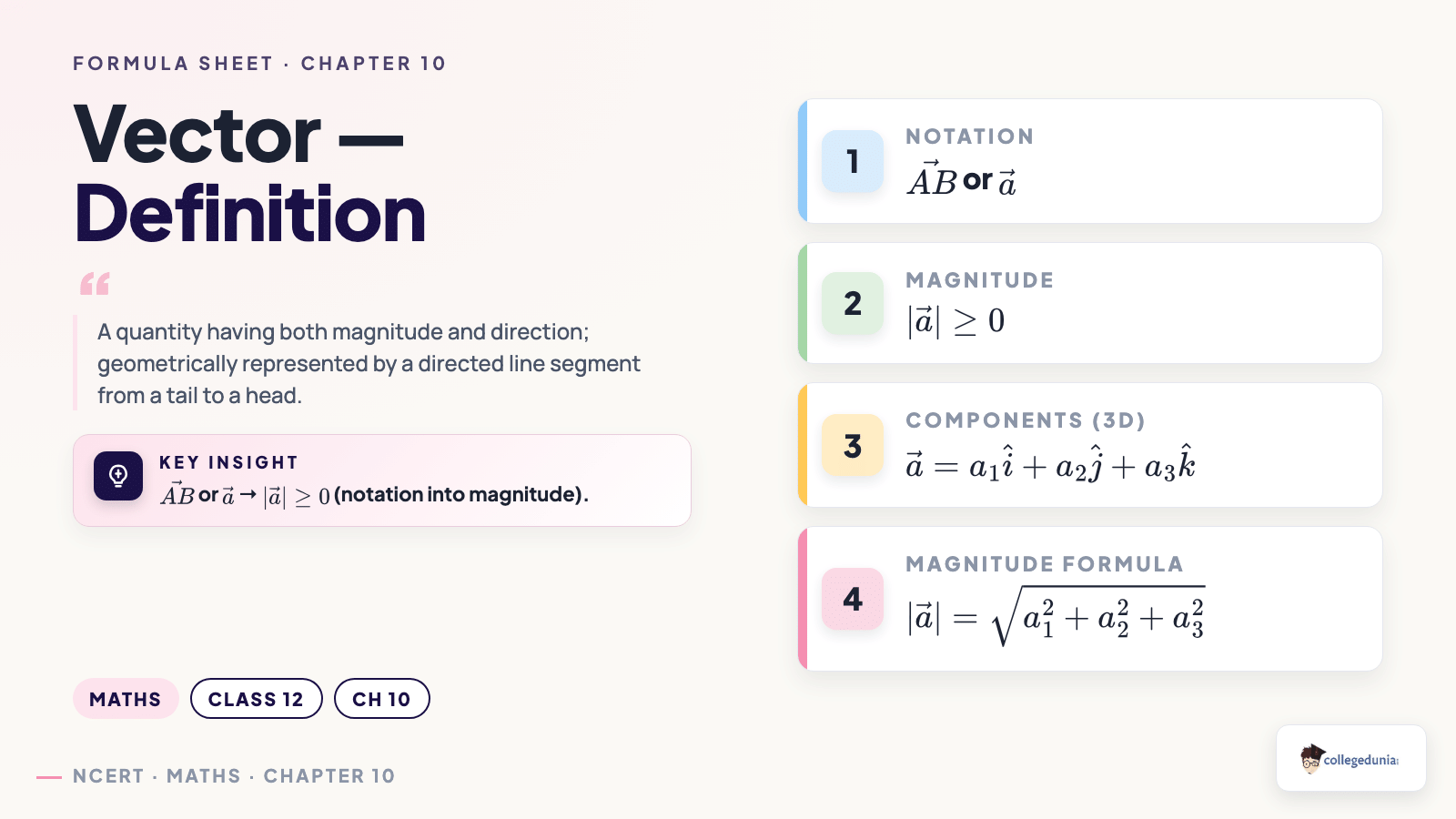

Position Vector and Section Formula for Class 12 Vector Algebra
The this Class 12 page address this in the same order as the NCERT textbook.
NCERT Section 10.4 defines the position vector and the section formula, both of which feed directly into 3D Geometry in Chapter 11. Most multi-part board questions on vectors open with a position-vector setup.
| Concept | Formula | Use Case |
|---|---|---|
| Position Vector | OP⃗ = xî + yĵ + zk̂ for point P(x, y, z) | Locate any point in 3D space relative to the origin. |
| Magnitude | OP⃗ = √x2 + y2 + z2 | Length of position vector from origin to P. |
| Vector Joining Two Points | AB⃗ = OB⃗ - OA⃗ = (x2-x1)î + (y2-y1)ĵ + (z2-z1)k̂ | Direction vector from A to B. |
| Internal Section Formula | r⃗ = mb⃗ + na⃗m + n | Point dividing segment AB internally in ratio m:n. |
| External Section Formula | r⃗ = mb⃗ - na⃗m - n | Point dividing segment AB externally in ratio m:n. |
| Midpoint | r⃗ = a⃗ + b⃗2 | Midpoint of segment joining A and B. |

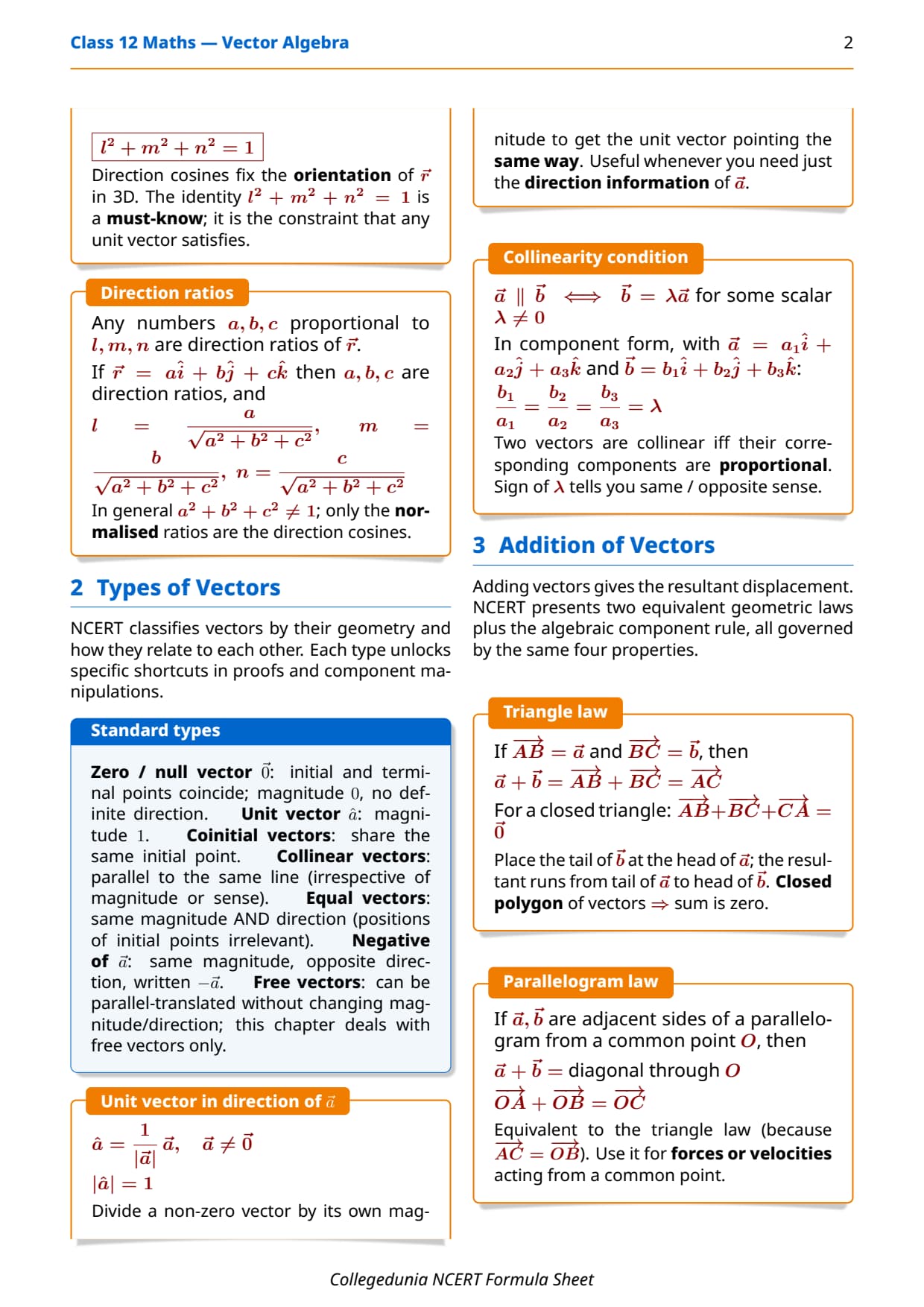

Unit Vector, Direction Cosines and Direction Ratios for Class 12 Maths
The the resource address this in the same order as the NCERT textbook.
Direction cosines and direction ratios are a fixed 2-mark short answer in CBSE. Direction cosines are the cosines of the angles a vector makes with the x, y and z axes; direction ratios are any three numbers proportional to those cosines.
| Concept | Formula | Quick Note |
|---|---|---|
| Unit Vector | â = a⃗a⃗ | Direction of a⃗ with unit length. |
| Standard Basis | î, ĵ, k̂ along x, y, z axes | Each has magnitude 1; mutually perpendicular. |
| Direction Cosines | l = cosα = a1a⃗ , m = cosβ = a2a⃗ , n = cosγ = a3a⃗ | For a⃗ = a1î + a2ĵ + a3k̂. |
| DC Identity | l2 + m2 + n2 = 1 | Always true for direction cosines. |
| Direction Ratios | a : b : c = l : m : n | Any non-zero scalar multiple of the DCs. |
| DCs from DRs | l = a√a2+b2+c2 and similar for m, n | Normalise the direction ratios. |

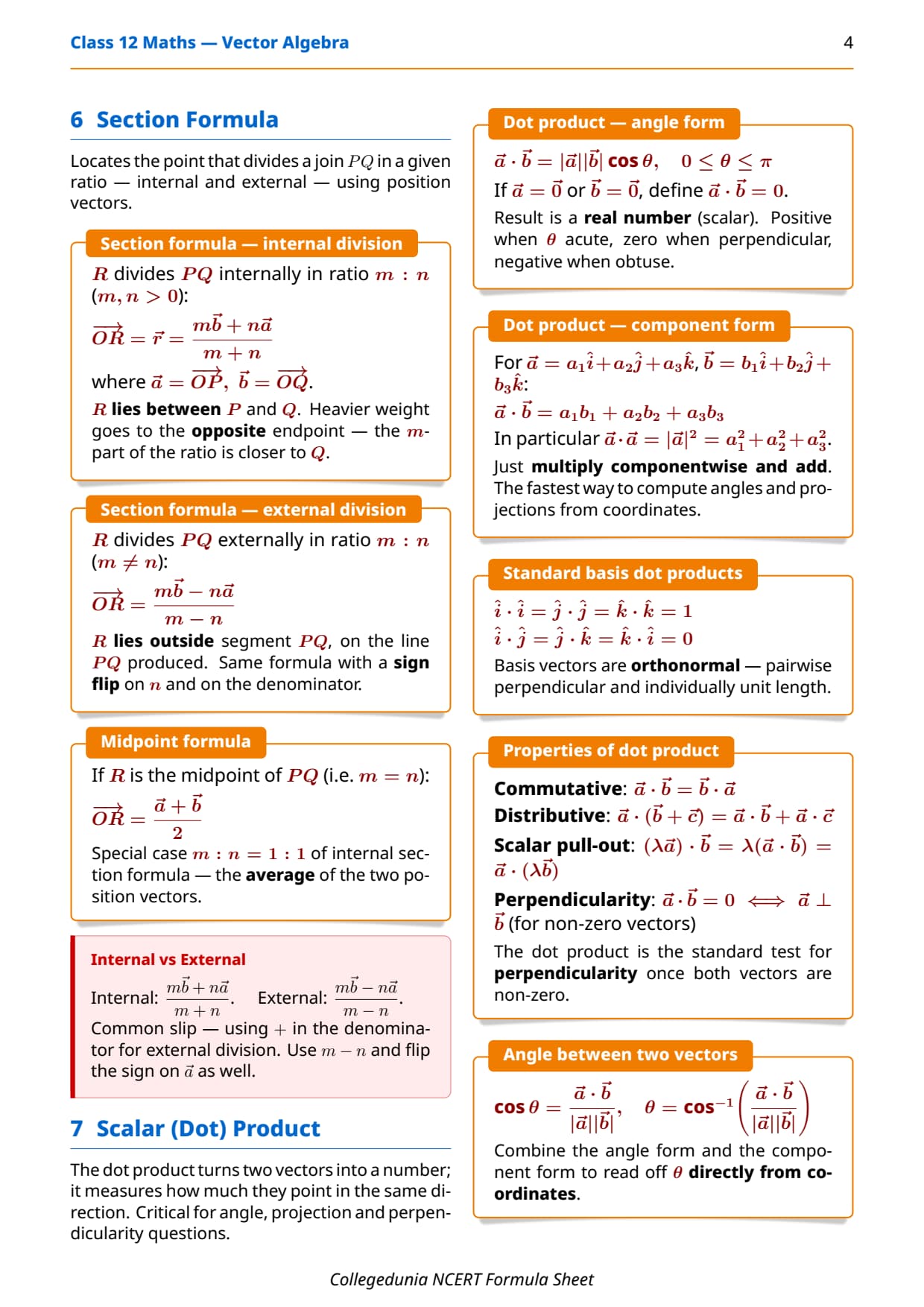

Scalar (Dot) Product Class 12 Maths Formula Sheet
The chapter notes address this in the same order as the NCERT textbook.
The scalar product is the workhorse of Vector Algebra. Every CBSE Class 12 Maths paper since 2019 has carried at least one 2-mark or 3-mark question on the dot product. Two forms must be memorised: trigonometric for angle problems, algebraic for component vectors.
| Form | Formula | Use Case |
|---|---|---|
| Trigonometric | a⃗ · b⃗ = a⃗ b⃗ cosθ | When magnitudes and angle are given. |
| Algebraic (Components) | a⃗ · b⃗ = a1b1 + a2b2 + a3b3 | When component forms are given. |
| Angle Between Vectors | cosθ = a⃗ · b⃗a⃗ b⃗ | Rearrangement to find θ. |
| Perpendicularity Test | a⃗ · b⃗ = 0 a⃗ ⊥ b⃗ (both non-zero) | Quick check from components. |
| Projection of a⃗ on b⃗ | projb⃗a⃗ = a⃗ · b⃗b⃗ | Scalar component along b⃗. |
| Vector Projection | p⃗ = (a⃗ · b⃗b⃗ 2)b⃗ | Vector form of the projection. |
| Square of Magnitude | a⃗ · a⃗ = a⃗ 2 | Self-dot equals magnitude squared. |
| Distributivity | a⃗ · (b⃗ + c⃗) = a⃗ · b⃗ + a⃗ · c⃗ | Linearity over addition. |

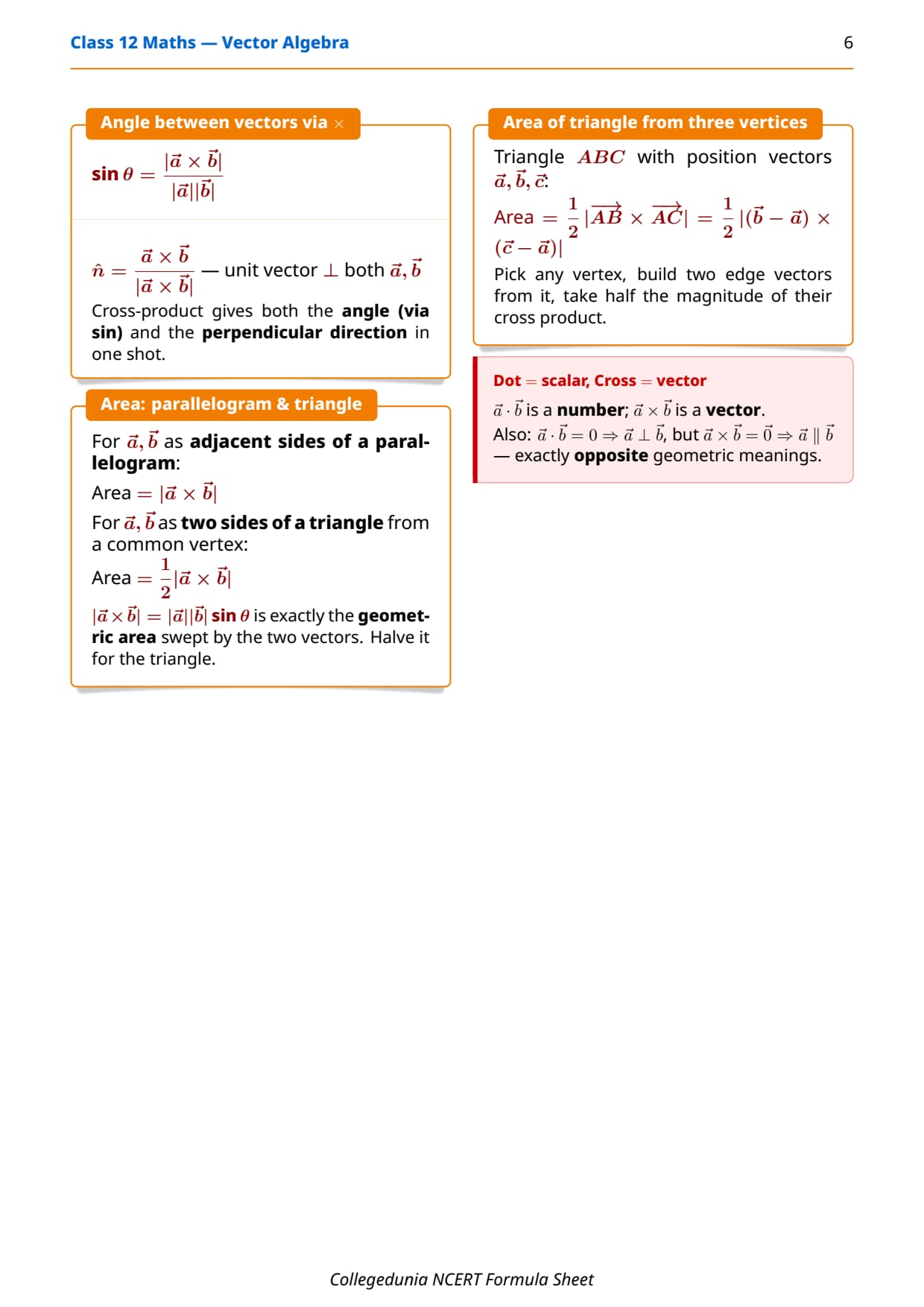

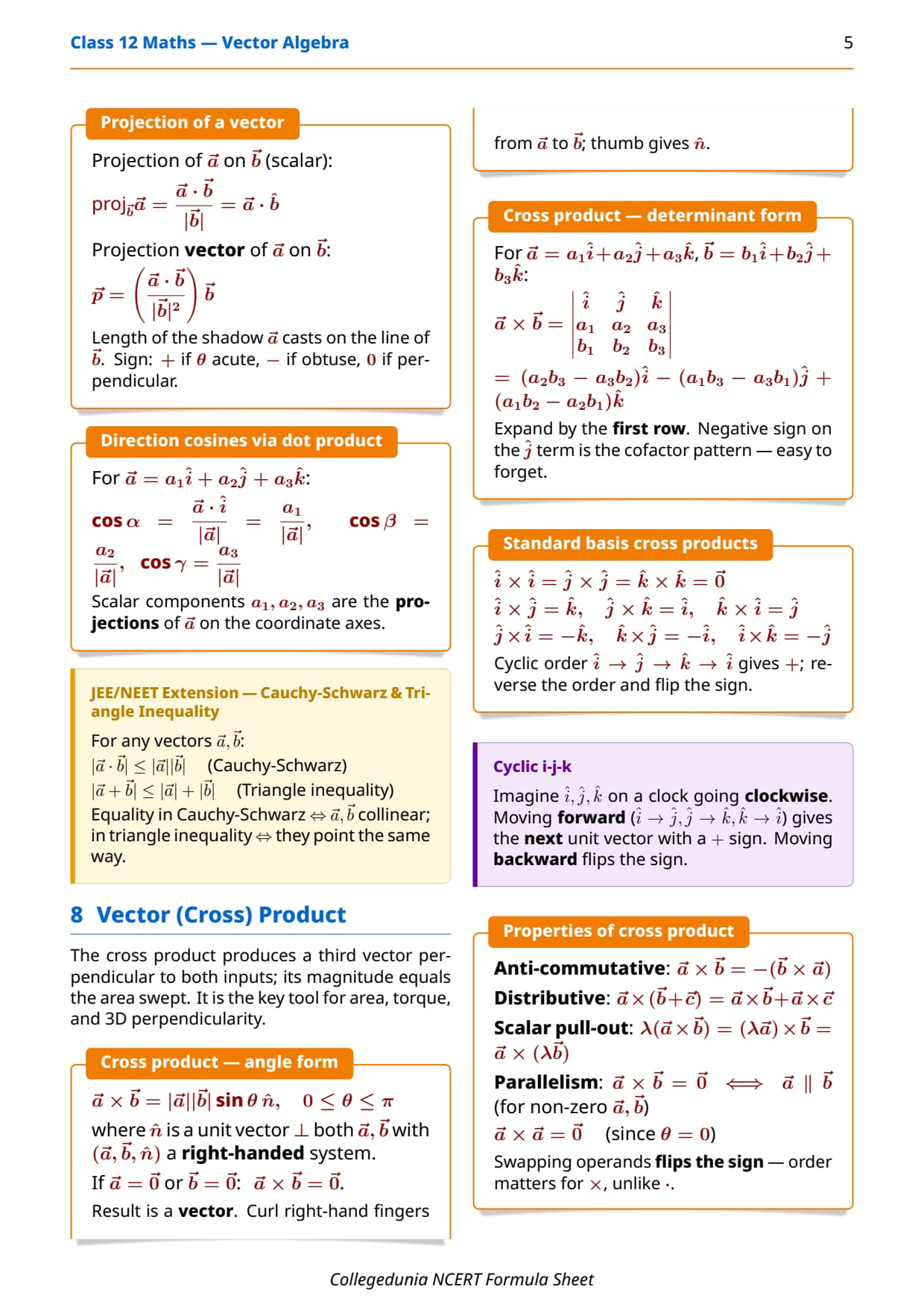

Vector (Cross) Product Formula Sheet for Class 12 Maths Chapter 10
Cross product is the highest-marks topic in the the PDF. The 5-mark long-answer slot in CBSE Class 12 Vector Algebra is almost always built around it, either to compute an area or to find a vector perpendicular to two given vectors.
| Form | Formula | Use Case |
|---|---|---|

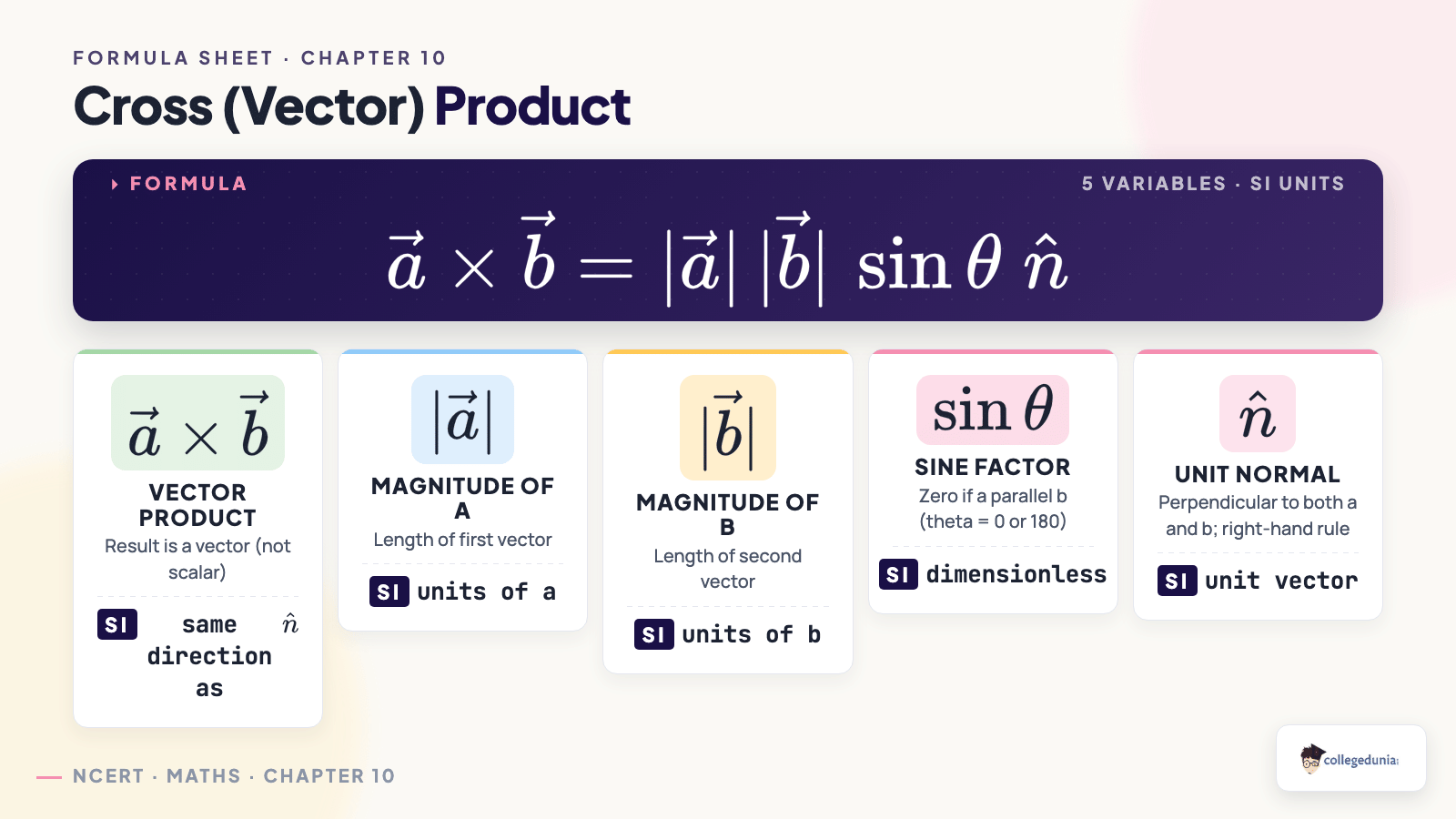

| Trigonometric | a⃗ × b⃗ = a⃗ b⃗ sinθ n̂ | n̂ is the unit vector by right-hand rule. |
| Determinant Form | a⃗ × b⃗ = vmatrix î & ĵ & k̂ a1 & a2 & a3 b1 & b2 & b3 vmatrix | Default method for component vectors. |
| Magnitude | a⃗ × b⃗ = a⃗ b⃗ sinθ | θ is the angle between vectors. |
| Parallelism Test | a⃗ × b⃗ = 0⃗ a⃗ ∥ b⃗ (both non-zero) | Quick check from components. |
| Area of Parallelogram (adjacent sides) | A = a⃗ × b⃗ | Sides a⃗ and b⃗ from one vertex. |
| Area of Parallelogram (diagonals) | A = 12d1⃗ × d2⃗ | Diagonals d1⃗ and d2⃗. |
| Area of Triangle | A = 12AB⃗ × AC⃗ | Triangle with vertices A, B, C. |
| Anti-commutative | a⃗ × b⃗ = -(b⃗ × a⃗) | Cross product is sign-sensitive to order. |
| Unit Vector Perpendicular to Both | n̂ = a⃗ × b⃗a⃗ × b⃗ | Direction normal to the plane of a⃗, b⃗. |
Scalar Triple Product and Standard Vector Identities in Class 12 Maths
The scalar triple product appears as a 2-mark or 3-mark coplanarity question in most CBSE papers. The identities below cover the rest of the short-answer scoring.
| Identity | Formula | Where Tested |
|---|---|---|
| Scalar Triple Product | [a⃗ b⃗ c⃗] = a⃗ · (b⃗ × c⃗) = vmatrix a1 & a2 & a3 b1 & b2 & b3 c1 & c2 & c3 vmatrix | Volume of parallelepiped; coplanarity check. |
| Coplanarity Condition | [a⃗ b⃗ c⃗] = 0 iff a⃗, b⃗, c⃗ are coplanar. | CBSE 2024, 2022 |
| Lagrange's Identity | a⃗ × b⃗ 2 + (a⃗ · b⃗)2 = a⃗ 2 b⃗ 2 | JEE Main 2024, CBSE 2023 |
| Three Collinear Points | AB⃗ = λ AC⃗ for some scalar λ | JEE Main 2023, CUET 2024 |
Top 5 PYQ Templates Class 12 Vector Algebra Sets Every Year
Across CBSE Class 12 Maths papers 2021 to 2025, Vector Algebra questions cluster into five repeating templates. Drilling these covers more than 90% of past board-paper variants.
| PYQ Template | Formula Used | Last Asked |
|---|---|---|
| Find a unit vector perpendicular to two given vectors | n̂ = a⃗ × b⃗a⃗ × b⃗ | CBSE 2024, JEE Main 2025 |
| Area of triangle with given vertices | A = 12AB⃗ × AC⃗ | CBSE 2025 |
| Angle between two vectors | cosθ = a⃗ · b⃗a⃗ b⃗ | CBSE 2023, JEE Main 2024 |
| Projection of one vector on another | projb⃗a⃗ = a⃗ · b⃗b⃗ | CBSE 2022, CUET 2024 |
| Direction cosines from two given points | l = x2-x1√∑ (x2-x1)2 and similar | CBSE 2021, 2025 |
Full year-wise PYQ map: See the dedicated Vector Algebra NCERT Solutions for Class 12 Maths for fully solved PYQs with marking-scheme step weightages.
Vector Algebra Chapter Weightage Across CBSE, JEE Main and CUET
The marks share of Vector Algebra across the three Class 12 exams is summarised below. JEE Main 2025 led the year with two questions tagged to the this chapter; CBSE Board 2025 carried a 5-mark long answer plus a 2-mark short answer.
| Exam | 2025 | 2024 | 2023 | 2022 | 2021 |
|---|---|---|---|---|---|
| CBSE Class 12 Maths | 7 marks | 5 marks | 6 marks | 5 marks | 6 marks |
| JEE Main (Maths) | 2 Qs | 3 Qs | 2 Qs | 2 Qs | 1 Q |
| CUET (UG) Maths | 2 Qs | 3 Qs | 2 Qs | 1 Q | 1 Q |
Common Mistakes in Vector Algebra Class 12 Maths
These notes are written in formal mathematical notation, line by line, in the same convention as the official NCERT print.
The errors below cost Class 12 students 1 to 3 marks per Vector Algebra question.
- Confusing dot with cross product: dot returns a scalar, cross returns a vector. Writing a⃗ · b⃗ as a vector loses 1 mark.
- Forgetting the sinθ in the magnitude of the cross product.
- Skipping normalisation when asked for direction cosines (returning direction ratios instead).
- Reversing the cross-product order without flipping the sign.
- Using the dot product for the area of a parallelogram (it is the magnitude of the cross product).
