The NCERT Exemplar Class 10 Science book for Chapter 12, Magnetic Effects of Electric Current, gives higher-order questions beyond the textbook. This page hosts the free NCERT Exemplar PDF plus a short guide for your CBSE board exam 2026-27.
- What you get: the full official NCERT Exemplar Class 10 Science Chapter 12 PDF, free.
- Question types: MCQs, short and long answers on magnetic field lines, the right-hand thumb rule, Fleming's rules, the motor, induction, and the generator.
- Best for: CBSE board exam 2026-27 practice plus school tests and Olympiad prep.
Read or download the complete NCERT Exemplar Class 10 Science Chapter 12 PDF from the card above, mapped to the 2026-27 syllabus.
This page hosts the official NCERT Exemplar PDF and a study guide by Collegedunia Science experts, checked against the CBSE Class 10 board pattern.
Also Check:
What is the NCERT Exemplar Class 10 Science Book?
The NCERT Exemplar Class 10 Science is an extra problem book by NCERT, separate from your textbook. For Chapter 12, it tests how well you understand magnetic field lines, the force on a conductor, the electric motor, and induction, not just whether you can repeat a definition.
- Made by NCERT: the level matches your CBSE Class 10 syllabus 2026-27.
- Higher-order thinking: questions give a field-line pattern, a compass position, or a circuit and ask you to reason.
- Board and beyond: many CBSE board and school questions follow this style.
- Free and official: the PDF here is the real NCERT book.
Magnetic Effects of Electric Current Class 10 Science Full Chapter Video
Source: Magnet Brains on YouTube
What is Inside Chapter 12 of the NCERT Exemplar Class 10 Science
The Exemplar opens with MCQs, then short and long answers. Many are built around a field-line pattern, a compass needle, or a solenoid circuit, so you keep applying the right-hand thumb rule for the field around a wire and Fleming's left-hand rule for the force on a conductor. The table shows the layout.
| Section | What it tests | Sample idea from Chapter 12 |
|---|---|---|
| Multiple Choice Questions | Quick concept checks with one correct option | Choosing the incorrect statement about magnetic field lines |
| Short Answer Questions | Two to three line answers with a reason or a small diagram | Explaining why a fuse of a defined rating should not be replaced by a larger one |
| Long Answer Questions | Full answers with labelled circuit diagrams and explanations | Drawing a simple electric motor and explaining how it works |
The big ideas recur: field lines, the field due to a conductor, loop and solenoid, the right-hand thumb rule, Fleming's left-hand and right-hand rules, the motor, induction, the generator, and domestic circuits. Others bring in the compass needle, the electromagnet, AC and DC, the fuse, and earthing.

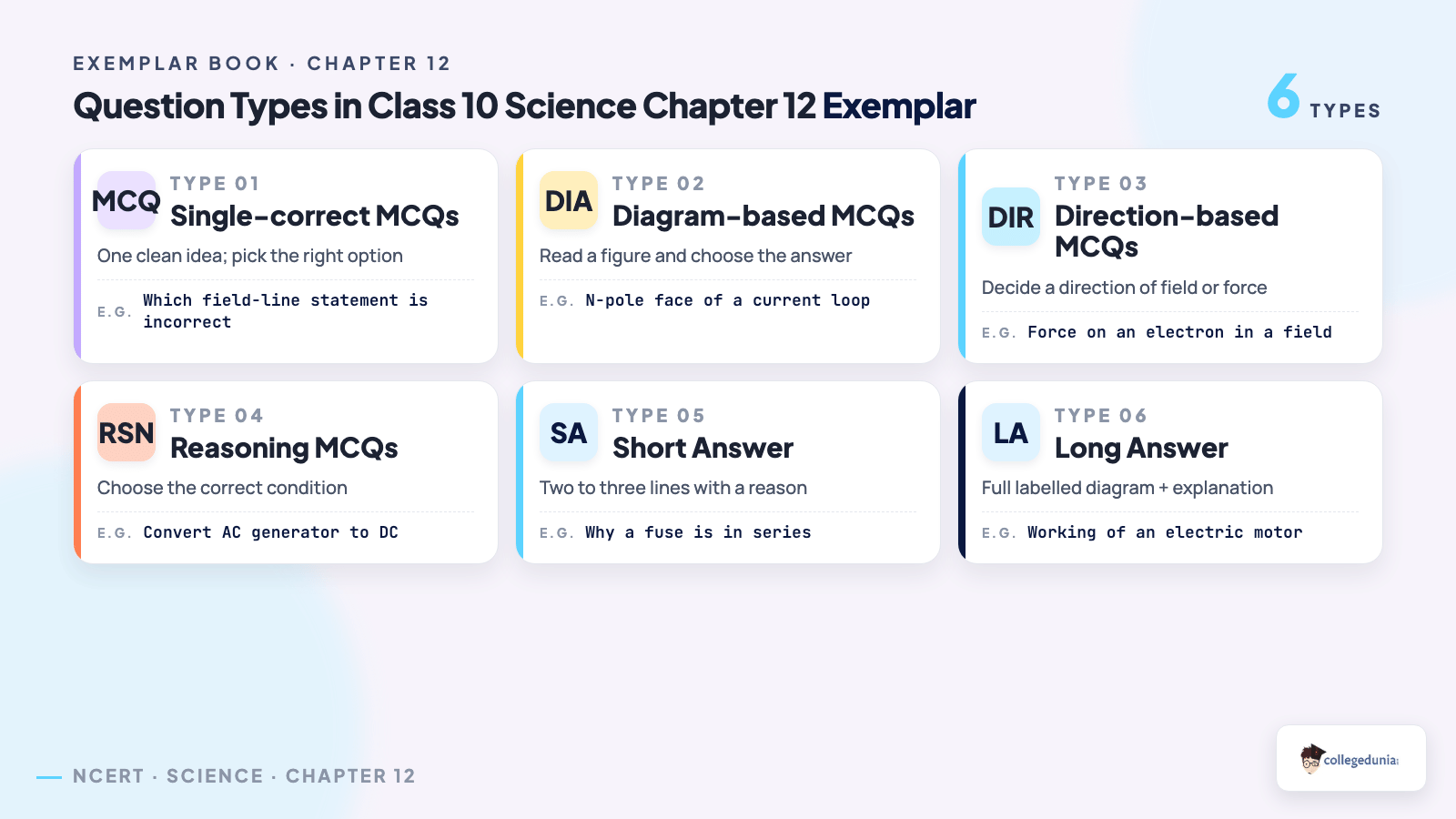

Question Types in the NCERT Exemplar Class 10 Science Chapter 12
Each format trains a different skill for the board exam 2026-27.
- Single-correct MCQs: one clean idea, such as which statement about field lines is incorrect.
- Diagram-based MCQs: you read a figure and pick the correct answer, such as on which face the N-pole of a loop lies.
- Direction-based MCQs: you decide a direction, such as where the field of a wire points.
- Reasoning MCQs: you choose a condition, such as how to convert an AC generator to DC.
- Short answer (SA): two to three lines with a reason, such as why a fuse is connected in series.
- Long answer (LA): a full labelled diagram with an explanation, such as the working of an electric motor or AC generator.
Why Solve the NCERT Exemplar for Chapter 12 Magnetic Effects of Electric Current
The textbook teaches the chapter; the Exemplar tests whether you can use it. Solving it for Magnetic Effects of Electric Current is a sure way to lift your Science score.
- You master the two hand rules. The Exemplar forces you to decide which rule applies before you answer, exactly the skill the board exam tests.
- You read field-line patterns with confidence. Concentric circles around a wire, the loop field, and the solenoid field all appear as diagrams.
- You explain the motor, generator, and induction clearly. Long answers ask you to draw a motor, an AC generator, and the induction experiment, all CBSE favourites.
- You meet real-life examples. Motors in fans and mixers, the split-ring commutator, the fuse, and earthing all appear.
For full worked answers, use the linked NCERT Exemplar Solutions page. Try the questions first, then check your work.
How to Use the NCERT Exemplar Class 10 Science Chapter 12 PDF
Treat the Exemplar as a practice book, not a reading book. A three-step routine keeps your study focused before the board exam 2026-27.
- Step 1, learn first. Finish the chapter in your textbook and Notes page so you know the field lines, the hand rules, the motor, and induction.
- Step 2, attempt on your own. Try the MCQs first, then short, then long answers. Draw every field-line pattern and circuit by hand.
- Step 3, check and fix. Compare with the Exemplar Solutions page. Mark wrong questions and redo them next day.
Topics Covered in NCERT Exemplar Class 10 Science Chapter 12
Every question sits on a small set of core ideas. If you are clear on the points below, you can attempt the whole chapter. Use this as a revision checklist for the 2026-27 session.
| Topic | What you must know |
|---|---|
| Magnetic field and field lines | That field lines are closed curves, that they never cross, and that crowded lines mean a stronger field |
| Field due to a straight conductor | That a current-carrying straight wire is surrounded by concentric circular field lines, found using the right-hand thumb rule |
| Field due to a circular loop and solenoid | That a loop behaves like a tiny magnet and a solenoid has a uniform field inside, like a bar magnet outside |
| Right-hand thumb rule | That the thumb points along the current and the curled fingers give the direction of the magnetic field |
| Force on a current-carrying conductor | That a conductor in a magnetic field feels a force perpendicular to both the current and the field |
| Fleming's left-hand rule | That the thumb, forefinger, and middle finger give force, field, and current directions for a motor |
| Electric motor | That a motor converts electrical energy to mechanical energy, using a coil, magnet, and split-ring commutator |
| Electromagnetic induction and generator | That a changing field through a coil induces a current (Fleming's right-hand rule), the basis of the AC generator |
| Domestic circuits, fuse, and earthing | That the fuse and earthing protect appliances and people from overloading and short circuits |
Master these nine ideas and you can answer almost every Chapter 12 Exemplar question.
Student Feedback
In a Collegedunia poll of 1,180 Class 10 students, 83% said the NCERT Exemplar was the most useful book for scoring above 90 in Science. Many found this chapter cleared up confusion between the hand rules and between the motor and the generator.
Source: Collegedunia Class 10 Science student poll, 2026-27 session.
Other Resources for Class 10 Science Chapter 12
Use the table below for the other free Collegedunia resources for this chapter.
| Resource | Open |
|---|---|
| NCERT Solutions | Chapter 12 NCERT Solutions |
| Revision Notes | Chapter 12 Notes |
| Formula Sheet | Chapter 12 Formula Sheet |
| Handwritten Notes | Chapter 12 Handwritten Notes |
| Exemplar Solutions | Chapter 12 Exemplar Solutions |
| NCERT Book PDF | Chapter 12 NCERT Book PDF |
| Exemplar Book PDF | Chapter 12 Exemplar Book PDF (this page) |
NCERT Exemplar Book Class 10 Science: All Chapters
Use the table below to download the NCERT Exemplar PDF for any other Class 10 Science chapter, 2026-27 session.
| Chapter | Exemplar Book PDF |
|---|---|
| Chapter 1 | Chemical Reactions and Equations Exemplar PDF |
| Chapter 2 | Acids, Bases and Salts Exemplar PDF |
| Chapter 3 | Metals and Non-metals Exemplar PDF |
| Chapter 4 | Carbon and its Compounds Exemplar PDF |
| Chapter 5 | Life Processes Exemplar PDF |
| Chapter 6 | Control and Coordination Exemplar PDF |
| Chapter 7 | How do Organisms Reproduce Exemplar PDF |
| Chapter 8 | Heredity Exemplar PDF |
| Chapter 9 | Light - Reflection and Refraction Exemplar PDF |
| Chapter 10 | The Human Eye and the Colourful World Exemplar PDF |
| Chapter 11 | Electricity Exemplar PDF |
| Chapter 13 | Our Environment Exemplar PDF |
NCERT Exemplar Class 10 Science Chapter 12 FAQs
Ques. Where can I download the NCERT Exemplar Class 10 Science Chapter 12 PDF?
Ans. You can download the NCERT Exemplar Class 10 Science Chapter 12 Magnetic Effects of Electric Current PDF for free from the download card at the top of this page. It is the official NCERT book, mapped to the 2026-27 syllabus.
Ques. Is the NCERT Exemplar Class 10 Science enough for the board exam?
Ans. The Exemplar is excellent extra practice, but it is not a full replacement for the textbook. Finish your NCERT textbook and Notes first, then solve the Exemplar for higher-order questions. Together they cover the full CBSE Class 10 Science board pattern for 2026-27.
Ques. What types of questions are in Chapter 12 of the NCERT Exemplar?
Ans. Chapter 12 of the Exemplar has multiple choice questions (including diagram and direction based), short answer questions, and long answer questions. They cover magnetic field lines, the field due to a straight wire, a circular loop and a solenoid, the right-hand thumb rule, Fleming's left-hand and right-hand rules, the electric motor, electromagnetic induction, and the generator.
Ques. How is the NCERT Exemplar different from the NCERT textbook?
Ans. Both are made by NCERT. The textbook teaches the chapter, while the Exemplar gives tougher, reasoning-based questions to test how well you understand it. Many CBSE board and school test questions follow the Exemplar style.
Ques. Where can I find solutions to the Chapter 12 Exemplar questions?
Ans. Full step-by-step answers to every question are on the NCERT Exemplar Solutions page for Class 10 Science Chapter 12. Try the questions on your own first, then check your answers there.
Ques. Which topics from Chapter 12 are most important for the Exemplar?
Ans. The most tested topics are magnetic field lines and the right-hand thumb rule, the field due to a solenoid, the force on a current-carrying conductor with Fleming's left-hand rule, the working of an electric motor, electromagnetic induction with Fleming's right-hand rule, the AC generator, and the use of a fuse and earthing in domestic circuits.
Ques. Is the NCERT Exemplar Class 10 Science Chapter 12 PDF free?
Ans. Yes. The full NCERT Exemplar Class 10 Science Chapter 12 PDF on this page is free to read and download. No sign-up is needed.
