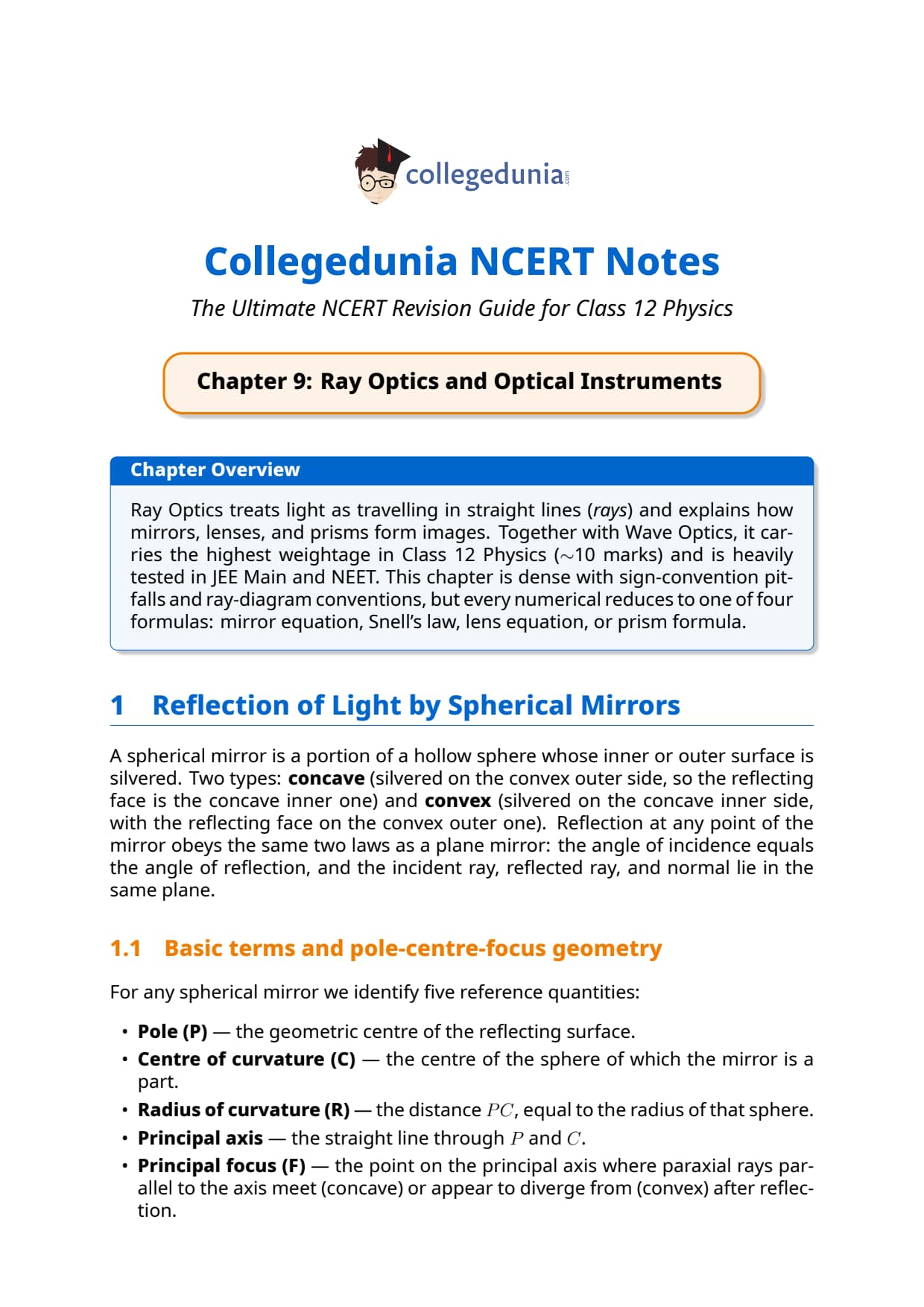

Class 12 Physics Chapter 9 Ray Optics and Optical Instruments covers mirrors, lenses, prisms, and optical instruments. It carries 7 marks in CBSE boards and shows up every year in JEE and NEET. This page hosts the full Chapter 9 Ray Optics notes PDF.
Here is what Chapter 9 is worth across the main exams:
- CBSE Boards: 7 marks, usually one derivation plus one short concept question.
- JEE Main: 4 to 5 percent, steady every year on derivations and numericals.
- NEET: 2 to 3 questions each year on chapter concepts.
Topic-by-Topic Summary for Class 12 Physics Chapter 9 Ray Optics
The chapter splits into six clear blocks. Each block below is mapped to its usual CBSE marking pattern.

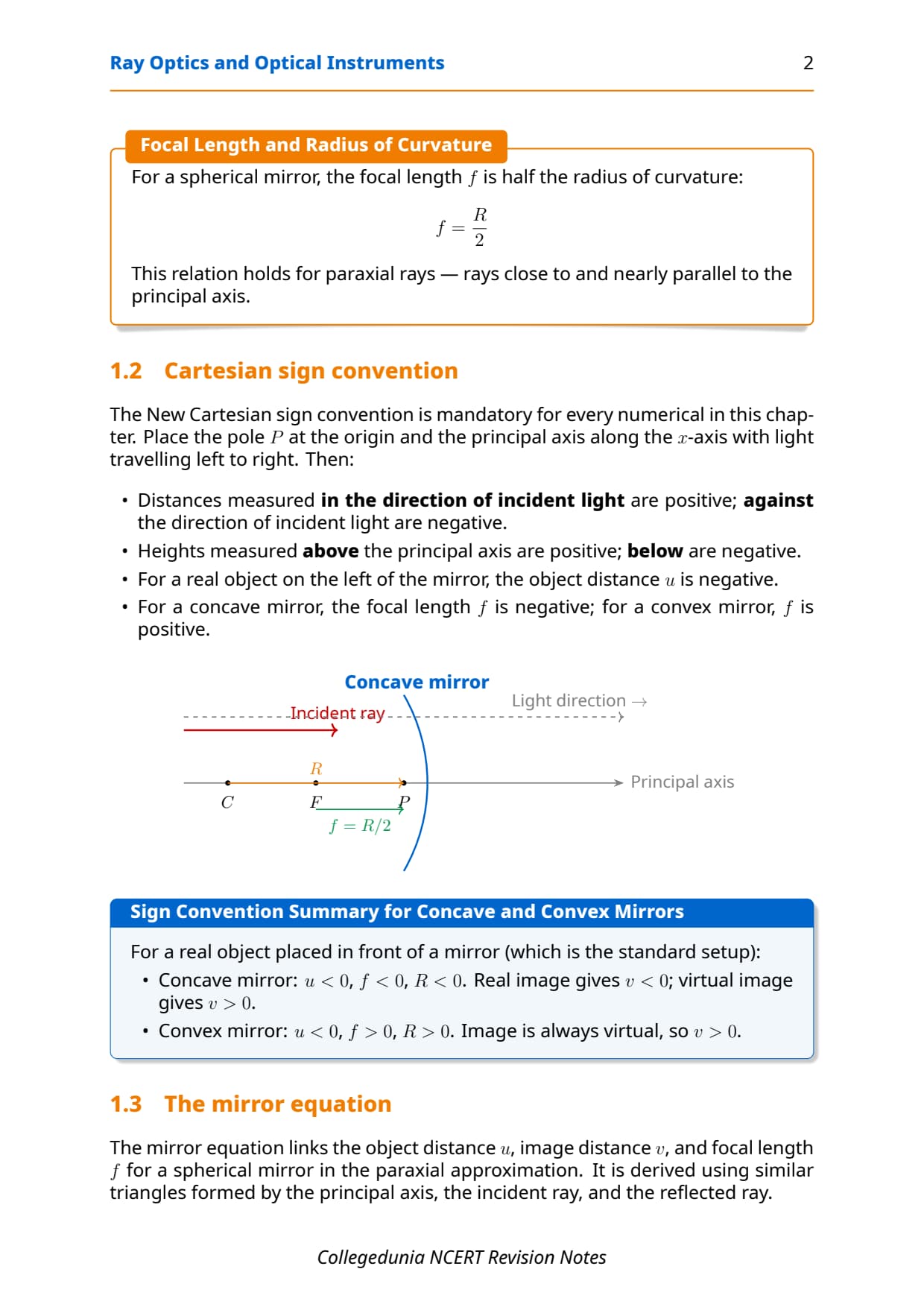

- Reflection at plane and spherical mirrors: 2-mark, mirror formula 1/v + 1/u = 1/f.

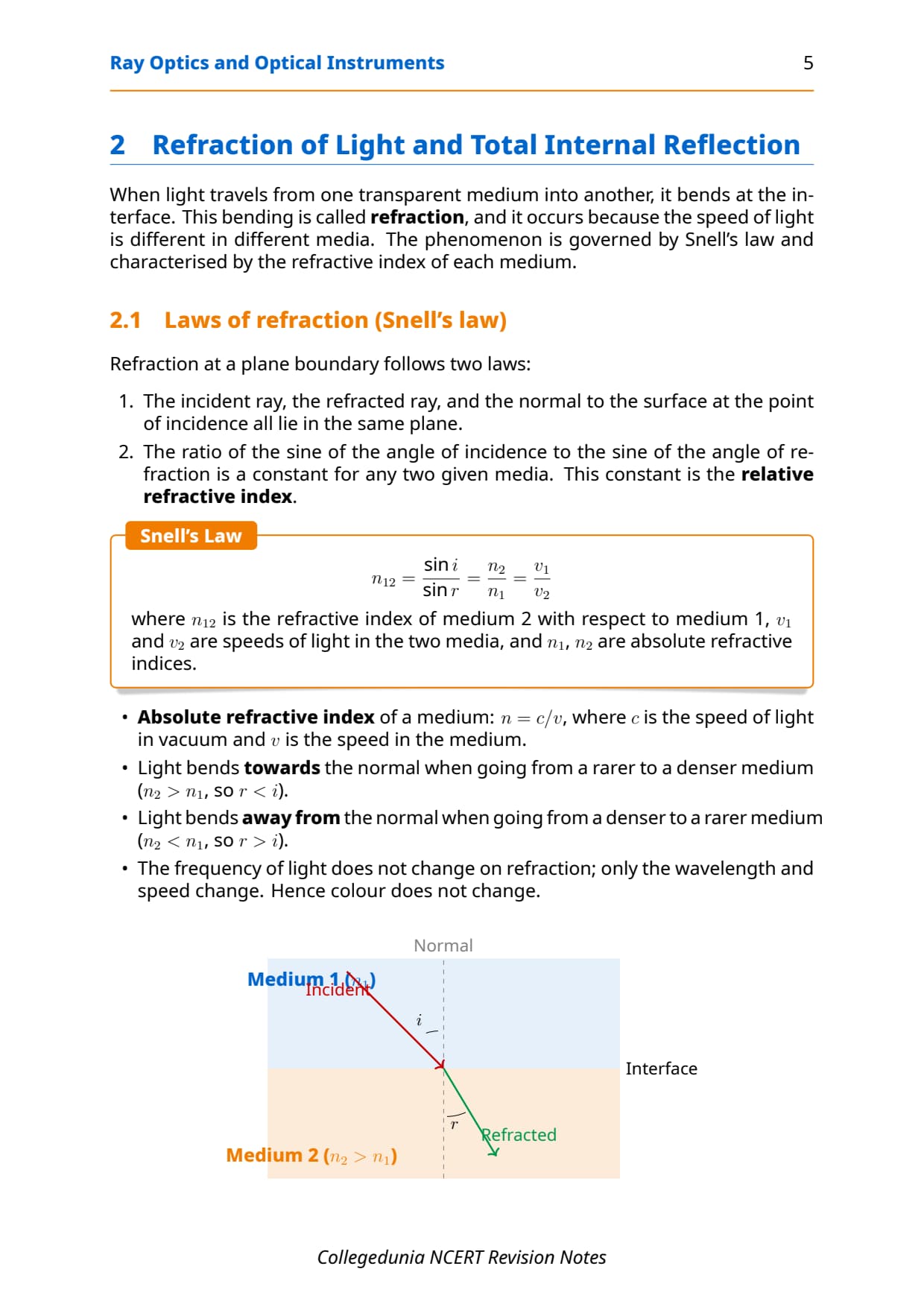

- Refraction and Snell's law: 2-mark, n_1 sin theta_1 = n_2 sin theta_2.

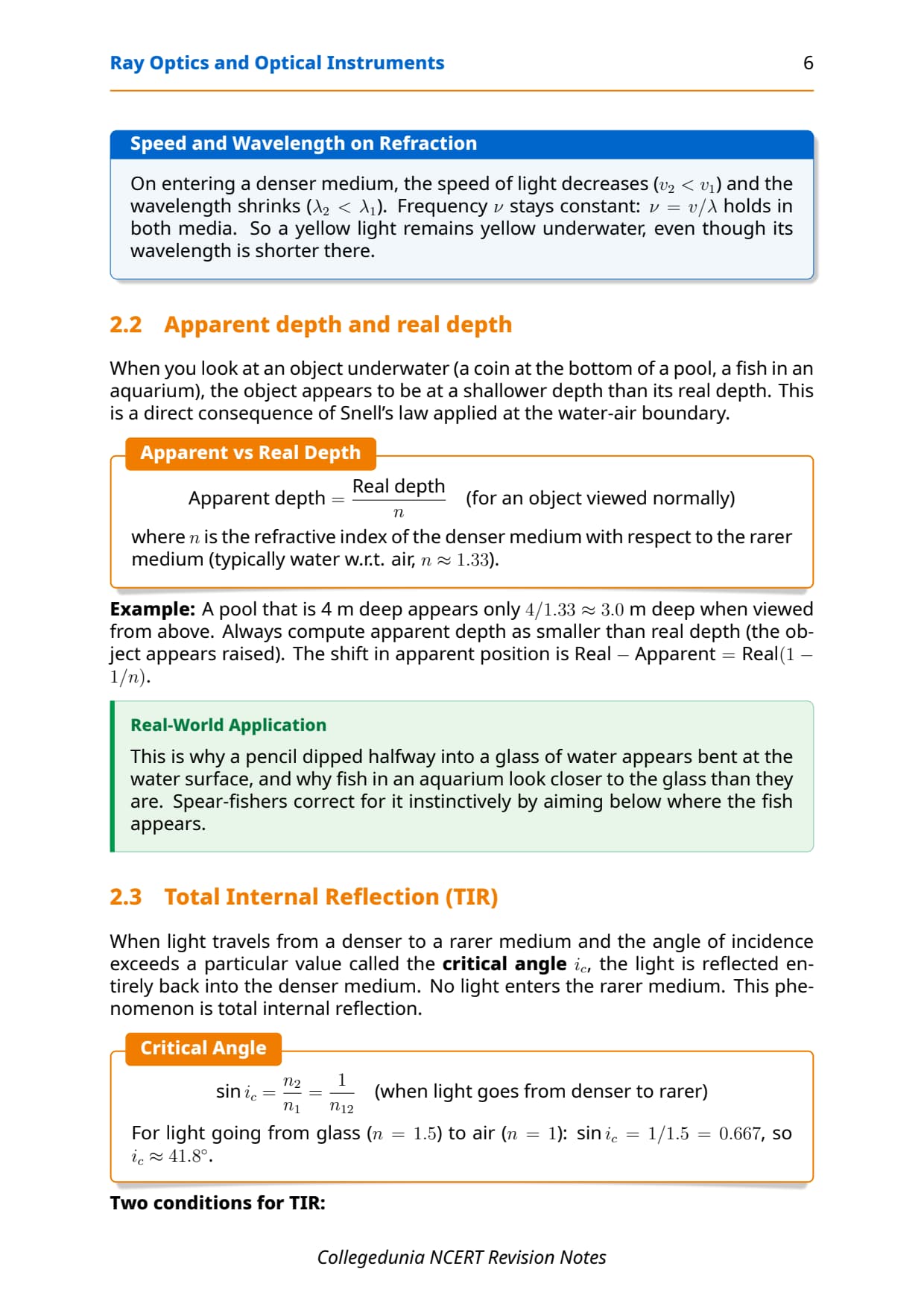

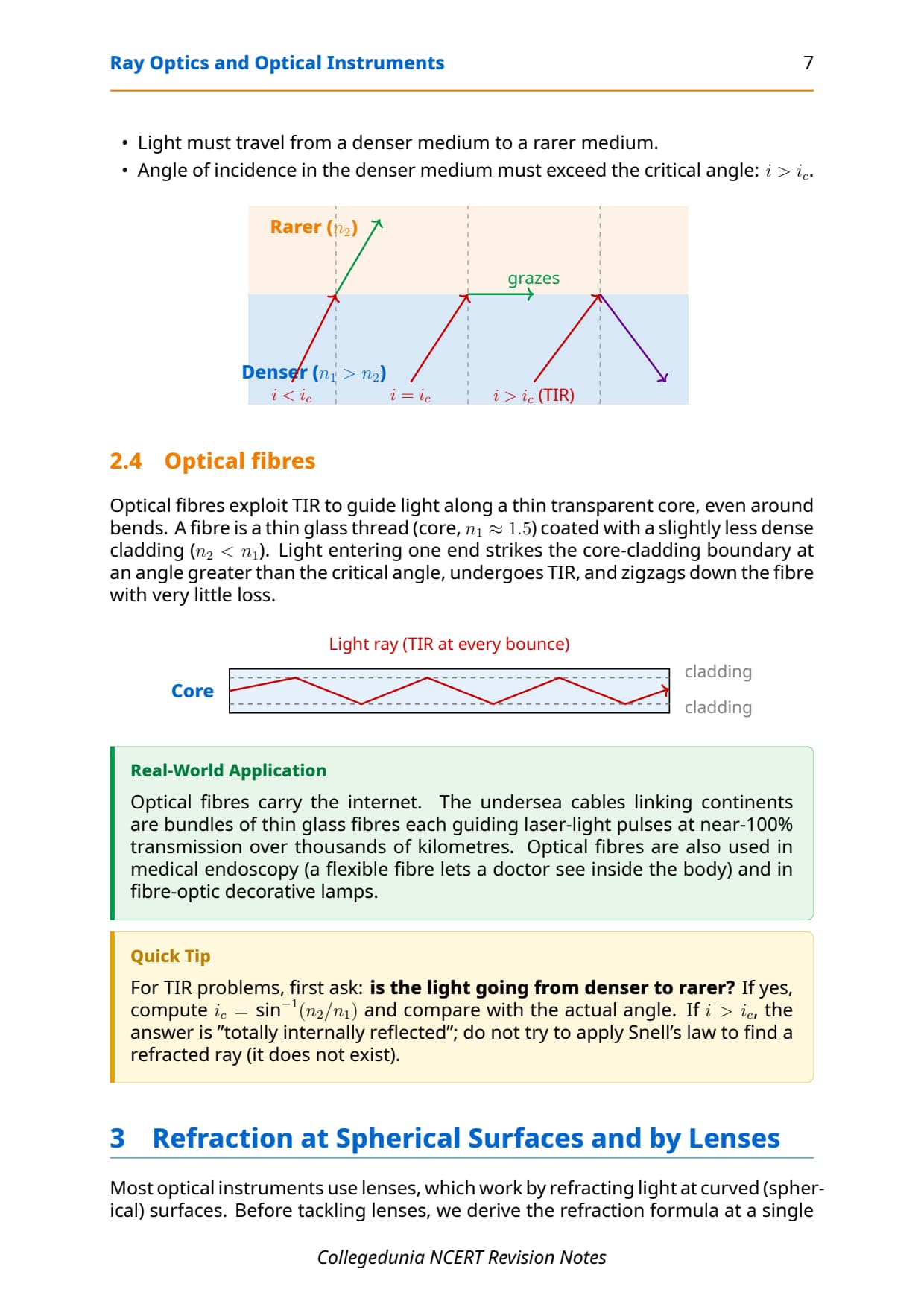

- Total internal reflection: 3-mark, critical angle and optical fibres.

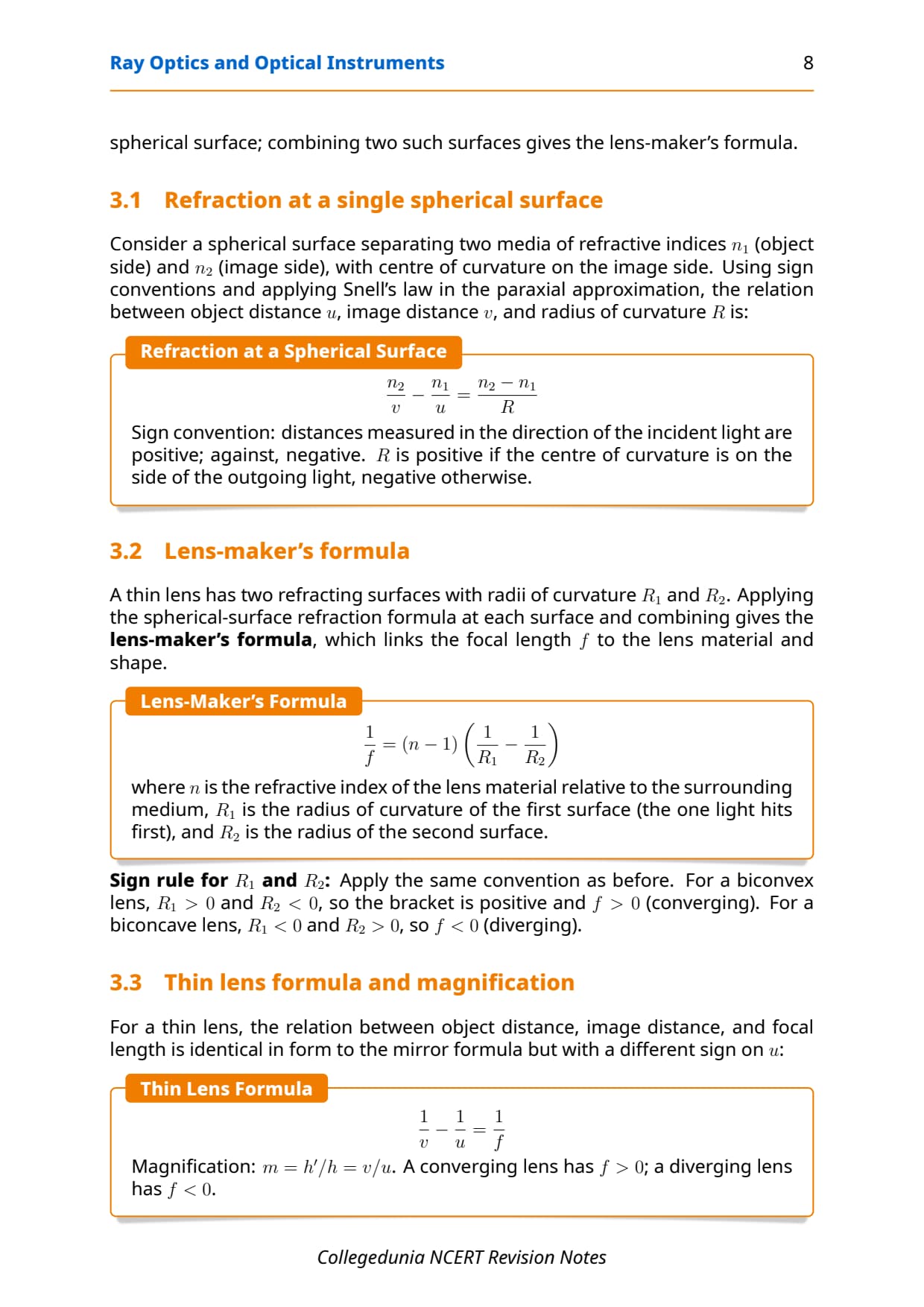

- Refraction at spherical surfaces and lens-maker's: 5-mark derivation.

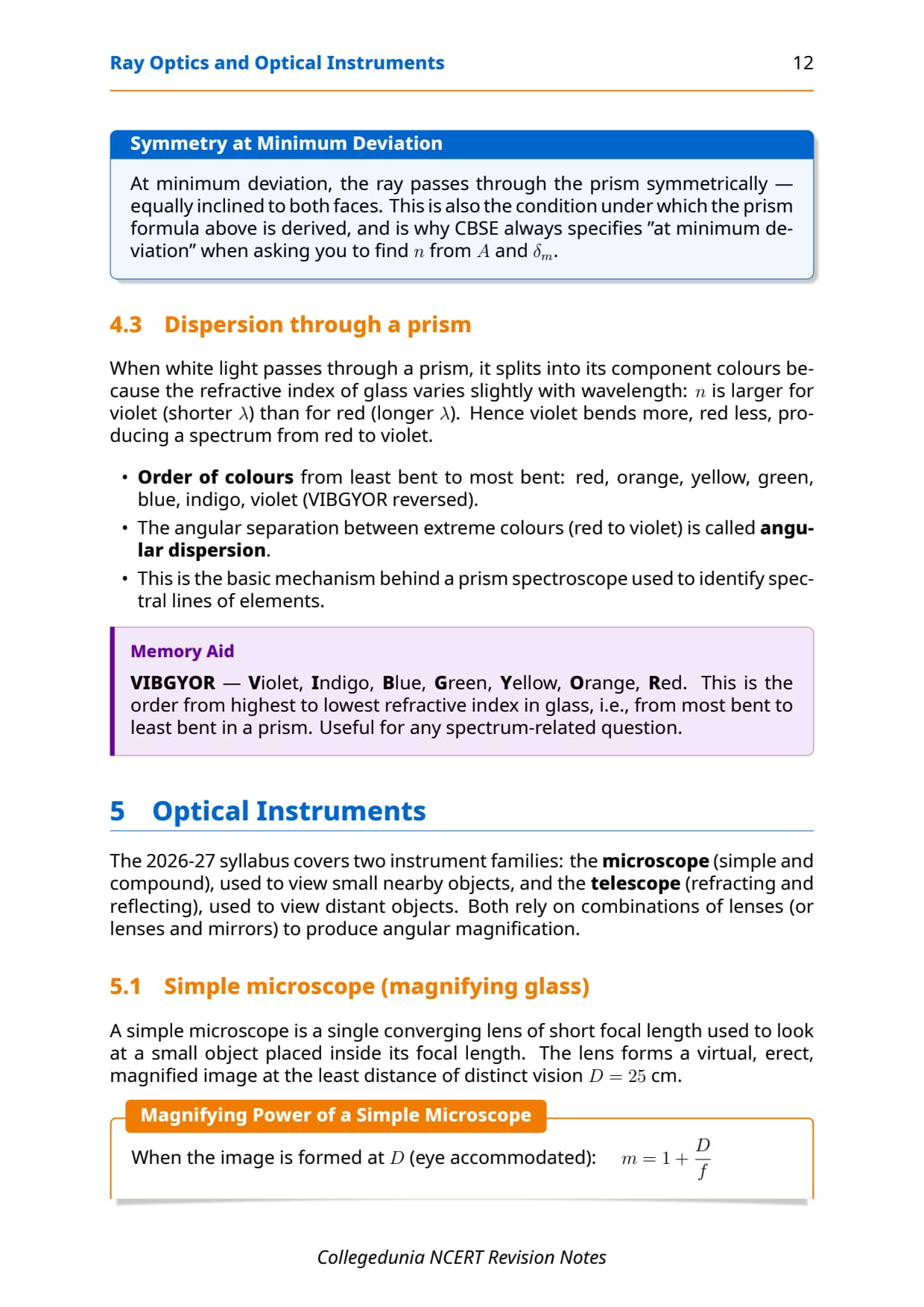

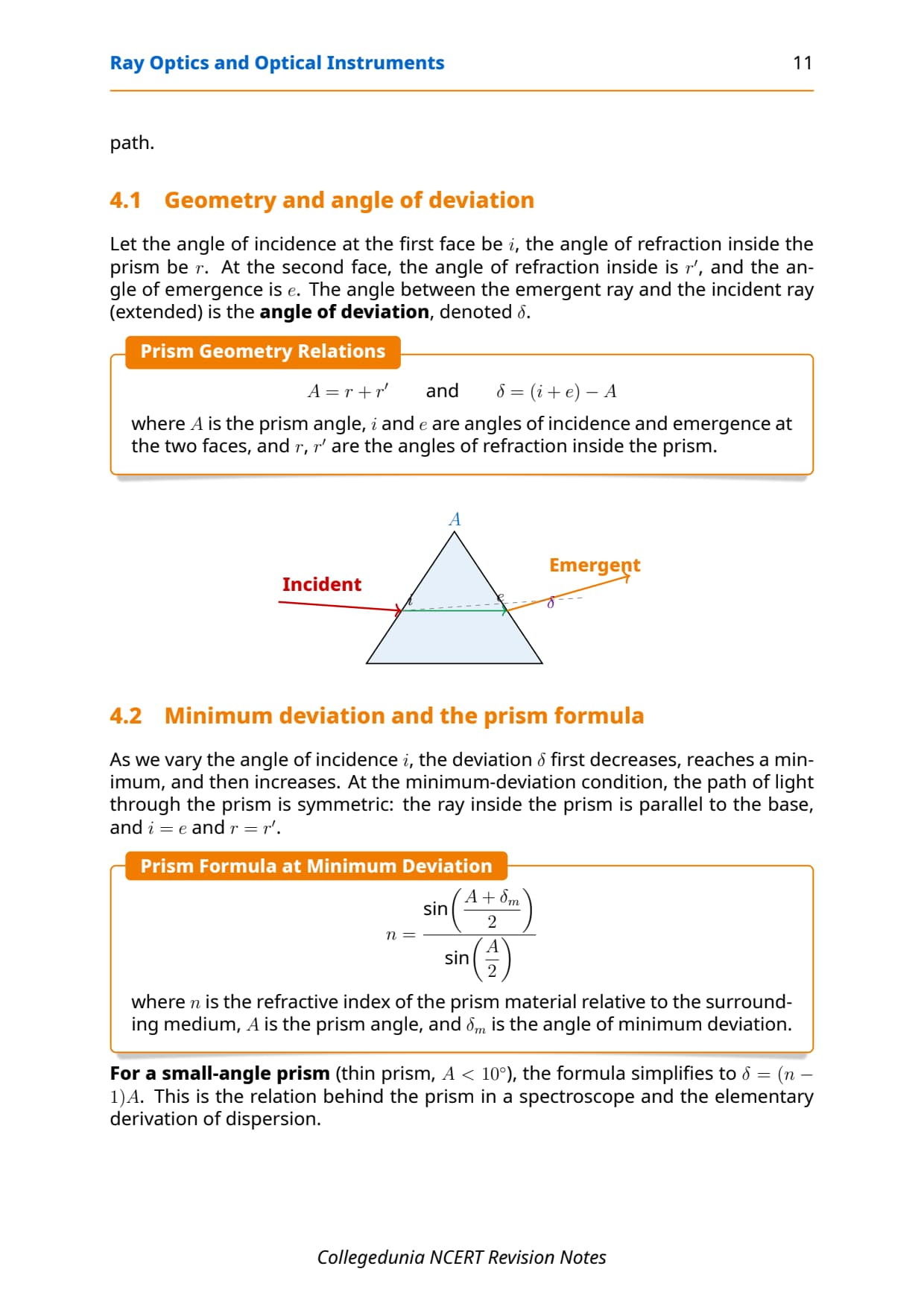

- Prism and dispersion: 3-mark, minimum deviation and dispersive power.

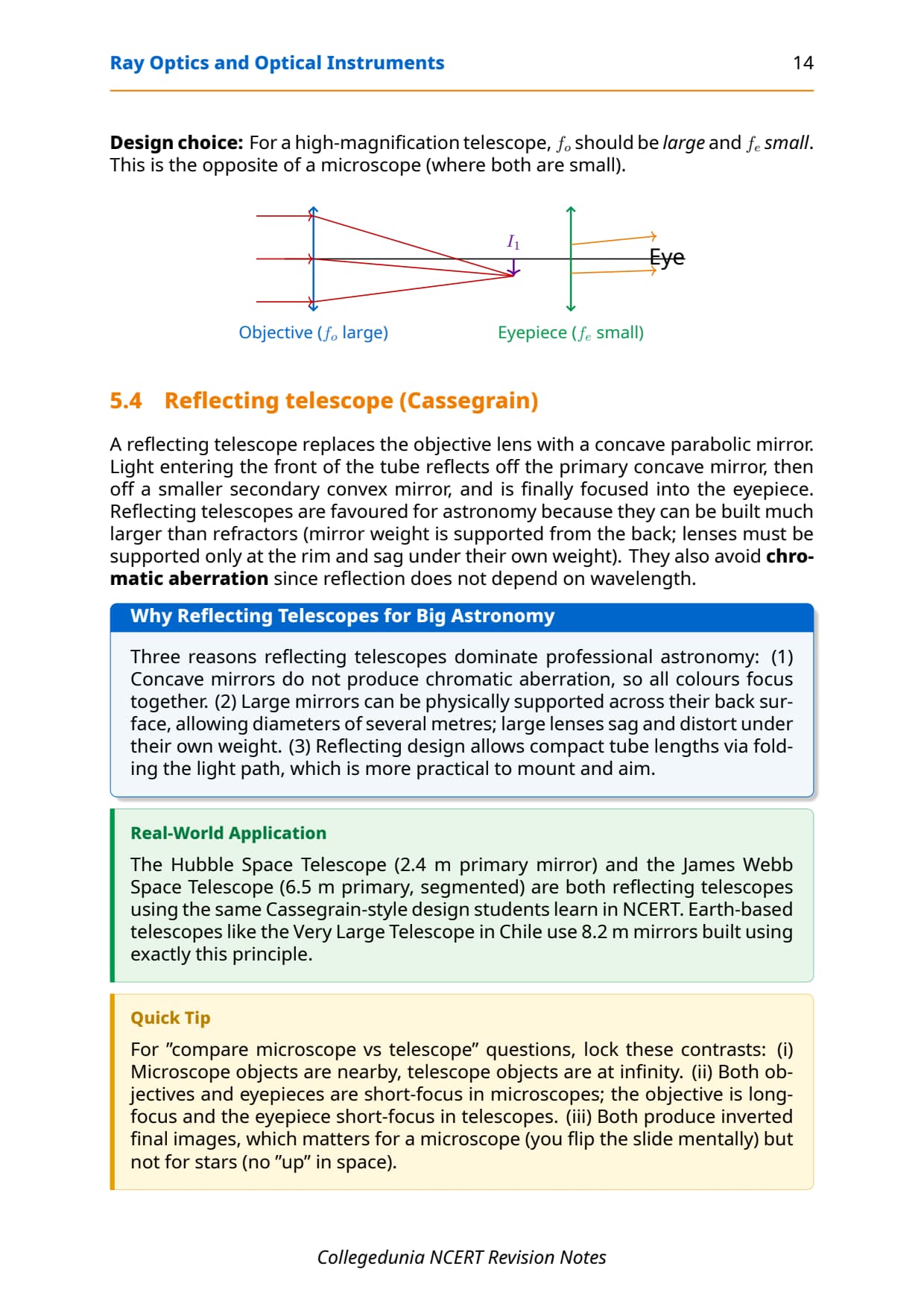

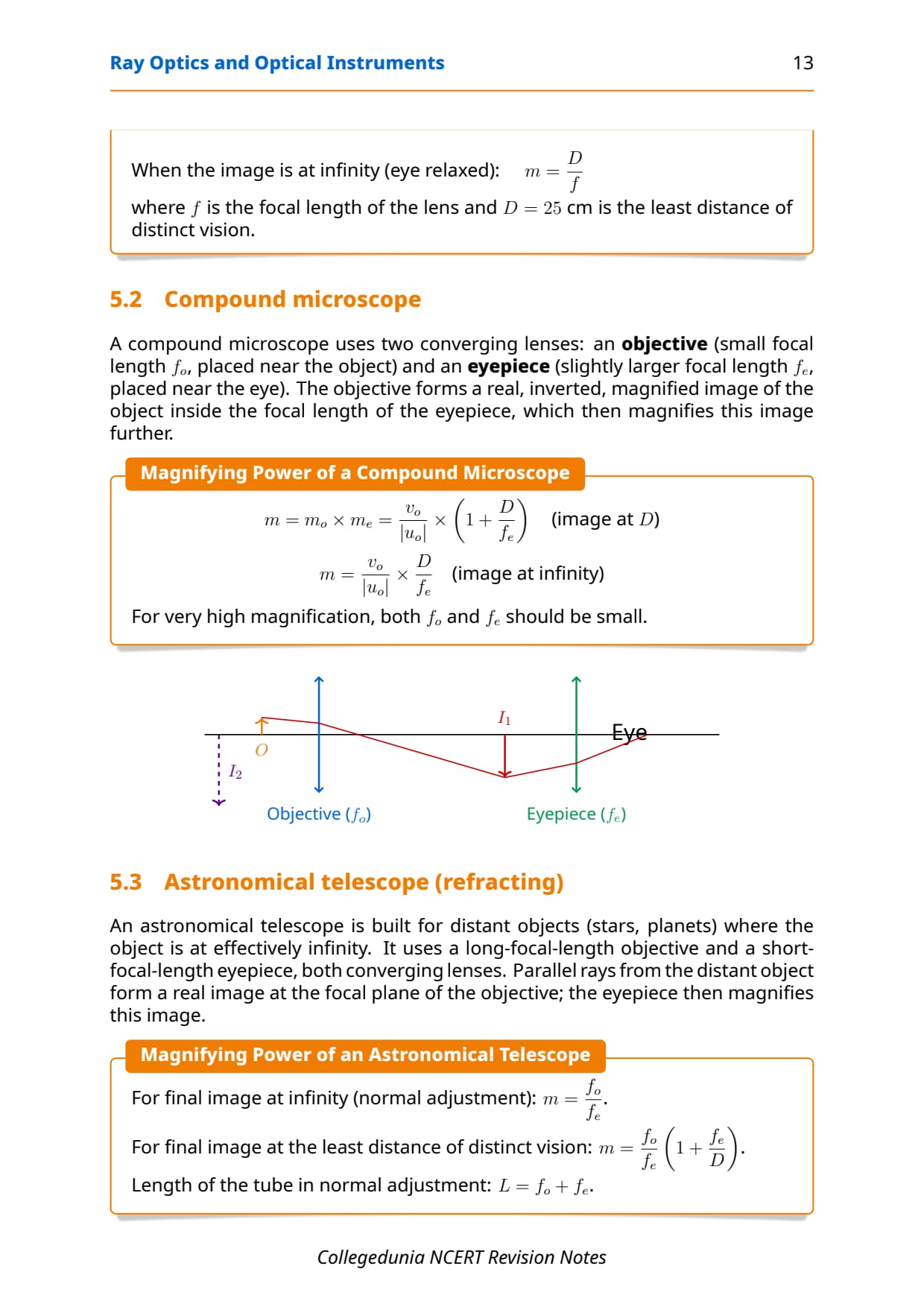

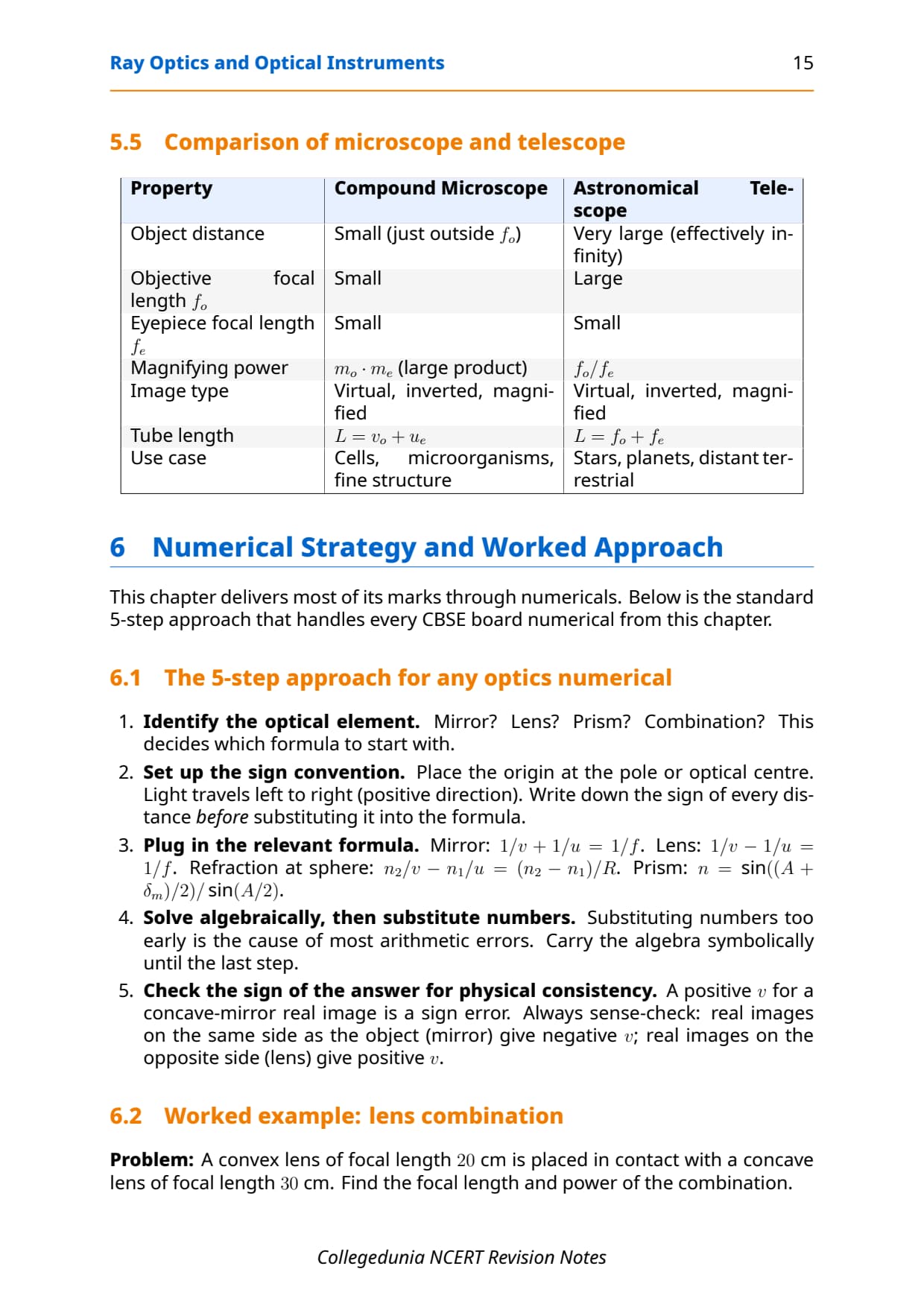

- Optical instruments (microscope, telescope): 5-mark, magnification formulas.
Ray Optics and Optical Instruments Video Lecture for Class 12 Physics
Source: Magnet Brains on YouTube

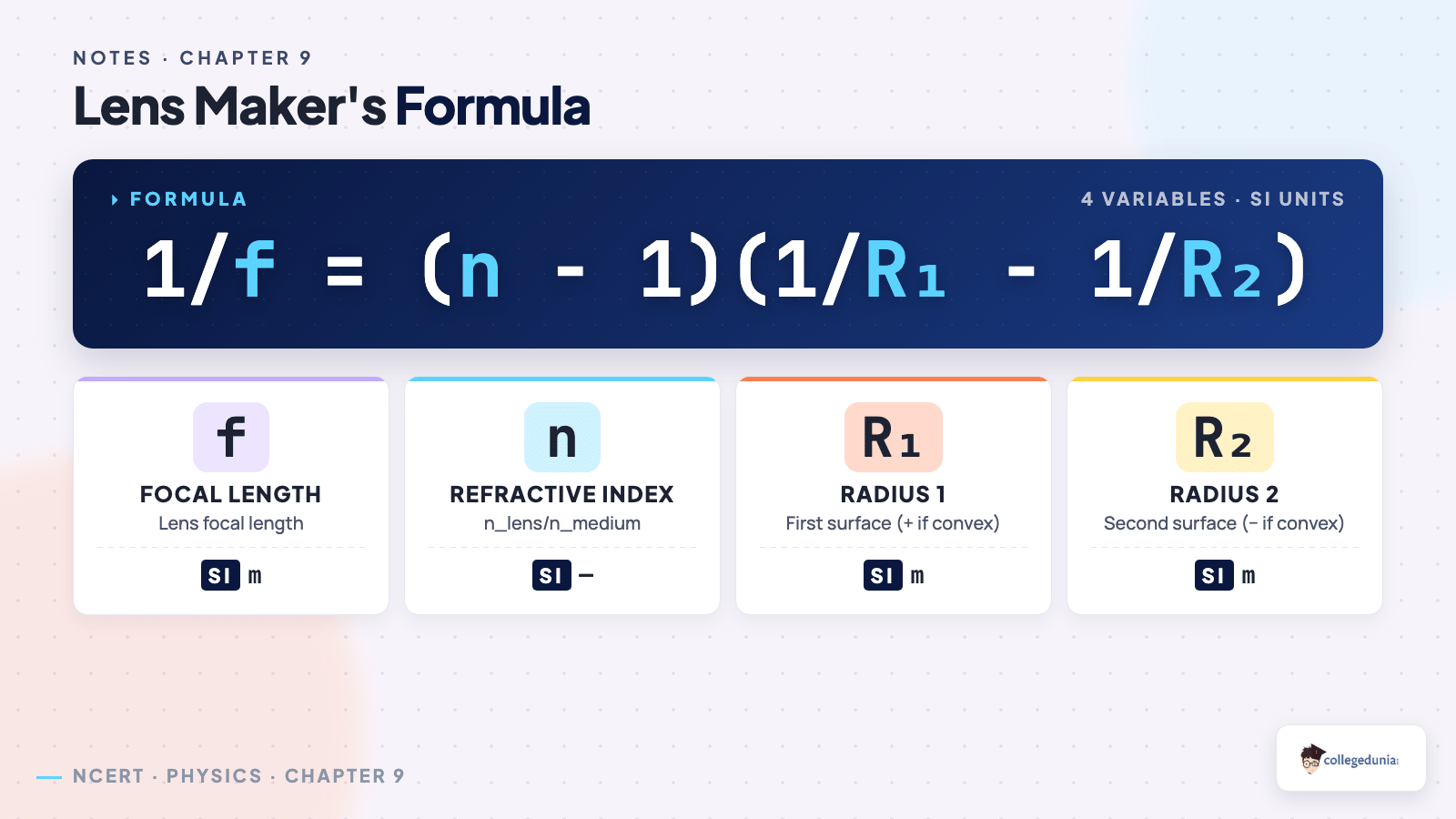

Lens-maker's formula: focal length from geometry and refractive index.

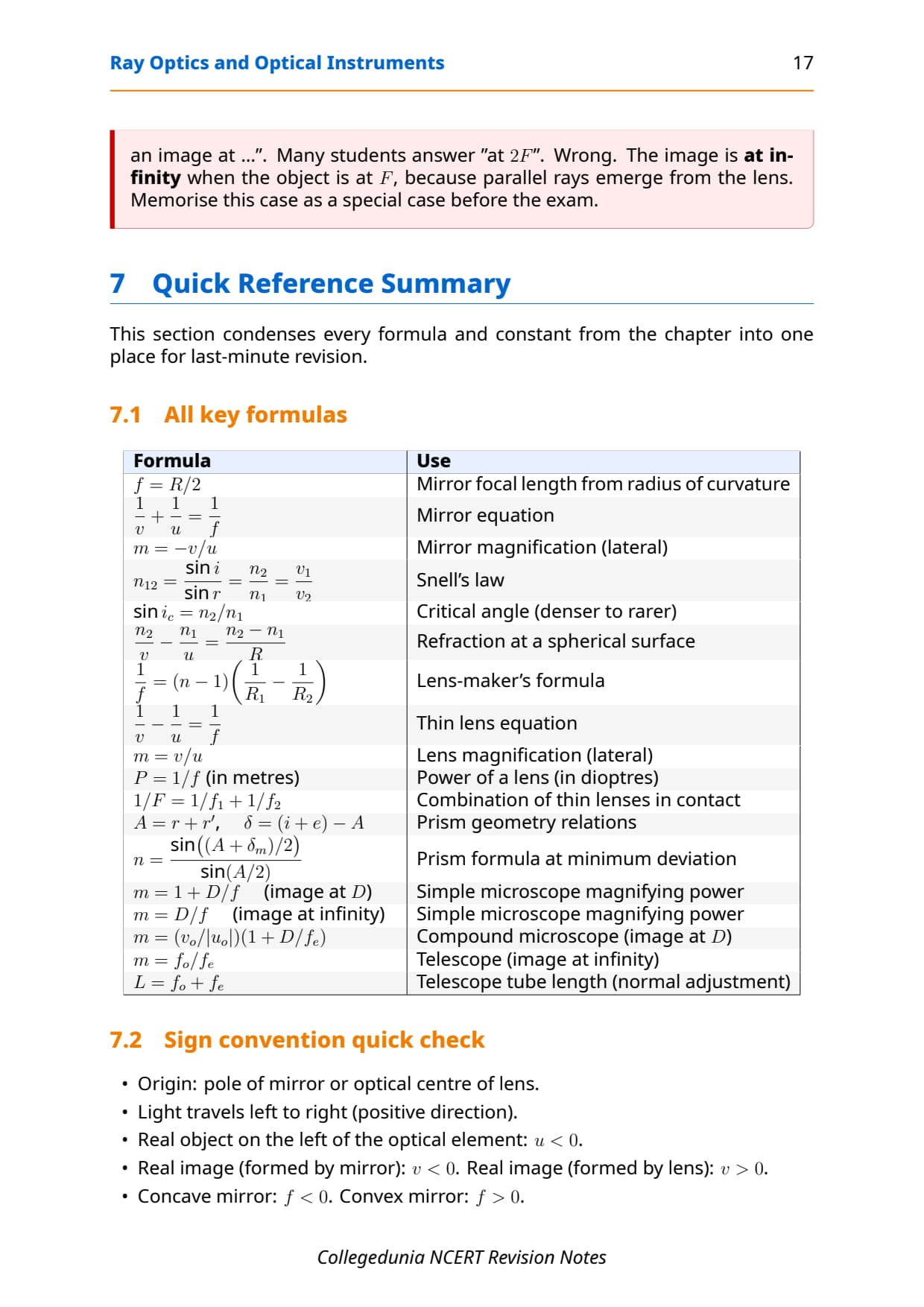

Class 12 Physics Chapter 9 Ray Optics All Formulas: Quick-Reference Table
The table below covers every numerical the chapter can throw at you. The same list sits on the back page of the notes PDF for quick revision.

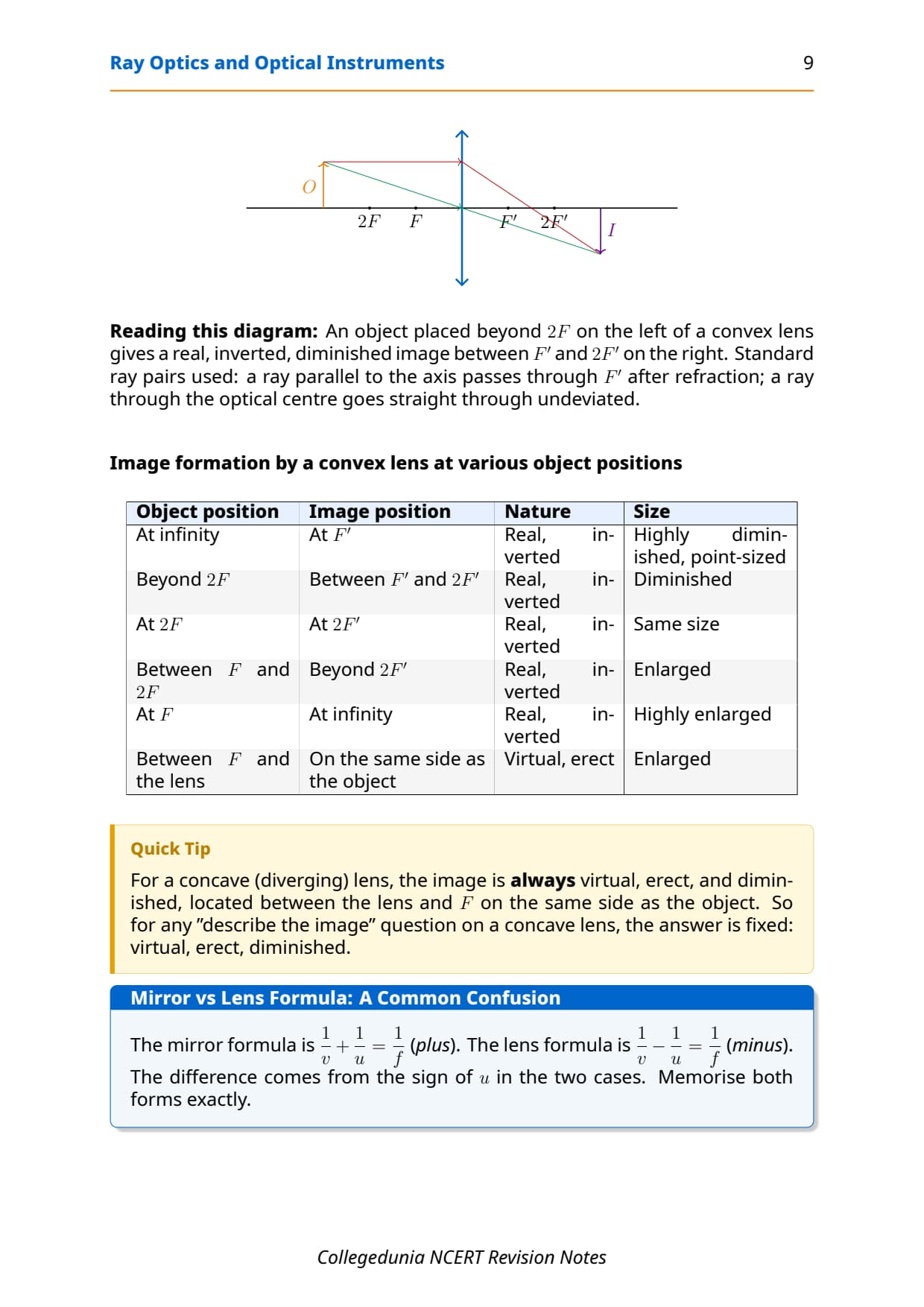

| Concept | Formula | SI Unit |
|---|---|---|
| Mirror formula | 1/v + 1/u = 1/f | n/a |
| Snell's law | n_1 sin theta_1 = n_2 sin theta_2 | n/a |
| Critical angle | sin theta_c = n_2 / n_1 | n/a |
| Refraction at spherical surface | n_2/v - n_1/u = (n_2 - n_1)/R | n/a |
| Lens formula | 1/v - 1/u = 1/f | n/a |
| Lens-maker's formula | 1/f = (n - 1)(1/R_1 - 1/R_2) | n/a |

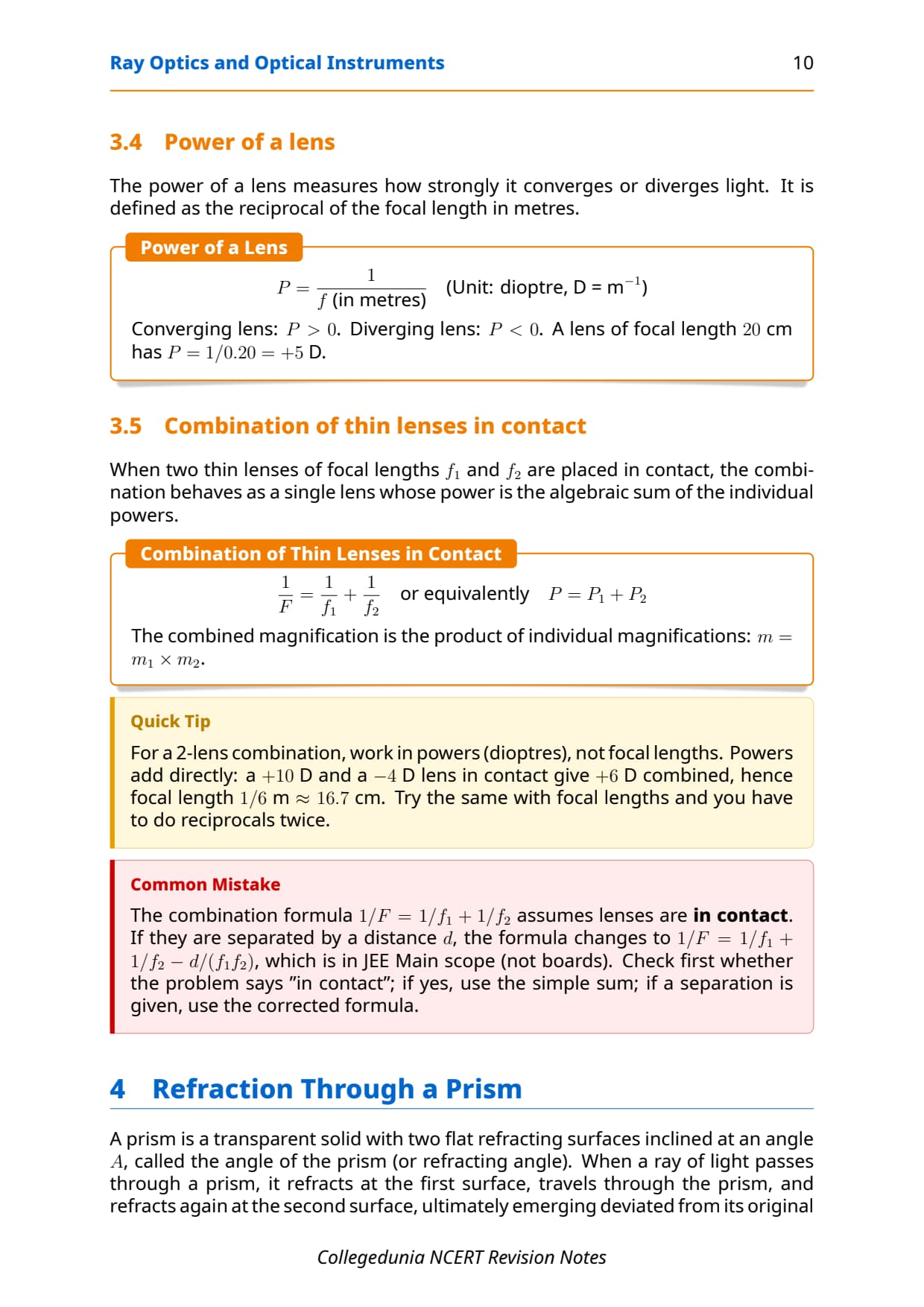

| Power of lens | P = 1/f (f in m) | diopter |

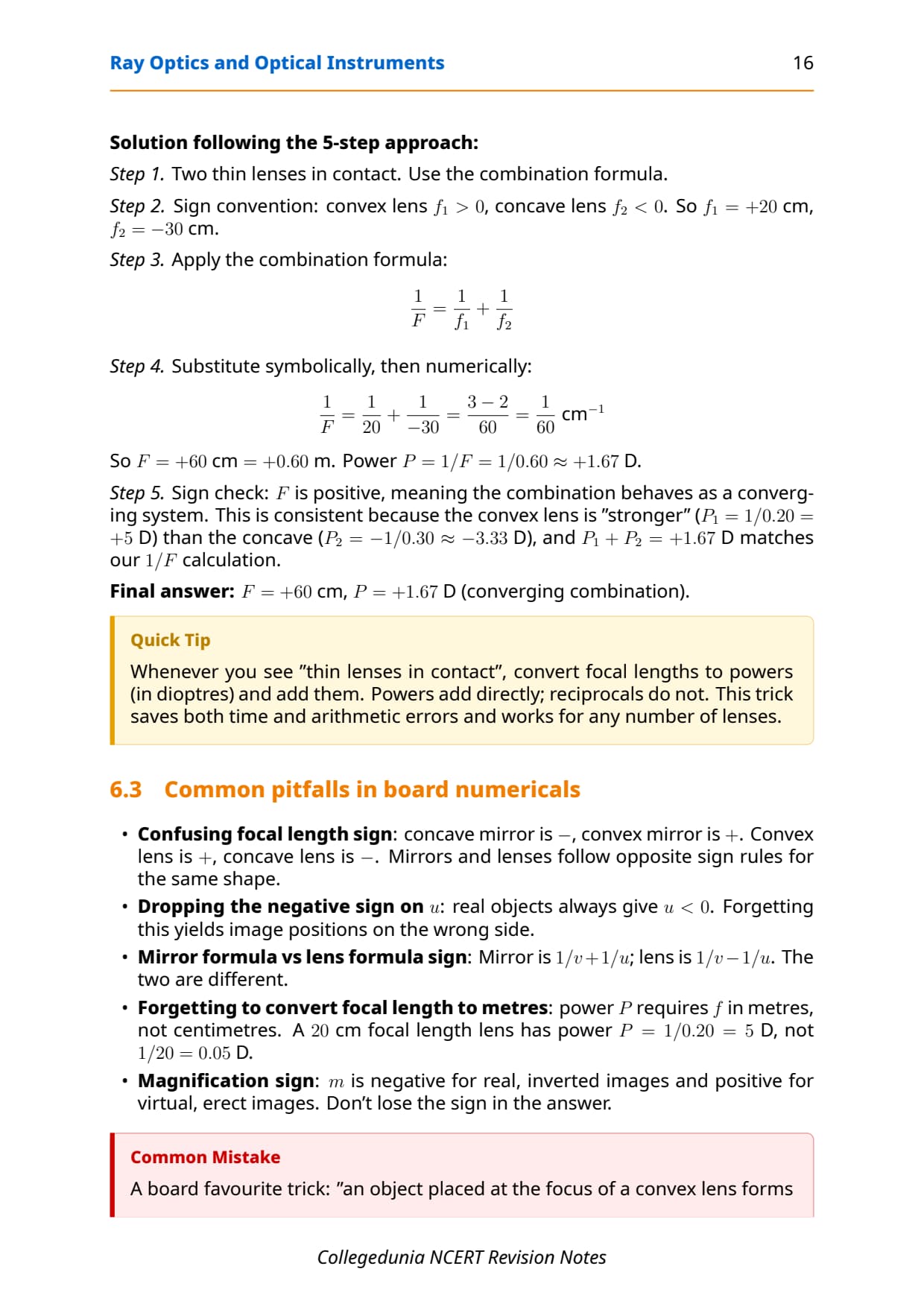

| Lenses in contact | 1/F = sum 1/f_i | n/a |
| Prism formula | n = sin((A+D_m)/2) / sin(A/2) | n/a |
| Compound microscope magnification | M = (L/f_o)(1 + D/f_e) | n/a |
| Telescope magnification | M = f_o / f_e | n/a |
Full formula sheet with derivations: Class 12 Physics Chapter 9 Formula Sheet
Class 12 Physics Chapter 9 Ray Optics All Derivations: Index Table
The seven derivations below carry most of the marks in this chapter. Each one in the notes PDF shows the full geometry sketch, the set-up, and the final substitution.
| Derivation | Marks (CBSE) |
|---|---|
| Mirror formula 1/v + 1/u = 1/f | 3 |
| Refraction at spherical surface | 3 |
| Lens-maker's formula | 5 |
| Total internal reflection and critical angle | 3 |
| Prism formula and minimum deviation | 3 |
| Compound microscope magnification | 5 |
| Telescope magnification (M = f_o/f_e) | 5 |
Ray Optics and Optical Instruments Weightage Across Class 12 Physics Chapters
The table below shows how Chapter 9 weightage compares with every other chapter. Marks are CBSE board averages over the last five papers.
| Chapter | Topic | Avg CBSE Marks |
|---|---|---|
| Ch 1 | Electric Charges and Fields | 6 marks |
| Ch 2 | Electrostatic Potential and Capacitance | 7 marks |
| Ch 3 | Current Electricity | 7 marks |
| Ch 4 | Moving Charges and Magnetism | 6 marks |
| Ch 5 | Magnetism and Matter | 3 marks |
| Ch 6 | Electromagnetic Induction | 5 marks |
| Ch 7 | Alternating Current | 6 marks |
| Ch 8 | Electromagnetic Waves | 2 marks |
| Ch 9 | Ray Optics and Optical Instruments | 7 marks |
| Ch 10 | Wave Optics | 5 marks |
| Ch 11 | Dual Nature of Radiation and Matter | 4 marks |
| Ch 12 | Atoms | 3 marks |
| Ch 13 | Nuclei | 3 marks |
| Ch 14 | Semiconductor Electronics | 6 marks |
Student Feedback
What 15,410 Class 12 Physics students told us about these Ray Optics notes:
- 69% of students rated the lens-maker's formula derivation as the trickiest sub-topic.
- 57% got confused in the compound microscope magnification block on at least one class test.
- 4 out of 5 students said the mirror formula 1/v + 1/u = 1/f was their most-practised derivation the night before boards.
- Average student took 5 hours for first-read and 2.4 hours for focused revision.
Source: 2025-26 Class 12 Physics student poll. Sample of 15,410 students from CBSE schools across 16 states.
Ray Optics and Optical Instruments Previous Year Questions (2021 to 2026)
The table below maps every CBSE Board, JEE Main, and NEET appearance of Chapter 9 topics over the last six sessions.
| Year | CBSE Board | JEE Main | NEET |
|---|---|---|---|
| 2026 | Lens-maker's formula derivation (5 marks) | Prism minimum deviation (4 marks) | Lens and mirror formula, optical instruments (2 questions) |
| 2025 | Compound microscope magnification (5 marks) | Total internal reflection critical angle | Mirror formula numerical |
| 2024 | Astronomical telescope derivation (5 marks) | Lens combination focal length | Snell's law MCQ |
| 2023 | Refraction at spherical surface (3 marks) | Prism dispersion problem | Defects of vision (myopia) |
| 2022 | Total internal reflection in optical fibre (3 marks) | Telescope magnification | Concave mirror image |
| 2021 | - | Lens-maker's formula numerical | Convex lens magnification |

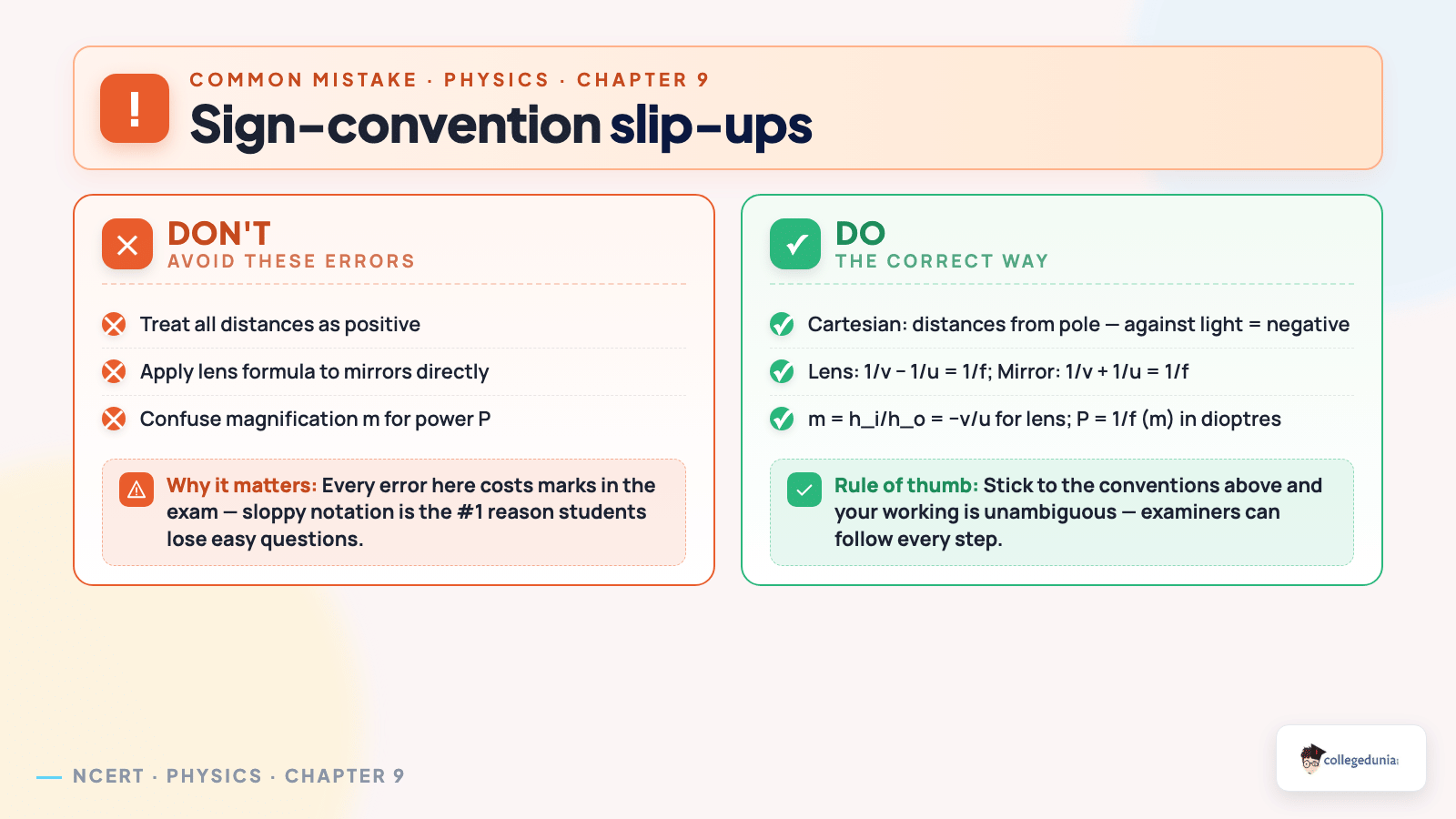

Sign convention: the most common source of errors in ray optics.

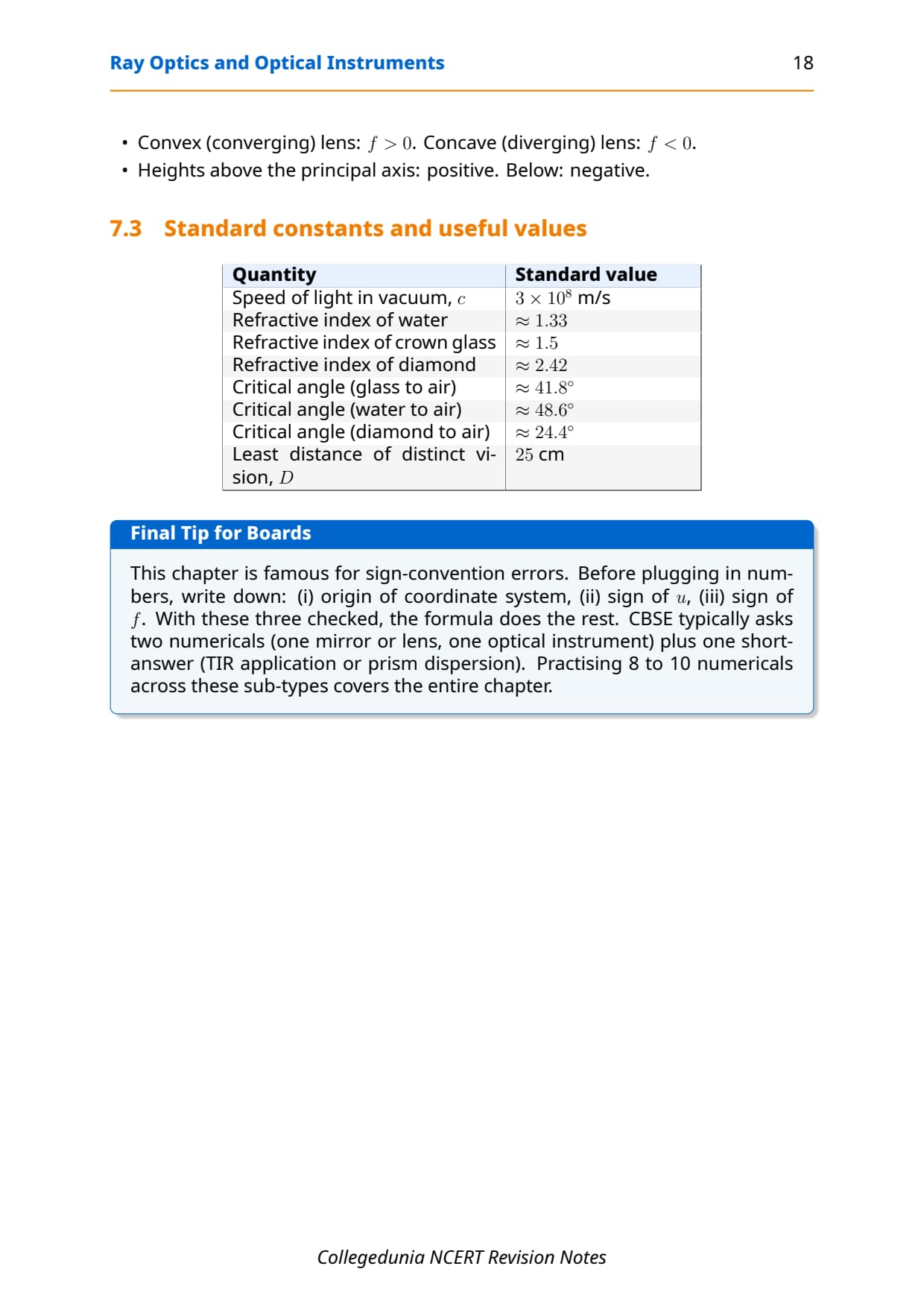

Common Mistakes in Ray Optics and Optical Instruments
Mistake 1: Mixing up the sign convention. Distances against the incident ray are negative, so check signs before you plug in.
Mistake 2: Using the mirror formula 1/v + 1/u = 1/f as the lens formula 1/v - 1/u = 1/f. The signs differ.
Mistake 3: Forgetting the boundary conditions in the total internal reflection derivation. State your assumptions first.
Mistake 4: Putting numbers in too early. Keep the answer symbolic until the last step so unit errors show up.
Each one costs 1 to 2 marks.
How to Revise Class 12 Physics Chapter 9 Ray Optics in 2 Hours
- 0 to 30 min: Mirrors and Snell's law. Solve two numericals.
- 30 to 60 min: Total internal reflection derivation walkthrough.
- 60 to 90 min: Prism and dispersion block.
- 90 to 120 min: Run through the 11-formula table and the 7-derivation index.
Other Resources for Class 12 Physics Chapter 9 Ray Optics
| Resource | Link |
|---|---|
| NCERT Solutions | Ray Optics NCERT Solutions |
| Notes | Ray Optics Notes |
| Formula Sheet | Ray Optics Formula Sheet |
| NCERT Book PDF | Ray Optics NCERT Book PDF |
| Exemplar Book PDF | Ray Optics Exemplar Book PDF |
| Exemplar Solutions | Ray Optics Exemplar Solutions |
| Handwritten Notes | Ray Optics Handwritten Notes |
NCERT Notes for Class 12 Physics: All Chapters
| Chapter | Resource |
|---|---|
| Chapter 1 | Electric Charges and Fields Notes |
| Chapter 2 | Electrostatic Potential and Capacitance Notes |
| Chapter 3 | Current Electricity Notes |
| Chapter 4 | Moving Charges and Magnetism Notes |
| Chapter 5 | Magnetism and Matter Notes |
| Chapter 6 | Electromagnetic Induction Notes |
| Chapter 7 | Alternating Current Notes |
| Chapter 8 | Electromagnetic Waves Notes |
| Chapter 9 | Ray Optics and Optical Instruments Notes |
| Chapter 10 | Wave Optics Notes |
| Chapter 11 | Dual Nature of Radiation and Matter Notes |
| Chapter 12 | Atoms Notes |
| Chapter 13 | Nuclei Notes |
| Chapter 14 | Semiconductor Electronics Notes |
Class 12 Physics Chapter 9 Ray Optics and Optical Instruments Notes FAQs
Ques. What are the main topics in Class 12 Physics Chapter 9 notes?
Ans. The notes cover reflection at plane and spherical mirrors, refraction and Snell's law, total internal reflection, refraction at spherical surfaces and lens-maker's formula, prism and dispersion, and optical instruments (microscope, telescope).
Ques. What are the most-asked derivations in this chapter?
Ans. Seven derivations carry the chapter's mark weight: mirror formula 1/v + 1/u = 1/f, refraction at a spherical surface, lens-maker's formula, and the others listed in the Derivations Index above.
Ques. How many formulas are in the Chapter 9 notes?
Ans. 11 formulas cover every numerical the chapter generates. The Quick-Reference Table above lists them with units, and the PDF carries the same list on one A4 cover sheet.
Ques. What is the weightage of Class 12 Physics Chapter 9?
Ans. Chapter 9 carries 7 marks in CBSE Class 12 Physics, 4 to 5 percent in JEE Main, and 2 to 3 questions per year in NEET.
Ques. Where can I download the Chapter 9 Ray Optics notes PDF?
Ans. The notes PDF is on this page via the download card above. It covers all 11 formulas, 7 derivations, and worked numericals.
