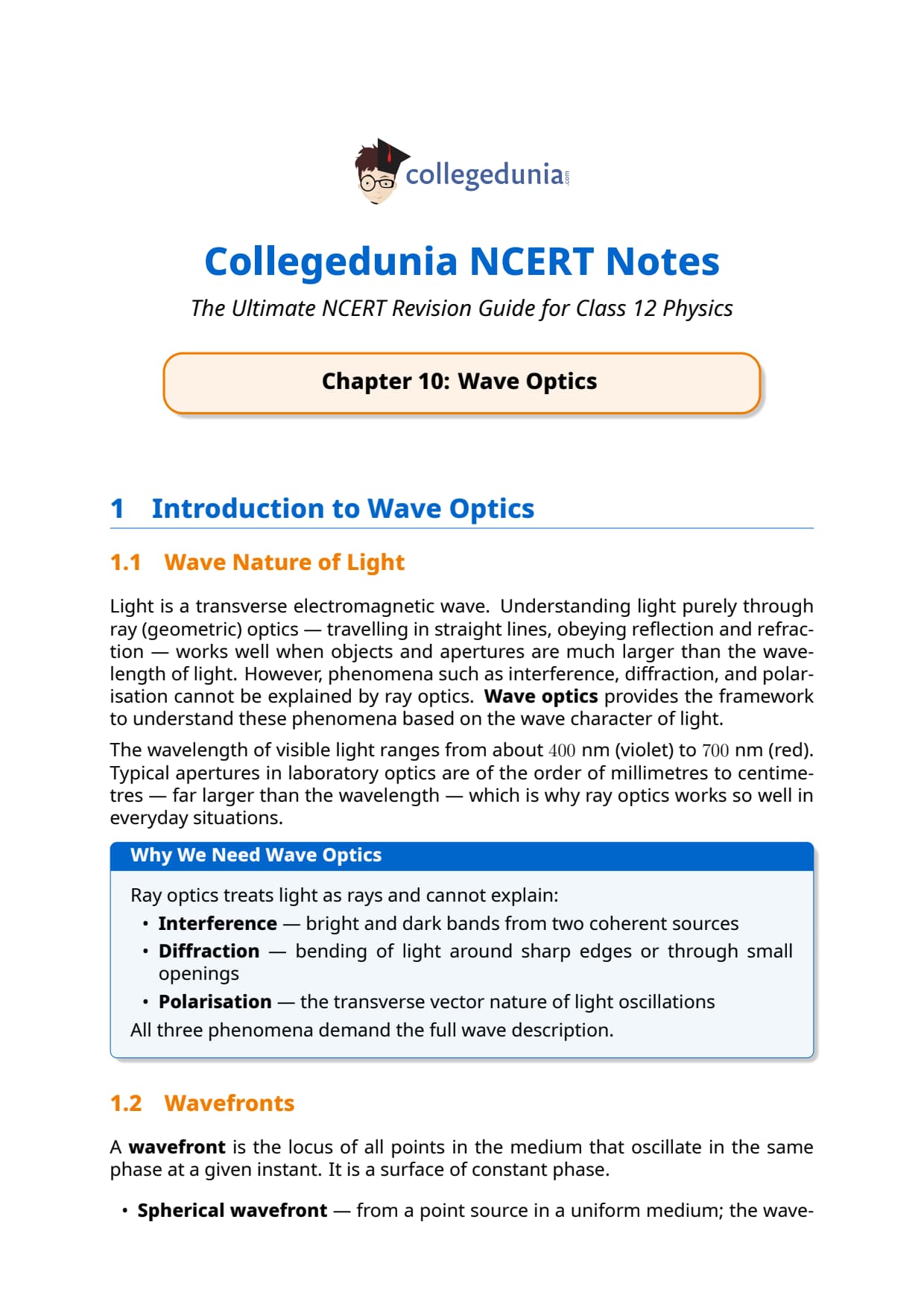

Wave Optics is Chapter 10 of Class 12 Physics. These notes cover Huygens' principle, interference, diffraction, and polarisation in short, exam-ready blocks. You can download the full Wave Optics notes PDF from this page.
Here is what the chapter is worth in your exams:
- CBSE Boards: Chapter 10 gives about 5 marks, usually one derivation plus one short concept question.
- JEE Main: The weightage is around 2 to 3 percent, mostly on derivations and numericals.
- NEET: You can expect 1 to 2 questions each year on concepts and formula-based sums.
Also Check:
Topic-by-Topic Summary for Class 12 Physics Chapter 10 Wave Optics
Wave Optics splits into 5 small blocks. Each block below is mapped to its usual CBSE marking pattern.

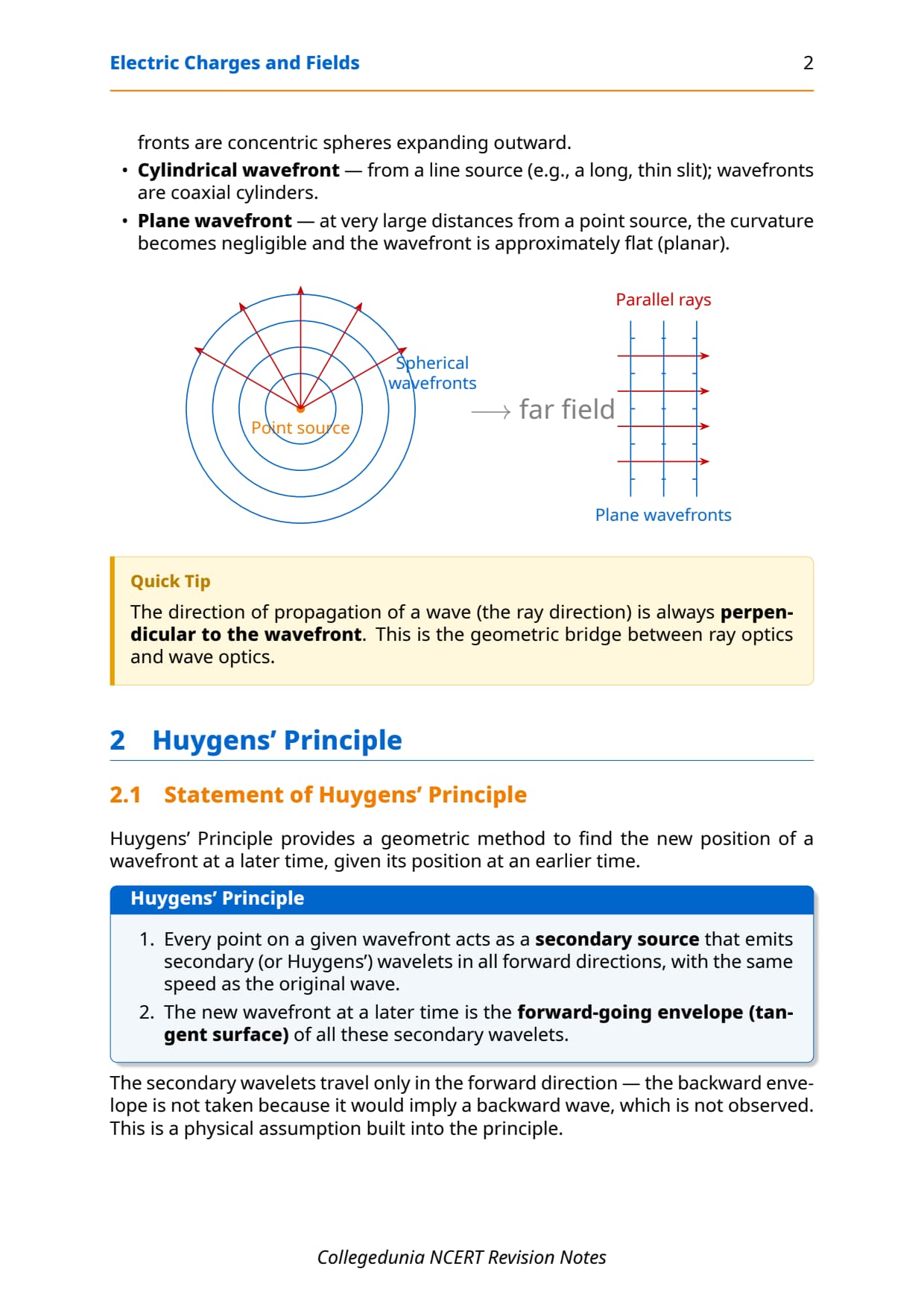

- Huygens' principle: 2-mark question on wavefronts and secondary wavelets.

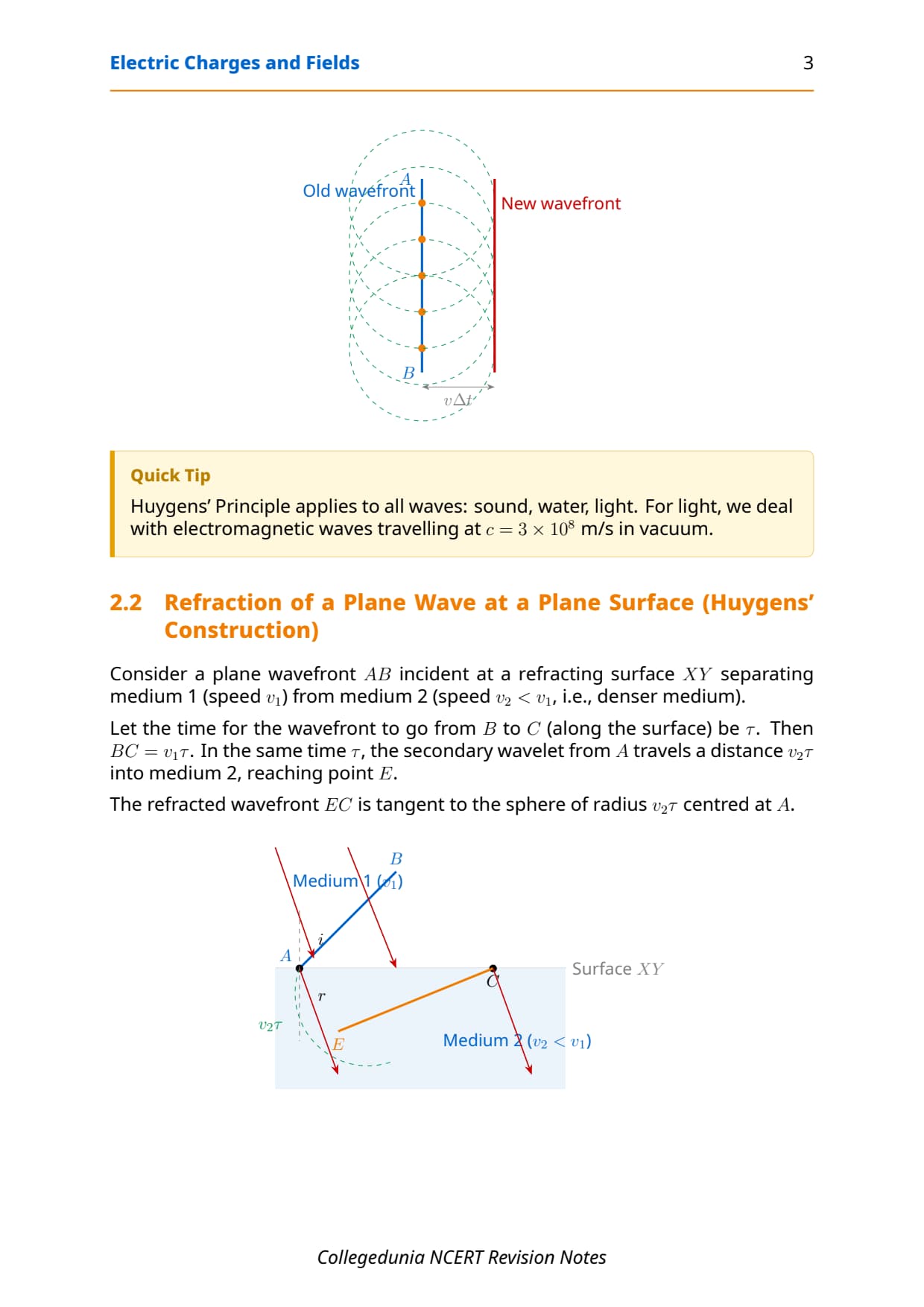

- Reflection and refraction by wavefronts: 3-mark derivation of Snell's law.

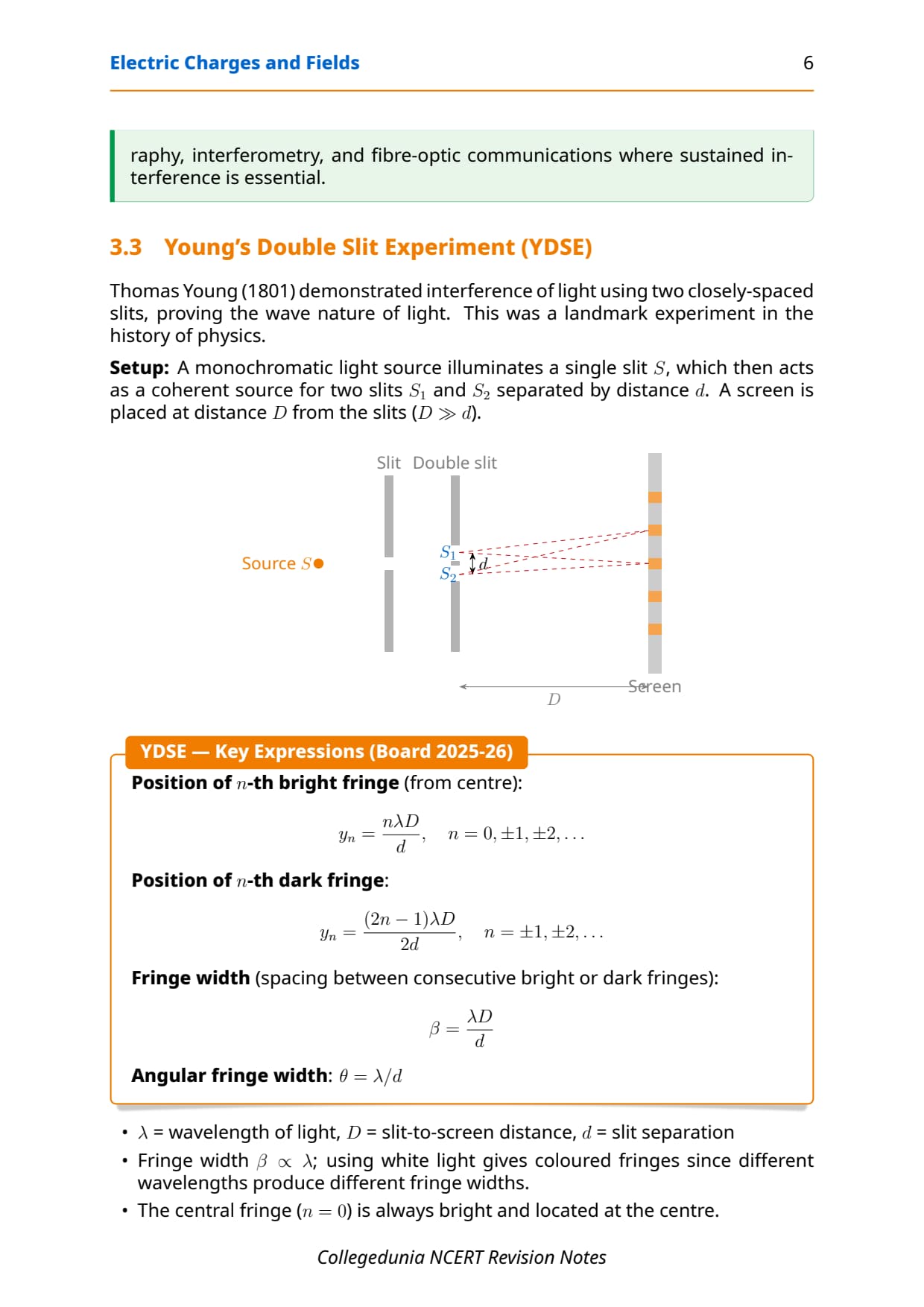

- Interference and Young's double-slit: 3 to 5-mark on fringe width \(\beta = \lambda D / d\).

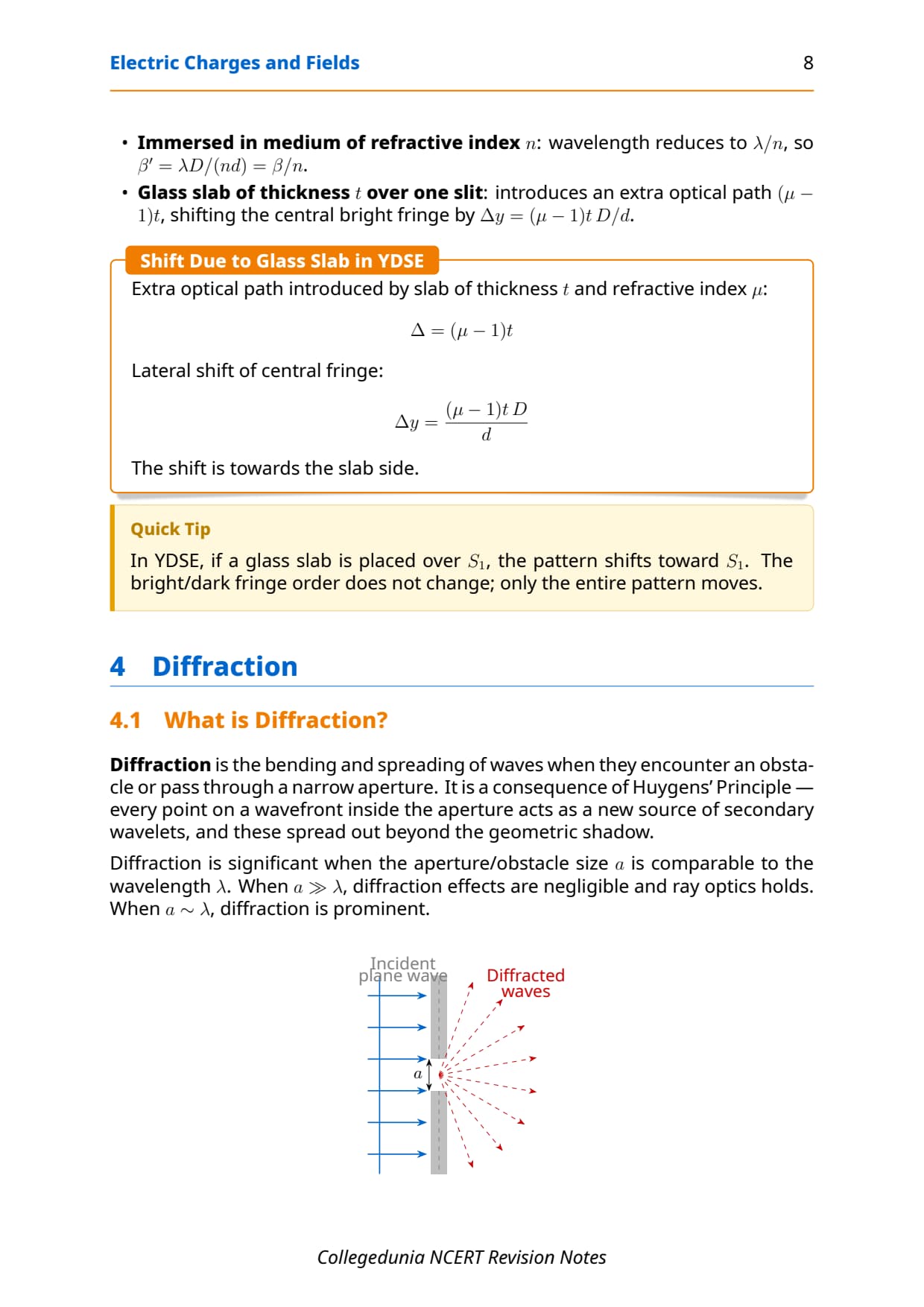

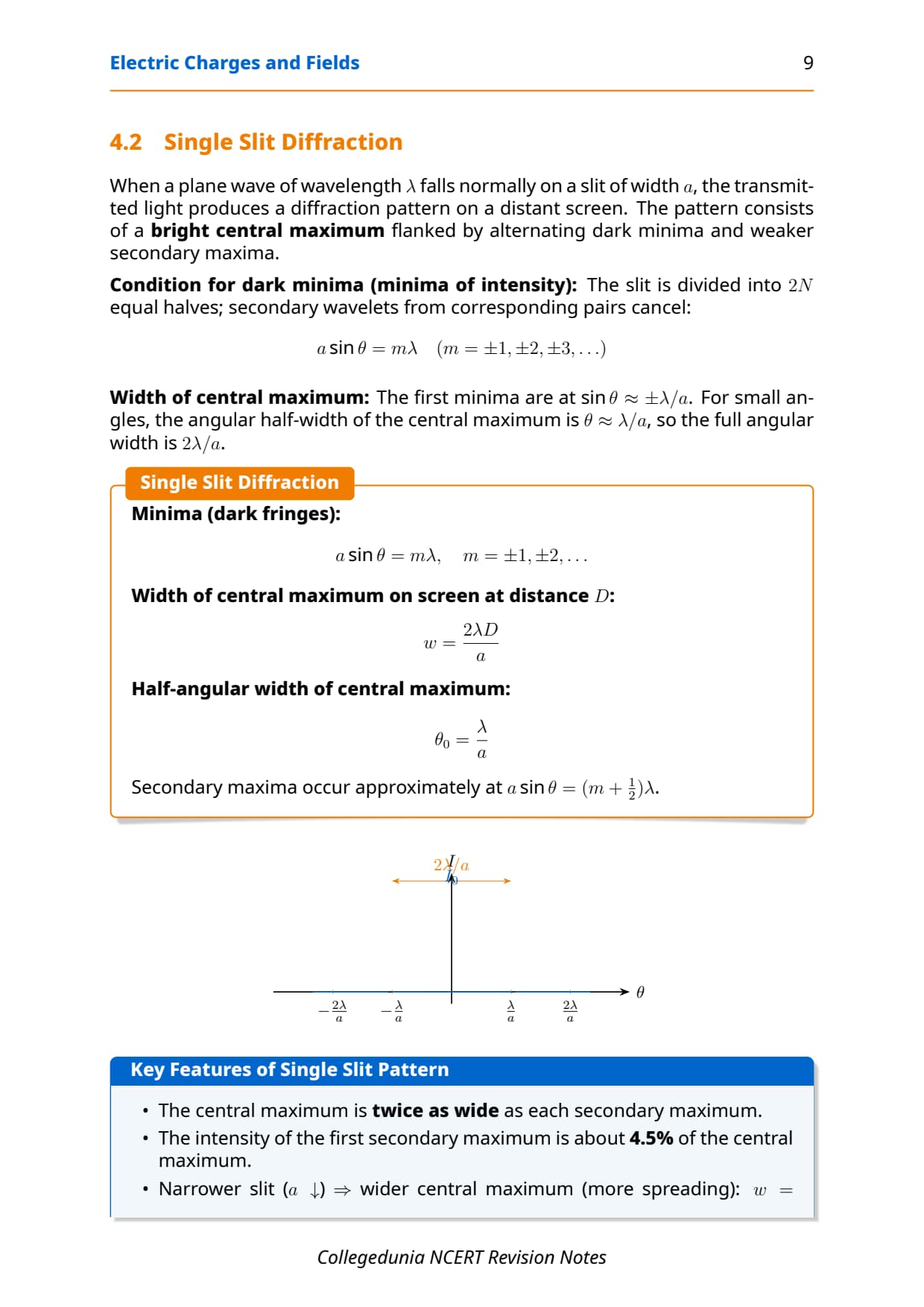

- Diffraction (single slit): 3-mark on central maximum and minima.

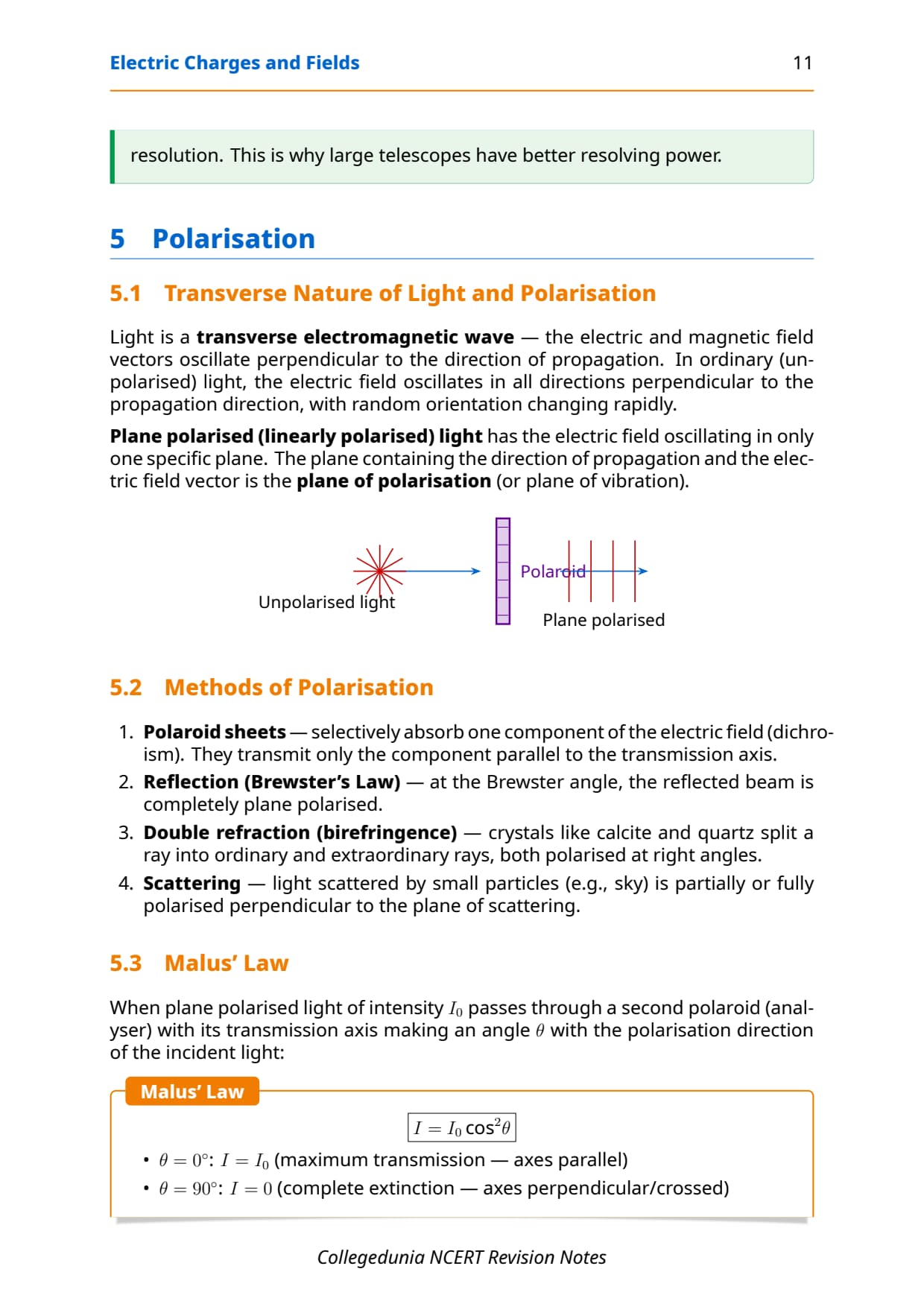

- Polarisation and Malus's law: 2 to 3-mark on \(I = I_0 \cos^2\theta\).
Wave Optics Video Lecture for Class 12 Physics Chapter 10
Source: Magnet Brains on YouTube

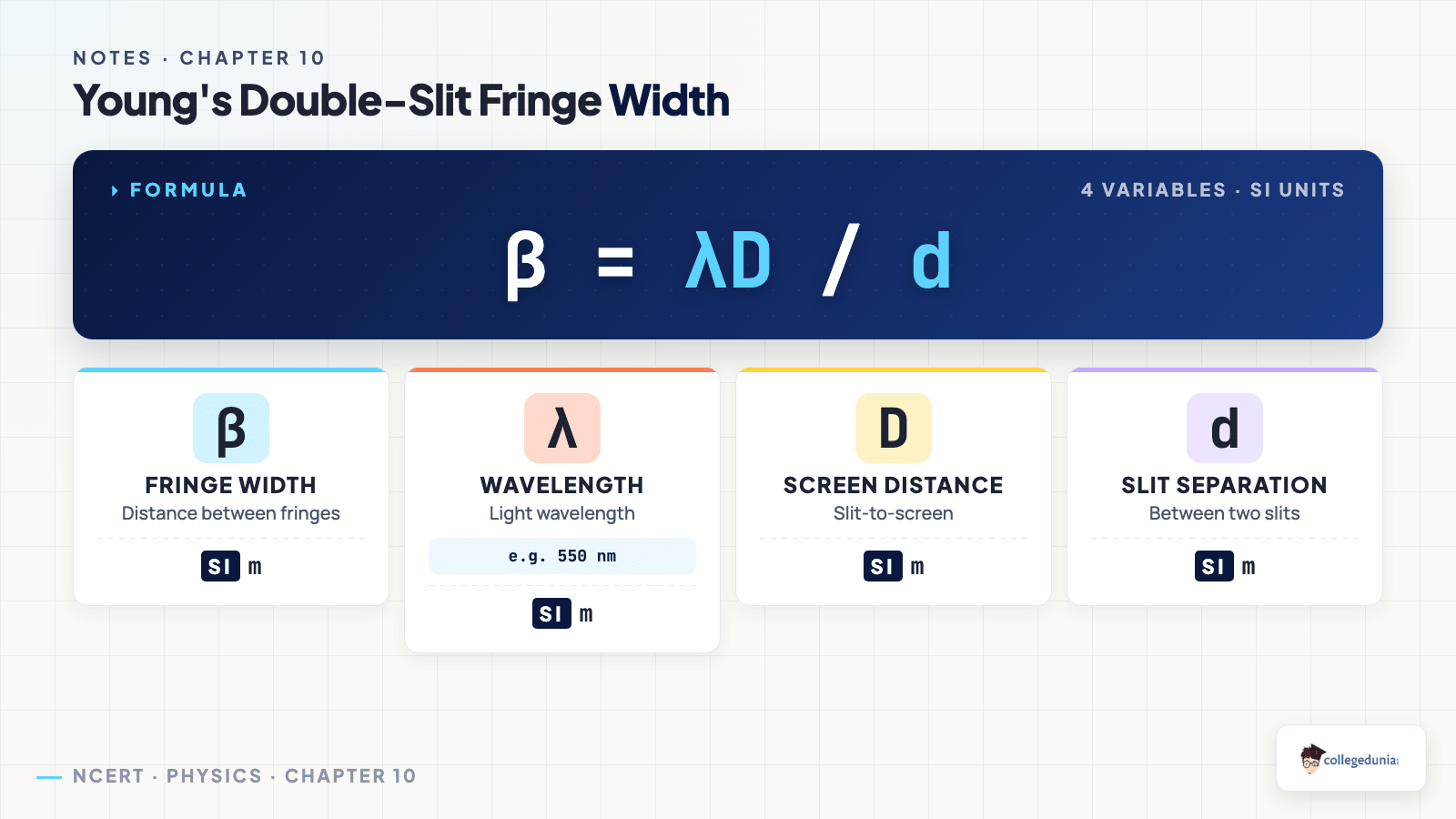

YDSE: fringe width depends on lambda, D and d.
Class 12 Physics Chapter 10 Wave Optics All Formulas Table

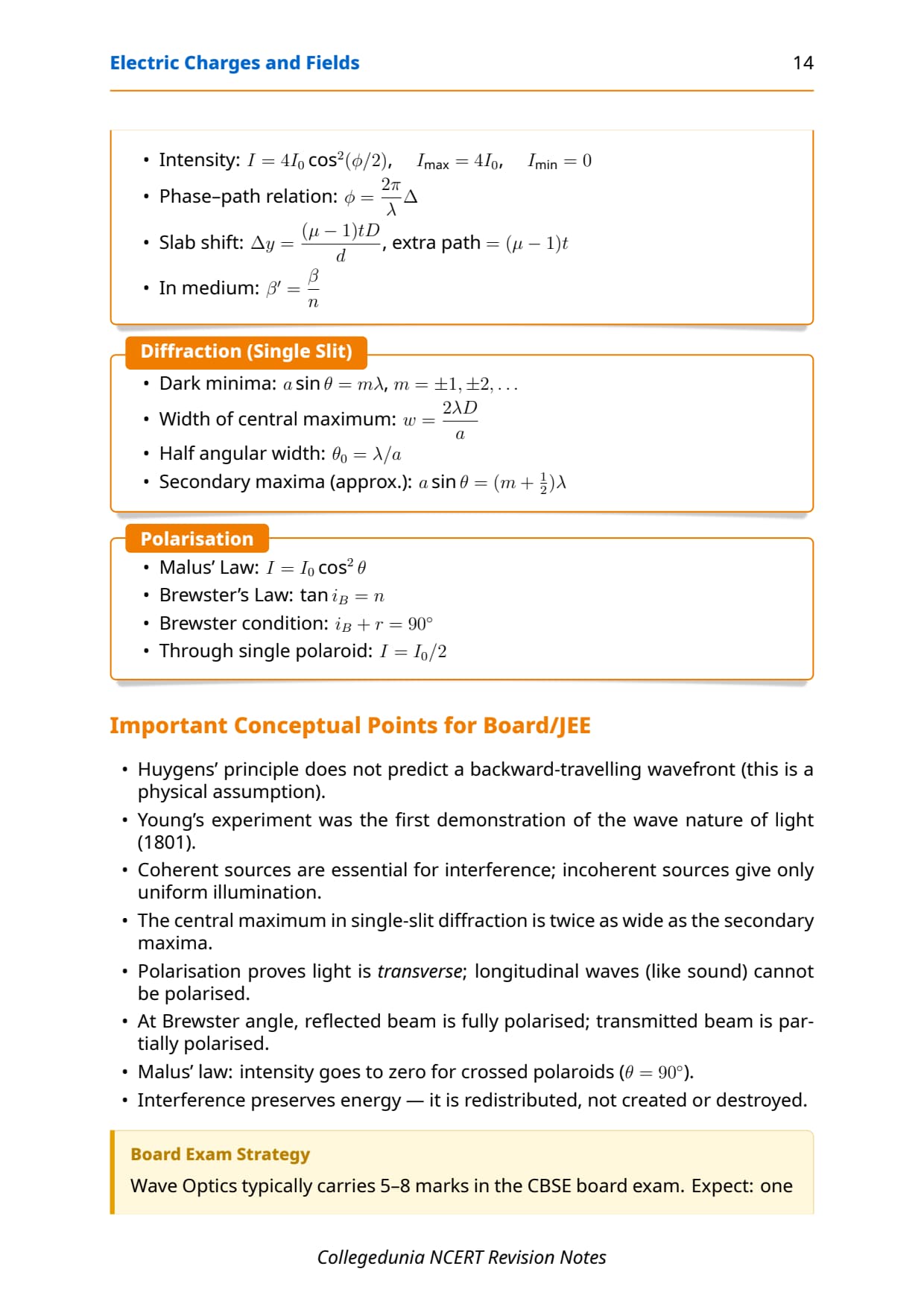

The formulas below cover every numerical this chapter can ask. The same list sits on the back page of the Wave Optics notes PDF for quick revision.
| Concept | Formula | SI Unit |
|---|---|---|
| Fringe width (YDSE) | \(\beta = \lambda D / d\) | metre |
| Position of nth bright fringe | \(x_n = n \lambda D / d\) | metre |

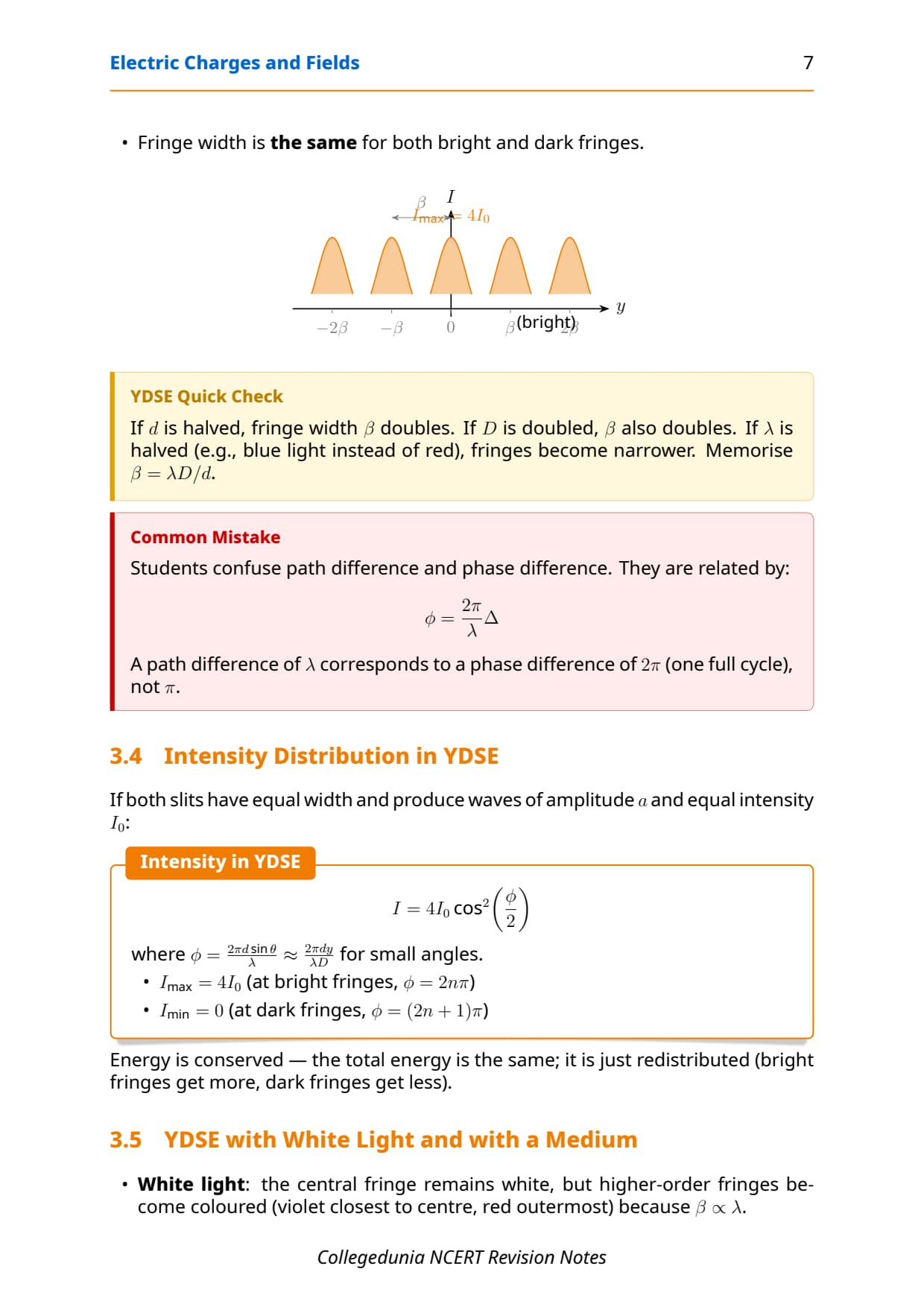

| Intensity in YDSE | \(I = 4 I_0 \cos^2(\phi/2)\) | W/m² |
| Single-slit first minimum | \(a \sin\theta = \lambda\) | n/a |
| Width of central maximum | \(W = 2 \lambda D / a\) | metre |

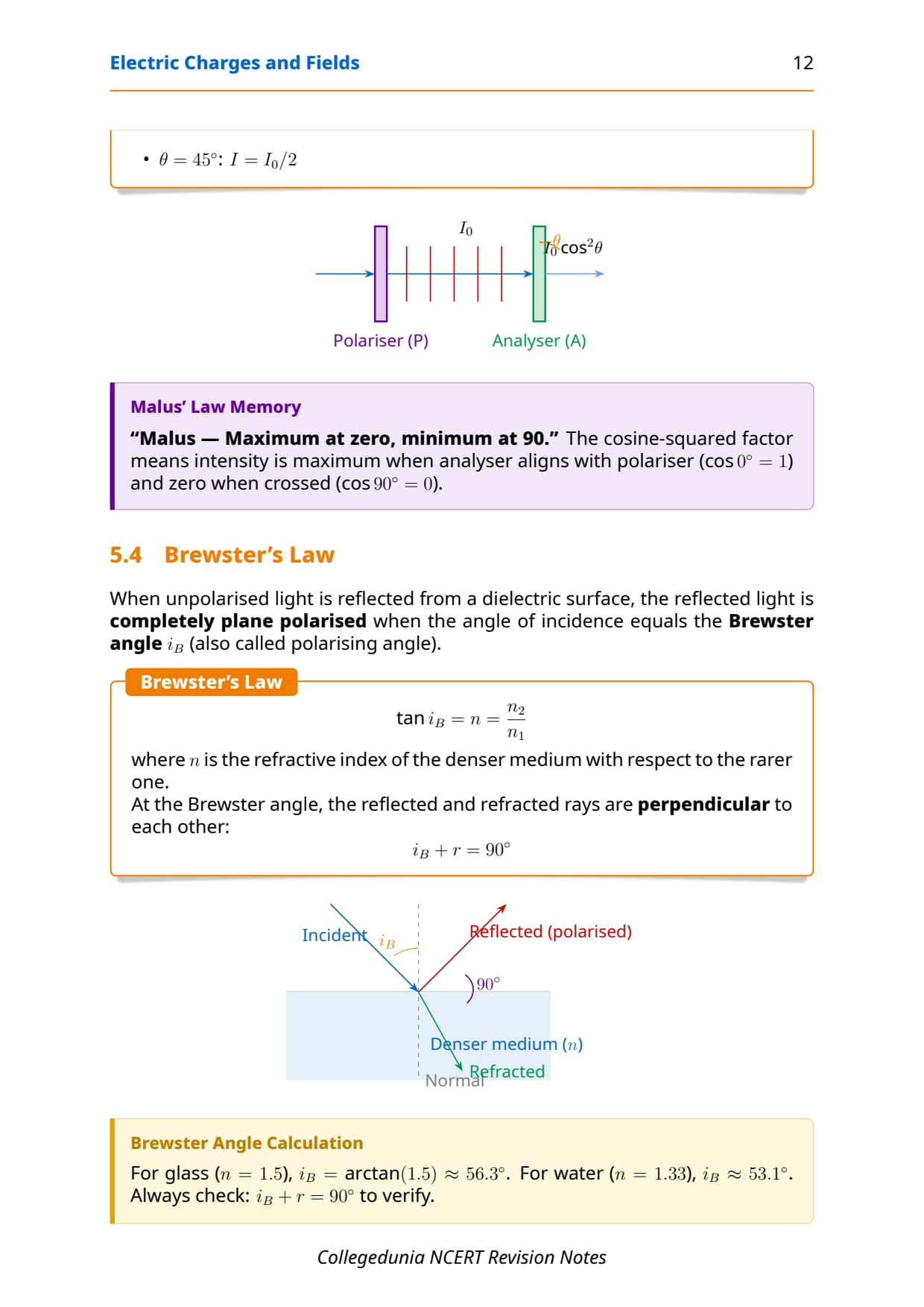

| Malus's law | \(I = I_0 \cos^2\theta\) | W/m² |
| Brewster's angle | \(\tan i_B = n\) | n/a |
| Limit of resolution (microscope) | \(d = 0.61 \lambda / (n \sin\theta)\) | metre |
Full formula sheet with derivations: Class 12 Physics Chapter 10 Formula Sheet
Wave Optics Class 12 Chapter 10 Key Derivations Index
The 4 derivations below carry most of the marks in this chapter. Each one in the PDF shows the full geometry sketch and the step-by-step working.
| Derivation | Marks (CBSE) |
|---|---|

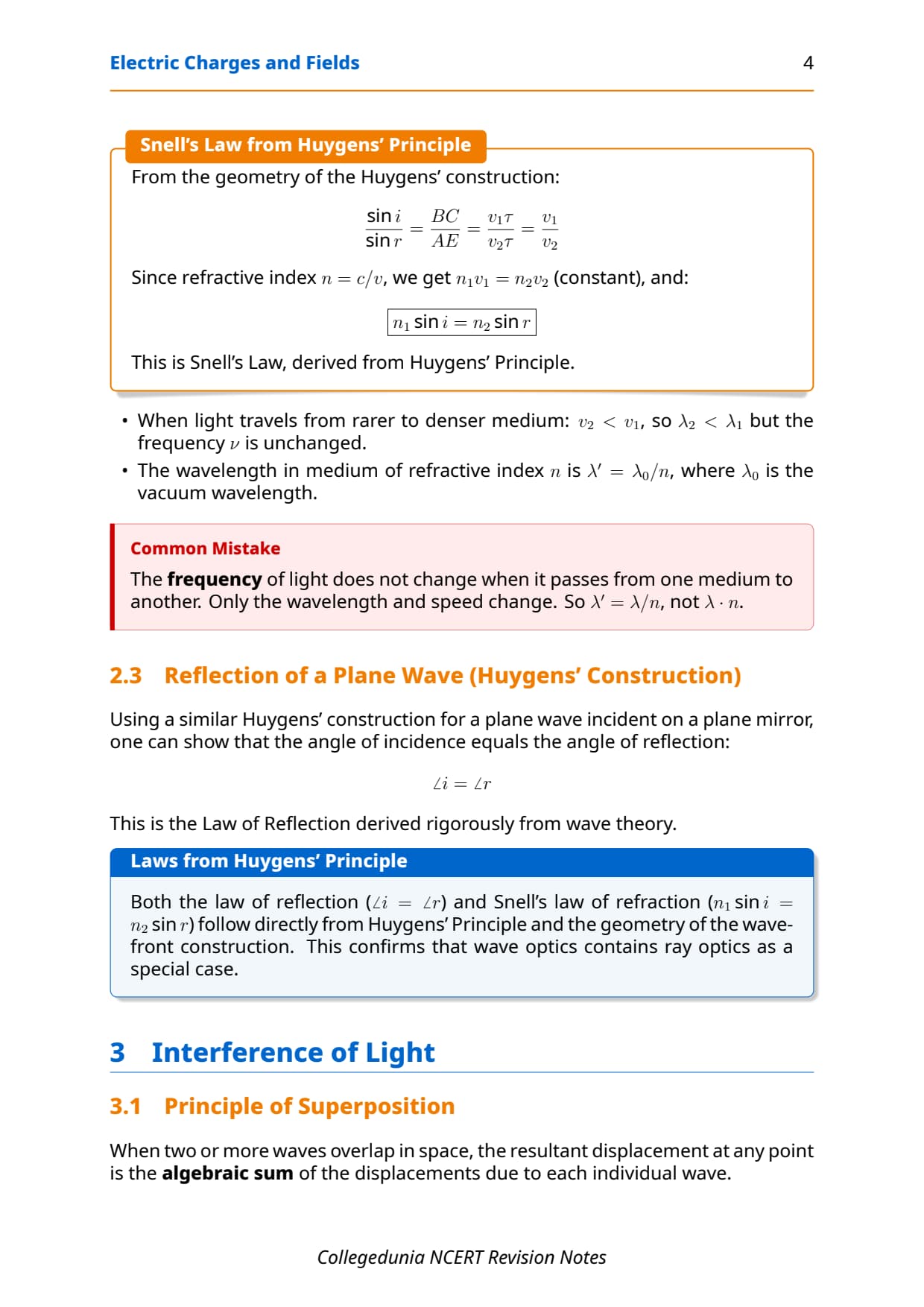

| Snell's law from Huygens' principle | 3 |
| YDSE fringe width derivation | 3 |
| Single-slit first minimum position | 5 |
| Malus's law for polarisation | 2 |
Wave Optics Weightage Across Class 12 Physics Chapters
This table shows how Chapter 10 weightage compares with the other chapters. Marks are CBSE board averages over the last five papers.
| Chapter | Topic | Avg CBSE Marks |
|---|---|---|
| Ch 2 | Electrostatic Potential and Capacitance | 7 marks |
| Ch 3 | Current Electricity | 7 marks |
| Ch 7 | Alternating Current | 6 marks |
| Ch 9 | Ray Optics and Optical Instruments | 7 marks |
| Ch 10 | Wave Optics | 5 marks |
| Ch 11 | Dual Nature of Radiation and Matter | 4 marks |
| Ch 14 | Semiconductor Electronics | 6 marks |
Wave Optics Previous Year Questions in CBSE, JEE and NEET
This table maps where Class 12 Physics Chapter 10 topics showed up over the last few sessions.
| Year | CBSE Board | JEE Main | NEET |
|---|---|---|---|
| 2025 | Polarisation by reflection (3 marks) | YDSE with glass plate | Malus's law MCQ |
| 2024 | Single-slit diffraction (5 marks) | Coherent sources | Fringe width formula |
| 2023 | Huygens' principle (3 marks) | Intensity ratio in YDSE | Diffraction first minimum |
| 2022 | Malus's law numerical (2 marks) | Polariser-analyser problem | YDSE fringe shift |

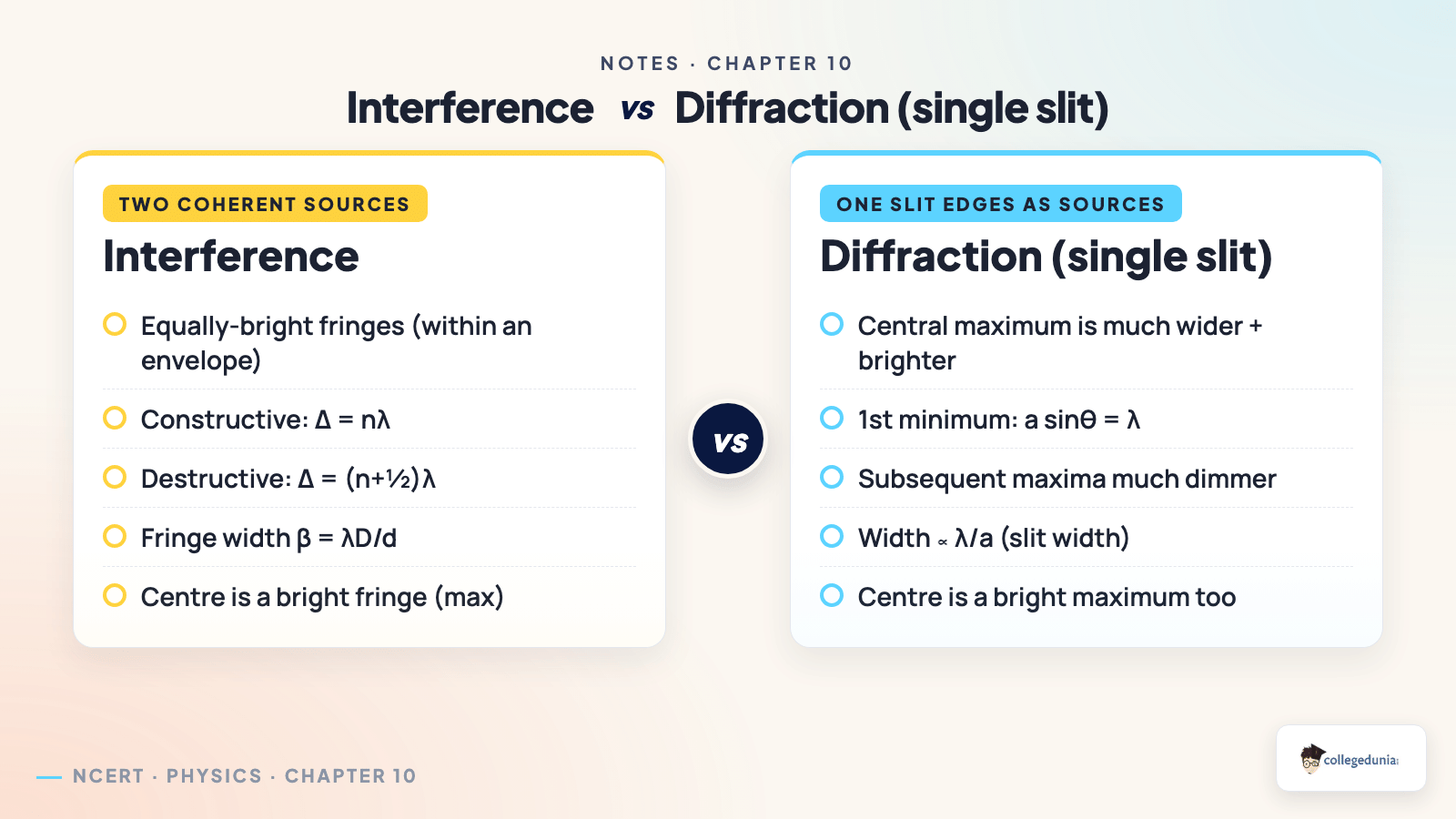

Interference vs diffraction: what is the same and what is not.
Common Mistakes in Class 12 Physics Chapter 10 Wave Optics
Mistake 1: Skipping the unit check step. CBSE markers give marks for showing the units match in a derivation.
Mistake 2: Mixing up path difference and phase difference in YDSE. Convert one to the other before you plug in.
Mistake 3: Forgetting to state assumptions in the interference derivation. Write them down before you start the algebra.
Mistake 4: Putting in numbers too early. Keep the answer in symbols until the last step.
Each one of these can cost you 1 to 2 marks.
How to Revise Class 12 Physics Chapter 10 Wave Optics in 2 Hours
- 0 to 30 min: Huygens' principle and refraction by wavefronts. Solve 2 numericals.
- 30 to 60 min: Interference and Young's double-slit derivation.
- 60 to 90 min: Diffraction at a single slit.
- 90 to 120 min: Run through the 8-formula table and the 4 derivations.
Use the PDF on this page for the full sketches and worked steps while you revise.
Student Feedback
Here is what Class 12 students told us about these Wave Optics notes:
- 69% of students said the single-slit diffraction derivation was the hardest part.
- 57% got stuck on the YDSE intensity formula in at least one class test.
- 4 out of 5 students revised Snell's law from Huygens' principle the night before boards.
- 61% read these notes at least twice before their exam.
Based on a 2025-26 Collegedunia poll of Class 12 Physics students.
Other Resources for Class 12 Physics Chapter 10 Wave Optics
| Resource | Link |
|---|---|
| Notes | Wave Optics Notes |
| NCERT Solutions | Wave Optics NCERT Solutions |
| Formula Sheet | Wave Optics Formula Sheet |
| NCERT Book PDF | Wave Optics NCERT Book PDF |
| Exemplar Book PDF | Wave Optics Exemplar Book PDF |
| Exemplar Solutions | Wave Optics Exemplar Solutions |
| Handwritten Notes | Wave Optics Handwritten Notes |
NCERT Notes for Class 12 Physics: All Chapters
| Chapter | Resource |
|---|---|
| Chapter 1 | Electric Charges and Fields Notes |
| Chapter 2 | Electrostatic Potential and Capacitance Notes |
| Chapter 3 | Current Electricity Notes |
| Chapter 4 | Moving Charges and Magnetism Notes |
| Chapter 5 | Magnetism and Matter Notes |
| Chapter 6 | Electromagnetic Induction Notes |
| Chapter 7 | Alternating Current Notes |
| Chapter 8 | Electromagnetic Waves Notes |
| Chapter 9 | Ray Optics and Optical Instruments Notes |
| Chapter 10 | Wave Optics Notes |
| Chapter 11 | Dual Nature of Radiation and Matter Notes |
| Chapter 12 | Atoms Notes |
| Chapter 13 | Nuclei Notes |
| Chapter 14 | Semiconductor Electronics Notes |
Class 12 Physics Chapter 10 Wave Optics Notes FAQs
Ques. What topics do the Class 12 Wave Optics notes cover?
Ans. They cover Huygens' principle, reflection and refraction by wavefronts, interference and Young's double-slit, single-slit diffraction, and polarisation with Malus's law.
Ques. Which are the most-asked derivations in this chapter?
Ans. Four derivations carry the marks: Snell's law from Huygens' principle, YDSE fringe width, single-slit first minimum, and Malus's law.
Ques. How many formulas are in the Wave Optics notes?
Ans. Eight formulas cover every numerical the chapter can ask. The quick-reference table above lists them with units.
Ques. What is the weightage of Chapter 10 Wave Optics?
Ans. It carries about 5 marks in CBSE, 2 to 3 percent in JEE Main, and 1 to 2 questions a year in NEET.
Ques. Where can I download the Wave Optics notes PDF?
Ans. You can download it directly from the card at the top of this page. It covers all 8 formulas, 4 derivations, and worked numericals.
