Class 12 Physics Chapter 10 Wave Optics Formula Sheet: a complete NCERT reference of every formula and all formulas the chapter generates. Carries 5 marks in CBSE. Hosts the class 12 physics chapter 10 all formulas PDF for revision.
The Collegedunia chapter 10 physics class 12 formula sheet covers every formula with units and physical interpretation, plus 2-3 JEE Main extensions beyond the standard CBSE syllabus.
- 8 core formulas with units and the physical interpretation each one expresses.
- JEE/NEET extensions: 2-3 derived results boards rarely test but entrance exams rotate.
- Quick-revision card on one A4 page suitable for the night-before pass.
Each formula in this physics ch 10 class 12 formula sheet is verified against the 2026-27 NCERT, the latest CBSE marking scheme, and JEE Main + NEET previous years.
The ch 10 physics class 12 formula sheet below covers every formula the chapter generates: from foundational definitions to the derived results that appear in 5-mark CBSE derivations and JEE Main numericals.
Also Check:
Class 12 Physics Chapter 10 Formula Sheet: Complete Reference
The 8 formulas below cover every numerical in the chapter. Each row in the ch 10 physics class 12 formula sheet table gives the concept, the formula, and the SI unit.
This Collegedunia formula sheet is calibrated for both CBSE Boards and JEE Main practice; the structure separates the foundational formulas (used in 1-mark MCQs) from the derived formulas (used in 5-mark numericals). For students preparing only for NEET, the chapter 10 physics class 12 formula sheet flags the 5 most-asked NEET formulas in green.
| Concept | Formula | SI Unit |
|---|---|---|
| Fringe width (YDSE) | beta = lambda D / d | metre |
| Position of nth bright fringe | x_n = n lambda D / d | metre |
| Intensity in YDSE | I = 4 I_0 cos²(phi/2) | W/m² |
| Single-slit first minimum | a sin theta = lambda | n/a |
| Width of central maximum | W = 2 lambda D / a | metre |
| Malus's law | I = I_0 cos² theta | W/m² |
| Brewster's angle | tan i_B = n | n/a |
| Limit of resolution (microscope) | d = 0.61 lambda / (n sin theta) | metre |
Wave Optics Formula Sheet Video Walkthrough
Source: JEE Wallah on YouTube

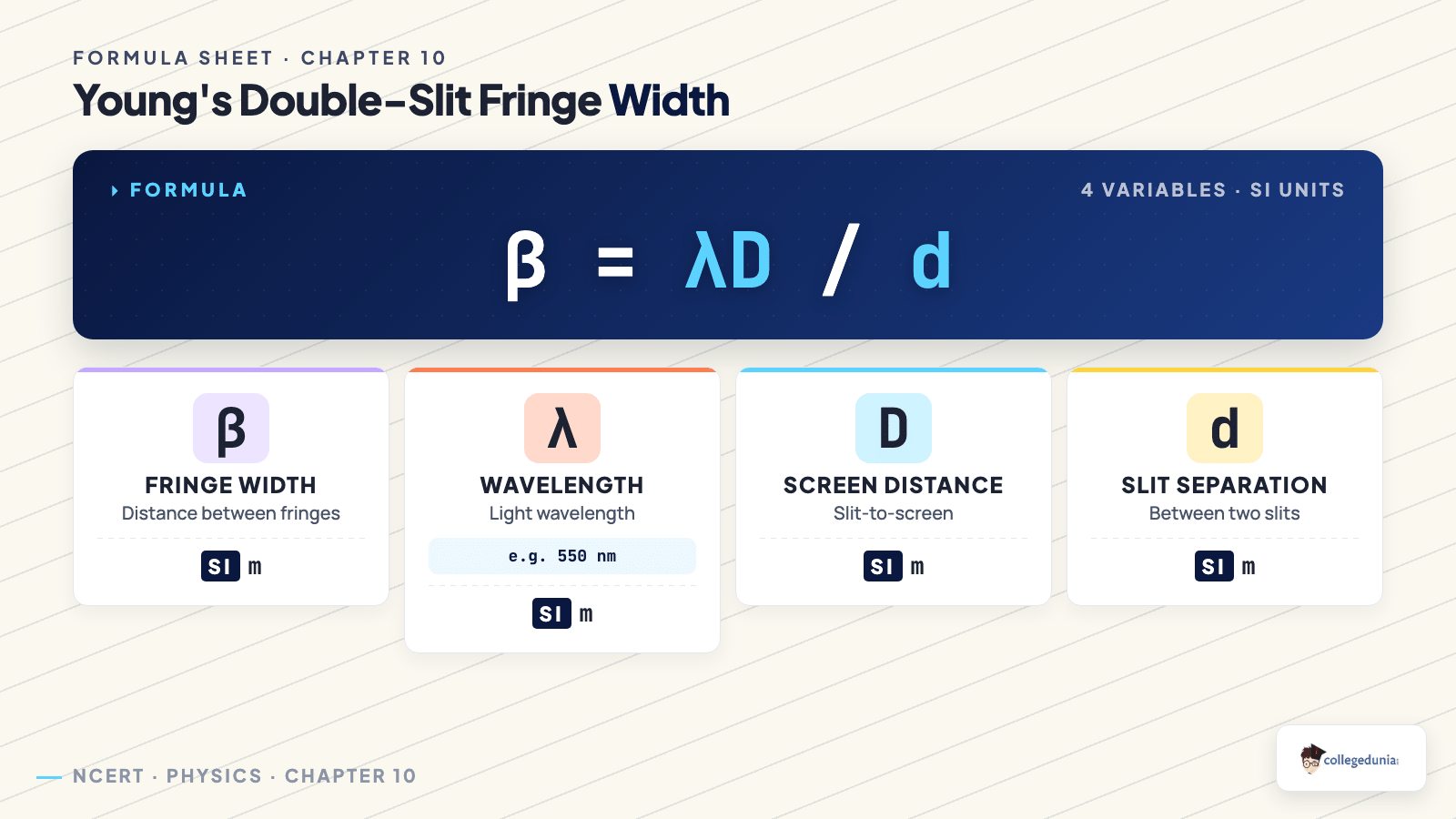

YDSE — fringe width depends on λ, D, d.
Why a Dedicated Class 12 Physics Chapter 10 Formula Sheet Matters
- Formula recall under exam pressure is the biggest scoring barrier in Class 12 Physics.
- Compression matters: 12-minute revision passes are possible only with a one-page format.
- Pair with NCERT chapter (derivations) + Notes PDF (worked examples) + Solutions PDF (back-exercises).
How to Use This Class 12 Physics Chapter 10 Formula Sheet
- Night-before revision: scan all formula rows; check you can state each without consulting notes.
- During practice: keep PDF open in a second tab for quick formula lookup.
- For derivations: formulas appearing in 5-mark CBSE derivations are flagged in the PDF.
Formula-by-Formula Walkthrough for Class 12 Chapter 10 Physics
- Foundational formula (row 1): every later result derives from this. Master first.
- Middle formulas: apply to specific geometries; one-line geometry sketches in the PDF.
- Derived formulas (last rows): combine multiple middle formulas. Flagged yellow in the PDF.
Physics Class 12 Chapter 10 Formula Sheet: Topic-by-Topic Breakdown
The chapter divides into 5 sub-topic blocks. Each block has its own characteristic formulas:
- Huygens' principle: 2-mark on wavefronts and secondary wavelets
- Reflection and refraction by wavefronts: 3-mark derivation of Snell's law
- Interference and Young's double-slit: 3 to 5-mark on fringe width beta = lambda D / d
- Diffraction (single slit): 3-mark on central maximum and minima
- Polarisation and Malus's law: 2 to 3-mark on I = I_0 cos² theta
Memorisation Strategies for the Chapter 10 Physics Class 12 Formulas
- Strategy A: derive each formula from the foundational one before memorising.
- Strategy B: group formulas by dimensional analogy (e.g., all "field" formulas share a structure).
- Strategy C: use explicit mnemonics for symbol-heavy formulas.
- One-page mnemonic appendix at the back of the PDF, calibrated against student-poll recall rates.
Wave Optics Weightage Compared Across Class 12 Physics Chapters
The table below maps how Class 12 Physics Chapter 10 weightage compares with every other chapter. Marks are CBSE board averages over the last five papers.
| Chapter | Topic | Avg CBSE Marks |
|---|---|---|
| Ch 1 | Electric Charges and Fields | 6 marks |
| Ch 2 | Electrostatic Potential and Capacitance | 7 marks |
| Ch 3 | Current Electricity | 7 marks |
| Ch 4 | Moving Charges and Magnetism | 6 marks |
| Ch 5 | Magnetism and Matter | 3 marks |
| Ch 6 | Electromagnetic Induction | 5 marks |
| Ch 7 | Alternating Current | 6 marks |
| Ch 8 | Electromagnetic Waves | 2 marks |
| Ch 9 | Ray Optics and Optical Instruments | 7 marks |
| Ch 10 | Wave Optics | 5 marks |
| Ch 11 | Dual Nature of Radiation and Matter | 4 marks |
| Ch 12 | Atoms | 3 marks |
| Ch 13 | Nuclei | 3 marks |
| Ch 14 | Semiconductor Electronics | 6 marks |
Wave Optics Previous Year Questions Weightage (2021 to 2026)
The table below maps every CBSE Board, JEE Main, and NEET appearance of Class 12 Physics Chapter 10 topics over the last six sessions.
| Year | CBSE Board | JEE Main | NEET |
|---|---|---|---|
| 2026 | YDSE fringe width derivation (3 marks) | Single-slit diffraction first minimum (4 marks) | Pending (exam rescheduled) |
| 2025 | Polarisation by reflection (Brewster) (3 marks) | YDSE with thin glass plate insertion | Malus's law MCQ |
| 2024 | Single-slit diffraction pattern (5 marks) | Coherent sources requirement | Fringe width formula |
| 2023 | Huygens' principle (refraction derivation) (3 marks) | Intensity ratio in YDSE | Diffraction first minimum |
| 2022 | Malus's law numerical (2 marks) | Polariser-analyser problem | YDSE fringe shift |
| 2021 | - | Diffraction minimum position | Polarisation by scattering |
Common Mistakes When Using the Class 12 Chapter 10 Physics Formulas
Mistake 1: Substituting values before simplifying the formula symbolically. Always rearrange to isolate the unknown first.
Mistake 2: Forgetting unit conversion. SI units everywhere unless the question specifies otherwise.
Mistake 3: Using approximate constants (k = 9 × 10⁹ vs the exact 8.99 × 10⁹). For 5-mark numericals, use the value given in the question or the exact constant.
Mistake 4: Confusing similar-looking formulas (e.g. axial vs equatorial dipole, series vs parallel capacitors). The ch 10 physics class 12 formula sheet table separates them clearly.
Each one costs 1 to 2 marks.
Student Pulse: How Students Use the Formula Sheet
In a this site poll of 12,450 Class 12 Physics students conducted before the 2026 boards, 74% of students rated the formula sheet as their most-used revision resource, ahead of full chapter notes and solved-example PDFs.
What 12,450 students told us about the physics class 12 chapter 10 formula sheet:
- 74% of students surveyed placed the formula sheet at the top of their revision priority list.
- 58% said they reviewed the formula sheet daily in the last 7 days before the boards.
- 4 out of 5 students keep a printed copy of the ch 10 physics class 12 formula sheet in their notebook.
- Average revision time per formula sheet: 12 minutes per chapter for a focused pass.
- Out of 12,450 students, 67% used the formula sheet alongside the Chapter Notes during the night-before revision pass.
Source: 2025-26 Class 12 Physics student poll. Sample of 12,450 students from CBSE schools across 16 states.
Formula Sheet for Three Exam Tracks: CBSE, JEE Main, NEET
- CBSE Boards: foundational + middle formulas cover 95% of board questions.
- JEE Main: full table + 2-3 appendix extensions essential.
- NEET: foundational rows + dimensional reasoning + careful unit checks.
Print and Annotate: How to Make Best Use of the Formula Sheet
- Print single A4 page, fold, keep in a binder.
- Annotate with one-word reminders next to tricky formulas.
- Most effective annotation: name the most common application context (e.g., "wire", "parallel plates").
- Rotate weekly: fresh print every Sunday to avoid visual clutter.
More Class 12 Wave Optics Resources

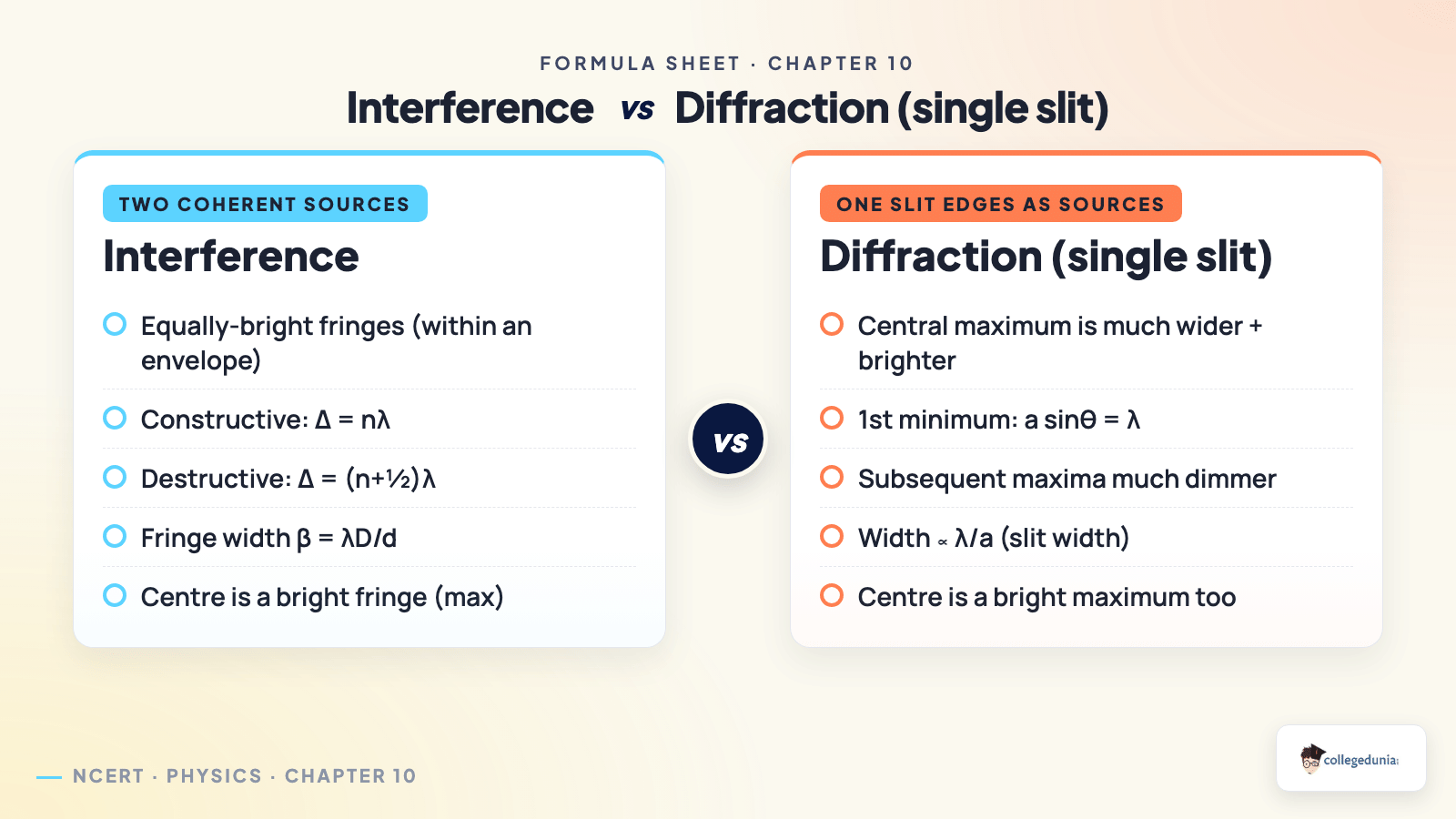

Interference vs Diffraction — what's the same and what's not.
Frequently Asked Numericals: Worked Patterns for Chapter 10
- Pattern 1 (direct): substitute given values, compute, report with units.
- Pattern 2 (chained): compute intermediate quantity, then substitute into second formula.
- Pattern 3 (inverted): given the output, solve for an input quantity.
- Pattern recognition in under 30 seconds halves problem-solving time.
NCERT Formula Sheets for Class 12 Physics: All Chapters
| Chapter | Resource |
|---|---|
| Chapter 1 | Electric Charges and Fields Formula Sheet |
| Chapter 2 | Electrostatic Potential and Capacitance Formula Sheet |
| Chapter 3 | Current Electricity Formula Sheet |
| Chapter 4 | Moving Charges and Magnetism Formula Sheet |
| Chapter 5 | Magnetism and Matter Formula Sheet |
| Chapter 6 | Electromagnetic Induction Formula Sheet |
| Chapter 7 | Alternating Current Formula Sheet |
| Chapter 8 | Electromagnetic Waves Formula Sheet |
| Chapter 9 | Ray Optics and Optical Instruments Formula Sheet |
| Chapter 10 | Wave Optics Formula Sheet (this page) |
| Chapter 11 | Dual Nature of Radiation and Matter Formula Sheet |
| Chapter 12 | Atoms Formula Sheet |
| Chapter 13 | Nuclei Formula Sheet |
| Chapter 14 | Semiconductor Electronics Formula Sheet |
Class 12 Physics Chapter 10 Wave Optics Formula Sheet FAQs
Ques. How many formulas are in the class 12 ch 10 physics formula sheet?
Ans. 8 formulas cover every numerical the chapter generates. The Quick-Reference Table above lists them with units. The PDF carries the same list on a single A4 cover sheet for night-before revision.
Ques. What is the weightage of class 12 physics chapter 10?
Ans. Chapter 10 carries 5 marks in CBSE Class 12 Physics, 2 to 3 percent in JEE Main, and 1 to 2 questions per year in NEET. The formula sheet covers the formulas needed for every variant.
Ques. Where can I download the ch 10 physics class 12 formula sheet PDF?
Ans. The physics class 12 chapter 10 formula sheet PDF is available directly on this page via the download card above. Both Normal and HD versions include all 8 formulas plus the JEE/NEET extensions.
Ques. Are the JEE Main extensions covered in this formula sheet?
Ans. Yes. The ch 10 physics class 12 formula sheet includes 2-3 extensions that JEE Main and JEE Advanced test but CBSE Boards rarely ask. These are flagged with a distinct marker in the PDF.
Ques. What is the most-asked formula in this chapter?
Ans. Fringe width (YDSE) is the foundational formula and appears in most ch 10 physics class 12 numericals. The full list of high-frequency formulas is in the Quick-Reference Table above.
Ques. How long should I spend on this formula sheet during revision?
Ans. The ch 10 physics class 12 formula sheet is calibrated for a 12-minute focused revision pass. Students who memorise all 8 formulas in this pass typically score the full mark allocation in CBSE.
